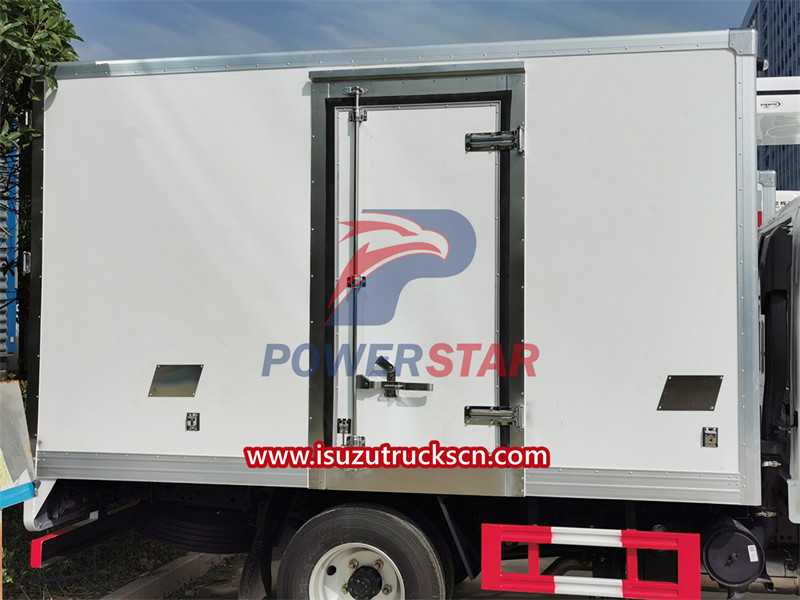

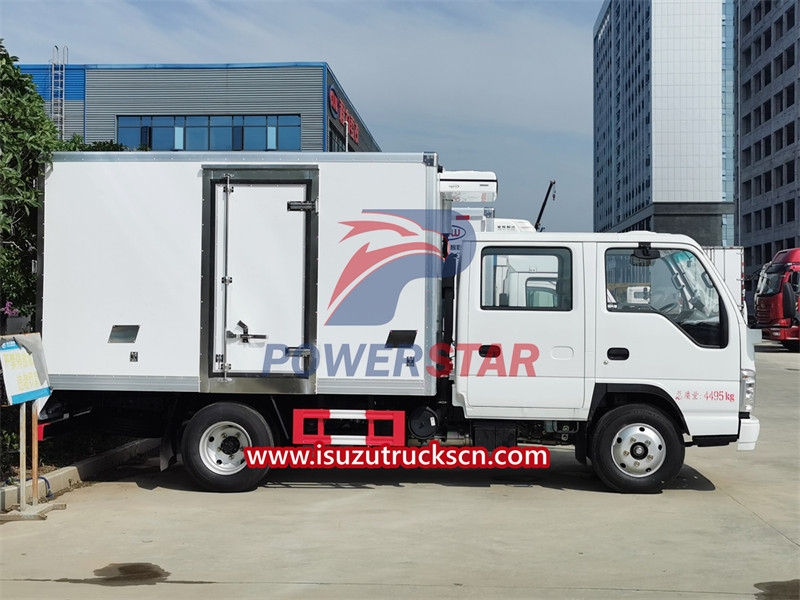

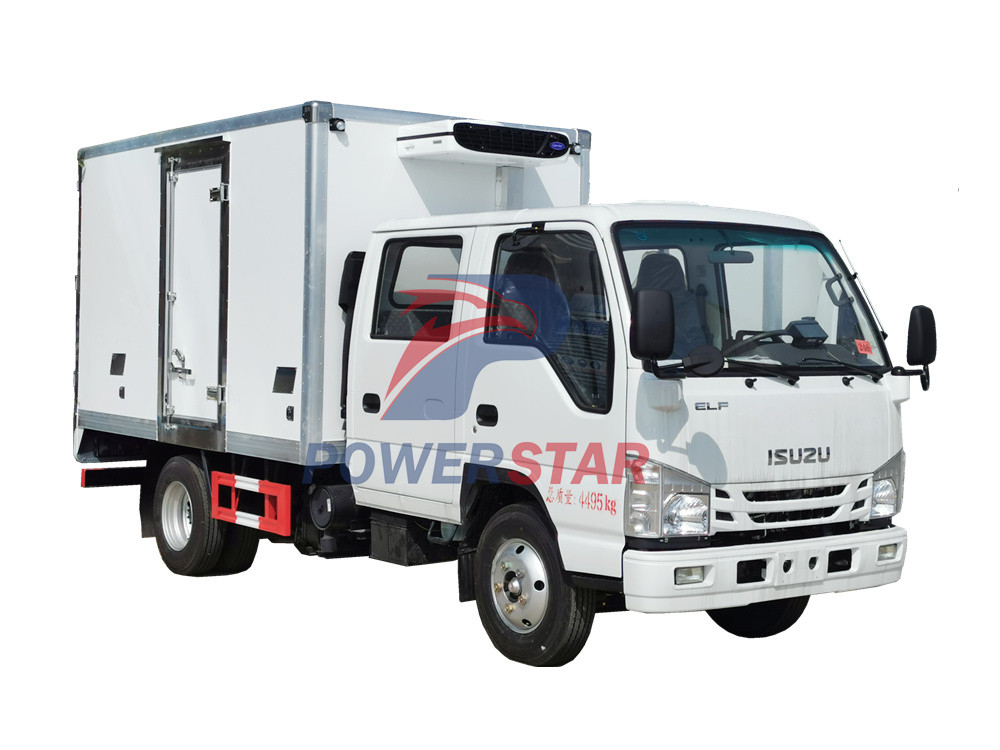

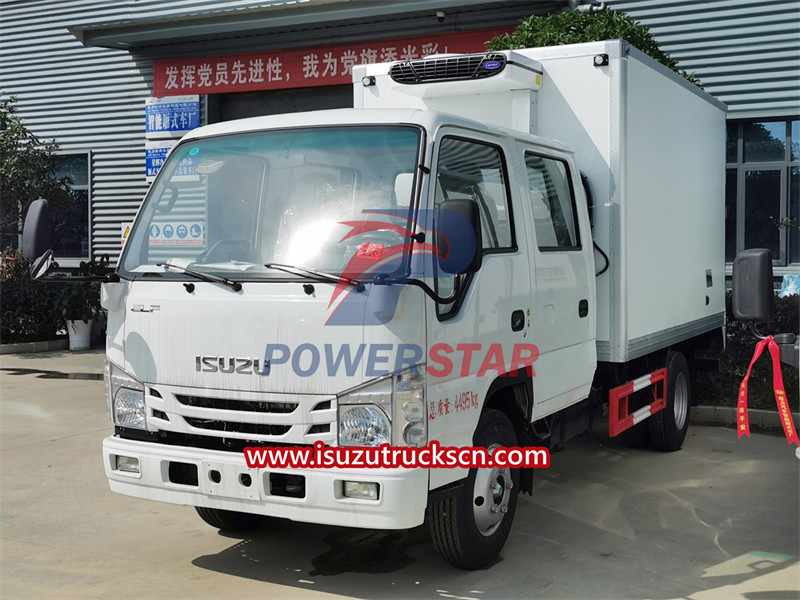

The ISUZU refrigerated truck is based on the ISUZU double-row chassis and is equipped with a CARRIER refrigeration unit. The actual volume of the cabin is 9.6 cubic meters. It adopts polyester wet plate making technology and glass fiber enlarged all-wood cabin frame structure, and uses a fully enclosed polyurethane plate bonding method. The internal and external wall panels are made of domestic high-quality fiberglass; the middle insulation material is made of thick imported polyurethane; the thickness of the freezer box body is 80mm.
Work capacity:
3 tonsTruck model:
PT5070GLC3Engine power:
98 HPEngine type:
4KH1CN5LSAxle drive:
4×2Gear box:
MSB 5-speed, manualRemarks:

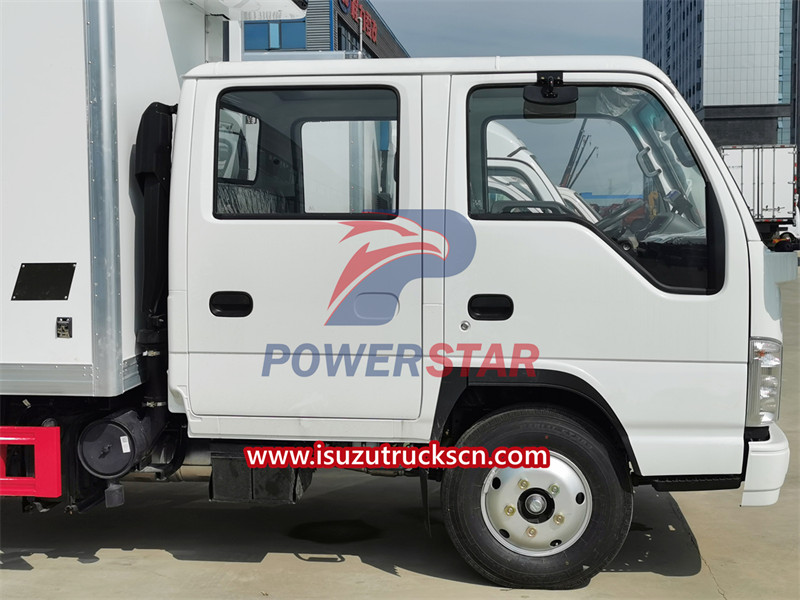

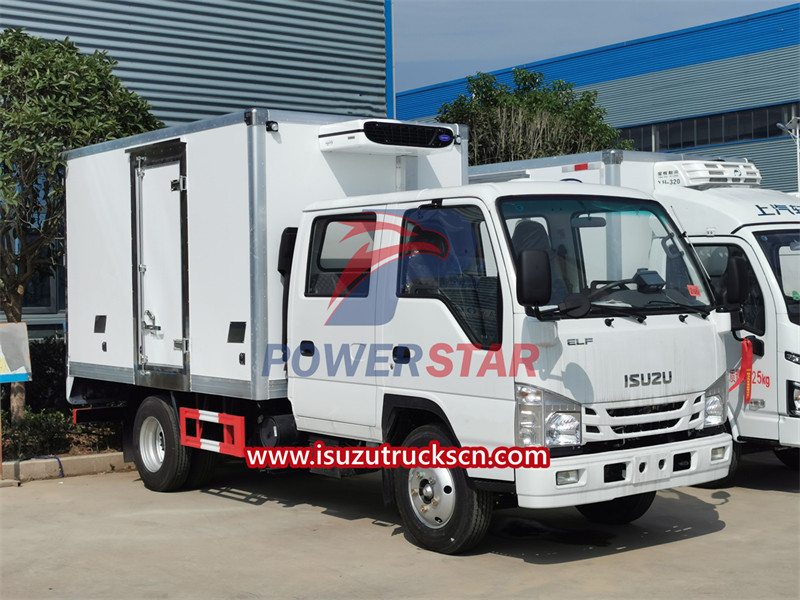

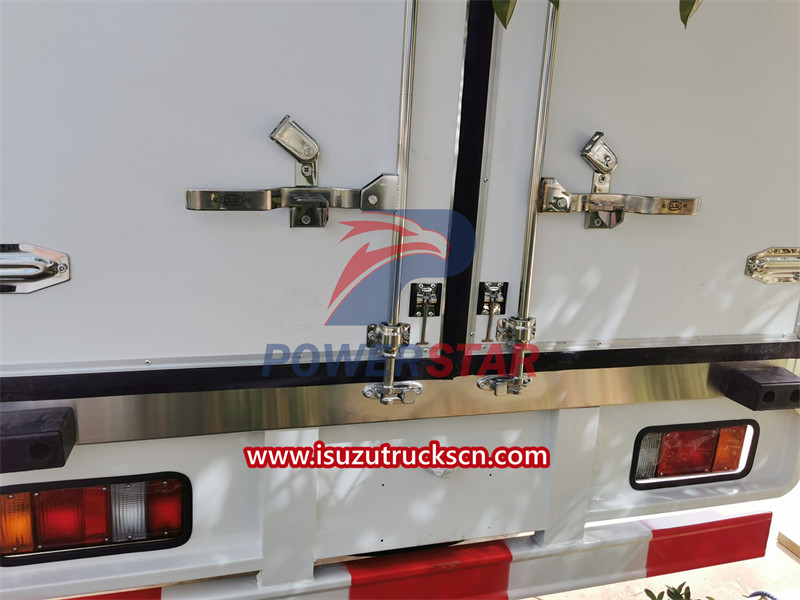

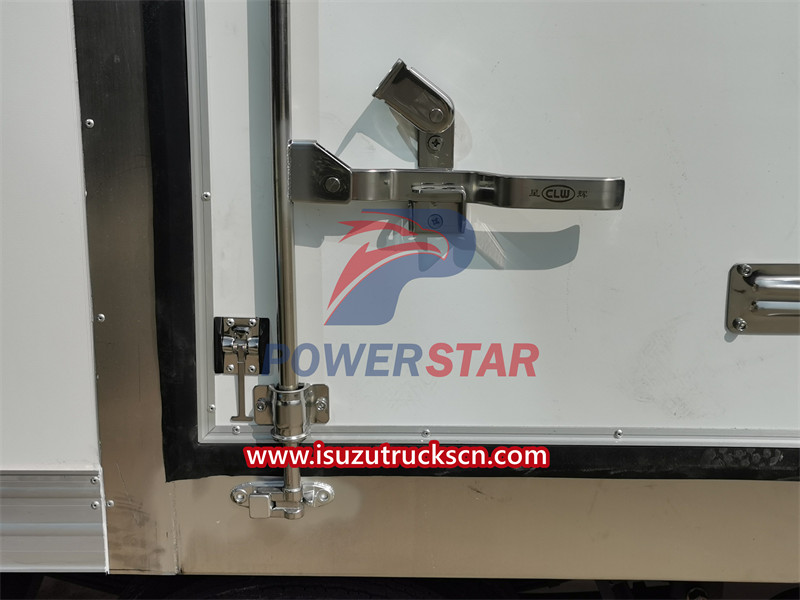

ISUZU ELF double row cabin, CARRIER refrigeration unitISUZU refrigerated truck is a transportation tool specially used to transport frozen and refrigerated goods, also called ISUZU freezer truck, ISUZU reefer truck. The ISUZU refrigerated truck adopts efficient insulation materials, refrigeration units, sealed doors and other designs, which can maintain the low temperature inside the vehicle, keep the goods refrigerated, and effectively block external heat and moisture from entering the vehicle to ensure the freezing effect of the goods. In addition, ISUZU refrigerated trucks are also equipped with a temperature control system that can adjust the temperature inside the vehicle according to the needs of the goods to ensure that the goods are not damaged.
Product Parameters
|
General Technical Parameters |
||||
|
Overall Dimension |
5990×2000×2800(mm) |
Gross Vehicle Weight |
7300(Kg) |
|
|
Curb Weight |
2800(Kg) |
Loading Weight |
4000(Kg) |
|
|
Chassis Specifications |
||||
|
Chassis parameters |
Chassis Brand |
ISUZU |
||
|
Cabin |
Single, Left Hand Driving, with A/C |
|||
|
Engine |
Model |
4KH1CN5LS, 4 Cylinders |
||
|
Power |
72KW/98HP |
|||
|
Emission standard |
EURO 5 |
|||
|
Displacement |
2.999L |
|||
|
Fuel type |
Diesel |
|||
|
Gearbox |
MSB, 5 Forward & 1 Reverse Gear |
|||
|
Front and Rear Axle load |
2.5T/4.8T |
|||
|
Wheel base |
3360(mm) |
|||
|
Overhang( Front/Rear) |
1015/1620(mm) |
|||
|
Angle(Approach/departure) |
20/16(°) |
|||
|
Brake System |
Oil brake |
|||
|
Steering Gear |
Power Assistant |
|||
|
Tire |
7.50R16, 6 Pieces with 1 Spare Tire |
|||
|
Maximum speed |
105(km/h) |
|||
|
Superstructure |
||||
|
Van |
Box size |
3150×1750×1750(mm) |
||
|
Material |
Fiberglass |
|||
|
Insulating Layer |
8cm Polyurethane Foam |
|||
|

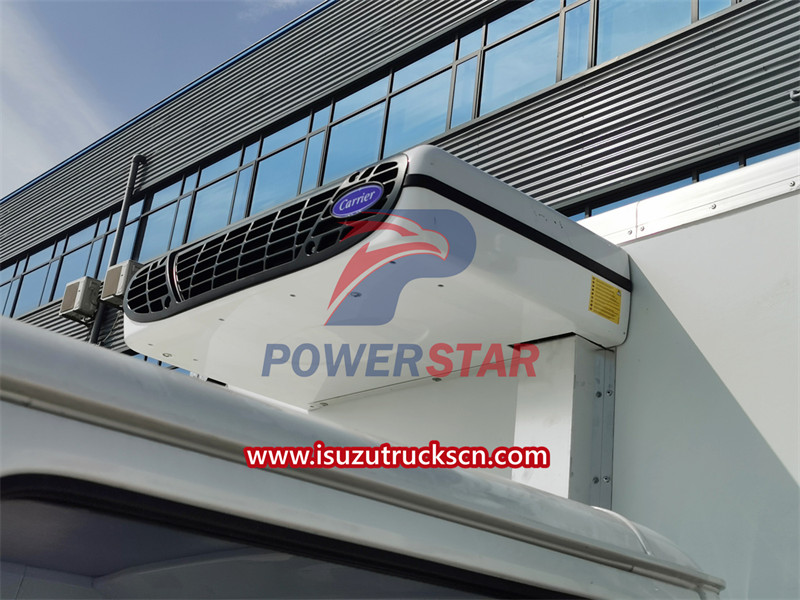

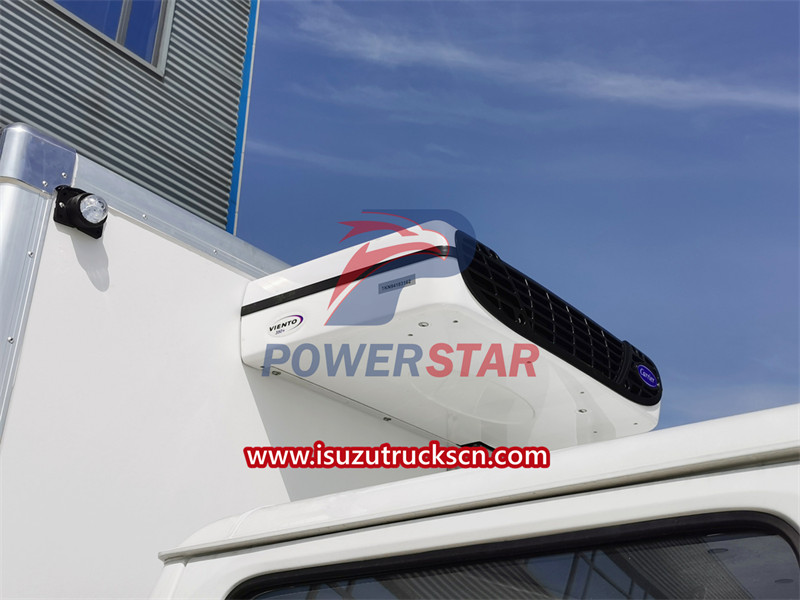

Refrigeration unit |
Brand |
CARRIER |
||
|
Model |
C1100 |
|||
|
Applicable temperature (ºC) |
-18~0 |
|||
|
Remarks |
Optional: Ventilation slot |
|||
Application areas of ISUZU refrigerated trucks:
a. Food transportation: Refrigerated trucks are mainly used in the field of food transportation, such as the transportation of perishables such as meat, fruits, vegetables, seafood, etc. By controlling the temperature and humidity in the car, the shelf life of food can be extended and the quality and safety of food can be ensured.
b. Medical transportation: Refrigerated trucks are also widely used in the field of medical transportation. Many pharmaceuticals need to be transported under low temperature conditions to maintain their efficacy and stability. Refrigerated trucks can provide a stable low-temperature environment to ensure the quality and effectiveness of medicines.
c. Biological sample transportation: Refrigerated trucks also have important applications in the transportation of biological samples. Many laboratories and medical institutions need to transport biological samples, such as blood, tissue specimens, etc., from one place to another. Refrigerated trucks can provide a stable low-temperature environment to ensure the preservation and integrity of samples.
d. Chemical transportation: Some chemicals also need to be transported under specific temperature conditions to prevent chemical reactions or deterioration. Refrigerated trucks can provide a specific temperature environment to ensure the stability and safety of chemicals.
