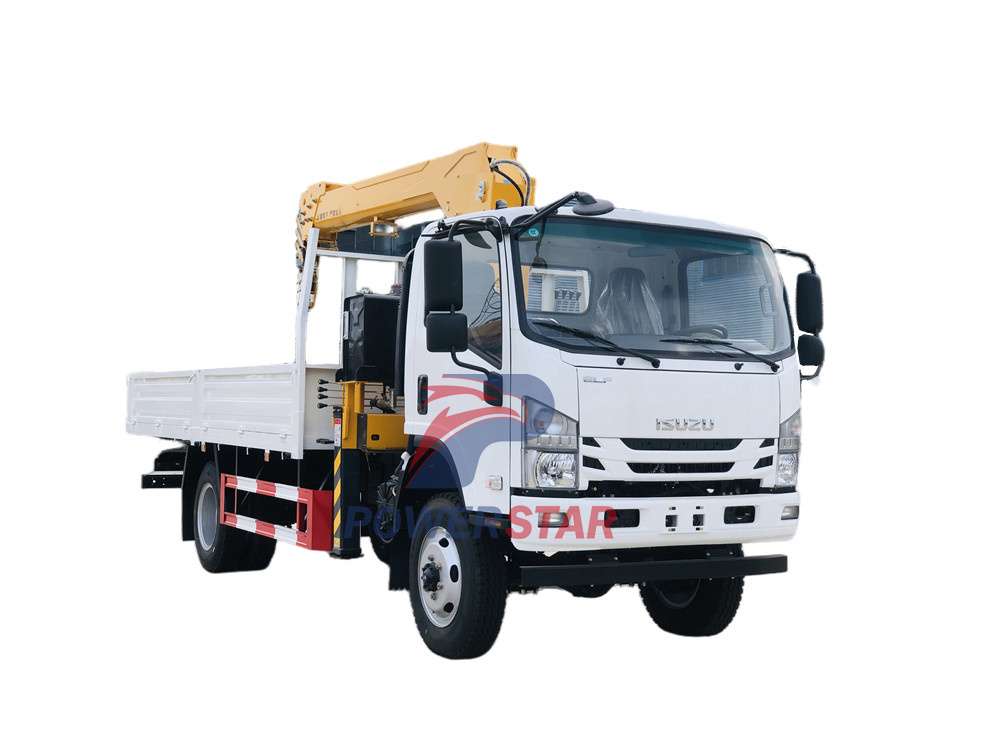

Isuzu NPR 4X4 Self loader Truck with boom crane
The Isuzu 700P all-wheel drive truck crane produced by POWERSTAR is suitable for construction, logistics, infrastructure, mining and other fields. The vehicle is modified on the Isuzu 700P all-wheel drive chassis, equipped with an Isuzu 4HK1-TCG61 190HP engine, powerful, matched with an MLD 6-speed transmission, smooth shifting, and a POWERSTAR SQ125-4 crane at the rear of the vehicle body, with large lifting capacity and reach, and a 4500*2250*550mm cargo box below, which can easily carry heavy objects lifted by the crane hook.
Work capacity:
5 tonsTruck model:
PT5100GXYEngine power:
190HPEngine type:
4HK1-TCG61Axle drive:
4x4，LHDGear box:
MLD 6-speed,manualRemarks:
POWERSTAR SQ125-4 boom craneIsuzu NPR 4x4 self loader truck with boom crane also called Isuzu 700P 4x4 off road boom crane truck,Isuzu 700P 4x4 5ton cargo truck with crane,Isuzu NPR telescopic boom truck,Isuzu 700P 4WD 5ton lorry crane truck,Isuzu 700p 4X2 5tons truck mounted straight arm crane.
The Isuzu NPR 4X4 self loader truck with boom crane is a formidable vehicle that combines rugged capability with versatile functionality, making it a workhorse in various industries. Designed with precision engineering and innovative features, this truck exemplifies Isuzu's commitment to quality and performance, catering to the demanding needs of professionals in construction, logistics, and utilities.
Features:
★ Adopt world-class lSUZU 700P Chassis, High power and Fuel efficiency, Reliability, Uptime;
★ All Structural made of High Strength Steel;
★ Easy to mount and Minimum space required for Mounting;
★ Can be Mounted Behind the Cabin or Rear Part of Load Body, thus Truck Load;
★ Optional Chassis 4x2, 6x4,8x4 and engine power;
★ Optional Crane brand: XCMG, UNIC, PALFINGER...
★ Optional Crane type: Telescopic boom crane or knuckled boom crane;
★ Radio Remote Control Available as an Optional Fitment;
Specifications
|
Isuzu 700P 4x4 boom crane truck |
||
|
Vehicle Model: |
PT5100GXY |
|
|
Chassis Dimensions and Parameters |
Overall Dimension(L x W x H) |
7400×2350x3340mm |
|
Cargo box Dimension（L x W x H） |
4500*2250*550mm |
|
|
Wheelbase: |
4175mm |
|
|
Front/ Rear Wheel Distance: |
1680/1650mm |
|
|
Front/Rear Suspension |
1110/2115mm |
|
|
Rear Axle Ratio: |
4.1 |
|
|
Approach/Departure angle: |
17/15° |
|
|
Leaf Spring: |
8/10+6 |
|
|
Weights and Capacities |
Curb Weight: |
5500kg |
|
Payload: |
5tons |
|
|
GVW: |
10550kg |
|
|
Axle Loads: |
3500/7050kg |
|
|
Engine |
Engine Model: |
4HK1-TCG61 |
|
Max output: |
139Kw |
|
|
Displacement: |
5193ml |
|
|
Horsepower: |
190HP |
|
|
Max.Torque |
507N.m |
|
|
Maximum torque speed |
1600-2600rpm |
|
|
Exhaust Gas Treatment Technology： |
DPF |
|
|
Transmission |
Transmission: |
MLD-6Q |
|
Forward Gear: |
6 Speed Gear |
|
|
Backward Gear: |
1 Speed Gear |
|
|
Brake |
Air Brake |
|
|
Generator |
24V-80A |
|
|
Max speed |
105Km/h |
|
|
Cab
|
Number of Seats: |
3 |
|
Type |
Isuzu 700P single row,with A/C |
|
|
Chassis |
Drive Type: |
4x4,LHD |
|
Tires: |
6+1(Including Spare Tire) |
|
|
Tire Model: |
235/75R17.5 |
|
|
Fuel Tank |
Number: |
1 |
|
Type: |
Diesel |
|
|
Capacity: |
100L |
|
|
Configurations: |
1 |
Power Steering System |
|
2 |
Air Conditioning |
|
|
3 |
Retro-reflective Marking |
|
|
4 |
ABS |
|
|
5 |
Free Maintenance Battery |
|
|
Crane Parameter |
Brand |
POWERSTAR |
|
Model |
SQ125-4 |
|
|
Boom type |
4 sections telescoping boom |
|
|
Max. Lifting height |
13 m |
|
|
Max lifting moment |
30 t·m |
|
|
Max. Working radius |
11 m |
|
|
Max. lifting capacity |
5000 kg |
|
|
Crane weight |
2500Kg |
|
|
Rated hydraulic pressure |
22MPa |
|
|
Rotation of turntable |
360° continuous |
|
|
Rotation of turntable |
±90° |
|
|
Outrigger |
Front H type,5000mm |
|
|
Installation space |
780 mm |
|
|
Cargo Box Dimension |
4500x2250x550mm |
|
|
Basket material |
Stainless steel |
|
Applications
The Isuzu NPR 700P 4X4 self-loading truck with boom crane is a versatile and rugged vehicle designed to meet the diverse needs of a variety of industries. This truck combines the reliability and durability of Isuzu's truck manufacturing tradition with advanced technology and features to stand out in its class. Whether on a construction site, logistics yard or industrial facility, the Isuzu truck crane allows operators to complete challenging tasks with confidence and precision.

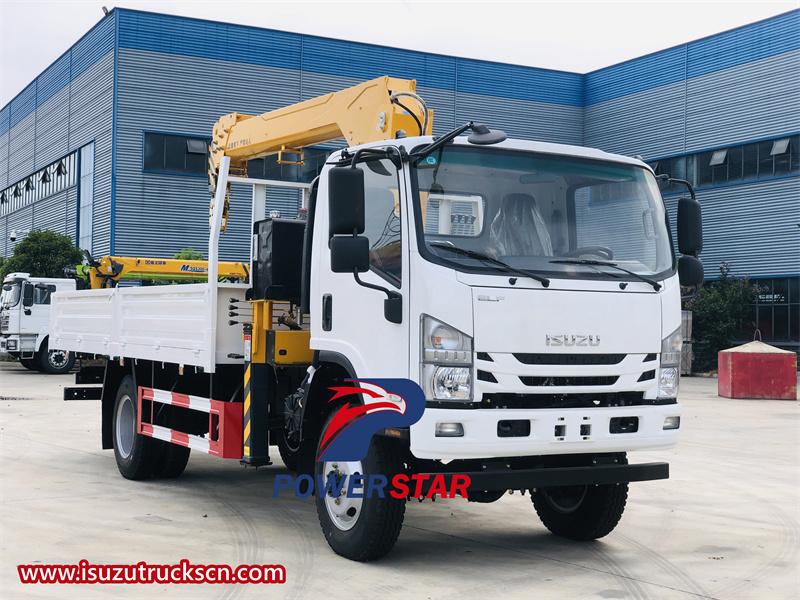

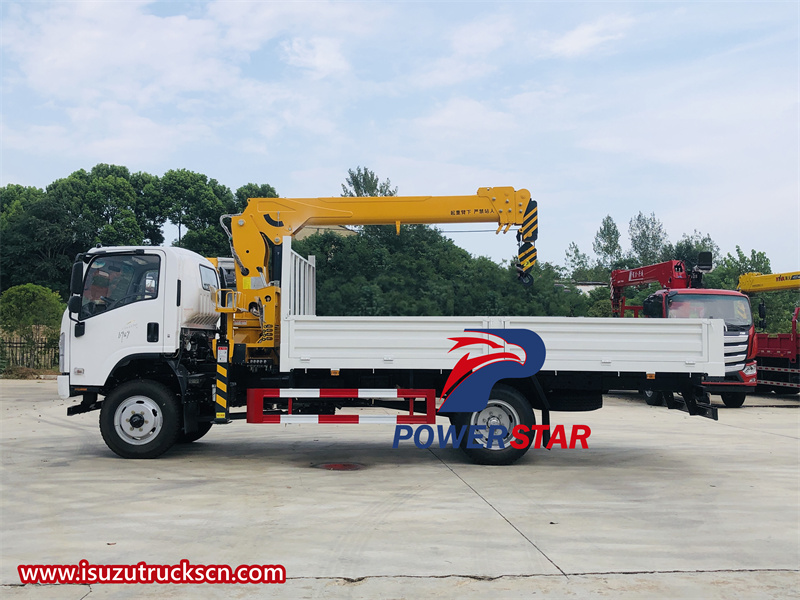

Isuzu NPR 4X4 Self loader Truck with boom crane

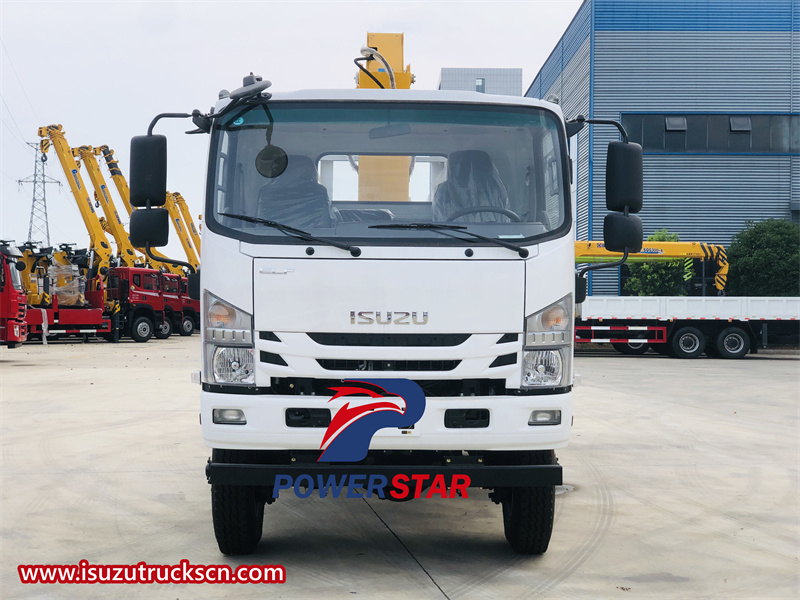

ISUZU 700P 4X4 All-Wheel Drive Chassis
The ISUZU NPR 700P 4X4 self-loading truck features the rugged and reliable 700P chassis, renowned for its ruggedness and off-road capabilities. The 4X4 configuration enhances the truck's off-road capabilities, enabling it to traverse rugged terrain and conquer challenging landscapes. Whether traversing construction sites, remote areas or uneven roads, the truck's four-wheel drive system ensures reliable performance and stability in harsh conditions. The chassis has been specially designed to provide a solid foundation for the boom crane and cargo box, ensuring the vehicle can easily handle heavy loads and demanding tasks.

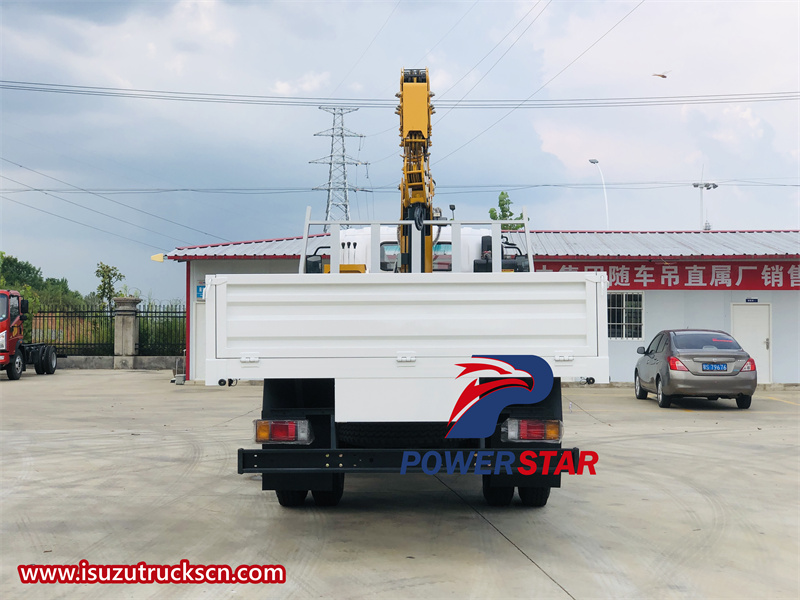

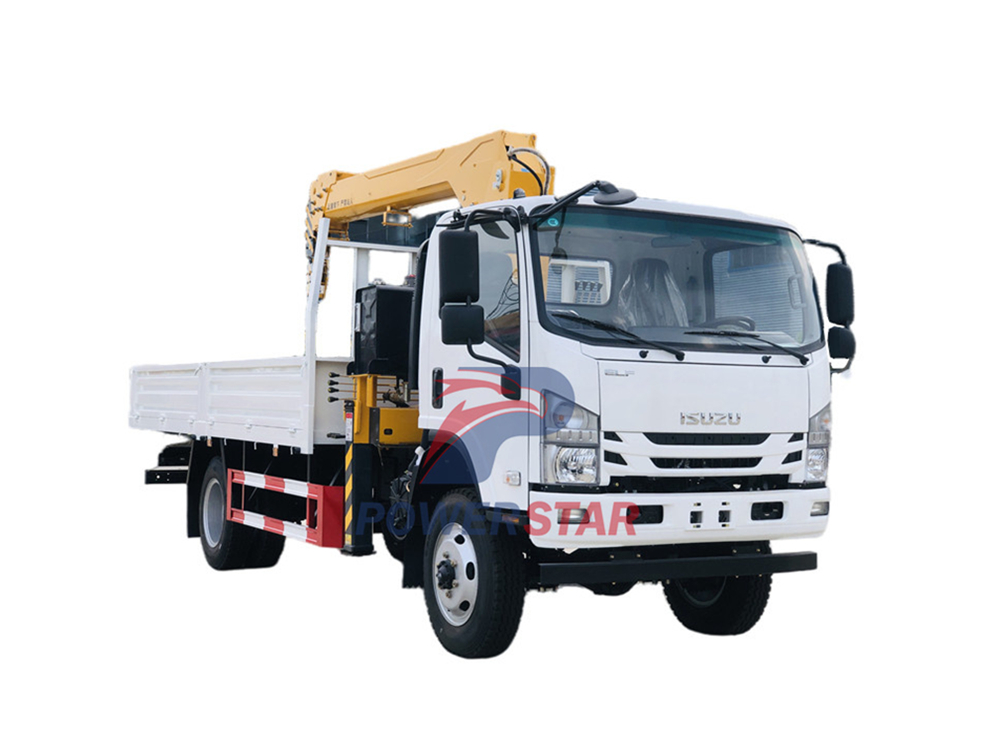

Isuzu 700P 4x4 off road boom crane truck
Cargo Box
The cargo box of the Isuzu NPR 700P 4X4 self-loader truck features a spacious and durable design, with dimensions of 4500*2250*550mm, which gives it excellent loading capacity and space utilization. The cargo box is made of high-strength steel, ensuring it can withstand the rigors of daily use and remain in good condition for years to come.
The cargo box is also equipped with an advanced self-loading mechanism, simplifying the process of loading and unloading goods or equipment. The boom crane mounted on the truck frame has excellent reach and lifting capabilities, allowing operators to handle heavy objects efficiently. The crane's articulated arm and hydraulic controls provide precise movement, allowing for delicate maneuvers during loading and unloading operations.

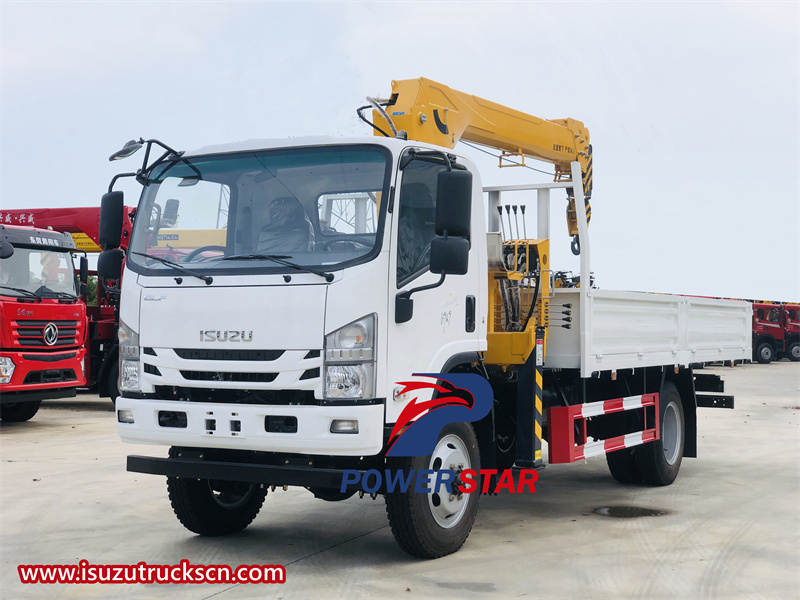

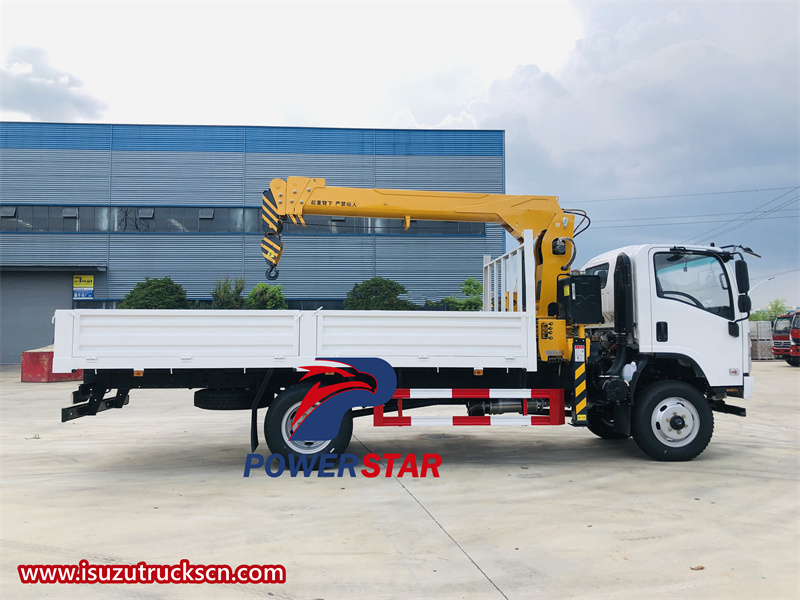

Isuzu 700P 4x4 5ton cargo truck with crane

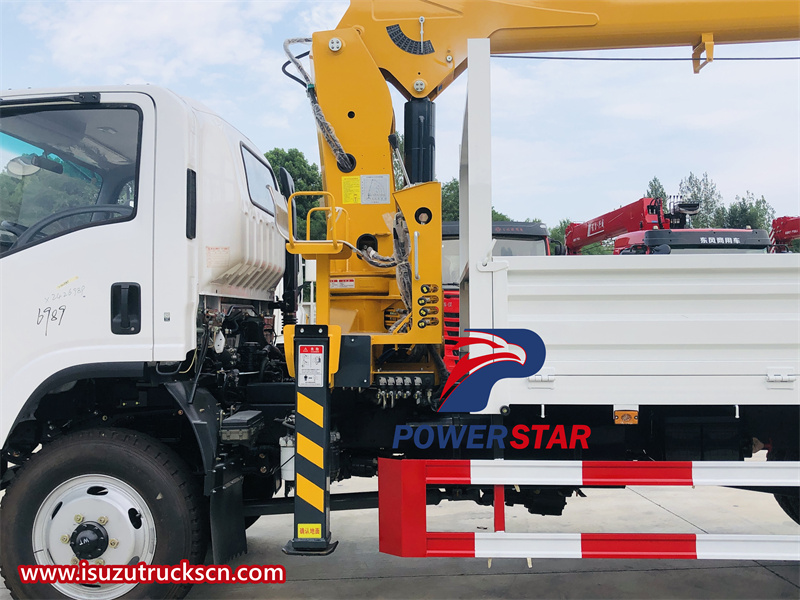

POWERSTAR SQ125-4 Boom Crane
The POWERSTAR SQ125-4 Boom Crane is the heart of the Isuzu NPR 700P 4X4 self-loader truck. Designed to handle heavy objects with ease, this powerful crane is an essential tool for a variety of applications. The crane features a telescopic boom that can be extended to reach high or hard-to-reach areas, providing maximum versatility and flexibility.
The crane features a 4-section straight boom structure with a longer reach and higher working height. This design allows the crane to easily reach further work areas while maintaining stable operating performance. Whether lifting heavy objects or working at height, precise and safe operations can be achieved.

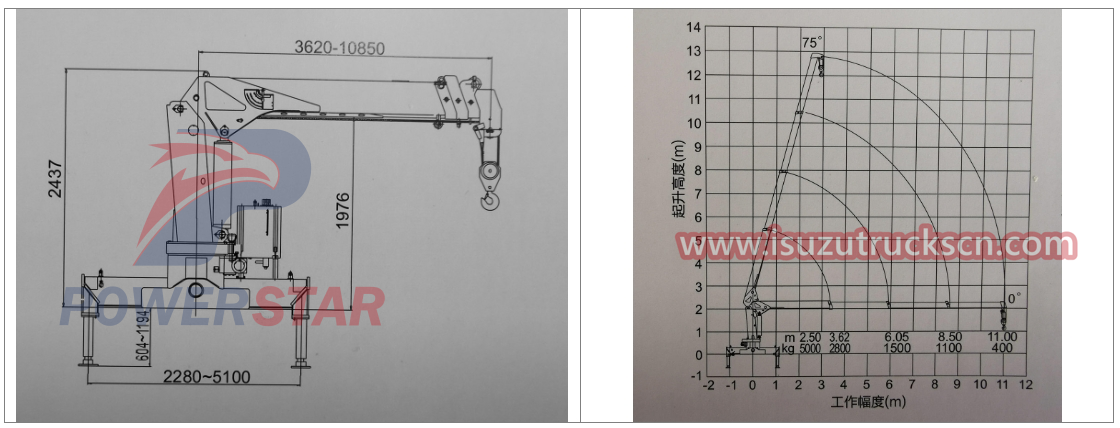

Technical drawing of POWERSTAR SQ125-4 strsight boom crane

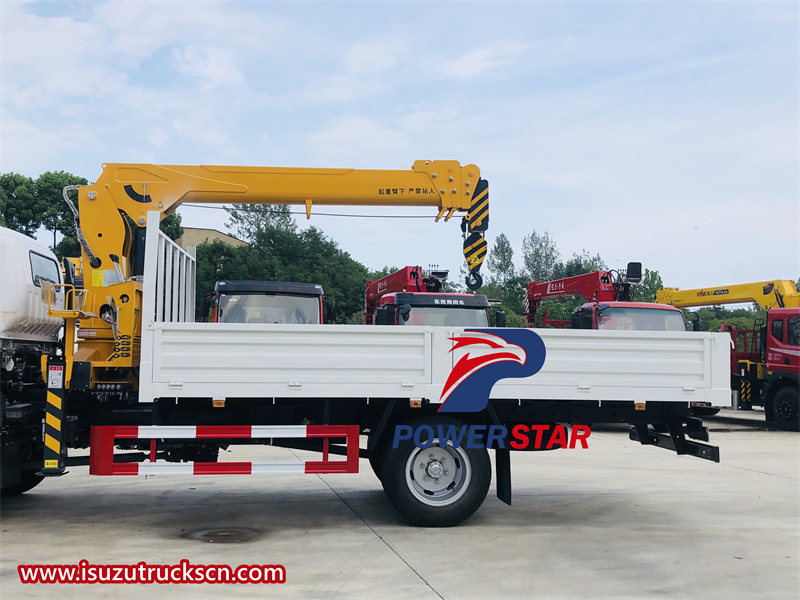

Cargo box and SQ125-4 boom crane
Utility and Versatility
Its self-loading mechanism simplifies the process of transporting and handling heavy equipment, machinery, vehicles or materials, reducing physical labor and improving operational efficiency. The flexibility and accessibility of the boom crane enables operators to access hard-to-reach areas and perform precise lifting and positioning tasks with ease.
On construction sites, the truck's boom crane is useful for tasks such as lifting and placing building materials, scaffolding and machinery, streamlining the construction process and increasing productivity. In logistics and transportation operations, the truck's capabilities make it an indispensable asset for loading and unloading cargo quickly and efficiently, reducing turnaround time and improving overall logistics efficiency.

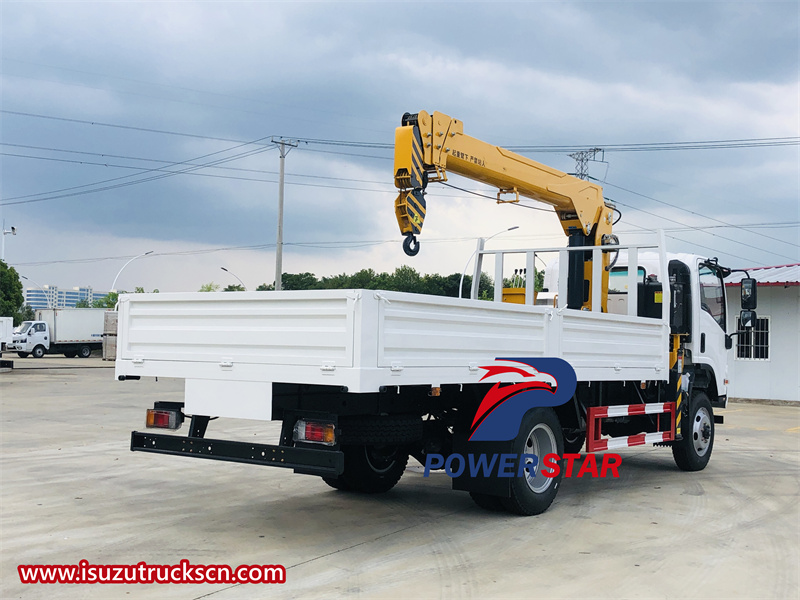

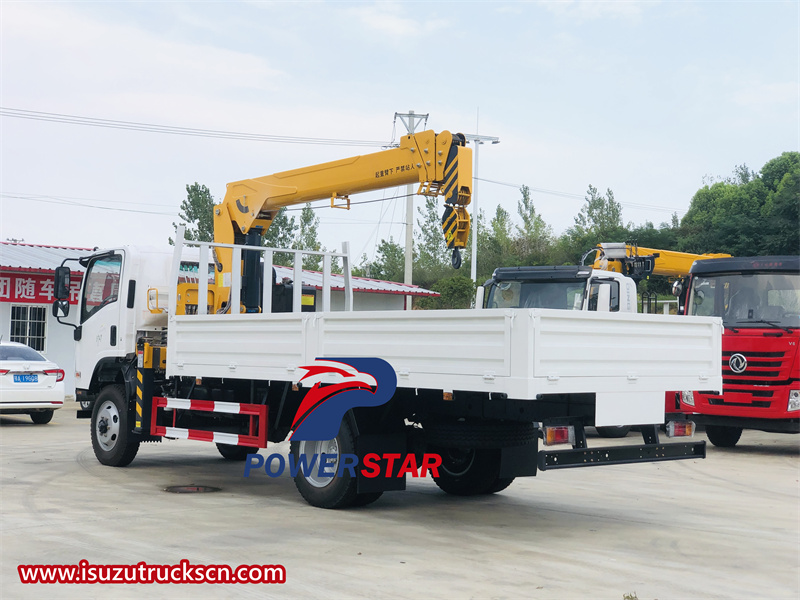

Isuzu NPR telescopic boom truck
Isuzu 700P 4WD 5ton lorry crane truck

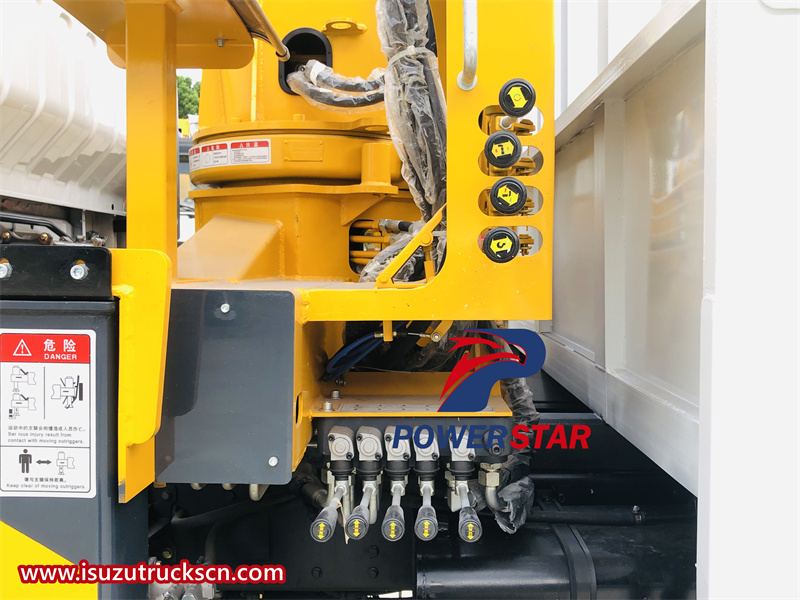

Rotating mechanism and Outriggers
Joystick
