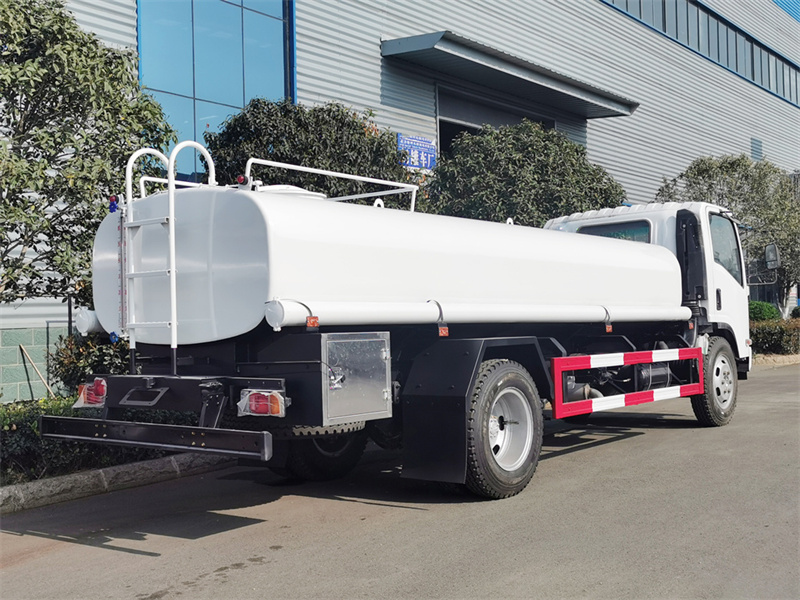

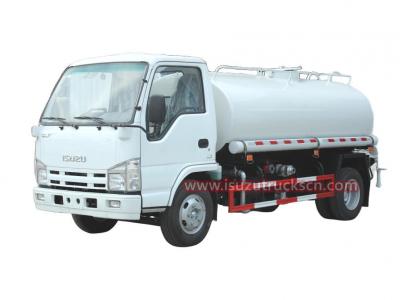

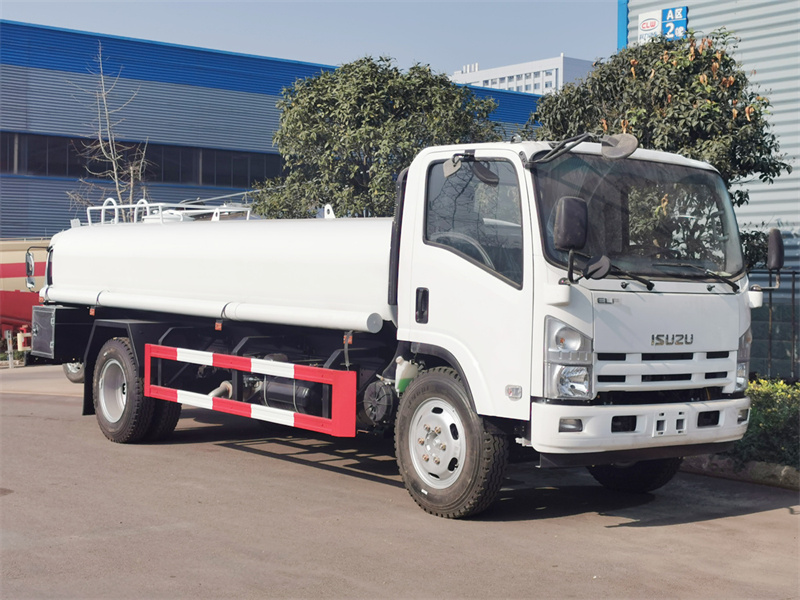

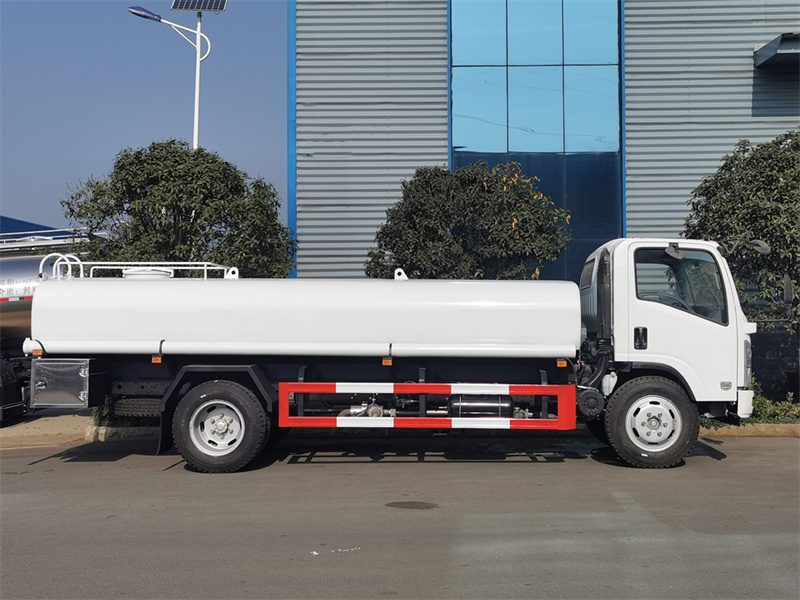

Isuzu drinking water truck is a professional automotive equipment mainly used for transporting safe drinking water. Isuzu drinking water trucks can be used for natural disasters and emergency relief. In natural disasters such as earthquakes and floods, water supply systems are often damaged, making it difficult for residents to provide water. Drinking water trucks can provide a large amount of clean drinking water to meet the basic living needs of disaster-stricken people and provide reliable logistical support for rescue efforts.
Work capacity:
8000 LitersTruck model:
PT5100GJY08FEngine power:
190 hpEngine type:
4HK1-TCAxle drive:
4×2Gear box:
MLD 6-speed, manualRemarks:
4X4 drive, RHD drive avaiable
Isuzu portable water tanker is a specially designed vehicle that can efficiently transport and distribute water to various locations. Isuzu portable water tanker primary purpose is to meet the water supply needs in areas where access to clean water is limited or unavailable, such as construction sites, remote villages, disaster-stricken areas, and events.
The Isuzu portable water tank's portability allows it to navigate through challenging terrains and narrow roads, ensuring that water can be delivered to even the most difficult-to-reach locations. Isuzu portable water tanker is equipped with a reliable pumping system that enables the tanker to draw water from various sources, including lakes, rivers, or artificial reservoirs.
The Isuzu portable water tank's large capacity allows it to carry a substantial amount of water, usually ranging from 5,000 to 20,000 liters, depending on the model. This enables the vehicle to supply a significant volume of water, making it suitable for a wide range of applications. It can be used for everyday purposes, such as providing water for household use, agriculture, livestock, or firefighting activities.
During emergencies or natural disasters, the Isuzu portable water tanker plays a crucial role in providing immediate relief by delivering clean drinking water to affected areas. Its ability to quickly respond to changing water needs makes it an essential asset for disaster response teams and humanitarian organizations.
Product Parameters:
Isuzu NPR potable water tanker trucks water wagon Sprinkles water bowser standard configuration: former blunt sprinkling, take lateral jet after sprinkled with tank after, after work platform, platform after install greening sprinkling, guns regt can rotate 360 degrees, but even after adjusting heavy rain, rain, drizzle, mist shape, straight strong shape, range 30 meters. Take self-priming, since row function, take fire interface, with their valves, install screen.
| Chassis Specification | ||||
| Driving Type | 4*2 Left hand driving | |||
| Max Speed (km/h) | 110 | |||
| Overall Dimension (mm) | 7780*2300*2880 | |||
| GVW (kg) | 10000 | |||
| Truck Tare Weight (kg) | 5200 | |||
| Wheelbase (mm) | 4175 mm | |||
| F/R track base (mm) | 1680/1650 | |||
| Spring | 8/10+6 | |||
| Tire | 8.25R20 | |||
| Clutch | Single-plate dry diaphragm spring clutch | |||
| Steering | Hydraulic steering with power assistance | |||
| Gear Box | ISUZU MLD 6-shift |
|||
| Bridge | Front axle | 4000kg load-bearing | ||
| Rear axle | 7000kg load-bearing | |||
| Engine | Brand | ISUZU |
||
| Model | 4HK1-TC | |||
| Fuel Type | Diesel fuel | |||
| Emission Standard | Euro 5/6 | |||
| Type | Water-cooled four-stroke,, direct injection, turbocharged | |||
| Exhaust (ml) | 5193 | |||
| Max output power/rotate speed (hp /rpm) | 140/2600 | |||
| Max torque/rotate speed (N.m/rpm) | 510/1600 | |||
| Upper Parts Specification | ||||
| Sprinkler | front, side, rear three sprinklers | |||

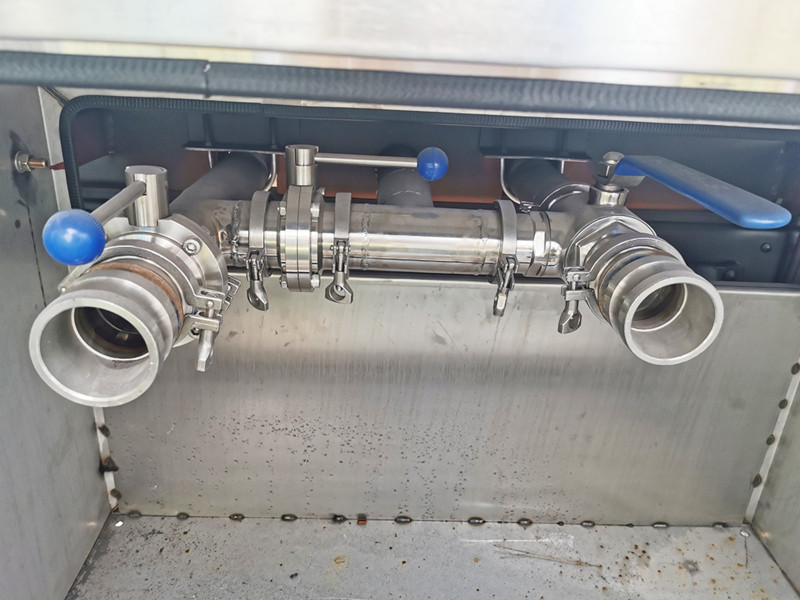

| Valves | Fire valve and water valve | |||
| Tank shape | Ellipse | |||
| Material of tanker | 5mm food grade stainless steel 304-2B |
|||
| Color of the tanker | According your demands | |||
| Special function | Rating speed | 1450r/min | ||
| flux | 60m³/h | |||
| self-suction height | 7.5m | |||
| sprinkler width | ≥14m | |||
| the range | when adjusted column,the range ≥30m | |||
| when adjusted fog, the range≤15m | ||||
| Introduction of function | front rise and back sprinkler, side spray, with working platform at back of truck, with high pressure gun, which can be adjusted according to requirement, and assemble the high quality watering pump, with fire fighting connection and overflow valve, with self-suction function. | |||

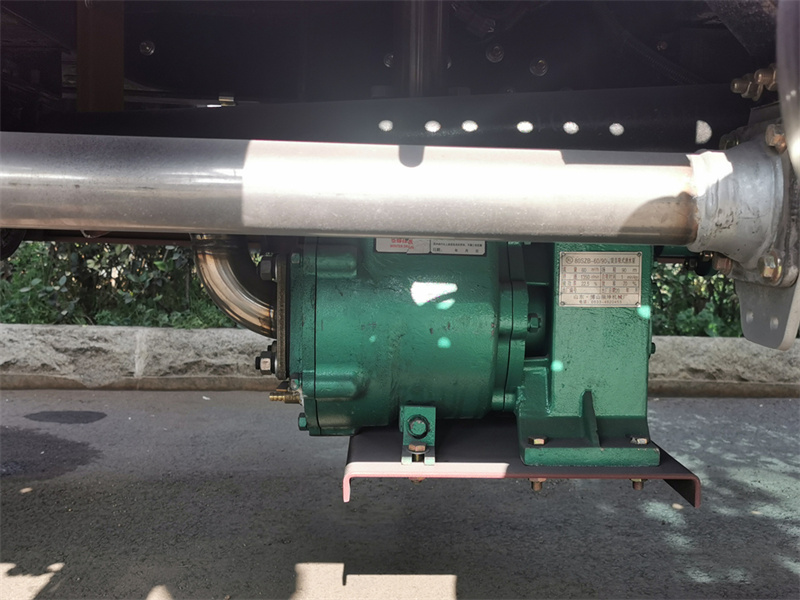

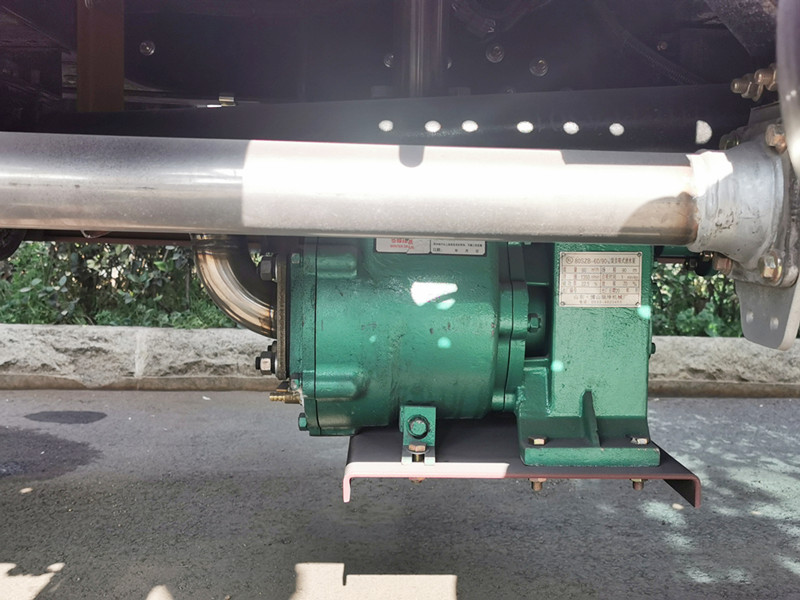

| Fittings | PTO water pump | |||
| One Manhole | ||||

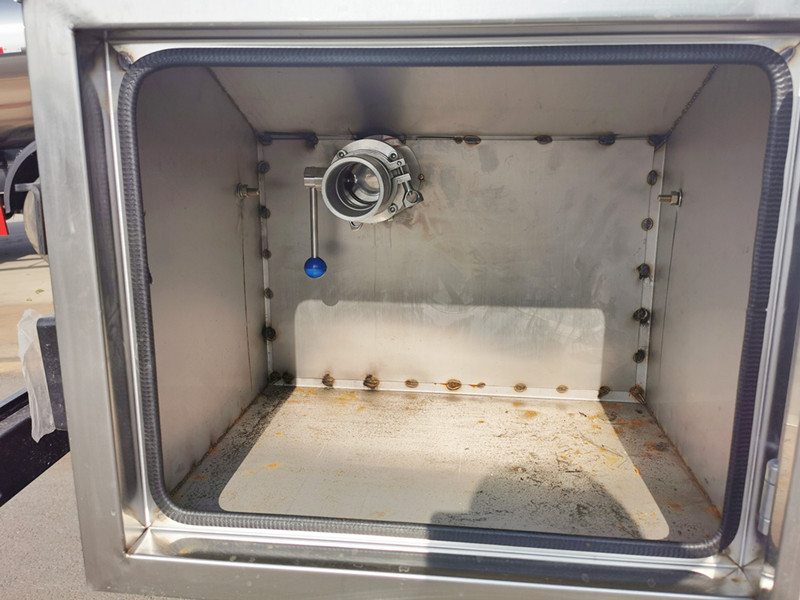

| water hose box fitted on both side of tank | ||||
| One spare tyre | ||||
| Ladder: For access to top of tank complete with cat walk on top of tank | ||||
| Heavy-duty rear bumper | ||||
Isuzu drinking water truck is a professional automotive equipment mainly used for transporting safe drinking water. It has many uses, and its main uses are divided into four points below.
1. Isuzu drinking water trucks can be used for natural disasters and emergency rescue. In natural disasters such as earthquakes and floods, water supply systems are often damaged, making it difficult for residents to provide water. Drinking water trucks can provide a large amount of clean drinking water to meet the basic living needs of disaster-stricken people and provide reliable logistical support for rescue efforts.
2. The vehicle can be used for water supply in sparsely populated or resource-poor areas. In some remote areas, it is relatively difficult to build water supply systems due to factors such as inconvenient transportation and harsh natural conditions. Isuzu drinking water trucks can solve the drinking water problems in these areas through mobile water supply and meet the water needs of local residents.
3. Isuzu drinking water trucks can also be used to ensure water supply for large-scale events. In large outdoor events, concerts, sports games and other occasions, participants usually require large amounts of drinking water. Drinking water trucks can provide large-capacity drinking water on site to meet the needs of participants and ensure the normal conduct of the event.
4. The vehicle can also be used for temporary water supply in supplier communities, camps, construction sites and other places. In some situations where temporary water supply is required, such as camps, construction sites, etc., Isuzu drinking water trucks can flexibly provide the required drinking water to meet the needs of relevant personnel.
6,000L Japan Isuuz NPR Stainless steel drinking water tank trucks are designed for transporting and supplying potable water. These Isuzu potable water trucks are made of high-quality food grade stainless steel, ensuring durability and resilience even in demanding conditions. Stainless steel tanks can have a service life of 20+ years, making them a long-lasting investment
Learn More
Custom Isuzu Potable Water Service Truck, 5000Liters ISUZU Drinking Water Tank Truck, ISUZU Water Tanker Stainless Steel Potable Water Truck For Sale ,
Learn More
Manufacturer 4X2 ISUZU ELF NPR 6 Cubic Stainless Steel Drinkable Potable Water Truck. Based On Isuzu NPR truck chassis, Isuzu 4HK1-TC 190HP engnine, we are the official 4X2 3-30CBM ISUZU NKR NPR Stainless 304 316 Water Delivery Truck Shower Water Bowser Sprinkler Drinking Water Transport Truck
Learn More

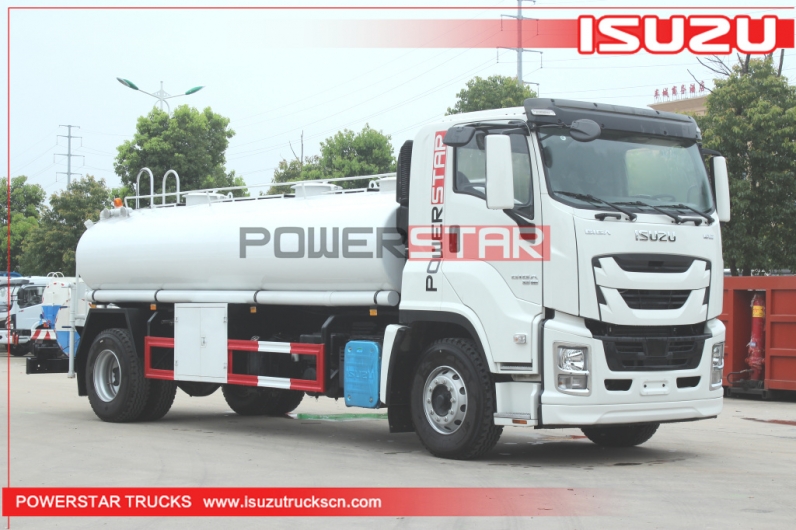

Japan ISUZU GIGA Food Grade Stainless Steel 12000liters 12m3 Drinking Water Truck for Sale
