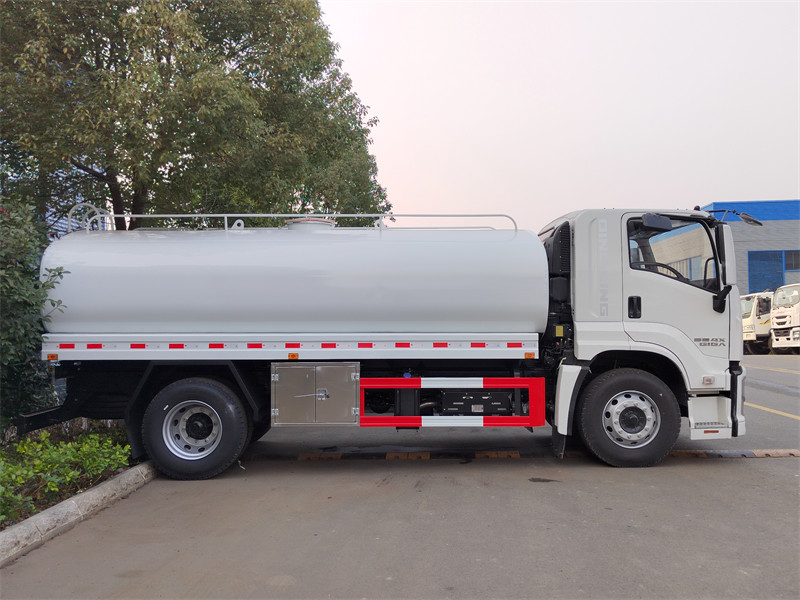

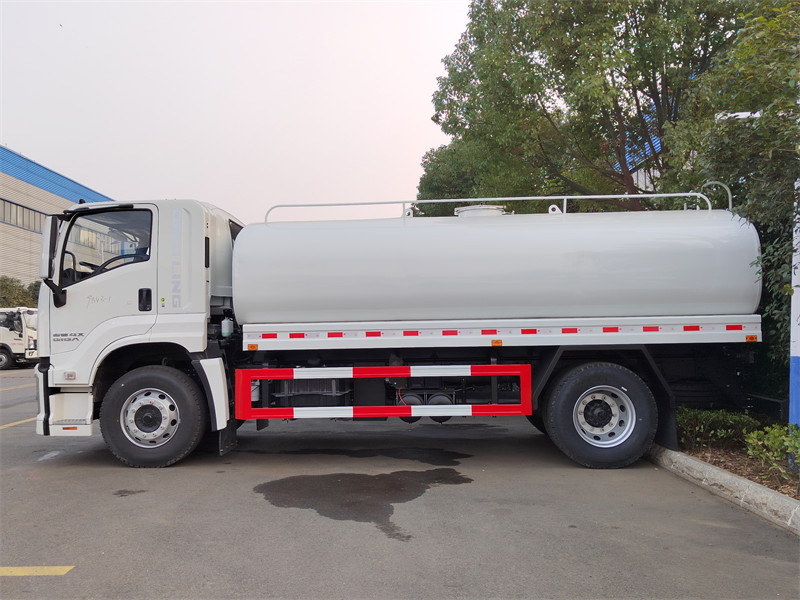

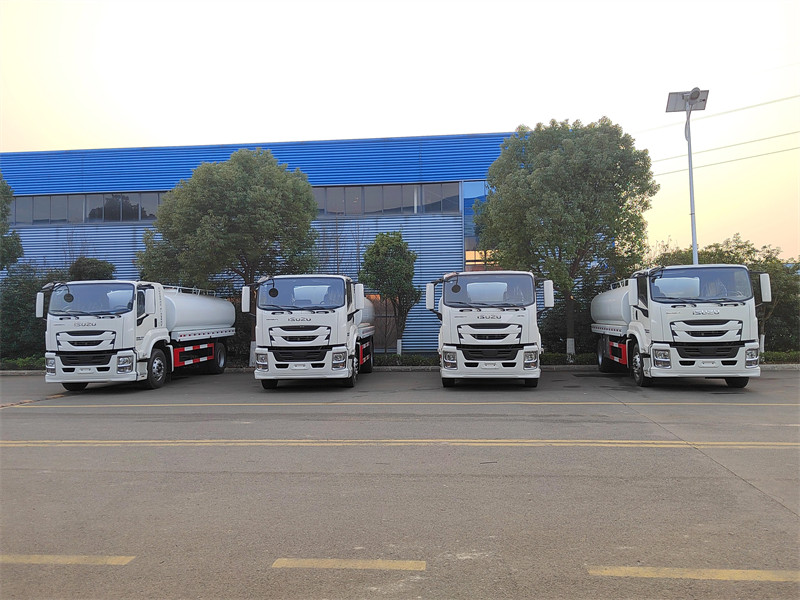

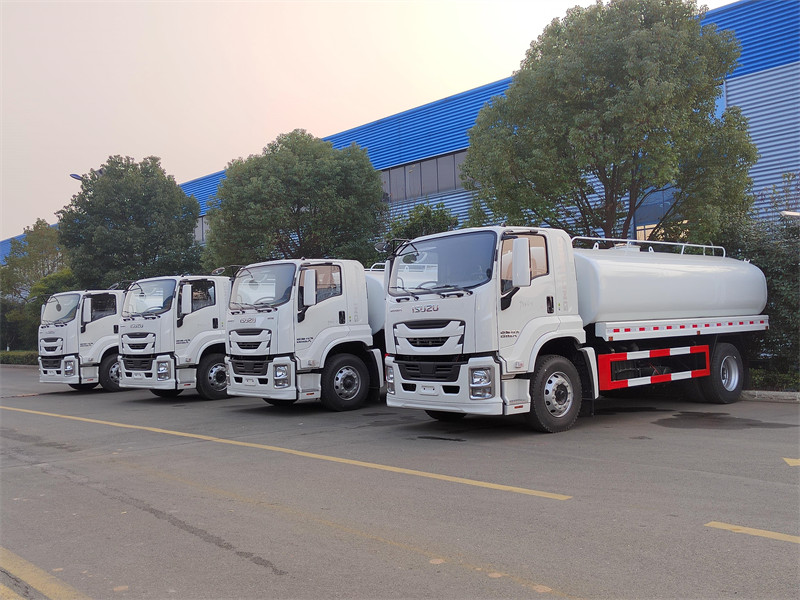

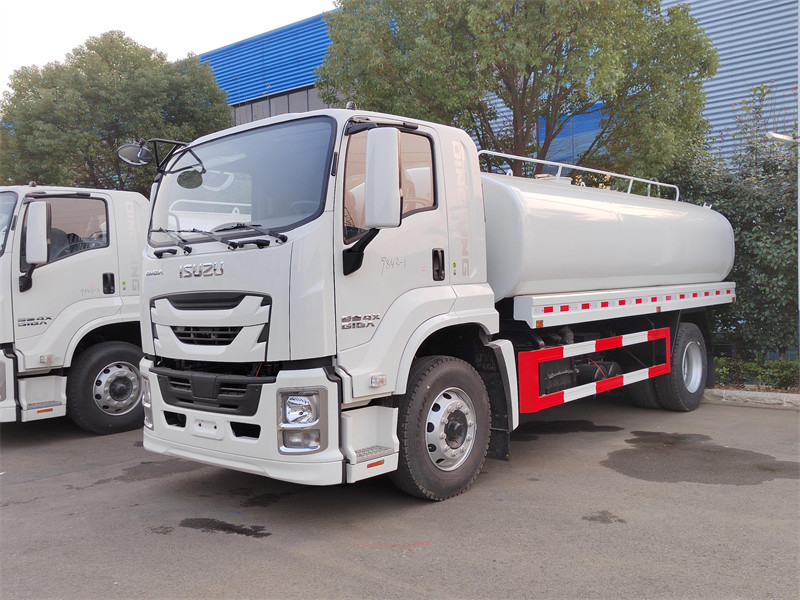

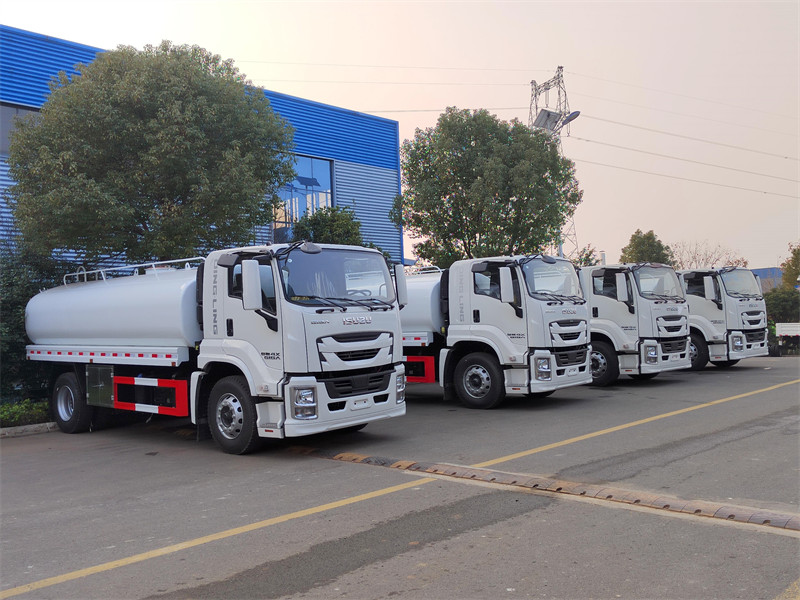

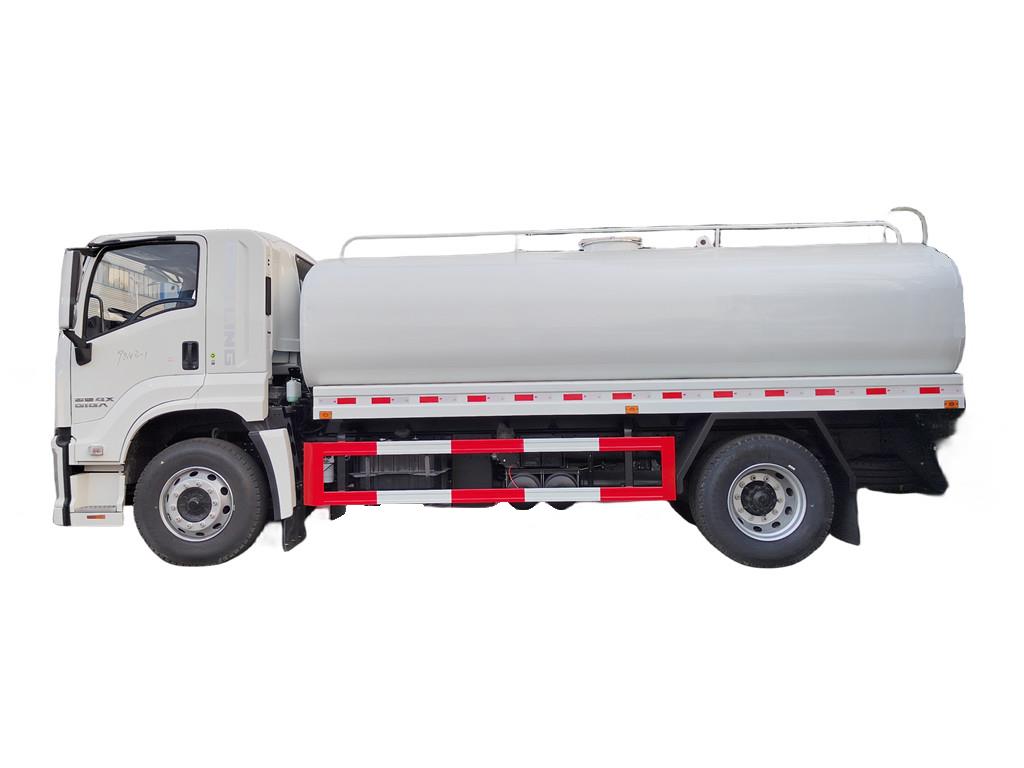

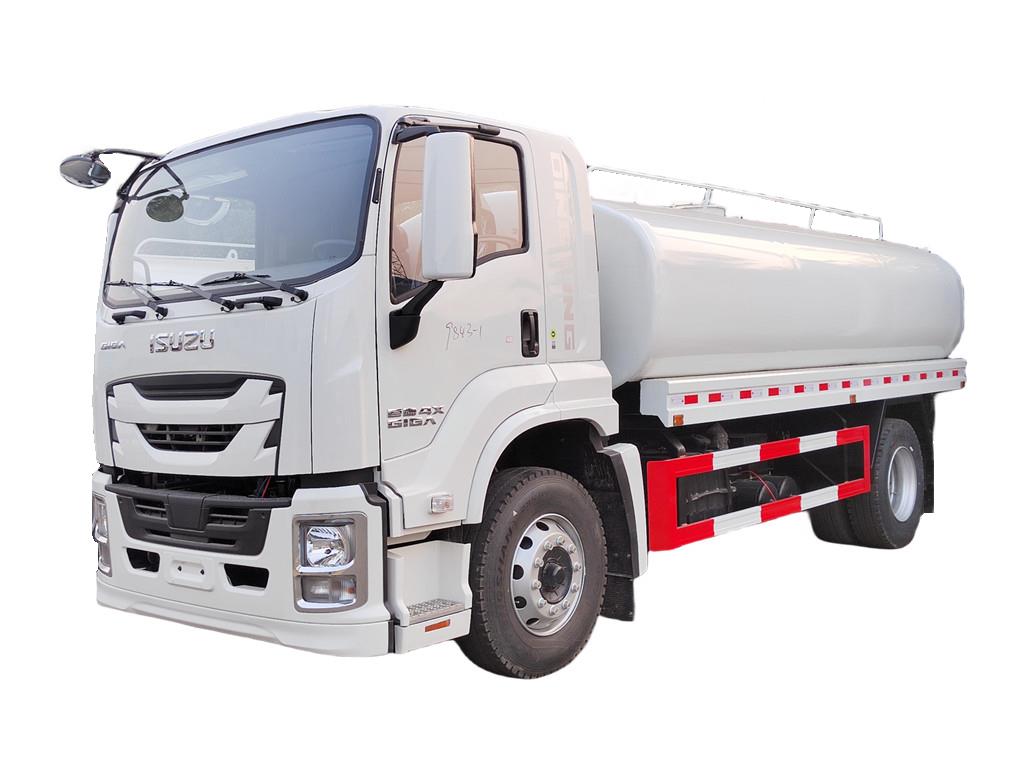

The Isuzu GIGA drinking water truck is produced based on ISUZU GIGA 4x2 truck chassis, mounted with food grade stainless steel material oval shape water tanker, with tanker capacity can be up to 12000liters, the giga potable water tank of the whole vehicle is 2-3 compartments, the lower end of the middle diaphragm is provided with a through hole, and the tank is equipped with anti swing and anti wave diaphragm. The diaphragm in the tank has the function of anti wave, so as to reduce the impact of the liquid in the tank when the vehicle is driving. The surface shall be coated with antirust paint and decorative paint.
Work capacity:
12000 LitersTruck model:
PT5220GSSEngine power:
350 hpEngine type:
6UZ1-TCG61Axle drive:
4x2Gear box:
FAST 12-shift manualRemarks:
Food grade stainless steel material 304-2B with volume 12000liters
Water truck also
called Isuzu giga water tank truck, water spray truck, water transport truck,
water hauling truck, clean water truck, truck tanker for drinkable water
tanker, water tanker for truck is used to transport and supply water,
whatever industrial or agriculture water, widely used in construction
engineering, farm irrigation, drought relief, etc.
With
non-toxic treatment inside tank or tank made of food grade stainless steel 304-2B, the
water tank truck can be suitable for transporting drinking water, called
as Isuzu giga potable water tanker, drinking water tanker, stainless steel water
tanker to human body. Water
tanker can also be equipped with special sprayers to achieve front
flush, rear sprinkle, side spray, to sprinkle and clean the roads,
streets for environmental sanitation and protection, called as water
sprinkler, water spray truck. With
rear working platform and high cannon, Water truck can be also equipped
with pesticide spraying machine, to be used to spray pesticide in
agriculture pest control field.
Details for ISUZU GIGA 12000Liter drinking water truck:
TECHNICAL SPECIFICATION
Main specification
Chassis brand
ISUZU
Chassis model
GIGA
Overall dimension(L*W*H)
8045x2500x3200mm
Chassis
Drive modle
4*2, left hand drive
Wheel Base
4600 mm
Front Axle loading capacity
6300kg
Rear Axle loading capacity
13000kg
Tyre size
295/80R22.5, with one spare tyre
Engine
BRAND
ISUZU
Engine horse power
350hp
Engine emission standard
EURO 6
TANKER PARAMETERS
Tank
Volume of water tank
12000L
Tank thickness
4mm
Material
stainless steel
Compartment
3, with internal waves baffles
Manhole
3
Water Pump
Model
gasoline water pump
Water hose
20M
Nozzle
with adjustable nozale
|
Model
|
Rate of flow
|
Throw of pump
|
|
80QSB-60/90
|
60
|
90
|
|
65QSB-30/45
|
30
|
45
|
|
65QSB-50/110
|
50
|
110
|
There are two cylindrical sprinklers on the rear side of the vehicle. Slot nozzle Angle and the ground into about 15 degrees its function is mainly to the road sprinkler and dust. The coverage width is 14-18 meters.
4. High pressure water cannon:
6.3 The rotary 3-inch artesian pipeline is used to irrigate the green space beside the highway.
6.4 Showerhead sprinkler: spray young plants, flowers and other delicate plants. It neither washes the soil surface nor damages the seedlings.
6.5. Add the dosing system: reel, hand - held spray gun, rubber hose
Advanced Features for ISUZU GIGA 12000Liters drinking water truck:
