Isuzu NKR 16 meter aerial bucket truck
The Isuzu NKR 16-meter aerial bucket truck stands as a specialized vehicle designed to meet the heightened needs of elevated tasks across various industries and service sectors. Combining Isuzu's renowned reliability with a purpose-built aerial lift system, this vehicle offers a versatile solution for maintenance, utility work, construction projects, and other tasks requiring safe and efficient access to elevated locations.
Work capacity:
16mTruck model:
PT5070GWQEngine power:
120HPEngine type:
4KH1CN6LBAxle drive:
4x2,LHDGear box:
MSB 5-speed,manualRemarks:
High working height,360° working angle.
Isuzu NKR 16 meter aerial bucket truck also called Isuzu 100P aerial platform truck,Isuzu 100P 16m aerial ladder truck,Isuzu NPR bucket truck,Isuzu NPR 100P telescopic platform truck,Isuzu 100P aerial work vehicle. The Isuzu NPR 100P aerial work vehicle is a multi-purpose vehicle equipped with a 16-meter aerial work platform. It combines the reliability of Isuzu trucks with a dedicated system for aerial work needs. With a stable chassis and precise hydraulic system, it is easy to operate, safe and reliable. It is suitable for high-altitude work tasks such as tree pruning and telecommunications maintenance. The vehicle design takes into account the safety and comfort of the operators, and can be flexibly adjusted to narrow areas, improving work efficiency and reducing operational risks.
Isuzu 100P 16-meter aerial work vehicle is a professional equipment that integrates efficiency, stability and safety. The vehicle adopts a three-section ftelescopic arm structure, a dual-position design of the working bucket and turntable, supports up and down operations and 360-degree rotation, which greatly improves the flexibility and coverage of operations. It is equipped with four H-type hydraulic outriggers to ensure stability and safety during operation. The rated load of the working bucket is 200 kg and can carry two operators.
At the same time, the hook system can be optionally installed, and the maximum lifting capacity meets a variety of operational needs. The power system is equipped with Isuzu's high-performance engine and an advanced hydraulic transmission system to achieve smooth switching and convenient operation. Overall, Isuzu 100P 16-meter aerial work vehicle is a capable assistant in the field of aerial operations, and is widely used in electrical line maintenance, high-altitude cleaning, tree pruning and other scenarios.
|
Isuzu NKR 100P 16 meter aerial bucket truck |
||
|
Vehicle Description |
||
|
Overall dimensions |
5995*1990*3070mm |
|
|
GVW |
6850kg |
|
|
Curb weight |
4365kg |
|
|
Chassis brand |
Isuzu |
|
|
Traction type |
4X2 |
|
|
Up-parts specification |
||
|
Arm |
Model |
3-section folding arm |
|
Max working height |
16m |
|
|
Elevation angle |
-12°～80° |
|
|
Working angle |
360° |
|
|

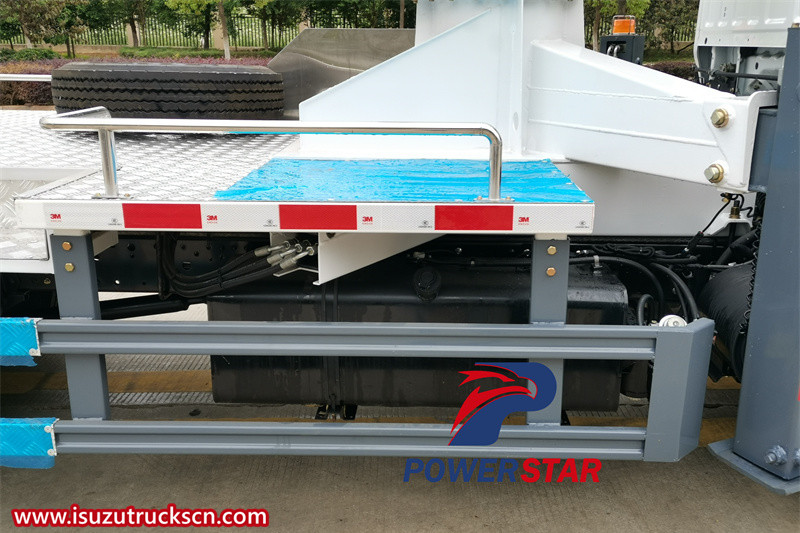

Landing leg |
Type |
H-type |
|
Longitudinal span |
2430mm |
|
|
Transverse span |
1670/2780mm |
|
|
Hanging basket |
Rated load |
≤200kg |
|
Dimension |
1080×610×1100mm |
|
|
Leveling type |
Mechanical rod |
|
|
Hydraulic system |

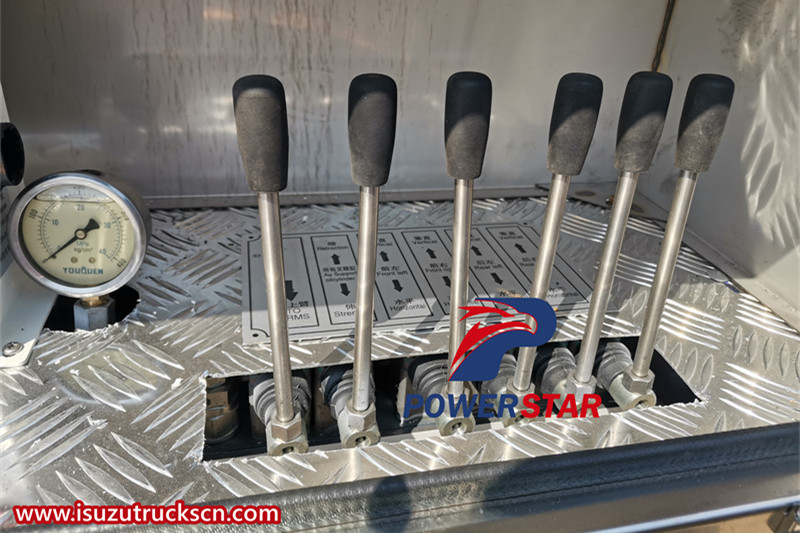

Hydraulic valve |
Manual |
|
Working pressure |
16Mpa |
|
|
Oil cylinder |
Equipped with lock function |
|
|
Operation type |
Both hanging basket and rotator |
|
|
Chassis Description |
||
|
Chassis model |
Isuzu 100P |
|
|
Cab |
100P,single row, with A/C |
|
|
Wheelbase |
3360mm |
|
|
Tire specification |
7.00-16 |
|
|
Tire quantity |
6+1 units |
|
|
Engine |
Engine model |
4KH1CN6LB |
|
Emission level |
Euro 6 |
|
|
Displacement/output |
2999ml/88kw |
|
|
Horse power |
120hp |
|
|
Gear box |
Model |
MSB |
|
Number of gears |
5 forward gears& 1 reverse |
|
|
Brake system |
Full air brake |
|
|
Axle |
Front |
2.5T |
|
Rear |
4.8T |
|
|
Suspension |
Front |
Leaf springs |
|
Rear |
Leaf springs |
|
|
Fuel tanker |
Type |
Carbon steel tanker,with lockable cap |
|
Capacity |
140L |
|
At its core, the Isuzu NKR integrates a robust chassis with the capability to support a 16-meter aerial bucket lift system. This elevated platform enables operators to elevate to significant heights, allowing for efficient maintenance, repair, and installation tasks in areas that are otherwise inaccessible with conventional equipment. The Isuzu NKR's strong chassis provides stability and support for the aerial lift, ensuring safe operations at varying heights.
The 16-meter aerial bucket system on the Isuzu NKR is engineered for versatility and precision in aerial work. Featuring a secure bucket platform with controls for elevation, rotation, and maneuvering, operators can position themselves accurately for tasks such as line maintenance, tree trimming, or building maintenance. The reach of the platform offers extended access to elevated structures, enhancing efficiency and productivity in a range of applications.

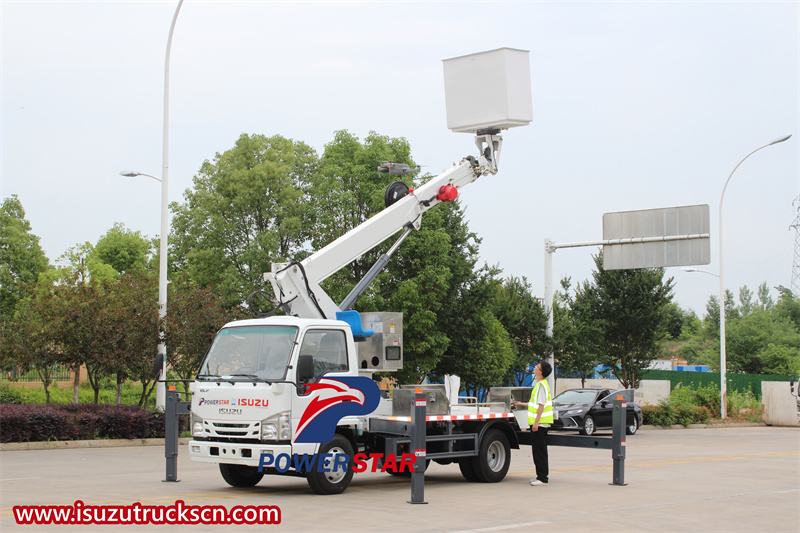

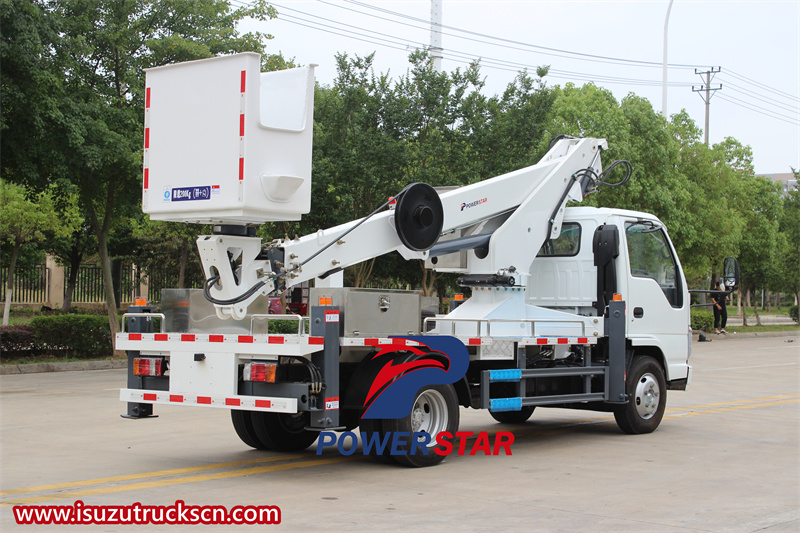

Isuzu NPR 16m aerial platform truck
The Isuzu NKR's aerial bucket truck capability is further enhanced by its ease of operation and maneuverability. With intuitive controls and responsive steering, operators can navigate the vehicle to the desired location with precision and control. This user-friendly design ensures that tasks can be completed efficiently and safely, even in confined or challenging work environments.
In terms of safety features, the Isuzu NKR 100P bucket truck is equipped with advanced systems to ensure the protection of operators and maintenance personnel working at height. Safety harness attachment points, emergency stop controls, and stability mechanisms are integrated to mitigate risks and enhance worker safety during aerial operations. These safety measures underscore Isuzu's commitment to providing a secure and reliable platform for elevated work tasks.
The 16-meter reach of the aerial bucket truck on the Isuzu NKR offers significant advantages in various industries and applications. From electrical line maintenance and telecommunications infrastructure work to urban landscaping and building maintenance tasks, the extended reach of the platform facilitates efficient completion of tasks at height. The versatility of the Isuzu NKR makes it a valuable asset for organizations requiring safe and reliable access to elevated structures.

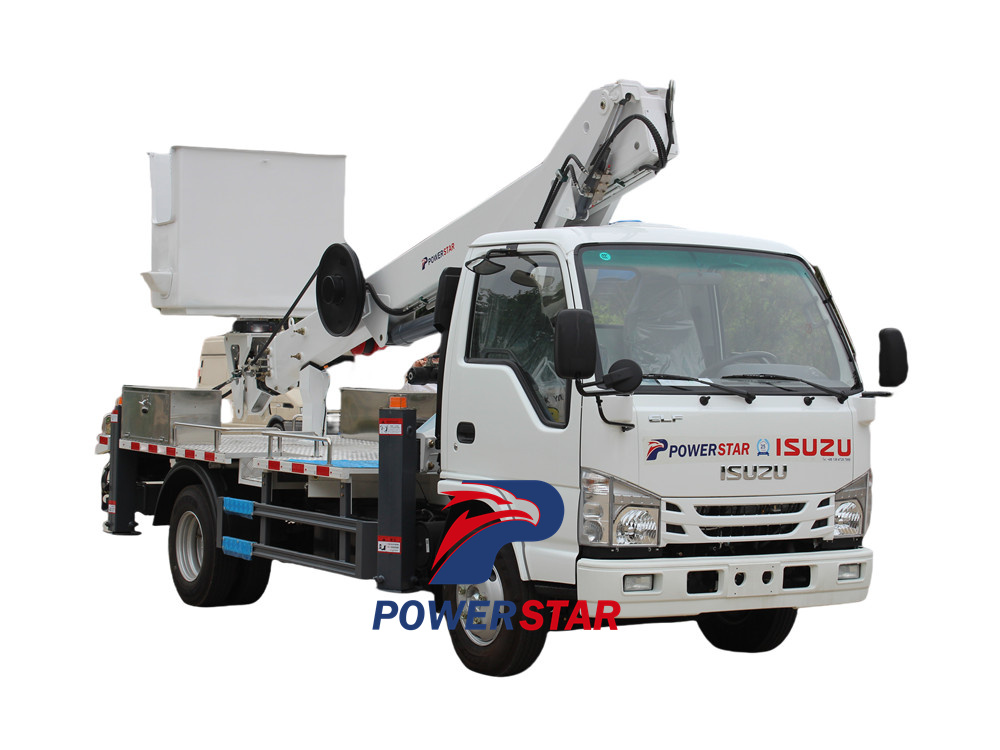

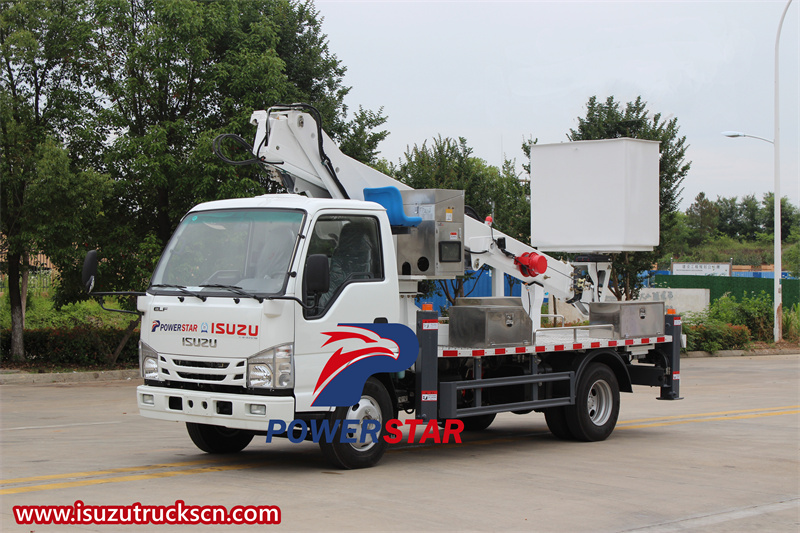

Isuzu 100P 16m aerial work vehicle
The Isuzu NKR 16 meter aerial bucket truck is a versatile and efficient vehicle designed for tasks that require elevated access, such as maintenance of utility lines, tree trimming, and construction work. By combining the rugged reliability of an Isuzu truck with a specialized aerial lift system, this vehicle provides a safe and reliable platform for reaching heights that are otherwise inaccessible.
Key Features:
Isuzu NKR Chassis: The Isuzu NKR chassis is known for its durability, performance, and fuel efficiency. With a strong foundation, this truck can navigate various terrains while carrying the added weight of the aerial bucket system.
16-Meter Aerial Bucket: The key feature of this truck is its 16-meter aerial bucket, which provides operators with a secure platform to work at heights. The hydraulic system allows for smooth and precise positioning, enhancing safety and efficiency.

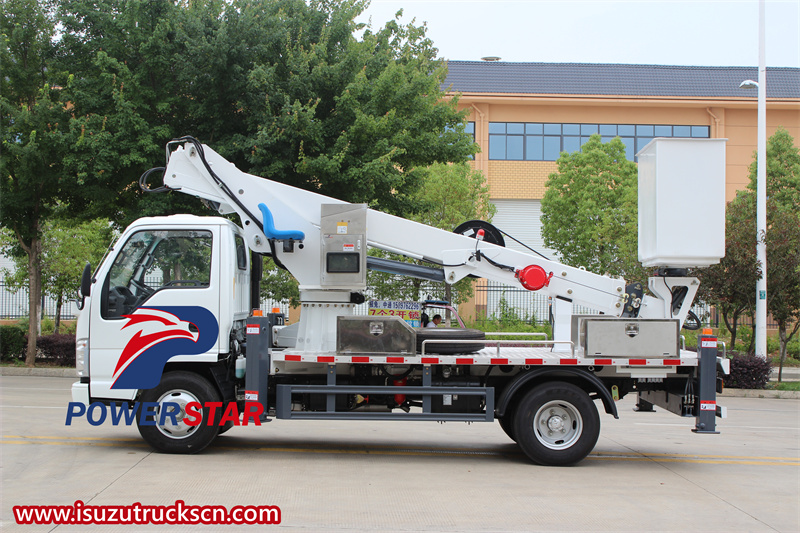

Isuzu 100P 16m aerial truck

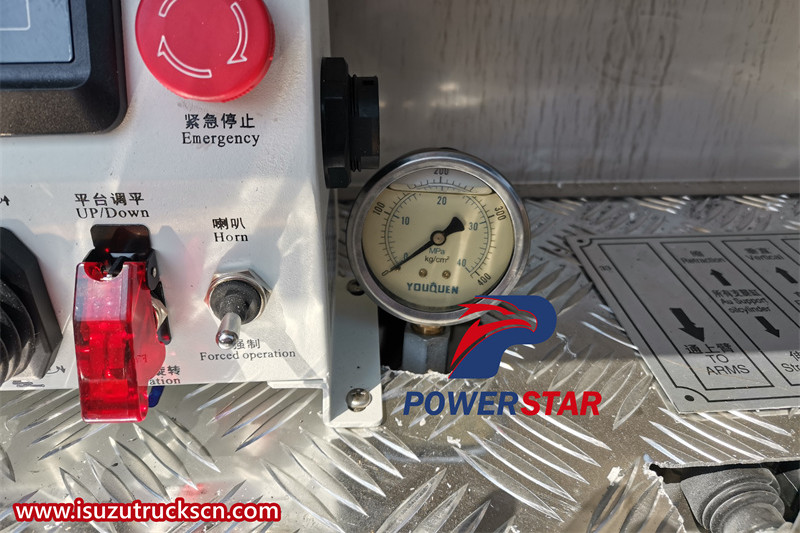

Safety Features: Safety is paramount in aerial work, and this truck is equipped with features like safety harness attachment points, emergency stop controls, and platform interlocks to ensure the well-being of operators.

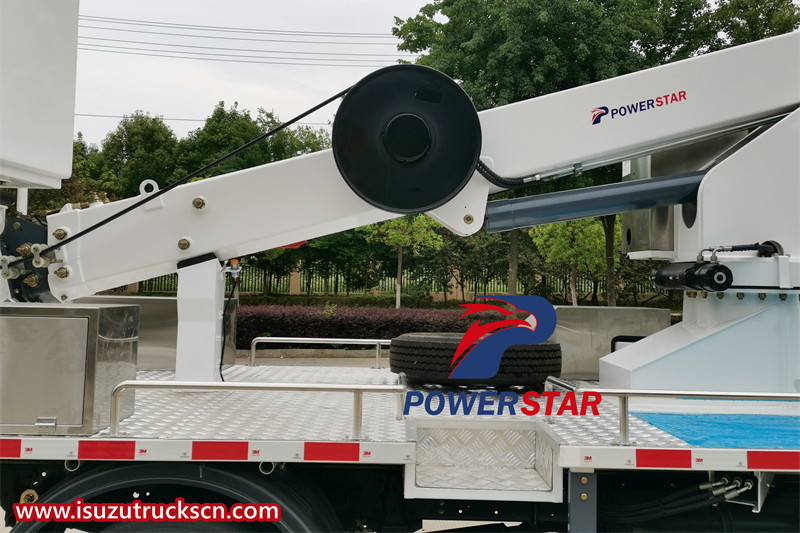

Articulating Boom: The articulating boom of the aerial bucket truck offers flexibility in reaching tight or awkward spaces. It provides a wide range of motion, allowing operators to access work areas with precision.

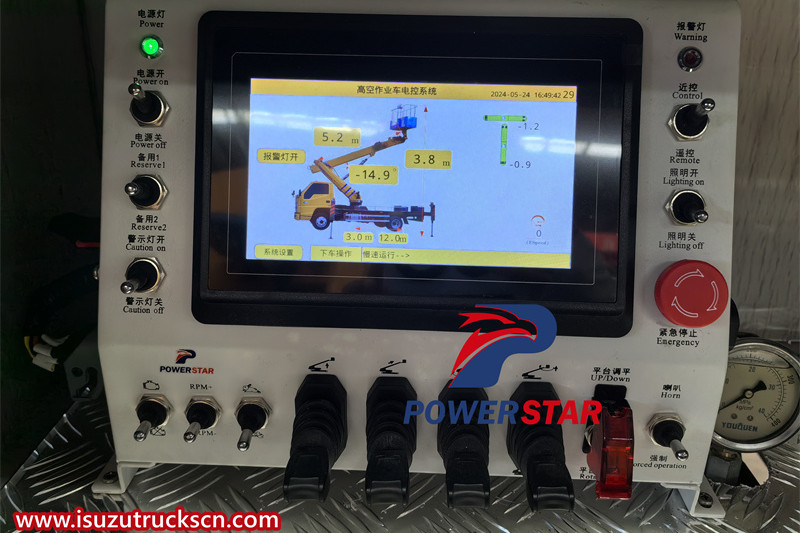

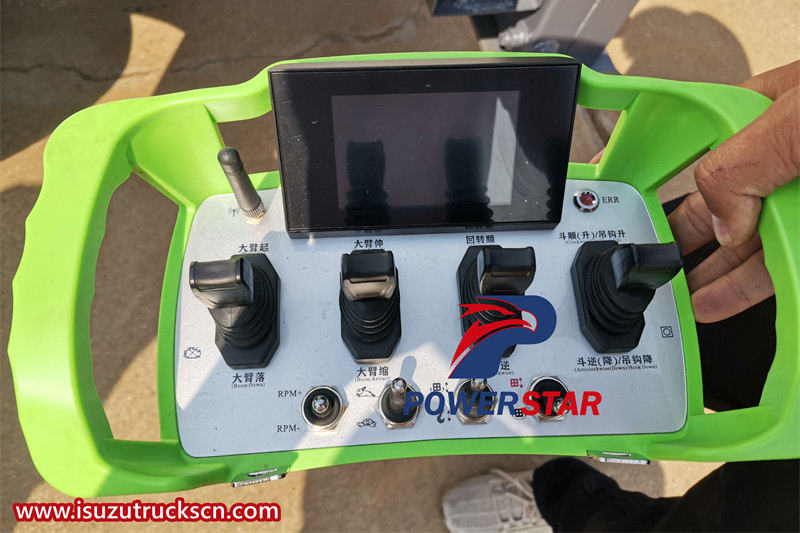

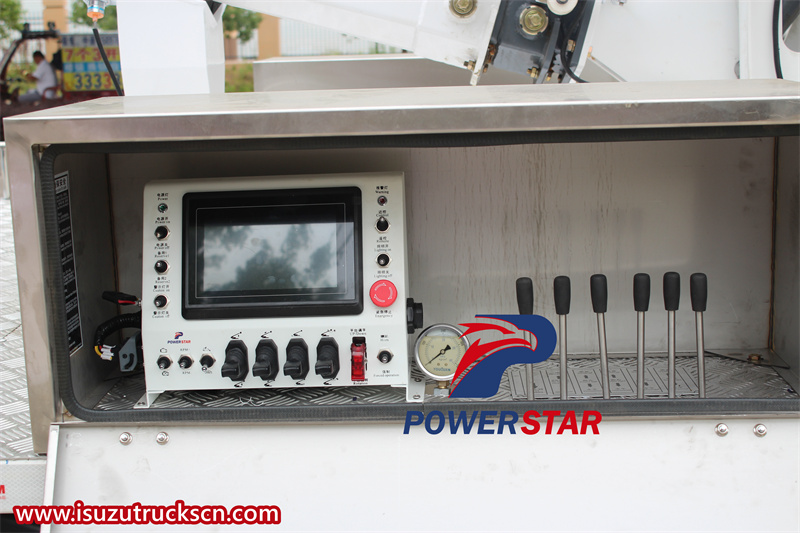

Control Panel: The control panel within the bucket provides intuitive controls for adjusting height, rotation, and outreach. This user-friendly interface enhances operator efficiency while ensuring precise maneuvering.

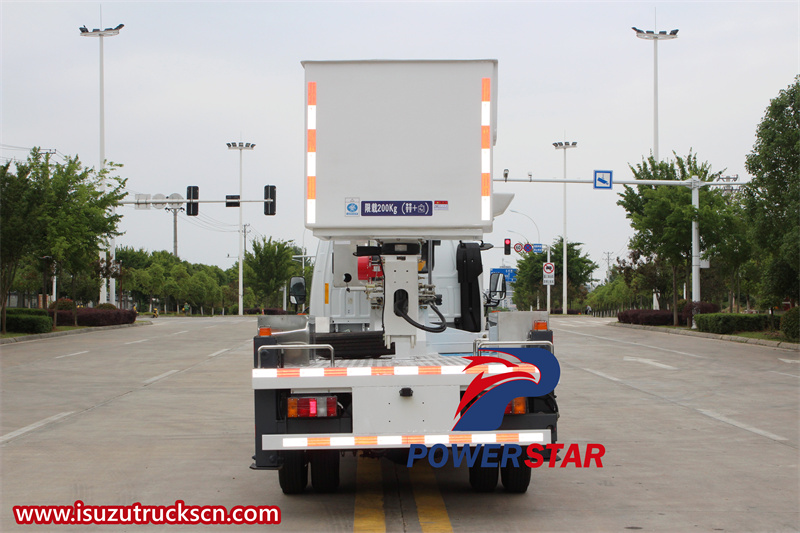

Isuzu 100P telescopic platform truck
Isuzu NPR bucket lift truck
Payload Capacity: The Isuzu NKR is known for its generous payload capacity, enabling the transportation of tools, equipment, and personnel necessary for aerial work tasks.
Maintenance and Serviceability: Isuzu vehicles are renowned for their ease of maintenance and serviceability. Regular maintenance ensures the longevity and reliability of the aerial bucket truck, reducing downtime and optimizing operational efficiency.
Versatility:The Isuzu NKR 16 meter bucket truck is a versatile asset for various industries, including telecommunications, utilities, and municipal services, where elevated access is a necessity.
Isuzu NPR manlift bucket truck
Isuzu 100P telescopic bucket truck
ISUZU 100P straight boom aerial work truck
Isuzu 100P 16m manlift stiff boom truck
Isuzu 100P 16m manlift bucket truck
Isuzu 100P 16m manlifter aerial work truck
