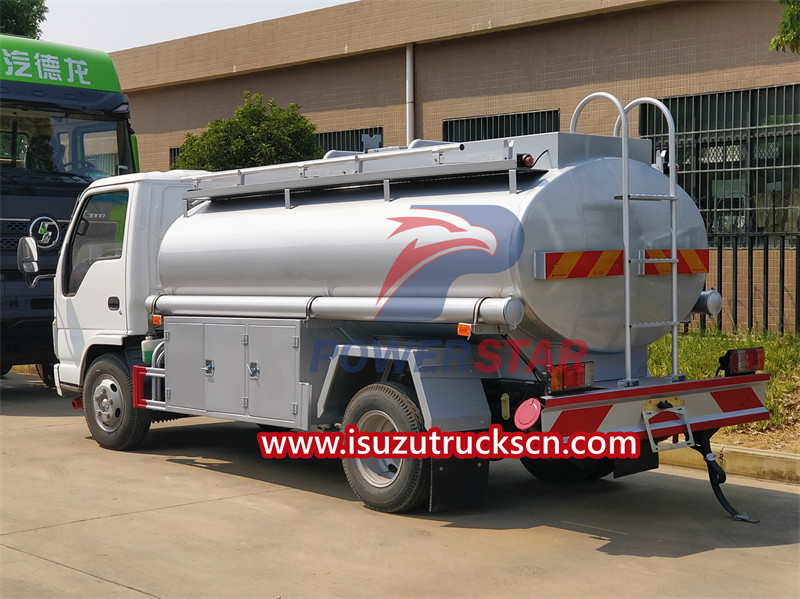

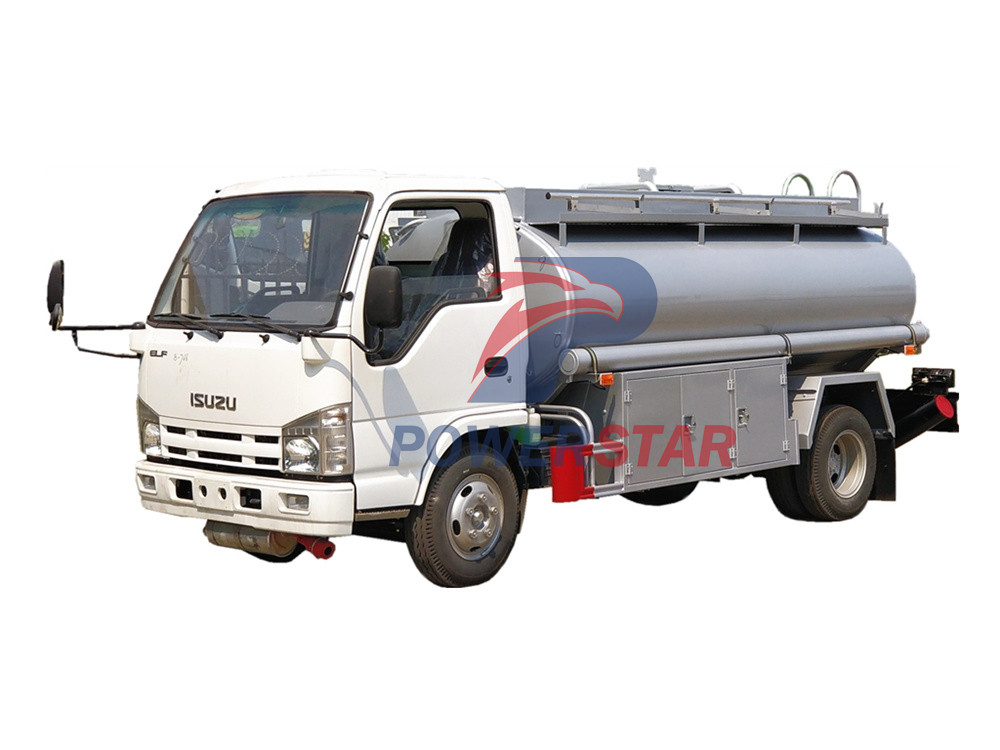

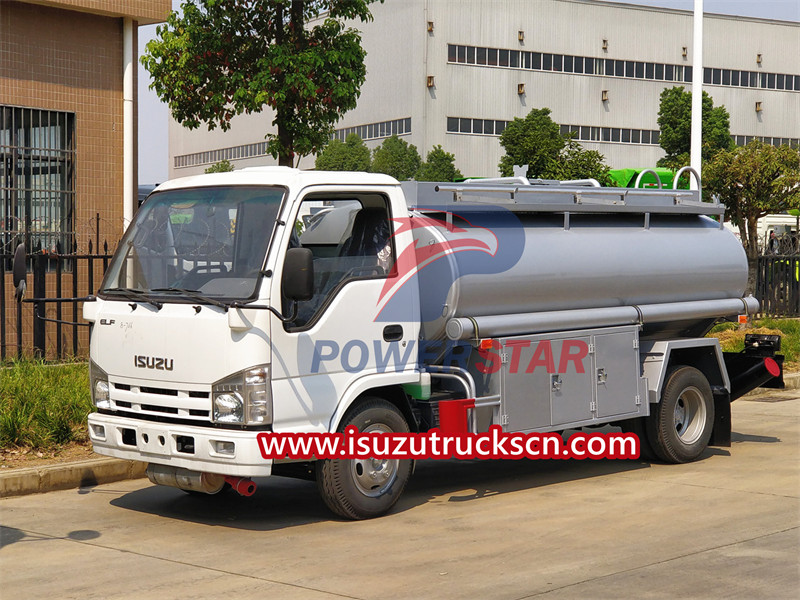

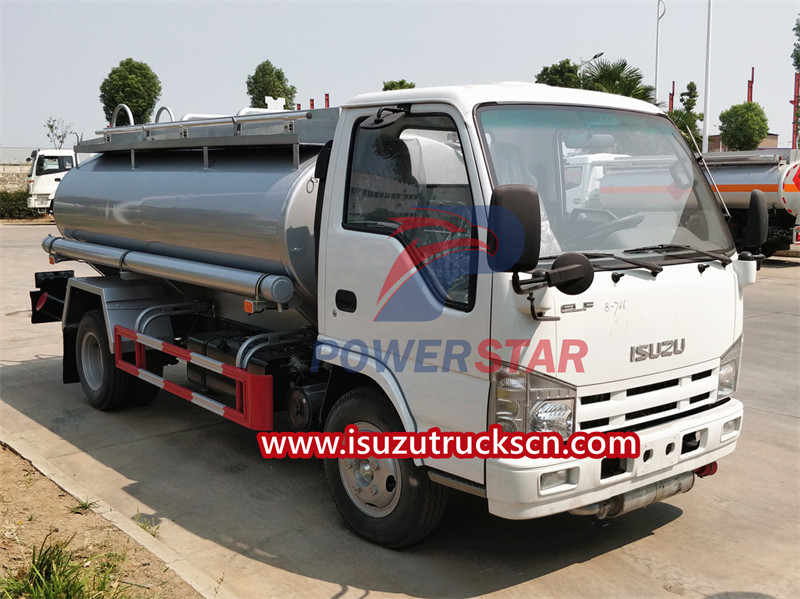

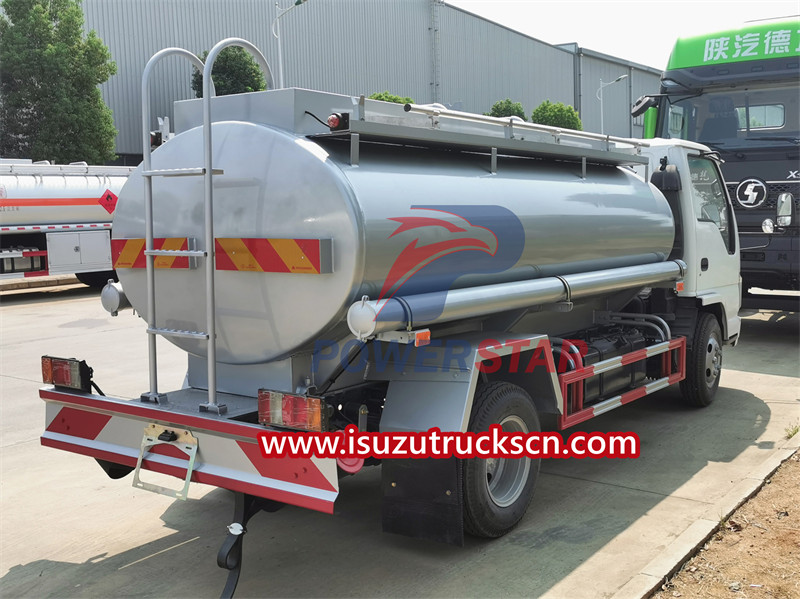

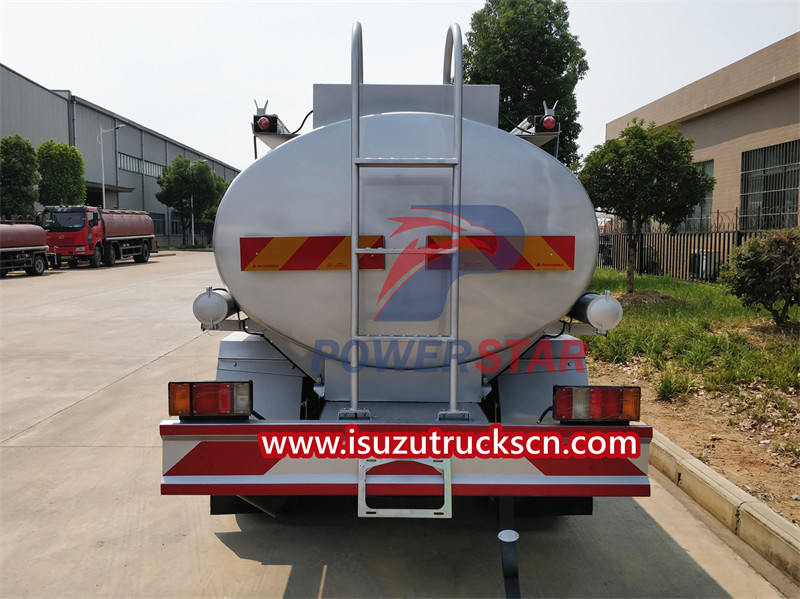

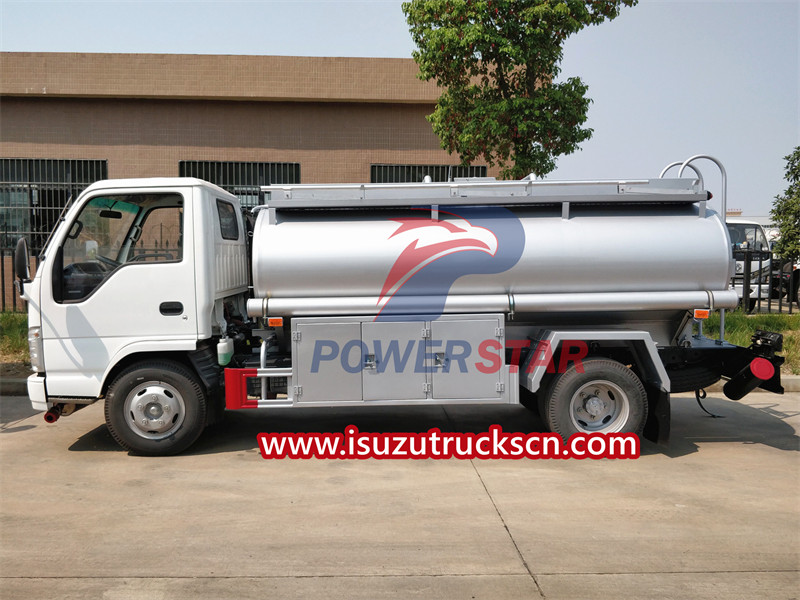

The Isuzu refueling truck is a special vehicle based on the Isuzu chassis and equipped with a special refueling device. This kind of vehicle usually has the function of driving and can perform refueling operations. It is widely used in various industries such as petroleum, chemical industry, construction, and fire protection. Isuzu fuel trucks usually consist of oil tanks, refueling mechanisms, transmission systems, hydraulic systems, control systems and vehicle chassis. They are safe, efficient and reliable and are one of the indispensable tools in modern transportation and operations.
Work capacity:
4000 litersTruck model:
PT5040GJYEngine power:
98 HPEngine type:
4KH1CN5LSAxle drive:
4×2Gear box:
MSB 5-speed, manualRemarks:
Suitable for transportation of diesel, fuel, petrol, gasoline, with dispenser
Isuzu fuel trucks, as special vehicles specially built for fuel transportation and supply, have always won wide acclaim in the market for their outstanding performance and excellent quality. This vehicle, with the Isuzu diesel engine as its heart, has strong and stable driving force, providing reliable power guarantee for long-distance and high-intensity oil transportation.

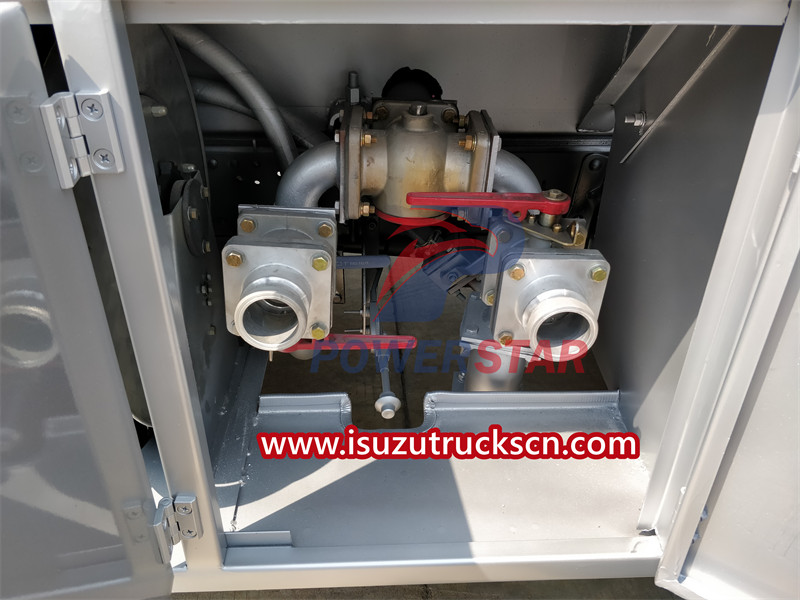

The ISUZU mobile petrol bowser is fully equipped with a complete upper body configuration, including oil tank, oil pump, fuel dispenser, oil pipelines, control valves, etc. It is also equipped with advanced safety protection devices and control systems to ensure safety and stability during transportation. Whether shuttling between fuel storage facilities and gas stations, or directly refueling various vehicles and equipment, Isuzu mobile fuel trucks can respond quickly to meet the fuel needs of different fields and industries. With the advantages of efficiency, safety, reliability, environmental protection and economy, Isuzu fuel trucks are widely praised around the world and have become a leader in the oil transportation and supply industry.
Product Specifications
|

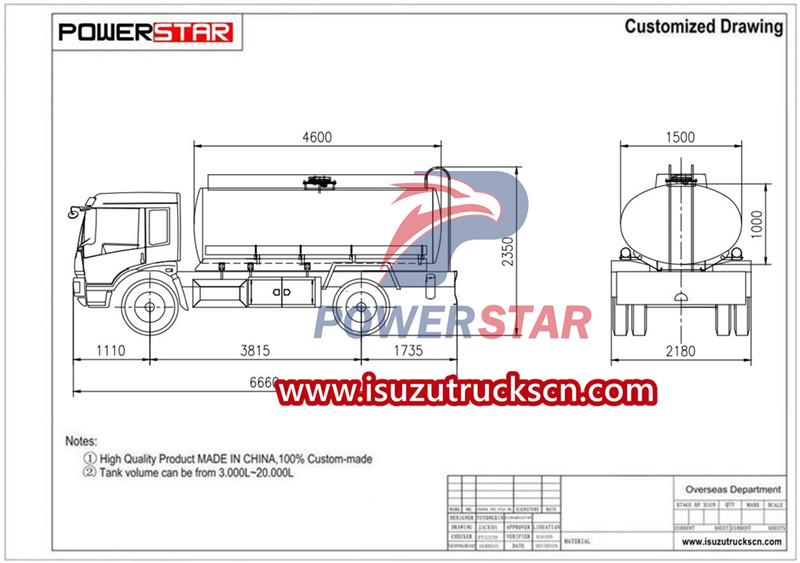

Vehicle Specifications |
||
|
Overall dimension |
5990*2000*2500mm |
|
|
GVW |
7300 kg |
|
|
Curb weight |
3420 kg |
|
|
Chassis brand |
ISUZU |
|
|
Driving type |
4*2, left/right hand drive |
|
|
Chassis Specifications |
||
|
Chassis model |
QL1070A6 |
|
|
Cab |
ISUZU ELF, single row |
|
|
Wheelbase |
3360mm |
|
|
Tire specification |
7.00R16 |
|
|
Tire quantity |
6+1 units |
|
|
Engine |
Engine model |
4KH1CN5LS |
|
Emission standard |
Euro 5 |
|
|
Power |
72kw/98hp |
|
|
Displacement |
2999 ml |
|
|
No. of cylinders |
4 |
|
|
Type |
Turbocharged, intercooling |
|
|
Gear box |
Model |
ISUZU MSB |
|
Number of gears |
5 forward gears& 1 reverse |
|
|
Brake system |
Oil brake |
|
|
Axle |
Front |
2.5T |
|
Rear |
4.8T |
|
|
Suspension |
Front |
Leaf spring |
|
Rear |
Leaf spring |
|
|
Fuel tanker |
Type |
Steel fuel tank, with lockable cap |
|
Capacity |
100L |
|
|
Upper body Specifications |
||
|
Fuel tanker |
Capacity |
4000 liters |
|
Compartment |
1 |
|
|
Material |
Carbon steel |
|
|
Thickness |
4mm |
|
|
Fuel pump |
Brand |
China famous brand |
|
Model |
60YHCB-30 |
|
|
Flow Rate (m³/h) |
30 |
|
|
Working Pressure (MPa) |
0.4 |
|
|
Speed (r/min) |
970 |
|
|

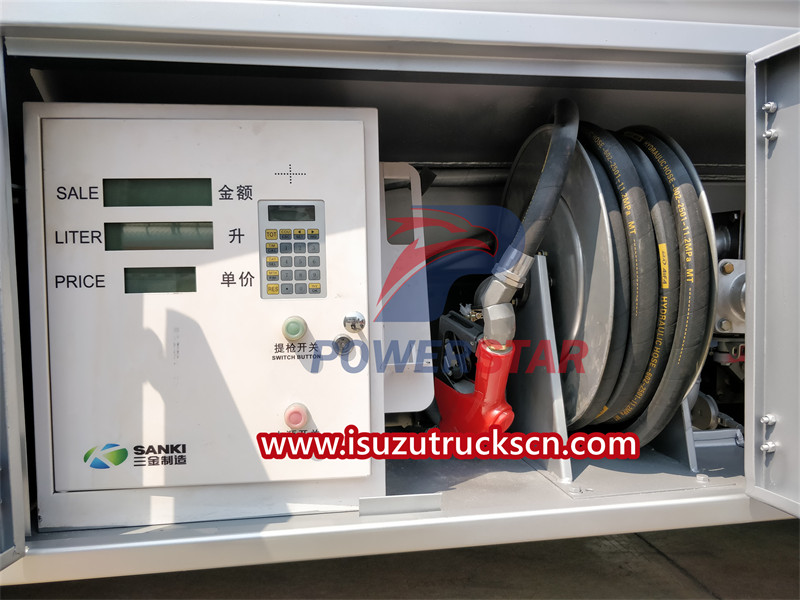

Fuel dispenser |
Brand |
SAIKE |
|
Model |
SK20QF111A |
|
|
Flow (L/min) |
5-50 |
|
|
Standard configuration |
Equipped with 1 set manhole. |
|
The difference between ISUZU oil tanker truck and ISUZU refueling truck:
There are some differences in function, purpose and structure between Isuzu tank trucks and fuel trucks.
In terms of function, ISUZU oil tank trucks are mainly used to transport oil products, including gasoline, diesel, kerosene, etc., while ISUZU mobile refueling trucks, in addition to the function of transporting oil products, also have a refueling function and can be used to refuel other vehicles or equipment.
In terms of usage, ISUZU diesel tanker trucks are mainly used for oil transportation in oil fields, refineries, oil storage bases and other places, while ISUZU mobile refueling trucks are mainly used to provide refueling services for road vehicles, aircraft, railway locomotives, etc.
In terms of structure, ISUZU tanker truck usually only contains an oil tank, pump and some necessary pipes, valves and other components, while a fuel truck is not only equipped with an oil tank, but also equipped with a fuel dispenser, meter and other equipment for refueling.
How does Isuzu fuel delivery truck ensure the safety of oil products and avoid leakage?
1. Sealing design: The oil tanks and refueling equipment of Isuzu fuel trucks are strictly designed and manufactured to ensure their airtightness. Oil tanks are usually equipped with breathing valves and safety valves to prevent the internal pressure from being too high or too low. At the same time, the refueling nozzle and oil pipeline also adopt anti-drip design.
2. Slow refueling: During the refueling process, Isuzu refueling trucks usually limit the flow rate of oil. Slow refueling reduces the potential for oil shock and static electricity, thereby reducing the risk of leaks and fires.
3. Static electricity grounding: Isuzu mobile fuel trucks are usually equipped with an electrostatic grounding system to ensure that static electricity generated during the refueling process can be directed underground in time to avoid the risk of fire or explosion caused by static electricity.
4. Oil vapor recovery device: In order to reduce air pollution caused by oil volatilization, Isuzu diesel fuel bowsers are usually equipped with an oil vapor recovery system. This system can recover volatile oil vapor into the oil tank to reduce oil loss and environmental impact.
