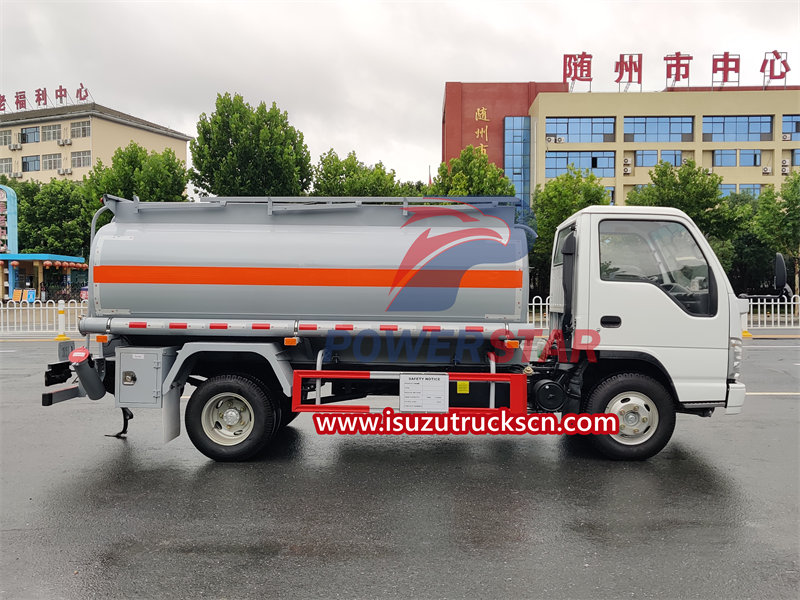

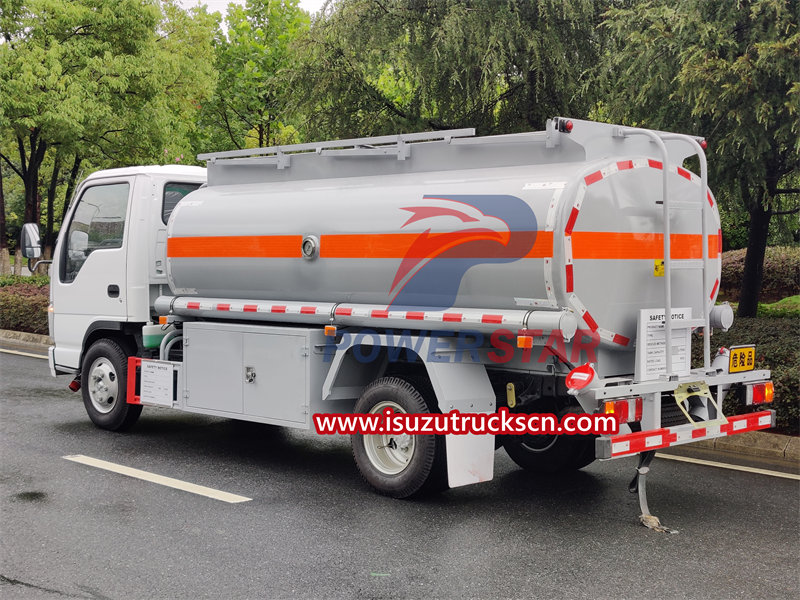

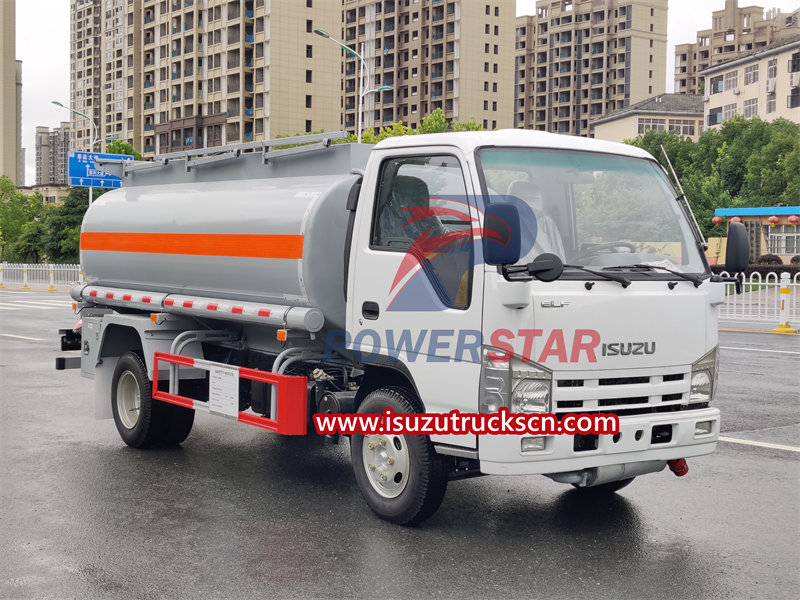

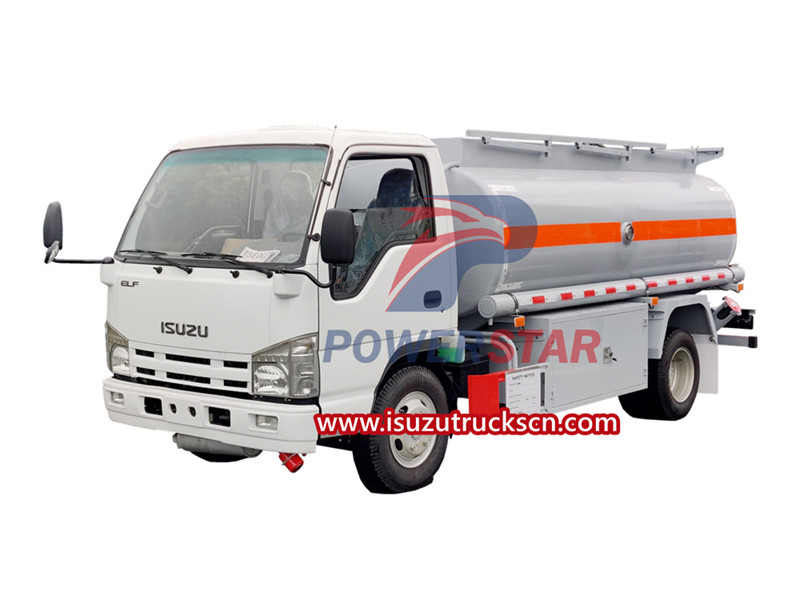

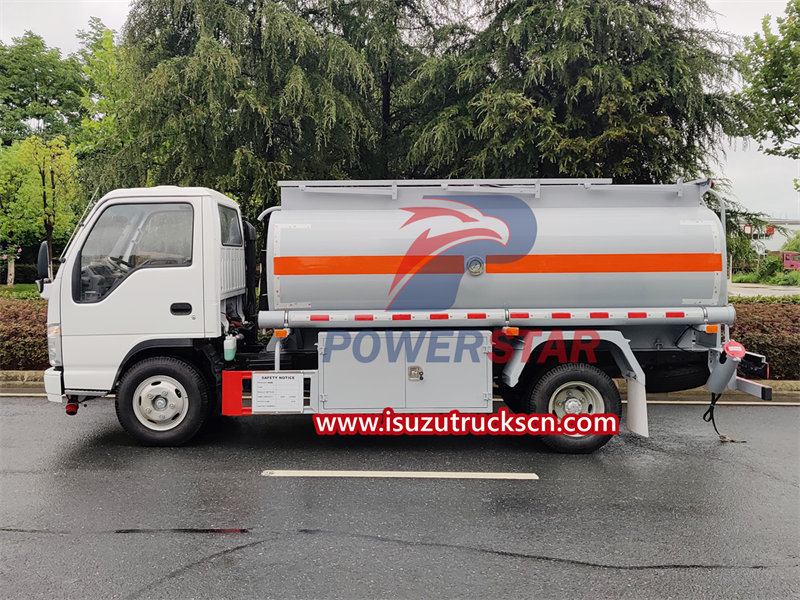

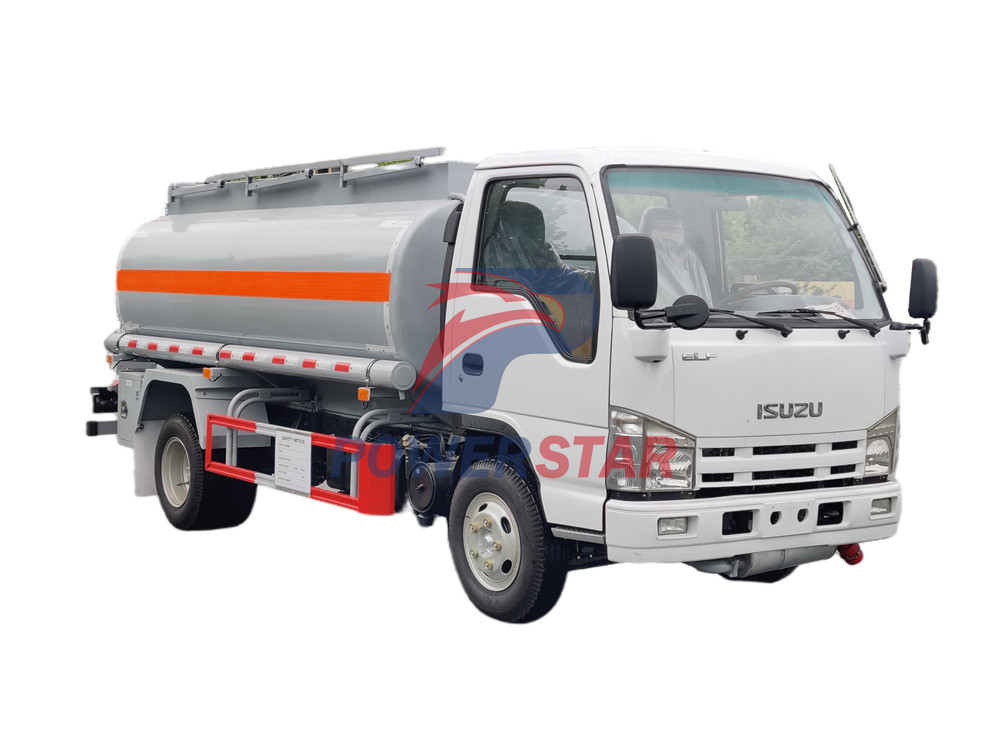

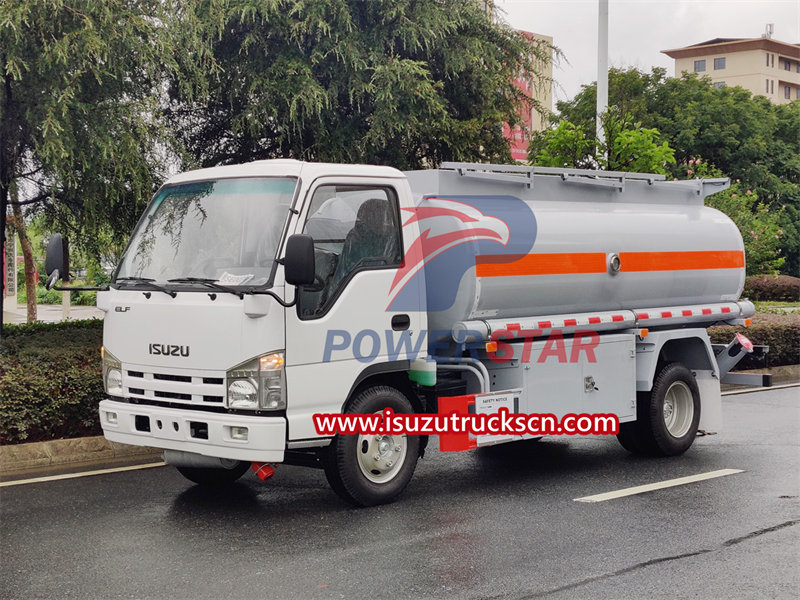

Isuzu refueling truck is a special vehicle used to refuel vehicles. It consists of a chassis, an oil tank, a refueling machine, an oil vapor recovery system and a pipeline system. The vehicle adopts Qingling Isuzu’s high-end light truck chassis and has strong carrying capacity. The oil tank is made of carbon steel plate, and its interior is anti-rust treated and sprayed with oil-resistant materials, and can be used to store oil.
Work capacity:
5000 LitersTruck model:
PT5070GJYBEngine power:
98 HPEngine type:
4KH1CN5LSAxle drive:
4×2Gear box:
MSB 5-speed, manualRemarks:

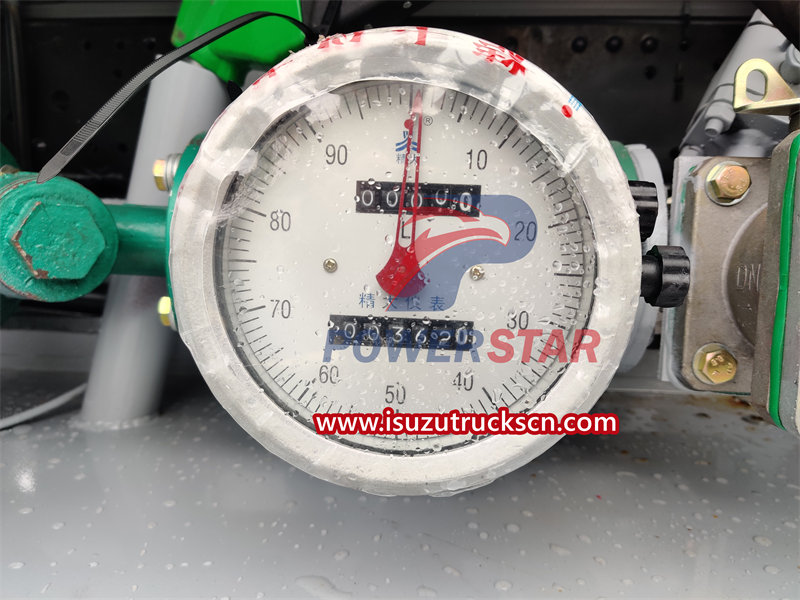

Equipped with refueling gun and flow meter
An Isuzu fuel tank truck, also known as an Isuzu oil tank truck, is a vehicle designed specifically for transporting liquid petroleum products. Its emergence has greatly promoted the development of the oil industry and facilitated the extraction, transportation and demand of oil.
Isuzu fuel truck is designed to meet the special requirements for liquid loading and transportation, and has the advantages of high efficiency, safety, and large transportation capacity. It is mainly used to transport oil between oil extraction sites, gas stations and oil demand sites. Additionally, Isuzu fuel tank trucks can also be used to transport fuel oil, lubricants, and other types of liquid petroleum products. Due to its special liquid loading and transportation capabilities, Isuzu oil tank trucks play a vital role in the petroleum industry chain.
Product Parameters
|
ISUZU 100P Fuel Tank Truck Technical Specifications |
|
|
Gross Vehicle Weight (kg) |
7300 |
|
Curb Weight (kg) |
3800 |
|
Overall Dimensions (mm) |
5900×2000×2400 |
|
Tank Volume(L) |
4000L |
|
Tank Thickness(mm) |
4 |
|
Tank Body Material |
Q235 Carbon Steel |
|
Anti-wave plate |
Factory standard |
|
Operating Ambient Temperature(°C) |
-20~45 |
|
Manhole cover |
European standard |
|
Emergency shutoff valve |
Factory standard |
|
Oil gas recovery unit |
Factory standard |
|
Anti-overflow alarm device |
Factory standard |
|
Fuel loading method |
Top filling, bottom filling is optional |
|
Fuel pump brand |
China famous |
|
Fuel pump flow(m³/h) |
30 |
|
Dispenser |
China famous brand |
|
Toolbox |
Factory standard |
|
Maximum Speed(km/h) |
80 |
|
Chassis Technical Parameters |
|
|
Brand |
ISUZU |
|
Type of fuel |
Diesel |
|
Engine model |
4KH1CN5LS |
|
Engine power(KW/HP) |
72 KW/98HP |
|
Displacement (ml) |
2999 |
|
Emission standard |
Euro 5 |
|
Brake |
oil brake |
|
Front Axle/Rear Axle(kg) |
2500/4800 |
|
Gearbox |
5 Speed, Manual Transmission |
|
Front/rear wheel track (mm) |
1504/1425 |
|
Number of Axles |
3 |
|
Wheelbase (mm) |
3360 |
|
Number of Tires |
6+1 |
|
Tyre Specification |
7.00R16 |

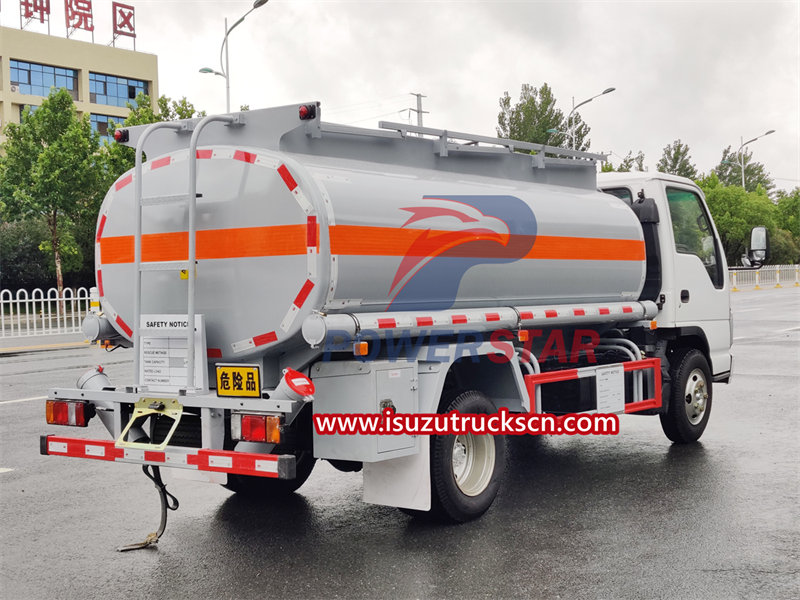

The main structure of Isuzu fuel truck
1. Chassis: The Isuzu chassis is the support and transportation part of the tank truck. The chassis is equipped with engines, transmission systems, suspension systems and other equipment to provide the power and control required for vehicle driving.

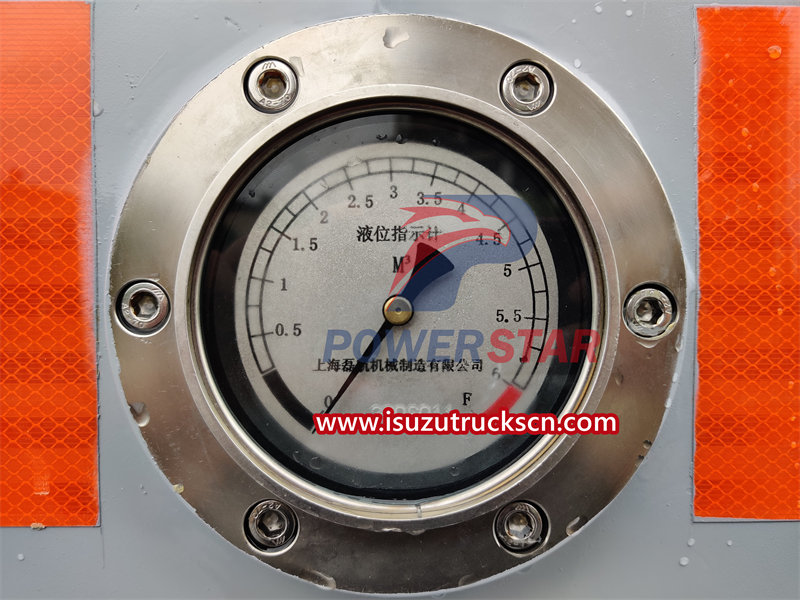

2. Tank body: The tank body is the core part of the Isuzu oil tanker truck. It is usually made of carbon steel or stainless steel and is used to store liquid petroleum. The tank is equipped with oil inlet and outlet, liquid level gauge, thermometer, pressure gauge and other necessary equipment to facilitate measurement and control of the quantity and state of the liquid.
3. Accessory system: The accessory system includes oil pumps, valves, pipes, filters and other auxiliary equipment to help realize the functions of liquid suction, discharge, filtration and pressurization. These attachment systems are usually mounted on the tank and chassis.
4. Safety system: Isuzu tank trucks are also equipped with a variety of safety systems, such as anti-overflow valves, emergency shut-off valves, fire arresters, etc., to ensure safety during transportation. These safety systems can prevent fluid spills, control fluid pressure, and quickly shut down oil lines in emergencies.
5. Refueling system: Isuzu fuel trucks are equipped with a refueling machine and a refueling nozzle, which are used to transport fuel to the refueling nozzle through the oil pipeline.

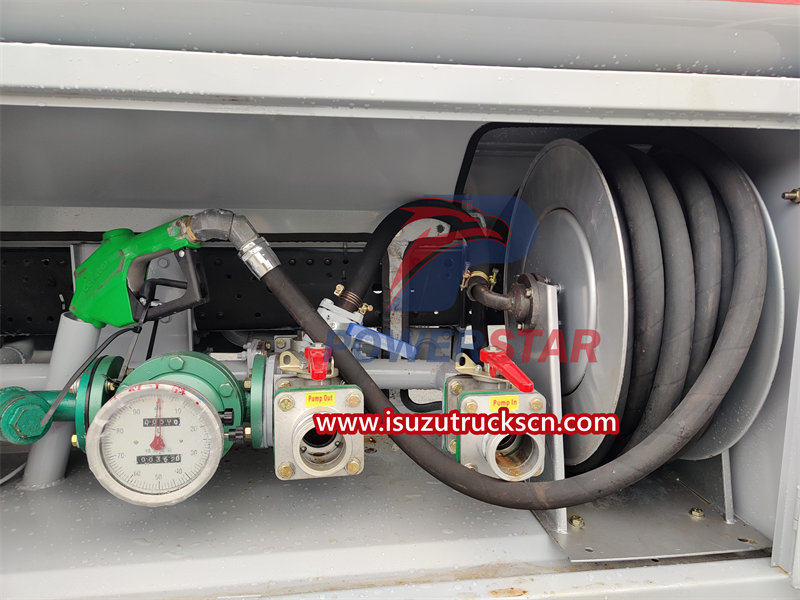

Refueling gun

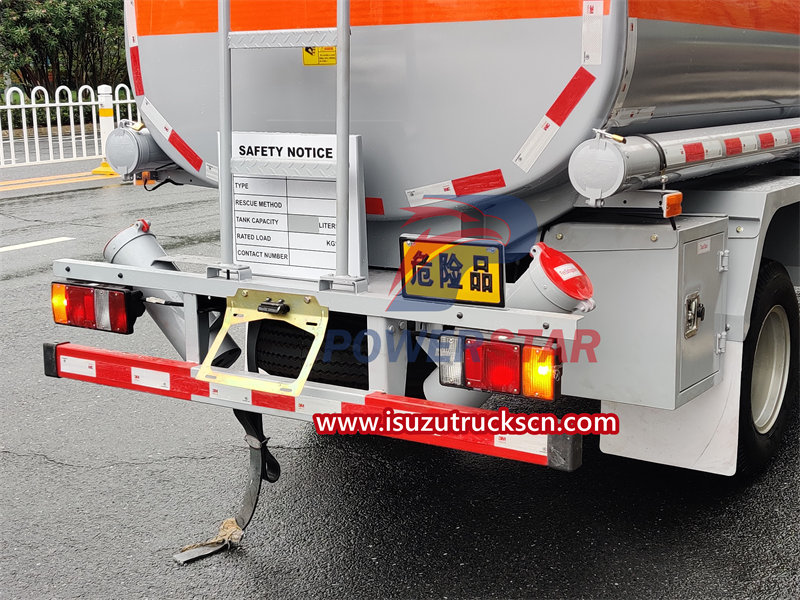

Safety devices
Isuzu 100P fuel truck is equipped with a number of safety devices to ensure safety:
1. Emergency cut-off system: Once an abnormal situation occurs, such as a fire or pipeline rupture, the emergency cut-off system can quickly shut down the oil delivery system, cut off the oil source, and prevent the accident from expanding.
2. Anti-overflow device: There is an anti-overflow device in the Isuzu oil tank and pipeline, which can automatically close when the oil level is too high to prevent fuel from overflowing.
3. Static electricity grounding: Both the refueling nozzle and the oil pipeline have undergone electrostatic grounding treatment to eliminate static electricity accumulation and prevent static electricity from causing fires.
4. Explosion-proof design: Oil storage tanks, pipelines and other related components are made of explosion-proof materials and designs to reduce the risk of explosion.
5. Fire-fighting facilities: The Isuzu fuel truck is equipped with fire extinguishers and other fire-fighting equipment to put out the fire immediately in the event of a fire.
