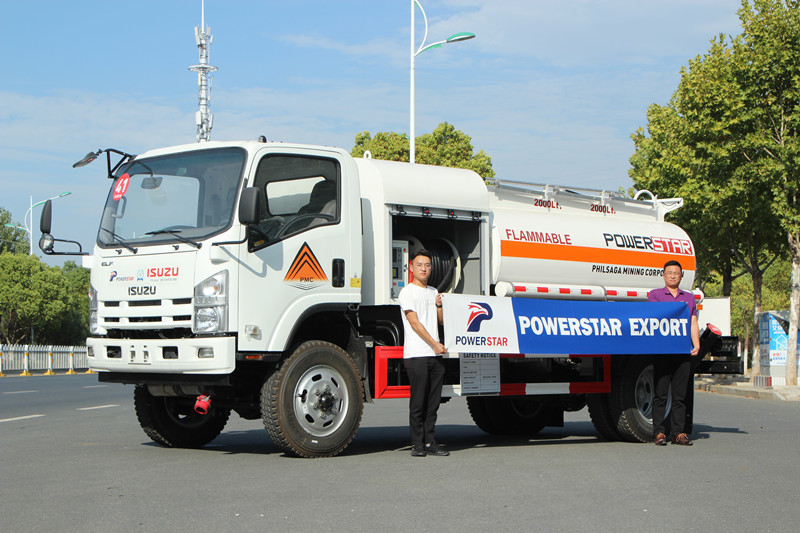

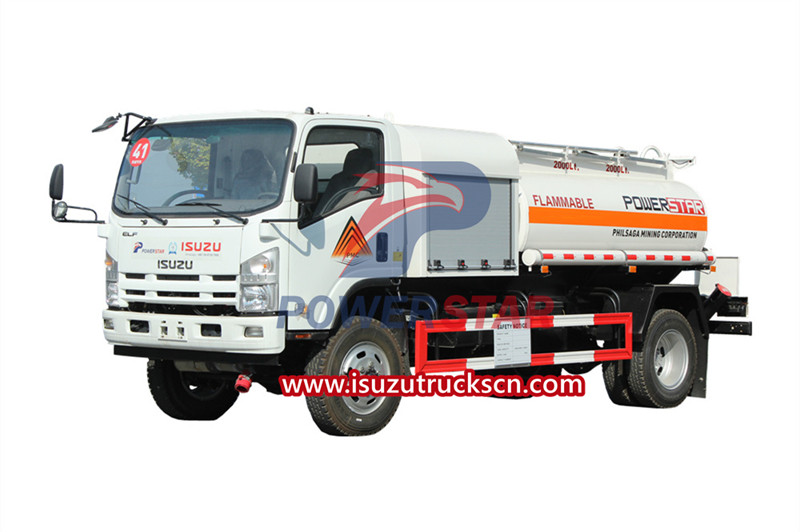

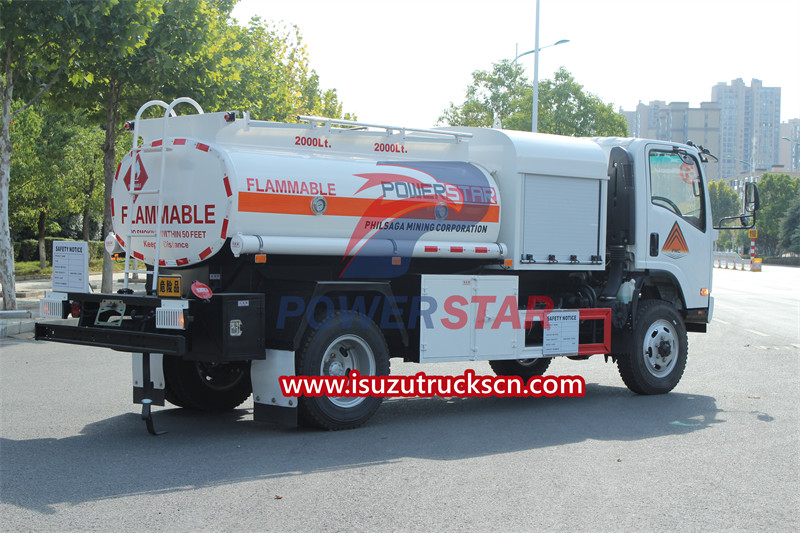

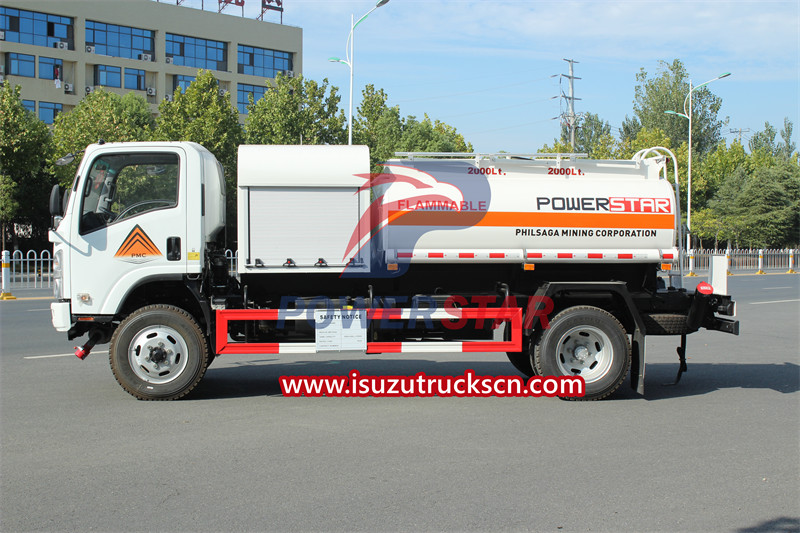

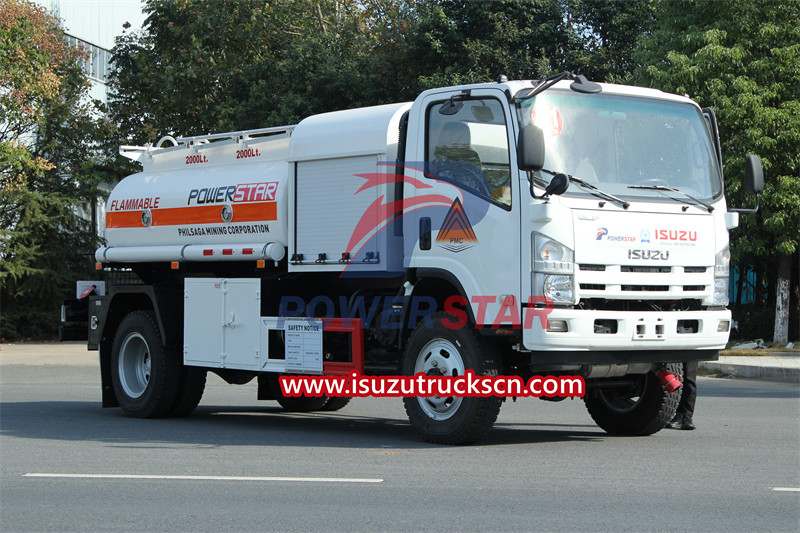

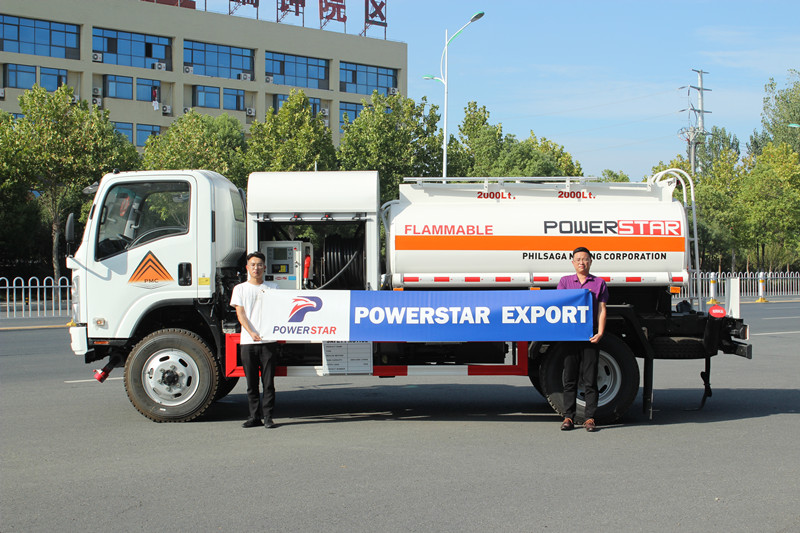

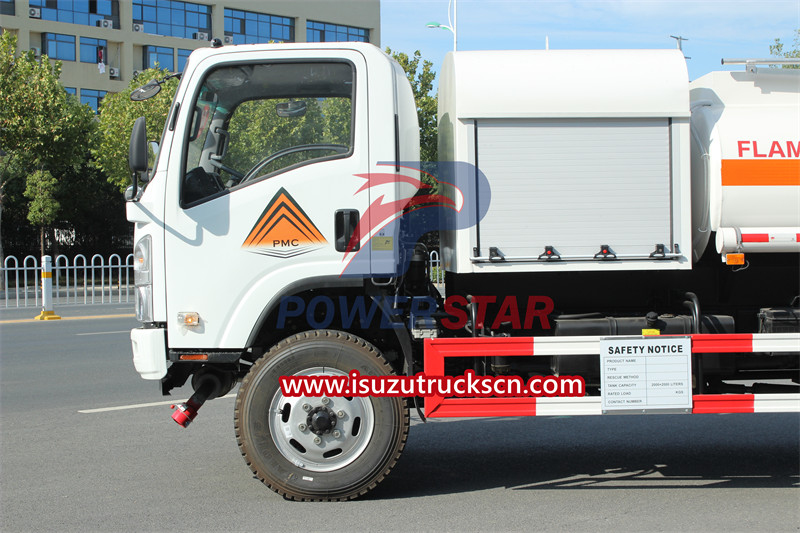

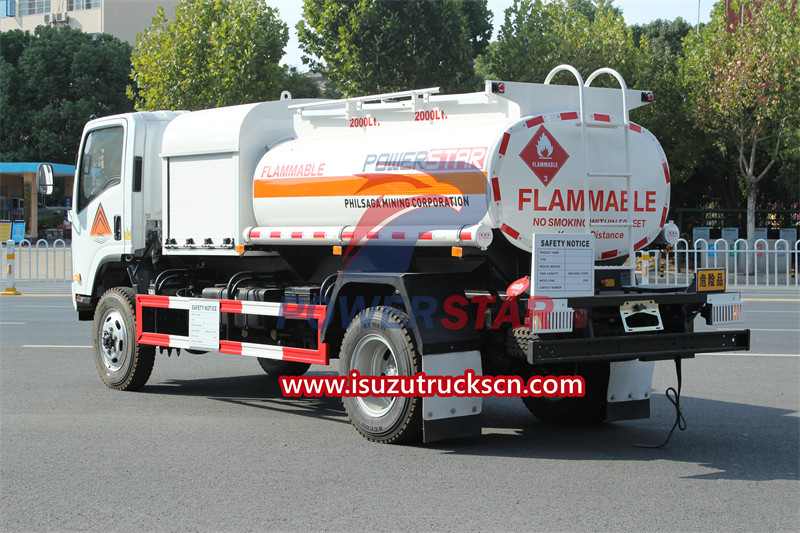

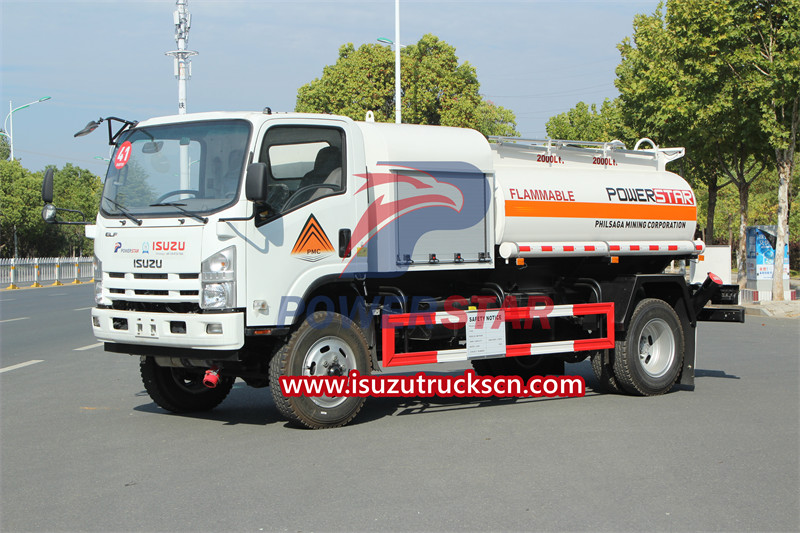

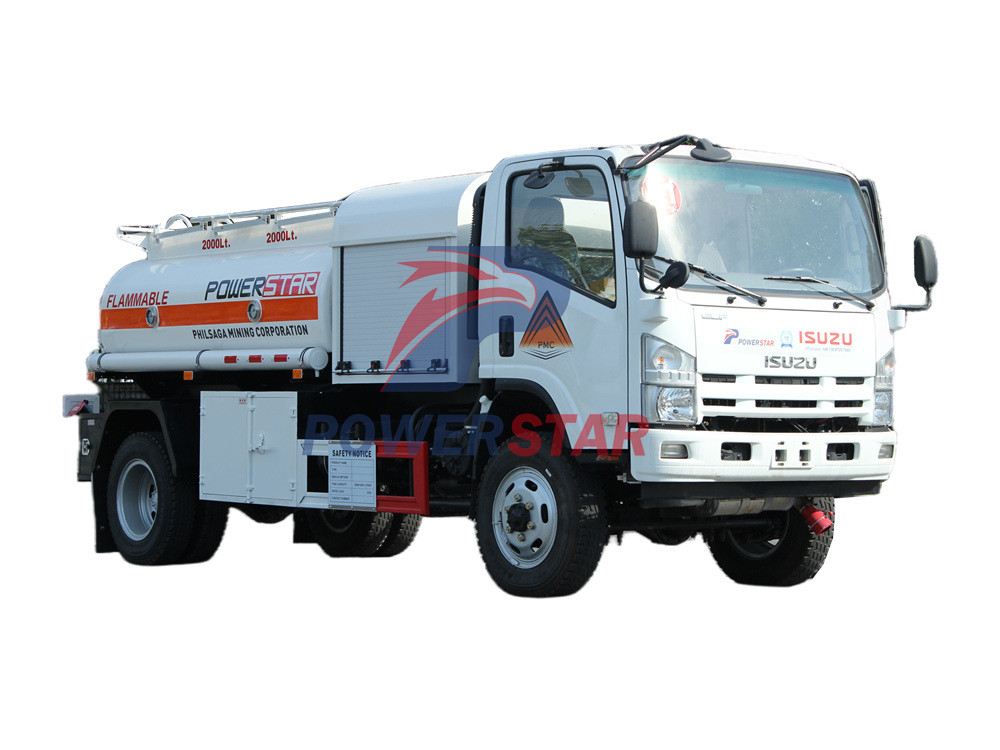

The Isuzu 700P fuel truck is a medium-sized fuel tank truck manufactured by POWERSTAR based on the ISUZU700P chassis. This chassis comes with Isuzu 4-cylinder diesel in-line engine with a displacement of 5.2L. Its maximum horsepower can reach 190. The tank equipped on the vehicle is made of carbon steel with a maximum capacity of 8000L.
Work capacity:
8000 litersTruck model:
PT5110GJYEngine power:
190 HPEngine type:
4HK1-TC51Axle drive:
4×4Gear box:
MLD 6-speed manualRemarks:
ISUZU NPR AWD chassis, customized fuel tanker bodyIsuzu tank truck, also known as Isuzu oil transport truck, Isuzu fuel truck, is a special vehicle specially used to transport liquid petroleum, fuel and hazardous chemicals. It mainly serves oil production and sales enterprises, as well as various places that require large amounts of oil supply, such as gas stations, airports, docks, etc. Isuzu fuel trucks can effectively meet the oil transportation needs of these places, providing strong support to ensure the stability and safety of oil supply.
Isuzu fuel tank truck consists of the following parts:
(1) Tank body: The tank body is the main part of the Isuzu oil truck and is made of corrosion-resistant and high-strength materials, such as stainless steel, aluminum alloy, etc. The inner wall of the tank is smooth, which can reduce the friction resistance of oil products and reduce losses during transportation.

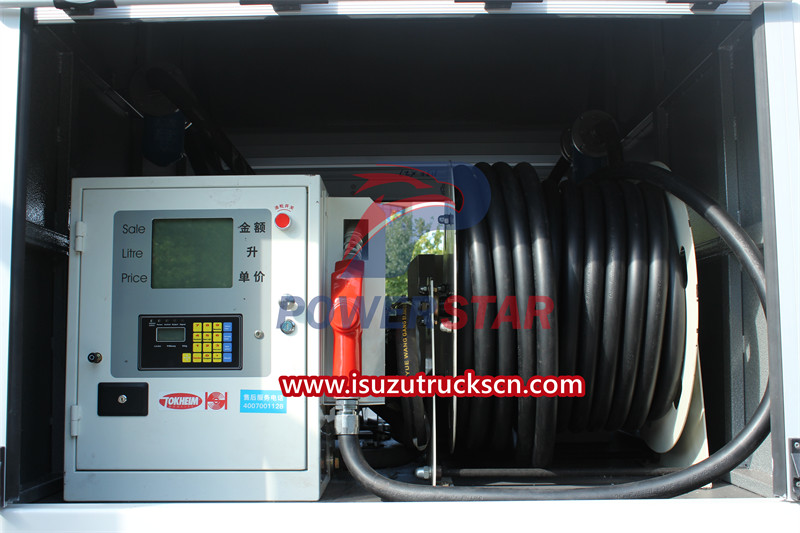

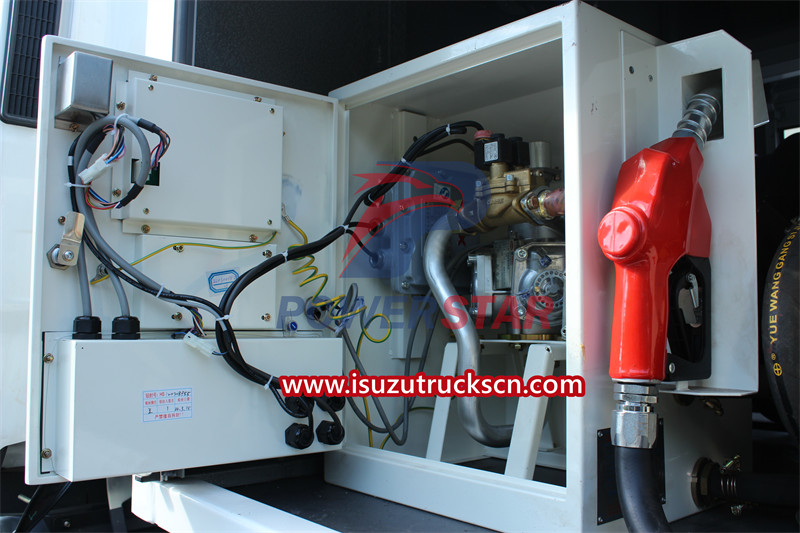

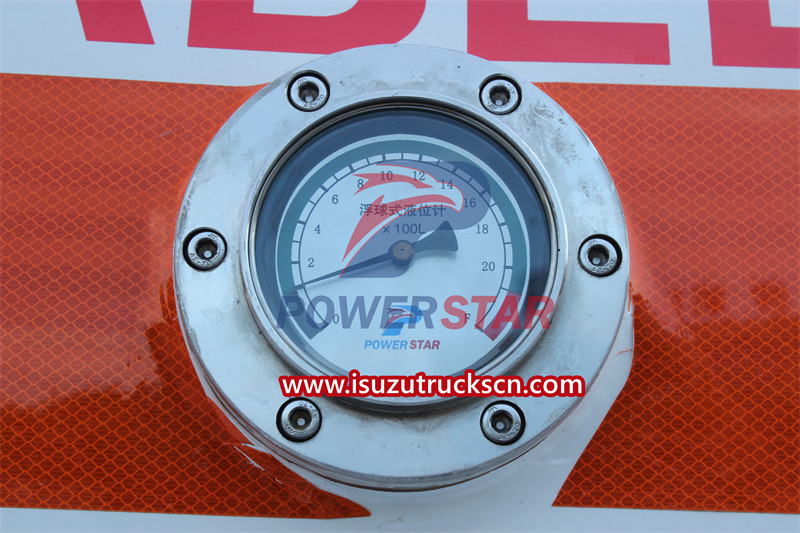

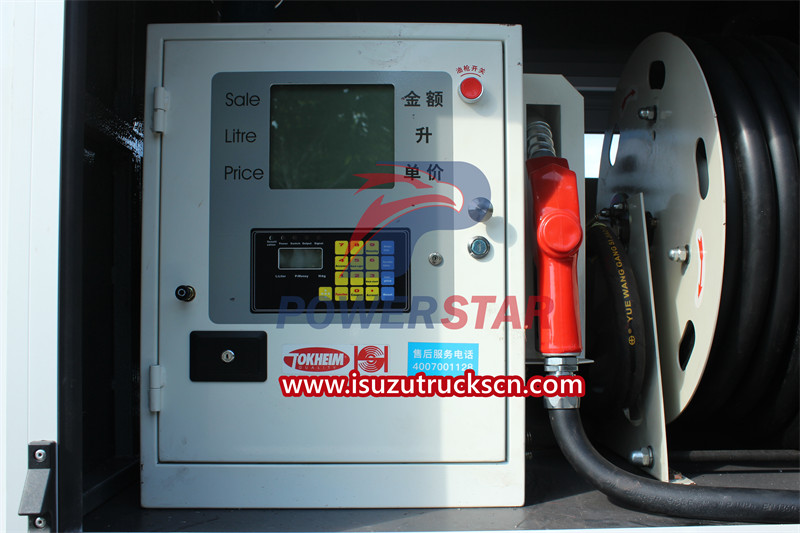

(2) Refueling system: The refueling system includes refueling guns, oil pumps, fuel gauges and other equipment, which are used to load, unload and measure oil products. Through the refueling system, oil can be transported from the tank to other containers quickly and easily.

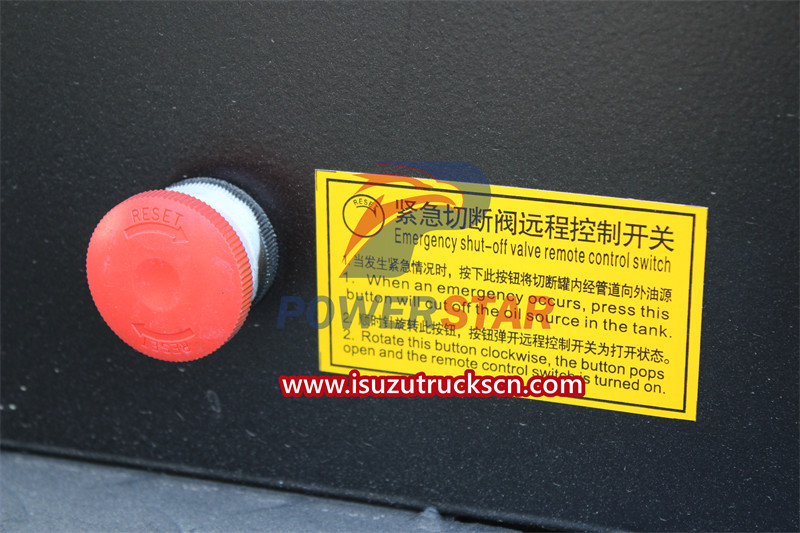

(3) Safety system: The safety system is the core part of the Isuzu tank truck, including fire extinguishers, breathing valves, safety valves, anti-overflow valves and other equipment. These devices can safely protect oil products during transportation and prevent leaks, explosions and other accidents.
(4) Chassis: The chassis is the supporting part of the Isuzu tank truck. It is based on reliable Isuzu chassis, which can carry a large weight and provide sufficient stability. The chassis is also equipped with braking systems, shock absorbers and other equipment to ensure the safety and comfort of the vehicle during driving.
Product Parameters
|
Product Name |
ISUZU 8000L diesel bowser truck |
||
|
Chassis |
Brand |
ISUZU |
|
|
Curb weight(kg) |
5260kg |
||
|
Wheelbase(mm) |
3815 mm |
||
|
Dimensions(mm) |
6900X2300X2550 mm |
||
|
Front/Rear Axle loading(kg) |
4000/7000 kg |
||
|
Wheel track (front/rear) (mm) |
1880/1800 mm |
||
|
Front/Rear overhang(mm) |
1430/2370 mm |
||
|
Approach/Departure angle(°) |
26/20 |
||
|
Max. driving speed(km/h) |
95 km/h |
||
|
Clutch |
Reinforced diaphragm clutch |
||
|
|
Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels |
||
|
Steering Gear |
Power steering, hydraulic steering with power assistance |
||
|
Tire |
Quantity |
6 pcs with one spare tire |
|
|
Specifications |
235/75R17.5 |
||
|
Transmission |
Manual type, 6 Forwards and 1 reverse |
||
|
Cabin |
3 seats. With Air Conditioner |
||
|
|
Brand |
ISUZU |
|
|
Model |
4HK1-TC51 |
||
|
Fuel type |
Diesel |
||
|
Displacement(ml) |
5193 ml |
||
|
Power(kw) |
141kw |
||
|
Horsepower(HP) |
190HP |
||
|
Cylinder number |
4 |
||
|
Emission standard |
Euro 5 |
||
|
Fuel Tank |
|||
|
Fuel tank |
Capacity(liters) |
8000 |
|
|
Tank material |
Q235 high tensile strength carbon steel |
||
|
Thickness(mm) |
5mm of tank and 6mm of tank head |
||
|
Compartment No. |
2 |
||
|
Baffle |
1 unit, 4 mm carbon steel |
||
|
Manhole cover |
1 manhole cover, ∮500mm, European standard |
||
|

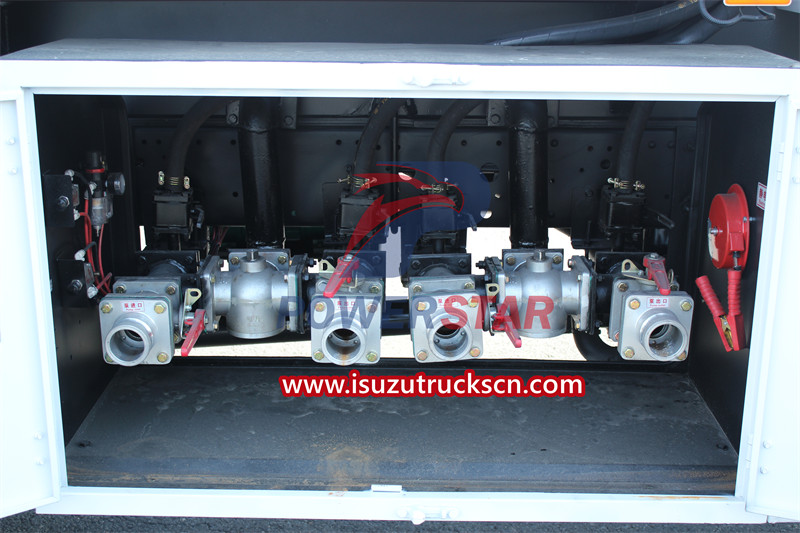

Bottom Valve |

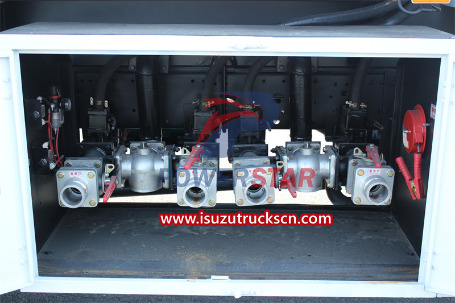

1 set of API Pneumatic Bottom Valve |
||
|
Discharging valve |
1 set discharging valve |
||
|
Handrail |
Two sides, carbon steel |
||
|
Ladder |
At rear of tank |
||
|
Painting |
Color and logo as customer's requirement |
||
Things to consider when buying an Isuzu tank truck:
1. Size and capacity: When purchasing an Isuzu tanker truck, you should choose the appropriate capacity and size so that you can load enough fuel.
2. Material: Choose the appropriate tank material according to actual needs, such as stainless steel or carbon steel, to ensure the safety of oil storage.
3. Safety: The safety of Isuzu tank trucks, such as whether it is designed with fire protection, explosion protection, leakage prevention and other measures.
4. Structure: Understand the structure of the tank truck, such as tank body, frame, engine, suspension and other parts.
5. Power system: Choose an appropriate power system for the Isuzu fuel tanker truck, such as a diesel engine or a gasoline engine.
6. Operation convenience: Consider the operation convenience of the Isuzu oil tank truck, such as control panel, operating system, etc.
