Work capacity:
10000 litersTruck model:
PT5110GXFSEngine power:
380 HPEngine type:
6UZ1-TCG50Axle drive:
4×2Gear box:
FAST 12-speed, manualRemarks:
Large capacity water tank, foam tank is optional

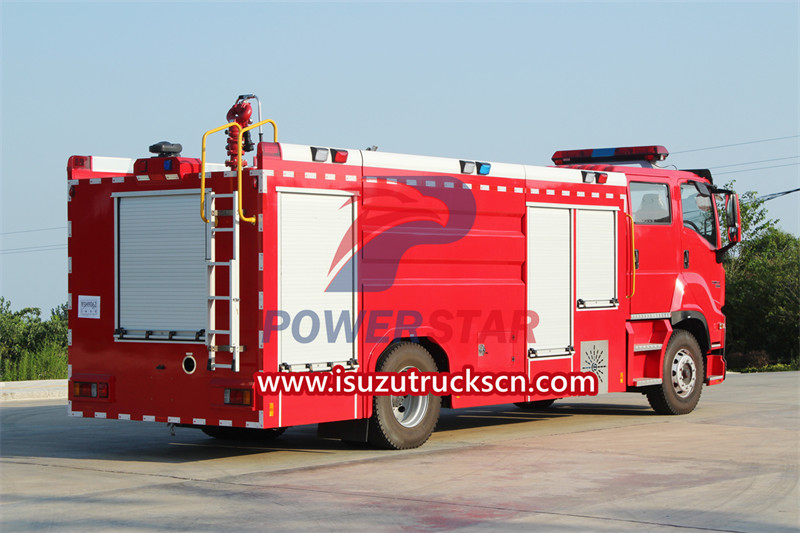

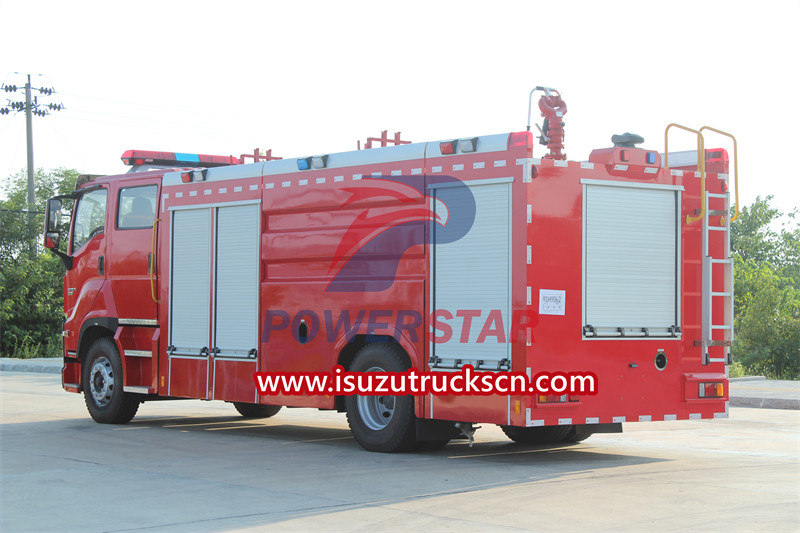

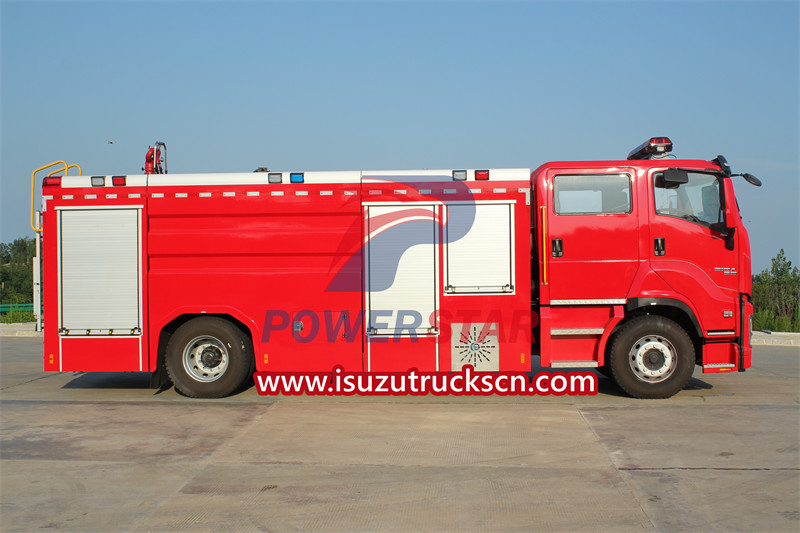

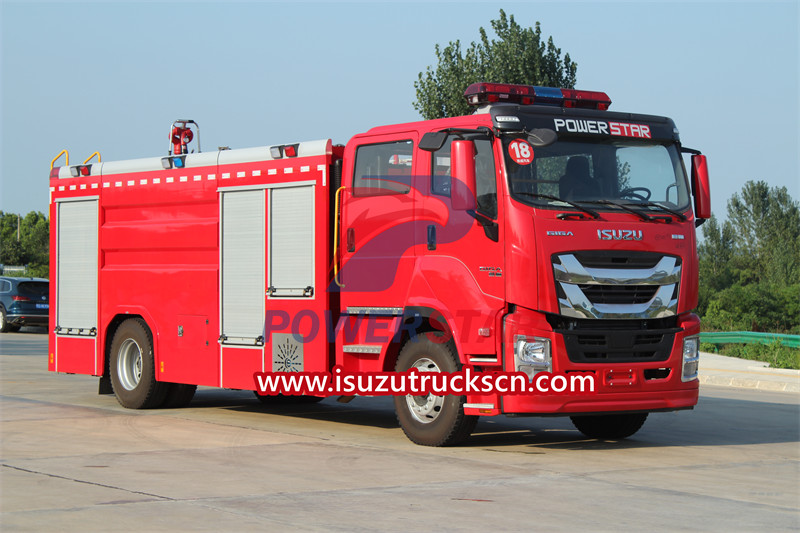

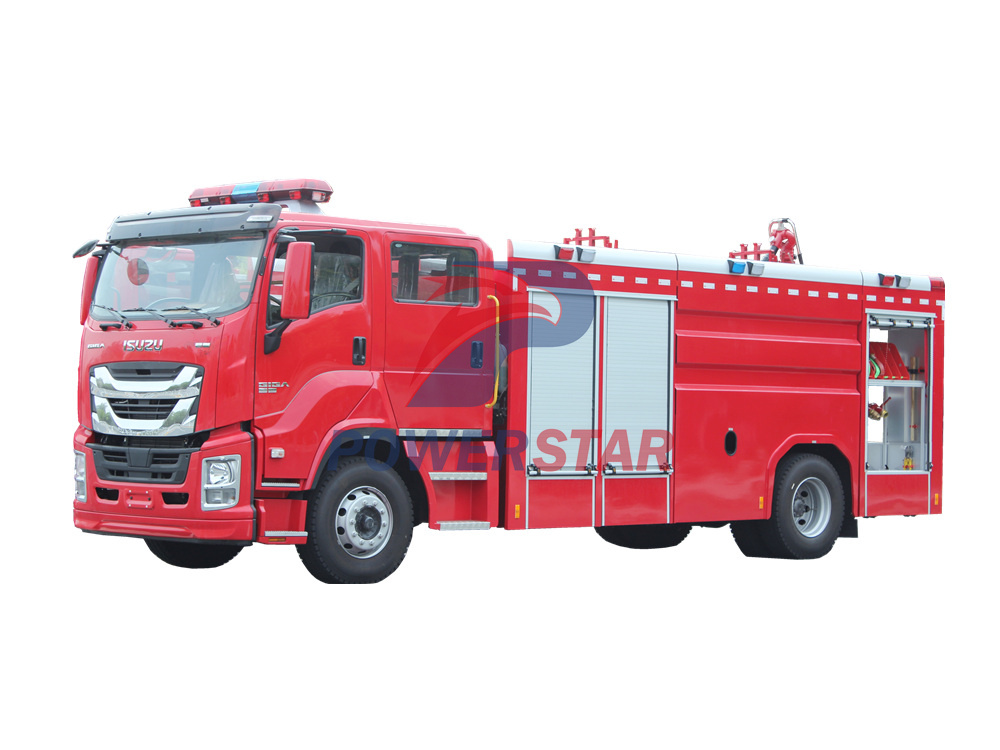

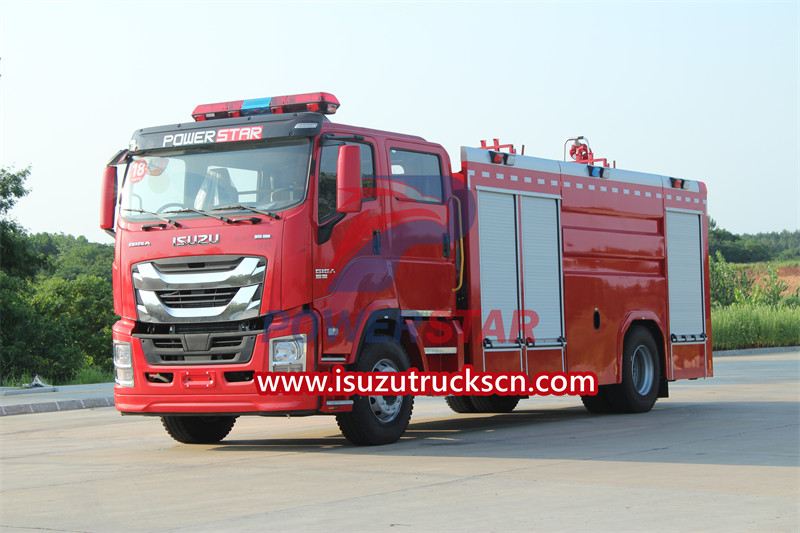

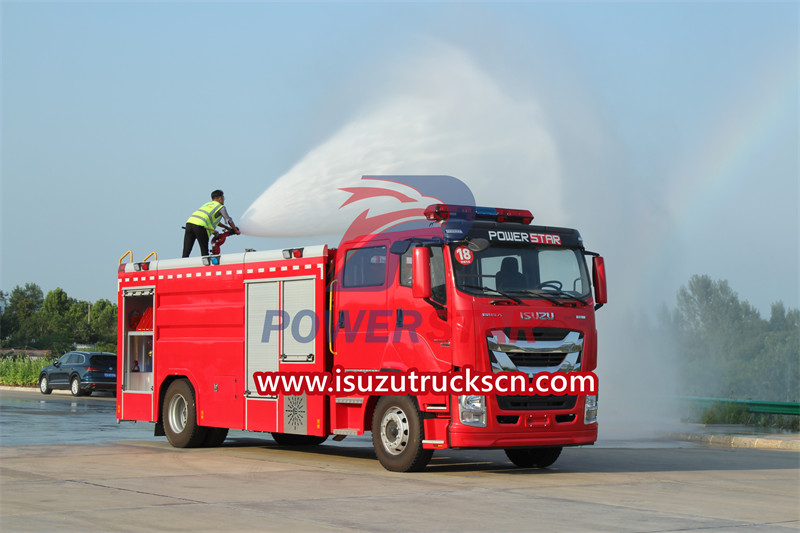

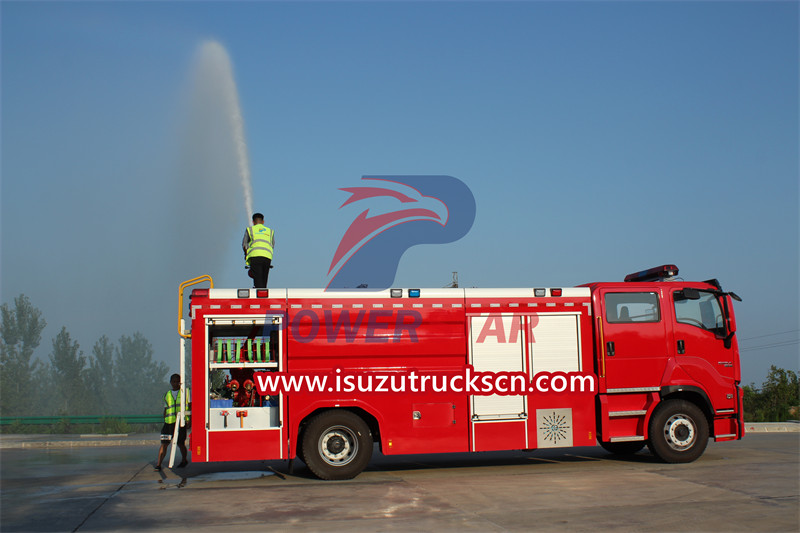

The Isuzu GIGA water supply tender is an efficient and reliable fire rescue vehicle, specially designed to meet
the fire department's needs for large-capacity fire extinguishing capabilities.

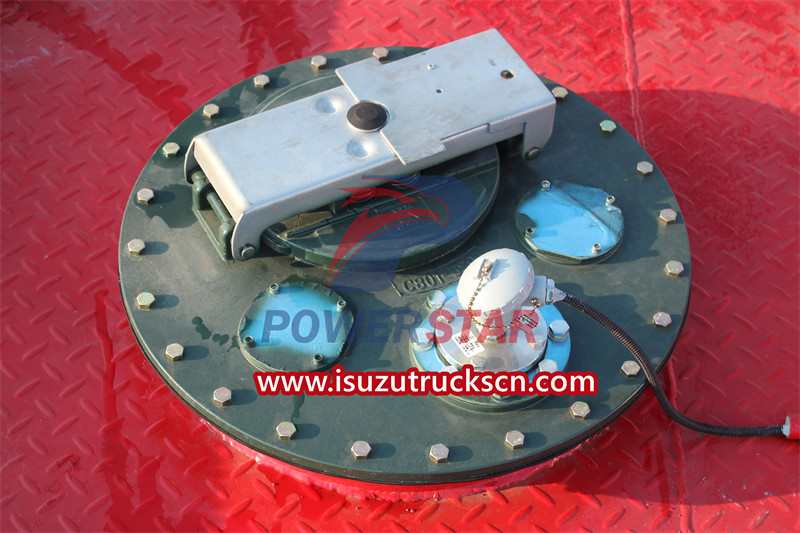

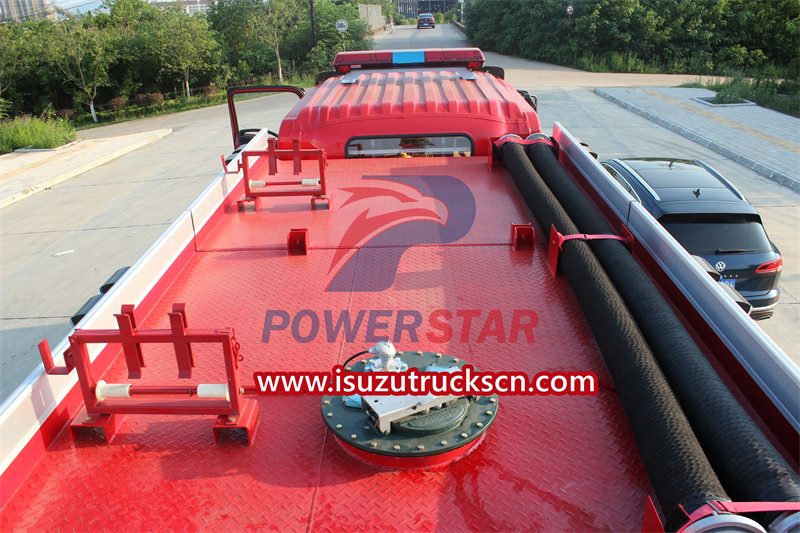

The vehicle is equipped with a 10-ton water tank, which
provides long-term, continuous fire-extinguishing capabilities. The water tank
is made of high-quality carbon steel, with an anti-corrosion coating inside the
tank. It has good pressure resistance and anti-corrosion properties, ensuring
that it can work stably in various harsh fire-fighting environments. The
vehicle is also equipped with adjustable pump speed and water pressure,
allowing firefighters to flexibly adjust firefighting strategies based on the
size of the fire and on-site conditions.
In addition, Isuzu water tender fire trucks are also equipped with advanced firefighting equipment and tools, such as high-pressure water guns, foam sprayers, rescue tools, etc. These devices are specially designed and manufactured to handle various complex fire situations and provide firefighters with comprehensive firefighting and rescue support.
The vehicle also uses an intelligent operating system, which allows drivers and firefighters to know the vehicle's location, water tank water level, fire intensity and other relevant information in real time through advanced sensors and control systems. This helps improve collaborative operations and rapid decision-making, ensuring efficient and safe firefighting operations.
Product Specifications
Chassis
Chassis brand
ISUZU
Model
QL1180
Drive type
4x2 left hand drive
Cabin
Double row cab, 3+3 seats
Total mass
18000 KG
Wheel Base
5600 mm
Front /rear suspension
1015/1890 mm
Approach/departure angle
24/12°
Spring No.
8/6+5
Tyre No.
6+1 pcs
Type & Size of Tyre
315/80R22.5 16PR
Axle No.
2
Steering wheel
left hand drive
Gear box
MSB ,FST 12 speed forward with 1 reverse,
manual ,with ABS
Engine
Engine model
6UZ1-TCG50
Engine brand
ISUZU
Engine type
6 cylinders in line
Maximum power
380 HP
Fuel type
Diesel
Emission Standard
Euro V
Tanker
Water tank volume
10, 000 Liters
Material
Carbon steel

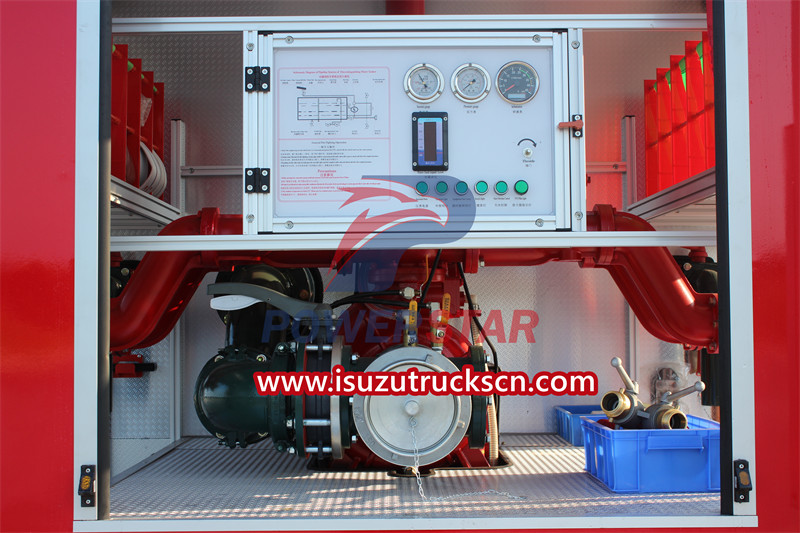

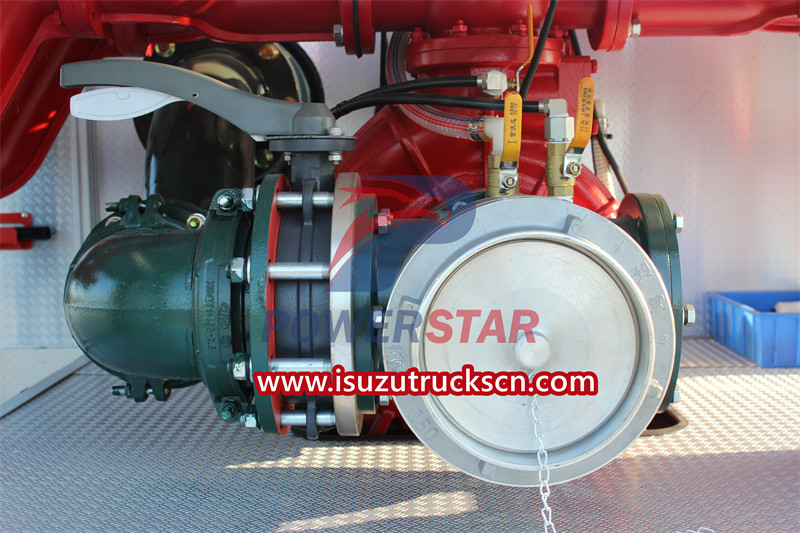

Fire pump
Model
CB10/60,Normal pressure pump
Pressure
≥1.0 Mpa
Max suction height
7 m
Flow
60 L/s
Rated speed
3240 rpm
Time of water divertion
≤50 s
Input diameter
125 mm
Outlet diameter
2xΦ65

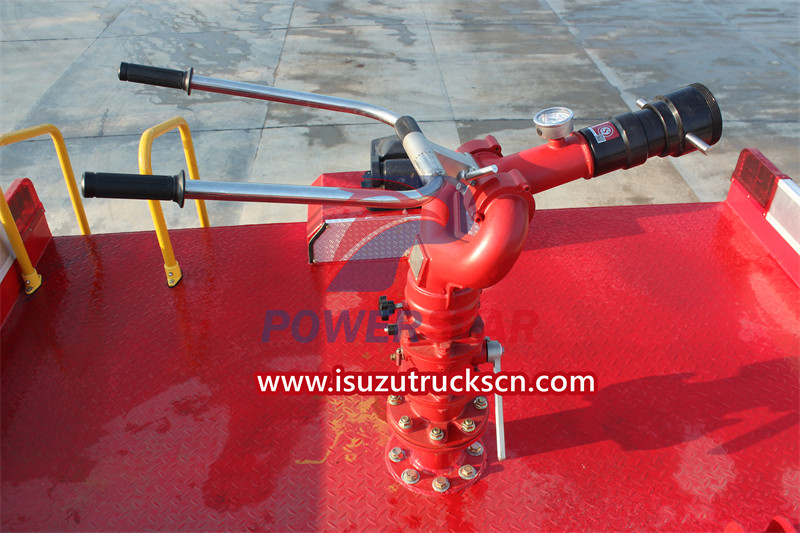

Fire monitor
Model
PS8/60W
Range
≥55 m
≥45 m
Flow
60 L/s
Rated Working pressure
0.8 Mpa
Product Features
Isuzu GIGA water tanker tenders fully consider safety in fire-fighting operations during the design and manufacturing process, and adopt a number of advanced technologies and measures to ensure the safety of drivers and firefighters. Its security features are as follows:
1. Strong and durable body structure: The vehicle uses high-strength steel and advanced welding processes to create a strong and durable body structure. This provides good impact resistance, protecting drivers and firefighters from hazards such as accidental collisions and falls.
2. Anti-skid and braking system: The vehicle is equipped with high-performance anti-skid tires and braking system, which can provide stable braking effect under various road conditions and weather conditions. This helps prevent loss of control during emergency braking or on slippery roads, reducing the risk of an accident.
3. Comprehensive safety protection equipment: Drivers and firefighters are equipped with comprehensive safety protection equipment such as helmets, protective clothing, and gloves. These equipment can effectively protect them from heat, flame, smoke and other dangerous factors.
4. Emergency escape device: An emergency escape device is installed inside the vehicle to facilitate quick evacuation in an emergency. These devices include emergency escape windows, safety hammers and fire extinguishers, providing multiple escape routes for drivers and firefighters.
5. Intelligent safety system: The fire truck adopts an intelligent safety system to monitor the status of the vehicle and the surrounding environment in real time through sensors and control systems. When an abnormal situation occurs, the system will immediately issue an alarm and take corresponding measures, such as automatic braking or deviation warning, to avoid potential dangers.
