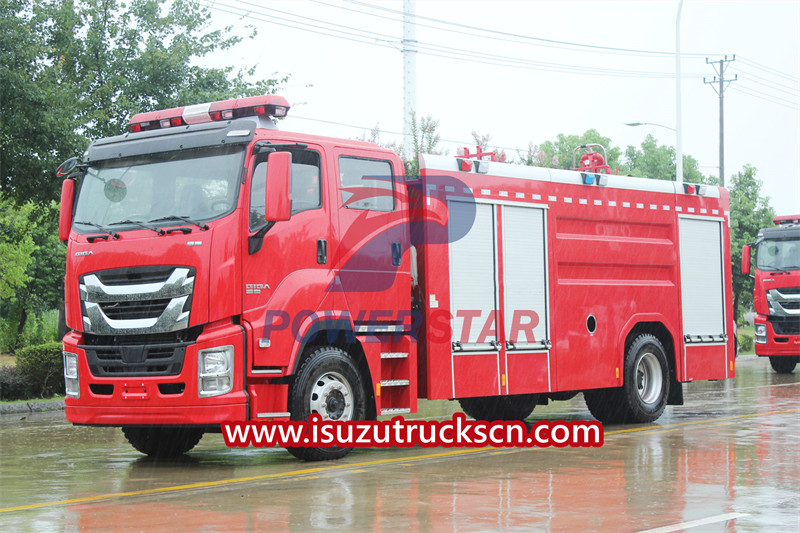

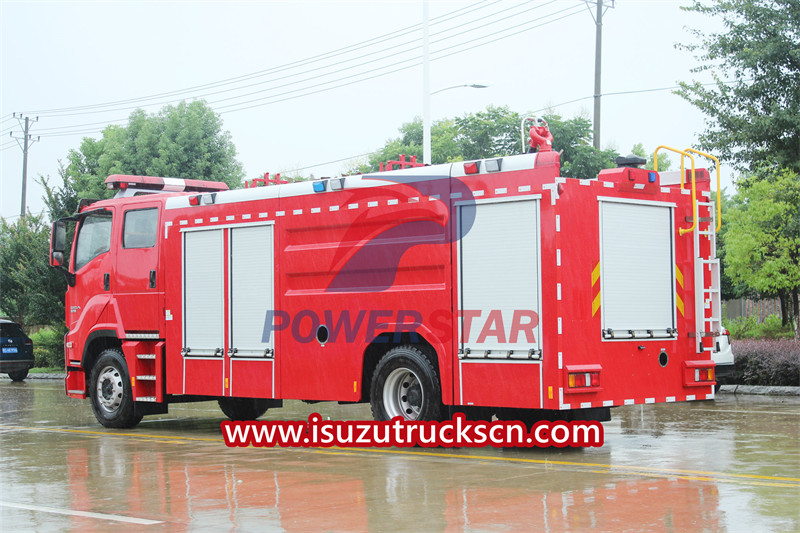

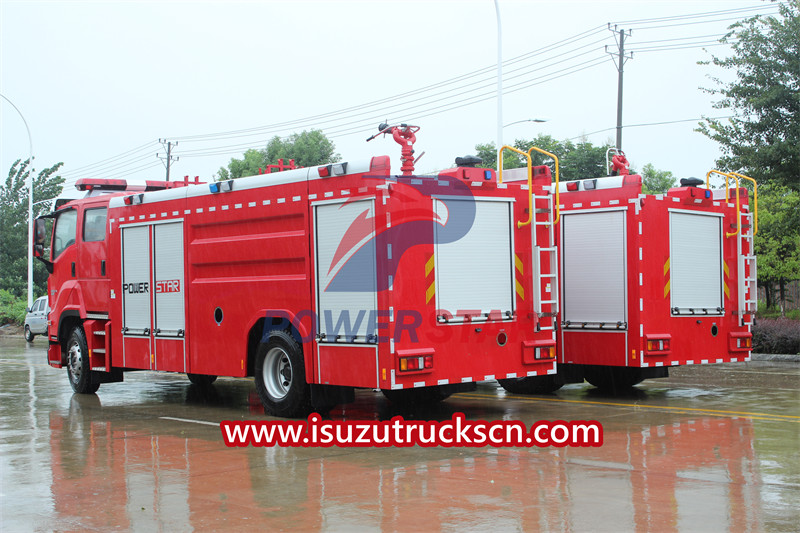

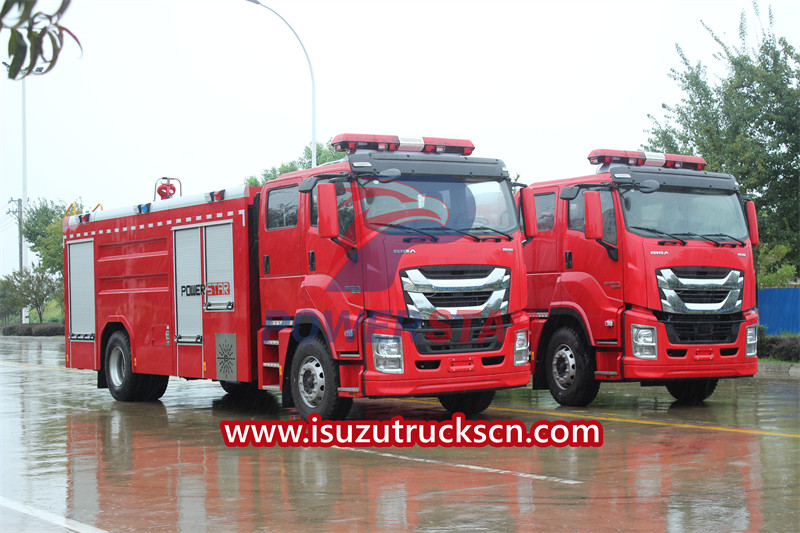

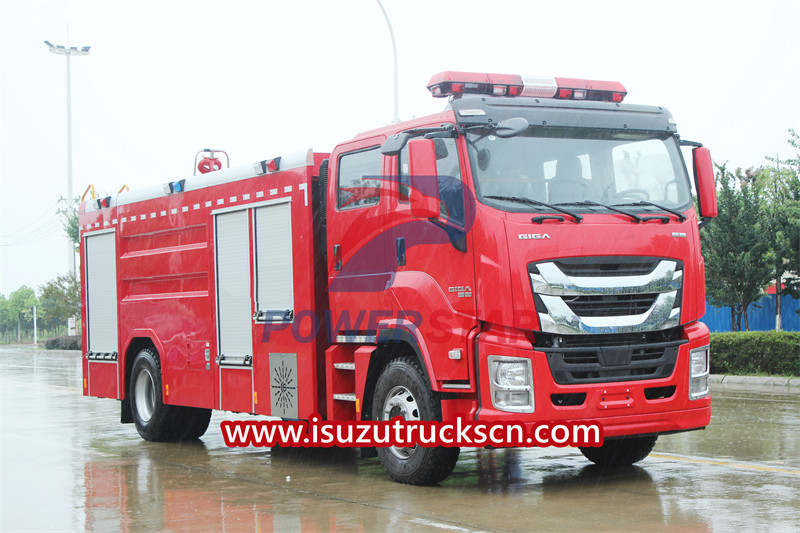

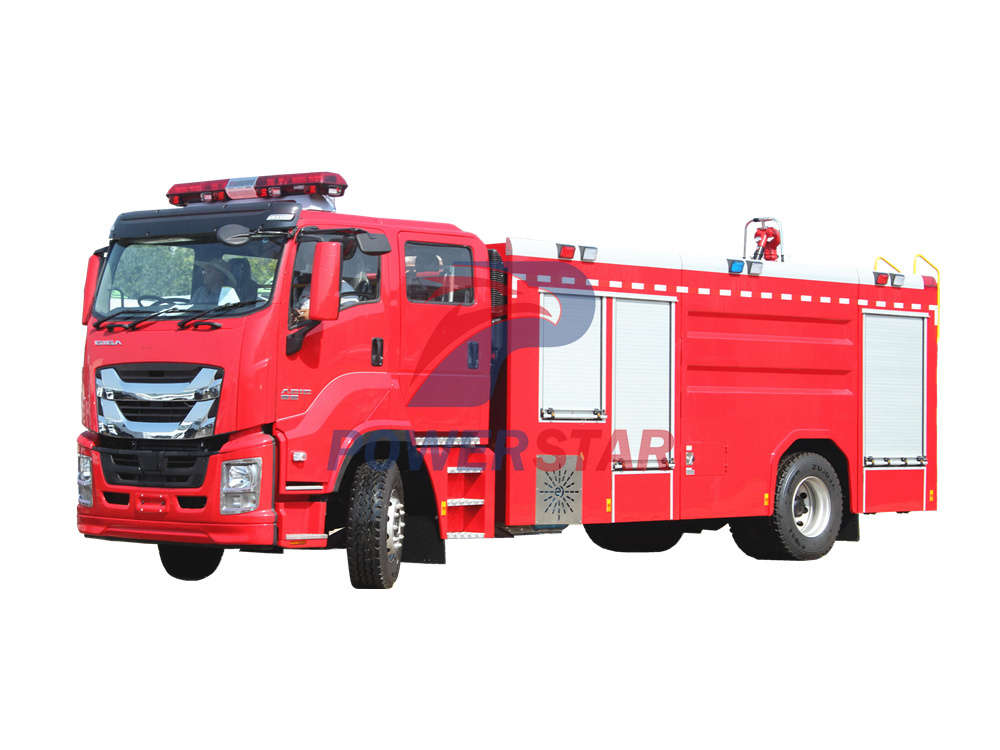

The ISUZU GIGA foam fire truck is a fire truck using the high-quality Isuzu GIGA chassis, with Euro V emission standard, and is equipped with an Isuzu 6UZ1-TCG50 engine with a strong power of 380 HP. The vehicle is equipped with a double cab and the total tank volume reaches 12,000L. At the same time, the fire truck is equipped with CB10/60 fire pump, PL48 water and foam dual-purpose fire monitor and other fire-fighting equipment. The water range exceeds 65 meters and the foam range exceeds 55 meters.
Work capacity:
12000 litersTruck model:
PT5120GXFPEngine power:
380 HPEngine type:
6UZ1-TCG50Axle drive:
4×2Gear box:
FAST 12-speed, manualRemarks:
1000L water tank and 2000L foam tank, American type couplersISUZU GIGA foam fire truck, an excellent fire rescue vehicle, has become an important force in protecting urban safety with its powerful fire extinguishing capabilities and efficient working performance. The vehicle has excellent carrying capacity and passing performance, and is comfortable to drive. It is very suitable for application scenarios such as urban fire brigades, petrochemical industries, ports and terminals, corporate and government full-time fire extinguishing and rescue.
The ISUZU GIGA rescue pumper is built on the advanced Isuzu GIGA chassis, equipped with a powerful engine and transmission, providing excellent driving stability and off-road capabilities. This fire truck can hold 2000L of foam fire extinguishing agent, which can quickly extinguish various fires and effectively reduce fire losses.

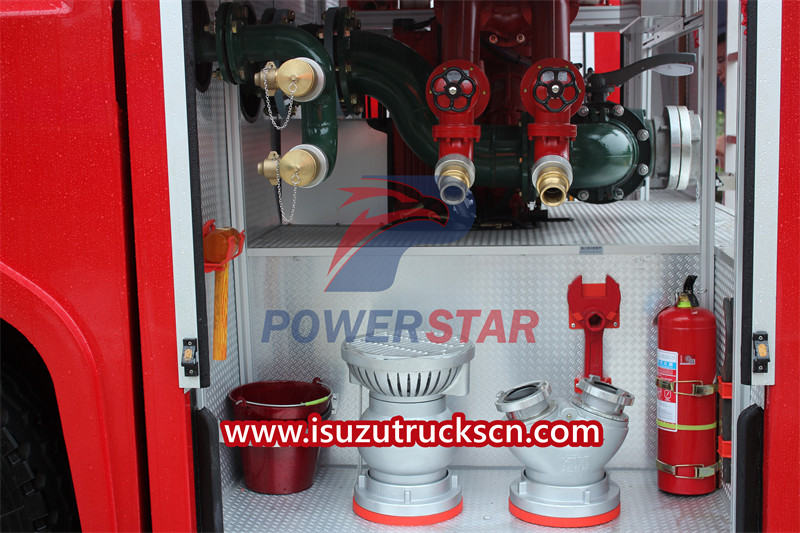

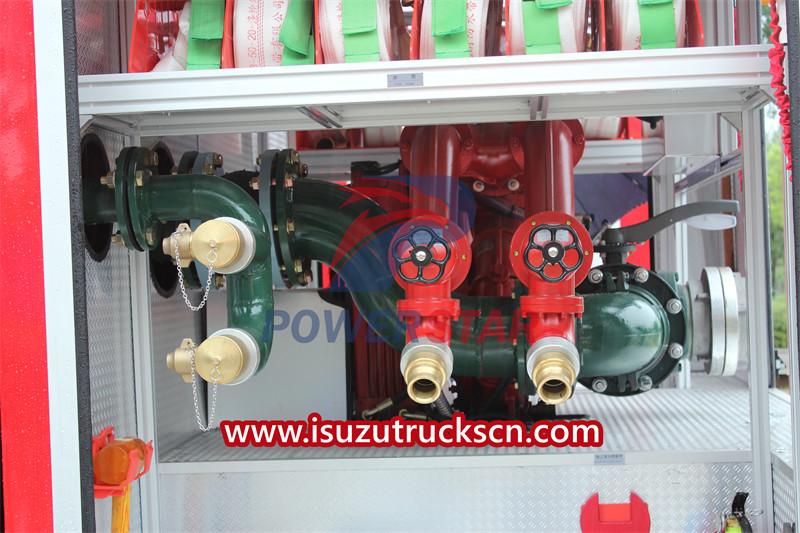

The vehicle is equipped with advanced fire-fighting equipment and systems, including high-pressure water pumps, foam mixing systems, water and foam dual-purpose fire cannons, etc. These devices can quickly extinguish fires and effectively control fires, providing firefighters with better rescue conditions.
The foam fire extinguishing agent of the Isuzu GIGA fire truck can be quickly sprayed onto the fire source through a high-pressure water pump, quickly covering the burning material and reducing the temperature, thereby achieving the purpose of quickly extinguishing the fire. In addition, foam fire extinguishing agents can also inhibit the spread of fire sources and buy firefighters more rescue time.
The vehicle is also equipped with an intelligent control system that can monitor the working status of the vehicle and the use of fire extinguishing agents in real time. This helps improve firefighting efficiency and ensures the smooth progress of rescue missions.
Product Specifications
|
ISUZU GIGA Foam Fire Tender |
|
|
Chassis information |
|
|
Chassis model |
QL1180 |
|
Overall dimensions(mm) |
8790×2540×3580 |
|
Wheel base(mm) |
5600 |
|
Driving type |
4×2 |
|
Steering |
Left drive hand |
|
Approach/departure angle(°) |
17/12 |
|
Front /rear overhang(mm) |
1335/2115 |
|
Front/rear axle (kg) |
7000/13000 |
|
Wheel track(front/rear)(mm) |
1960/1855 |
|
Tyre size |
8.25-16 |
|
Tyre number |
6+1 pcs |
|
Max driving speed(km/h) |
100 |
|
Gross vehicle weight |
18,000 kg |
|
Curb weight |
9,800 kg |
|
Rated Loading capacity |
12,000 kg |
|
Engine Manufacturer |
ISUZU |
|
Engine Model |
6UZ1-TCG50 |
|
Engine Type |
Diesel |
|
Engine power |
279kw/380hp |
|
Engine displacement |
9839 ml |
|
Emission standard |
Euro 5 |
|
Transmission |
FAST 12-speed manual gearbox |
|
Tank Body |
|
|
Water tank volume |
10,000 liters |
|
Tank material |
Carbon steel |
|
Foam tank volume |
2,000 liters |
|
Tank material |
Stainless steel |
|

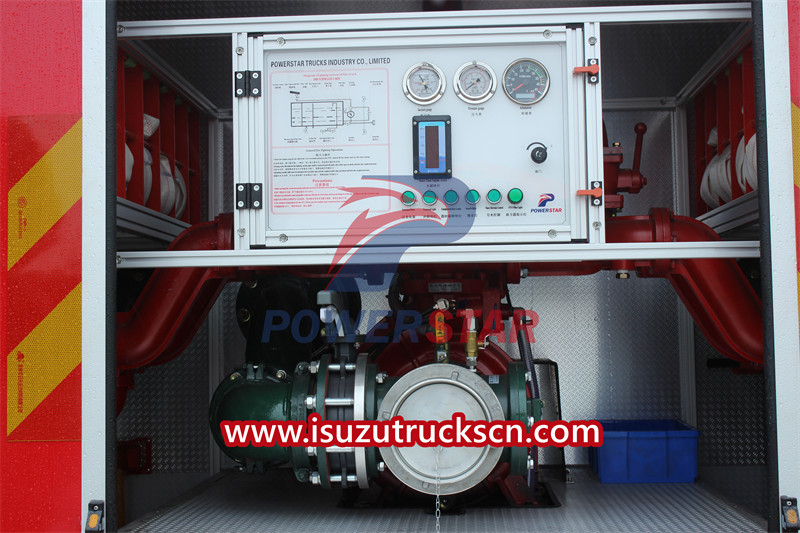

Fire pump model |
CB10/60 |
|
Fire pump pressure |
≥1.0 Mpa |
|
Fire pump max suction height |
7 m |
|
Fire pump flow |
60 (L/S) |
|
Fire pump rated speed |
2800 (r/min) |
|
Fire pump time of diversion water |
≤50 (s) |
|
Fire monitor model |
PL48 |
|
Water range |
≥55 m |
|
Foam range |
≥45m |
|
Fire monitor flow |
48 (L/S) |
|
Fire monitor rated working pressure |
1 Mpa |
|
Fire monitor rotation angle |
360 (°) |
|
Other configurations |

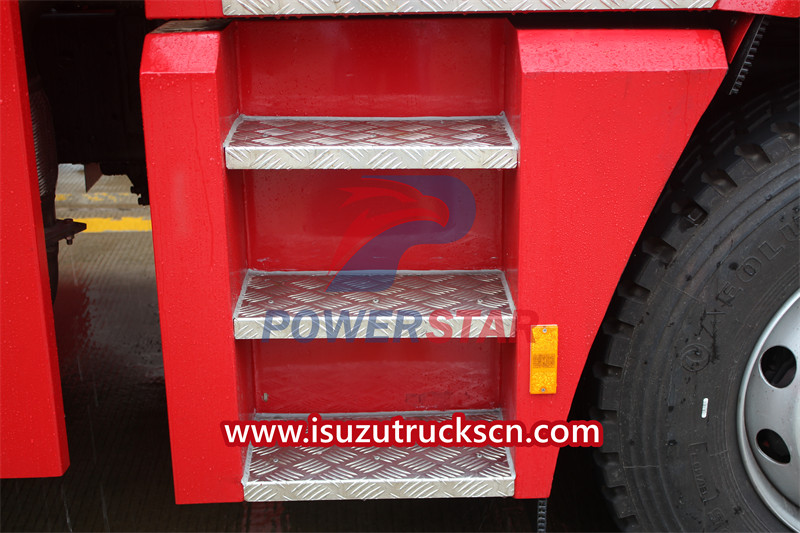

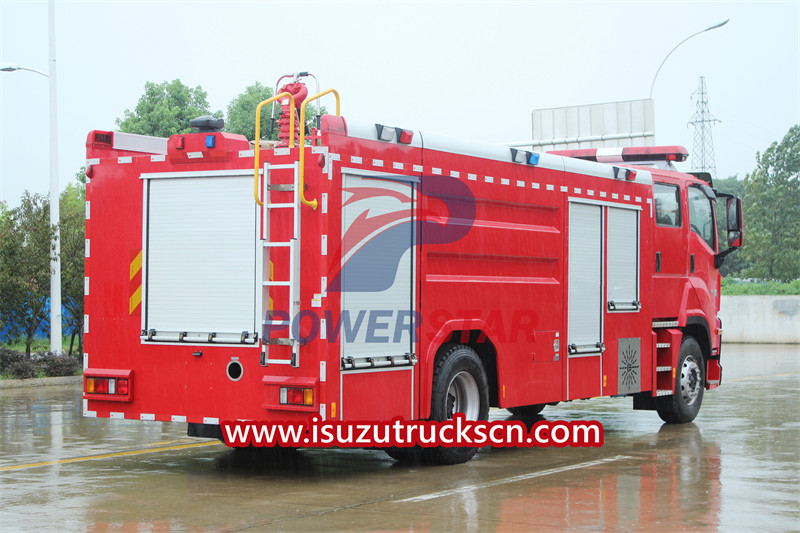

Power extractor control indicator light, 100W alarm, warning light, sign light, indicator light switch and optional reversing system display screen, operating panel, rear ladder, toolbox, water hose rack, equipment room |
Why are the ISUZU fire vehicles produced by POWERSTAR so popular among customers?
The Isuzu fire vehicles produced by POWERSTAR are popular among customers for the following reasons:
1. Efficient fire extinguishing performance: Isuzu firefighting trucks have efficient fire extinguishing performance and can quickly extinguish various fires and effectively reduce fire losses. This is very important for fire rescue operations where fires need to be controlled quickly.
2. Stability and reliability: The vehicle adopts the advanced Isuzu GIGA chassis, which has excellent driving stability and off-road capabilities. This allows the vehicle to remain stable under complex and changing road and terrain conditions, ensuring the smooth progress of fire-fighting work.
3. Large-capacity fire extinguishing agent: Isuzu GIGA foam fire truck is equipped with max. 10,000L water and 2,000L foam fire extinguishing agent, which can handle large-scale fires. Large-capacity foam fire extinguishing agents can ensure sufficient fire extinguishing resources to meet the needs of long-term and high-intensity fire extinguishing.
4. Intelligent control system: The vehicle is equipped with an intelligent control system, which can monitor the working status of the vehicle and the use of fire extinguishing agents in real time, which helps to improve the efficiency of fire extinguishing and ensure the smooth progress of the rescue mission.
5. Brand reputation and reputation: As a professional special-purpose vehicle manufacturer, POWRESTAR has produced and sold Isuzu fire trucks for many years and enjoys good reputation and credibility at home and abroad. Choosing ISUZU fire trucks produced by POWERSTAR reflects the customer's pursuit of quality and professionalism.
