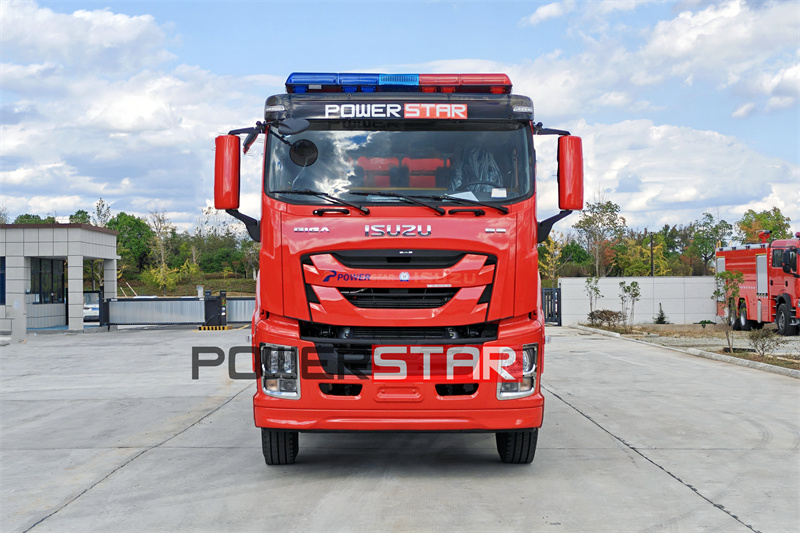

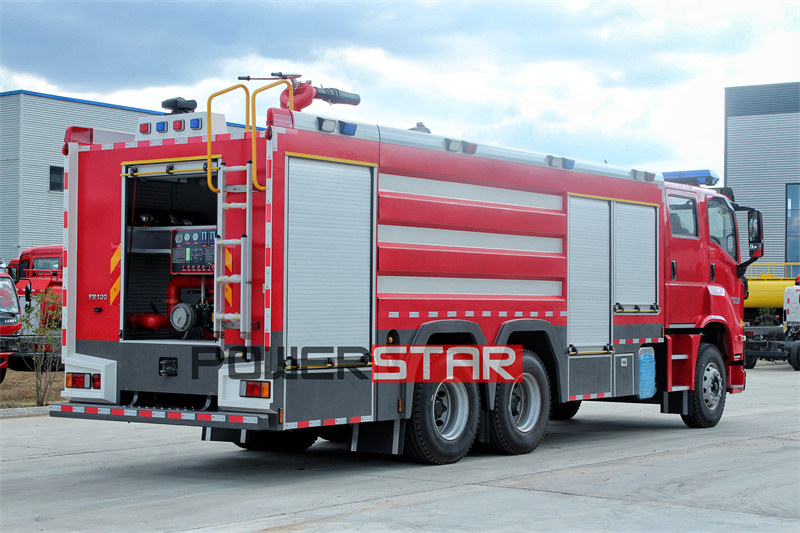

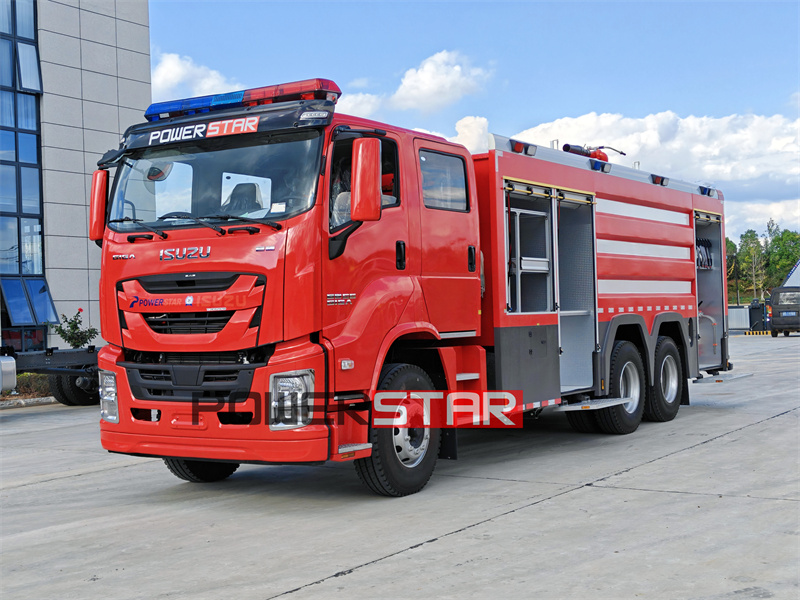

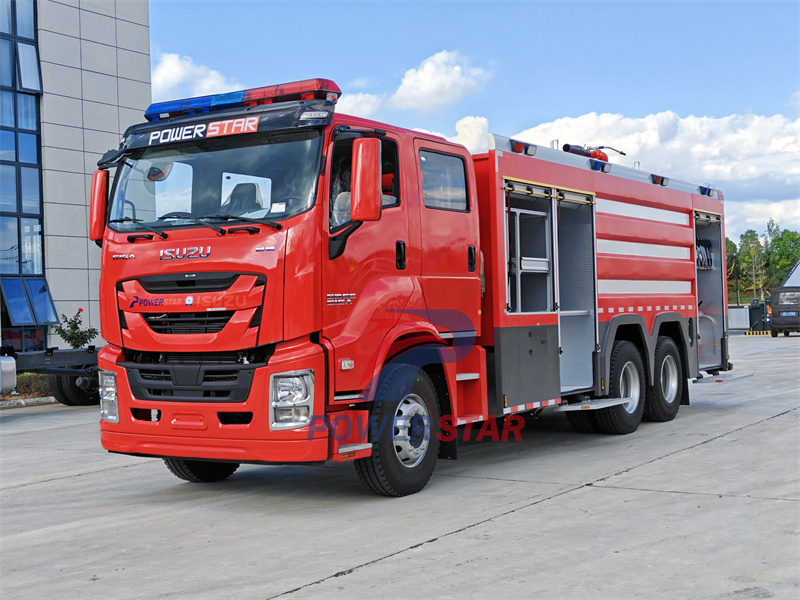

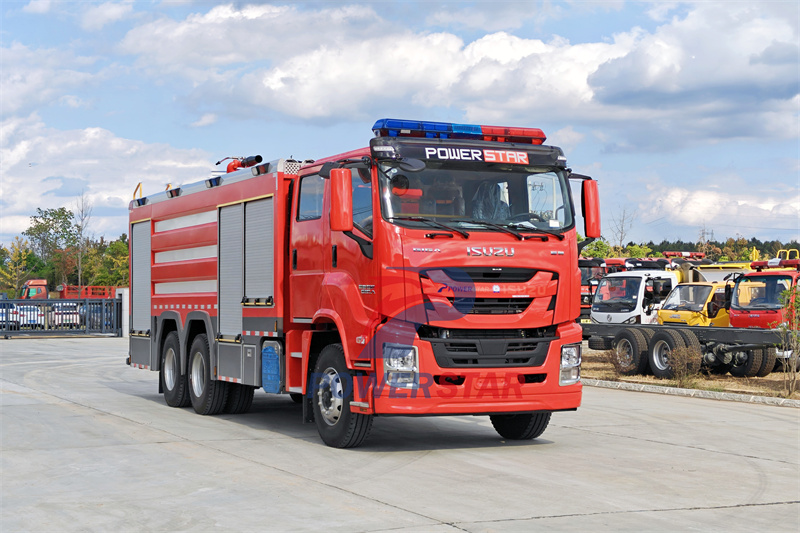

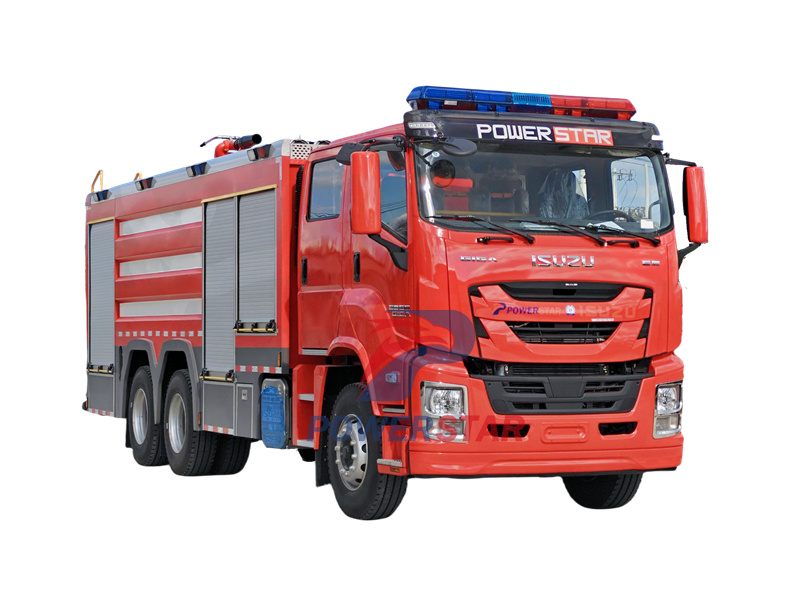

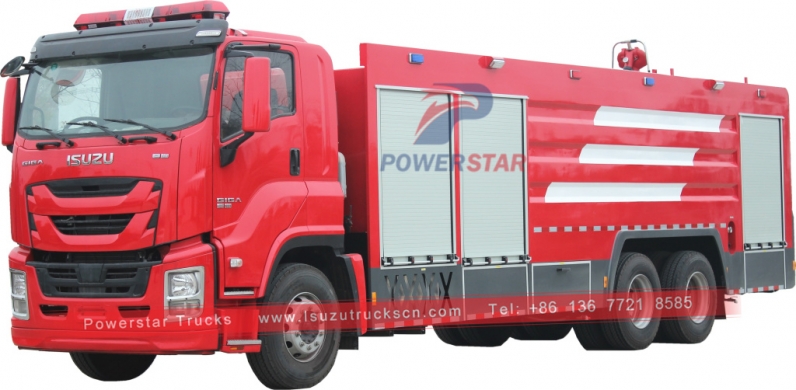

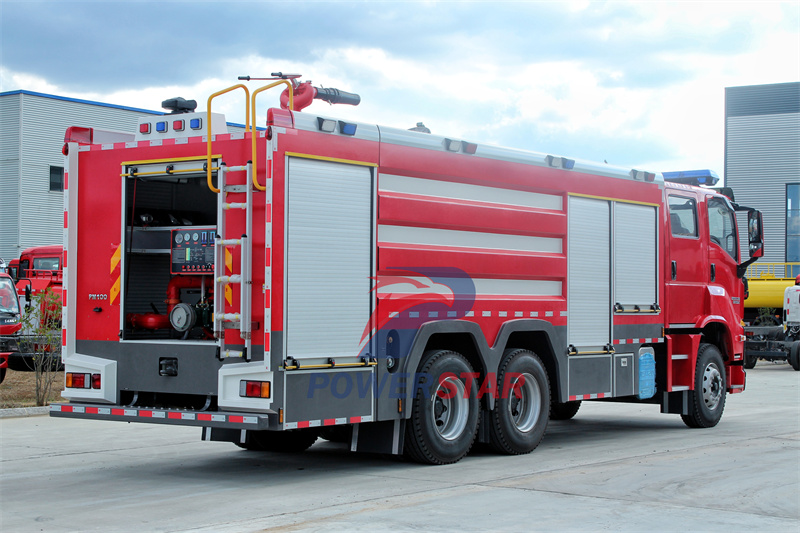

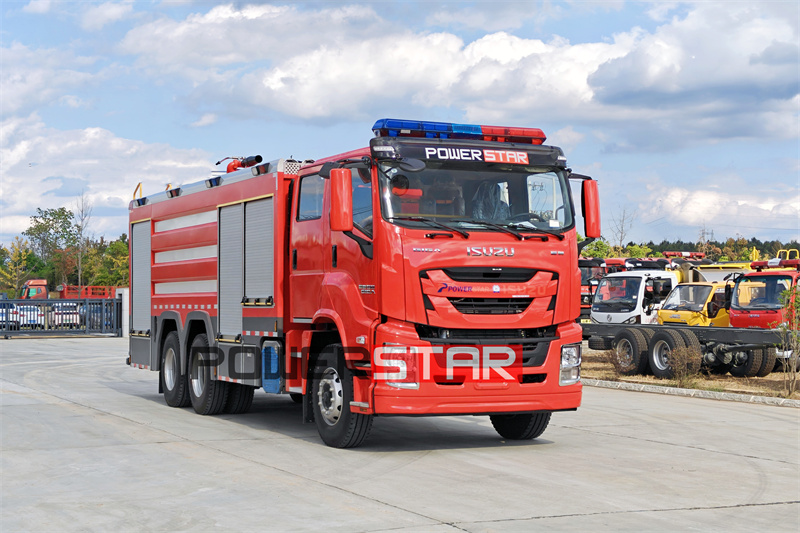

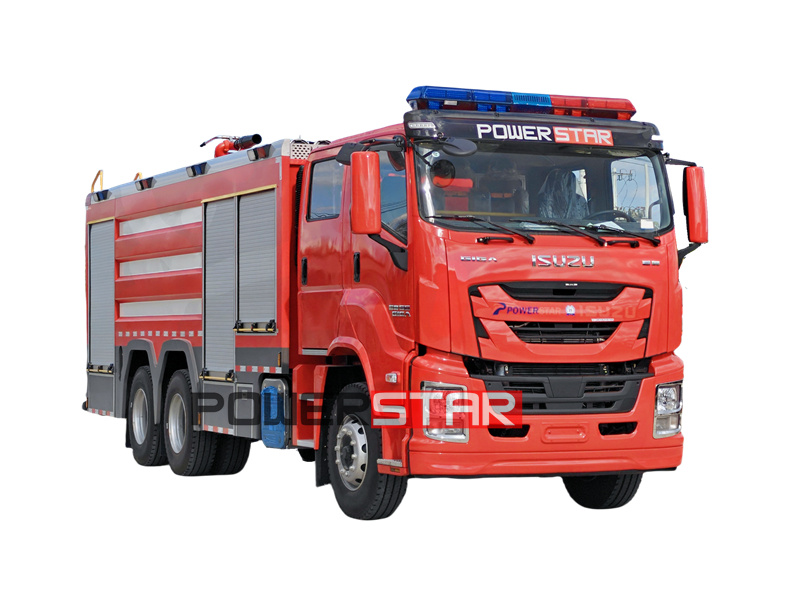

This water tender fire ISUZU GIGA truck adopts the ISUZU GIGA chassis, with a drive form of 6*4, and is a heavy-duty chassis. It is equipped with a 6WG1-TCG60 engine with a rated power of 420 horsepower, matched with a manual transmission, and has 12 forward gears and 2 reverse gears. The ISUZU GIGA fire tanker has a tank capacity of 8000L water and 1500L foam, and is made of PP composite material with anti-corrosion properties. A fire cannon is installed on the roof with a flow rate of 45L/s and a range of more than 55 meters. In addition, the ISUZU GIGA fire truck is also equipped with warning lights, sirens, fire pumps and other equipment to meet various firefighting needs.
Work capacity:
9500LTruck model:
PT5250SXFEngine power:
420HPEngine type:
6WG1-TCG60Axle drive:
6X4,left hand driveGear box:
FAST gearbox, manual, 12 gears forwards with 2 reverseRemarks:
8000L water tank and 1500L foam tankThis ISUZU GIGA fire tanker is a perfect combination of powerful performance, exquisite craftsmanship and practical application advantages. This Isuzu fire fighting truck is equipped with Isuzu's powerful 6WG1-TCG60 engine, and its output of 420 horsepower is enough to cope with various emergencies. Its maximum speed can reach 95 km/h, ensuring that firefighters can reach the fire scene quickly. The firefighting capacity of the ISUZU GIGA fire tanker - 60 liters/second pumping flow and 65 meters of range are sufficient to cope with most fires. The 8000-liter water tank capacity and 1500-liter foam tank provide sufficient guarantee for continuous combat. The chassis made of high-strength special steel ensures the stability of the vehicle structure. The equipment compartment made of aluminum alloy is not only lightweight, but also never rusts, greatly extending its service life. The liquid tank made of PP composite material is both light and durable. Every detail shows exquisite craftsmanship, from the rolling shutter door with rain gutter design to the pedal with anti-slip design, all of which reflect the thoughtful consideration of firefighters' safety and convenience.

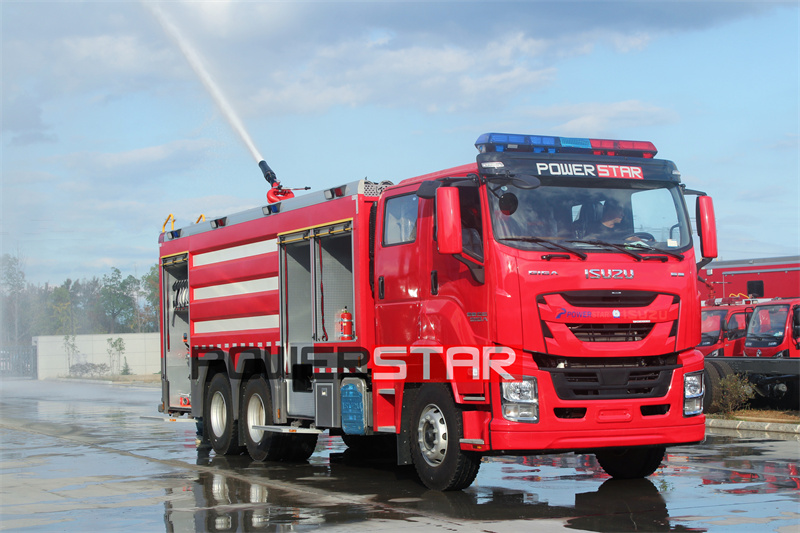

This ISUZU GIGA fire water truck is designed for actual combat. The double-row cabin can accommodate 5 people, and the rear row is also equipped with an air breathing apparatus bracket to prepare firefighters for entering the fire scene. The PLC-controlled fire extinguishing system provides flexible and diverse operating options. The remote-controlled fire cannon on the roof can rotate 360 degrees, making firefighting operations more flexible and efficient. The LED lighting system and warning lights ensure the safety of night operations. In general, this ISUZU GIGA fire truck represents the highest level of contemporary fire trucks.
Specification:
|
Whole Fire Truck |
|||
|
1.1 |
Model |
PST5250GXFS |
|
|
1.2 |
Dimension |
9840mm*2430mm*3360mm |
|
|
1.3 |
Full Load Weight |
9680 KG |
|
|
1.4 |
Number of the Crew |
2+3 (include driver) |
|
|
1.5 |
Max. Speed |
95km/h |
|
|
1.6 |
Capacity |
8000L Water & 1500L Foam. PP composite material liquid tank |
|
|
1.7 |
Flow rate |
60L/s @ 10bar |
|
|
1.8 |
Fire monitor |
50L/s flow rate with 65m shoot range |
|
|
1.9 |
Painting |
Red color of U.S. PPG |
|
|
ISUZU GIGA Chassis |
|||
|
2.1 |
Manufacturer |
ISUZU |
|
|
2.2 |
Model |
New GIGA |
|
|
2.3 |
Drive type |
6*4 |
|
|
2.4 |
Wheelbase |
4600+1370 mm |
|
|
2.5 |
Engine model |
6WG1-TCG60 |
|
|
2.6 |
Engine type |
Inline 6-cylinder, turbocharged, inter-cooled diesel engine |
|
|
2.7 |
Rated power |
420hp |
|
|
2.8 |
Gearbox form |
Manual gearbox, 12 forward gears + 2 reverse gear |
|
|
2.9 |
PTO |
Full power sandwich type |
|
|
2.10 |
Fuel tank capacity |
400L |
|
|
Superstructure |
|||
|
3.1 |
Cabin |
||
|
3.1.1 |
Structure |
Double row cabin with 4 doors |
|
|
3.1.2 |
Seats |
2+3, with 3-point safety belt, the rear 4 seats with SCBA bracket for 6-9L air cylinders, with storage box under the rear 4 seats |
|
|
3.2 |
Standardized Sub-frame |
||
|
3.2.1 |
Material |
High-strength rectangular tube made of special steel |
|
|
3.2.2 |
Performance |
The liquid tank and the sub-frame are connected by elastic connecting seats |
|
|
3.3 |

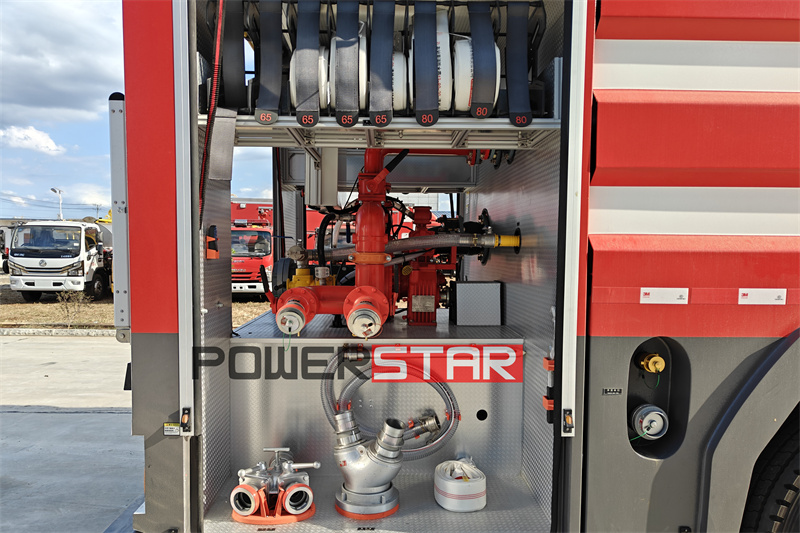

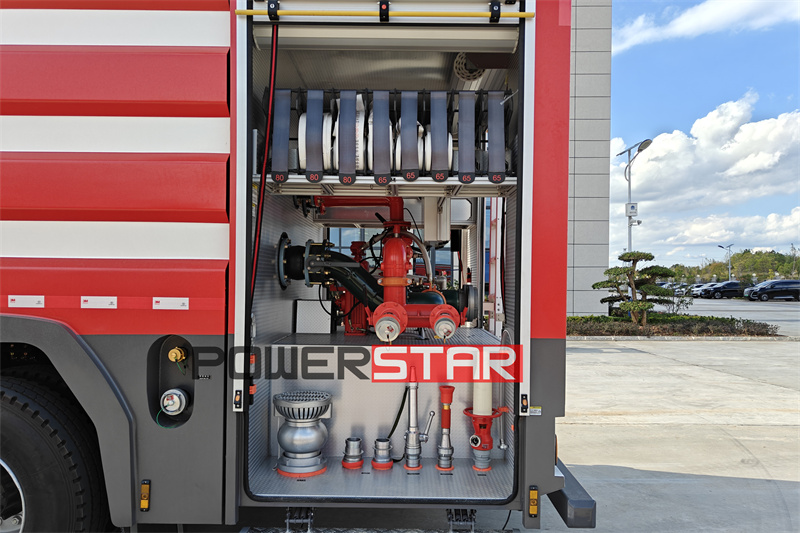

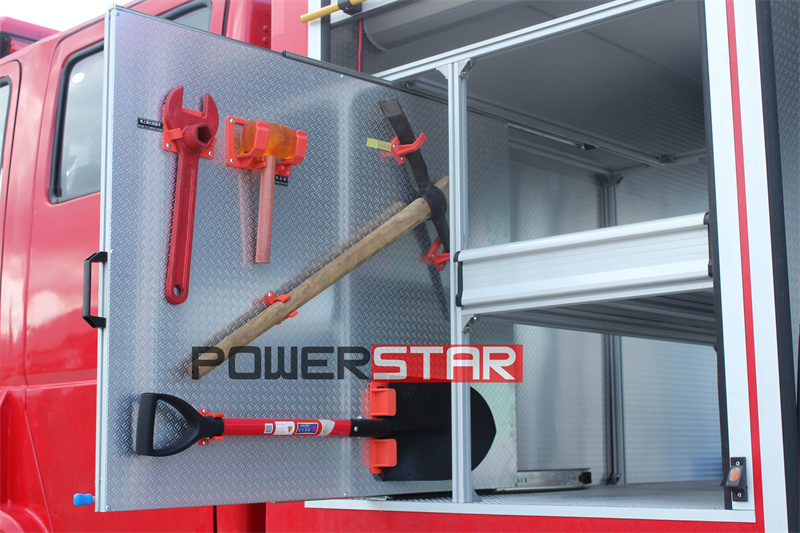

Compartment |
||
|
3.3.1 |
Material |
High-strength aluminum alloy profiles (Never Rust) |
|
|
3.3.2 |
Structure |
Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear |
|
|
3.4 |
Roller Shutter Door |
||
|
3.4.1 |
Material |
Aluminum alloy profiles with anodized surface |
|
|
3.4.2 |
Structure |
With rain-proof groove on the top, lever-type bar, lock handle, pull strap, two-point fixed seat, LED light and sensors. |
|
|
3.5 |
Foot Pedals |
||
|
3.5.1 |
Material |
High quality aluminum alloy |
|
|
3.5.2 |
Structure |
50cm width, bear more than 300kg, anti-slip design, with double lock function. Mounted on the both sides of compartment. |
|
|
3.6 |
Superstructure Electric Appliance |
||
|
3.6.1 |
Warning Light and Siren |
Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin. |
|
|
3.6.2 |
Strobe Light |
Mounted on the both sides of the compartment |
|
|
3.6.3 |
External Lighting |
LED lights are mounted on the both sides of the compartment |
|
|
3.6.4 |
Roof Lighting |
LED lights are mounted on the inside of the roof |
|
|
3.6.5 |
Side Indicator Light |
Inline yellow warning light is mounted on the side of the compartment and pedals |
|
|
3.7 |

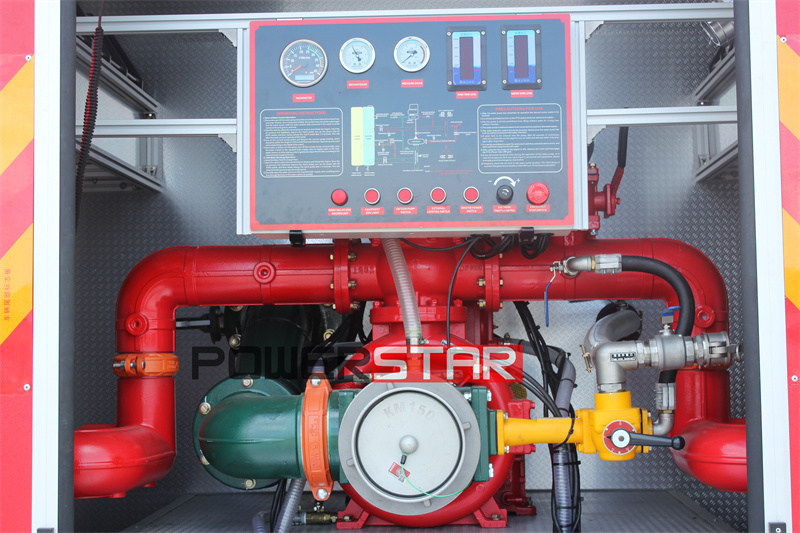

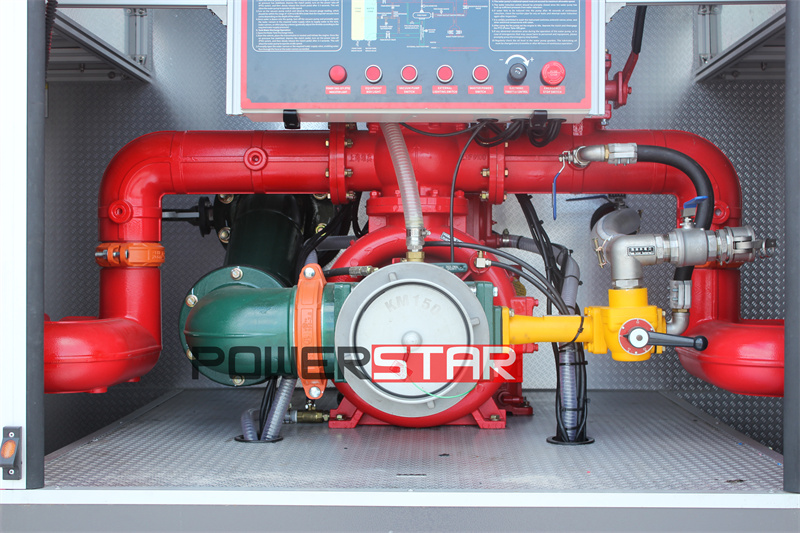

Fire Pump |
||
|
3.7.1 |
Brand |
China TOP brand |
|
|
3.7.2 |
Model |
CB10/60G |
|
|
3.7.3 |
Rated Flow Rate |
60L/s @ 10bar |
|
|
3.7.4 |
Vacuum Pump |
Water ring vacuum pump |
|
|
3.7.5 |
Priming Manner |
Automatic |
|
|
3.7.6 |
Suction Height |
9m |
|
|
3.7.7 |
Priming Time |
≤35s |
|
|
3.7.8 |
Location |
Rear-mounted |
|
|
3.8 |

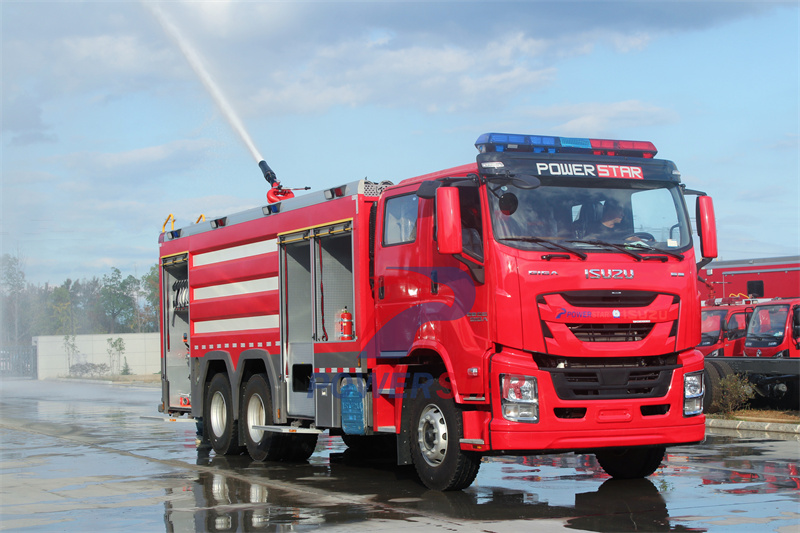

Fire Monitor |
||
|
3.8.1 |
Brand |
China TOP brand |
|
|
3.8.2 |
Model |
PL45 |
|
|
3.8.2 |
Flow Rate |
45L/s @ 10bar |
|
|
3.8.3 |
Shoot Range |
Water ≥ 55 m, Foam ≥ 45 m |
|
|
3.8.4 |
Location |
On the top of the tank |
|
|
3.8.5 |
Control Manner |
Manual |
|
|
3.8.6 |
Horizontal Rotation Angle |
0°~360° |
|
|
3.8.7 |
Pitch Rotation Angle |
-15°~60° |
|
|
3.9 |
Liquid Tank |
||
|
3.9.1 |
Capacity |
Water 8000L, Foam 1500L |
|
|
3.9.2 |
Material |
PP composite material and Never Rust |
|
|
3.9.3 |
Structure |
Two Tank Manhole; One Overflow Device/Pressure Relief Device; Two Liquid Level Indicators; One Foam tank Drain Outlets with Valves; One Water tank Drain Outlets with Valves. |
|
|
3.10 |
Fire Fighting Control System |
||
|
3.10.1 |
Structure |
Each fire extinguishing system is controlled by PLC, and different standardized control modules can be selected. IP56 protection level |
|
|
3.10.2 |
Location |
Rear pump room |
|
Feature:
Five key elements of quality fire truck production:
1. Chassis selection and power system matching: The foundation of a fire truck lies in its chassis and power system. Choosing a reliable chassis such as the ISUZU GIGA is crucial. A powerful engine (such as the 420hp output in the ISUZU GIGA fire truck) ensures that the fire truck can respond quickly to emergencies. At the same time, the choice of powertrain is also critical, such as the 12 forward 2 reverse manual transmission adopted by the vehicle, which provides flexible maneuverability. In addition, the application of full-power sandwich PTO enables the fire pump to work efficiently, which is essential for the core function of the fire truck.
2. Water tank design and material selection: One of the core functions of the ISUZU GIGA fire truck is water storage and water delivery. Therefore, the design and material selection of the water tank become particularly important. For example, the PP composite material used in the fire truck is not only lightweight, but also has excellent corrosion resistance and strength. The 8000L water capacity and 1500L foam capacity provide sufficient fire extinguishing medium. At the same time, the structural design of the water tank is also very important, such as overflow devices, pressure release devices, liquid level indicators, etc., which are the key to ensure the efficient and safe use of the water tank.
3. Performance of the pump system and fire cannon A high-performance pump system is the heart of the fire truck. The Isuzu GIGA Fire truck's pump system can provide a flow rate of 60L/s@10bar, which is crucial in firefighting operations. At the same time, the 9-meter water absorption height and ≤35s water diversion time also ensure adaptability in various complex environments. The top-mounted fire cannon (such as the water range ≥55m and the foam range ≥45m in this case) greatly enhances the flexibility and efficiency of firefighting.
4. Body structure and material technology: The body structure of a fire truck is directly related to its durability and functionality. The chassis made of high-strength special steel and the equipment compartment made of aluminum alloy not only ensure strength but also achieve lightweight. Anti-rust design (such as the aluminum alloy structure that never rusts) extends the life of the vehicle. In addition, details such as rolling shutter doors with rain troughs and anti-skid pedals that can bear 300kg all reflect the consideration of safety and convenience.
5. Electrical system and control integration: Modern fire trucks are increasingly dependent on advanced electrical system and control integration. For example, the PLC-controlled fire extinguishing system in the ISUZU GIGA fire truck provides a standardized control module selection. The perfect lighting system (such as LED roof lights, external lighting, side indicators, etc.) ensures the safety of night operations. The warning light and siren system improves the recognition and traffic efficiency of the fire truck. The integration of these electrical systems not only improves the functionality of the fire truck, but also enhances its adaptability in complex environments.

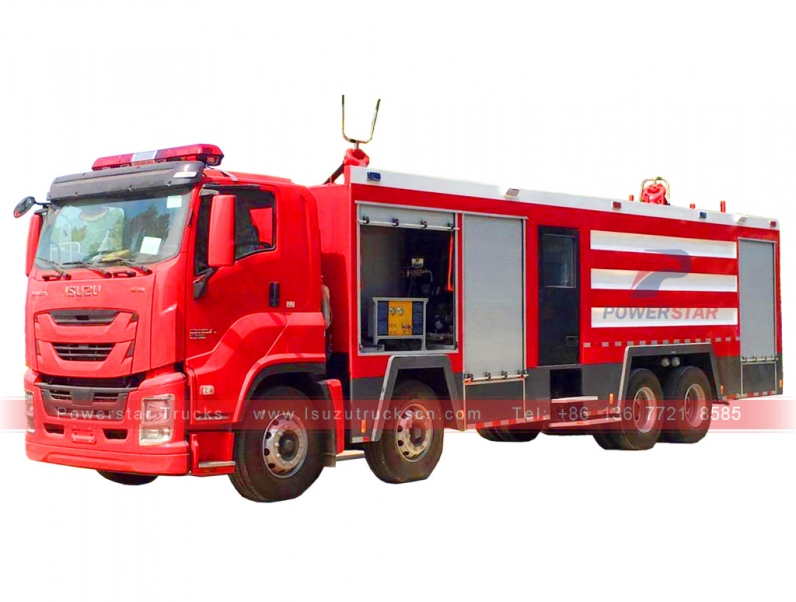

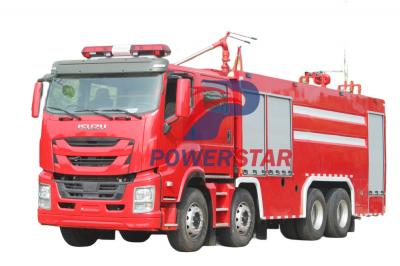

Now, I would like to recommend you a fire truck of high battle level which is well received by international rescue department, the ISUZU GIGA 15-ton tank foam fire truck adopts ISUZU GIGA chassis
Learn More

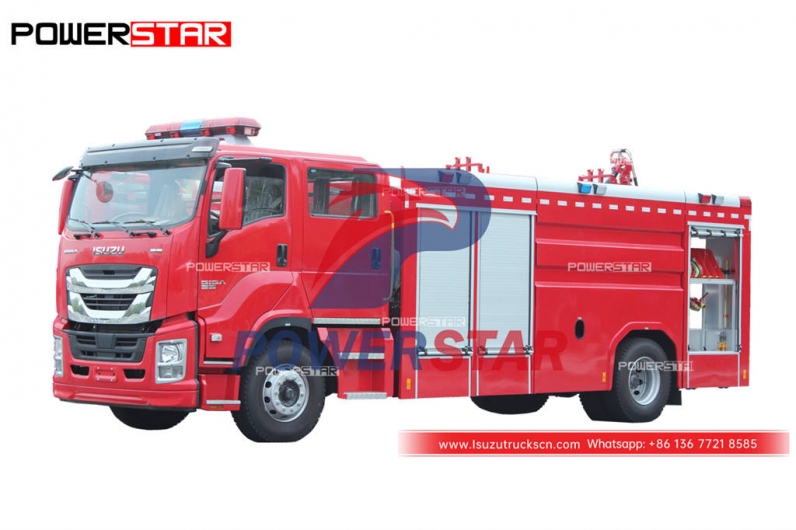

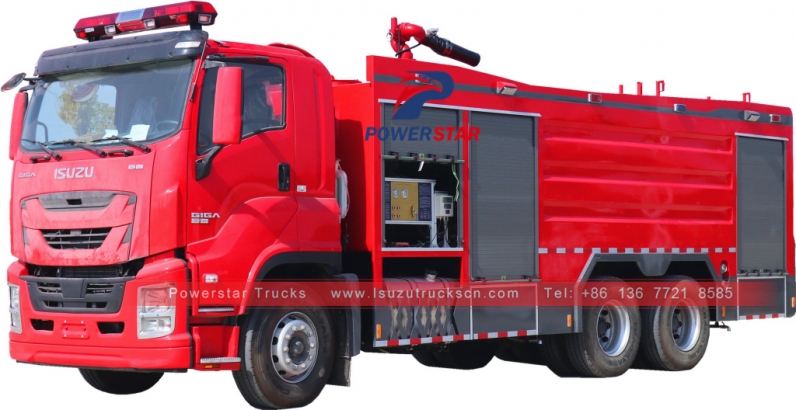

japanese Chassis ISUZU GIGA 8000Liters Foam fire fighting truck, fire-extinguishing foam tanker
Learn More
New Model 2019 Japanese ISUZU GIGA Left Hand Dive 15000Liters Water Foam 2T Dry Powder Tanker
Learn More

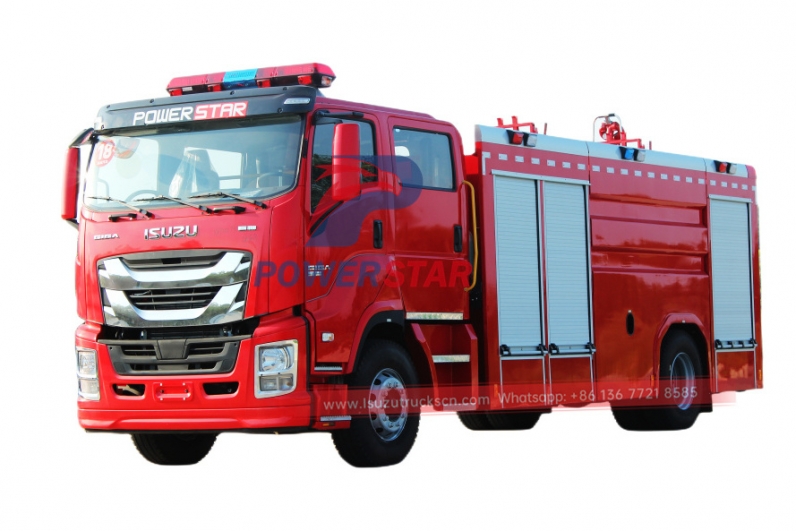

ISUZU Water Fire Truck, ISUZU GIGA fire engine manufacturer, ISUZU GIGA water fire fighting trucks for sale.
Learn More

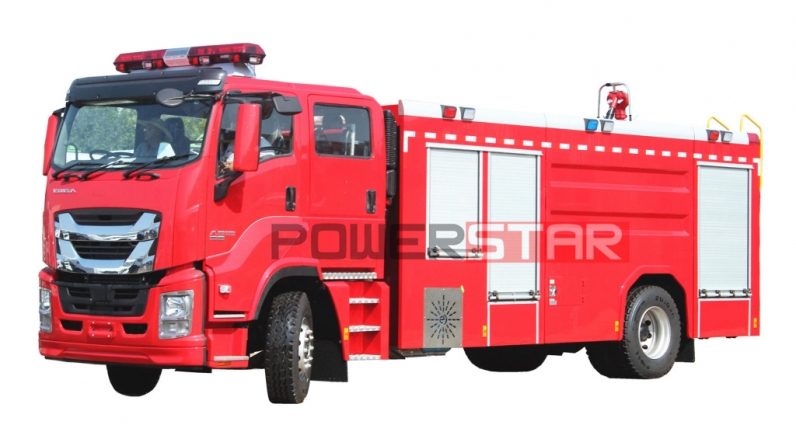

Japan Brand new Philippines customized Emergency Fire Truck 8 Tons Water and Foam Tank Fire Rescue Truck Fire Truck
