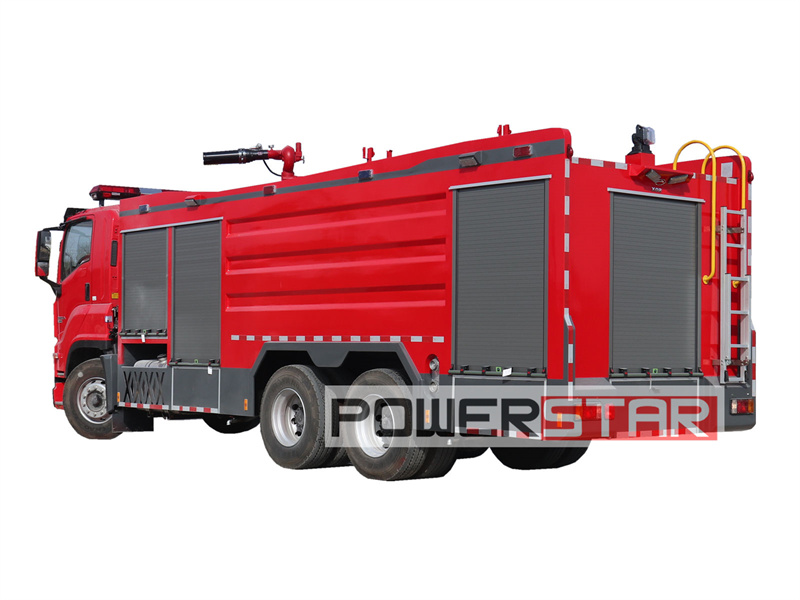

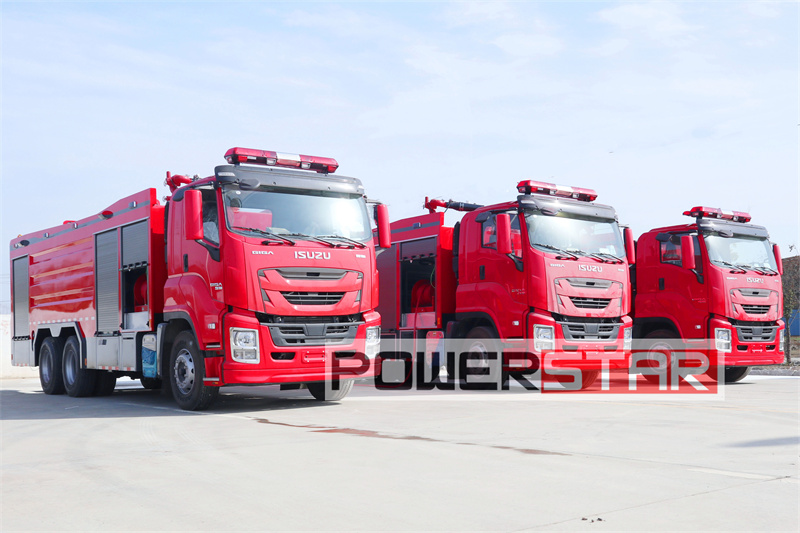

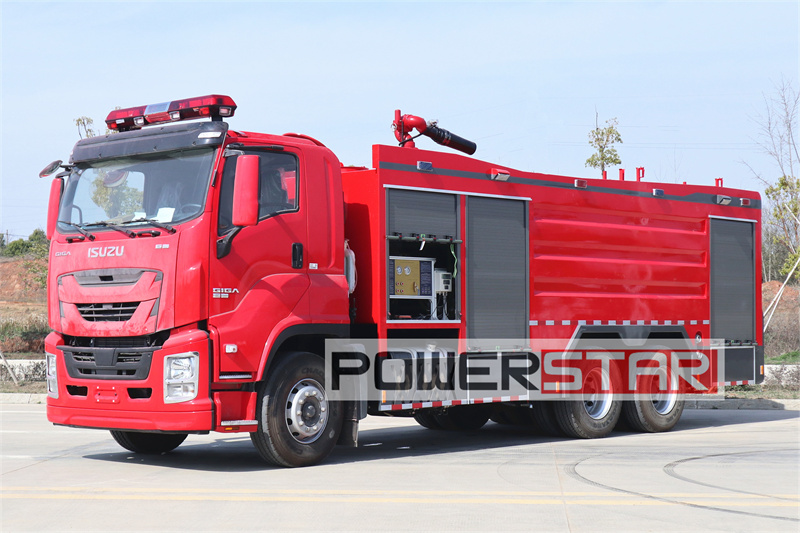

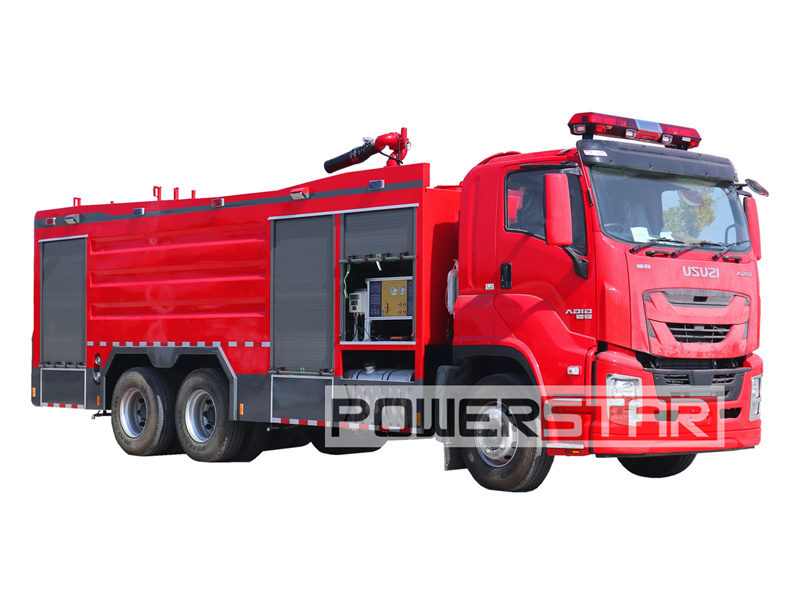

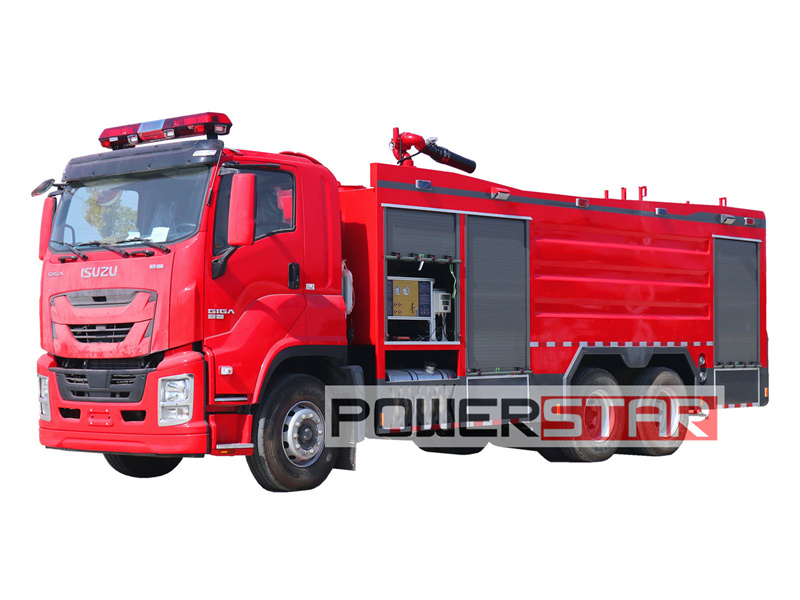

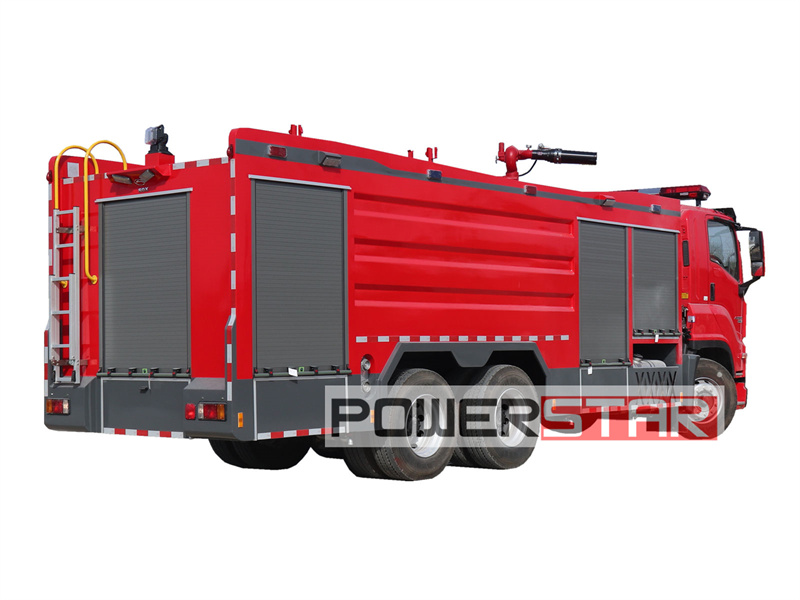

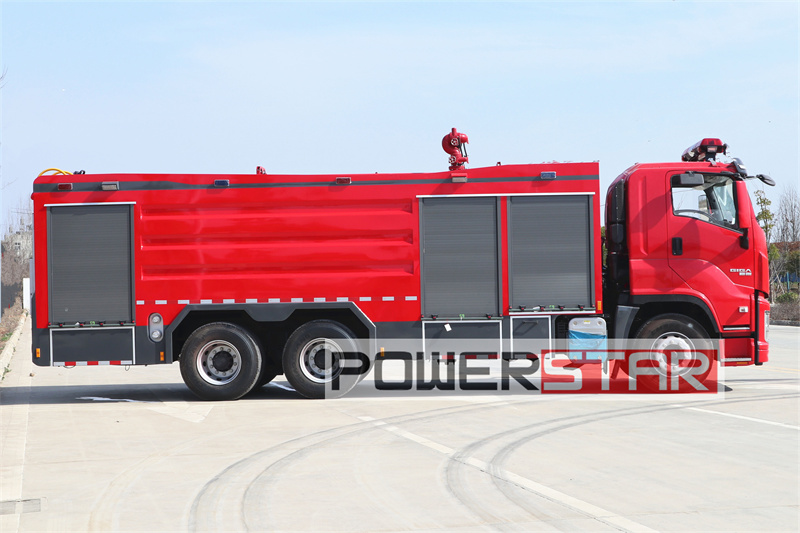

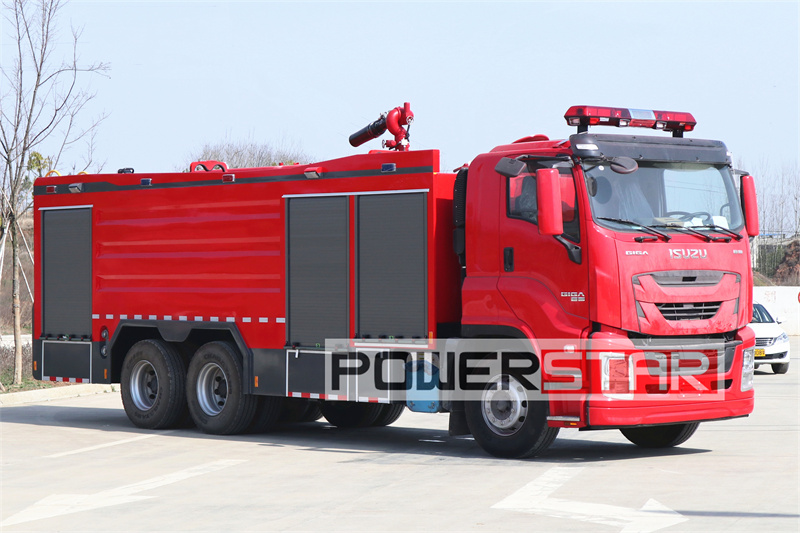

This ISUZU GIGA fire truck with dry powder is an impressive firefighting weapon that combines advanced technology with powerful performance. It uses an ISUZU chassis and is equipped with a 420-horsepower 6WG1-TCG60 engine, which has a strong power guarantee. This ISUZU fire truck adopts a 6x4 drive mode and is equipped with a 12-speed gearbox. The maximum speed can reach 90 km/h, ensuring a quick response to various emergencies. The vehicle has a total weight of 35 tons and is equipped with an 8,000-liter water tank and a 2,000-liter dry powder tank, which can cope with various complex fire situations. Its high-pressure fire pump is able to operate at a pressure of 1.6-2.5 MPa, with a flow rate of 80-120 kg/s and a spray distance of up to 40-60 meters, showing a powerful firefighting ability.
Work capacity:
4000LTruck model:
PT5250GXFEngine power:
420HPEngine type:
6WG1-TCG60Axle drive:
6X4,left hand driveGear box:
FAST gearbox, manual, 12 gears forwards with 2 reverseRemarks:
2000L dry powder and 8000L water tankThis ISUZU GIGA fire truck with dry powder is an impressive firefighting weapon that combines advanced technology with powerful performance. It uses an ISUZU chassis and is equipped with a 420-horsepower 6WG1-TCG60 engine, which has a strong power guarantee. This ISUZU fire truck adopts a 6x4 drive mode and is equipped with a 12-speed gearbox. The maximum speed can reach 90 km/h, ensuring a quick response to various emergencies. The vehicle has a total weight of 35 tons and is equipped with an 8,000-liter water tank and a 2,000-liter dry powder tank, which can cope with various complex fire situations. Its high-pressure fire pump is able to operate at a pressure of 1.6-2.5 MPa, with a flow rate of 80-120 kg/s and a spray distance of up to 40-60 meters, showing a powerful firefighting ability.
The GIGA fire truck is also equipped with advanced lighting systems and warning equipment, including LED warning lights, strobe lights and external lighting to ensure nighttime operations and safety warnings. This fire truck not only has excellent performance, but also focuses on humanized design. The cab can accommodate 6 people and is equipped with an air conditioning system to ensure the comfort of firefighters. The vehicle is also equipped with a variety of standard firefighting and rescue tools, such as shovels, crowbars, axes, etc., to fully meet various firefighting and rescue needs. In general, this Isuzu Juka dry powder fire truck represents the cutting-edge level of modern fire trucks and is a reliable guardian of urban fire safety.
Specification:
|
ISUZU GIGA dry powder fire truck |
|||
|
General |
Vehicle Brand |
Powerstar |
|
|
Chassis Brand |
ISUZU |
||
|
Overall Dimension |
19600*2670*3790mm |
||
|
GWW/ Kerb Weight |
35,000kg/16,820kg |
||
|
Painting |
Red color of U.S. PPG |
||
|
Cab |
Cab Capacity |
2+4 persons allowed |
|
|
Air Conditioner |
air conditioner |
||
|
Engine |
Fuel Type |
Diesel |
|
|
Engine Brand |
ISUZU engine ,6WG1-TCG60 |
||
|
Engine type |
Inline 6-cylinder, turbocharged, inter-cooled diesel engine |
||
|
Power |
420HP |
||
|
Displacement |
9.839L |
||
|
Emission Standard |
Euro 6 |
||
|
Chassis |
Drive Type |
6X4,left hand drive |
|
|
Transmission |
12-speed forward, 2 reverse |
||
|
Wheelbase/No.of axle |
4600+1370mm/3 |
||
|
Tyre Specification |
295/80R22.5 |
||
|
Tyre Number |
12 tyres and 1 spare tyre |
||
|
Max Speed |
90km/h |
||
|
Fuel tank capacity |
400L |
||
|
PTO |
Full power sandwich type |
||
|
Superstructure |
Liquid Tank |
Capacity |
Water 8000L, Dry powder 2000L |
|
Tank Material |
carbon steel |
||
|
Standardized Sub-frame |
Material |
High-strength rectangular tube made of special steel |
|
|
Structure |
Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear |
||
|

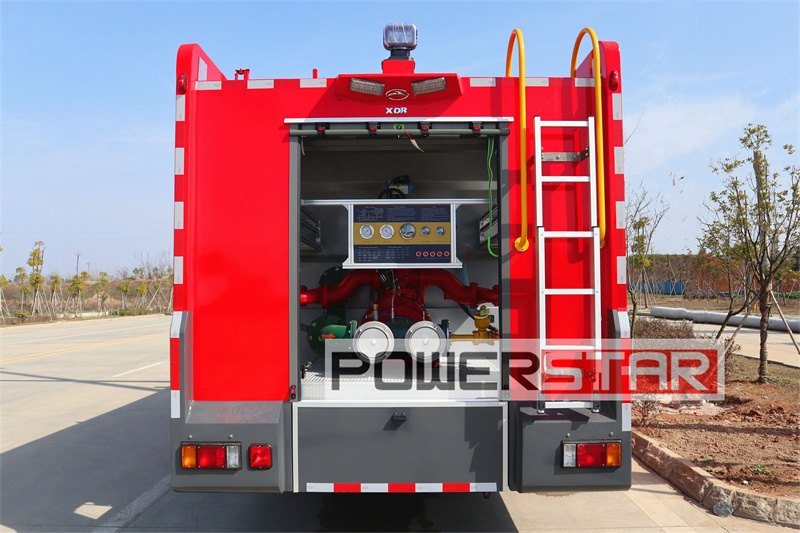

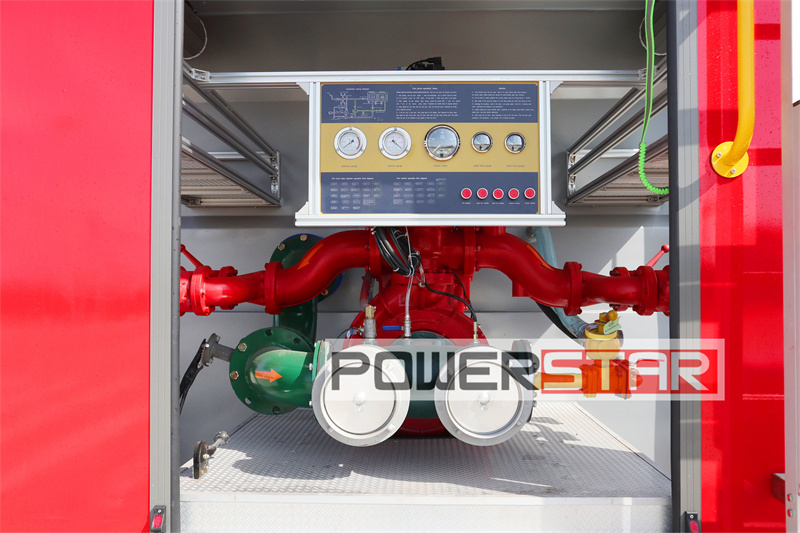

Fire Pump |
Brand |
China TOP brand |
|
|
Drive mode |
PTO |
||
|
Priming Manner |
Automatic |
||
|
Pressure range |
1.6-2.5 MPa |
||
|
Flow rate |
80-120 kg/s |
||
|
Suction Height |
9m |
||
|
Fire Cannon |
Flow speed |
60-100 kg/s |
|
|
Range |
40-60 m |
||
|
Superstructure Electric Appliance |
Warning Light and Siren |
Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin. |
|
|
Strobe Light |
Mounted on the both sides of the compartment |
||
|
External Lighting |
LED lights are mounted on the both sides of the compartment |
||
|
Roof Lighting |
LED lights are mounted on the inside of the roof |
||
|
Side Indicator Light |
Inline yellow warning light is mounted on the side of the compartment and pedals |
||
|
All standard accessories.Typical modern fire apparatu scarries equipment for a |
|||
|
Optional |
Ladders,floodlight |
||
Feature:

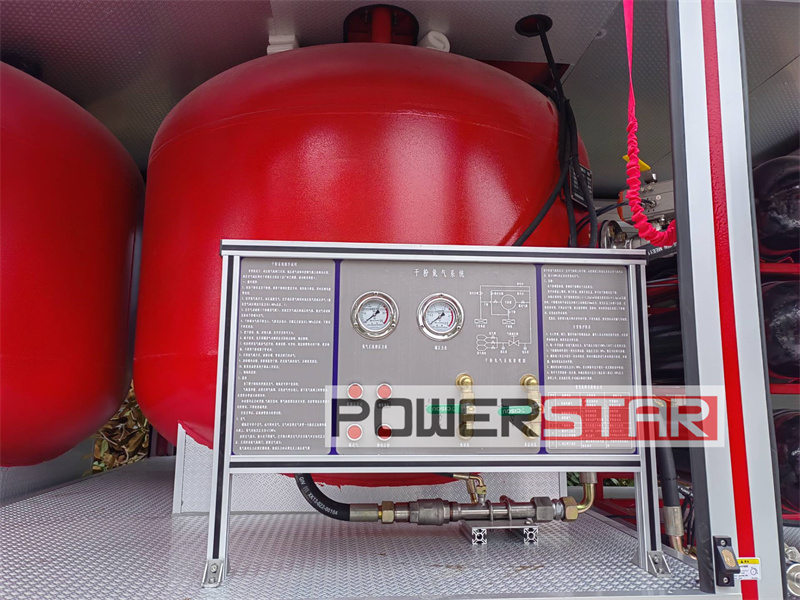

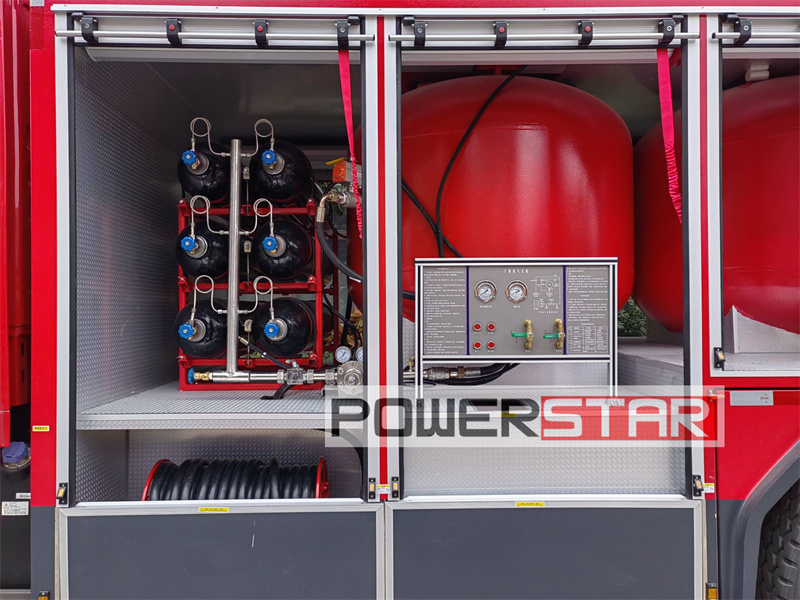

The manufacture of ISUZU GIGA fire truck with dry powder involves multiple technical difficulties and strict process requirements. First, the design and manufacture of dry powder storage tanks are key challenges. The tanks must ensure absolute sealing to prevent the dry powder from becoming ineffective due to moisture, and at the same time be able to withstand the pressure during high-pressure injection. This requires the use of high-quality carbon steel materials and precise welding and sealing. Secondly, the design of the dry powder delivery system is crucial. The system needs to ensure that the dry powder can be delivered evenly and stably under high pressure to avoid agglomeration or blockage. This requires accurate calculation of pipeline diameter and pressure parameters, and the selection of special materials that are wear-resistant and corrosion-resistant.
The pressure control system is also a major difficulty. It needs to accurately adjust the pressure under different working conditions to ensure the effect of dry powder injection. This requires the use of advanced electronic control technology and high-precision sensors. In addition, the coordination of dry powder and water systems is also a challenge. The storage, delivery and injection systems of the two media need to be cleverly designed to operate independently and be used in coordination, which places high demands on the vehicle layout and control system.
Advantages:
In emergency rescue, dry powder ISUZU GIGA fire trucks show significant advantages:
1. High firefighting efficiency: dry powder can quickly cover the fire source and quickly isolate oxygen, especially suitable for extinguishing oil and electrical fires.
2. Low secondary pollution: Compared with foam or water, dry powder will not cause serious water stains or chemical pollution, reducing property losses.
3. Wide range of applications: It can be used to extinguish Class A, B, and C fires, especially in special fires that are difficult for conventional water systems to deal with.
4. Strong penetration: dry powder can penetrate into small spaces and has a good fire extinguishing effect on hidden fire sources.
5. Good electrical insulation: suitable for handling fires of live equipment and reducing the risk of electric shock for rescuers.
6. Adaptability to low temperature environments: In cold areas, dry powder will not freeze and maintain good emergency response capabilities.
