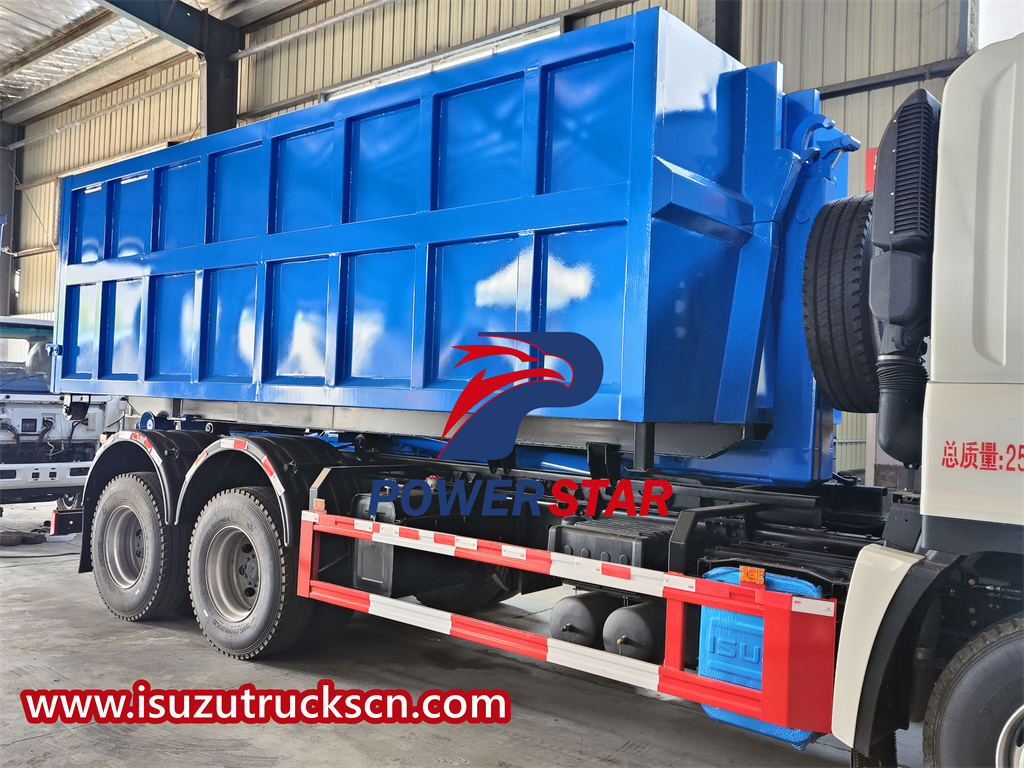

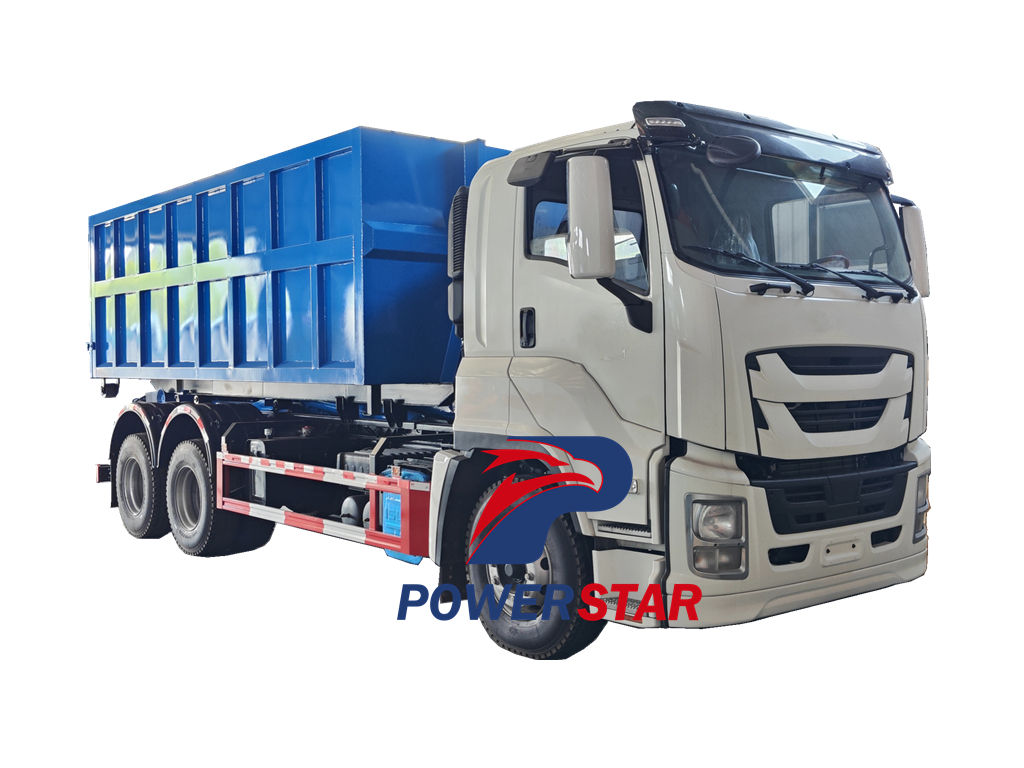

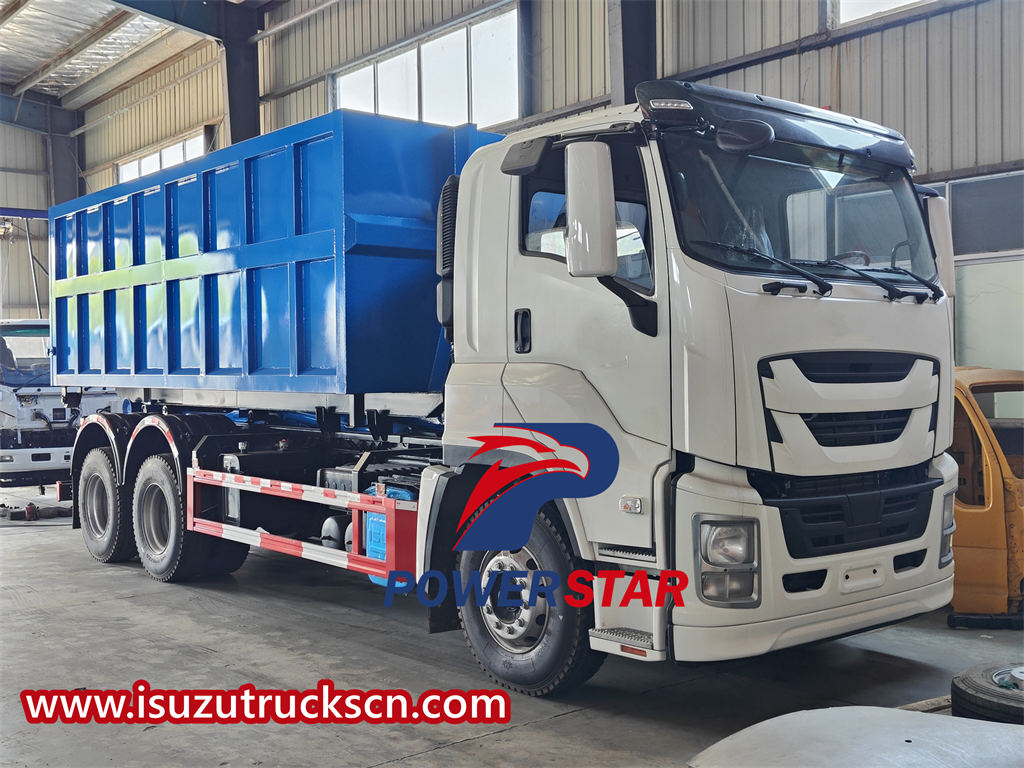

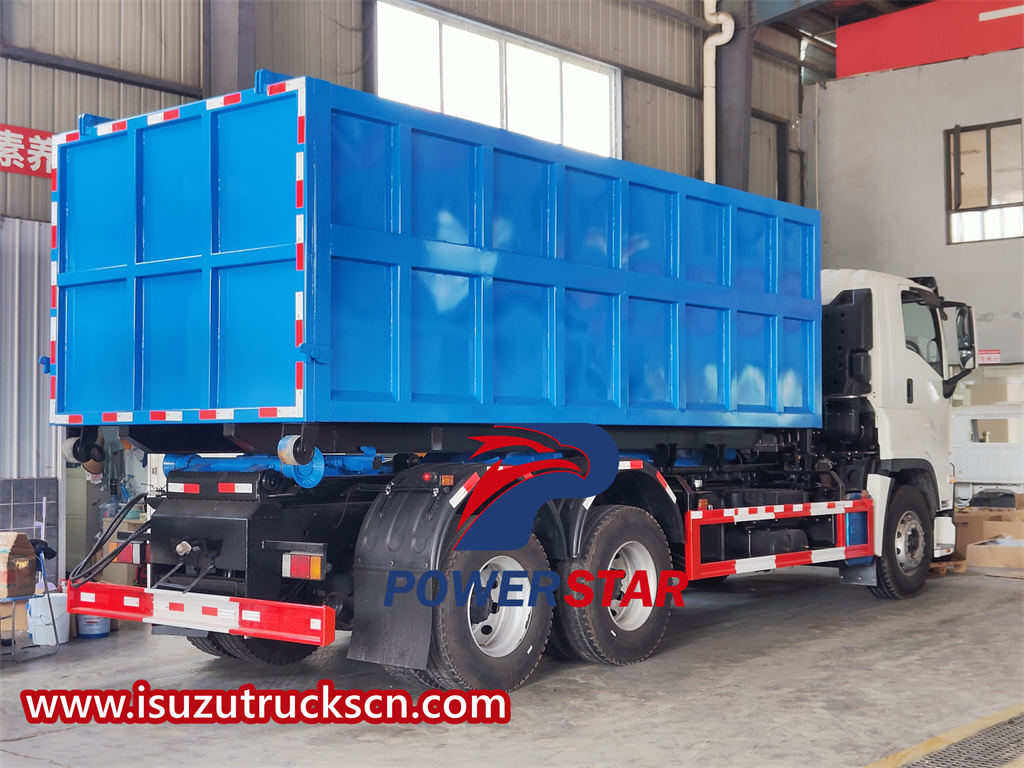

The ISUZU GIGA 6×4 Hooklift Truck is a powerful and versatile tool for efficient waste management. Its robust construction, advanced hydraulic and electrical systems, and emphasis on safety make it a standout choice for those seeking to streamline their waste collection and transportation operations. Whether it's for municipal waste collection, construction site cleanup, or other waste management tasks, the ISUZU GIGA Hooklift Garbage Truck is sure to deliver exceptional performance and reliability.
Work capacity:
20 tonsTruck model:
PT5250ZXXEngine power:
380 HPEngine type:
6UZ1-TCG61Axle drive:
6×4Gear box:
FAST 12-speedRemarks:
High loading capcity, large volume garbage containerThe ISUZU GIGA 6×4 Hooklift Garbage Truck stands out as a robust and reliable vehicle designed specifically for the efficient handling and transportation of waste. It is also called ISUZU GIGA Hook Loader, ISUZU GIGA Hooklift Truck, ISUZU GIGA Roll Off Bin Truck. This heavy-duty truck, with its 20-ton lifting capacity, is a powerful addition to any waste management fleet.
Built on a robust 6×4 truck chassis with a gross weight of 25 tons, the GIGA Hooklift Garbage Truck is designed to handle the demands of medium to large-scale waste collection and transportation. Its primary application lies in the transfer of 15 to 18 cubic meters of mobile garbage compression boxes from medium to large-scale garbage transfer stations, making it an ideal choice for cities and municipalities seeking to streamline their waste management operations.

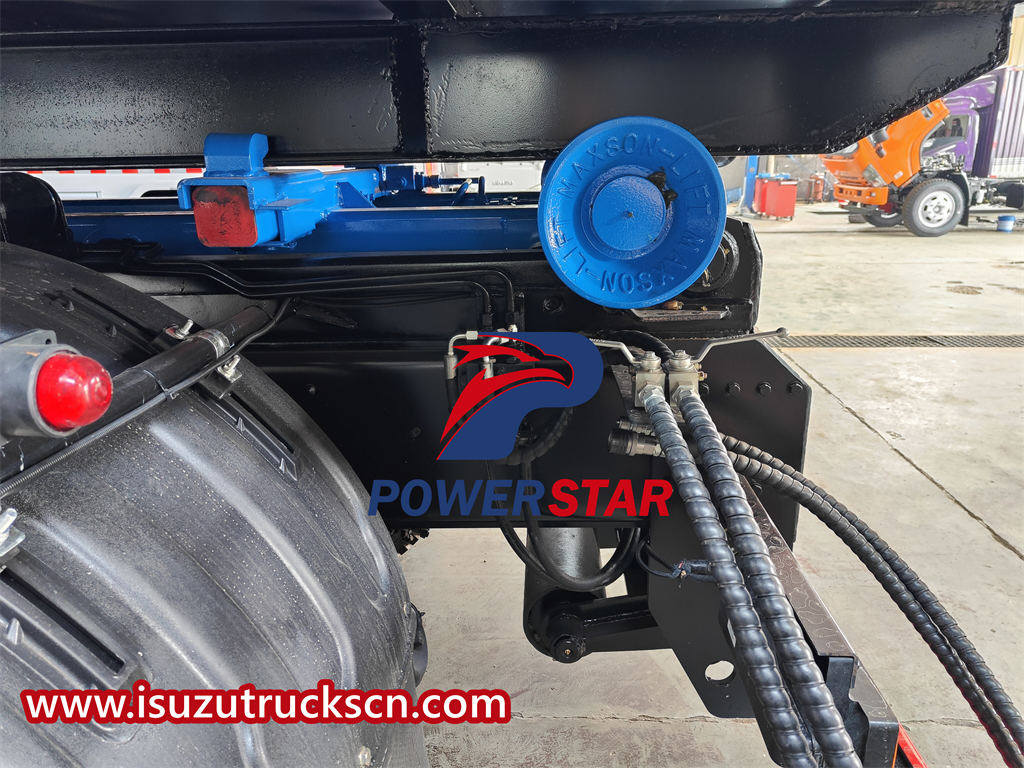

The heart of the GIGA Hook Loader lies in its hydraulic and electrical systems. These critical components are sourced from European and international brands renowned for their performance and reliability. This ensures that the truck can operate smoothly and efficiently, even under the most demanding conditions.

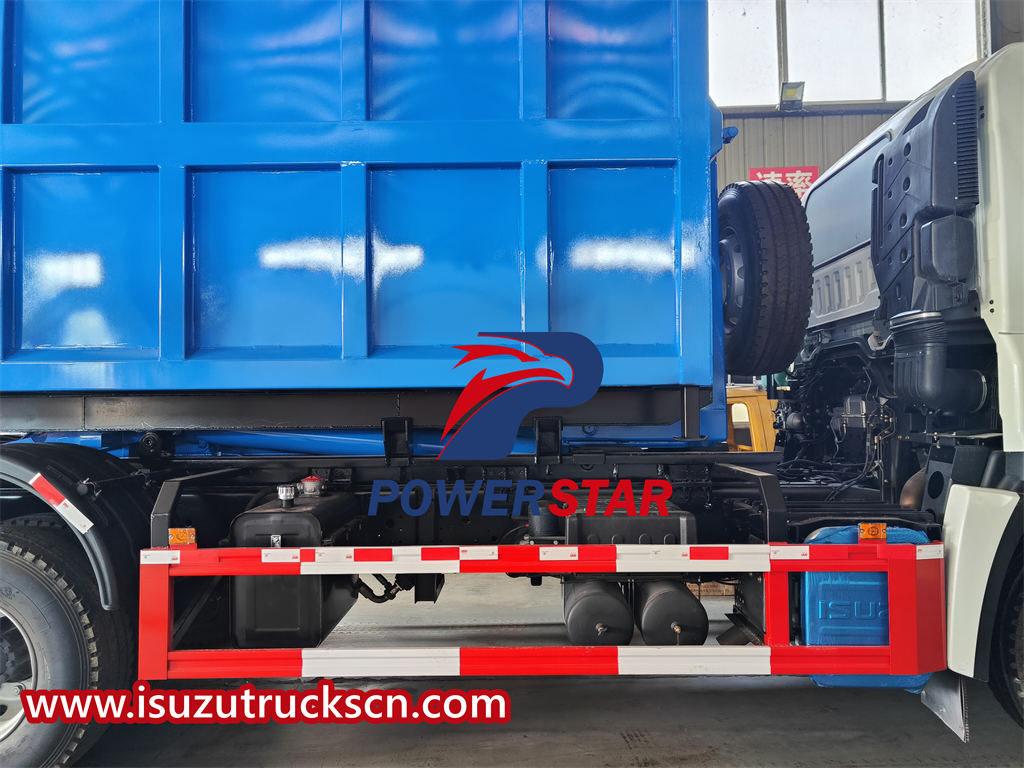

The truck's hooklift mechanism, a key component of its design, is constructed with cast steel components in critical stress areas. This reduces structural stress and significantly extends the lifespan of the mechanism, ensuring that the truck can continue to operate reliably for years to come.
Product Specifications
|
Vehicle Specifications |
|||
|
Truck model |
PT5250ZXX |
||
|
Drive style |
Left hand drive |
||
|
Drive model |
6x4 |
||
|
Dimensions (LxWxH) |
8450x2530x3070 MM |
||
|
Cargo body |
20 cbm |
||
|
Loading weight |
20 ton |
||
|
Engine |
ISUZU 6UZ1-TCG61 |
||
|
Emission standard |
EURO 6 |
||
|
Front axle |
7.5 tons loading capacity |
||
|
Rear axle |
13 tons loading capacity |
||
|
Transmission |
FAST, 12 forward & 2 reverse. |
||
|
Steering system |
Hydraulic steering with power assistance |
||
|
Tires |
315/80R22.5, 10+1spare |
||
|
Superstructure Specification |
|||
|

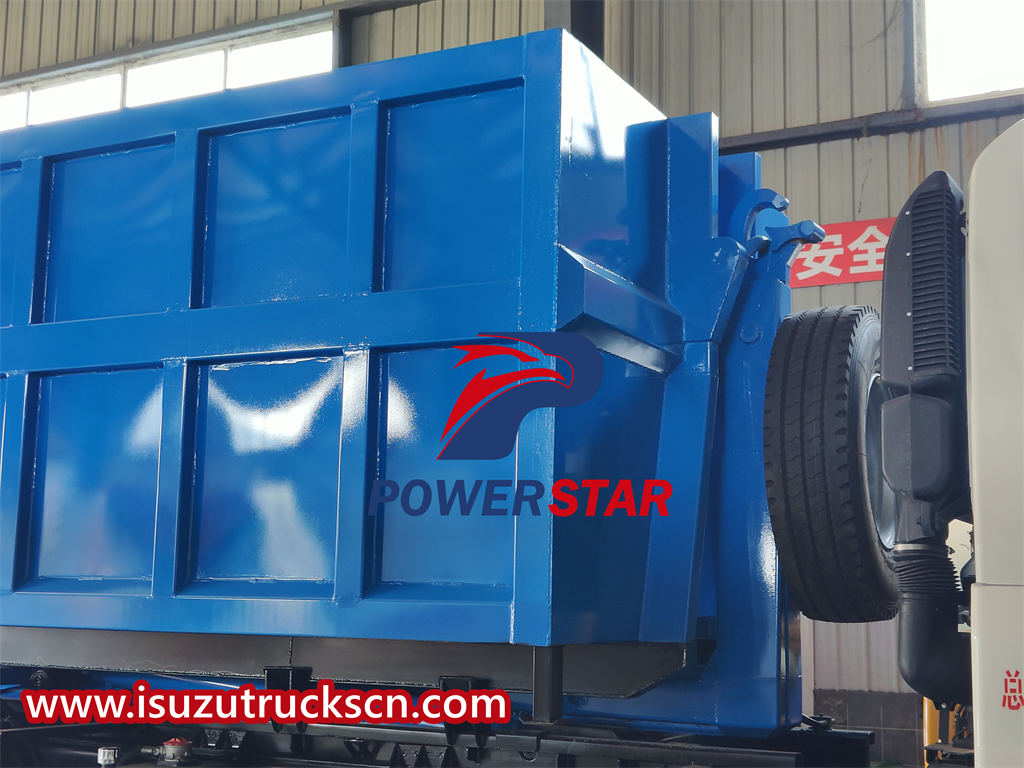

Garbage Container |
Dimension |
5600×2500×1500mm |
|
|
Standard Configuration |

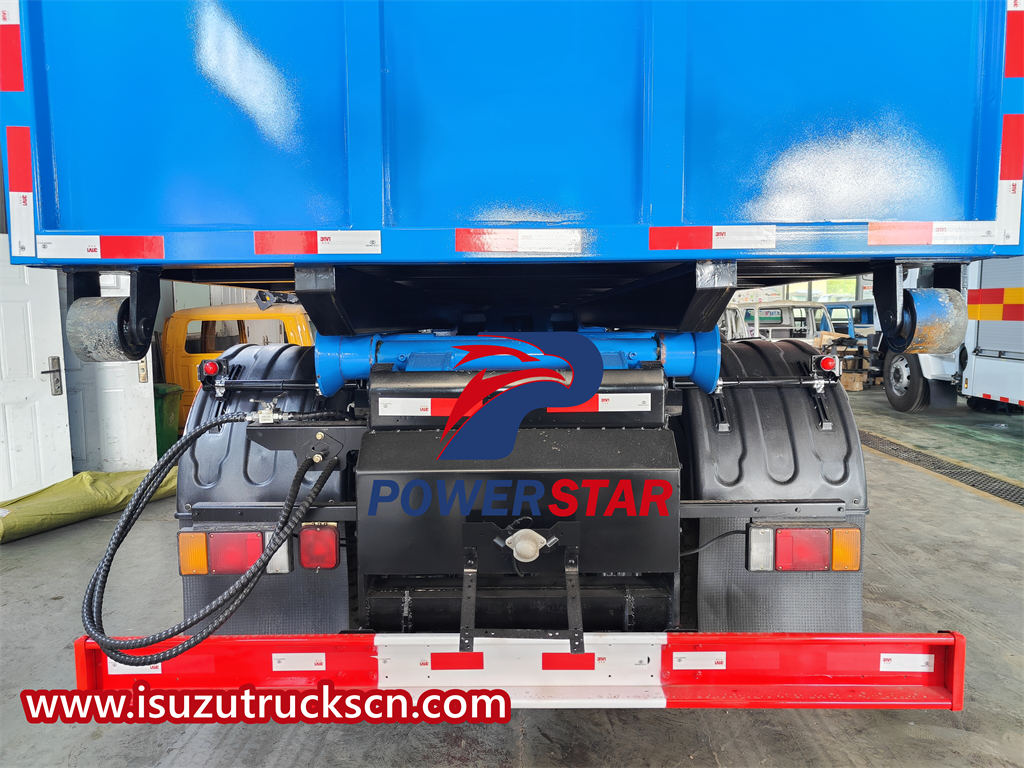

With one garbage bin, with hydraulic rear outrigger |
||
|
Volume |
Ground type, 20cbm |
||
|
Loading Capacity |
20 Tons |
||
|
Thickness |
5mm, Carbon Steel Q235B |
||
|
Dump type |
Hydraulic cylinder lifting and self-loading |
||
|
Dump angle |
≥45° |
||
|
Hydraulic system pressure |
30 Mpa |
||
|
Protective Material |
Q235A Carbon Steel |
||
|
Controlling Way |

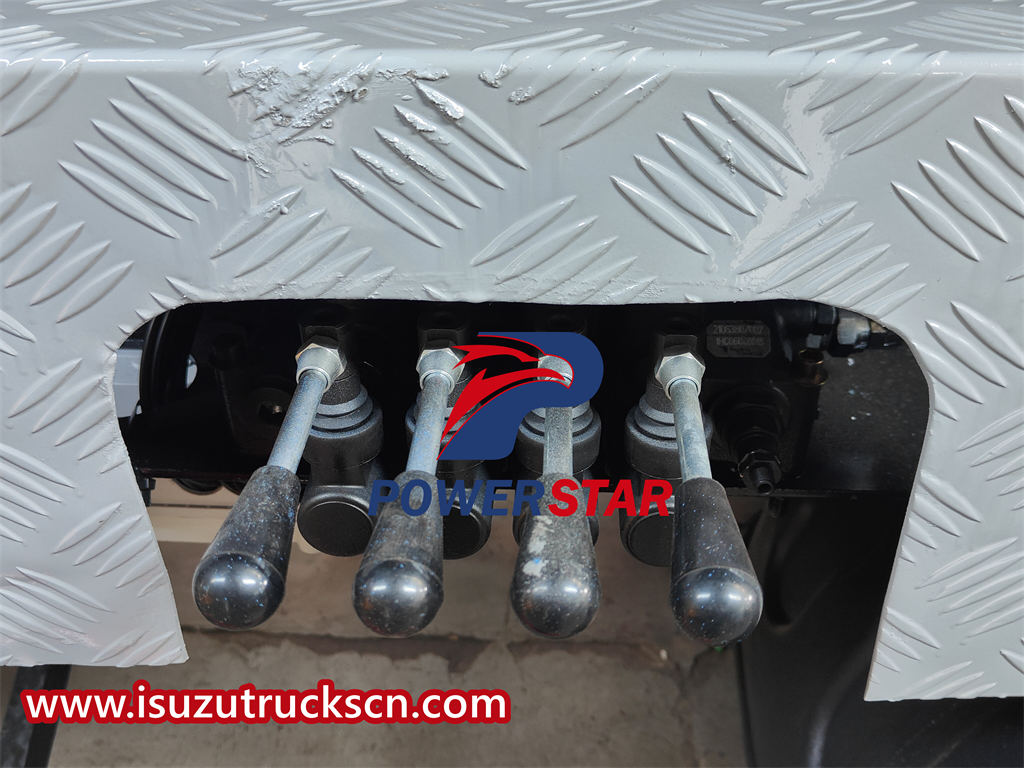

Three-way hydraulic control valve |
||
|
Other Configuration |
1. Reinforced hydraulic swept-body system, with Double hydraulic cylinder |
||
|
2. Swing Arm, Chain. |
|||
|
3. Hydraulic multi-way valve control. |
|||
|
Options |

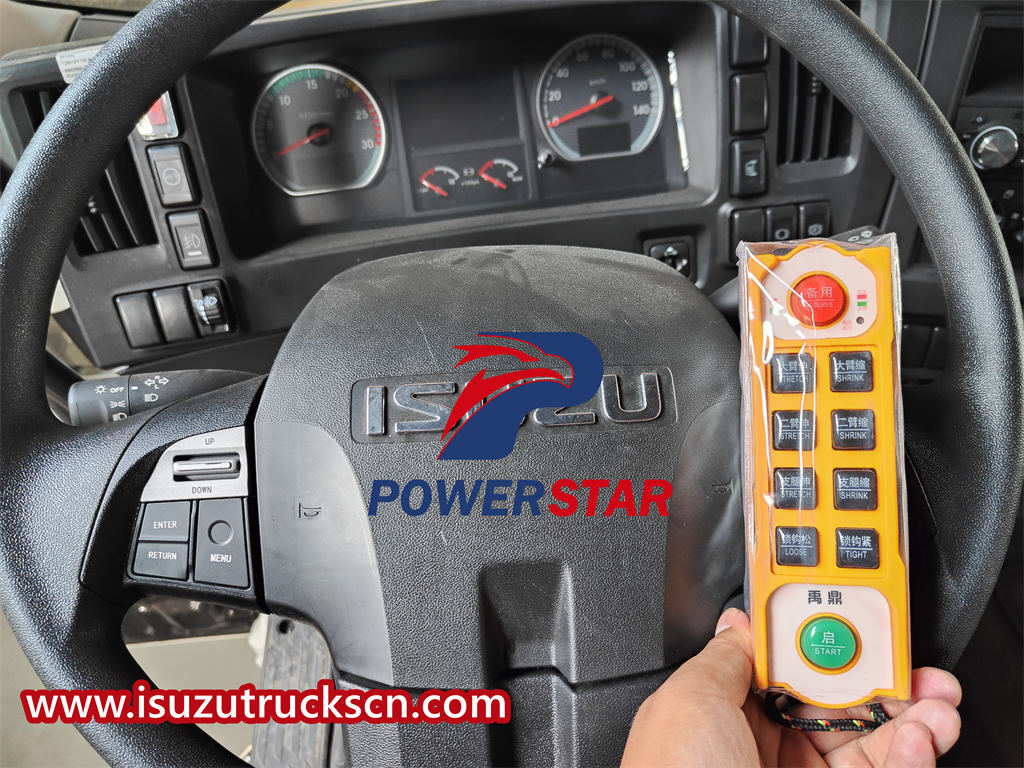

Electronically controlled valve, trash bin type, trash bin quantity, etc. |
||
Product Applications
The ISUZU GIGA 6×4 heavy-duty hooklift garbage truck is a powerful and well-designed waste disposal equipment with a wide range of application scenarios. Here are the main application scenarios for this model:
1. Urban Garbage Transfer Stations: The ISUZU GIGA 6×4 heavy-duty hooklift garbage truck plays a crucial role in urban garbage transfer stations. It is primarily used to transport mobile garbage compression boxes from collection points to transfer stations, significantly improving the efficiency and convenience of garbage transportation.
2. Residential Neighborhoods and Commercial Areas: With its high garbage loading capacity and flexible garbage collection methods, this truck is often used for garbage collection and transportation in residential neighborhoods and commercial areas. Whether it's daily household waste or commercial garbage, it can be efficiently handled.
3. Large Event Venues: At large events such as sports tournaments, music festivals, exhibitions, and other venues, the amount of garbage generated is often substantial. The ISUZU GIGA 6×4 heavy-duty hooklift garbage truck can quickly and effectively clear the garbage on site, ensuring the cleanliness of the event venue.
4. Industrial Zones and Construction Sites: Industrial zones and construction sites often produce a large amount of industrial waste and construction debris. This garbage truck can easily handle the transportation of these heavy-duty wastes, helping to maintain the cleanliness and safety of the worksite.
5. Public Places: Parks, plazas, and other public spaces also require efficient garbage disposal solutions. The ISUZU GIGA 6×4 heavy-duty hooklift garbage truck can quickly clean up garbage in these areas, improving the environmental quality.
