The GIGA Isuzu hook-lift truck with container is a special sanitation vehicle with high efficiency and environmental protection. It can provide efficient container handling, versatility in handling different types of containers, and improve the productivity of transportation and logistics operations. It has become a powerful assistant in sanitation work and is widely used in urban garbage removal, community garbage recycling and other scenarios.
Work capacity:
20 tonsTruck model:
PT5250GQXEngine power:
350HPEngine type:
6UZ1-TCG61Axle drive:
4x2, LHDGear box:
Isuzu FAST 12-speedRemarks:
Large volume loading body
The GIGA Isuzu hook-lift truck with container also called Isuzu GIGA hook arm garbage truck,Isuzu GIGA hook lifting refuse truck,Isuzu GIGA hook loader, Isuzu GIGA roll-off waste truck,Isuzu GIGA container lifting truck,is a versatile and efficient vehicle designed for transporting and handling various types of containers. This GIGA Isuzu hook-lift truck with container is equipped with a hook-lift system that allows it to easily load, unload, and transport containers of different sizes and configurations.
Key feature:
---- ISUZU GIGA chassis, perfect performance
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- Main hydraulic coomponents of our hooklift truck are imported from well-known company.
---- Strong, durable, perfect performance
|
SPECIFICATION |
|||
|
Vehicle model |
PT5250GQX |
Chassis brand |
ISUZU GIGA |
|
Overall dimensions |
9860*2500*3500mm |
Wheel base |
5000mm |
|
Front/rear wheel track |
1960/1860mm |
Front/rear suspension |
1450/1250mm |
|
Approach/departure angle |
24/12° |
Maximum speed |
90km/h |
|
Engine |
Model |
ISUZU 6UZ1-TCG61 |
|
|
Emission |
Euro 5/6 |
||
|
Rated power |
350HP |
||
|
Displacement |
9839ml |
||
|
Tire |
Size |
295/80R22.5 Tire, With one spare tire |
|
|
Number |
6+1 nos |
||
|
Steering wheel |
Left hand drive |
||
|
Upper Body |
Hook up capacity |
20T |
|
|
Displacement of hydraulic oil pump |
100ml/r |
||
|
Hook box time |
45s |
||
|
Dump box time |
50 |
||
|
Inclination angle |
49 |
||
|
Hook center height of arm |
1570mm |
||
|
Guide rail width |
1070mm |
||
|
Control voltage |
24V |
||
|
Equipment weight |
2500kg |
||
|
Maximum pressure of hydraulic system |
30Mpa |
||
|
Hydraulic tank capacity |
120L |
||
|
Garbage tank |
Tank capacity |
20m3 |
|
|
Tank thickness |
Side 5mm bottom 6mm |
||
|
Box open method |
garbage tank with with cover and hydraulic open |
||

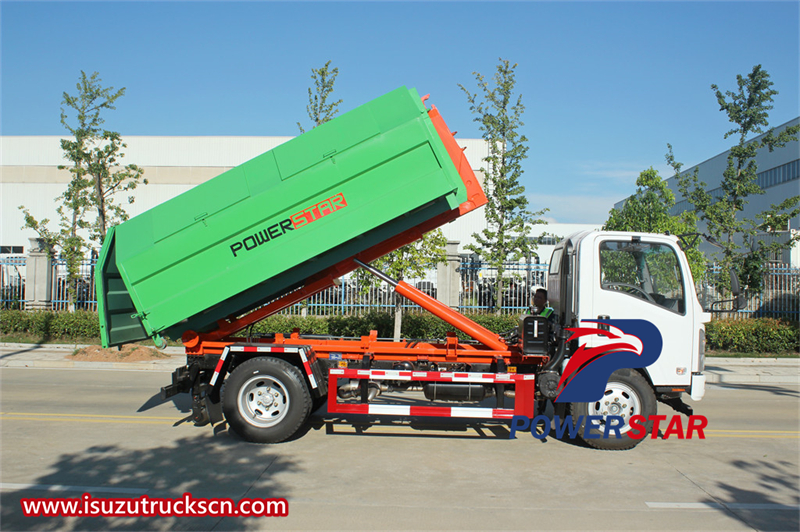

The GIGA Isuzu hook-lift truck with container is a commonly used truck with unloading compartments. It has two functions: self-unloading of goods and automatic loading and unloading of the compartment (i.e., complete loading and unloading). These two functions are completed by a vehicle-mounted working device, with high working efficiency. The operation and conversion of these two functions are realized by the hydraulic system. The garbage compartment of the arm truck can be automatically lifted up and lowered, and the garbage can be dumped by itself.
Here are the key features and advantages of the GIGA Isuzu Hook-lift Truck with container:
**Hook-lift System:**
The primary feature of the GIGA Isuzu Hook-lift Truck is its hook-lift system, which consists of a hydraulic hook mechanism mounted on the truck chassis. This system enables the truck to pick up and drop off containers quickly and efficiently without the need for additional equipment or manual labor. The hook-lift system enhances the truck's versatility and productivity in handling various container types.
**Container Compatibility:**
The GIGA Isuzu Hook-lift Truck is designed to work with a wide range of containers, including roll-off containers, skip bins, flatbed containers, and more. The truck's hook-lift mechanism can securely lift and transport containers of different sizes and shapes, making it suitable for a variety of transportation and waste management applications.
**Versatility and Flexibility:**
With its hook-lift system and container compatibility, the GIGA Isuzu Hook-lift Truck offers versatility and flexibility in handling different types of loads. Whether transporting construction materials, waste, recyclables, or other cargo, this truck can easily switch between different containers to meet specific transportation requirements, making it a valuable asset for various industries.
**Efficiency and Productivity:**
The hook-lift system of the GIGA Isuzu Truck enhances operational efficiency and productivity by enabling quick and seamless container loading and unloading. The truck can efficiently switch between containers, reducing downtime and increasing the overall efficiency of transportation and logistics operations. This results in cost savings and improved workflow productivity.
**Durability and Reliability:**
Built on Isuzu's reputation for durability and reliability, the GIGA Isuzu Hook-lift Truck is constructed with robust materials and components to withstand heavy-duty use in demanding environments. The truck is designed for long-term durability and consistent performance, ensuring reliable operation and minimal downtime during daily operations.
**Safety Features:**
Safety is a top priority in the design of the GIGA Isuzu Hook-lift Truck. The vehicle is equipped with safety features such as advanced braking systems, stability control, and visibility enhancements to ensure the safety of the driver, operators, and other road users during container handling and transportation activities. These safety features promote a secure and efficient working environment.

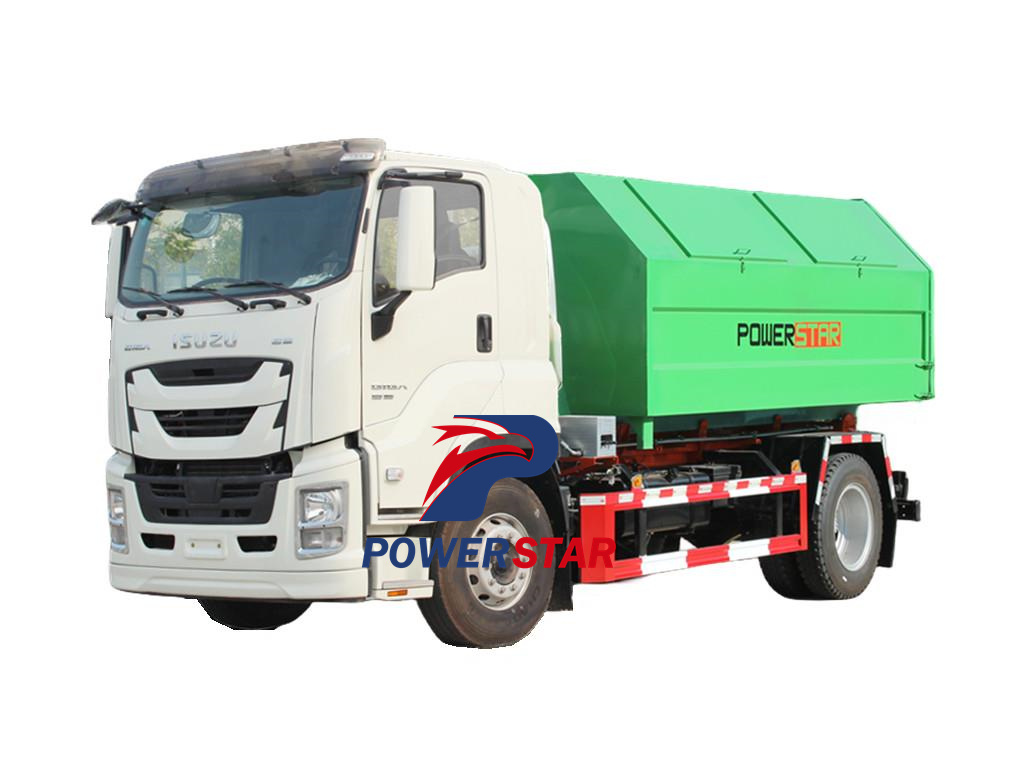

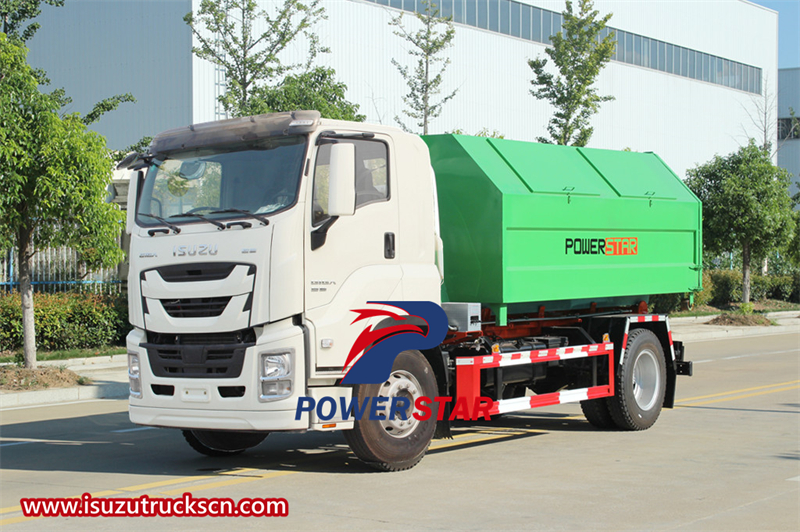

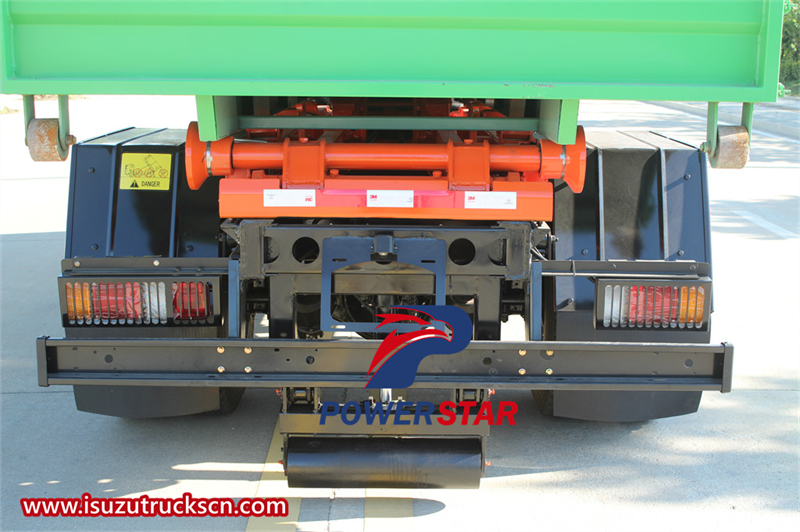

GIGA Isuzu hook-lift truck with container
Using a GIGA Isuzu Hook-lift truck with a container involves a series of steps to ensure safe and efficient operation. Here are the general guidelines on how to use a GIGA Isuzu Hook-lift truck with a container:
1. **Pre-Inspection:**
Before operating the GIGA Isuzu Hook-lift truck, conduct a thorough pre-inspection of the vehicle to ensure that it is in proper working condition. Check the engine, hydraulic system, tires, brakes, lights, and other essential features to confirm that everything is functioning correctly.
2. **Hook-lift System Operation:**
Familiarize yourself with the hook-lift system of the GIGA Isuzu truck. The hook-lift mechanism consists of a hydraulic hook that connects to the container's lifting points. Ensure that the system is working correctly before attempting to load or unload a container.
3. **Approach the Container:**
Position the GIGA Isuzu Hook-lift truck near the container that needs to be loaded or unloaded. Ensure that the truck is on stable ground and that there is enough space to maneuver the container.
4. **Engage the Hook-lift System:**
Engage the hook-lift system by operating the controls inside the truck cabin. Use the hydraulic controls to lower the hook, align it with the container's lifting points, and secure the connection between the hook and the container.
5. **Lift the Container:**
Once the connection between the hook and the container is secure, use the hydraulic controls to lift the container off the ground. Be sure to lift the container evenly to prevent tipping or imbalance during the lift.

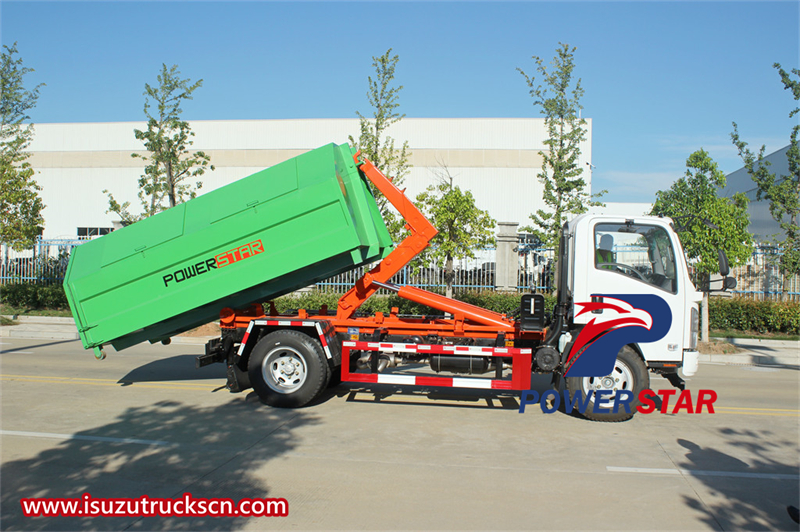

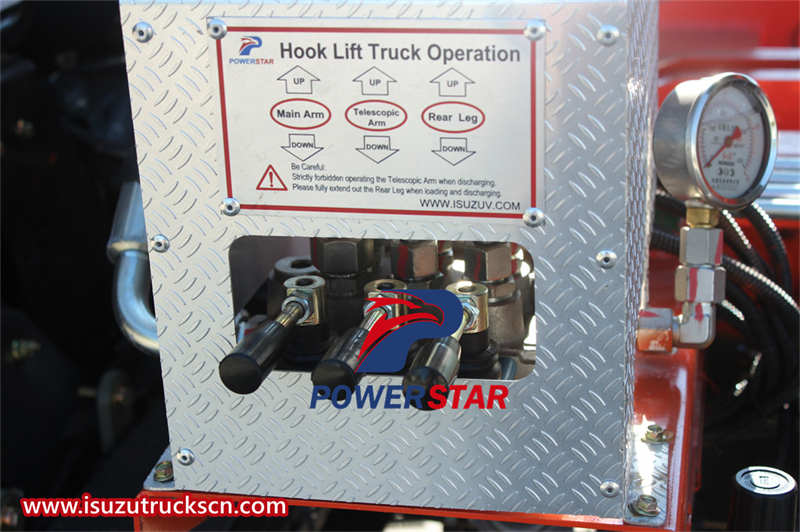

Isuzu GIGA Hook-arm Garbage Truck Operation Steps
6. **Transport the Container:**
With the container securely lifted by the hook-lift system, drive the GIGA Isuzu truck to the desired location for transporting the container. Follow all safety regulations and traffic laws while driving with the container loaded.
7. **Unload the Container:**
Upon reaching the destination, carefully position the GIGA Isuzu Hook-lift truck in a suitable location for unloading the container. Engage the hydraulic controls to lower the container to the ground, ensuring a smooth and controlled descent.
8. **Secure the Container:**
Once the container is safely on the ground, release the hook-lift mechanism and detach it from the container. Secure the container in place to prevent movement or tipping when not attached to the hook-lift system.
9. **Post-Operation Inspection:**
After unloading the container, conduct a post-operation inspection of the GIGA Isuzu Hook-lift truck to check for any damage or issues that may have occurred during the operation. Address any maintenance or repair needs before using the vehicle again.
10. **Maintenance and Care:**
Regularly maintain and service the GIGA Isuzu Hook-lift truck to ensure its continued reliability and performance. Follow the manufacturer's guidelines for maintenance schedules, lubrication points, and overall care of the vehicle and its components.
By following these steps, you can effectively and safely use a GIGA Isuzu Hook-lift truck with a container for various transportation and handling tasks. Remember to prioritize safety, proper operation of the hook-lift system, and regular maintenance to maximize the truck's efficiency and longevity.
