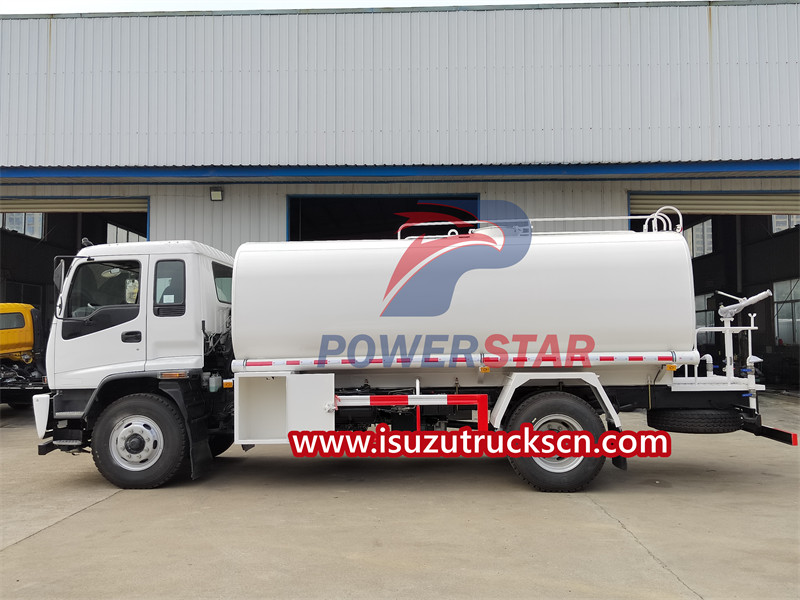

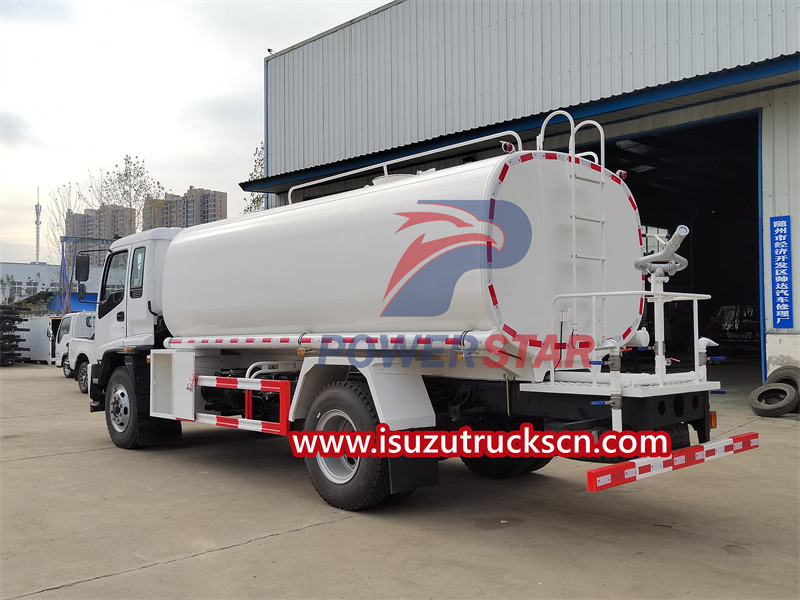

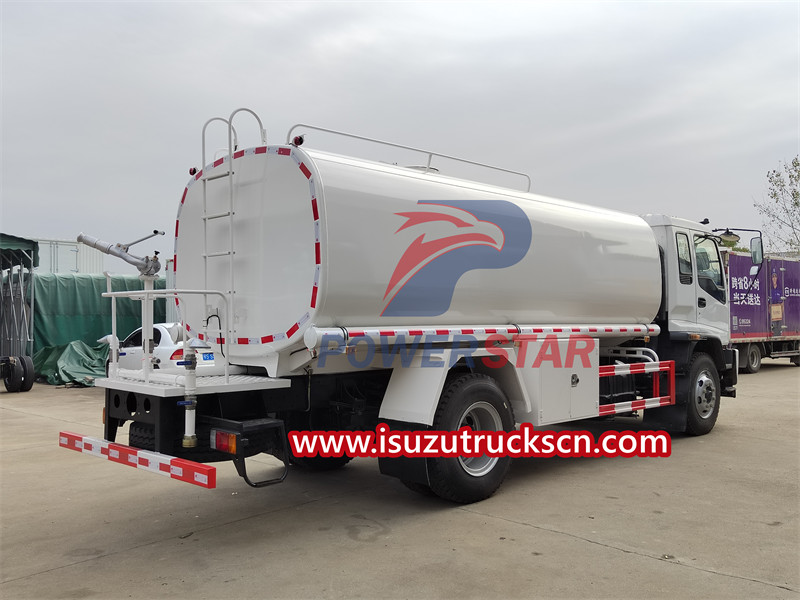

ISUZU FTR water truck is a type of sprinkler equipment widely used in gardens, roads, squares and other places. It is mainly used to spray water mist, reduce dust in the air, increase air humidity, and also play a cooling role. The vehicle is made of high-quality materials, with beautiful appearance, stable performance and easy operation. It is your ideal choice for environmental cleaning and greening.
Work capacity:
12000 litersTruck model:
PT5120GSSEngine power:
205 HPEngine type:
4HK1-TC50Axle drive:
4×2Gear box:
MLD 6-speed manualRemarks:
Stainless steel tank ans stainless steel water pump is optionalISUZU sprinkler truck, also known as Isuzu water tanker truck or ISUZU water lorry, is a special vehicle widely used in urban road cleaning, irrigation and other outdoor activities. With its unique functions and design, it plays an important role in keeping the environment clean, cooling, and fire-fighting.
ISUZU water tankers are widely used in urban road cleaning, greening irrigation, firefighting, drought relief and other scenarios. In terms of urban road cleaning, sprinklers can effectively reduce road dust and improve air quality. In terms of green irrigation, sprinklers can provide necessary water for plants in parks, squares and other places. In addition, the sprinkler truck can also be used as a fire truck to provide water source for fire extinguishing. In terms of drought relief, ISUZU sprinkler trucks can provide necessary water sources for farmland and other fields.

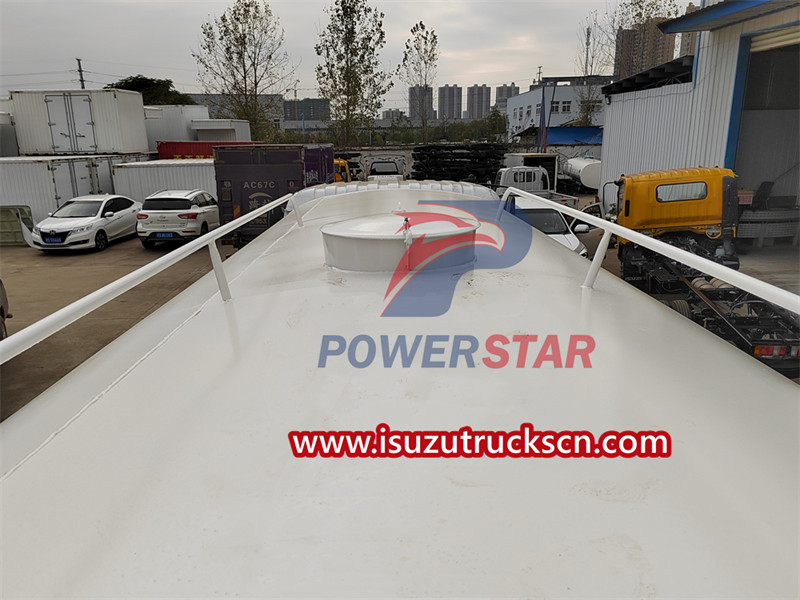

ISUZU FTR water bowser truck consists of tank, water pump, piping system, control system and other parts. The tank is used to store water, the water pump is used to extract water from the tank and pressurize it, the pipeline system is responsible for transmitting water to outlets such as nozzles, and the control system is responsible for controlling the vehicle workflow.
Product Parameters
|
ISUZU FTR Water Bowser Truck |
||
|
Chassis Parameters |
||
|
Chassis model |
QL1180XMFRY |
|
|
Overall dimensions(mm) |
8800×2500×3150 |
|
|
Wheel base(mm) |
4500 |
|
|
Driving type |
4×2 |
|
|
Total weight(Kg) |
18000 |
|
|
Cabin |
FTR single cabin, with sleeper, with A/C, ABS |
|
|
Number of axes |
2 |
|
|
Tires No. |
6 |
|
|
Steering |
Left hand drive |
|
|
Approach/departure angle |
15/12(°) |
|
|
Front /rear overhang(mm) |
1335/2415 |
|
|
Axle (front/rear) |
6300 kg/ 13000 kg |
|
|
Wheel track(front/rear)(mm) |
1990/1855 |
|
|
Tyre size |
295/80R22.5 |
|
|
Tyre number |
6+1 pcs |
|
|
Max driving speed(km/h) |
105 |
|
|
Brake |
Air brake type |
|
|
Engine Model |
4HK1-TC50 |
|
|
Engine Type |
Diesel |
|
|
Engine horse power |
205hp |
|
|
Engine displacement |
5193 ml |
|
|
Emission standard |
Euro 5 |
|
|
Engine Type |
In-line, 4 cylinder, water cooled, four stroke, turgocharged intercooling, direct injection |
|
|
Transmission model |
ISUZU MLD 6-speed , 6F+1R, manual |
|
|
Tank Body |
||
|
Water Tanker Capacity |
12000 Liters |
|
|
Tank Color & Logo |
customized |
|
|
Tanker body material |
Q235B carbon steel |
|
|
Water Tank Thickness |
4mm |
|
|
Shape of tank |
Elliptic |
|
|
Sprinkler System |
Front Flush Nozzles |
Sprinkling width≥14m |
|
Rear Sprinklers |
Sprinkling width≥12m |
|
|

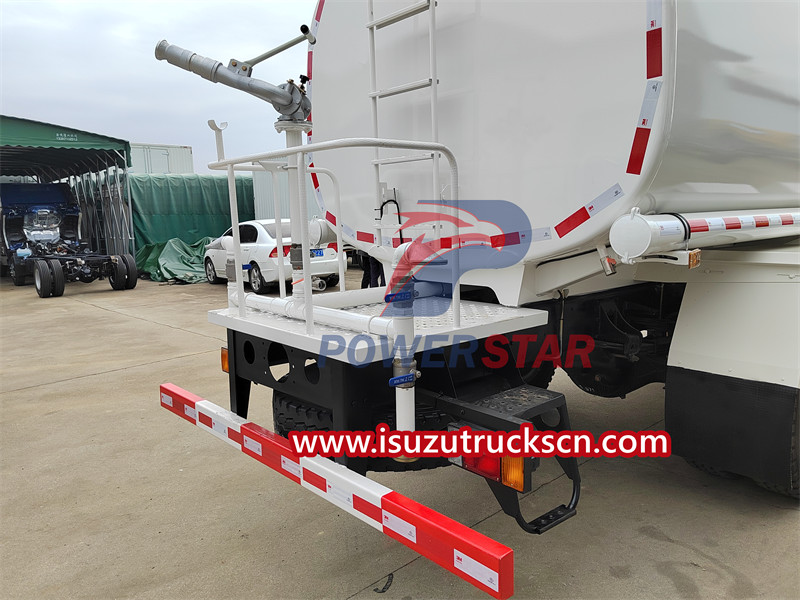

Water Cannon |
360 degree rotation, Shooting range ≥28m |
|
|
Working Platform |
an operator standing there to operate the water cannon |
|
|
Compartment |
1(Can be divided according to customer requirements) |
|
|
Baffle |
1 No,4 mm carbon steel |
|
|
Standard Configuration |
Chassis, sub frame, carbon steel water tank, manhole, water pump, front/side/rear spray nozzles, rear working platform, water cannon, fire valve, water valve, filter, water hose, climbing ladder. |
|
|
Optional Configuration |
Stainless steel/aluminum alloy water tank, insulation layer for water tank, stainless steel water pump, fire pump, fire gun, pesticide plate, Honda pumps, rear spraying device, LED arrow lights, backup alarm |
|
|
Water pump |
Brand |
Chinese famous pump |
|
Vertical suction height |
7m |
|
|
Water intake time for full tank |
About 10 min |
|
Features of Isuzu water tanker lorry:
1. Based on Isuzu chassis, it is powerful, reliable and durable.
2. Equipped with high-quality carbon steel water storage tank, water pump, water pipes, and nozzles.
3. The water storage tank has sufficient capacity and can operate continuously for a long time.
4. Equipped with a high-efficiency centrifugal pump, which has the characteristics of high pressure and stable flow.
5. The water cannon has multiple adjustable angles, and the spray range and height can be adjusted according to actual needs.
The water pump maintenance of ISUZU water sprinkler tanker mainly includes the following aspects:
1. Regular inspection: Regularly check whether the seals, bearings, lubrication system, etc. of the water pump are normal. If there are any abnormalities, they should be repaired or replaced in time.
2. Clean up in time: Clean the sediments and impurities inside the water pump in time to ensure the normal operation of the water pump.
3. Lubrication and maintenance: Add grease to the water pump bearings regularly to ensure the normal operation of the bearings.
4. Fastening bolts: Regularly check and tighten the connecting bolts of the water pump to prevent loosening or falling off.
5. Replace wearing parts: Regularly replace the wearing parts of the water pump, such as seals, filters, etc., to ensure the normal life of the water pump.
6. Check the motor regularly: Check the winding and insulation performance of the motor regularly. If there are any abnormalities, repair or replace them in time.
7. Keep records: Every time you perform maintenance on a water pump, records should be kept to facilitate future management and maintenance.
