The Isuzu FTR multi-purpose truck with boom crane is a powerful and versatile vehicle that is ideal for a wide range of applications. It is the perfect combination of an Isuzu truck and a boom crane. Whether you are working on a construction site, an industrial park or anywhere else that requires heavy lifting and material handling, the Isuzu FTR is the perfect tool to get the job done.
Work capacity:
5 tonsTruck model:
PT5180GSTEngine power:
4HK1-TCG60Engine type:
205HPAxle drive:
4x2,LHDGear box:
MLD 6-speed, manualRemarks:
Hydraulic lifting boom craneIsuzu FTR utility truck with boom crane also called Isuzu FTR 4X2 5 tons boom crane truck,Isuzu FTR telescopic boom truck mounted crane,Isuzu FTR truck mounted hydraulic crane,Isuzu FTR straight arm crane.
The Isuzu FTR utility truck with boom crane symbolizes the perfect combination of strength, precision and adaptability, making it a reliable ally in a wide range of working scenarios. Its rugged structure combined with cutting-edge technology makes it the cornerstone of efficiency and performance in the field of lifting and material handling. By seamlessly integrating the functions of a multi-purpose truck with a versatile boom crane, Isuzu has created a machine that can meet a variety of challenges with refinement and reliability.
Features:
★ Adopt world-class lSUZU 700P Chassis, High power and Fuel efficiency, Reliability, Uptime;
★ All Structural made of High Strength Steel;
★ Easy to mount and Minimum space required for Mounting;
★ Can be Mounted Behind the Cabin or Rear Part of Load Body, thus Truck Load;
★ Optional Chassis 4x2, 6x4,8x4 and engine power;
★ Optional Crane brand: XCMG, UNIC, PALFINGER...
★ Optional Crane type: Telescopic boom crane or knuckled boom crane;
★ Radio Remote Control Available as an Optional Fitment;
|
Isuzu FTR utility truck with boom crane |
||||
|
Truck model |
PT5180GST |
|||
|
Cab |
Isuzu FTR cab, 3 seats, air conditioner |
|||
|
Driving Type |
4x2,LHD |
|||
|
Overall Dimensions(mm) |
9000*2530*3700 |
|||
|
Cargo Dimensions(mm) |
5650*2430*600 |
|||
|
GVW(kg) |
18000 |
|||
|
Curb weight |
12100 |
|||
|
Rated loading capacity |
5705 |
|||
|
Wheelbase |
5550 |
|||
|
Front/Rear Suspension |
1335/2115 |
|||
|
Steering |
Power steering |
|||
|
Approach/departure angle |
15/12(°) |
|||
|
Front/rear track |
1960/1855 |
|||
|
Wheels & tire |
295/80R22.5 |
|||
|
Tire number |
6+1 |
|||
|
Max speed |
89(km/h) |
|||
|
Engine |
Model |
4HK1-TCG60 |
||
|
Horsepower |
205HP |
|||
|
Maximum output |
151Kw |
|||
|
Type |
4 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine |
|||
|
Displacement |
5193ml |
|||
|
Emission |
Euro 6 |
|||
|
Transmission |
MLD 6-speed, manual |
|||
|
Front Axle |
6500kg |
|||
|
Rear Axle |
11500kg |
|||
|
Brake System |
air brake,exhaust brake |
|||
|
Color and LOGO |
customized |
|||
|
Electric system |
24V |
|||
|
Crane |
Model |
SQ125-4 |
Max loading weight |
5 tons |
|
Max lifting height |
13m |
Max lifting moment |
30T.m |
|
|
Max working radius |
11m |
Weight of crane |
2500kg |
|
|
Type |
Straight arm |
Arms number |
4 |
|
|
Outrigger space |
6000mm |
Turning angle |
360 |
|
|
Rated hydraulic pressure |
22MPa |
Color and logo |
Optional |
|
|
Standard configuration |
truck crane equipped between the cabin and van body, mechanical leg |
|||
|
Optional configuration |
Any other famous brand crane, it can also be equipped in the rear of the truck, hydraulic legs, aerial working seat is optional. |
|||
In the construction sector, the Isuzu FTR 4x2 straight arm crane truck is an industry game-changer when paired with a boom crane, enabling seamless lifting and positioning of building materials with precision and ease. The capabilities of the boom crane allow workers to perform tasks such as loading and unloading heavy equipment, placing structural components and handling materials in tight spaces with unmatched precision. By streamlining these operations, the Isuzu FTR crane truck helps speed up construction schedules and increase productivity on the jobsite.

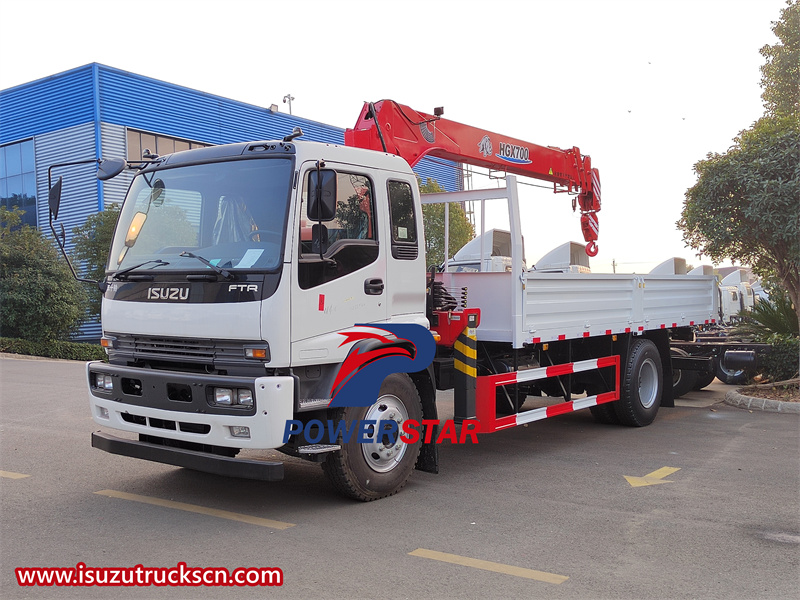

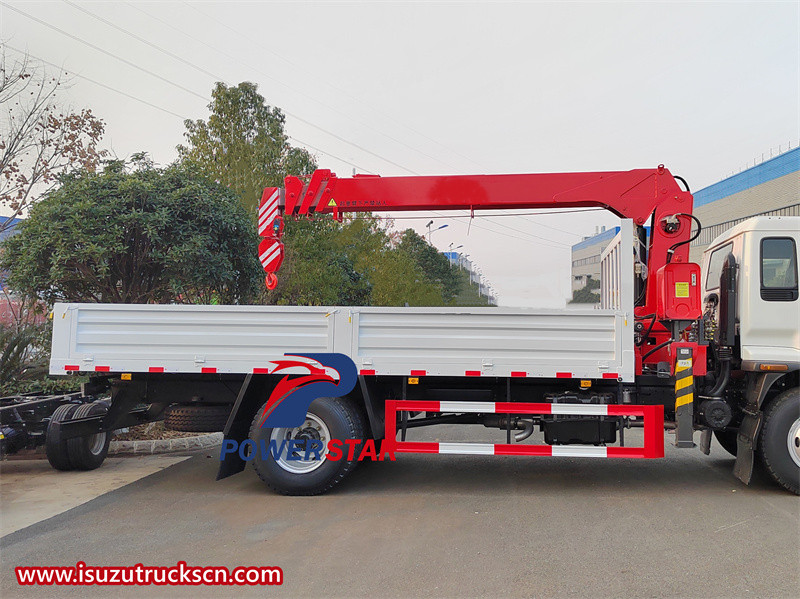

Isuzu FTR utility truck with boom crane

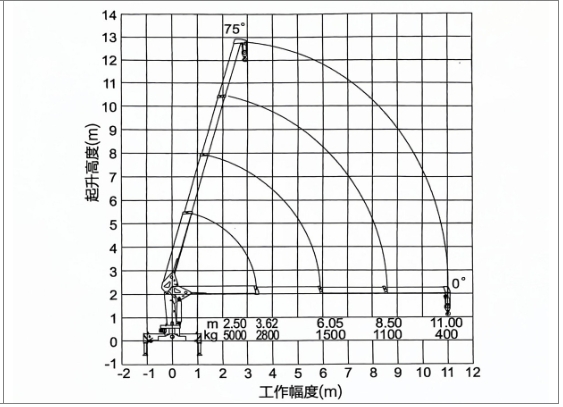

Telescopic arm working range diagram
The exterior of the Isuzu FTR straight arm crane truck exudes strength and durability, with a sleek aerodynamic design that not only enhances the vehicle's aesthetics but also improves fuel efficiency. The integration of a state-of-the-art boom crane adds a touch of sophistication to the overall appearance, hinting at the vehicle's versatility. Compact and sturdy, the boom crane complements the truck's design, highlighting its versatility in handling a variety of lifting and loading tasks with unparalleled ease and precision.

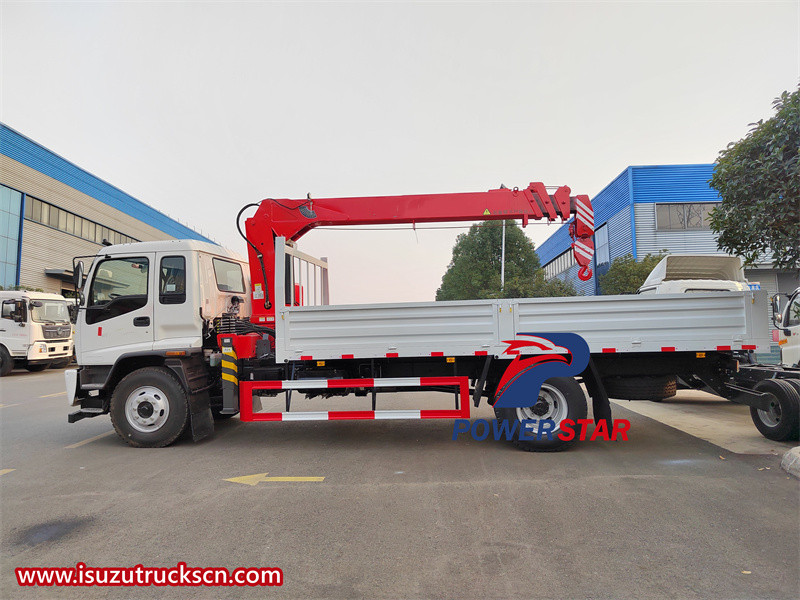

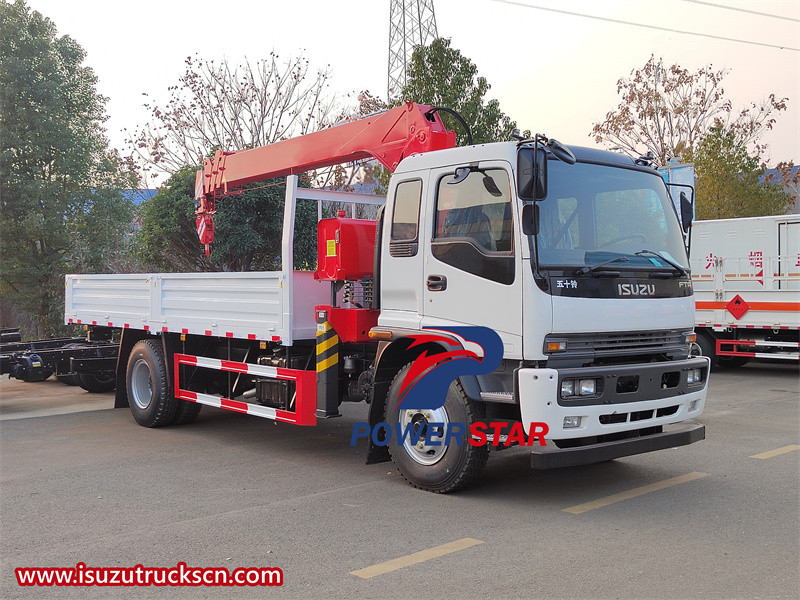

Isuzu FTR 4X2 5 tons boom crane truck
At the heart of the Isuzu FTR utility crane truck is a powerful engine that has been carefully engineered to deliver optimal performance and efficiency. Powered by a powerful diesel engine, the Isuzu FTR easily traverses a variety of terrains, carrying heavy loads with grace and agility. The vehicle's powertrain is carefully tuned to provide the necessary torque and horsepower required to seamlessly operate the boom crane, ensuring smooth and precise movement even in challenging conditions.
The FTR's chassis is built to withstand the rigors of everyday use, with a heavy-duty suspension and reinforced frame components to ensure stability and durability. The truck's spacious and comfortable cab features an ergonomically designed seat and controls that allow the driver to operate the vehicle with ease for long hours. The interior design also features attention to detail, with high-quality materials and finishes that add to the overall sense of sophistication and luxury.

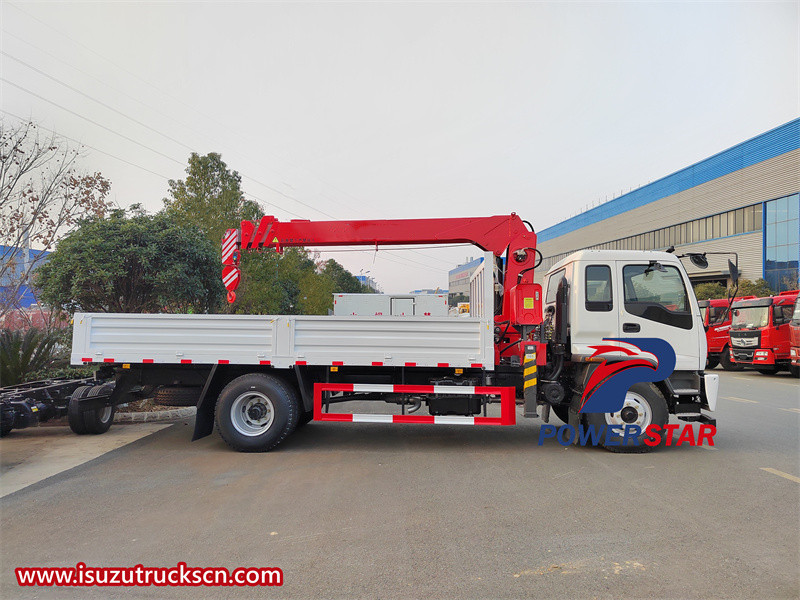

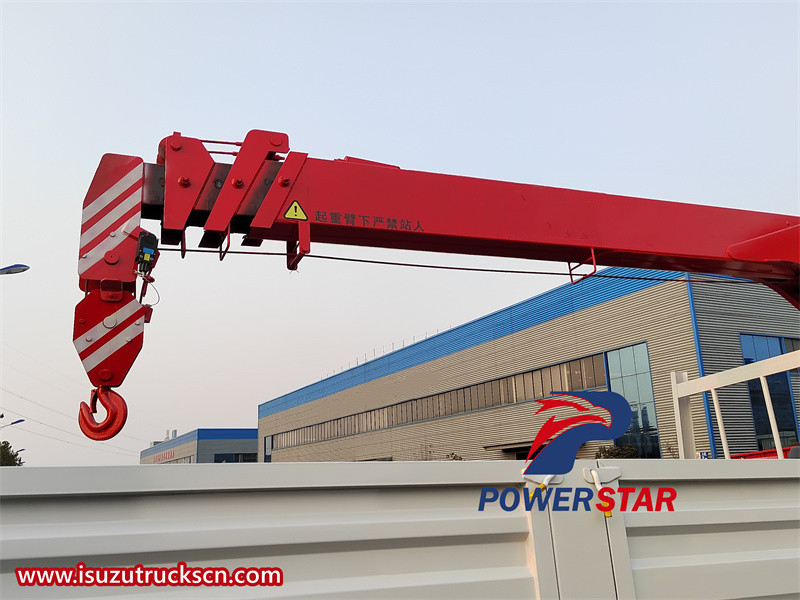

Isuzu FTR telescopic boom truck mounted crane
But what really sets the Isuzu FTR apart is its boom crane, which is seamlessly integrated into the truck’s design. The crane is available in a variety of configurations, from compact and lightweight models for smaller jobs to larger, more powerful cranes for heavier lifting tasks. The crane’s boom is made from high-strength steel and features an advanced hydraulic system that provides precise control and smooth operation.
The boom crane on the FTR utility truck is also highly versatile, with a range of features that allow you to tailor it to your specific needs. For example, the crane can be equipped with a variety of attachments such as hooks, winches and pulleys, allowing you to perform a variety of lifting operations. The crane also features a telescopic boom that can be extended to reach greater heights, perfect for lifting equipment or materials into hard-to-reach locations.

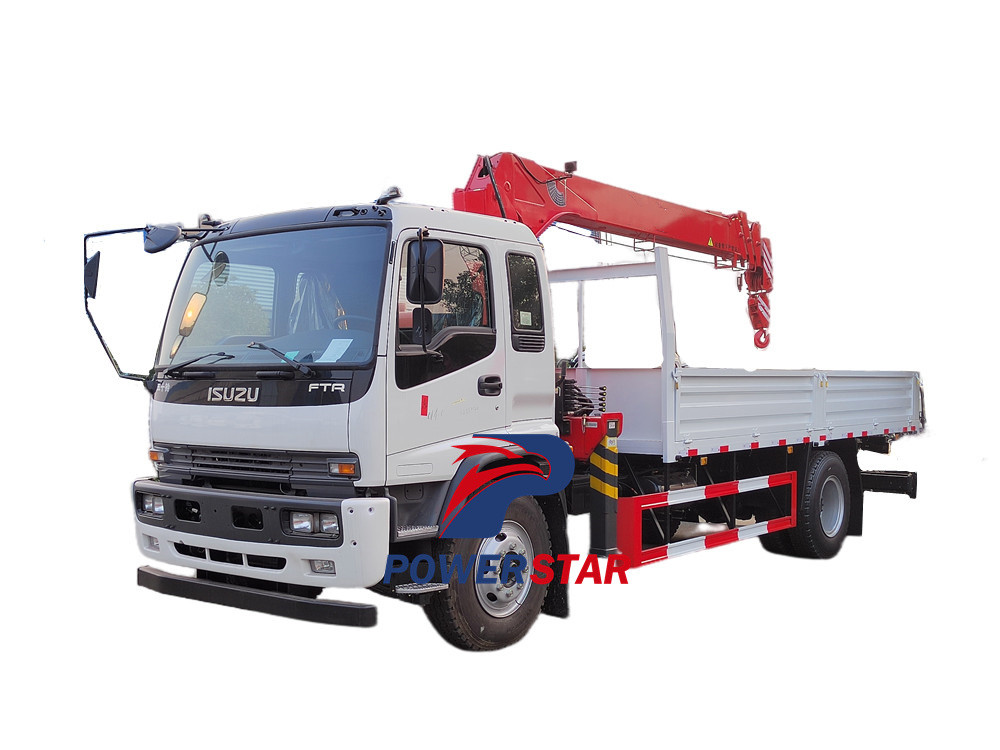

Isuzu FTR truck mounted hydraulic crane
The Isuzu FTR truck with boom crane is also highly customizable, allowing you to tailor it to your specific needs. Whether you require a truck with a larger engine, a longer boom crane or additional features and options, the FTR crane truck can be configured to your requirements. This level of customization ensures you get the exact truck you need to get the job done without having to compromise on performance or capabilities.
Truck Details

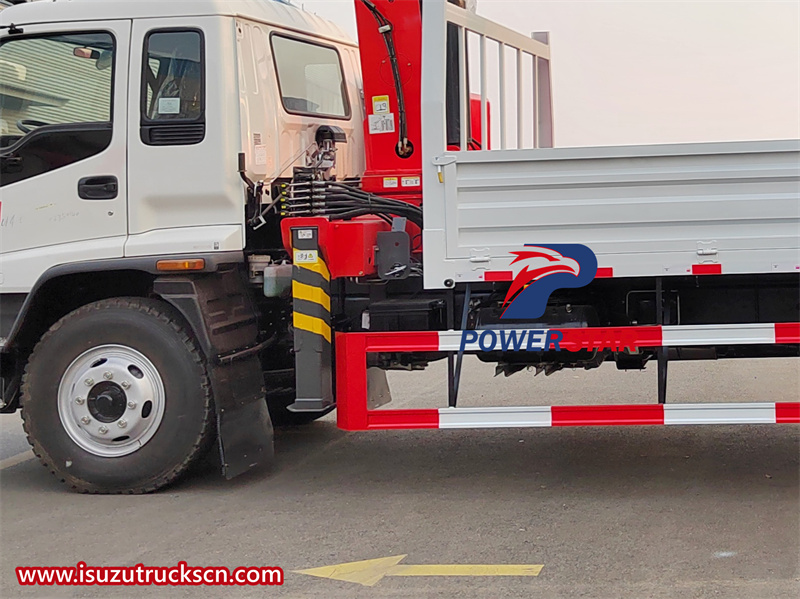

Outrigger
cargo box
4-section telescopic arm

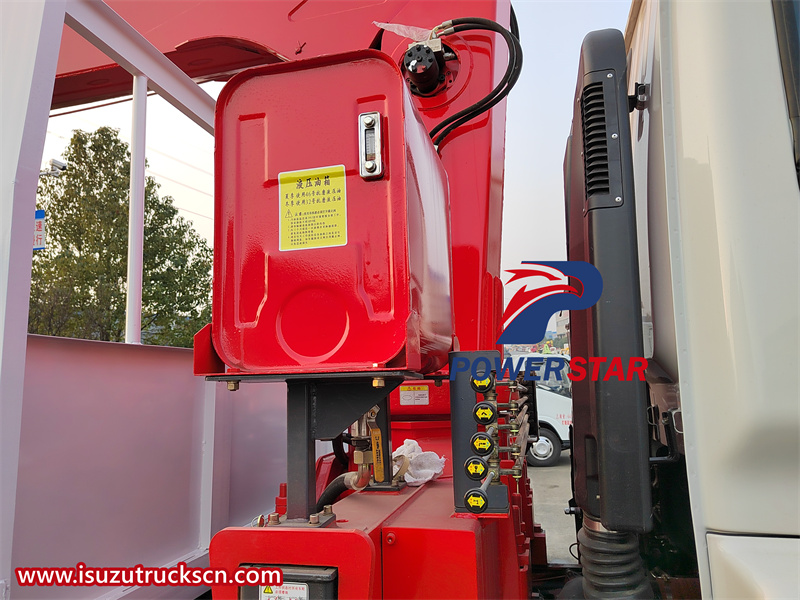

Hydraulic oil tank

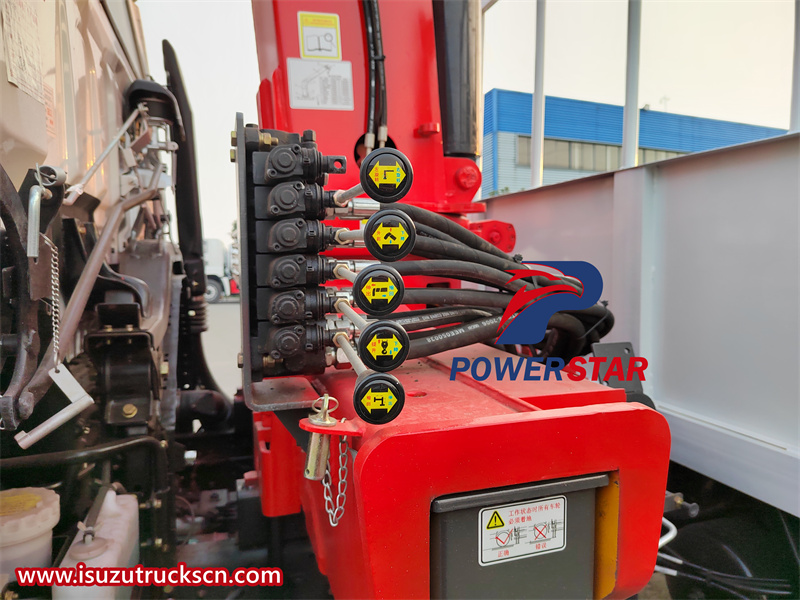

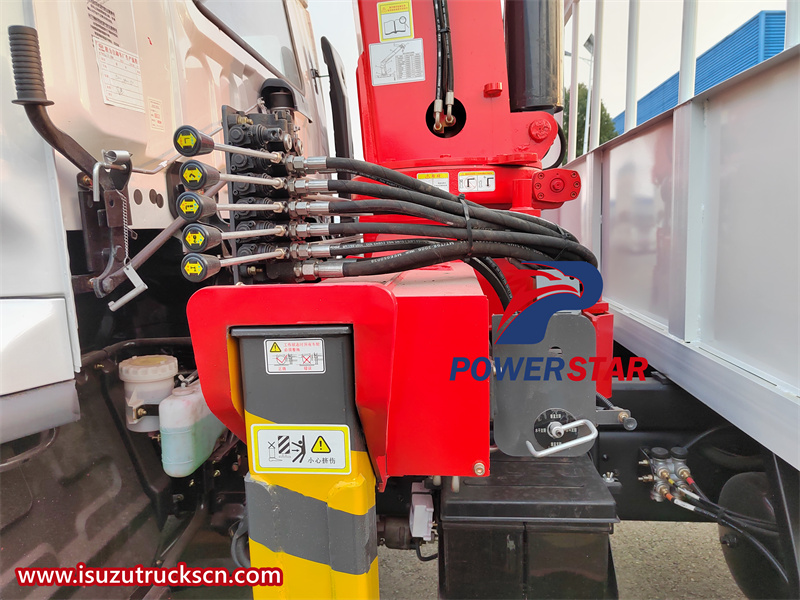

Joystick
