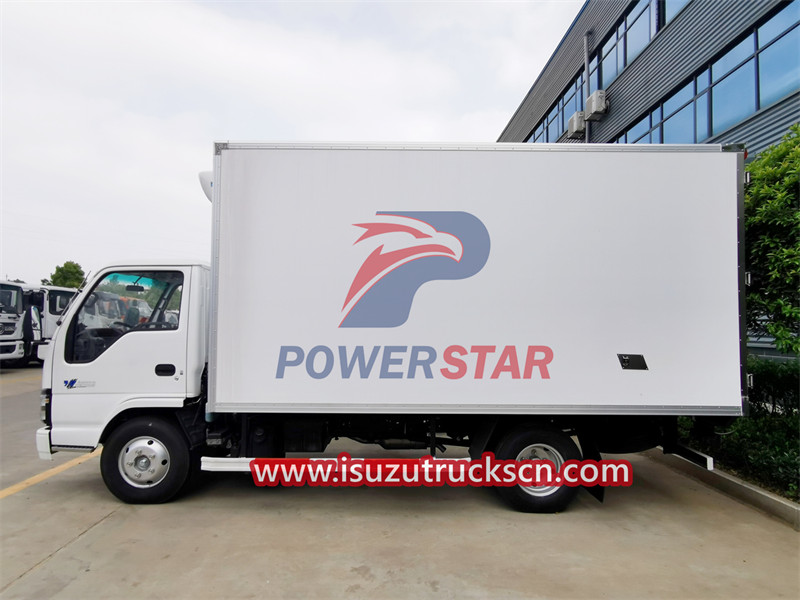

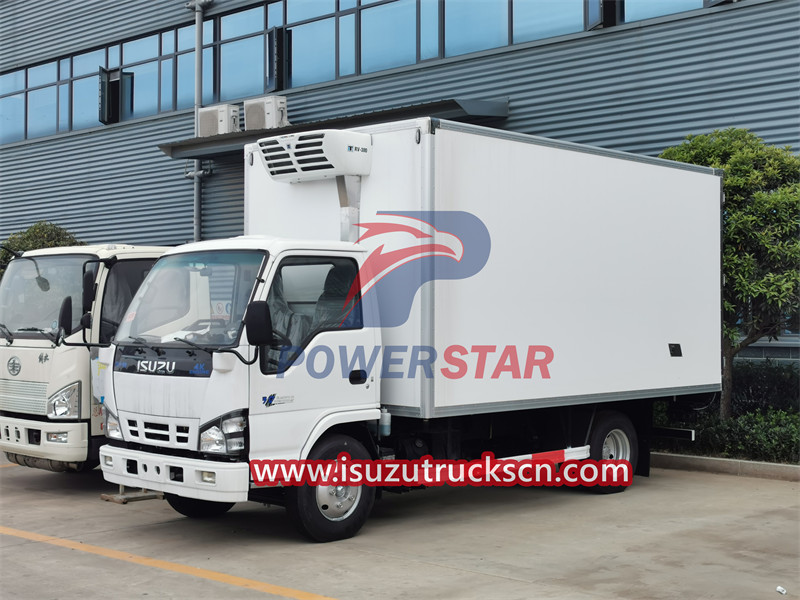

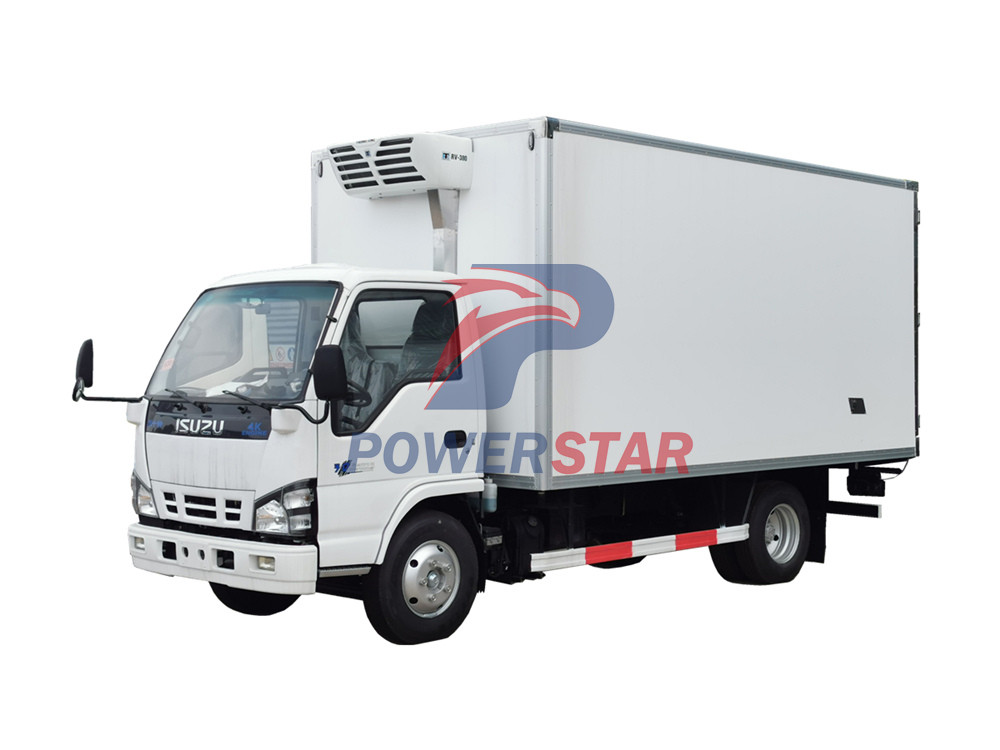

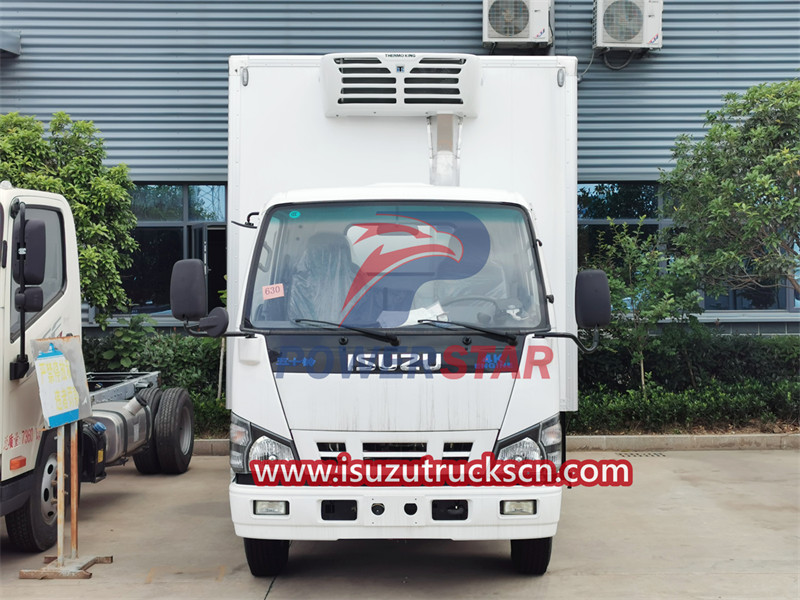

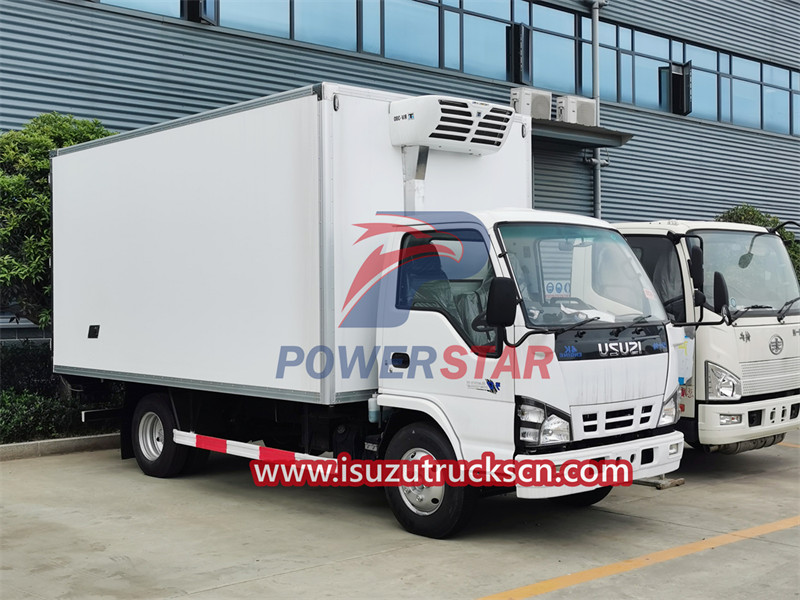

ISUZU Freezer Box Truck with Thermo King
Isuzu 600P refrigerated truck is a cold chain transportation truck with excellent performance, convenient operation and strong carrying capacity. The vehicle has excellent refrigeration performance and is equipped with an imported Thermo King refrigeration unit with excellent refrigeration effect and the lowest temperature can reach -18 degrees Celsius. At the same time, the interior and exterior glass fiber reinforced plastics, interlayer insulation materials and floor materials of the van body also ensure good thermal insulation performance.
Work capacity:
3 tonsTruck model:
PT5070GLC3Engine power:
130HPEngine type:
4KH1CN5HSAxle drive:
4×2Gear box:
MSB 5-speed, manualRemarks:

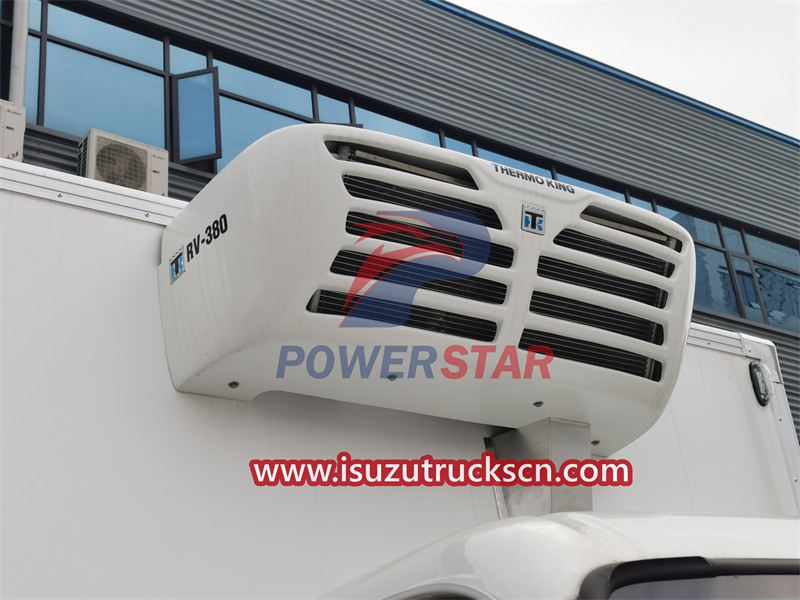

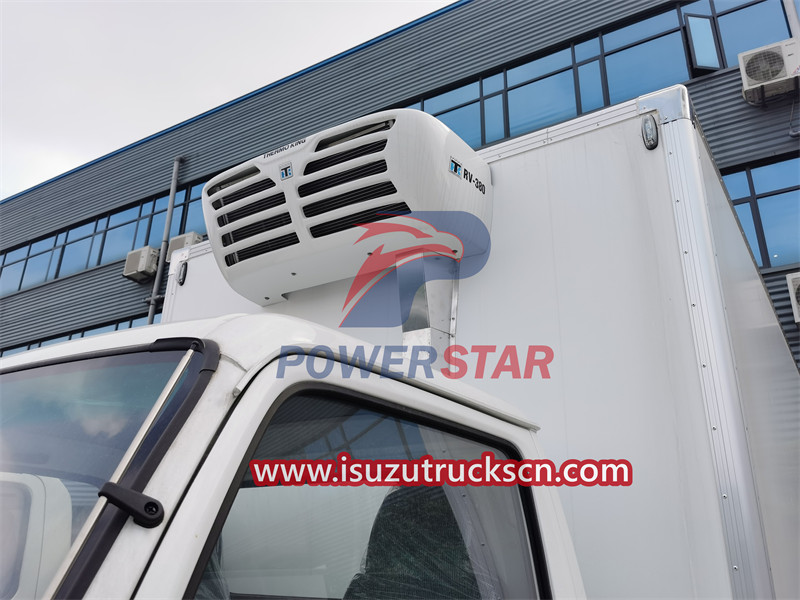

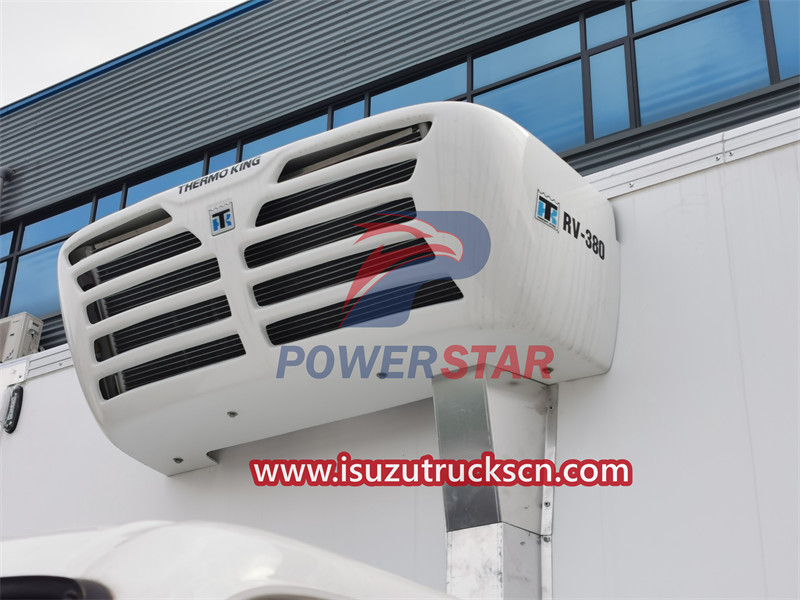

ISUZU freezer van with Thermo King RV380 refrigeration unit
The Isuzu refrigerated truck is a high-performance, high-quality cold chain transport vehicle equipped with high-quality Thermo King refrigeration unit. It is widely used in food, pharmaceuticals, chemicals and other fields. The vehicle uses advanced refrigeration technology to ensure that the goods maintain a constant temperature during transportation, effectively preventing the goods from deteriorating and being damaged.
Isuzu refrigerated truck comes with a variety of safety and comfort features. The van body is made of high-quality materials and has good thermal insulation properties. The interior of the cabin is spacious and comfortable, and is equipped with an advanced intelligent control system, allowing the driver to easily control the operating status of the vehicle.
Additionally, this Isuzu refrigerated truck offers excellent fuel economy and low maintenance costs. It uses an efficient engine and energy-saving refrigeration system to effectively reduce fuel consumption and operating costs.
Product Specifications
|
Chassis information |
|||
|
Chassis |
ISUZU 600P |
||
|
Cabin |
2 Passengers |
||
|
Drive |
4 × 2 Left-hand driving or Right-hand driving |
||
|
Wheelbase |
3360 mm |
||
|
Gross vehicle weight |
7300 kg |
||
|
Tyre |
Size |
7.00R16 |
|
|
Quantity |
6+1 Spare |
||
|
Brake |
Service |
Front disc/Rear drum hydraulic brake |
|
|
Parking |
Central drum brake |
||
|
Auxiliary |
Exhaust brake |
||
|
System |
ABS (anti-lock brake system) |
||
|
Transmission |
Gear |
6-Speed (manual) |
|
|
Steering |
Power-assisted |
||
|
Auxiliary |
Clutch booster |
||
|
Engine |
Model |
4KH1CN5HS |
|
|
Fuel type |
Diesel |
||
|
Intake |
Turbocharged |
||
|
Form |
Water cooling |
||
|
Cylinder |
4 (In-line) |
||
|
Displacement |
2999 ml (EURO 5) |
||
|
Max. Power |
130 hp (96 kw) |
||
|
Upper body |
|||
|
Refrigerated Van |
Dimension (internal) |
4000*2000*2000 mm (L*W*H) |
|
|
Thickness |
Roof |
80 mm |
|
|
Wall |
80 mm |
||
|
Floor |
80 mm |
||
|
Material |
Inner |
Glass fiber reinforced plastics (GFRP) |
|
|
Outer |
|||
|
Insulation |
Material |
Polyurethane foam (PUF) |
|
|
Thickness |
8 mm |
||
|
Assembly |
Floor |
Non-slip checkered plate |
|
|

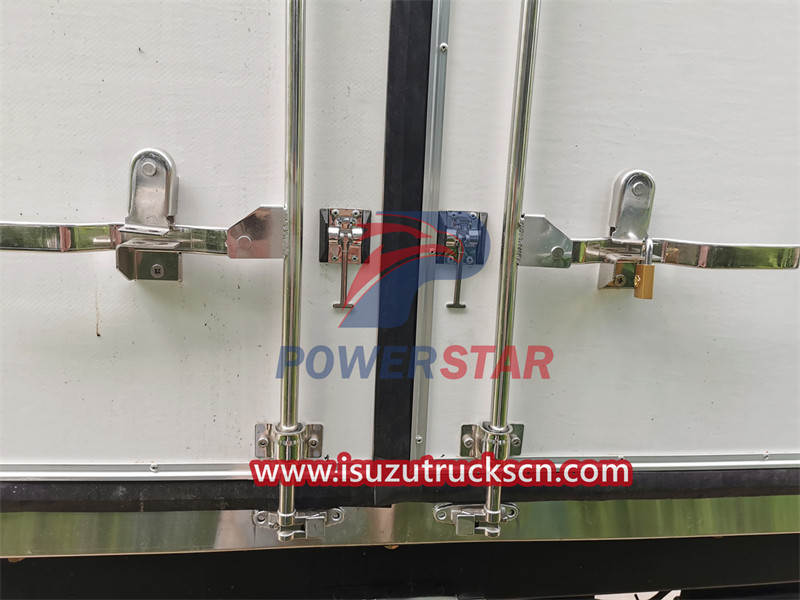

Door/lock |
Stainless steel |
||
|
Seal |
Industrial-purpose rubber |
||
|
Refrigerator unit |
Brand |
THERMO KING |
|
|
Model |
RV380 |
||
|
Temperature |
-18~0ºC |
||
|
Refrigerants |
Model |
R404-A |
|
|
Charge |
1.8 kg |
||
|
Refrigeration capacity |
|||
|
Driven by Truck engine |
0ºC |
-20ºC |
|
|
4050 w |
2300 w |
||
|
Compressor |
|||
|
Air volume |
1500 m³/h |
||
|
Weight (Approximation) |
|||
|
Evaporator |
18 kg |
||
|
Condenser |
30 kg |
||
|
Dimension |
|||
|
Evaporator |
1080*627*220mm (L*W*H) |
||
|
Condenser |
1023*435*316 mm (L*W*H) |
||
|
Accessories |
|||
|
Defrosting |
Hot gas defrost (Automatically) |
||
|
Adjustment device |
Electronic digital display |
||
|
Safety protectation |
High and low pressure switch |
||
What are the correct maintenance and repair methods for Isuzu freezer trucks?
The maintenance of Isuzu freezer trucks is very important. Only by performing correct maintenance on the equipment on time can the normal use of the equipment be ensured and the service life of the equipment extended.
1. Normally, the refrigeration unit is maintained every 500h to 700h. It is necessary to replace the oil filter element, fuel filter element, and air filter element; and pay attention to check the tightness of the belt and whether there is any leakage in the refrigeration system.
2. Routine maintenance of the insulated compartment of Isuzu refrigerated trucks: Check the exterior surface of the van body, the interior surface of the van body, the edges and corners inside and outside the van, the interior floor of the van, as well as the internal lighting, refrigeration air outlets, etc.
3. Do not scratch the outer surface of the Isuzu refrigerated carriage. Otherwise, on the one hand, it will reduce the ability of the fiberglass to withstand pressure and make aging and deformation more likely. On the other hand, the polyurethane filled inside will leak and affect the insulation performance of the carriage.
4. When maintaining the interior surface of the Isuzu refrigerated truck, the temperature control must be properly adjusted. Do not let the interior surface of the van body freeze. If the air humidity is relatively high, try to pack the refrigerated products, especially the aquatic products, and seal them well to reduce the risk of refrigeration.
ISUZU NKR/ ELF 600P chiller lorry, ISUZU 130HP diesel engine, MSB 5-shift manual gearbox, 4200x2100x2100mm freezer van body, equipped with THERMO KING RV-380 refrigeration unit, painting and logos as required. Japanese brand ISUZU reefer van truck freezer box truck for sale
Learn More
Thermo King Refrigerated Trucks Isuzu are designed to efficiently and reliably transport temperature-sensitive cargo such as frozen foods, pharmaceuticals and perishables. These trucks combine the durability and reliability of Isuzu vehicles with Thermo King's advanced refrigeration technology, making them a popular choice for logistics companies and food distributors around the world.
Learn More
Japan Isuzu giga 8x4 12wheels Refrigerator truck named Isuzu giga freezer van truck, Isuzu giga cooling van truck, frozen truck is the enclosed van used for transporting the fresh and frozen goods, vegetables and fruits, milk goods and vaccines. It is the van truck equipped with refrigerator device with which inside temperature could be optional of -5°, 10°,-16°,-18°.The surface of van body could be made of fiberglass, aluminum or stainless steel. The padding material with varieties ofthickness is polyurethane foam that could preserve the temperature.
Learn More
5,000L vacuum cesspool truck Isuzu, also named ISUZU sewer suction truck or Sewage tanker Isuzu, is a versatile and powerful machine that plays an essential role in maintaining clean and clear sewer systems in industrial and municipal settings. The truck's ability to extract and remove large amounts of waste and debris from sewer lines ensures the prevention of environmental pollution and other public health hazards caused by sewage overflow or blockages.
Learn More
4ton 5ton road wrecker/towing truck,new Japanese Isuzu 4x2 4x4 2ton 3ton road wrecker/towing truck,3ton Isuzu Flat low bed road wrecker tow truck for sale
Learn More

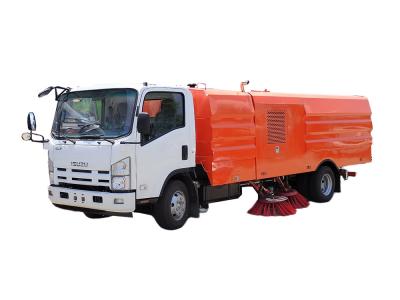

Isuzu NPR freightliner sweeper truck is designed to clean the street or road. Isuzu sweeper lorry is designed and developed on the basis of the ISUZU npr light truck special vehicle chassis to meet needs of sweeping and cleaning urban pavement and curb. The principle of pure suction under negative pressure is adopted to guarantee strong suction force, dust-free working, simple operation, and excellent performance. It can quickly and efficiently sweep the household garbage and spilled objects in streets and roads. It is equipped with a dry-type dust discharge and control system to reduce fugitive dust during the process of dust discharge. Isuzu road sweeper can realize the real-time monitoring and efficient management on sweeping operation through the operation quality management system. It is typically used for the cleaning of pavement and curb of main roads, high-grade highways, expressways, large and medium-sized factories and mines, enterprise campus, parks, port terminals, etc.
