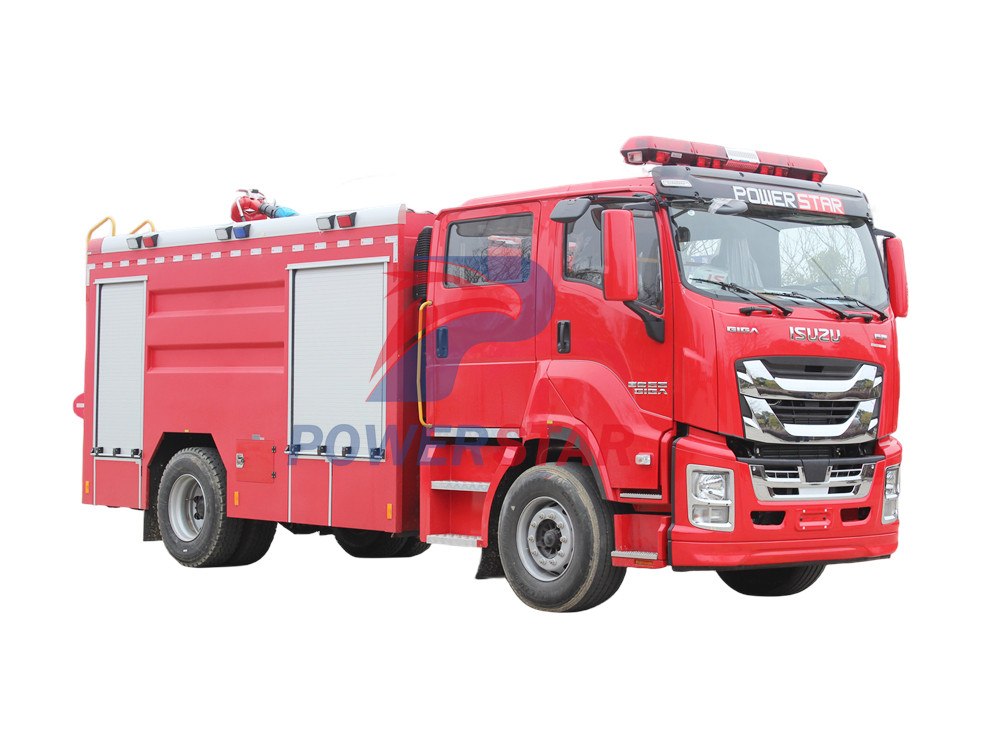

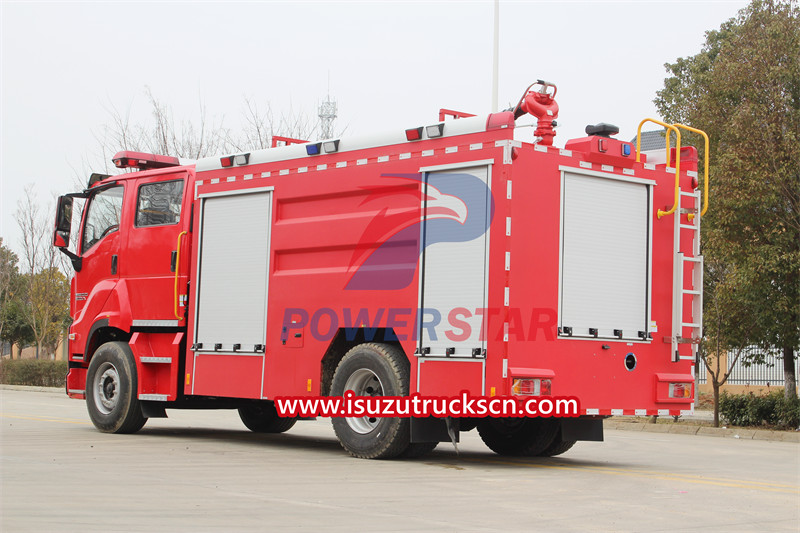

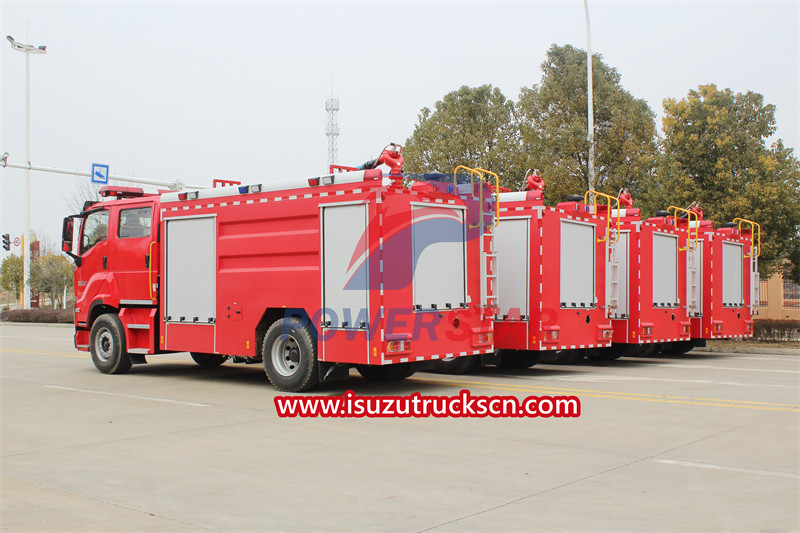

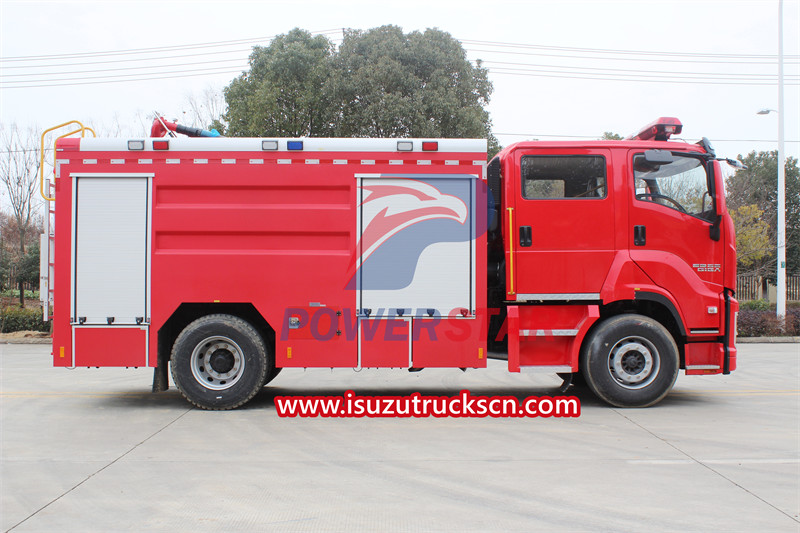

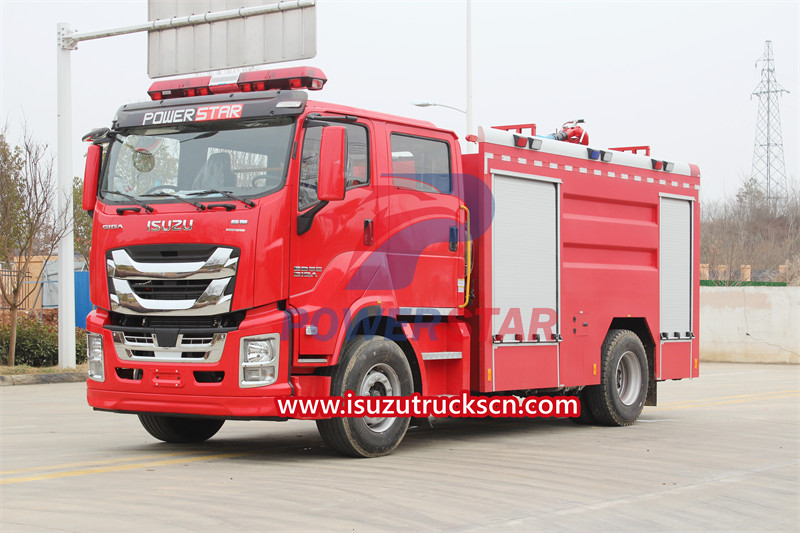

Isuzu GIGA foam fire truck is composed of Isuzu chassis and upper body. The double cab can accommodate 2+3 people. The front part of the vehicle body is the equipment box, the middle part is the tank, and the rear part is the pump room. The water made of high-quality carbon steel, and the interior is sprayed with epoxy primer and epoxy asphalt paint, and the foam tank is made of stainless steel. The special parts of the vehicle include fire pump, fire monitor, firefighting equipment, etc. The water spraying range of the fire pump is greater than or equal to 65 meters, and the foam spraying range is greater than or equal to 55 meters.
Work capacity:
6000 LitersTruck model:
PT5220GXFPM6Engine power:
380 HPEngine type:
6UZ1-TCG50Axle drive:
4×2Gear box:
FAST 12-speedRemarks:
ISUZU high power engine, high quality fire pump and fire monitor
Isuzu foam fire truck is a professional firefighting vehicle with a foam fire extinguishing system used to respond to various fires and emergencies. It usually has efficient fire extinguishing capabilities and reliable performance, and is one of the important equipment of the fire department.
The Isuzu foam fire truck is based on the Isuzu chassis, which is usually equipped with a water tank, a storage tank for foam liquid, a foam mixing system, a foam injection system and other necessary fire-fighting equipment. The vehicle has a sturdy and durable structure and is equipped with a fire extinguisher and other necessary fire-fighting tools and equipment.
This ISUZU foam fire truck has the characteristics of large liquid capacity, good maneuverability, and easy maintenance. It can be widely used in public security fire brigades, factories and mines, communities, docks and other places. It can fight large oil fires and general material fires.
Product Specifications
|
ISUZU foam firefighting truck specifications |
|||
|
Vehicle name |
ISUZU foam fire truck |
Overall Dimension (mm) |
8200×2500×3500 |
|
Vehicle Model |
PT5220GXFPM8 |
Wheel base (mm) |
4600 |
|
Driving Type |
4×2， LHD |
Gross Weight (kg) |
22000 |
|
Cab Capacity |
2+3 |
Curb Weight (kg) |
11500 |
|
Transmission |
manual |
Front Track (mm) |
2145 |
|
Chassis Brand |
ISUZU |
Rear Track (mm) |
1855 |
|
Tyre Model |
10.00-20 |
Approach Angle (°) |
19 |
|
Quantity of Tyre |
6+1 |
Departure Angle (°) |
10 |
|
Quantity of Axles |
2 |
Front Overhang (mm) |
1370 |
|
Max Speed (km/h) |
90 |
Rear Overhang (mm) |
2340 |
|
Chassis |
|||
|
Chassis Model |
QL522T |
Leaf Spring |
7/6+8 |
|
Engine (Motor) |
|||
|
Brand |
ISUZU |
Type |
Diesel |
|
Model |
6UZ1-TCG50 |
Displacement (ml) |
9839 |
|
Power (hp/kw) |
380hp/278kw |
Emission standard |
Euro 5 |
|
Equipment |
|||
|
Water Tank Capacity |
5000 L |
Tank Material |
carbon steel |
|
Foam Tank Capacity |
1000 L |
Tank Material |
stainless steel |
|
Nozzle Pressure |
1.0 Mpa |
Flow Rate |
60 L/s |
|
Low Pressure Pump |
CB10/60 |
Range (m) |
water≥65m, foam≥60m |
|
REMARKS: |
|||
Advantages of ISUZU foam fire truck:
1. Efficient fire extinguishing capability: Isuzu foam fire trucks are equipped with a professional foam fire extinguishing system, which can quickly and effectively extinguish fires.
2. Versatility: In addition to the foam fire extinguishing system, Isuzu foam fire trucks often have other firefighting equipment and tools that can handle a variety of different types of fires and emergencies.
3. Reliability: ISUZU foam fire trucks have high quality, reliability and durability, and can operate stably in emergency situations.
4. Easy to operate: The design of the Isuzu foam fire truck is simple and intuitive, easy to operate, and firefighters can quickly master and use it.
5. Safety: Isuzu foam fire trucks are designed with the safety of firefighters in mind and are usually equipped with various safety facilities and equipment to ensure the safety of firefighters during fire extinguishing and rescue.
ISUZU foam fire truck is a common type of fire truck mainly used for fire extinguishing and rescue work. The following are the characteristics of each component installed on the truck:

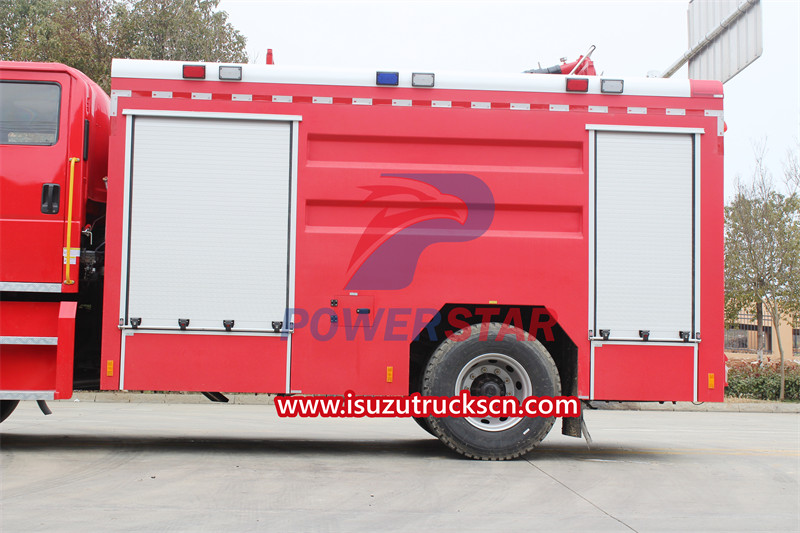

1. Tank body: Made of high-strength materials, it can carry a large amount of water and foam fire extinguishing agents. There are partitions inside the tank to allow water or foam to be evenly mixed during emergency use.

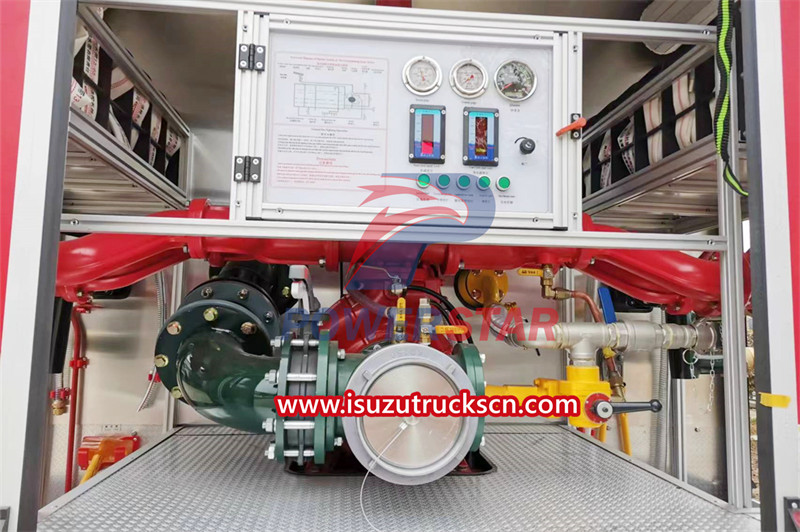

2. Fire pump: ISUZU foam fire trucks are equipped with high-power fire pumps, which can generate sufficient pressure and flow to transport water or foam to the fire source. The pump features high efficiency and long life.

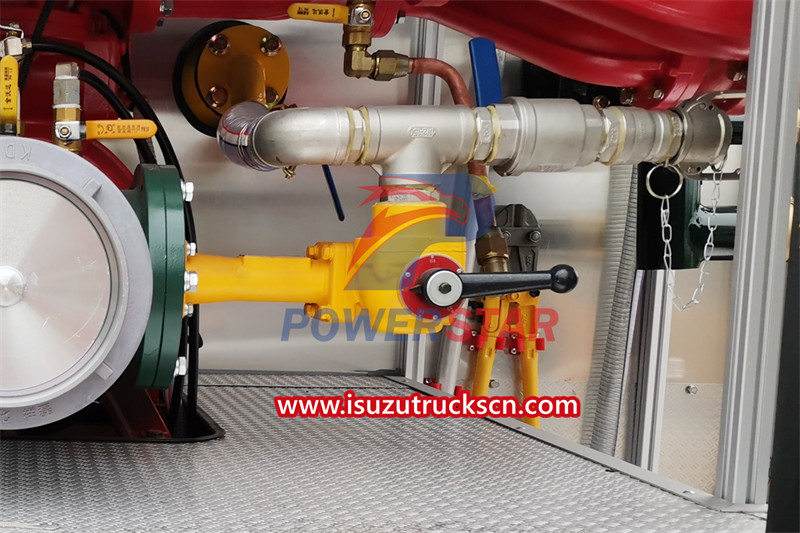

3. Foam mixing system: ISUZU foam fire truck is equipped with a foam proportioning mixer. The proportion of water and foam is adjusted by the proportional mixer so that the foam fire extinguishing agent can be evenly mixed with water to improve the fire extinguishing effect.

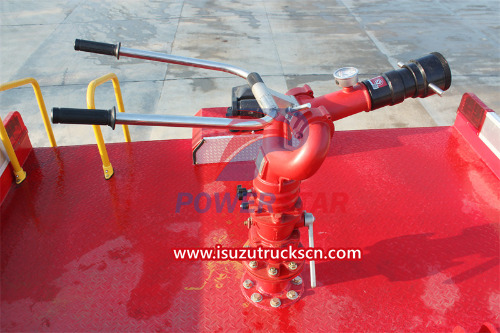

4. Fire cannon: ISUZU foam fire truck is equipped with dual-purpose fire water cannon, which can adjust the size and shape of the water flow according to the size and type of fire source.
5. Communication equipment: ISUZU foam fire trucks are equipped with wireless communication equipment, allowing firefighters to keep in touch with other rescue teams or command centers and communicate the fire situation and rescue progress in real time.

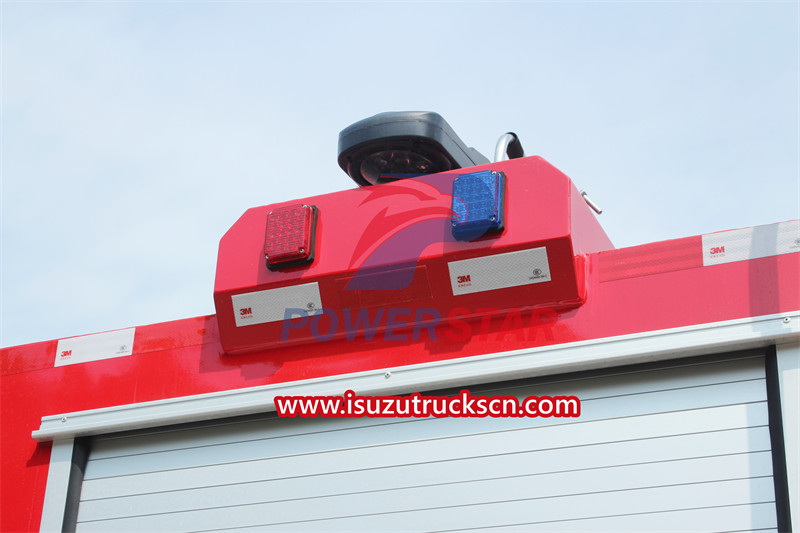

6. Other equipment: ISUZU foam fire trucks are also equipped with emergency lighting, demolition tools, stretchers and other auxiliary equipment to cope with different types of rescue missions.
|
Tank body |
Fire pump |
|
Foam proportioner |

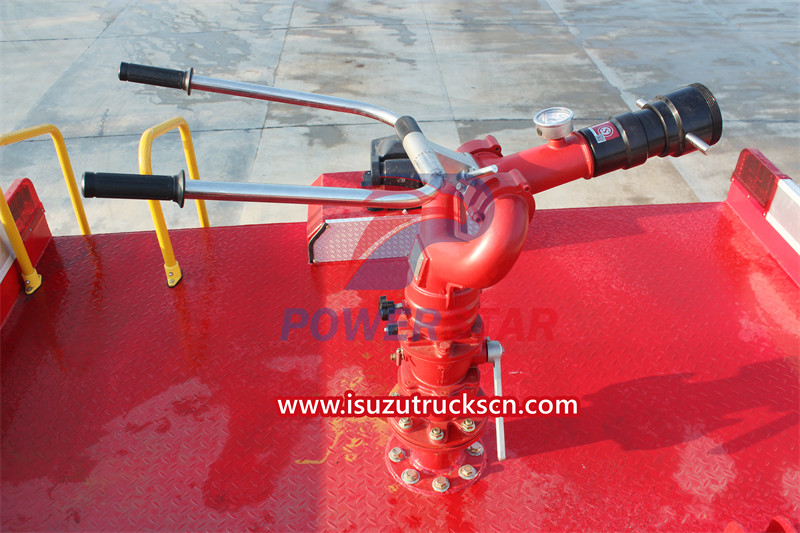

Fire cannon |
|

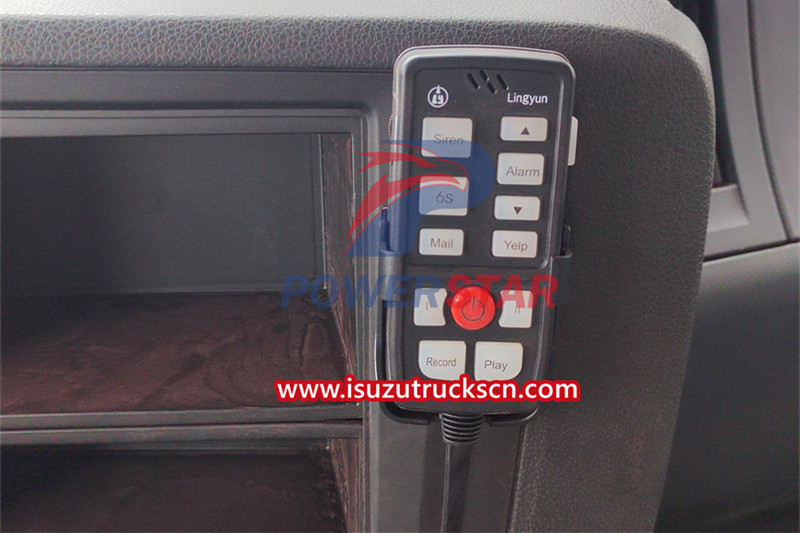

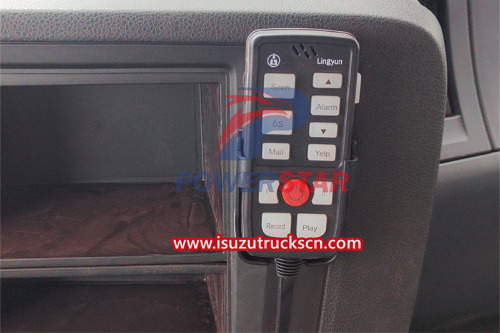

Two way radio |

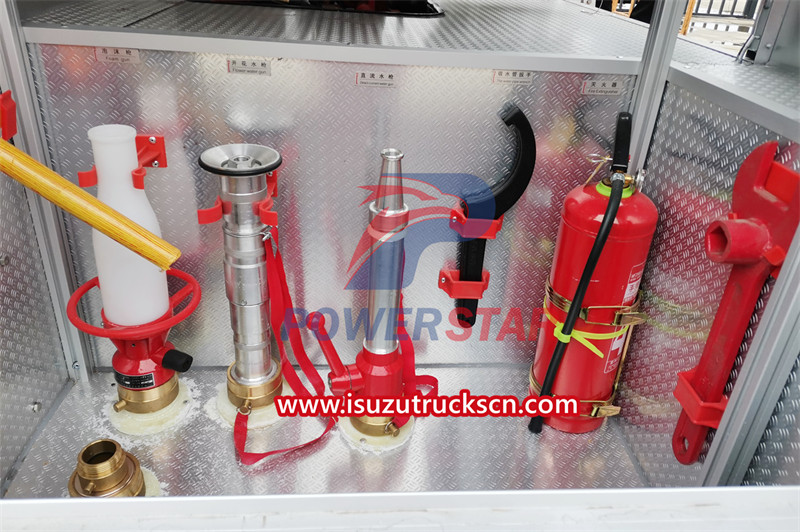

Firefighting tools |
