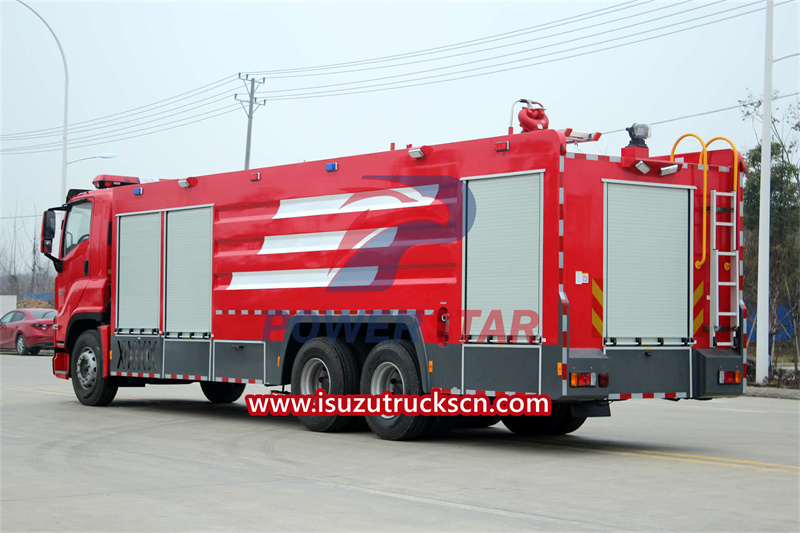

Modified to 6×4 Isuzu VC61 heavy-duty chassis. The car has an exposed fuel tank structure. The front part of the fuselage is the equipment box, the middle part is the water tank, and the rear part is the pump room.
The liquid carrier tank is made of high-quality carbon steel, and the interior is sprayed with epoxy primer and epoxy asphalt paint. It is elastically connected to the chassis. It contains 10,000 kg of water (SG80). Foam tank volume: 2m3. Equipped with CB10/60 low-pressure fire pump, rated flow rate 60L/S, top-mounted PS60W vehicle-mounted fire gun.
Work capacity:
3000 gallonTruck model:
PT5220GXFPM52Engine power:
380HPEngine type:
6UZ1-TCG50Axle drive:
6x4Gear box:
FAST 12-speedRemarks:

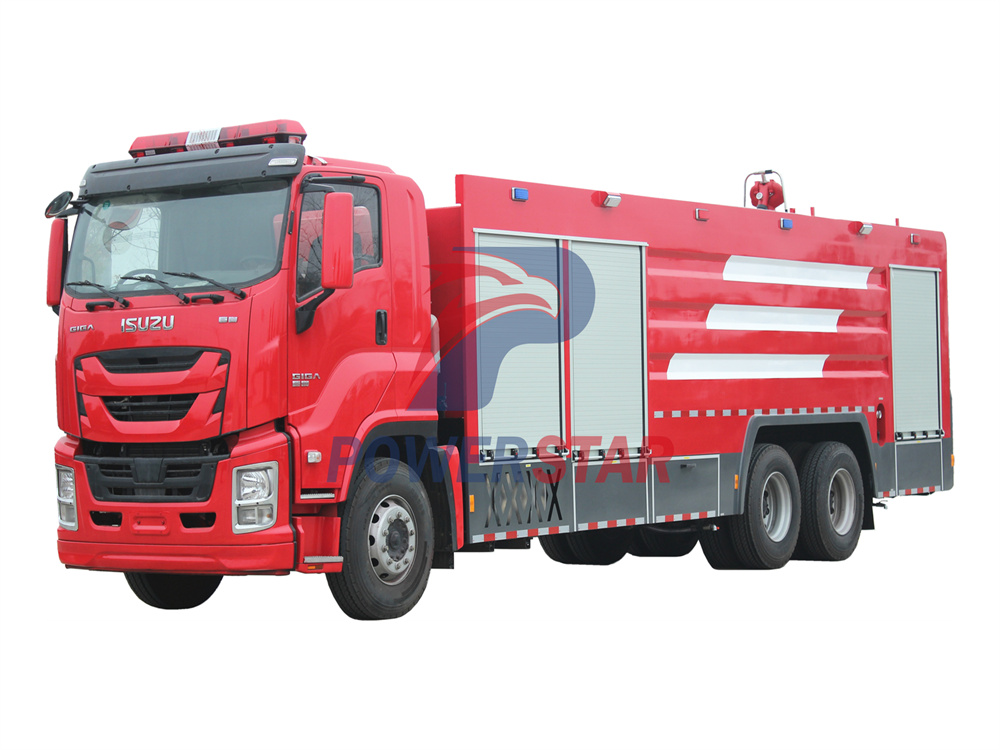

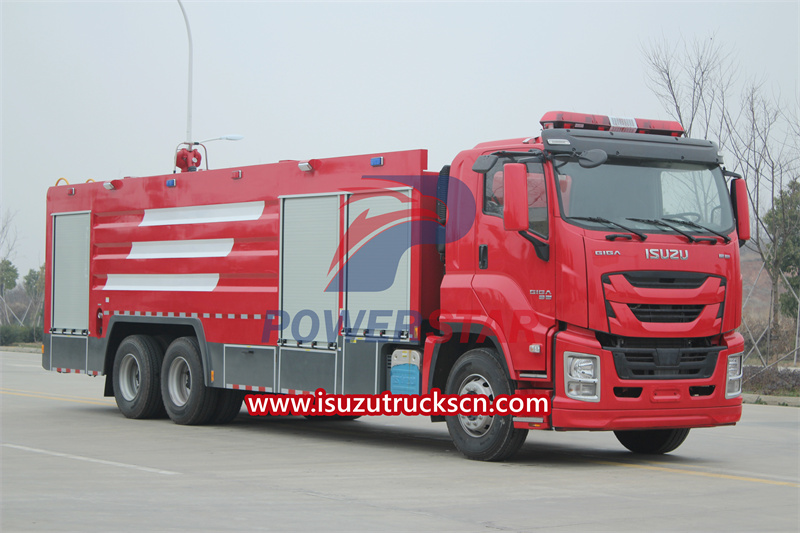

CB10/60 fire pump，PL48 fire monitor,10000L SS304 water tanker and 2000L PP foam tankerThe 3000 gallon Isuzu Giga fire truck is composed of an Isuzu chassis, cabin, power transmission system, water/foam system, intelligent control system, electrical system, auxiliary lighting device, etc. The fuel tank and subframe adopt advanced technologies such as elastic and torque-free connection. , aluminum alloy welded carriages, polymer composite tanks, and centralized intelligent control of major equipment. The 3000 gallon Isuzu fire tanker has all-round capabilities such as rescue, lighting, and fire-fighting, and is the main vehicle for urban fire rescue. It is a high-performance, multi-functional firefighting vehicle specially designed for the firefighting field. Combining advanced A1 technology and actual firefighting needs, the special functions of Isuzu Juka fire trucks are designed to improve firefighting and rescue efficiency, ensure personnel safety, and optimize overall combat capabilities.
The Isuzu Giga fire truck is a water-foam fire truck that adopts Isuzu Category II special chassis for secondary processing. This chassis design makes it have the advantages of stable performance, fuel saving, precise control, and comfortable driving. The car is equipped with electrical appliances integrated on the work platform, and button operation makes operation easier. At the same time, it has complete expansion functions and can be flexibly configured according to different fire extinguishing needs. The vehicle is also equipped with a high-pressure water pump and foam generation system, which can quickly produce a large amount of fire-extinguishing water or foam in a short period of time. These fire extinguishing media can effectively extinguish various types of fires such as solid material fires, liquid fires and gas fires. This vehicle can not only be used to fight large oil fires, but also is suitable for general material fires. Whether on complex city streets or rugged terrain, this car provides stable handling performance. Its versatility allows it to be widely used in public security fire brigades, factories and mines, communities, docks and other places.
specification：
|
Manufacturer |
POWERSTAR TRUCKS INDUSTRY CO.,LIMITED |
||
|
Product Name |
ISUZU GIGA 3000 GALLON FIRE TRUCK（10000Lwater+2000LFoam） |
||
|
Vehile Brand Series |
ISUZU |
||
|
Vehicle Model |
PT5220GXFPM52 |
||
|
Classis parameters |
Overall Dimension |
mm |
11300*2500*3300 |
|
Gross weight |
kg |
31000 |
|
|
Curb weight |
12630 |
||
|
Wheel base |
mm |
4565+1370 |
|
|
Drive Type |
6 x 4 |
||
|
Number of axles |
3 |
||
|
Tire specification |
12.00-20 |
||
|
Number of tires |
10+1 |
||
|
Passengers in cab |
2 |
||
|
Engine |
Engine model |
6UZ1-TCG50 |
|
|
Type of fuel |
Diesel |
||
|
Power/Displacement |
ml |
380HP/9839 |
|
|
Max speed |
Km/h |
110 |
|
|
Emisssion standard（TAS） |
EURO5/ |
||
|
Fire performance |
Tank capacity |
Water tank capacity：10000L |
|
|
Foam tank capacity：2000L |
|||
|
Fire pump |
Model: CB10/60 |
||
|
Pressure(Mpa):1.0 |
|||
|
Rate(L/S): 60 |
|||
|
Fire monitor |
Model: Ps60 |
||
|
Flow: 60L/S |
|||
|
Water jet distance :≥65m |
|||
|
Foam jet distance :≥60m |
|||
|
Electronic alam |
LY CJB-100-C24 |
||
|
Alam lamp |
LY TBD-XF-168LED |
||

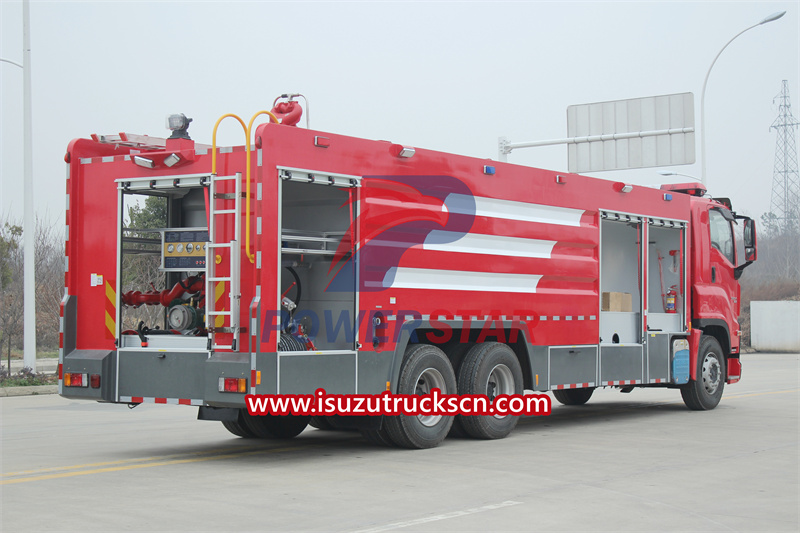

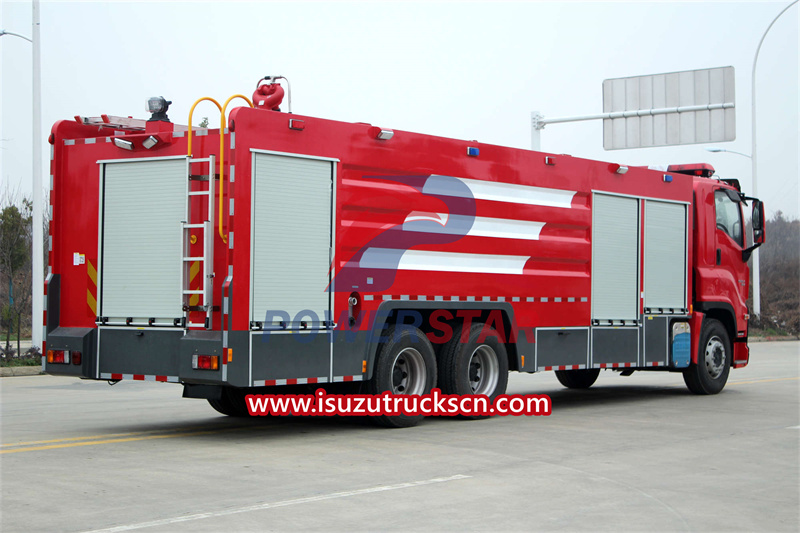

The 3,000-gallon Isuzu Giga fire truck has a single-row cab and is equipped with four sets of air breathing apparatus brackets in the back. According to the structural design of "cab-equipment room-fuel tank-pump room", it is also equipped with the following high-quality configurations:
10000L water tank
2000L foam tank
60L/s flow fire pump
Fire range with a range of 65 meters

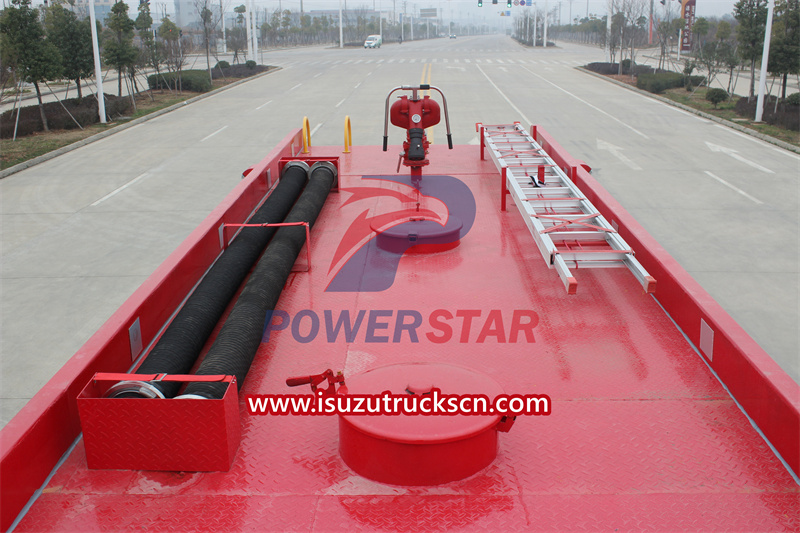

fire monitor
Fire monitors are an important part of the fire protection system and have a rated flow rate of at least 48 liters per second. It is capable of sending water or foam up to a distance of 65 meters or 60 meters respectively. In terms of positioning and control, the monitor can be installed on the top of the carriage and can be manually controlled for 360-degree horizontal rotation, while it can perform 15 to 60 degrees of pitch and rotation.

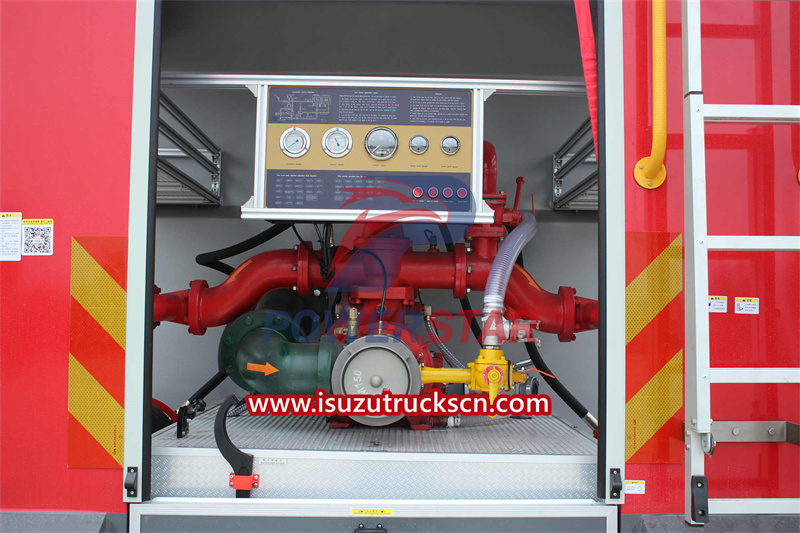

Fire Pump

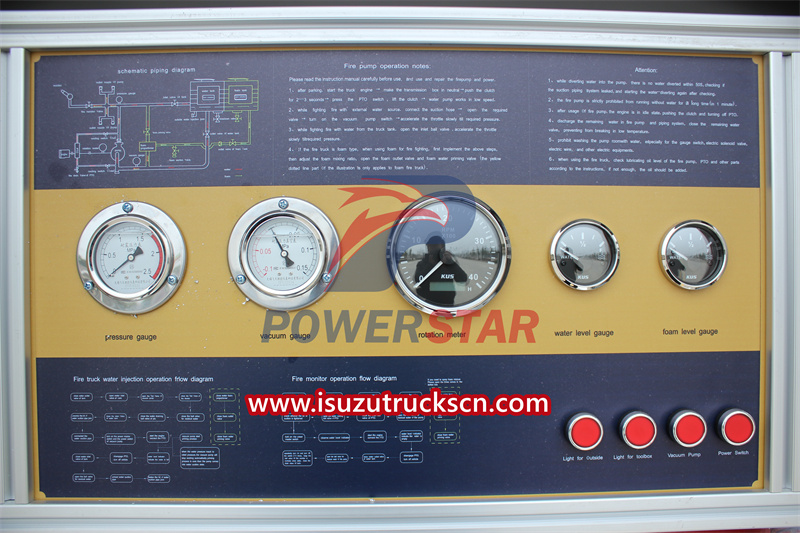

The fire pump is another critical element in the fire protection system. The rated pressure is 10bar, the rated flow is 60 liters per second, and it is also equipped with an electric vacuum pump and wiper diverter. The fire pump can draw water from a depth of 7 meters for up to 50 seconds. To ensure excellent performance, fire pumps are usually installed in the rear pump room.
Foam fire extinguishing mechanism
The foam water tank is the main container for carrying fire extinguishing agent in the foam fire truck. The vehicle is made of stainless steel. The foam in the foam water tank has a relatively low density, good fluidity, strong durability and flame resistance, low thermal conductivity, and high adhesion. These physical properties enable it to quickly cover the surface of the patrol wave body and isolate flammable steam, air and heat. It has a cooling effect and plays a role in extinguishing fire.
