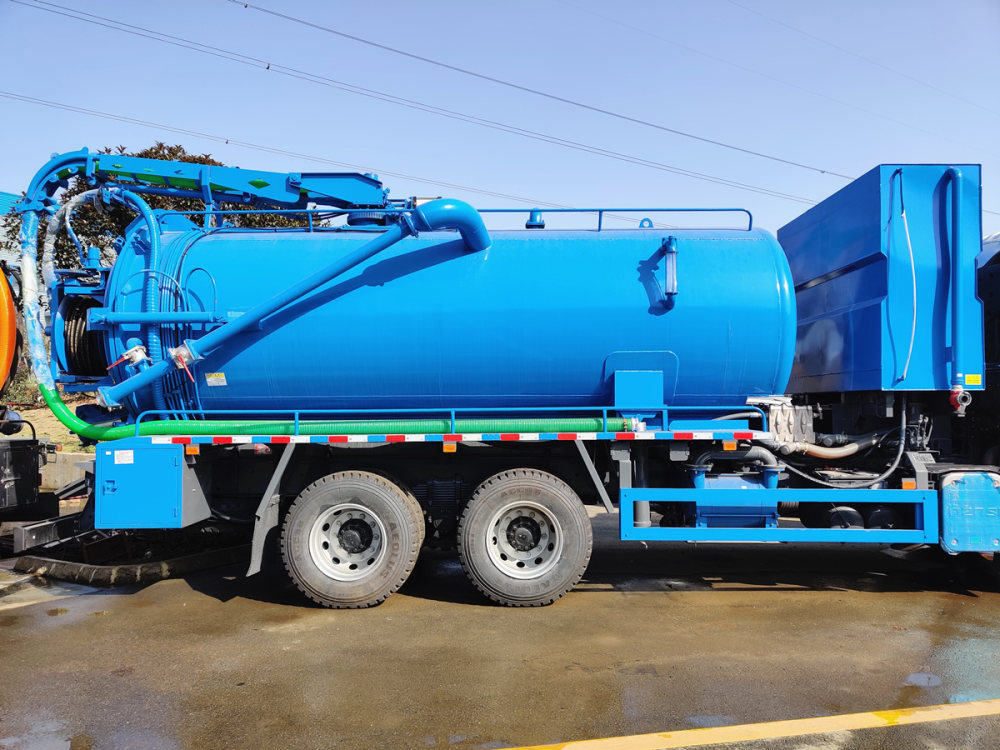

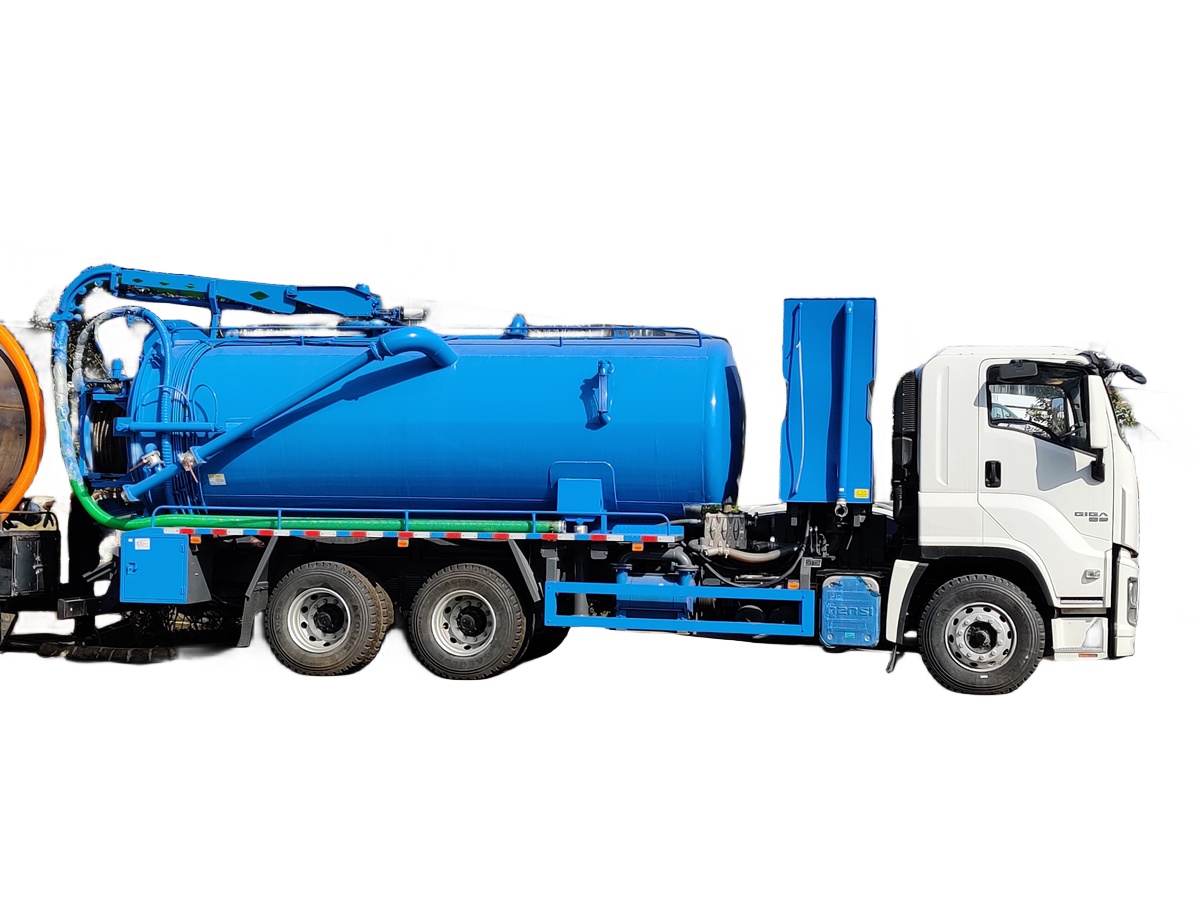

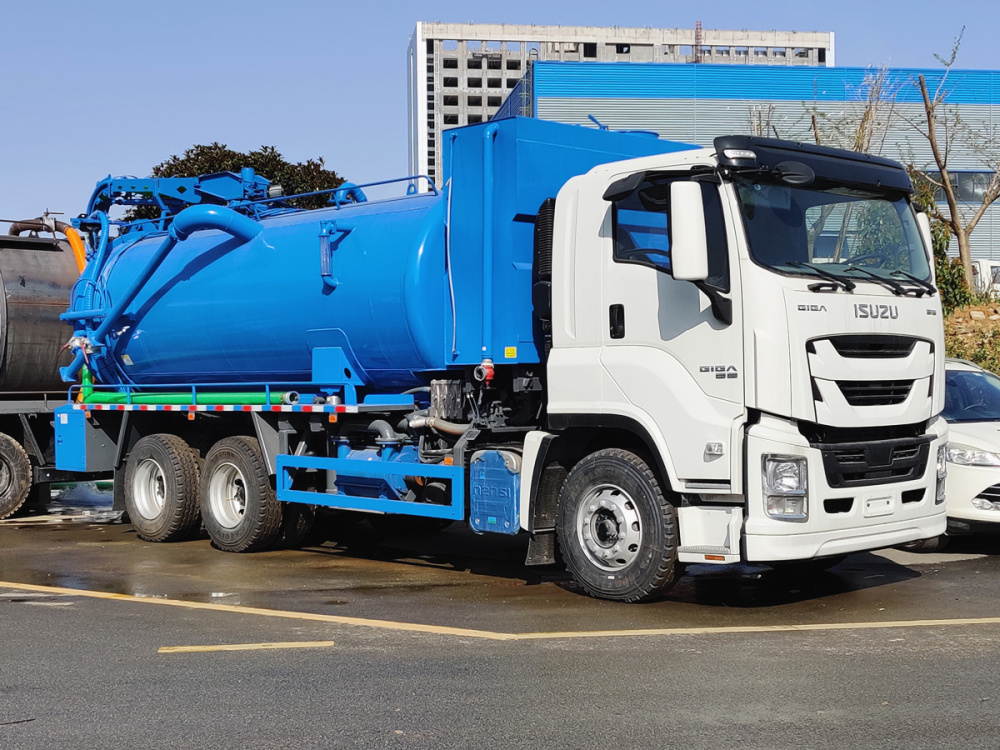

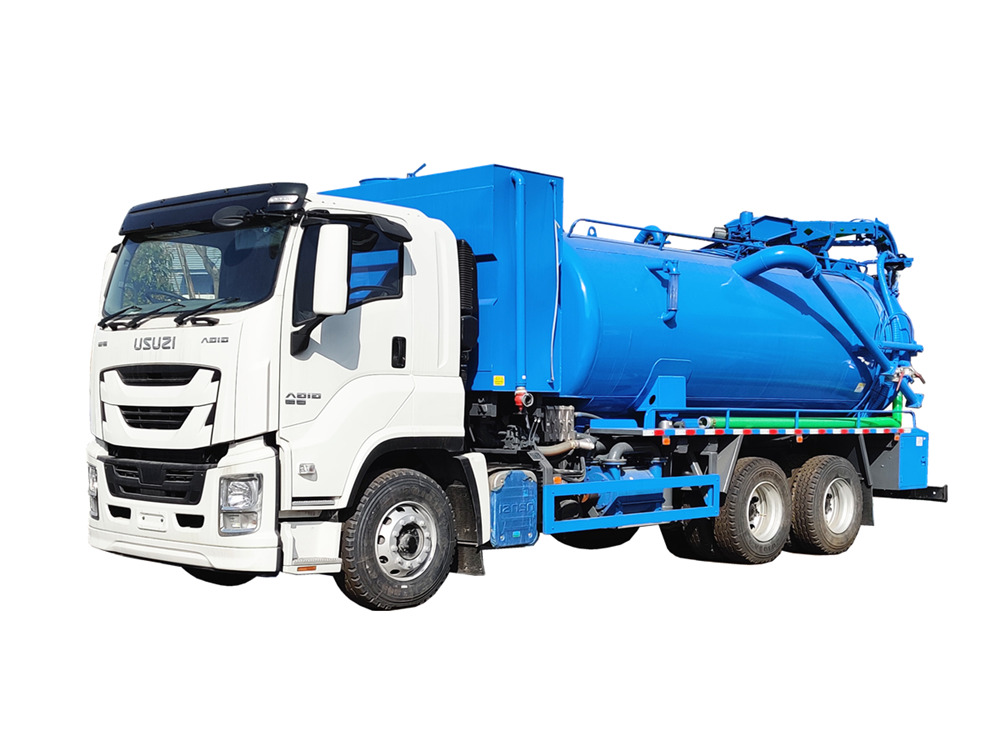

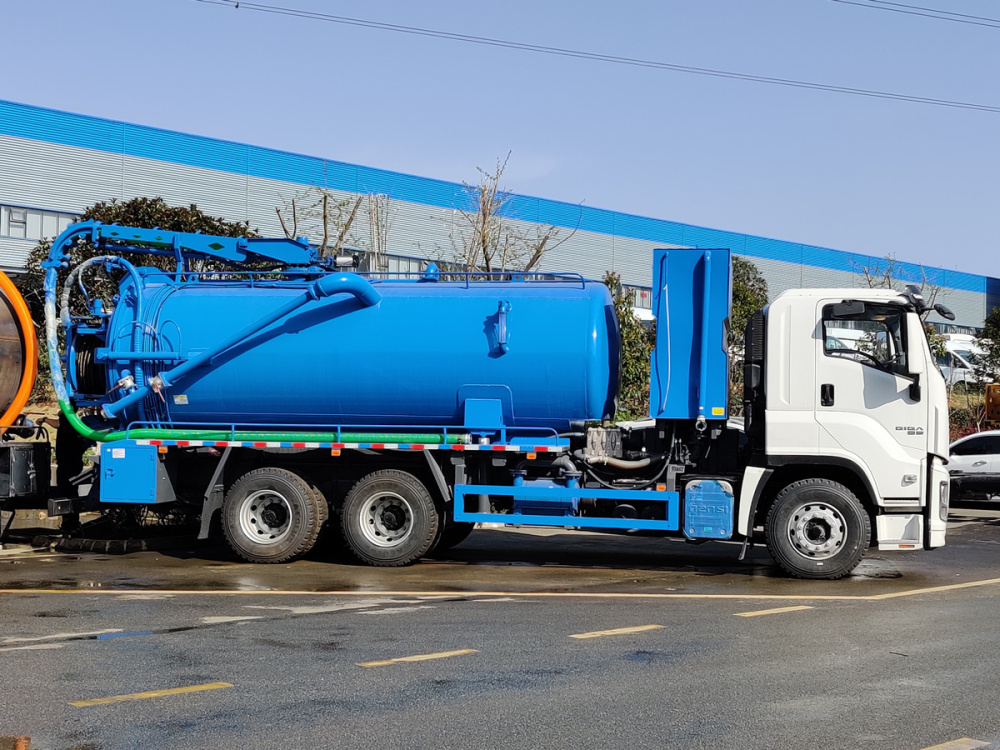

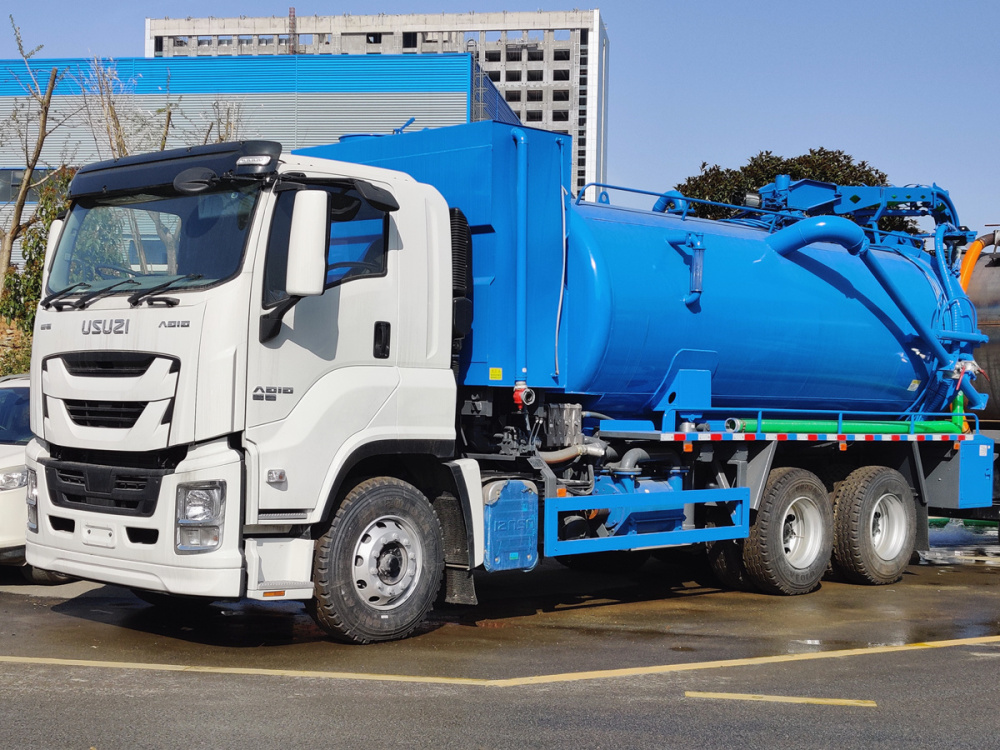

Japan ISUZU GIGA COMBINED VACUUM TRUCK Suitable for suction,transportation and dumping soil and mud from various sewer man-hole,water wells and sediment.It is necessary tool for city sanitation department,waste processing company,big factory......,it can help to clean the sewer pipe undergroud,clean the sludge in the river around city, it also can help big factory to clean the greasy dirt and waste water.More specification about the vacuum tank please kindly refer to following information .
Isuzu Cesspit Emptier with Jet Cleaner, also called as Isuzu GIGA combination jetting truck or can be used for removing and transporting sand, stones, grease, sludge and other debris from sewage pipelines and/or sanitary sewer by the flushing action of single –plunger high pressure water. The highlight of this vehicle is its fully automatic water recycling system, which greatly improves working efficiency.
This Isuzu Combined vacuum Jetting Vehicle can remarkably fulfill jobs in city’s various working conditions due to its exquisite design. In western countries, it also widely used in the suction, loading and transporting of industrial dust, waste liquid and toxic substances etc.
Areas of Application and Use
Hydrodynamic sewer and pipeline dredging and cleaning.
Hydrodynamic drain line dredging and cleaning.
High pressure surface cleaning.
High pressure industrial cleaning.
Model
Manufacturer
PT5250LST
POWRESTAR TRUCKS
Water tank
Material
SS304 steel
Capacity (CBM)
3
Thickness (mm)
4
Protection
1)Overflow、2)Too low level、3)No water
Sewage tank
Material
Q345 steel
Volume ( CBM )
12
Thickness
6
Design pressure
100% vacuum
Working pressure
-0.92
Drain valve
4 inch
Safety
Anti overflow system
Lifting cylinder
Front lifting system ,50 degree working angle
Lock
Hydraulic
Sealing
Robber
Single plunger pressure pump
Type
three-throw ram pump
Manufacturer
Pratissoli Italy
Model
MW40
Flow capacity (L/MIN)
212
Pressure(bar)
190 (adjustable )
Power
85 KW
Stroke
18 tims/min
Driven device
Mesh and separate by main control panel
Tank body protection
1)too low ater;2)water density protection;3)anti frozen protection
Pressure control
0-190
Meshing control
Pneumatic control

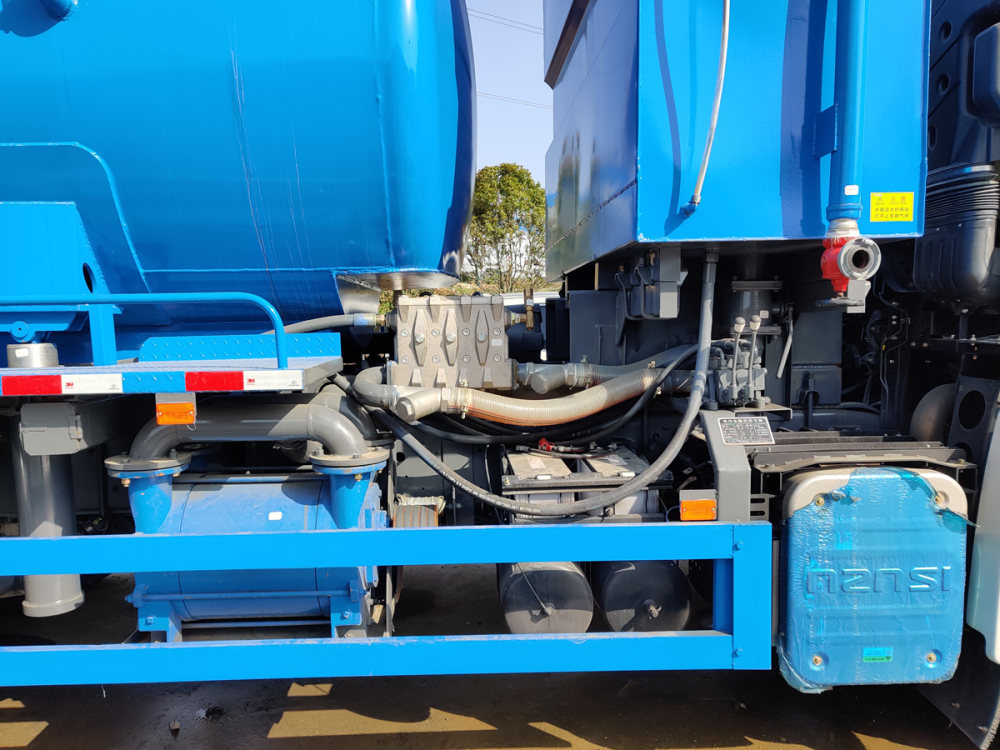

Vacuum pump
Manufacturer
JUROP
Model
PN106D
Air flowCBM/H
910
Vacuum
-0.92
Max rotation speed RPM
1200
Driven device
Mesh and separate by main control panel
Pump protection
1)Vacuum protection;2)air filtration protection
Sewage suction cooling
2”cooling pipe,level controlled by 2”valve

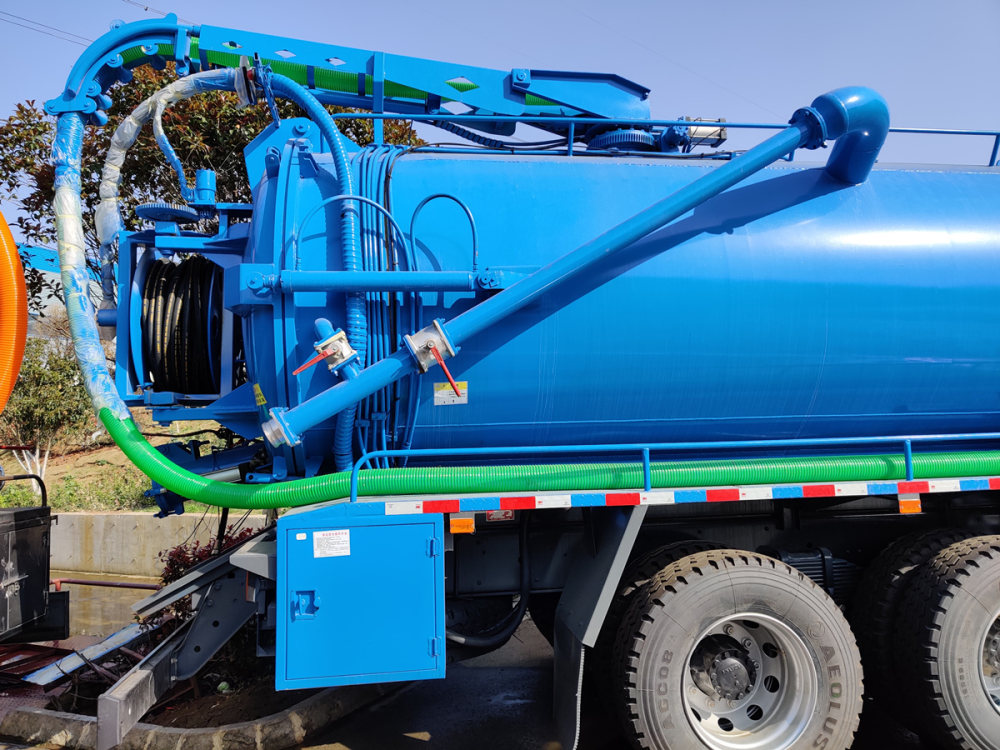

Boom
Function
front back、up down、left right rotating
Stretch length/mm
1350
Horizontal rotating angle
270 degree
Materia
Stainless steel , rubber
Suction pipe diameter
Suction head
Cleaning Wheel
4 inch

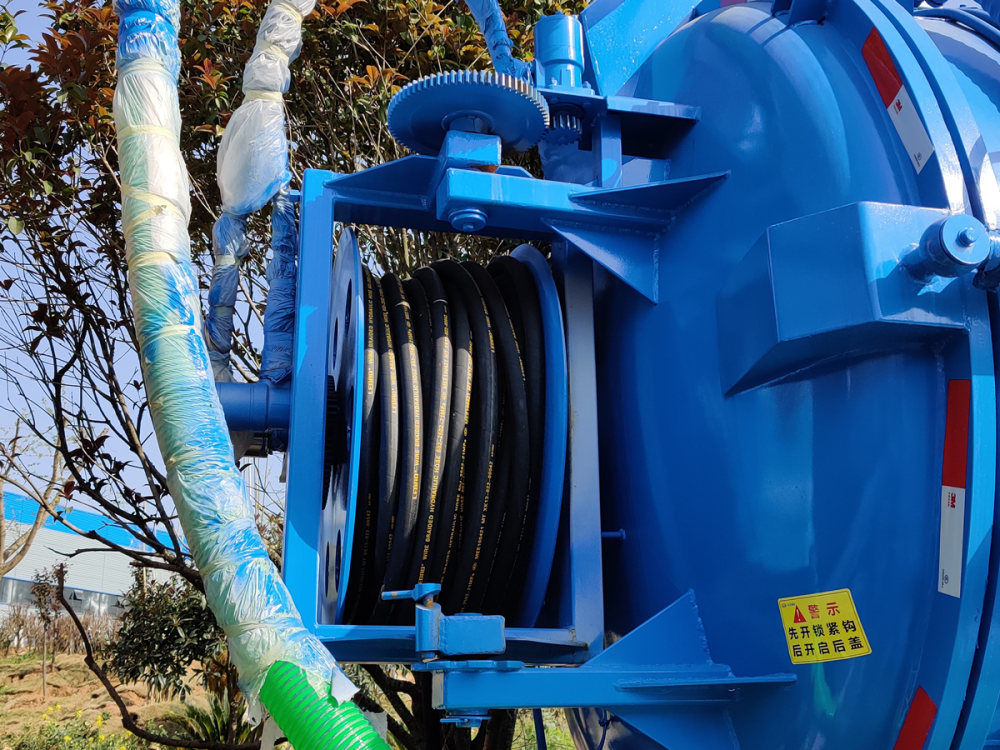

High pressure pipe/m
60 M ( Italy )
Diameter
19MM
control
hydraulic
Horizontal rotating angle
90 degree

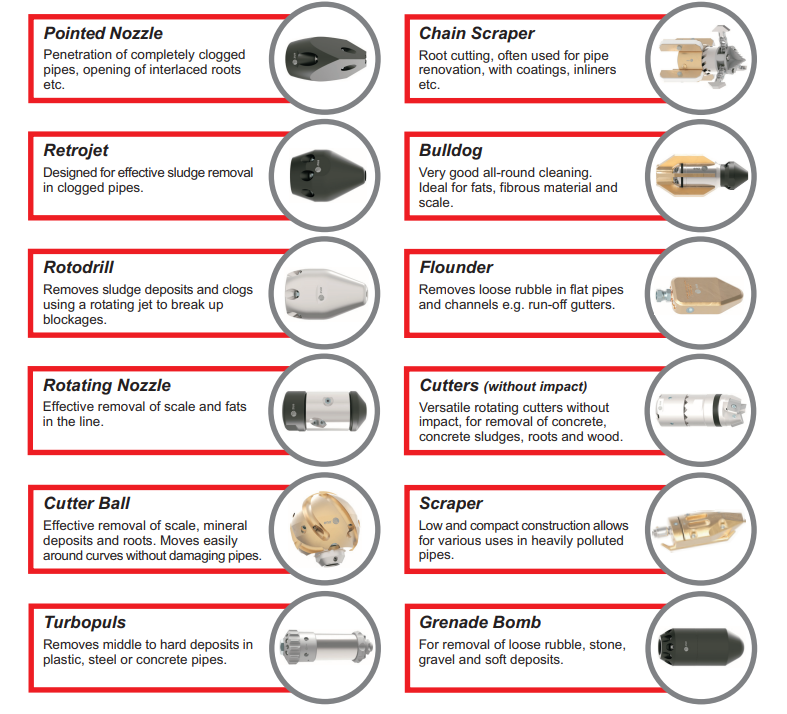

High pressure nozzle
Mushroom type10 series
Light
Head rotating light
Truck rear part light
Emergency protection
Emergency protection on the truck cabin channel
Chassis
Truck model
ISUZU GIGA cabin chassis
Engine
Model
ISUZU Engine
Type
Diesel ,6-cycle, 6 cylinder in line,Water cooled
Max output power
308/1600
Maxtorque(N.m/rpm)
1200
Displacement(ml)
16
Emission standard
Euro 5
Transmission& Clutch
Model
FAST 12-shift
Type
12 Forward and 2 Reverse Speed
Gearshift
Manual (Mechanical)
Clutch
430mm Dry and Double Plate Clutch
Front Axle
Type
GIGA famous diecasting I-beam
Suspension type
Multiple leaf main springs
Capacity
7000 kgs
Rear Axle
Type
Casting iron,Axles
Suspension type
Multi leaf spring,
Capacity(kg)
13000x2
Rear axle ratio
3.93
Type
Forward control, all steel welded construction, cabin Painting. Radio
Seat
3 seats
Air conditioner system
Manual control
Tire size
12.00-20-18PR
No. of Tire
10 + 1
Electric System
System voltage
24V, Negative earth
Batteries(V/Ah)
24/200
Steering system
Type of steering gear
Recirculating ball and screw type
Adjustment of wheel
Tilt and telescopic
Steering wheel position
Left hand drive
Fuel capacity
Tank capacity (L)
380
This Japan ISUZU GIGA COMBINED VACUUM TRUCK Suitable for suction,transportation and dumping soil and mud from various sewer man-hole,water wells and sediment.It is necessary tool for city sanitation department,waste processing company,big factory......,it can help to clean the sewer pipe undergroud,clean the sludge in the river around city, it also can help big factory to clean the greasy dirt and waste water.More specification about the vacuum tank please kindly refer to following information .
No.
Main components
Detail Description
1
Chassis
ISUZU GIGA brand 6x4,Engine is Euro 5 emission standard, There four pcs PTO to drive vacuum pump,high pressure pump and all kinds of hydraulic equipment. Chassis Model will as per cusotmer's final confirm.
2
Vacuum tank
Tank Shape:Cylinder type ,Vacuum tank volume is 8000 liters,made by SS304L,6mm thickness shell. Design Pressure:-0.9 Bar.There some U shape strengthen rims outside the sludge tank body to offer stonger support to the tanker body. Hydraulic lift sylinder to lift up the tank body to outlet the sludge in 45 degree with safety support. Water level instrument locate in the rear of the tanker body.6 or 4 outlet valve in the rear to release the sludge.
3
Clean Water tank
Tank volume 15CBM,made by SS304 steel,4mm thick,located on both side of the vacuum tank,with lower lever alarm.
4
Rear Door
Controlled by Hydraulic,2 cylinders open the door,and 4 cylinders closed the door,6 suction pipe and 6 discharge valves.
5

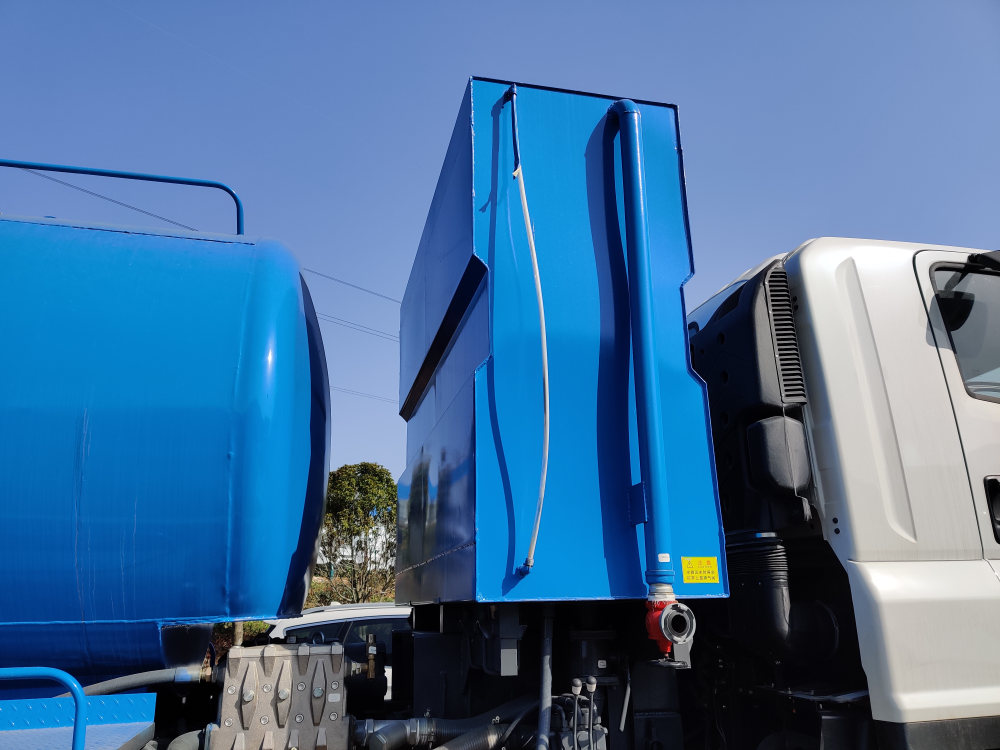

Cooling water tank
4000L,located behind the Cab of the truck,use for cooling the vacuum pump.
6
Vacuum pump
Liquid ring Chinese Kenflo brand,3000H/M air flow rate,vacuum rate 90%,vacuum pump can be choose according to customer's requirement.
7
High Pressure pump
Piston pump imported from Germany,Water flow 212L/m at 200 bar,Brand can be specify by customer.
8
Others
Telescopic suction boom: Swivel in both the vertical and horizontal plane.300°horizontal rotation, 6m working radius and vertical lift up to 3m above ground.Dia 6 stailess and rubber suction hose. High press hose reel 1.120 M HP hose ID25MM,Control by hydralic 100°horizontal rotation. Painting All stainless steel parts will painted by primer and finish paint,sand blasting before painting,coloer as per customer's choose. Operation instructions This instruction will guide customer how to operation this truck. Training Before delivery:we can offer one or two days operation of the truck training in our factory.
9
Remarks
Above information just for reference,we can adjust the specification according to customer's requirement,for further information,please feel free to contact Iris huang.
