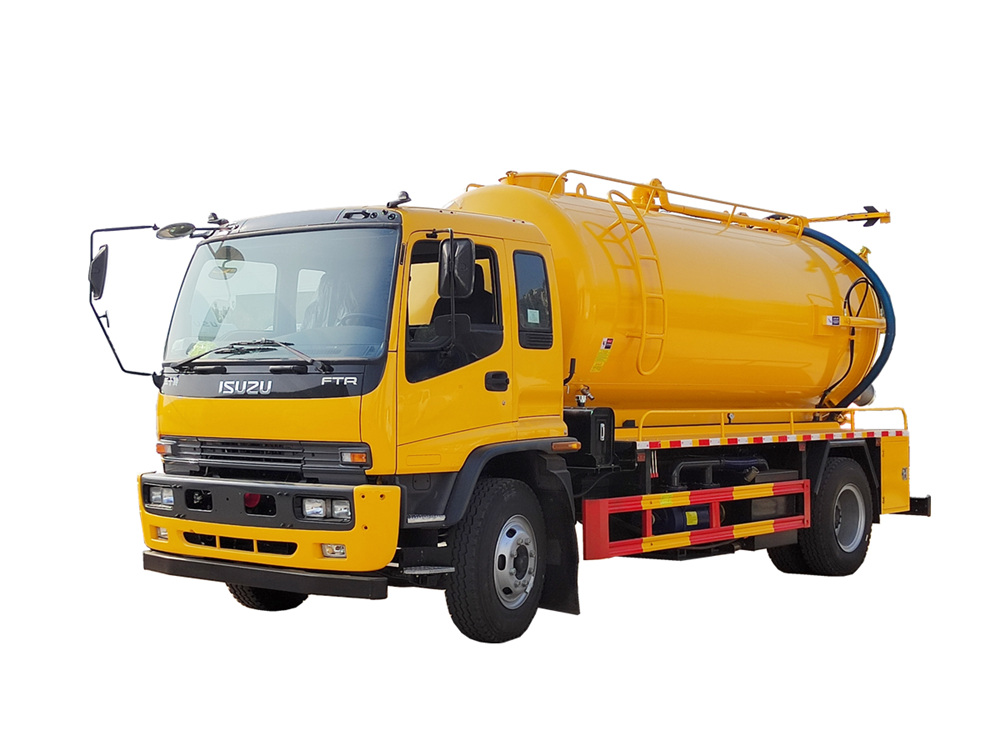

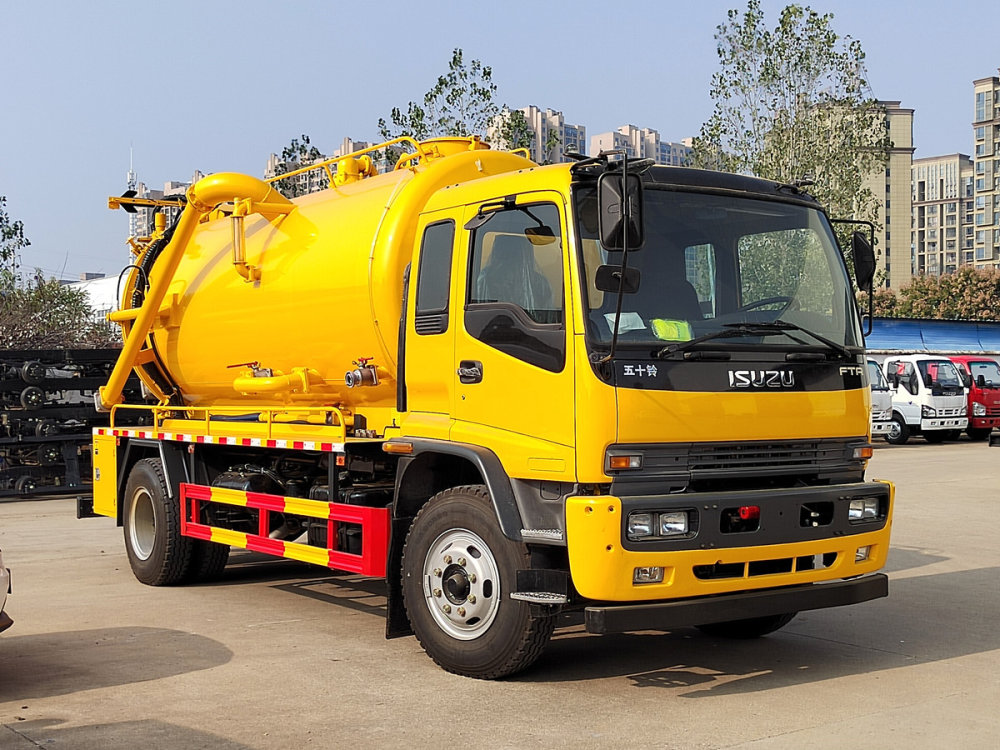

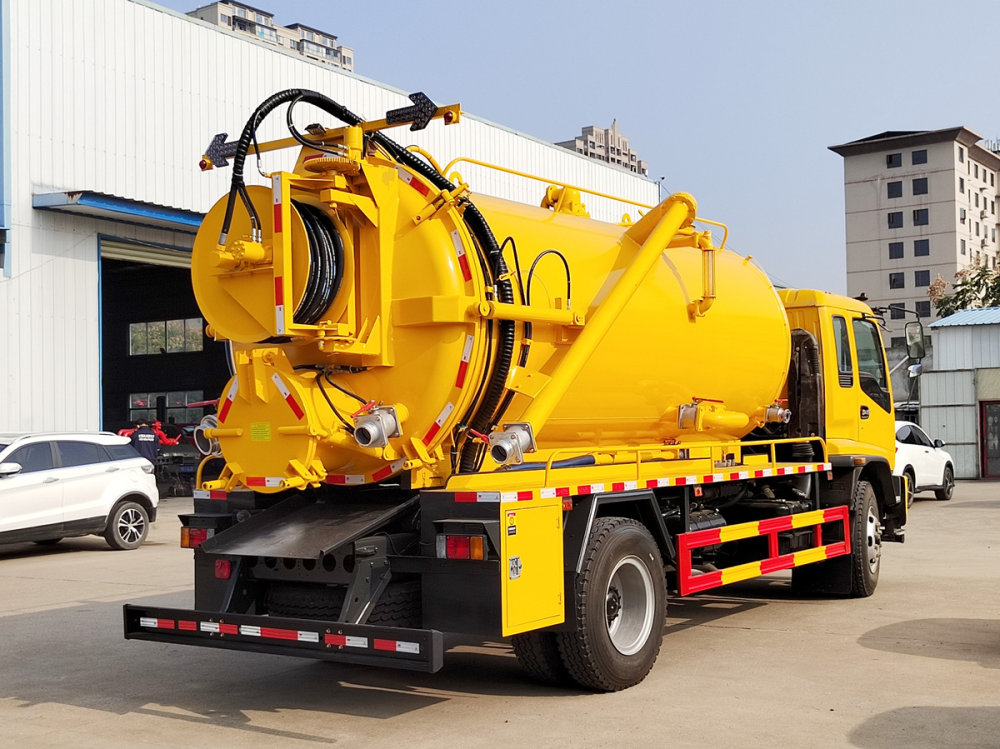

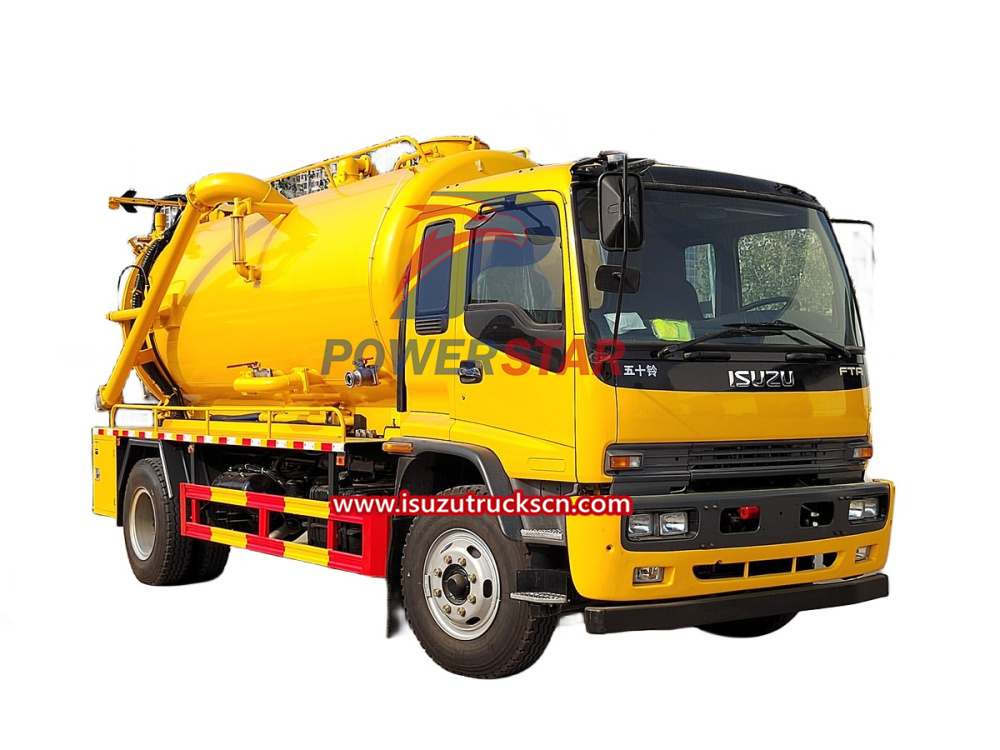

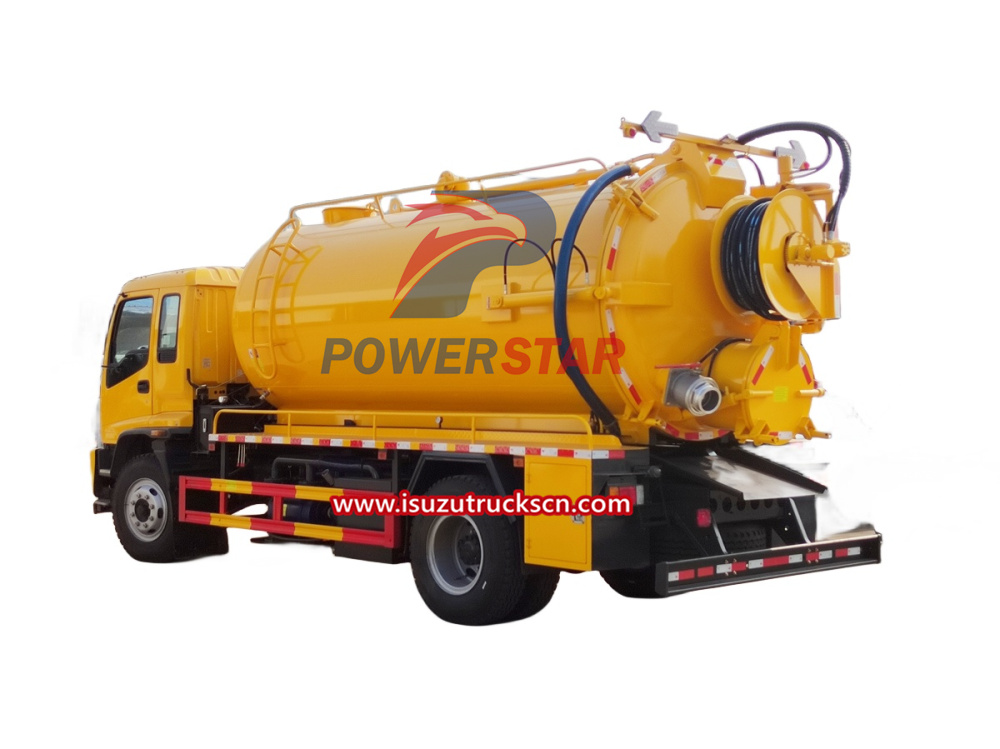

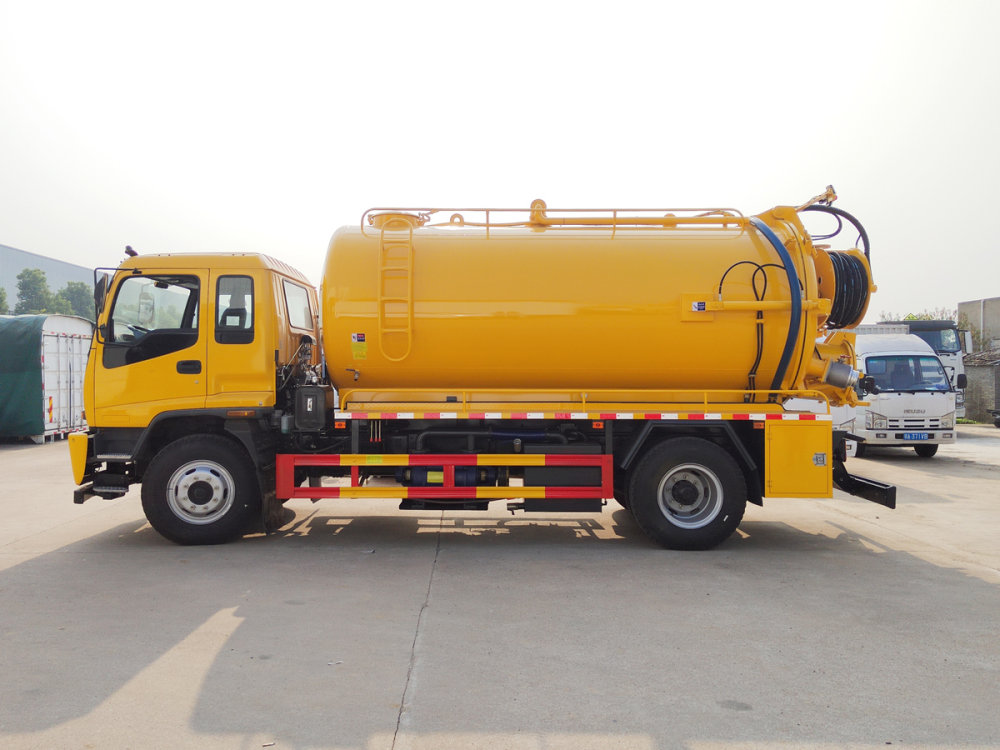

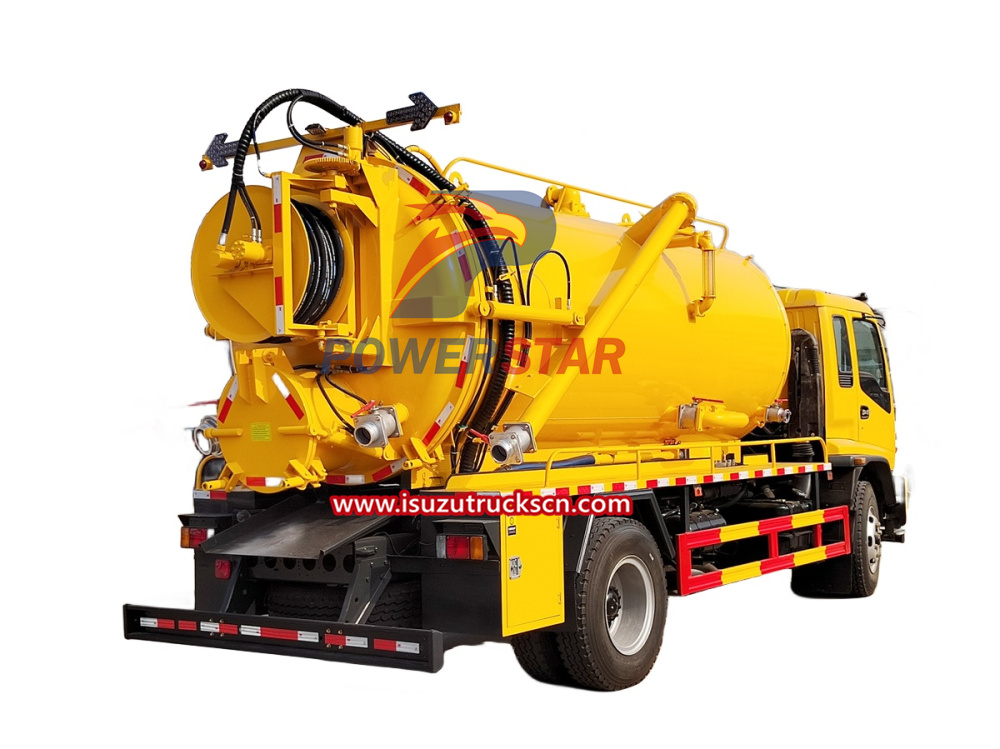

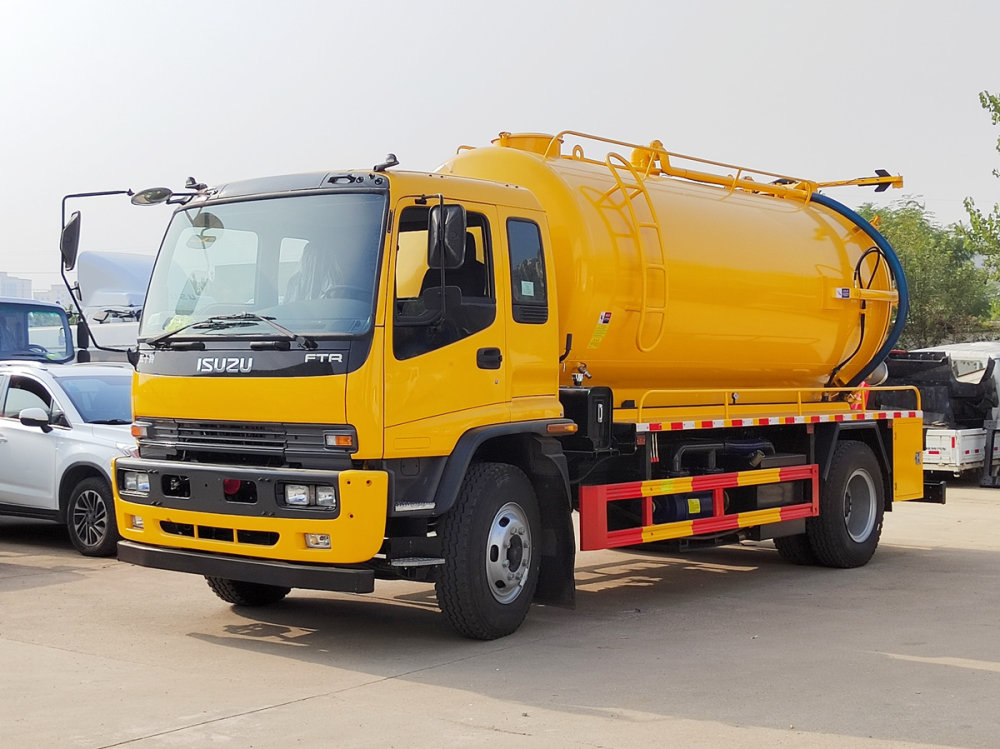

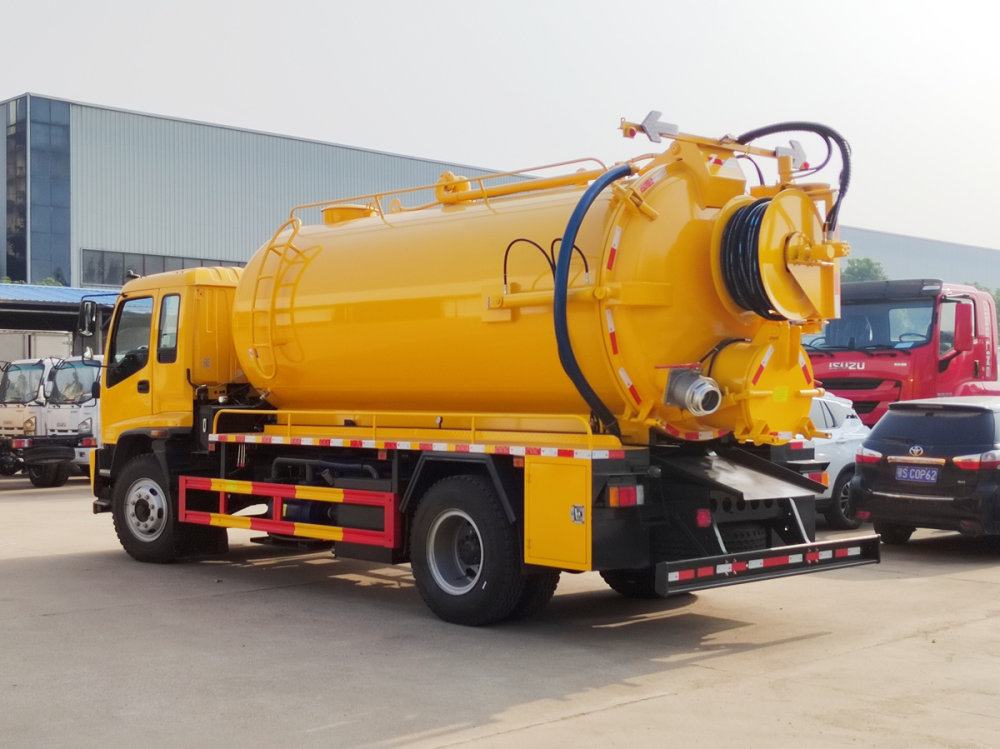

This combination vacuum jetter truck FTR Isuzu, also known as combination vacuum jetting truck or sewer vacuum truck, is a kind of vehicle specially used to suck, transport, and transfer sludge and sewage in sewer lines, rainwater wells, and sedimentary wells. It can help to reduce the labor intensity of work in sewer as well as to keep poisonous gases away from workers.
Work capacity:
15000LTruck model:
PT5180GLHEngine power:
240HPEngine type:
Isuzu 6HK1Axle drive:
4x2Gear box:
Isuzu MLD6SRemarks:

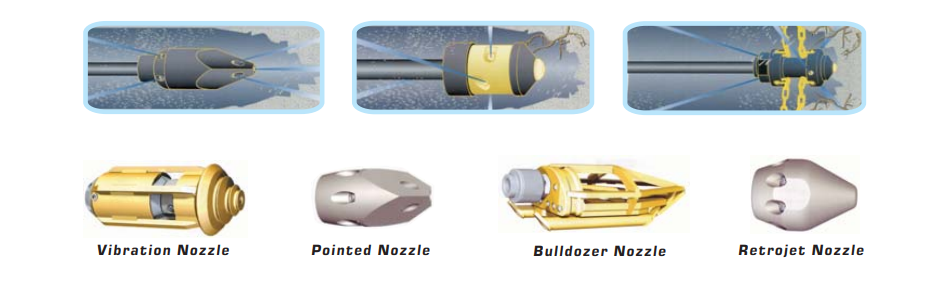

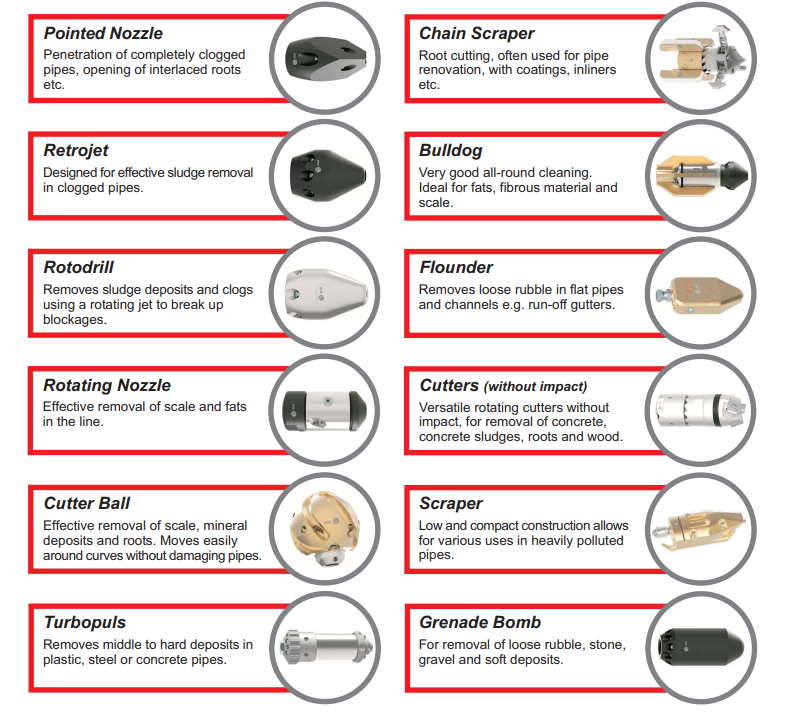

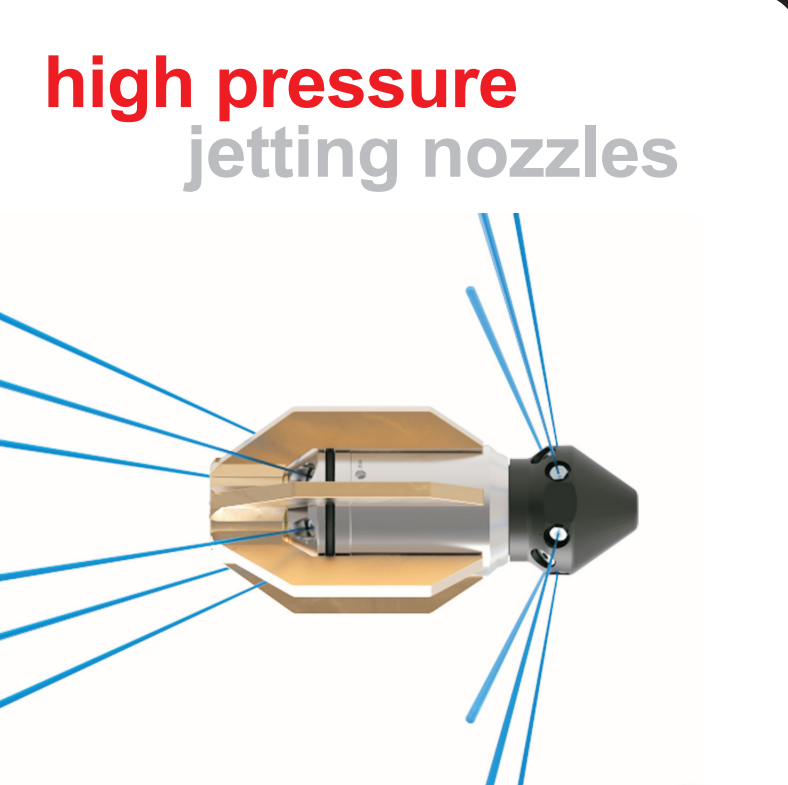

Huge nozzle for optional
|
Overall
Specification
|
Dimension (L/W/H) | mm | 7980 ×2160×2550 | ||
| Wheel Base | mm | 5000 | |||
| Tread (Front) | mm | 1665 | |||
| Tread (Back) | mm | 1860 | |||
| Front Overhang | mm | 1085 | |||
| Back Overhang | mm | 1840 | |||
| Minimum Ground Clearance | mm | ≥230 | |||
| Weight | Curb Weight | Kg | 5450 | ||
| Maximum Total Mass | Kg | 8280 | |||
| Chassis | Engine | Model | ISUZU 6HK | ||
| Type | 6 Stroke | ||||
| Emission Standard | CN-IV / Euro 4 | ||||
| Rated Power | KW/r/min | 177/2800 | |||
| Fuel | Diesel | ||||
| Maximum Speed | Km/h | 95 | |||
| Minimum Turning Radius | m | 8 | |||
| Maximum Gradeability | % | ≥30 | |||
| Fuel Consumption | L /Km | ≤25/100 | |||
| Fuel Tank Capacity | L | 200 | |||
|
Hydraulic
System
|
Hydraulic Oil | L-HM-46 | |||
| Operating Temperature | ºC | ≤60 | |||
| Maximum Pressure of Hydraulic System | MPa | 16 | |||
|
Sewage Suction
System
|
Vacuum Pump Model | Jurop PN106D | |||
| Roted Speed | r/min | 500 | |||
| Maximum Vacuum | MPa | -0.095 | |||
| Maximum Vacuum Time | s | ≤210 | |||
| Fill Vacuum Tank Time | s | ≤180 | |||
| Maximum Horizontal Distance | m | 20-30 | |||
| Maximum Vertical Height | m | ≥7 | |||
| Sewage Suction Pipe Diameter | mm | DN100 | |||
|
High Pressure
Cleaning Syetem
|
Pump Model | CPQ1613 | |||
| Roted Speed | r/min | 1000 | |||
| Pressure | bar | 130 | |||
| Flux | L/min | 160 | |||
| Pipe Dimension (Diameter / Length) | mm | ?22*8000 | |||
| Pipeline Roll Speed | m/min | 0-25 | |||
| Tank | Sewage Tank Volume | m³ | 3 | ||
| Clean Water Tank Volume | m³ | 3 | |||
| Maximum Lift Angle | ° | 45 | |||
| Back Door Openning Angle | ° | 86 | |||
|
Optional
Configuration
|
Sewage Tank Float Level Alarm | JY-SS125 | |||
| Clean Water Tank Float Level Alarm | SH-PL-1 | ||||

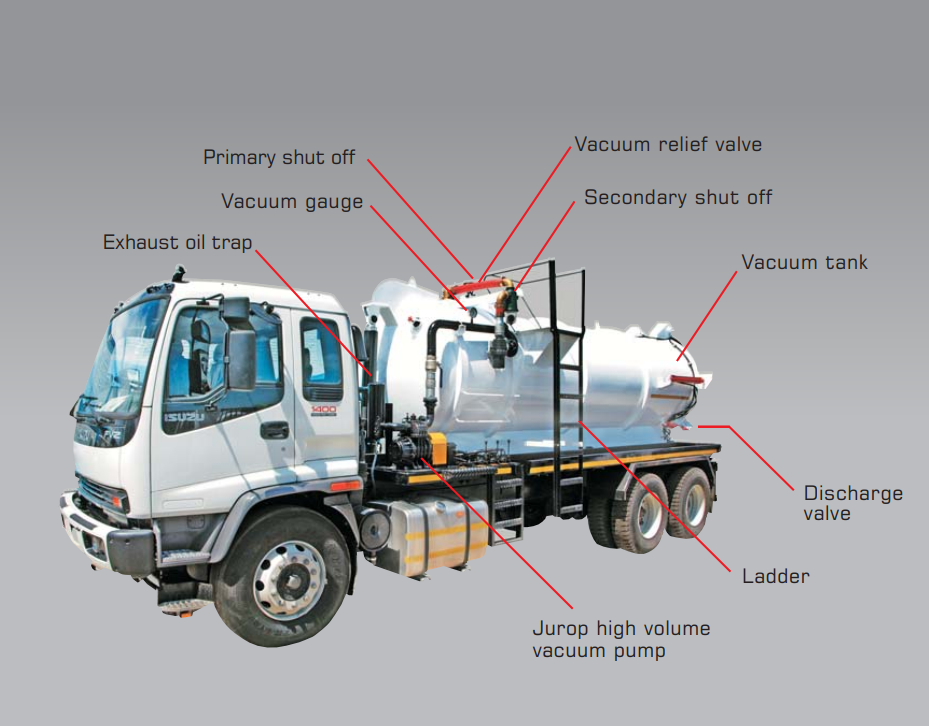

Our Isuzu Combination Jetting and Vacuum machines offer high pressure water and high volume vacuum capability, utilizing separate water and vacuum tanks which are sized to your particular requirements and mounted to the truck chassis of your choice. Isuzu powerstar trucks also build dedicated Vacuum Trucks Isuzu which are used extensively throughout Southern Africa to clear septic tanks, cesspits and portable or municipal toilets. Please download our pdf for further information

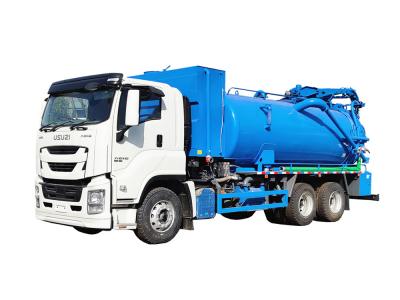

ISUZU GIGA 6×4 sewerage truck, ISUZU GIGA septic tank pumper truck ISUZU cesspool emptier, vacuum tank truck manufacturer
Learn More

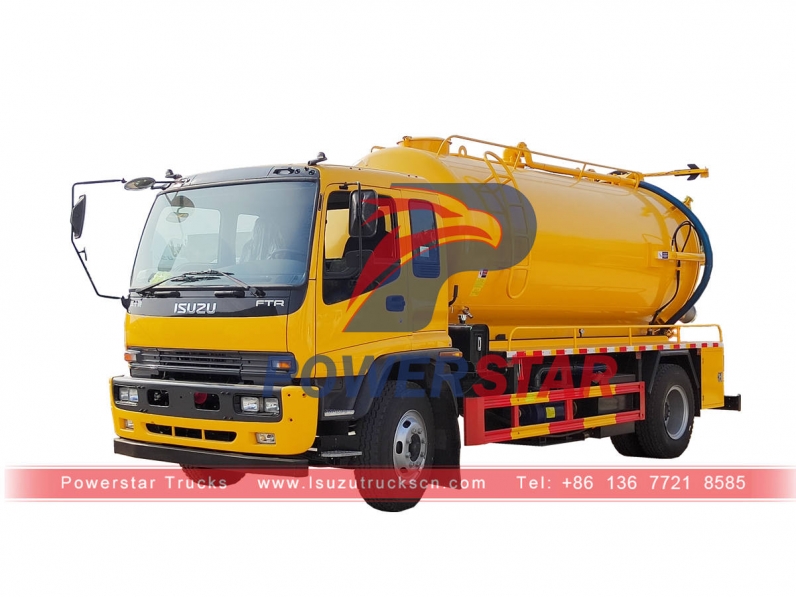

ISUZU FTR 4×2 vacuum suction truck, ISUZU FTR/FVR combined sewer jetting truck, ISUZU vacuum pump truck, combination suction/jetting tankers manufacturer
Learn More

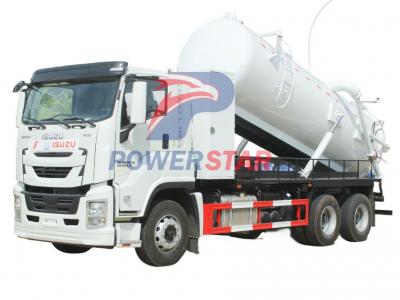

ISUZU GIGA sewage suction truck, ISUZU 6×4 wheeler 22CBM vacuum cleaner truck ISUZU fecal suction truck supplier
Learn More
Industrial Isuzu Vacuum Sewage Suction Truck MORO KAISER PM70A, adopt Isuzu NPR/700P truck chassis, 4HK1-TC engine, is used for removing and transporting sand, stones, grease, sludge and other debris from sewage pipelines and/or sanitary sewer by the flushing action of high pressure water. The unit includes a quality vacuum pump and a high pressure water pump, as a multifunctional combination unit integrating a high pressure jetting system,
Learn More
Vietnamese government's introduction of the Isuzu Joint Sewer Dredging Vehicle showcases its commitment to efficient sewer system maintenance and public health. With its advanced features, numerous advantages, and reliable after-sales service, this vehicle is set to revolutionize sewer line cleaning and contribute to a cleaner and healthier Vietnam.
Learn More
Japan ISUZU GIGA COMBINED VACUUM TRUCK Suitable for suction,transportation and dumping soil and mud from various sewer man-hole,water wells and sediment.It is necessary tool for city sanitation department,waste processing company,big factory......,it can help to clean the sewer pipe undergroud,clean the sludge in the river around city, it also can help big factory to clean the greasy dirt and waste water.More specification about the vacuum tank please kindly refer to following information .
Learn More
Isuzu Giga Oilfield vacuum trucks are designed for the rugged conditions of the oil and gas industry and can meet a wide array of industrial and commercial cleaning needs. Our vacuum tanks Giga Isuzu are designed, tested, and proven to perform in any environment, bringing you a possibility to increase your revenue, productivity, and uptime.
Learn More

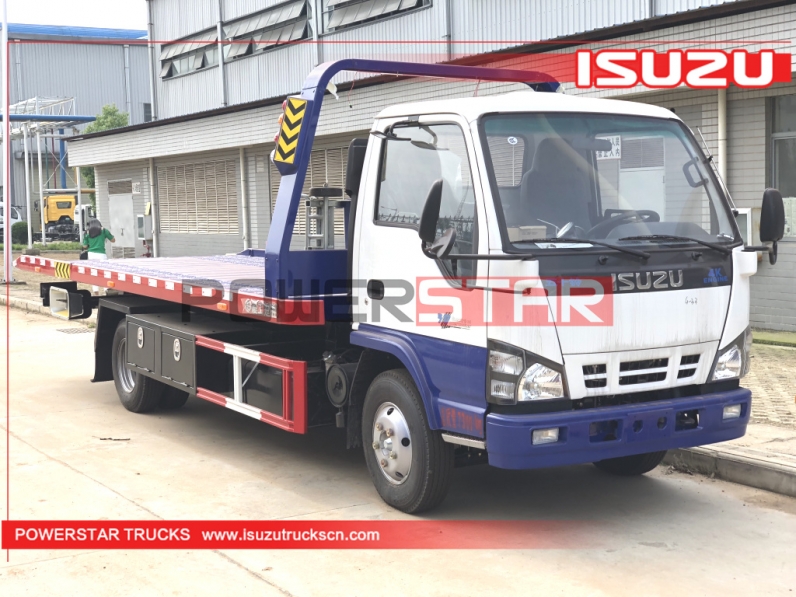

Isuzu wrecker tow truck is equipped with dragging, lifting and other devices on the basis of a special chassis to remove obstacles and transporting the vehicle.
