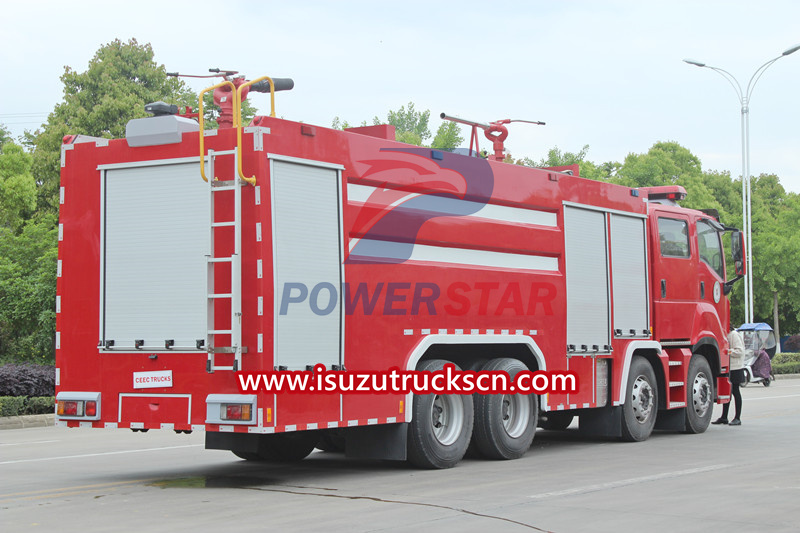

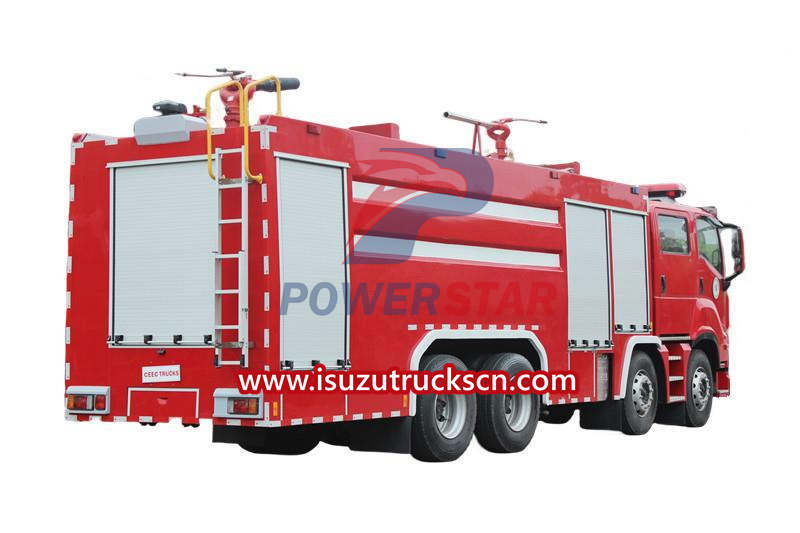

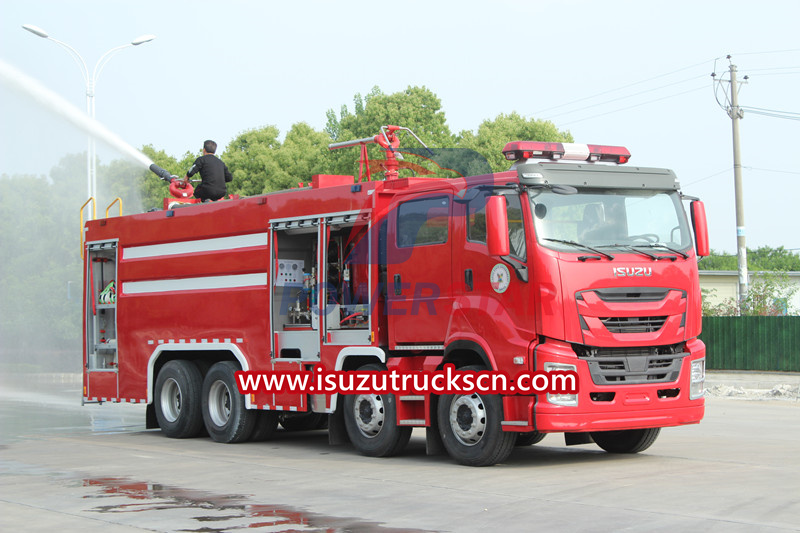

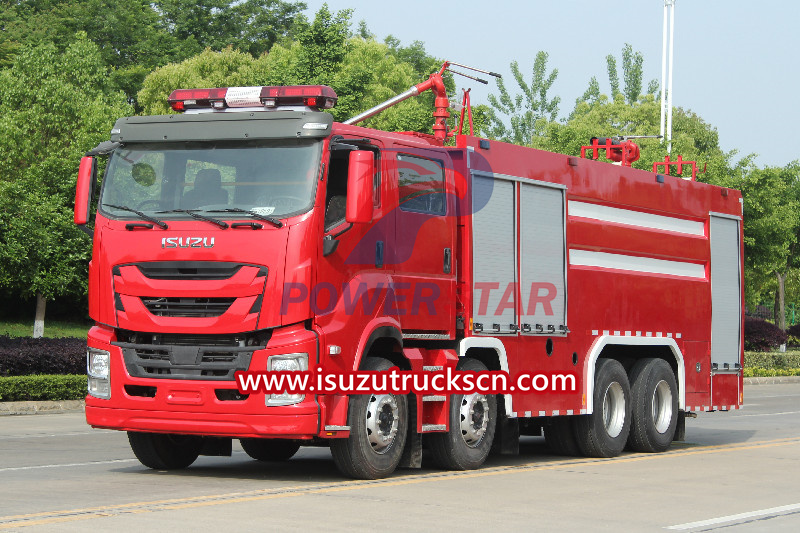

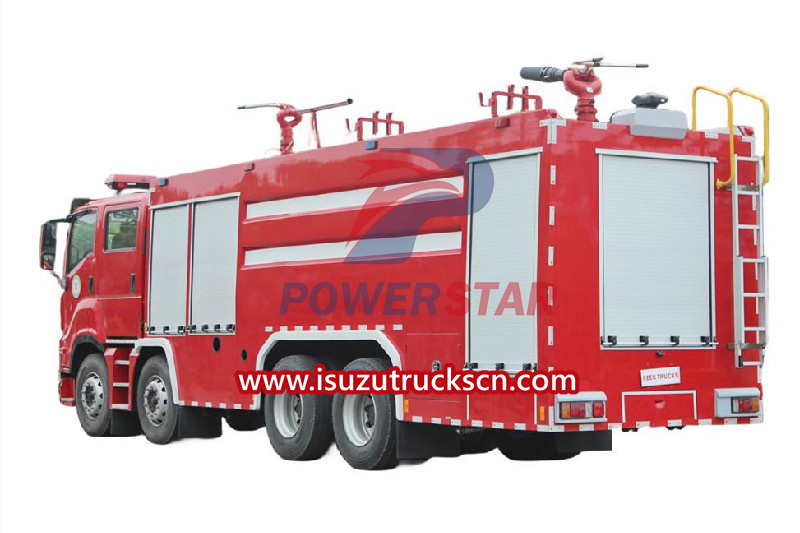

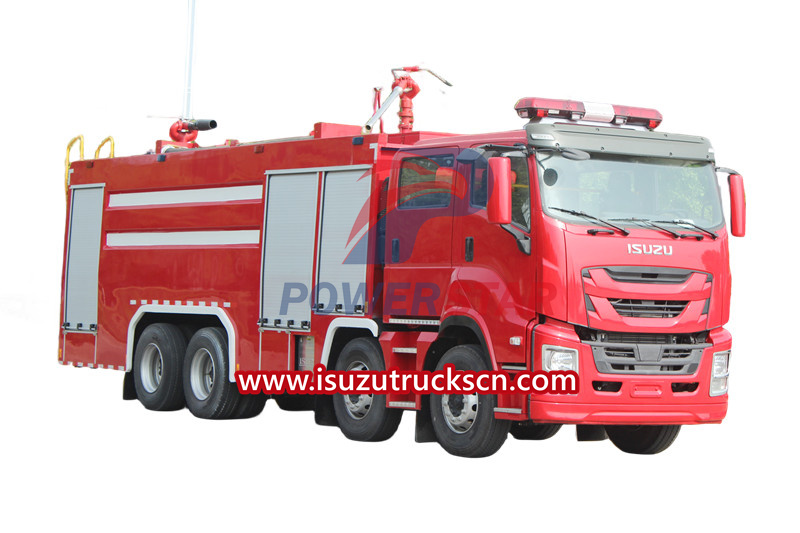

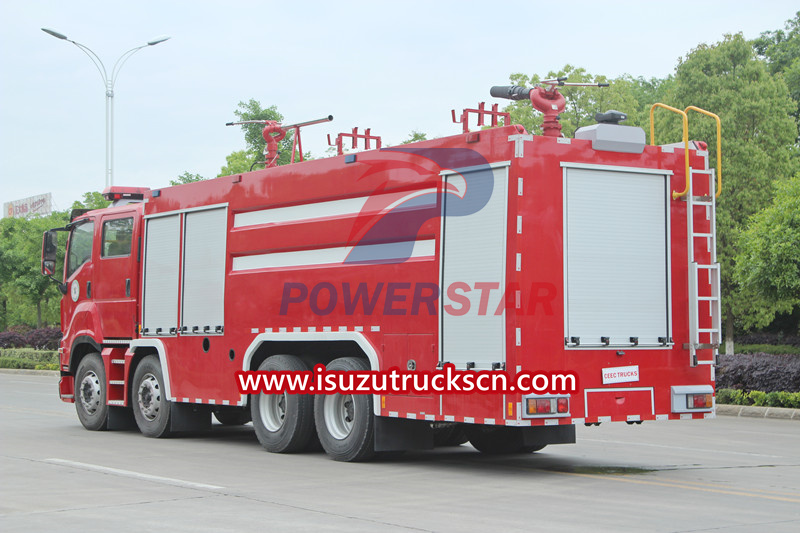

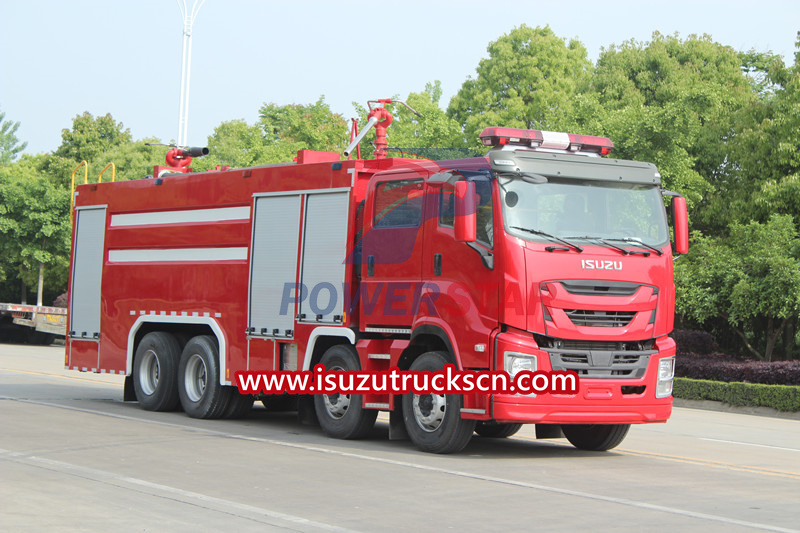

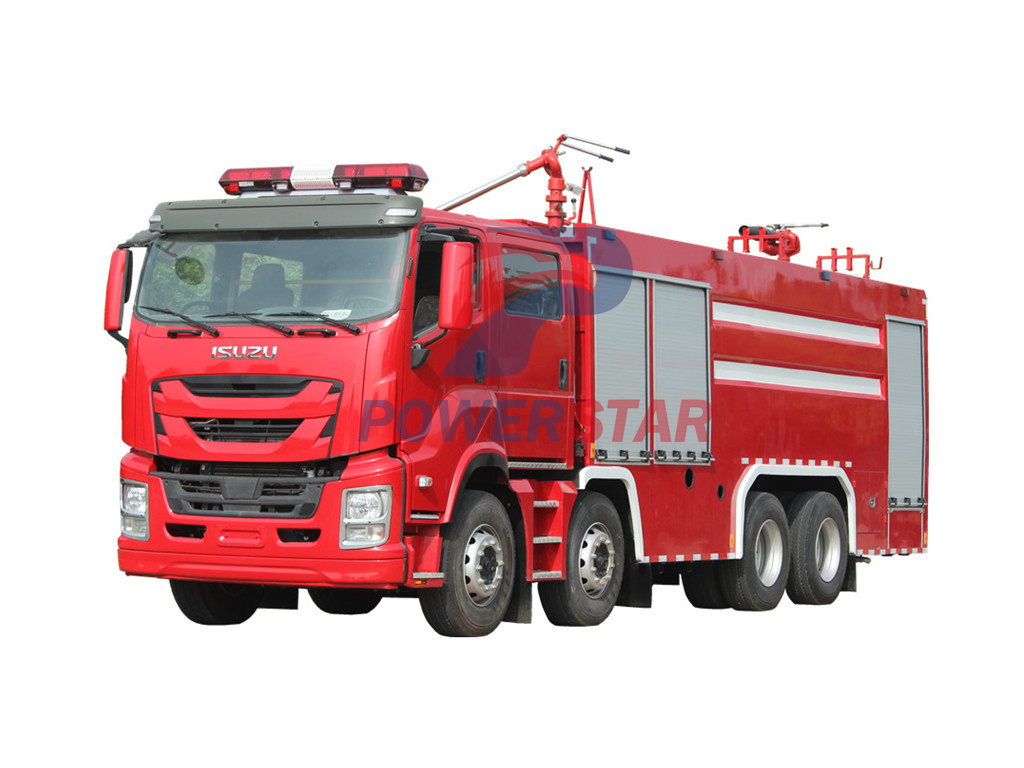

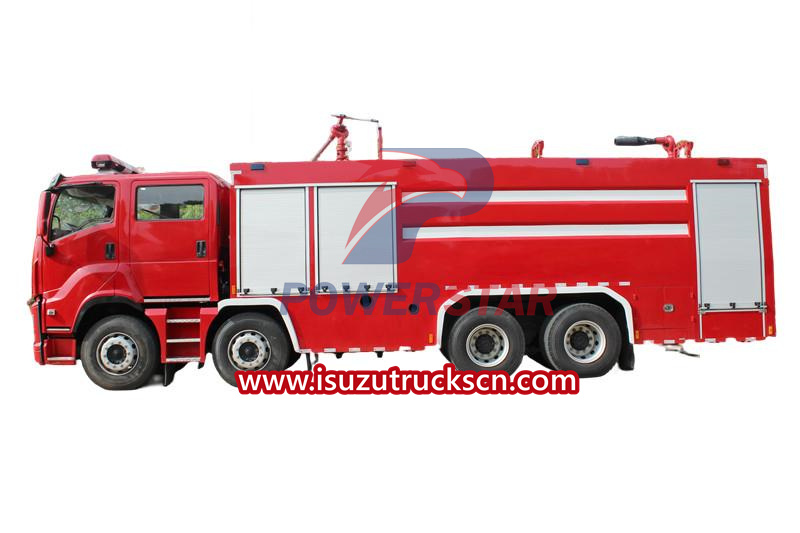

ISUZU GIGA 8X4 Fire Fighting Emergency Rescue truck with 16 CBM water foam and dry power tank fire truck, our factory is professional manufacturer in truck area, guarantee all products Brand-New and High-Quality. The Isuzu GIGA fire truck is equipped with top quality Chinese brand CB10/60 fire pump, mounted with PL48 water and foam fire monitor, the control is integration, with intelligent control system, ensure the stability of the entire operating vehicle. THe whole truck body anti preservative treatment, welding is firm smooth and strong. The tanker system including 10000liters water tanker and 4000liters foam tank, all stainless steel material. 2000L dry powder system with nitrogen bottles, English control panel for easy operation.
Work capacity:
10000+4000+1000 LitersTruck model:
PT5420GXF16MEngine power:
420 hpEngine type:
6WG1-TCAxle drive:
8x4Gear box:
FAST 12-shift ManualRemarks:
CB10/60 fire pump, PL48 fire monitor, 2000L dry powder system
Modified with 8×4 Isuzu GIGA VC61 VC66 heavy-duty chassis. The truck has an exposed tank structure. The front part of the body is an equipment box (dry powder tank, nitrogen bottle, dry powder system and English control panel), the middle is a 10000liters water tank and 4000liters foam, and the rear is a pump room. Isuzu Giga Fire fighting truck is special purposed vehicle to carrying out the task of conflagration, but also with the usage of emergency rescue.It could be transport the firemen to the fire field and provide different kinds of rescue tools. The normal fire fighting truck could be divided into: water tank fire truck, water and foam tank fire truck, pumping fire truck, elevated fire truck, scaling ladder fire truck, etc.
The liquid carrier tank is made of high-quality stainless steel 304, with epoxy primer and epoxy asphalt paint sprayed inside. It is elastically connected to the chassis. It contains 10000kg of water . The volume of the foam tank is 4m3, which also use the material of Stainless steel 304. The volume of the dry powder tank: 2m3. Equipped with CB10/60 type Low pressure fire pump, rated flow 60L/S, roof mounted PL48 water foam fire monitor vehicle fire gun and PF30 dry powder gun with 36m hose reel.
Products Parameters for ISUZU GIGA 8x4 water foam dry powder fire rescue truck:
Isuzu Vc61/Vc66 Giga 8X4 420HP Euro 5/6 Fire Truck Water Foam Dry powder Tank Fire Engine Truck

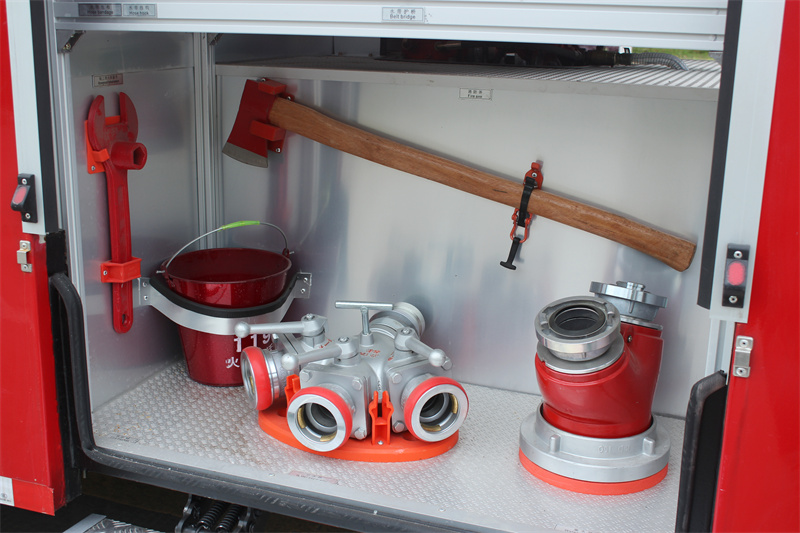

1.EQUIPMENT CONFIGURATION: Free 6 technical documents, at least 34 fire extinguishing equipment and 7 demolition rescue tools
2.FIRE FIGHTING PUMP: With independent fire pump room, operation is convenient for fire fighters. according to capacity, we have CB10/20, CB10/30, CB10/40, CB10/60, CB10/100
3.FIRE FIGHTING GUN: Reliable performance, high pump flow rate high, far throw range. According to capacity, we have PS20, PS30, PS40, PS50, PL24, PL36, PL48
4.CONTROL INTEGRATION: With intelligent control integration system, ensure the stability of the entire operating vehicle. The whole truck body anti preservative treatment, welding is firm and smooth. Language can be standard English, also French, Germany, Arabic, Russian, etc.
5. DRY POWDER SYSTEM: Customized 2000liters dry powder system, with 6 bottles of Nitrogen for working. English control panel.
|

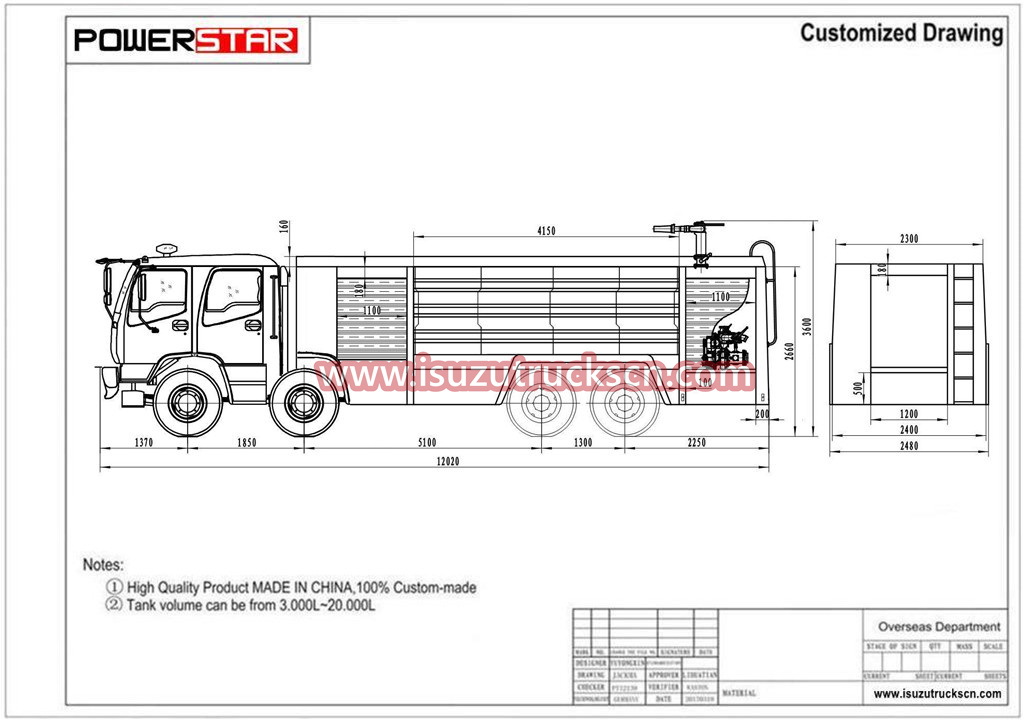

Outside dimensions |
11995×2550×3800mm |
|
Maximum total mass |
42000kg |
|
Carrier volume |
Foam tank 4m3, Dry powder tank 2m3, water tank 10000kg; |
|
Maximum speed |
95km/h |
|
Fire pump rated flow |
60L/s 1.0MPa |
|
Rated flow of fire monitor |
Foam truck: 48L/s 1.0MPa Water tank truck: 60L/s 1.0MPa |
|
Fire gun range |
Foam truck: foam ≥50m water ≥55m water tank truck: ≥70m |
|
Specific power |
248/19.25=12.88 |
|
Approach / departure angle |
19°/12° |
Second, the main parameters of the chassis
|
model |
Giga |
|
manufacturer |
POWERSTAR TRUCKS INDUSTRY CO., LIMITED |
|
Engine rated power |
420hp |
|
engine capacity |
15981 cc |
|
Engine emission standards |
Euro 5 / 6 |
|
Drive form |
8×4 |
|
Wheelbase |
1850+4575+1370mm |
|
Maximum allowable gross weight |
19000kg |
|
Minimum turning radius |
≤19m |
|
Gearbox |
Manual |
|
PTO |
Sandwich power take-off |
3. The crew room
|
structure |
Flat head, four doors, original double row |
|
Number of passengers |
2+4 people |
|
Driver position |
Left |
|
device |
The dashboard
of the original car is equipped with a fire control dashboard and a polic e
light control box, equipped with |
4. Bodywork structure and performance parameters
|
General layout |

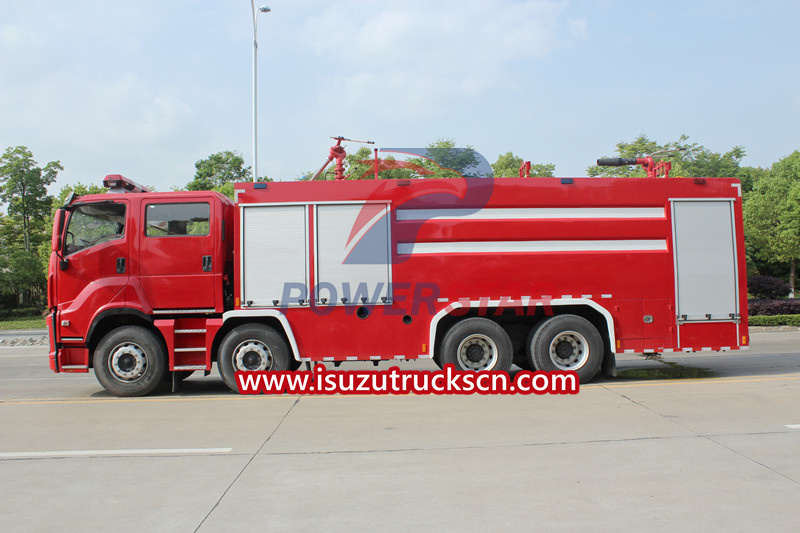

The vehicle consists of two parts: the firefighter's cabin and the body. The body layout is a three-piece structure. The front part is the equipment box, the middle part is the water tank, and the rear part is the pump room. The tank body is a parallelepiped box-type tank. |
1. Equipment box and pump room
|
structure |
The main frame structure is welded with high-quality square tubes, and the outer decorative plate is welded with carbon steel plates. The roof is non-slip and can be walked on. (Aluminum alloy square tube welding can be used according to user needs) |
|
Equipment box |

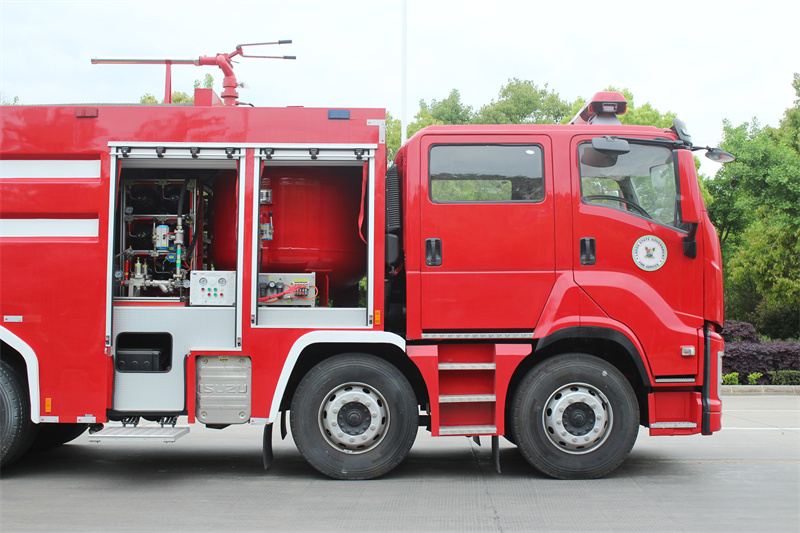

The equipment box is located at the rear of the passenger compartment, with aluminum alloy rolling doors on both sides and lighting lamps inside. Dry powder tank, nitrogen bottle and dry powder system are installed in the equipment box. |
|

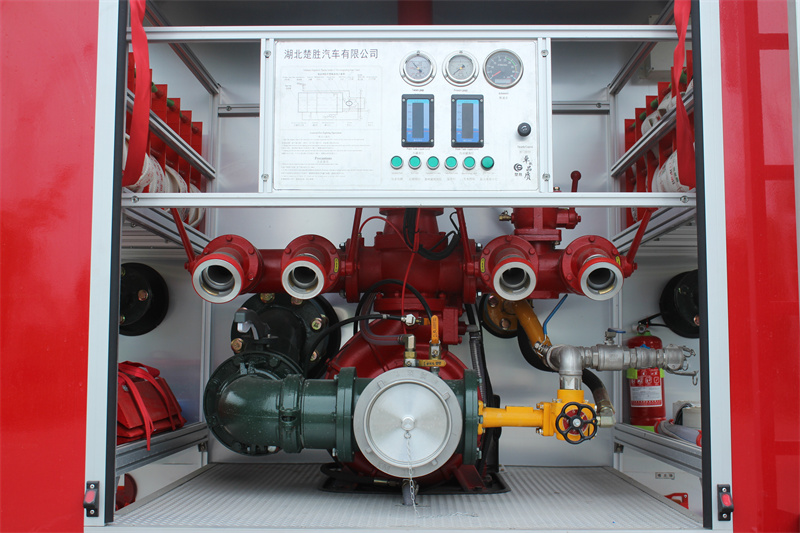

Pump room |
The pump room is located at the rear of the vehicle, with aluminum alloy rolling shutters on both sides and the back, with lights inside. Some common equipment can be placed on both sides of the pump room; suction pipes and fire ladder brackets are placed on the top of the car box. |
|
Insulation position: Install fuel heater (optional according to customer needs) |
|
|
Ladder and handle |
The rear ladder is made of aluminum alloy two-section flip ladder. It is used when it is not more than 350mm from the ground. The handle of the car is made of non-slip round steel pipe with a groove on the surface and the surface is sprayed with plastic. |
|
capacity |
10000L |
|
Material |
High-quality carbon steel with a thickness of 5mm (can be made of stainless steel and PP according to user needs) |
|
Tank fixing |
Flexible connection with chassis frame |
|
Tank settings |
Manhole: One DN460 manhole, with quick lock/open device |
|
Overflow port: one DN65 overflow port |
|
|
Remaining water outlet: set a DN40 water tank to discharge remaining water outlet, equipped with ball valve |
|
|
Water injection port: connect a DN80 interface on the left and right sides of the water tank |
|
|
Water inlet and outlet: one water tank to the water inlet pipe of the pump, DN150 valve, which can be controlled pneumatically and manually, one water pump to the water filling pipe of the tank, DN65 valve, which can be pneumatically and manually controlled |
5. Water system 1. Water pump
|
model |
CB20.10/30.60 type medium and low pressure vehicle fire pump |
|
form |
Medium and low pressure centrifugal |
|
Limited Data |
60L/s @1.0MPa 30L/s @2.0MPa |
|
Rated outlet pressure |
1.0MPa |
|
Maximum suction depth |
7m |
|
Water diversion device |
Built-in sliding vane pump |
|
Diversion time |
Maximum suction depth≤50s |
2. Piping system
|
Pipe material |
High-quality seamless steel pipe |
|
Suction pipe |
There is a DN150 suction port on the back side of the pump room |
|
Water injection line |
There is a DN80 water injection port on the left and right sides of the water tank, and a DN65 water pump is installed in the pump room to inject water into the tank |
|
Outlet pipe |
There are 2 DN65 and 1 DN80 water outlets on the left and right sides of the pump room, with shut-off valve and ampoule |
|
Cooling water pipeline |
Cooling water pipeline and control valve with cooling power take-off |

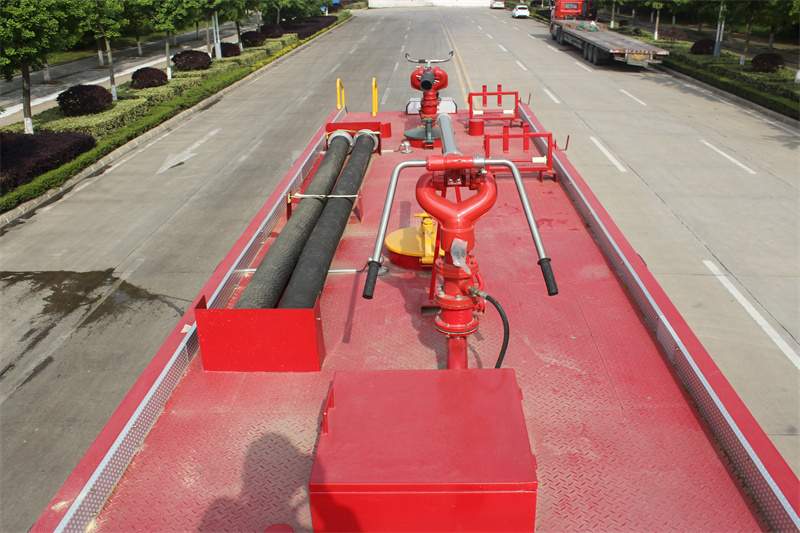

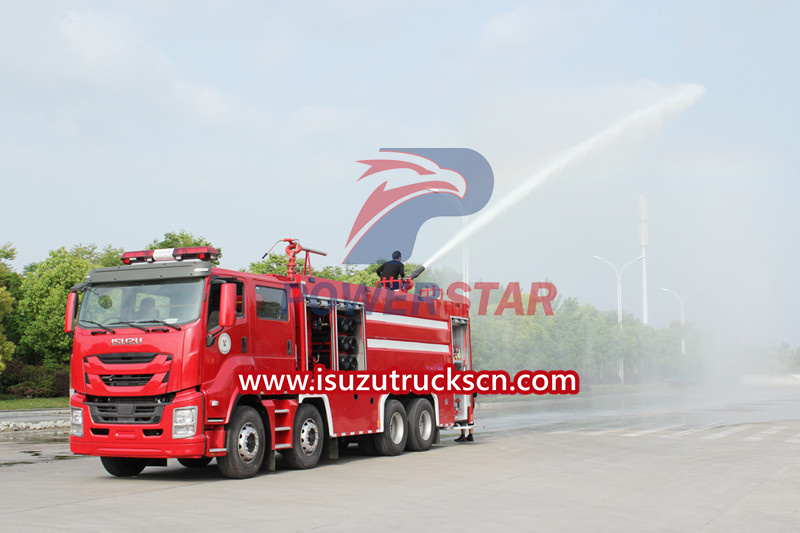

fire extinguishing vehicle monitor
|
model |
PL48 |
|
manufacturer |
Chengdu West Fire Machinery Co., Ltd. |
|
Rotation angle |
360° horizontal rotation |
|
Maximum elevation/depression angle |
Depression angle ≤-15°, elevation angle ≥+45° |
|
flow |
60L/S |
|
Range |
≥70m |
3. Truck dry powder gun and reel
|
model |
PF30 |
|
Control type: |
Electric and pneumatic operation manual operation |
|
Material: |
Corrosion-resistant materials |
|
Spray intensity: |
30kg/s |
|
Working pressure: |
1.4Mpa |
|
1 set of dry powder reel, length 30m, diameter DN25, with dry powder gun, manual winding. |
|
4. Nitrogen bottle
|
Number of nitrogen bottles: |
6 (meet the use of dry powder, with a steel bottle rack), the design meets the requirements of GB5099 |
|
capacity: |
70L |
|
Filling pressure: |
15Mpa |
|
Inflatable time: |
45s, with centralized inflation interface |
|
1 set of dry powder reel, length 30m, diameter DN25, with dry powder gun, manual winding. |
|
7. The control panel of the fire control system mainly includes the cab control and the pump room control.
|
Cab control |
Water pump disengagement, warning light alarm, lighting and signal device control, etc. |
|
Pump room control |
Bodywork main power switch, parameter display, status display |
8. Electrical equipment
|
Additional electrical |
Set up an independent circuit |
|
Auxiliary lighting |
Firemen's room, water pump room and equipment box are equipped with lights respectively, and lighting and indicator lights are set on the control panel |
|
Strobe light |
Install red and blue strobe lights on both sides of the body |
|
Warning device |
Long row of red warning lights, installed on the top of the cab |
|
Siren, the control box is under the driver's front |
|
|
Fire field lighting |
Install a 35W fire searchlight at the back of the jacket |
9, surface treatment
|
Topcoat |
High-quality domestic paint |
|
color |
The main color of the outer surface of the car body is RO3 fire red |
Why choose ISUZU Giga Fire Fighting Trucks from POWERSTAR TRUCKS INDUSTRY CO., LIMITED?
1. With extended cab of double rows and four doors,
2. Can carry six people including the driver (two sit in the front and four in the rear).
3. The rear row is equipped with four sets of air breathing apparatus supports.
4. Designed according to the structure of 'cab-equipment compartment-tank-pump house',
5. The vehicle has reasonable overall layout, scientific structural design and nice appearance.
6. Using 60 type low median pressure fire pump, this vehicle can put out fire through foam with normal, medium or low median pressure.
7. It can put out fire caused by general substance and flammable liquid, such as gasoline, diesel, benzene, etc.
8. With superior performance, the fire extinguishing apparatus is advanced and easy to control.
ISUZU GIGA Fire Fighting Truck (also called 12CBM Fire fighting trucks, ISUZU City fire rescue vehicle, 10 wheels Water-foam Fire truck, 6x4 Industrial fire fighting trucks, ISUZU GIGA fire trucks) is apply for fire brigade of large and medium city, petrochemical enterprises, airports and harbors and so on, to put our large area fire of oil and other substance.
