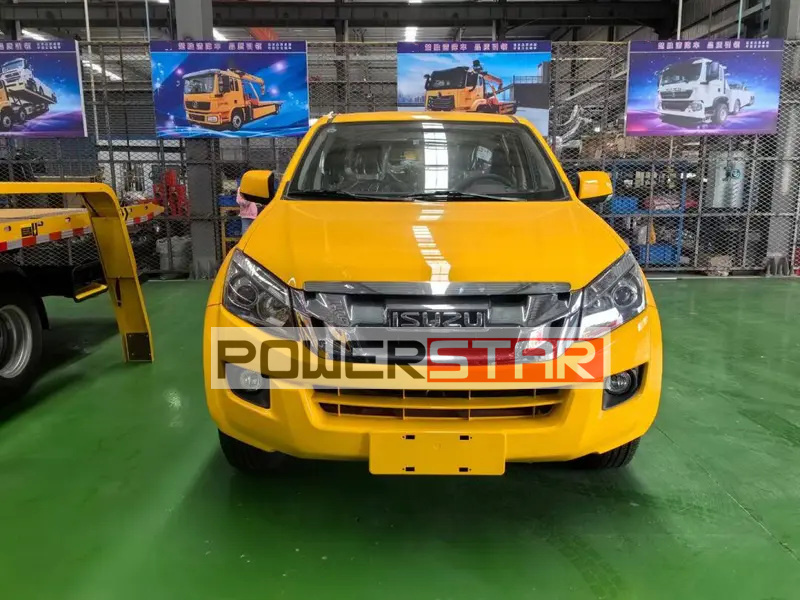

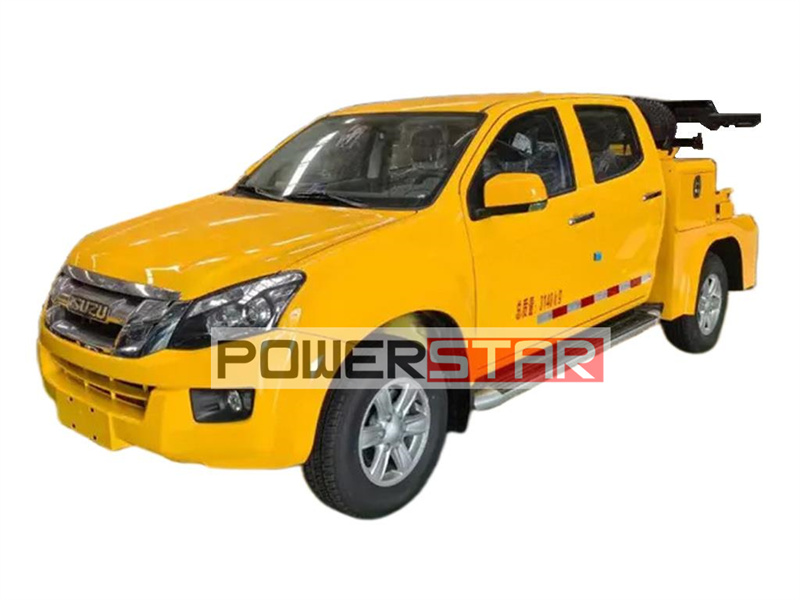

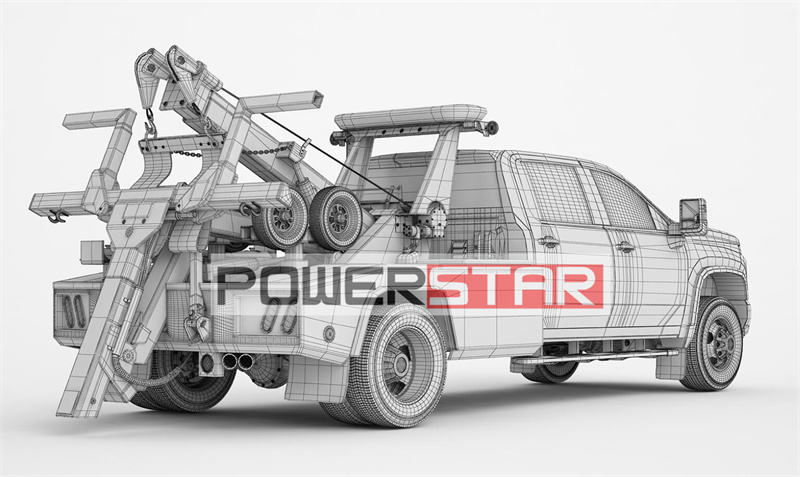

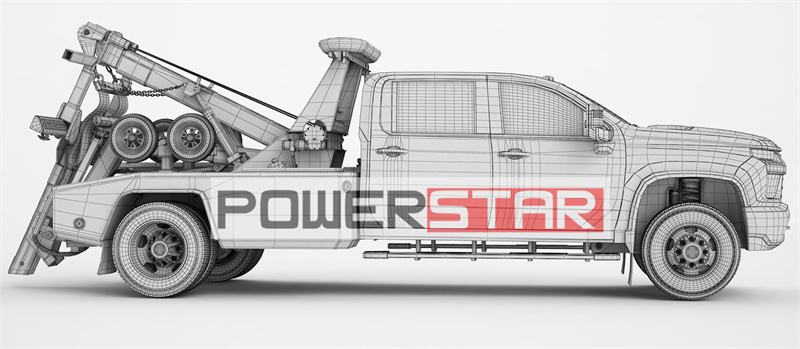

An Isuzu Pickup tow truck (also called an Isuzu wrecker, a breakdown truck, recovery vehicle or a breakdown lorry) is a truck used to move disabled, improperly parked, impounded, or otherwise indisposed motor vehicles. This may involve recovering a vehicle damaged in an accident, returning one to a drivable surface in a mishap or inclement weather, or towing or transporting one via flatbed to a repair shop or other location. Brand new Isuzu pickup tow truck is distinct from a car carrier trailer, which is used to move multiple new or used vehicles simultaneously in routine transport operations.
Work capacity:
1000kgTruck model:
PT5030TQZEngine power:
143HP/105kwEngine type:
Isuzu 4KH1CT6H1Axle drive:
4×4, LHDGear box:
Isuzu 5 speed,manualRemarks:
Road recovery towing truckISUZU pickup truck tow truck is a special vehicle modified based on ISUZU pickup truck chassis, Isuzu 4x4 pickup tow truck mainly used for road fault vehicles, urban illegal vehicles and emergency rescue. The following is a detailed introduction to ISUZU pickup truck tow truck: The Isuzu pickup truck tow truck adopts a pickup truck chassis, with a small and flexible body, which can respond quickly and reach the accident scene. Isuzu road recovery truck has multiple functions such as lifting, pulling and lifting and traction, which can cope with different types of vehicle failures and accidents. Due to its short body and low height, it is particularly suitable for vehicle rescue in small spaces such as underground garages.
Integrated (also called a "Pickup self-loader", "Pickup snatcher", "Pickup quick pick" or "Pickup repo truck"): boom and wheel-lift integrated into one unit. Used in light-duty trucks to repossess vehicles or move illegally-parked vehicles. Most have controls for the apparatus inside the cab of the tow truck to make quick pickup possible without the inconvenience of exiting the truck to hook up the vehicle. Though similar to a wheel-lift truck, an integrated truck differs in that the end of its boom features movable arms that can more easily and quickly clamp onto the wheels of a vehicle, often controlled from the cabin of the truck. On a wheel-lift truck, the wheels of a vehicle must be manually secured to the yoke by the operator before being lifted. There are also heavy-duty trucks manufactured with integrated lifts.

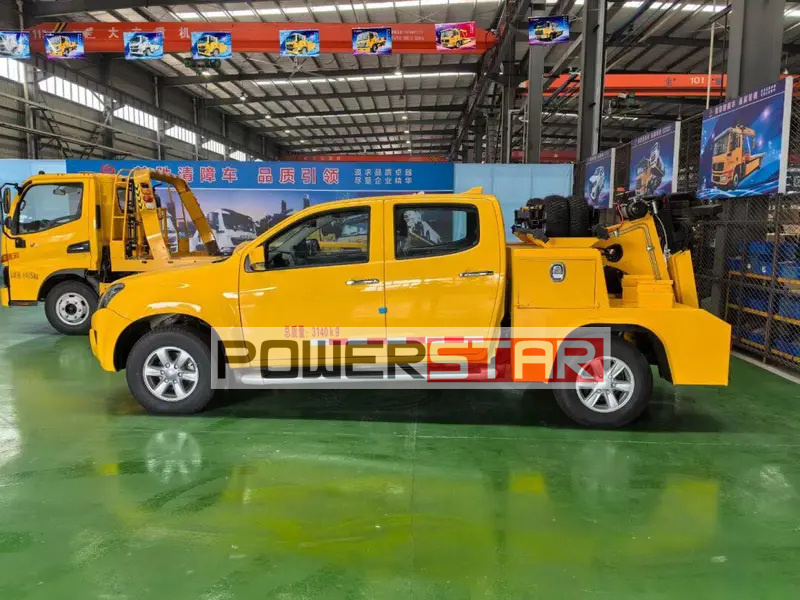

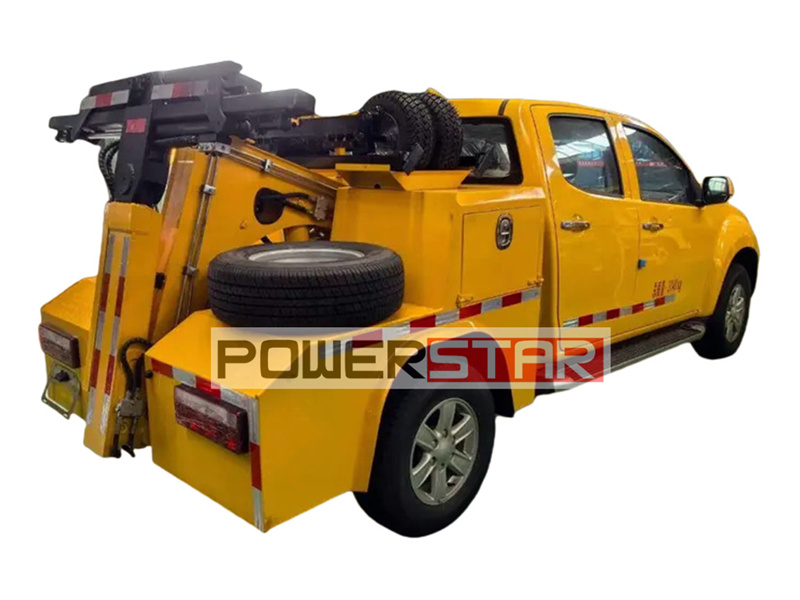

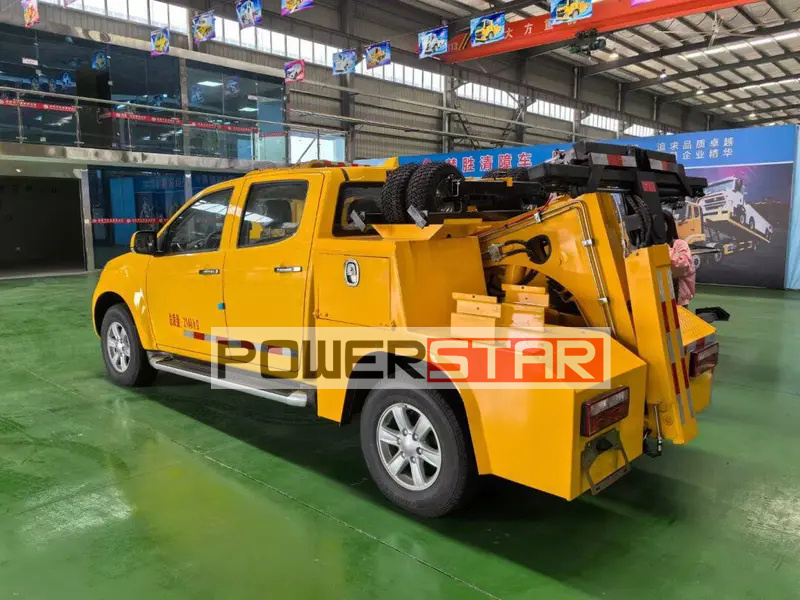

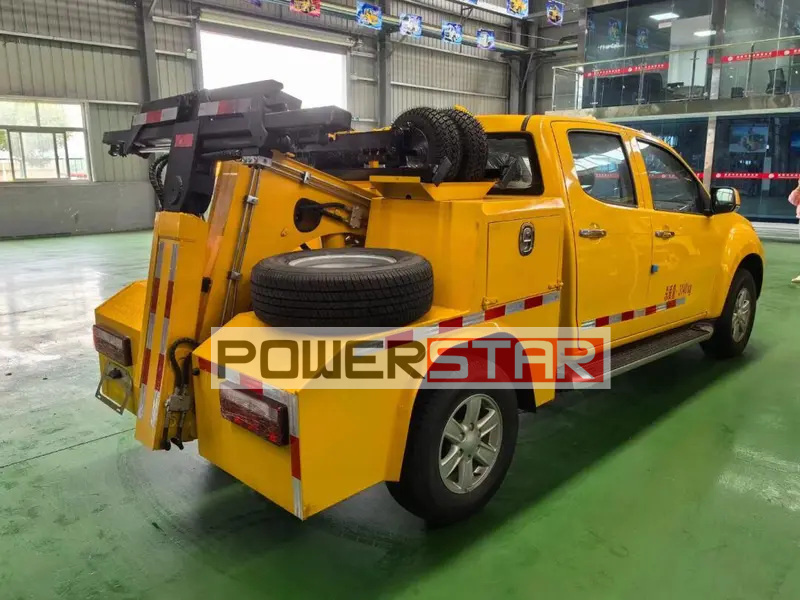

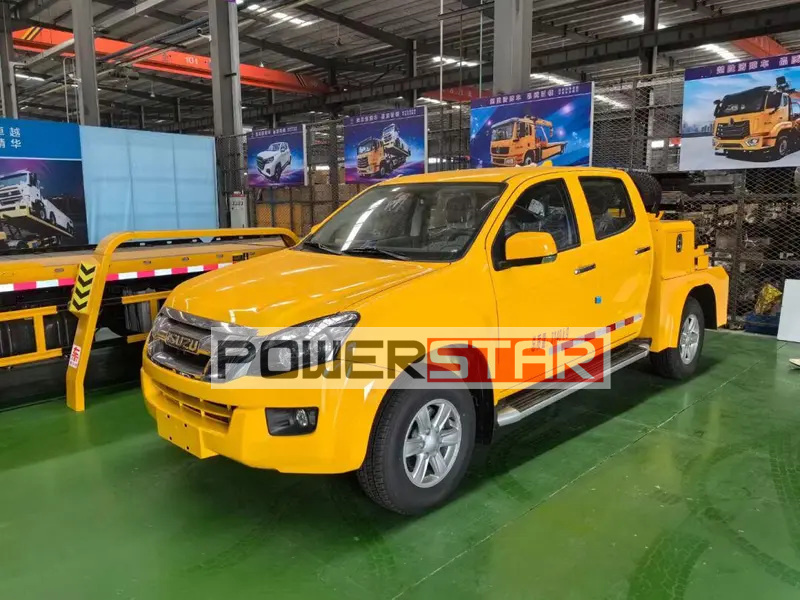

Isuzu pickup Recovery Tow Truck Brief Introduction:

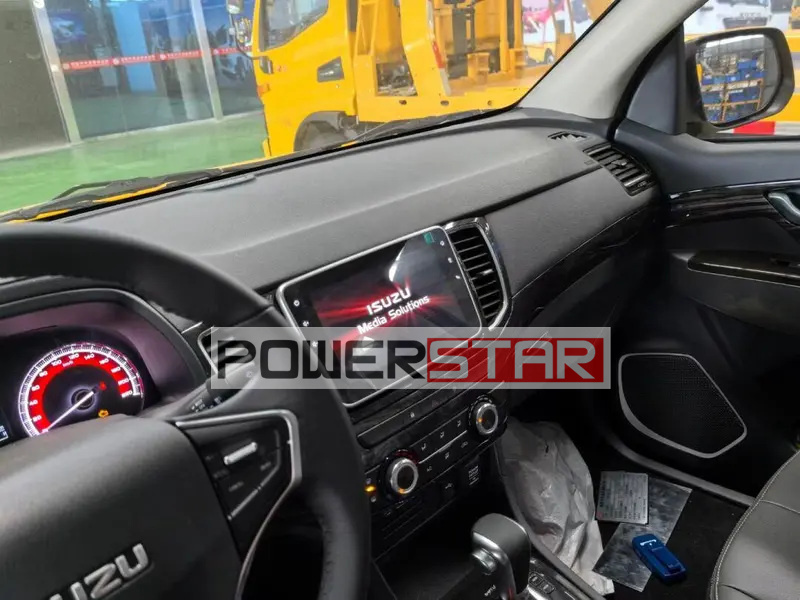

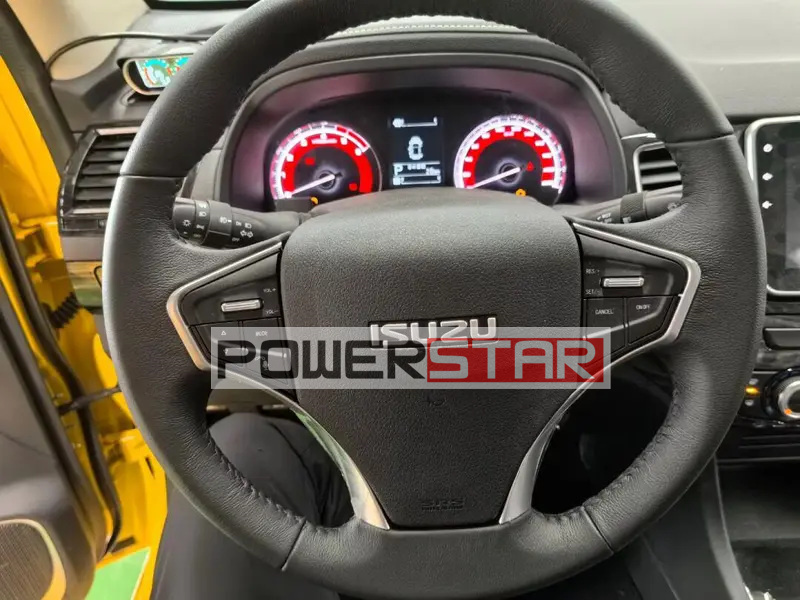

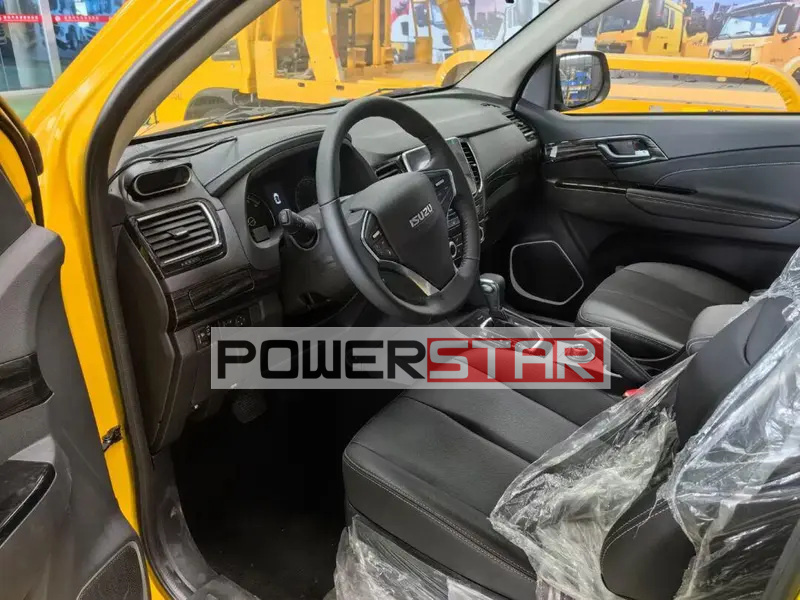

Brand new Isuzu pickup wrecker towing truck with model QL1030CZHW2, double cabin row with 2+3 seats, independent safety belt equipped, also the airbags for front driver seat and passenger seat. Japanese design 4KH1CT6H1 model diesel engine 105KW / 143HP, and emission 2999cc with EURO 6 standard. ISUZU brand 5 shift manual gearbox with 5 forward and 1 reverse. 4x4 offroad driving model with electric control, convenient for working. 245/70R17LT 10PR tires can be customized as offroad type, Aluminium alloy wheel rim, both front and rear equipped disc brake, ABS+EBD+ESC for safety guarantee. Remote control key, tire inspection system, front and rear electric windows and equipped with electric folding function. Air conditional for warm and cooling function.
An Isuzu newly designed road wrecker (also called a tow truck,a breakdown truck, recovery vehicle or a breakdown lorry) is a truck used to move disabled, improperly parked, impounded, or otherwise indisposed motor vehicles. which have details specifications as below:
| Chassis Parameters | |||||
| Chassis Manufacturer | ISUZU TAGA |
||||
| Cab Model | Double-row cabin, with A/C | ||||
| Drive Type | 4x4 offroad, Left Hand Drive |
||||
| Dimension (Lx W xH) | 5800×2000×2450mm | ||||
| Wheel base(mm) | 3406mm | ||||
| Engine | Model | ISUZU 4KH1CT6H1 |
|||
| Max. output | 143HP | ||||
| Type | 4 cylinders, in-line, turbo inter-cooling | ||||
| Fuel type | Diesel | ||||
| Emission | EURO 6 (2999cc) | ||||
| Gearbox | Manual 5F+1R | ||||
| Tyre | 245/70R17 steel wire tire, 4+1pc | ||||
| Color | Optional | ||||
| Wrecker structure parameters | |||||
| Towing System | Max Towing Capacity (kg) | 1000 | |||
| Length of Steel Rope |
25 m | ||||
| Extension stroke of towing arm (mm) | 3.23~8 m/min |
||||
| Standard Equipment | Auxiliary wheels, alarm light, hooks, 4 bundling belt, automatic sliding plate, etc. | ||||
| Optional Equipment |
Caution light, air condition,inlet valve. | ||||
Isuzu pickup offroad 4x4 fire pumper truck Advanced Features:
ISUZU pickup tow trucks are a special vehicle with diverse functions, strong adaptability and advanced configuration, which plays an important role in road traffic rescue and emergency rescue.
Chassis: ISUZU pickup 4x4 offroad chassis has excellent off-road performance and carrying capacity, ensuring that the tow truck can run stably under various terrain conditions.
Engine: Usually equipped with a high-performance diesel engine 4KH1CT6H1 model with 143HP and 2999cc emission, providing sufficient power output to meet the needs of tow removal operations.
Operating system: Equipped with advanced operating systems, such as wireless and wired remote controls, so that the driver can more conveniently control the various functions of the tow truck.
Safety configuration: In order to ensure operational safety, ISUZU 4x4 pickup tow trucks are usually equipped with safety configurations such as ABS, EBD, dual airbags, and reversing radar.
Isuzu pickup fire towing truck Application:
Isuzu pickup truck towing equipment trucks are widely used on urban roads, highways, and rural and mountain roads. For example, in the city, when a vehicle breaks down or a traffic accident occurs, Isuzu pickup tow trucks can quickly arrive at the scene, use lifting, traction and other functions to tow the faulty vehicle away from the scene, and restore road traffic. On the highway, Isuzu pickup recovery trucks can also play an important role, timely remove accident vehicles and obstacles, and ensure the smooth and safe operation of the highway.
Road traffic accident site clearance: After a road traffic accident occurs, ISUZU pickup tow trucks can quickly arrive at the scene and remove the accident vehicle or other obstacles to restore road traffic.
Vehicle breakdown on-site processing: When a vehicle breaks down on the road, ISUZU pickup wreckers can go to the scene to diagnose and repair the fault, or tow the faulty vehicle away from the scene.
Illegal parking processing: For vehicles that are illegally parked in prohibited areas or affect traffic, ISUZU road wrecker towing trucks can tow them away from the scene and make way for other vehicles.
Emergency rescue: In natural disasters or other emergencies, ISUZU pickup road recovery trucks can assist in emergency rescue work, such as towing trapped vehicles and clearing road obstacles.
The Isuzu all-wheel drive pickup tow truck is a pickup truck specially designed for road clearance and rescue work. It uses an all-wheel drive system to maintain stability and reliability in various road conditions. The vehicle is equipped with powerful towing equipment and rescue tools, which can effectively perform car towing, accident scene processing and other rescue tasks. It also has sufficient load capacity and storage space to meet the needs of different scenarios. The Isuzu all-wheel drive pickup tow truck is an ideal choice for the road rescue and tow truck industry, providing users with safe and efficient rescue services.
Learn More
Isuzu 4x4 all-wheel drive pickup truck is a multi-purpose vehicle designed for towing and towing services. It has strong off-road performance and high load-bearing capacity, equipped with winch, sturdy bumper and tow bar and other facilities, which can be used for towing and towing operations in various harsh road conditions. The interior design is comfortable and practical, and can be customized according to needs. It is a reliable tool for towing work.
Learn More
Isuzu Aerial platform operation truck is special purposed truck of transporting workers and equipment to operating in the high aerial. It could reach the different demand of maintenance streetlight, traffic light, garden operation, communication operation, signboard setting/cleaning and other high aerial works. Isuzu NKR 14m manlifter truck build on NKR 4x2 LHD truck chassis, 4KH1CN diesel engine with 120HP and emission can be 2999cc, MSB 5-shift manual gearbox, truck mounted manlifter can lifting up 14m, 3 booms with insulated bucket.
Learn More

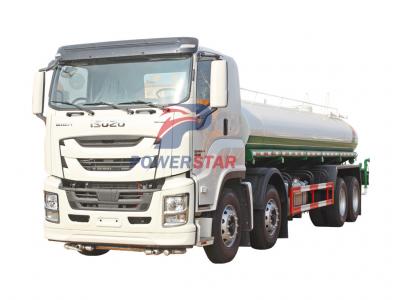

25,000L 25tons Isuzu Giga Street Wash Water Trucks, also known as 25cbm Giga Isuzu street washing water trucks, offer a range of features to meet various needs. All our Isuzu giga Isuzu street water trucks come equipped with multiple spray heads located at the front, side, and rear of the truck. These spray heads are independently controlled and feature air-operated valves for efficient water distribution.
Learn More
24m 22m Russia Isuzu truck mounted Aerial Lift Manlifter, can be called as Isuzu bucket trucks or Isuzu hydraulic beam lifter, is a reliable and versatile vehicle designed for aerial work applications. It provides safe and efficient access to elevated areas, improves productivity, and ensures worker safety. With its customization options and comprehensive after-sales service, it offers a valuable solution for various industries and their unique aerial work requirements.
Learn More

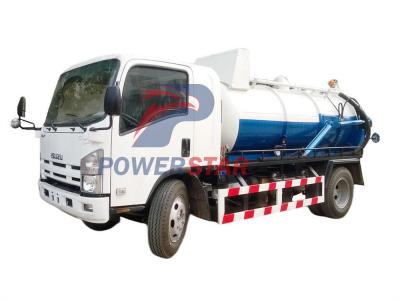

Isuzu NPR vacuum suction truck with ISUZU product bottom plate, high power, equipped with 190hp oil pump. The hotel is equipped with a heated and cooled air conditioning system that accommodates 3 people. 4X2 driving system for Isuzu NQR vacuum suction truck, equipped with 6-speed manual shifting box, maximum speed possible 90km/h. Isuzu ELF vacuum suction truck with steel material quality, capacity 6000-8000 liters, equipped with 7 suction pipes, high efficiency vacuum pump, quick completion suction work. Isuzu NPR sewage tank truck has been equipped with high quality steel pipes, control panels and safety equipment such as selectable vehicle overturning vehicles and image heads. Isuzu NPR sewage tanker available for selection, non-steel material quality, large profit vacuum pump high end placement, not enough customer demand.
Learn More

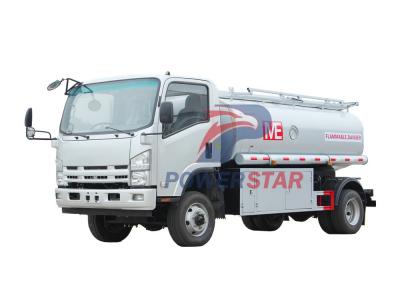

Isuzu oil tanker truck is a special vehicle mainly used to transport various oil products, such as gasoline, fuel, oil, diesel, lubricants, etc. It is usually used in petrochemical industry, transportation, fire safety and other fields. As an important liquid transportation tool, tank trucks play an indispensable role in ensuring oil supply, maintaining oil quality, and reducing logistics costs.
