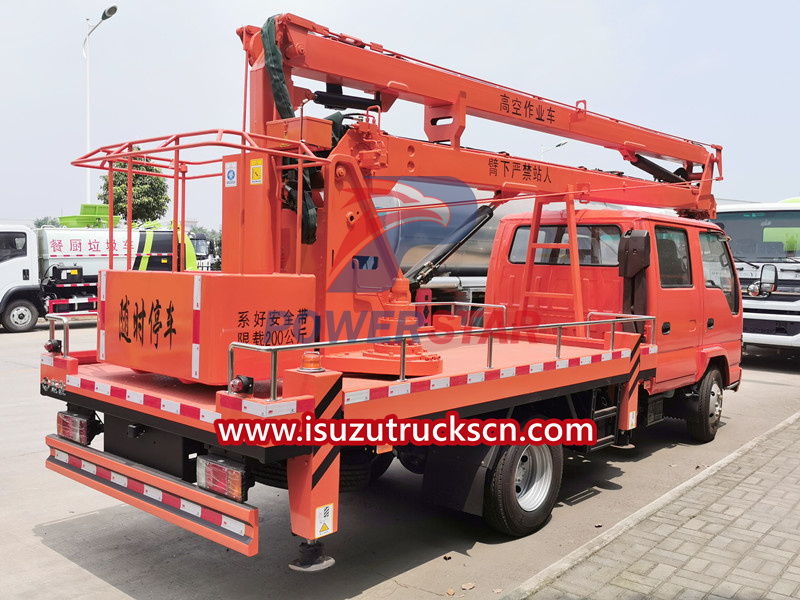

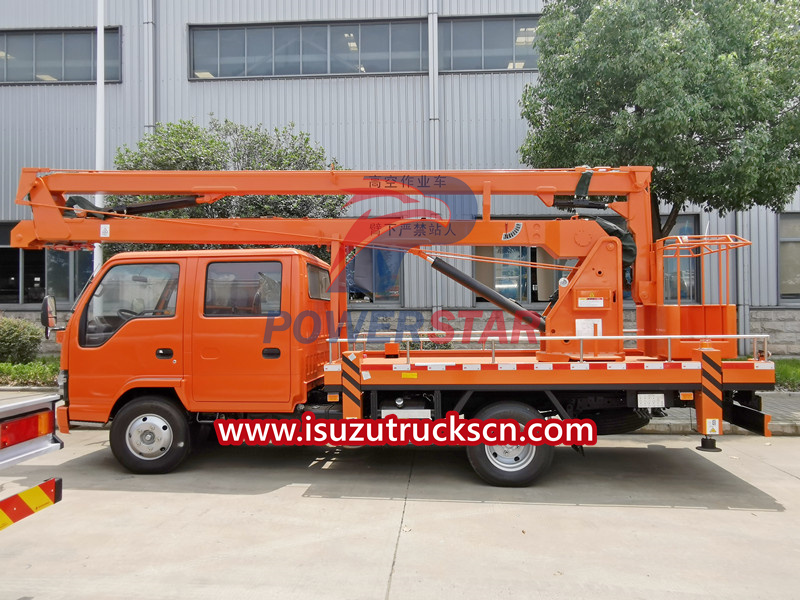

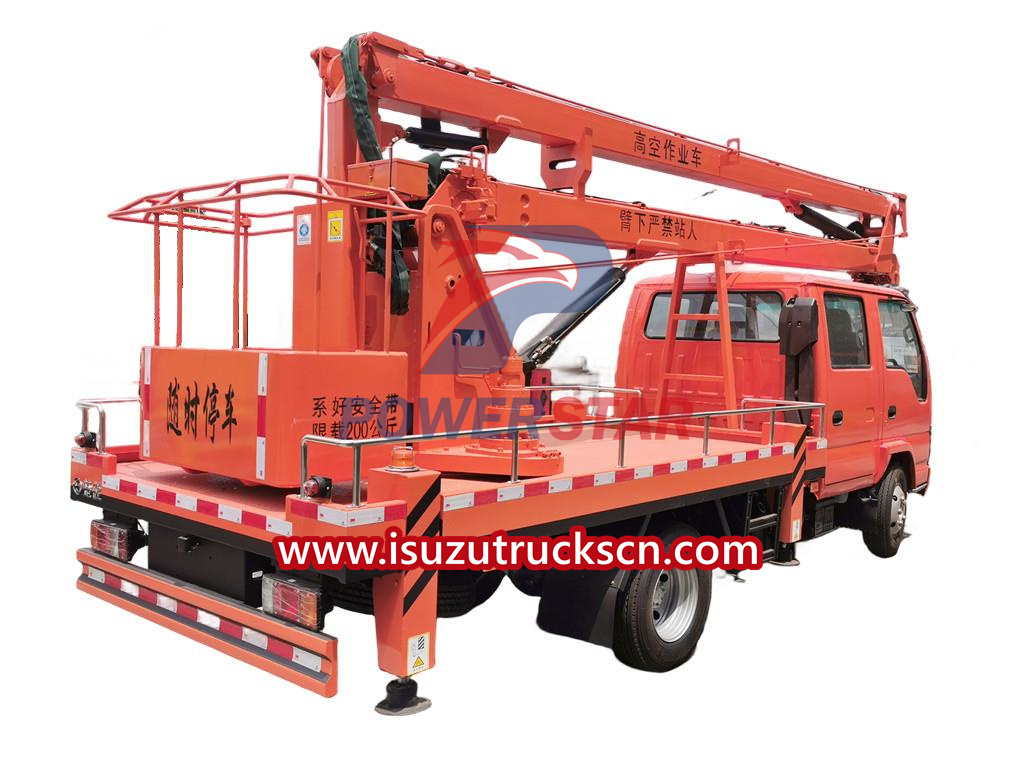

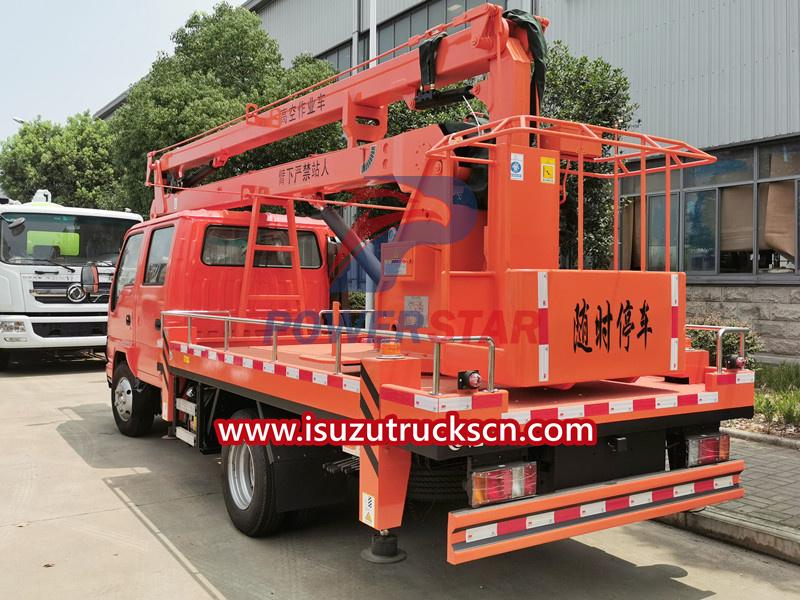

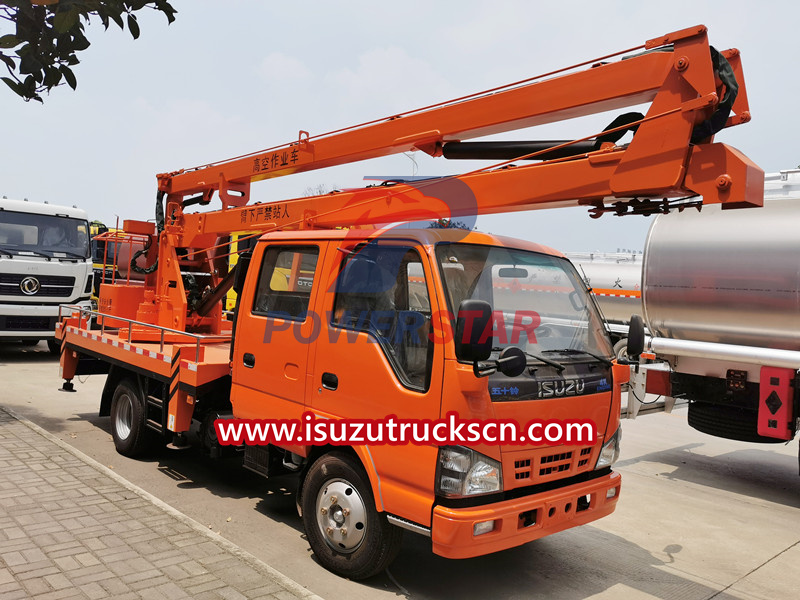

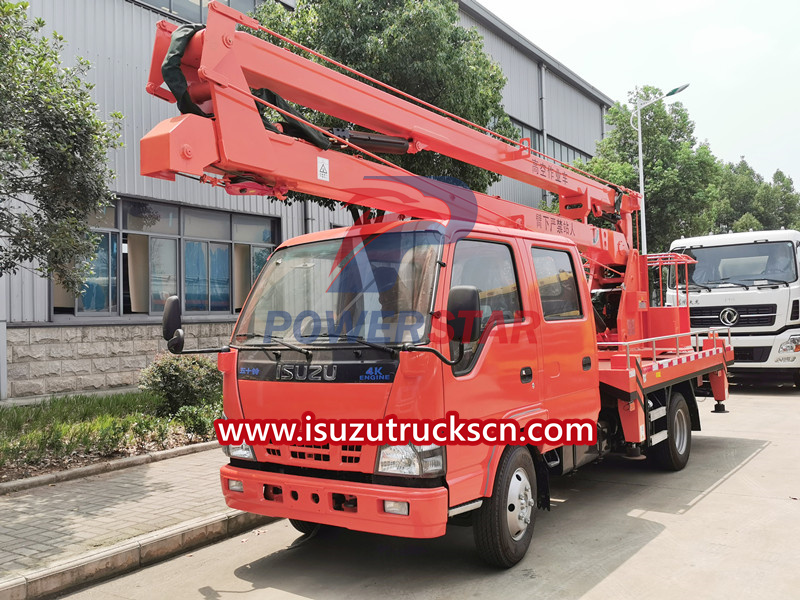

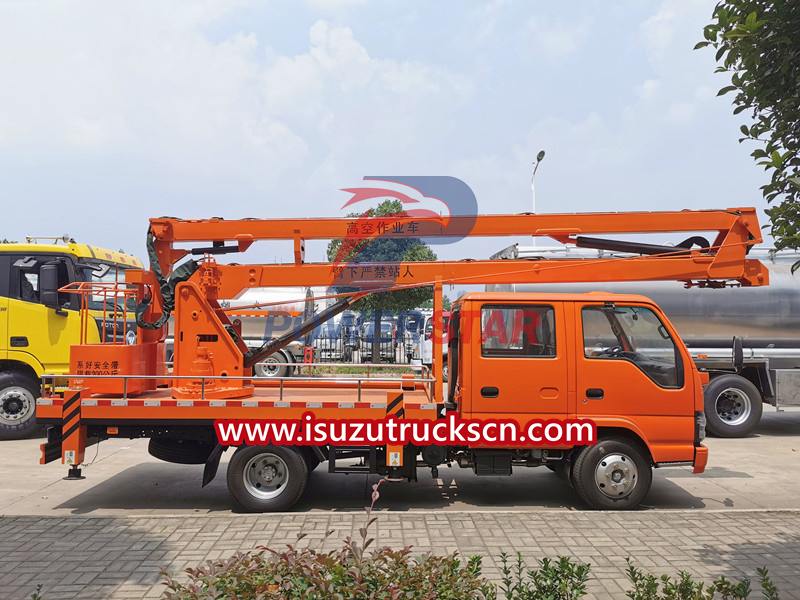

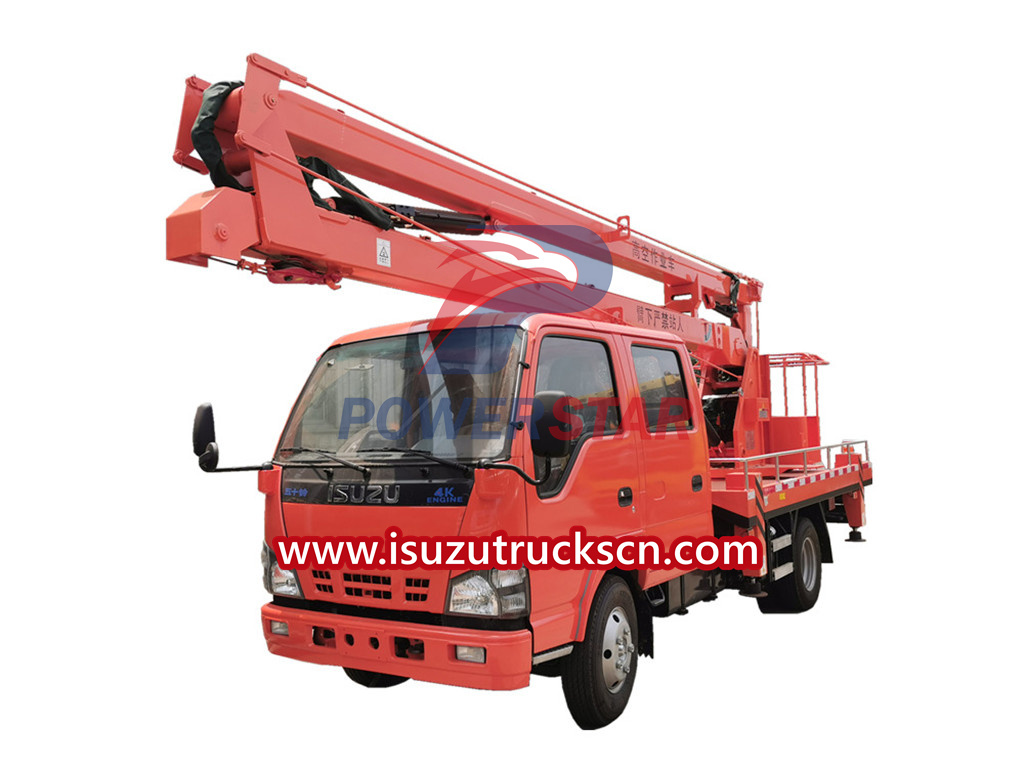

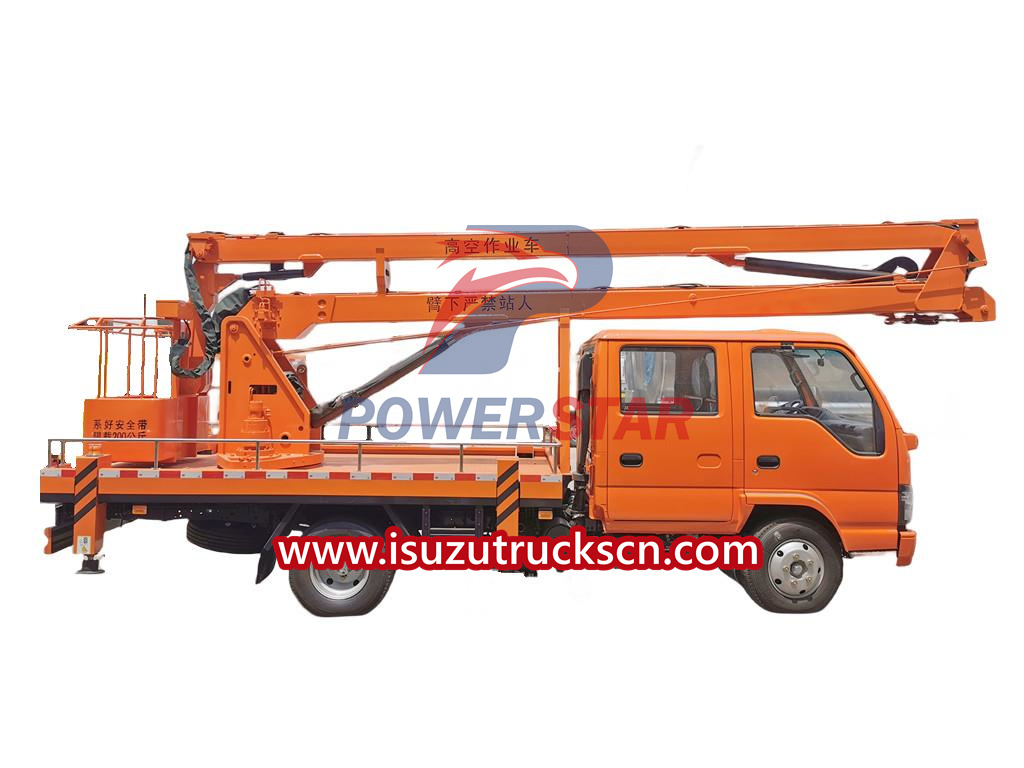

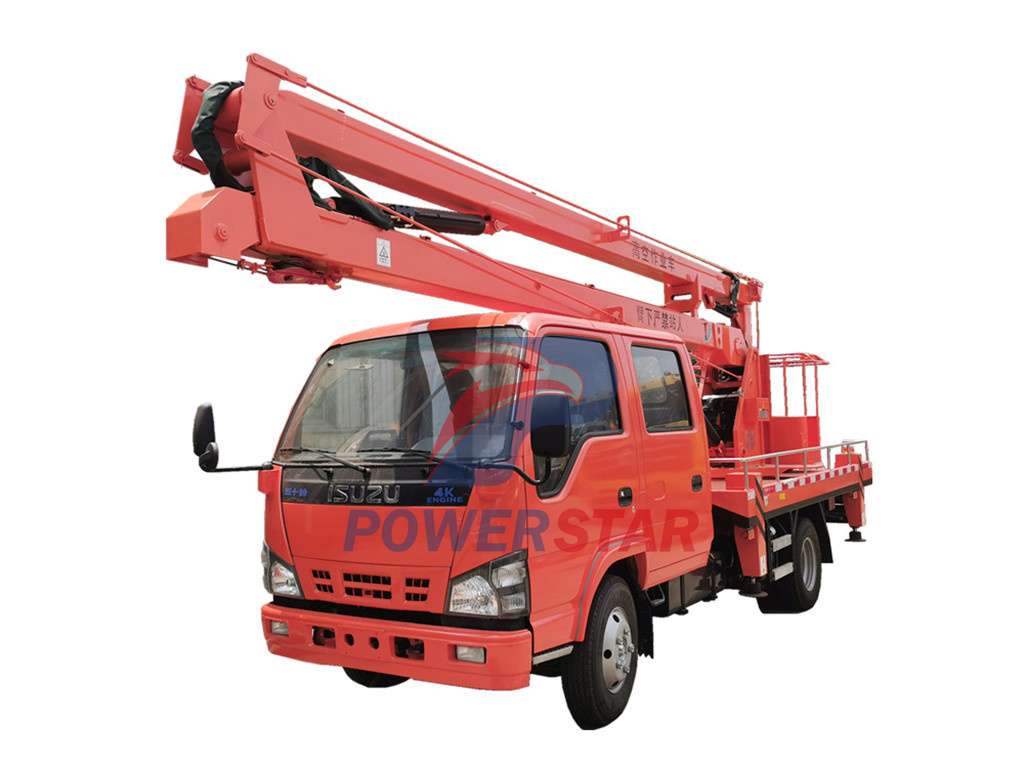

Aerial Bucket Truck Isuzu NKR
Isuzu Aerial platform operation truck is special purposed truck of transporting workers and equipment to operating in the high aerial. It could reach the different demand of maintenance streetlight, traffic light, garden operation, communication operation, signboard setting/cleaning and other high aerial works. Isuzu NKR 14m manlifter truck build on NKR 4x2 LHD truck chassis, 4KH1CN diesel engine with 120HP and emission can be 2999cc, MSB 5-shift manual gearbox, truck mounted manlifter can lifting up 14m, 3 booms with insulated bucket.
Work capacity:
14 mTruck model:
PT5070JGK14ZEngine power:
120 HPEngine type:
4KH1CNAxle drive:
4×2Gear box:
MSB 5-speed, manualRemarks:
Orange painting Isuzu NKR double row cabin with 2+3 seatsManlift truck ISUZU also called Aerial platform truck, articulated boom lift, Aerial Bucket Truck Isuzu NKR, Chassis parameters of ISUZU 14m aerial work platform truck: ISUZU NKR 4x2 left hand drive double row cab chassis, condition new, 2+3 seats, 3360mm wheelbase, ISUZU 4KH1CN model 120HP Euro 5/6 dieseI engine, turbocharged and intercooling, ISUZU MSB 5-speed transmission, 7.00R16 radial tires, 6+1 pcs with one spare tire, ISUZU 2.5 ton front axle, ISUZU 4.8 ton rear axle, air brake, power assist steering, with air conditioning, AM/FM radio system, etc. So also can be called as truck mounted aerial platform, aerial work platform, hydraulic beam lifter, bucket truck, bucket boom truck, truck mounted crane, truck mounted aerial lift, telescopic platform truck, aerial working platform, truck mounted aerial working platform.
Main Component for 14m Aerial Bucket Truck Isuzu NKR from POWERSTAR:
Superstructure parameters of ISUZU 14m aerial work platform truck: Isuzu Aerial work trucks refer to special vehicles that transport people and equipment to the scene and perform aerial operations. It has straight telescopic arm aerial truck and knuckle arm aerial truck.

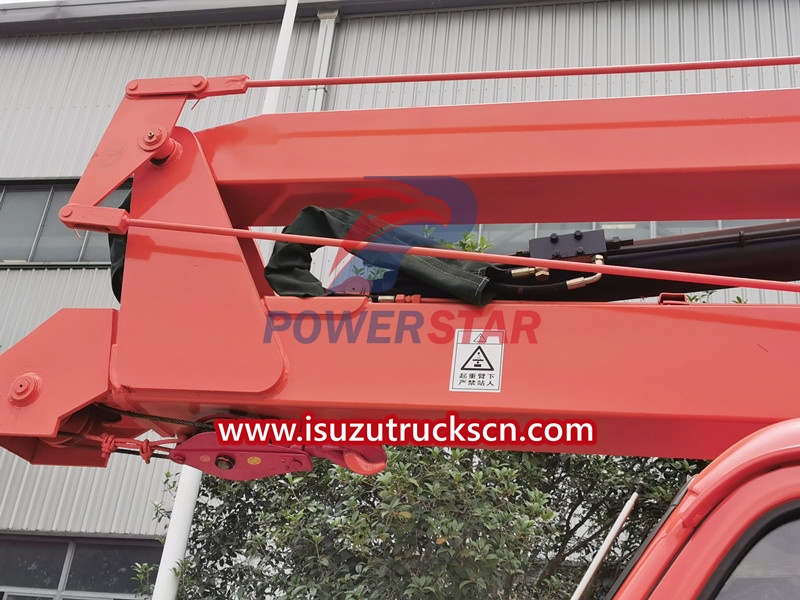

/Articulated arm boom system, 3 section.
/Maximum working height 14 meters.

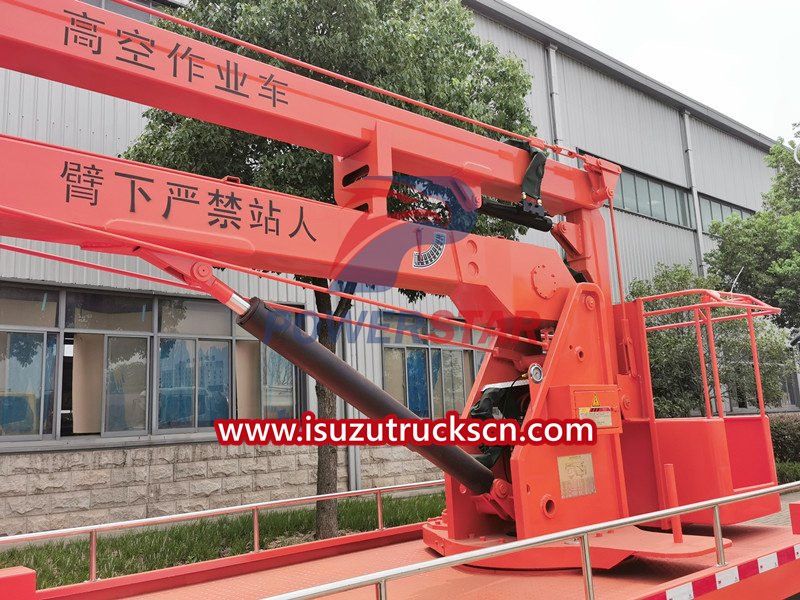

/Turntable 360° slewing.
/Basket 200kg load, size 1600x750x1140mm, 360° rotary. Customized insulated bucket
/Control operation: computer + manual control levers + wireless remote control box
/4 pcs hydraulic outriggers, optional H shape or X shape.
/Engineering rotary lights to warn people.
| Truck Technical Specifications for Aerial Bucket Truck Isuzu NKR |
|||
| Vehicle Model | PST5070JGK14Z | Maximum Working Height | 14 meters |
| Chassis brand | ISUZU NKR |
New or Used | Condition new of year 2023-2024 |
| Overall dimension | 6860x2200x3350mm | Cargo Box Dimension | - |
| Gross weight |
7300 kg |
Rated Weight | - |
| Curb weight | 4800KG | Wheelbase | 3360mm |
| Axle No. | 2 | Cab Seat No. | 3 |
| Axle Load | 2500/48000 kg | Fuel Type | Diesel |
| Engine | ISUZU 4KH1CN 120HP | Steering System | LHD, power aissist steering |
| Transmission | ISUZU MSB model 5 - speed | Clutch | Single dry clutch plate |
| Brake |
Air brake | Tire No. | 6 +1 pcs |
| Front/Rear Suspension | 1350/2010 mm | Tire Model | 7.00R16 |
| Fuel Tank | 75 liter | Battery | 24V |
| Max speed | 90km/h |
||
| Superstructures Parameters |
|||
| Model | PST 14m |
Maximum Working Height | 14 meters |
| Boom Type | 3-section arm, folding arm | Maximum Working Radius | 6.8 meters |
| Basket Dimension | 1200x750x1200 mm | Slewing Angle | 360° continually rotary |
| Basket Load | 200kg, optional insulated bucket |
Outrigger | Front V rear H shape hydraulic legs |
| Basket Slewing | 360° | Outrigger Span |
Horizontal 4.0 meter, Vertical 4.0 meters |
| Operation System |
One set at down turntable position, one set on upper basket. Optional: computer control system + wireless remote controller |
||
| Safety System |
1. Whole vehicle automatically balance leveling real-time test; 2. Outrigger auto leveling, basket auto leveling; 3. Up and Down operation anti-lock, Upper operation on basket & down operation at turntable can't operation at the same time; 4. When people on basket, outrigger operation is locked, can't operate, to prevent damage happened; 5. Emerngecy pump is installed to prevent emergency situation. |
||
How to use the front 1000kg hoist hooker of the Aerial Bucket Truck Isuzu NKR from POWERSTAR:
Operators can take advantage of the boom arm to lift materials. Crane has a load table, the rated lifting capacity for Isuzu aerial platform trucks from POWERSTAR TRUCKS INDUSTRY CO., LIMITED is 1000kg, which also called 1tons, 2200 pound.
Operator must memorize the amount of work lifting the truck for Lifting, you should know the hanging weight of the goods compared with the rated load when lifting goods, first it is lifted into place, then the percentage change in use to achieve the lower arm in place. At this point, the goods should not be hanging over the lower arm angle in this piece, the maximum permitted rated load.
When using the crane from Isuzu NKR 14m manlifter truck must comply with the following regulations, such as failure to comply with these regulations will be the make operator and ground crew injury.
Ø Lifting, lifting hoists are not allowed to exceed the rated load indicated in the table.
Ø Weight lifting is not allowed to load unknown goods.
Ø It will not allow pulling the side, except for what happened with the operator's side of the physical tension.
Ø Operating vehicles are not allowed to use pole, pull cables, etc., should be special device to do this work.
Ø Be sure to replace worn or damaged winch rope immediately
Ø Mankind prohibited standing in the bucket when hoist hooker working.
Ø The correct command is the basis for lifting should be planned and prepared.
Ø To comply with the procedures provided in this manual to ensure the stability of operating vehicles.
Isuzu Chassis 14m Truck Mounted Aerial Working Platform Isuzu Brand 14M Telescopic Boom Aerial Working Platform Technical Parameters (PT5061JGK10S GKS-14QX) Working Condition 1, Altitude: 0-1000m 2, Temperature: -25° C--+45° C, environmental relative humidity ≤ 90% 3, Allowed working condition: Solid, stable land, the vehicle should be horizontal 4, Wind force: ≤ 6 degree (wind speed ≤ 12.5m/s ) Working Range PT5061JGK Telescopic Boom Aerial Working Platform can be applied in various conditions for aerial working, such as urban road, suburban road, highway, airport, bridges and culverts and so on. The structure type is telescopic boom and the lifting boom is flexible, convenience and performance with the negative point, more suitable for narrow site conditions or other special operations. Bulletin No. KFM5061JGK10S Type GKS-14QX External dimensions ( mm ) 7050×2020×3250 Structure type Three-section telescopic boom Working Cage Internal size ( mm ) 1200×600×1100 Rated loading ( kg ) 200 ( or 2 persons ) Max. Working height ( mm ) 14000 Max. Height from ground ( mm ) 12300 Max. Working radius ( mm ) 9300 Working radius when doing the highest height ( mm ) 1320 Working Boom Lifting angle of main boom ( º ) -24_78° Out rate speed ( mm/sec ) 8500/50 Ret rate speed ( mm/sec ) 8500/50 Boom rack rotation angle ( º ) 360 Boom rack rotation speed ( r/min ) 1.0 Outrigger Vertical span ( mm ) 3050 Horizontal span ( mm ) 3600 Traveling of vertical outrigger ( mm ) 450 Adjustment Single adjustable
