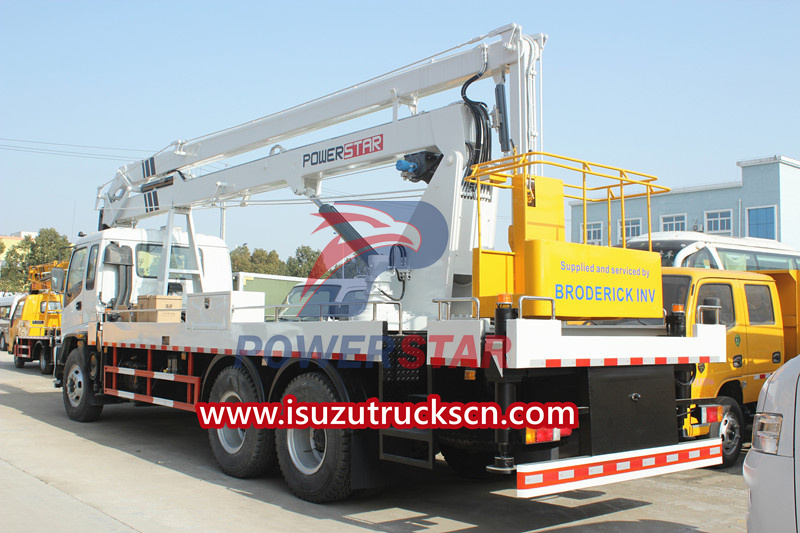

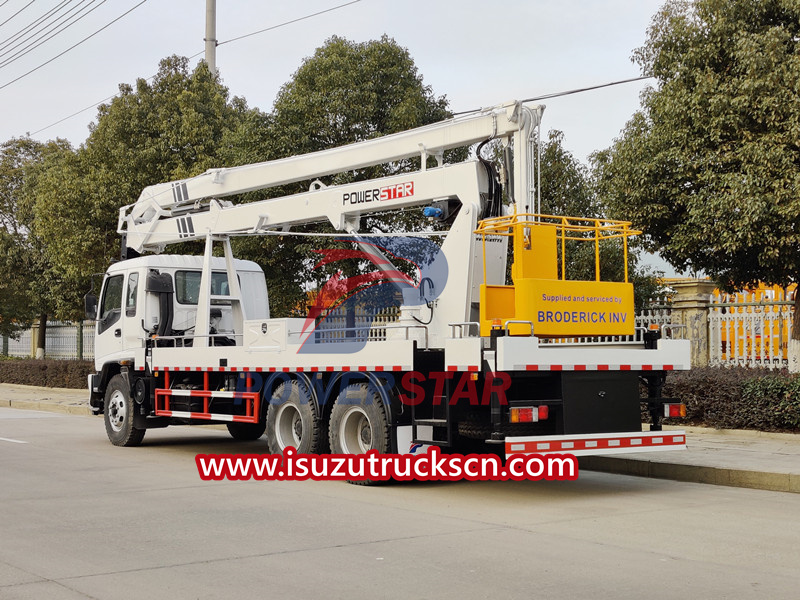

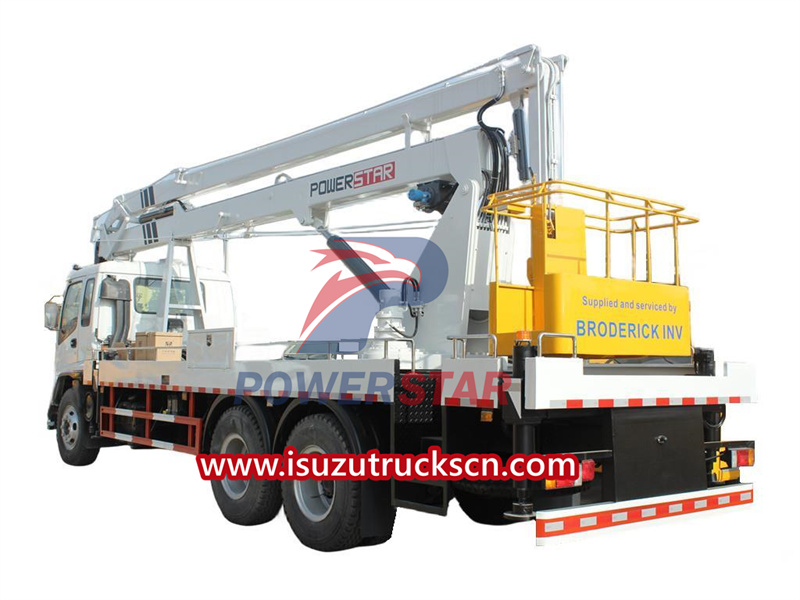

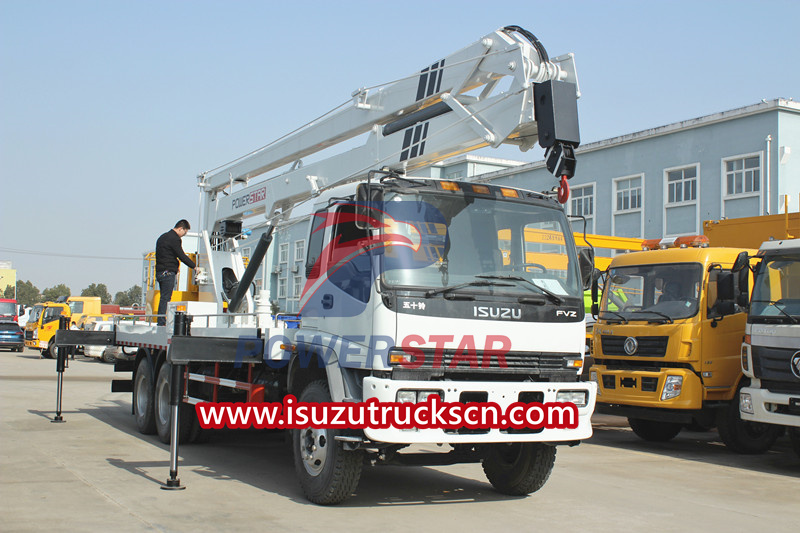

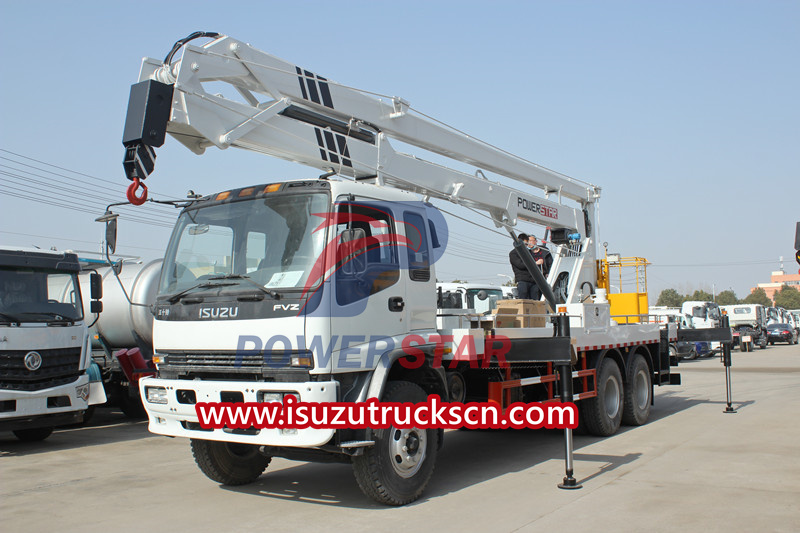

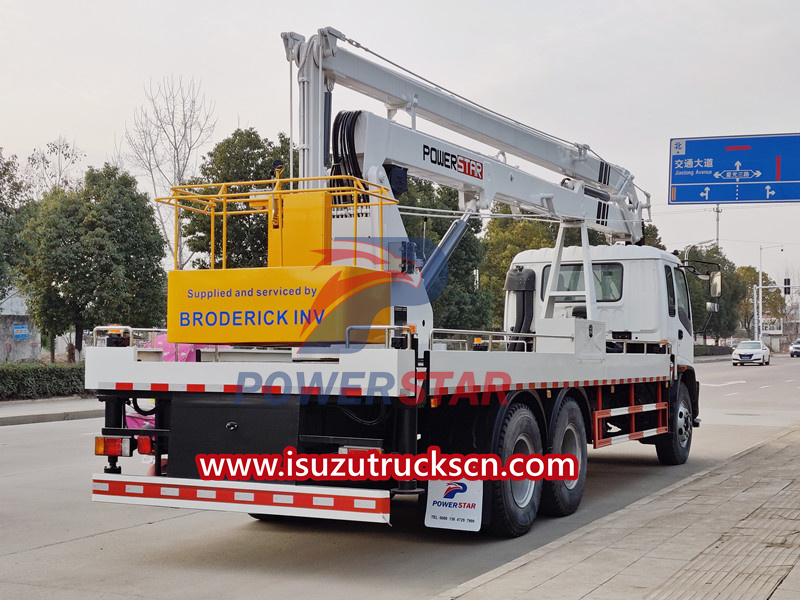

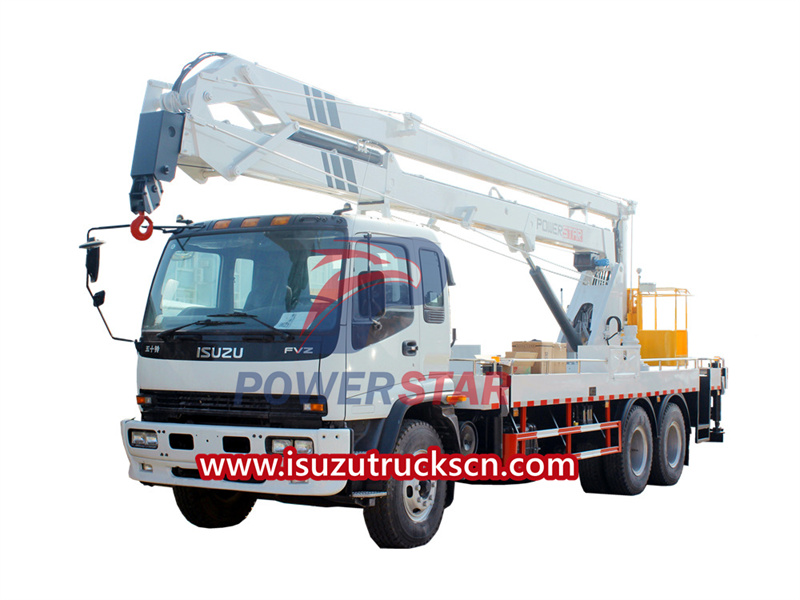

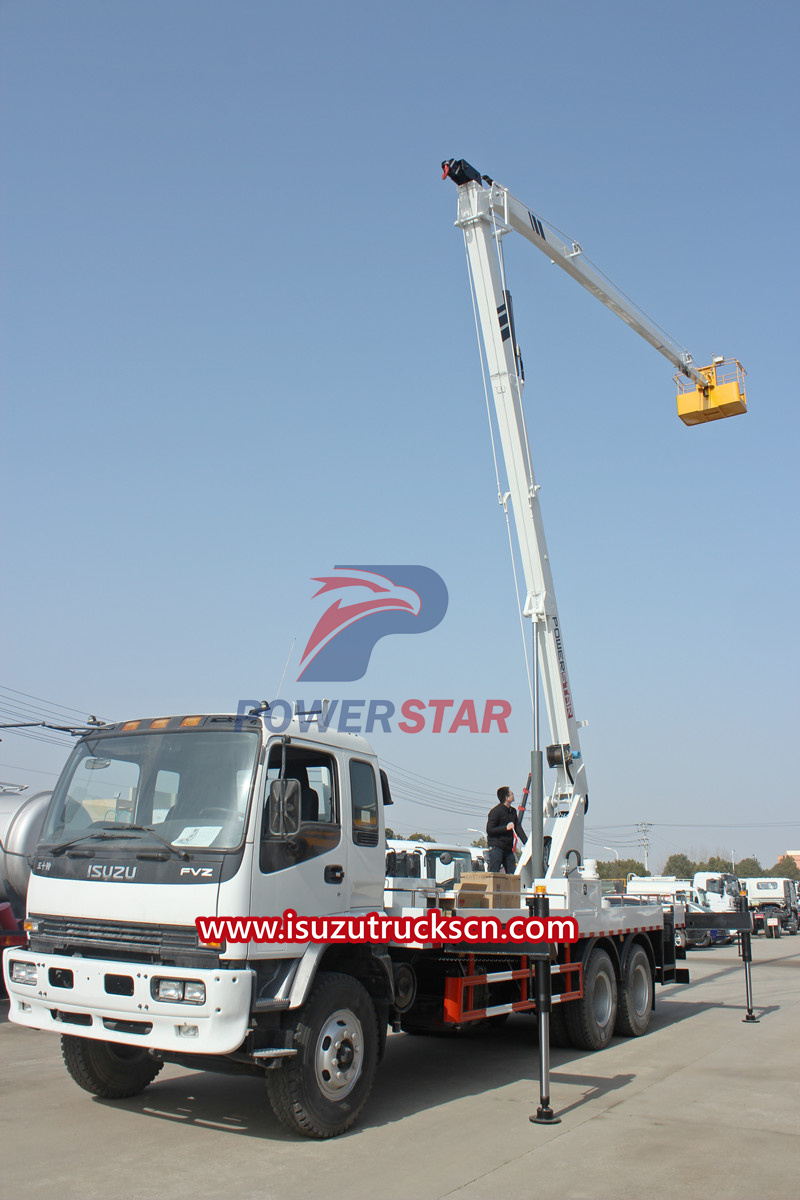

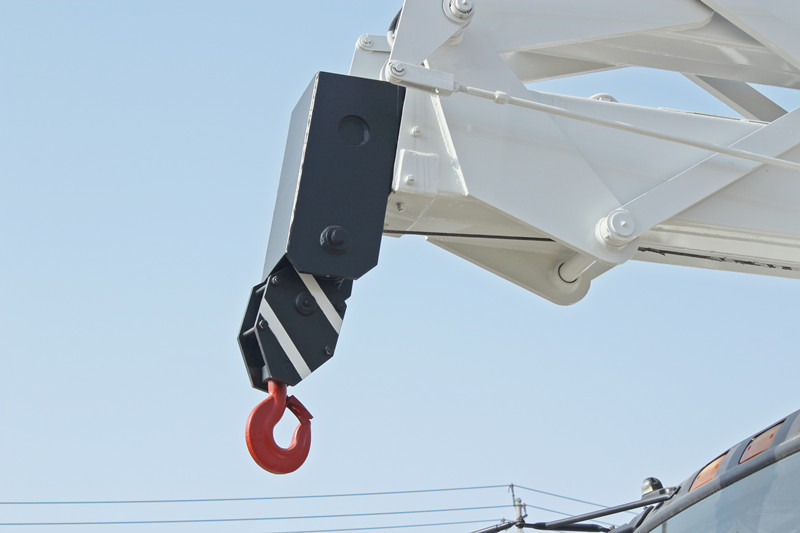

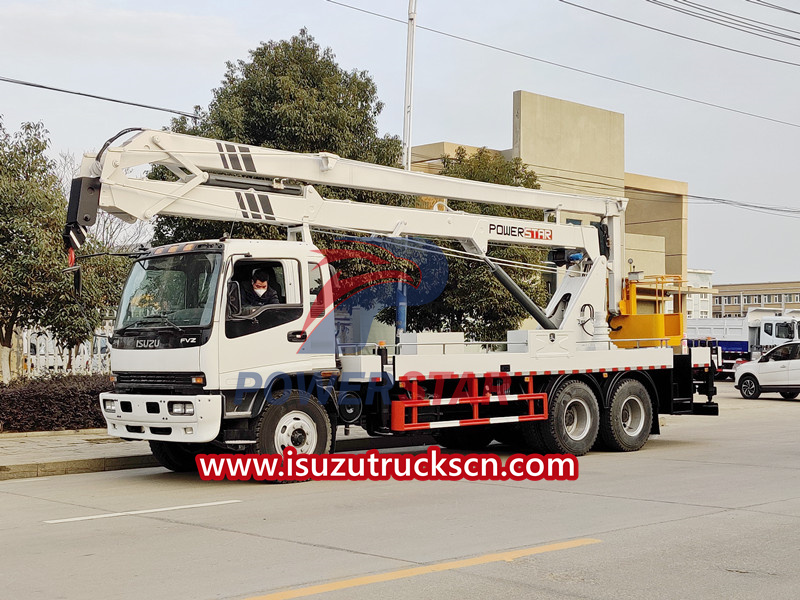

Super powerful Isuzu 6x4 aerial platform truck also named as Isuzu 10 wheeler manlifter truck, which based on original Isuzu FVZ cabin chassis, six cylinders 6HK1-TC diesel engine with 300HP, FAST 12-shift manual geabox with 12 forward and 2 reverse back, 3 section folding arms with working height can be up to 22m, bucket lifting capacity can be 300kg. Painting and Logos as customized. Safety electric control valves at platform and bucket for easy operation, with English version manual for safety usage guidance.
Work capacity:
22 mTruck model:
PT5250JGK22ZEngine power:
300 HPEngine type:
6HK1-TCAxle drive:
6×4Gear box:
FAST 12-speed, manualRemarks:
Original Japan ISUZU FVZ 6x4 truck chassis, 22m folding arm bucketIsuzu aerial platform truck a newly designed Isuzu boom lift truck, Isuzu 22m bucket truck, which is a fully functional, safe and reliable commercial vehicle designed to provide convenience and safety for working at heights. Its aerial platform, chassis, drive system, safety equipment and other aspects have been carefully designed to meet the needs of high-altitude operations. Whether working at heights such as construction sites, repairing equipment or cleaning windows, the Isuzu aerial platform truck is a reliable work platform. Which providing a safe and efficient working platform. It is widely used in construction, maintenance, cleaning, electricity, communications and other fields, and is especially suitable for places that require maintenance, installation or other operations at high altitudes.

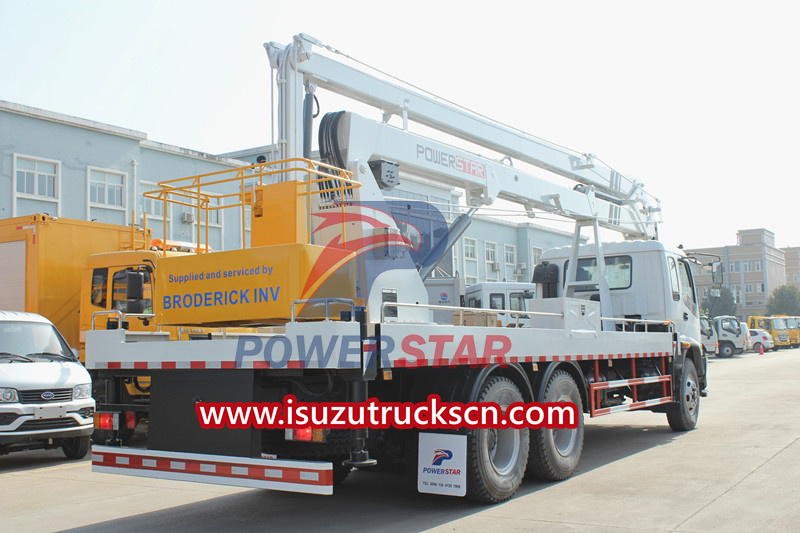

Main Component for Isuzu 22m bucket truck from POWERSTAR:
1. PTO System: PTO system consisted of the oil pump, PTO, electrical control switches and pneumatic solenoid valve. The system working in output the power to oil pump storage as a hydraulic energy. This system is controlled by an on/off switch that installed in the driving cab, through the interior of the switch’s joint or separation, lead the gear be driven from the transmission make the pump stop or working.
Attention: When Isuzu 22m Bucket Truck in driving, PTO should be in position of OUT-OFF transmission; make sure the oil pump not in RUNNING.

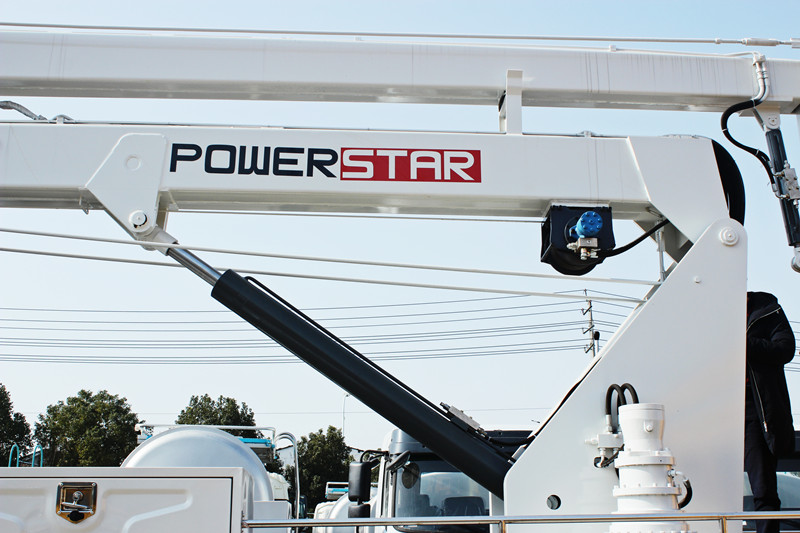

2. Slewing Rotation System: Slewing rotary system consisted by the hydraulic motor, gear reducer, slewing gear, etc. The system worked as: hydraulic motor drive the reducer, the small gear, in reducer output shaft, drive the slewing ring move, and slew the saddle turnable.
3. Centre Slewing Joints: The center slewing joints, installed in the center of rotatory saddle, achieved the oil and electric power through the truck. As the system equipped with rotatory rings, the hydraulic oil pipes and electric wires would not twisted together.

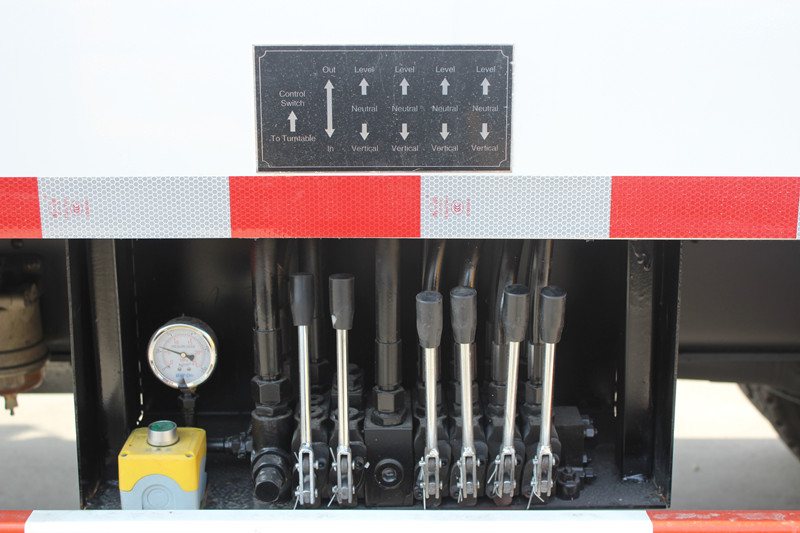

4. Hydraulic System: The hydraulic system hydraulic oil supplied by ONE pump, worked pressure at 14Mpa, flux as 25L/Min, the pressure adjustable by an overflow valve. When the PTO coupling with the transmission ,the pump will in a situation of running, the oil output from the oil tank to all the legs which controlled by a control valve equipped in the control panel. Finished leg operation, handle the operation poke into position marked as, then, the oil would derived from leg system to “To arms”, and the upper control panel would be active, and then could start the next operation works.
| Main specification | Chassis brand | ISUZU FVZ 22m Bucket Truck |
|||
| Chassis model | QL1250 | ||||
| Overall dimension(L*W*H) | 10800x2500x3980mm | ||||
| Gross / Curb weight | 25,000kg / 12,580kg | ||||
| Chassis | Drive modle | 6*4 left hand drive | |||
| Wheel Base | 4600+1370 mm | ||||
| Tyre size & number | 12.00R20, with one spare tyre | ||||
| Fuel/Engine type: | Diesel,Vertical in-line, water-cooled, four stroke, electronically controlled high pressure common rail | ||||
| Engine model | 6HK1-TC | ||||
| Engine horse power | 300HP (220KW) | ||||
| Emission | Euro 5 |
||||
| Transmission | FAST 12 speed forward, 2 reverse | ||||

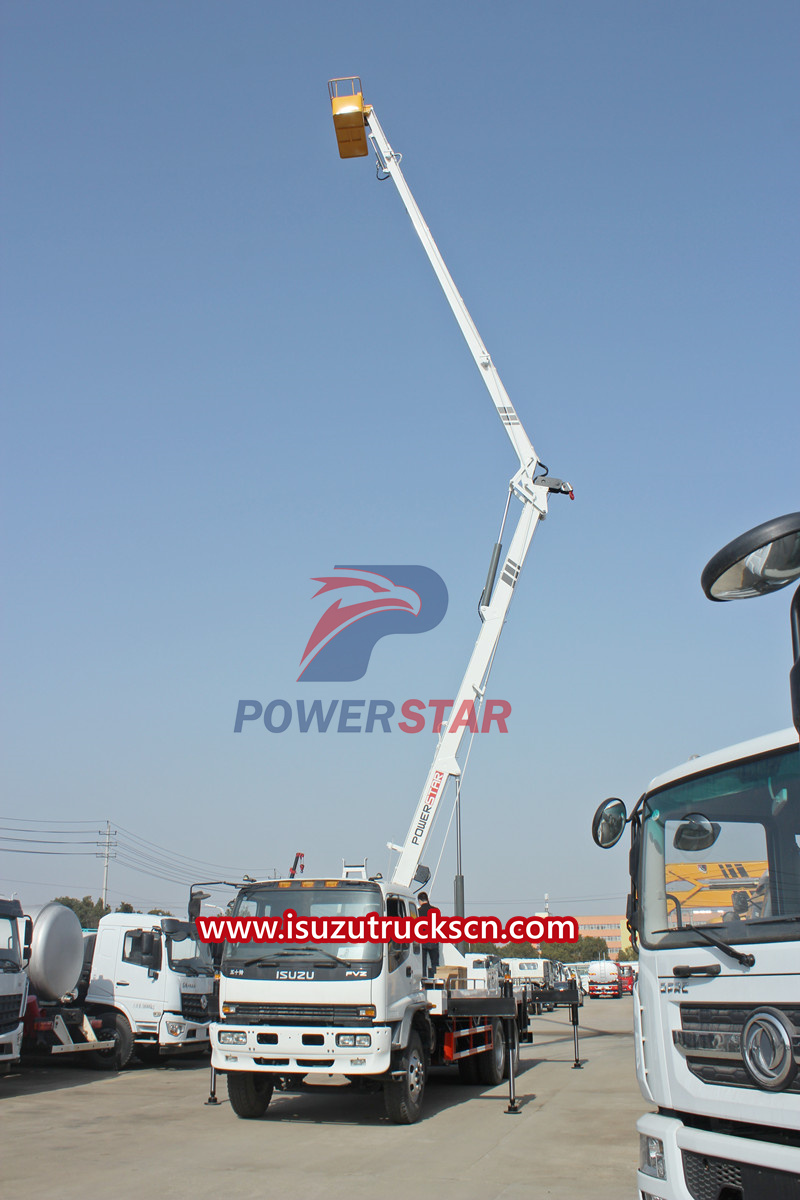

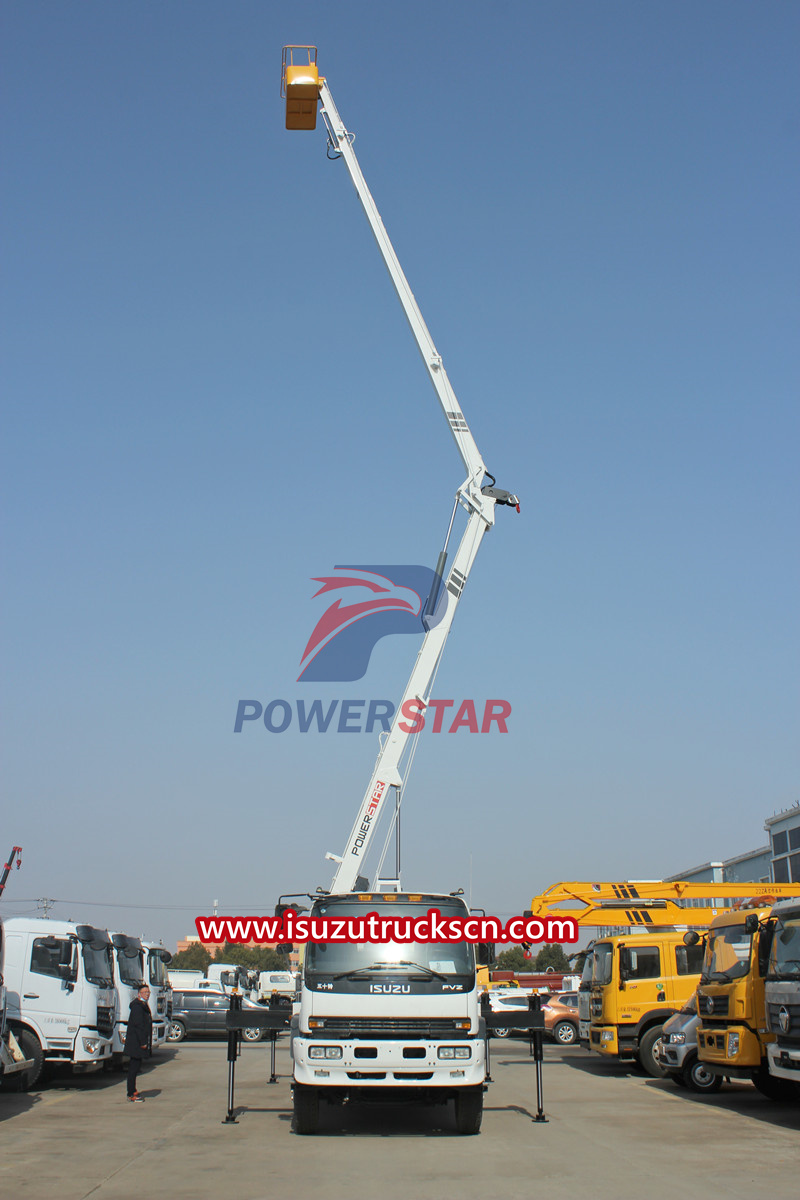

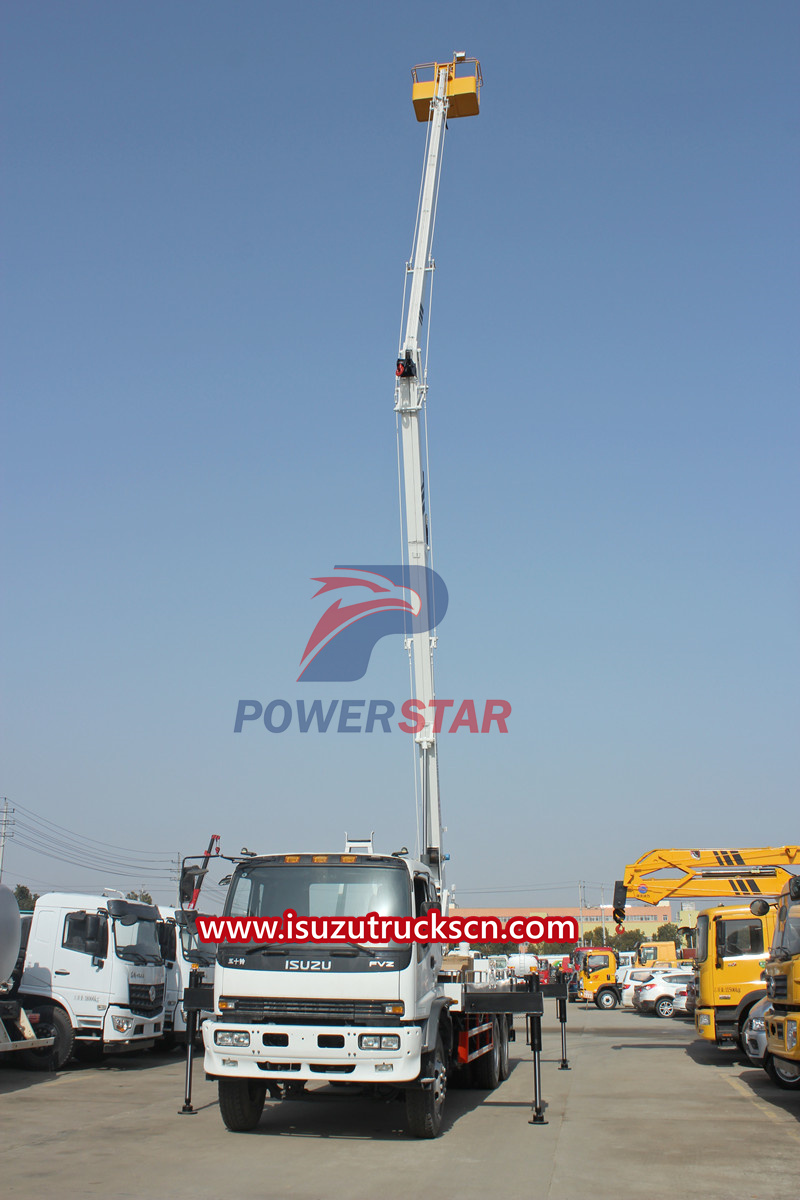

| Working condition | Maximum operating height | 22 m | |||
| Max. bucket bottom height | 20 m | ||||
| Rotation | 360° | ||||
| Boom Type | 3 Sections telescopic boom | ||||
| Outrigger type | Outrigger type | Front V Rear H type. Controlled independently | |||
| Outrigger span | Vertical | 5800mm | |||
| horizontal | 4800mm | ||||

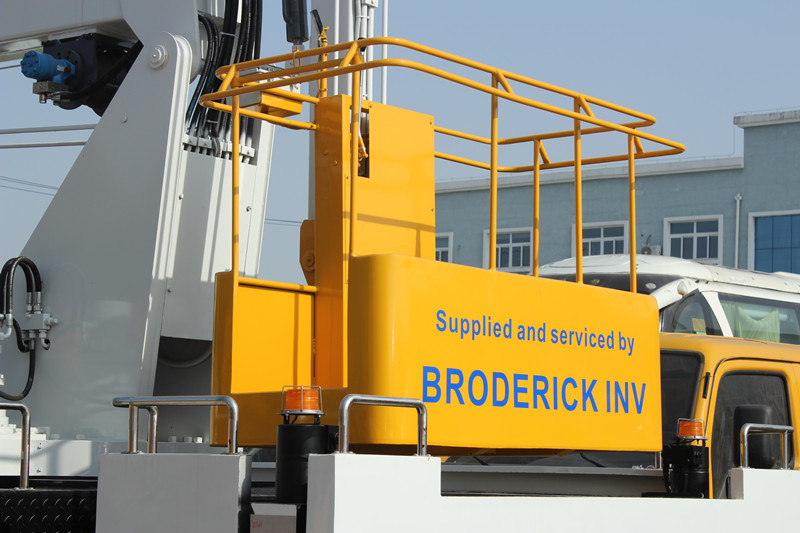

| Basket | Rated loading weight | 300kgs | |||
| L*W*H | 1500x700x1150mm | ||||
| Operation system | Operation | 4 operation mode: Electrical operation of working platform ,ground remote control ,controller in the bucket,and emergency lever. | |||
| Control system | Electro hydraulic proportional control system and optional load proportional system can realize double action synchronization and stepless speed regulation | ||||
| Leveling system | Hydraulic automatic leveling | ||||
| Security configuration | Automatic interlocking device for up and down | For locking up and down the truck to prevent the risk of misoperation. | |||
| Basket | 360 degree rotation | ||||
| Horizontal function | Real time display | ||||
| Real time communication | There is wireless intercom between the platform and the vehicle | ||||
| Emergency electric emergency pump | When the engine and main pump failure, the operator can be sent back to the ground. | ||||
How to lubrication the Isuzu 22m bucket truck from POWERSTAR:
Please lubricate all main parts according to the following table in order to increase of service life of all parts. The chassis lubrication should been operated with chassis manual.
|
NO. |
Name |
Lubrication Points |
Lubrication System |
Lubrication models |
Lubrication Cycle |
|
1 |
Arm axis |
4 |
Oiling |
ZG－3 Albany grease ZG－3 |
1month |
|
2 |
2nd Arm Cylinder Hinge Point |
2 |
Oiling |
ZG－3 Albany grease ZG－3 |
1month |
|
3 |
Lifting Horizontal Cylinder Hinge Point |
2 |
Oiling |
ZG－3 Albany grease ZG－3 |
1month |
|
4 |
Hydraulic Legs |
Related Points |
Amounted Oiling |
ZG－3 Albany grease ZG－3 |
1month |
|
5 |
1nd Arm Cylinder Hinge Point |
2 |
Oiling |
ZG－3 Albany grease ZG－3 |
1month |
|
6 |
Slewing Tooth Saddle |
All Points |
Properly Oiled |
ZG－3 Albany grease ZG－3 |
1month |
|
7 |
Slewing Supporter |
2 |
Oiling |
ZG－3 Albany grease ZG－3 |
1month |
|
8 |
Slewing Reducer |
1 |
Oiling |
90# Industrial gear oil 90 # |
Semiannual |
|
9 |
Lifting Hoister |
1 |
Oiling |
90# Industrial gear oil 90 # |
Semiannual |
|
10 |
3nd Arm Cylinder Hinge Point |
2 |
Oiling |
ZG－3 Albany grease ZG－3 |
1month |
|
11 |
Rod Axis Hinge Point |
16 |
Oiling |
ZG－3 Albany grease ZG－3 |
1month |
|
12 |
Bucket Arm Hinge Point |
2 |
Oiling |
ZG－3 Albany grease ZG－3 |
1month |
