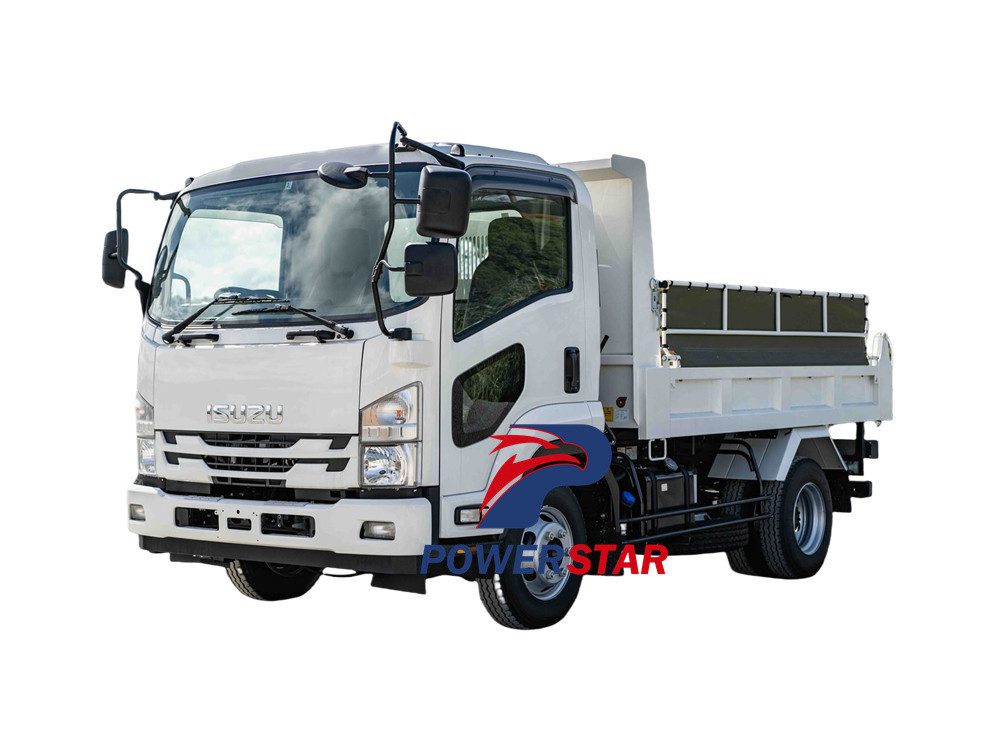

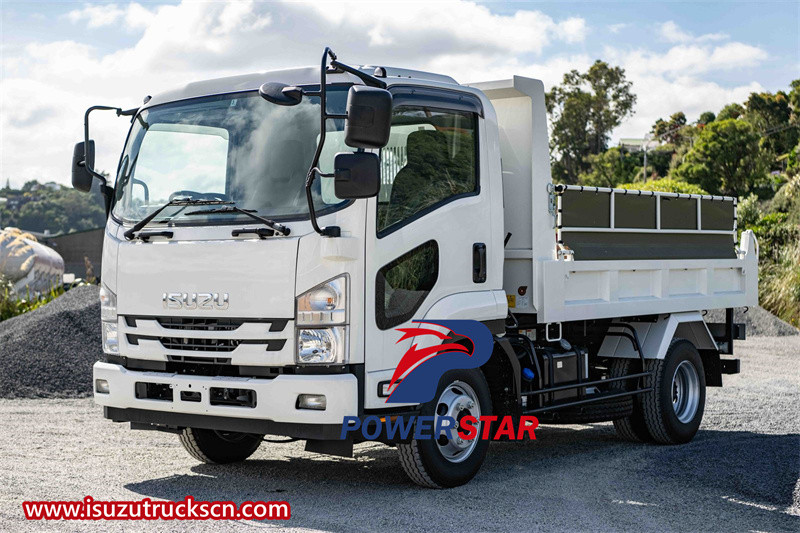

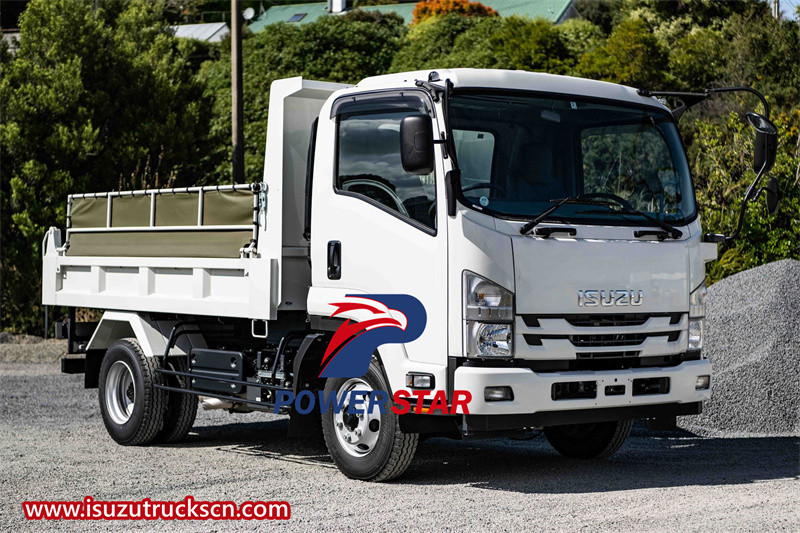

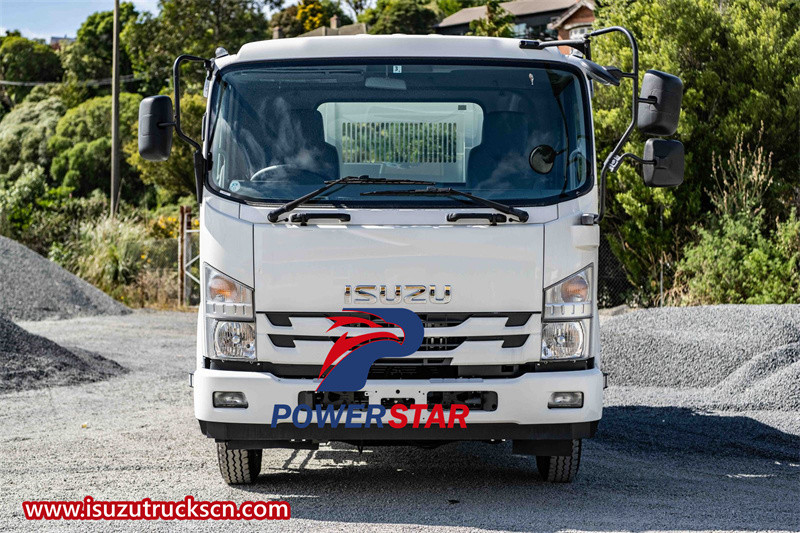

The Isuzu 4x2 700P tipper truck is a popular choice for transportation and construction purposes. This model offers a durable chassis and a powerful engine suitable for carrying and unloading materials efficiently. The tipper feature allows for easy unloading of goods, making it ideal for construction sites, mining operations, and various other industries requiring material transport.
Work capacity:
5 tonsTruck model:
PT5050GWREngine power:
190HPEngine type:
4HK1-TC51Axle drive:
4x2，Right hand driveGear box:
MLD 6-speed，manualRemarks:
High load capacity
Isuzu 4x2 700P tipper truck, also called Isuzu 700P dump truck,Isuzu garbage dump vehicle,Isuzu tipper lorry truck,Isuzu off road hook loader, refers to a vehicle that unloads goods by itself through hydraulic or mechanical lifting. The Isuzu 4x2 700P tipper truck is composed of automobile chassis, hydraulic lifting mechanism, cargo compartment and power take-off device. In civil engineering, dump trucks often work together with excavators, loaders, belt conveyors and other engineering machinery to form a loading, transporting and unloading production line to carry out the loading and unloading of earthwork, sand and gravel, and bulk materials.
Features:
1.Using Japanese technology ISUZU 700P Chassis, super power, larger displacement, with Stronger Engine performance.
2. Remove the urea system and cancel DPF.
3. Quality test from the production to the finish of the whole truck.
4. Professional and experienced technical team support to provide customized trucks with high quality & reasonable price.
5. Genuine spare parts supply.
6.Prompt delivery. All the truck will be polished with wax before shipping and accordingly the truck type and destination port to choose the most suitable and cost-effective shipping way.
|
Truck Specification |
||
|
Truck model |
PT5050GWR |
|
|
Cab |
Single row cab, with power steering. Electronic flameout |
|
|
Driving Type |
4*2, Right hand driving |
|
|
Max Speed (km/h) |
110 |
|
|
Overall dimension(mm) |
6300×2350×2380(mm) |
|
|
GVW( kg) |
7985 |
|
|
Mass in working order ( kg) |
3700 |
|
|
Wheelbase(mm) |
3360 |
|
|
F/R track base (mm) |
1504/1425 |
|
|
F/R overhang (mm) |
1015/1815 |
|
|
Approach/Departure Angel |
24/14 |
|
|
Tire |
7.00-16,7.00R16 |
|
|
Clutch |
Single-plate dry diaphragm spring clutch |
|
|
Steering |
Hydraulic steering with power assistance |
|
|
Gear box |
MLD 6-speed |
|
|
Bridge |
Front axle |
4 T |
|
Rear axle |
7 T |
|
|
Enging |
Model |
4HK1-TC51 |
|
Fuel Type |
Diesel fuel |
|
|
Type |
Water-cooled four-stroke,, direct injection, turbocharged |
|
|
Exhaust(ml) |
6193 |
|
|
Max output power/rotate speed (hp /rpm ) |
115/3200 |
|
|
Max torque/rotate speed(N.m/rpm) |
300/1600-2400 |
|
|
Braking system |
Service Brake |
Compressed air brake |
|
Park Brake |
Spring energy |
|
|
Auxiliary brake |
engine exhaust brake |
|
|
Eletric system |
24v |
|
|

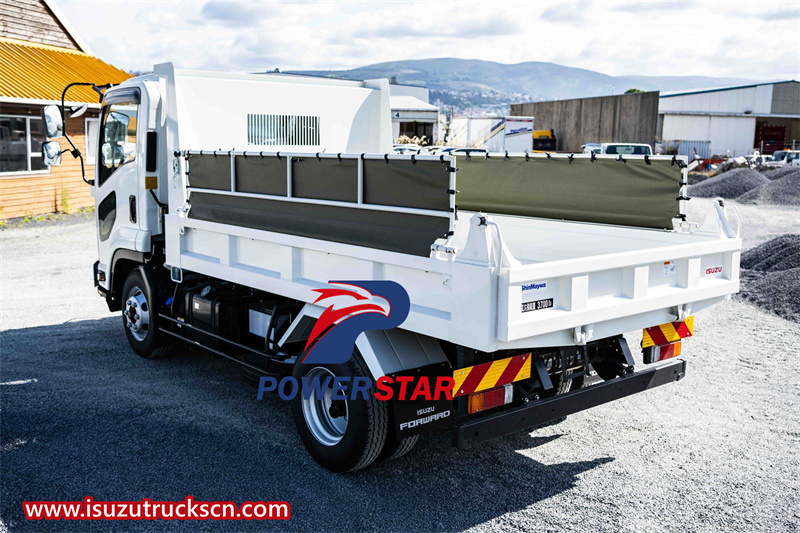

Upper-Body specification |
|
|
Dump box dimension (L*W*H)(mm) |
3800*2250*550 |
|
Dump box material |
Carbon steel |
|
Dump box thickness (mm) bottom/side |
5/4 |
|

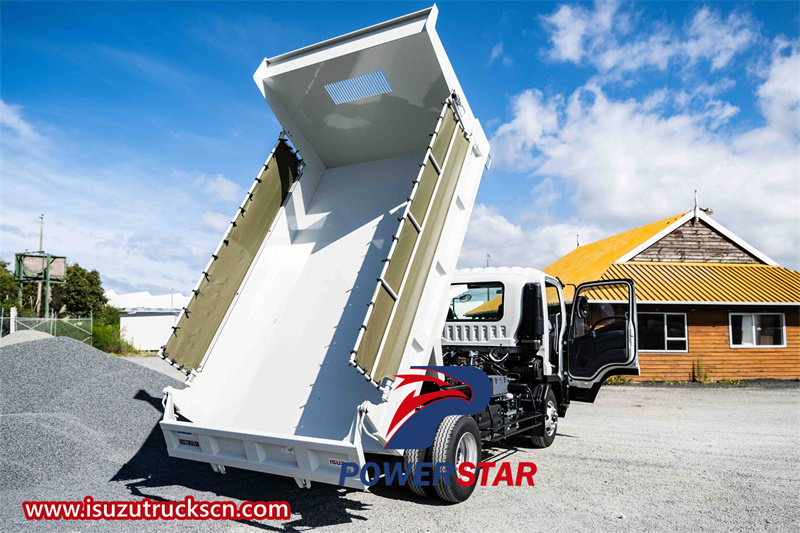

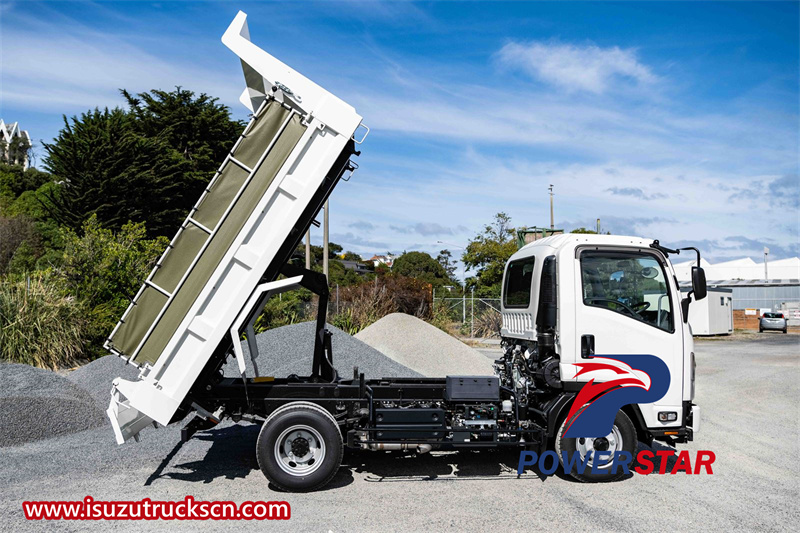

Hydraulic cylinder |
Middle-placed T-Shape cylinder |
|
Dump box color |
According to customer's requirement |
The Isuzu 4x2 700P tipper truck is a powerful and well-designed heavy-duty transport vehicle. The following is a description of the five main features of this model:
1. Appearance design: The Isuzu 4x2 700P tipper truck has an eye-catching appearance design, and its smooth and powerful lines give people a strong visual impact. Every detail of the car body reflects the product's excellent quality and exquisite craftsmanship. Whether it is the headlight design on the front face or the side lines of the car body, it highlights its unique charm.
2. Power performance: This dump truck is equipped with a powerful Qingling-Isuzu 4HK1-TCG61 engine. The 4-cylinder diesel inline engine with a displacement of 5.19L provides ample power for the vehicle. The maximum horsepower reaches 190 horsepower, and the drive mode is 4X2, which can meet various complex road conditions and transportation needs.

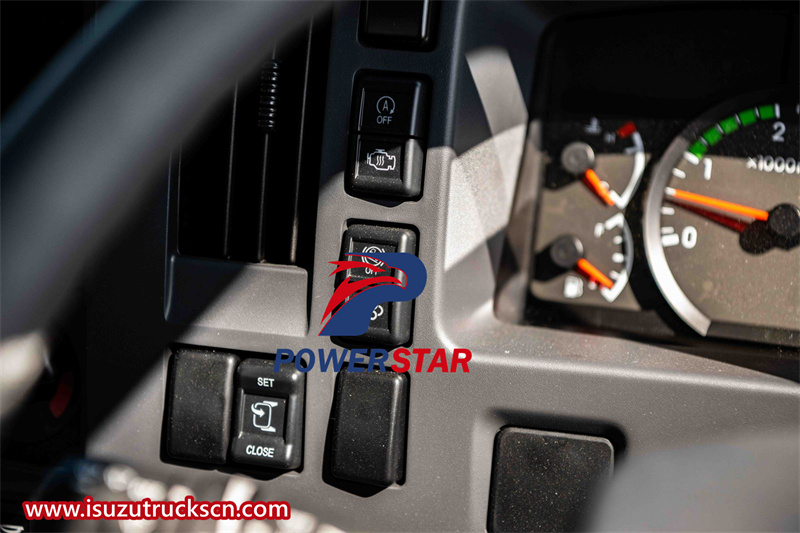

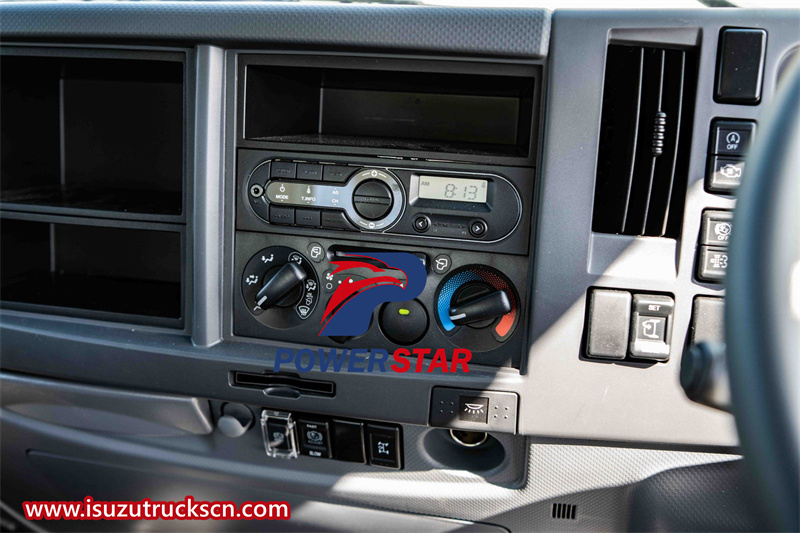

3. Control and comfort: The Isuzu 4x2 700P dump truck not only has stable control, but also has a very user-friendly cab design. The spacious driving space and high-quality seats allow drivers to enjoy a comfortable driving experience. In addition, the vehicle is equipped with advanced suspension systems and shock-absorbing technology, which effectively reduces vibration and noise during driving.

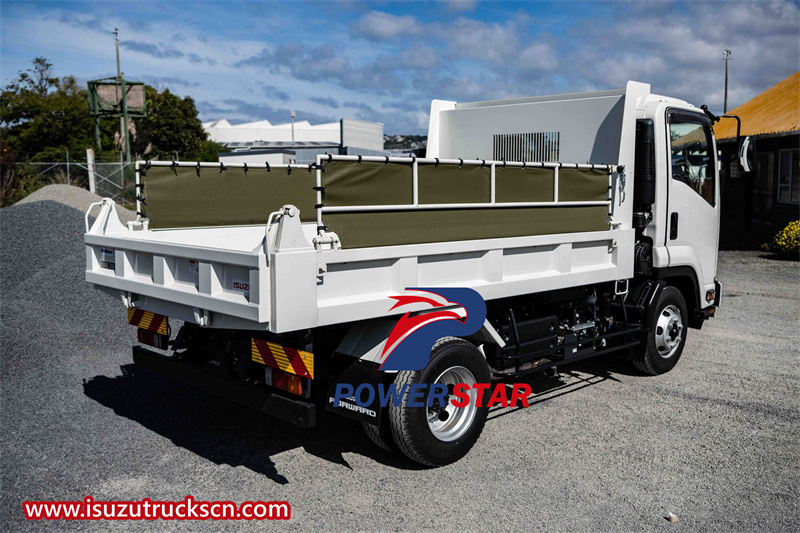

4. Loading and unloading capacity: As a dump truck, its cargo box length can reach 3.82 meters (depending on different configurations) and has excellent loading capacity. At the same time, the self-unloading function makes the unloading process faster and more convenient, greatly improving work efficiency.
5. Economy and environmental protection: The Isuzu 4x2 700P dump truck performs well in terms of fuel economy and has lower fuel consumption compared with vehicles of the same level. In addition, the vehicle also adopts advanced emission control technology, complies with National VI emission standards and is environmentally friendly.
