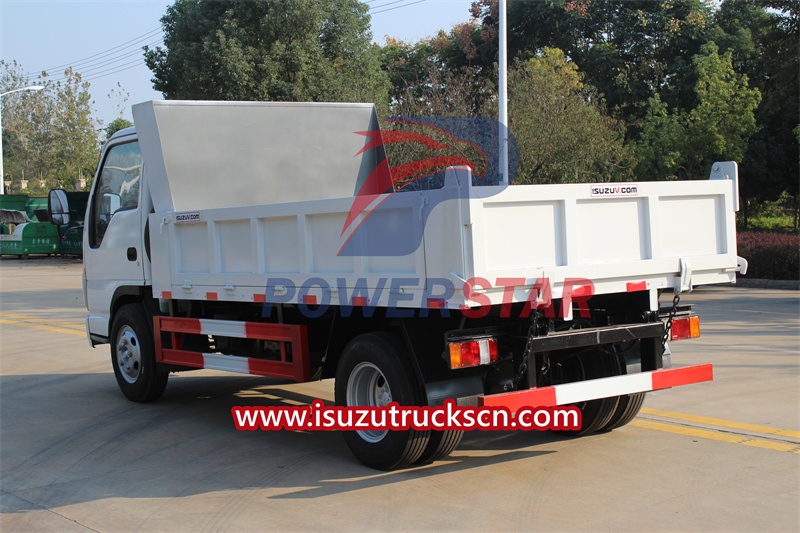

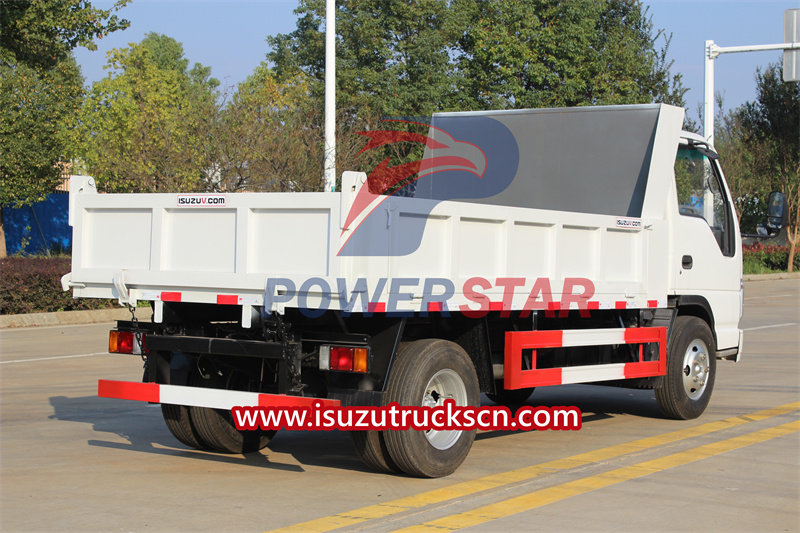

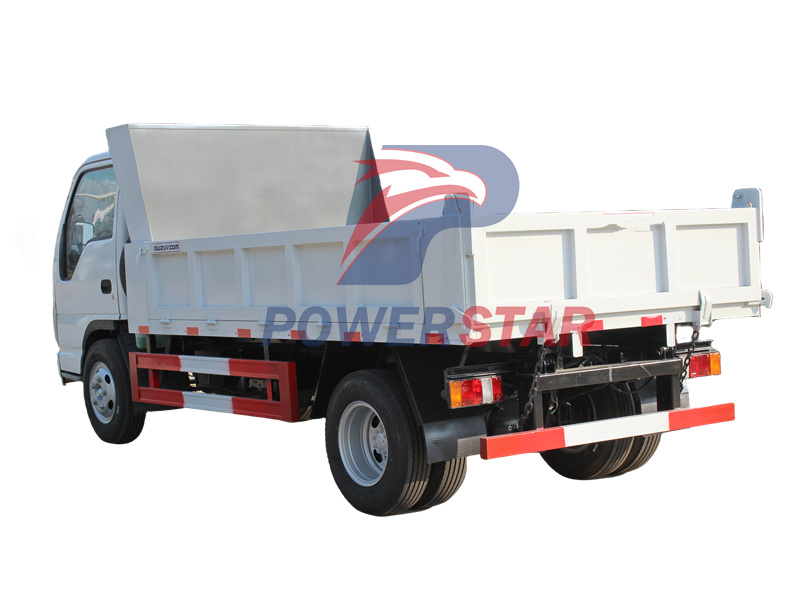

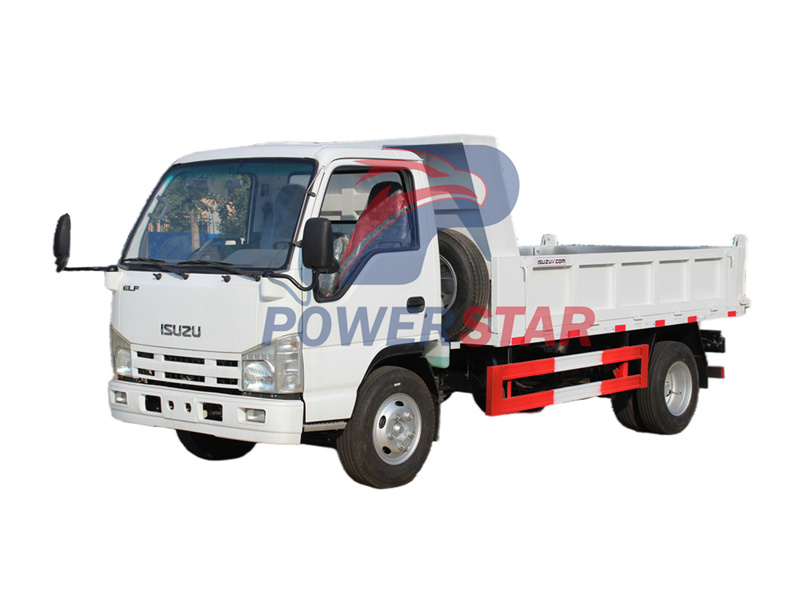

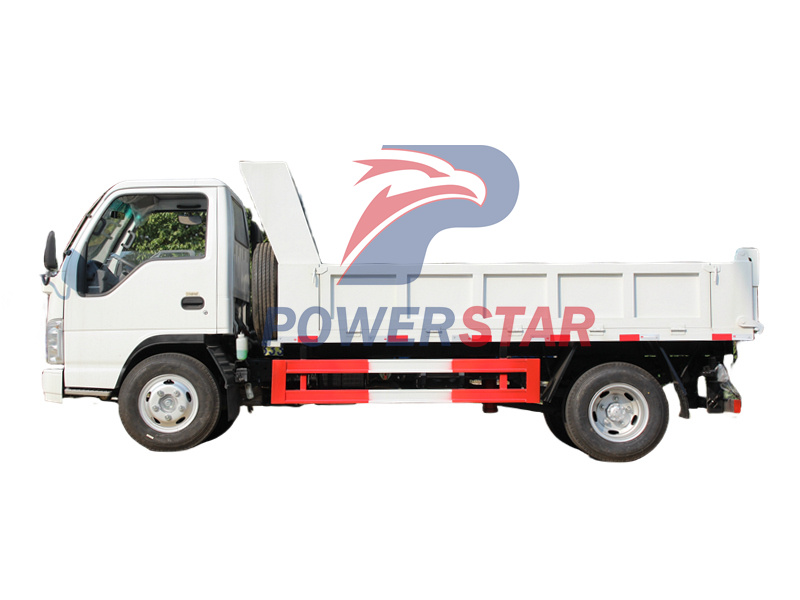

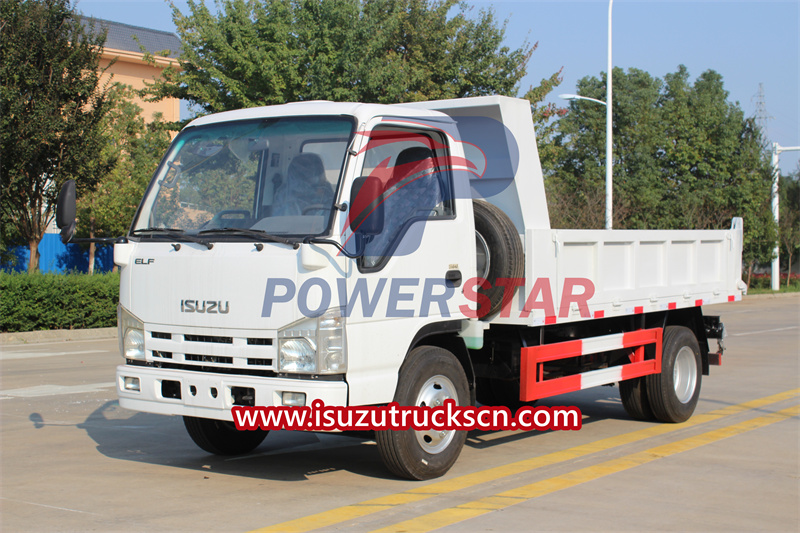

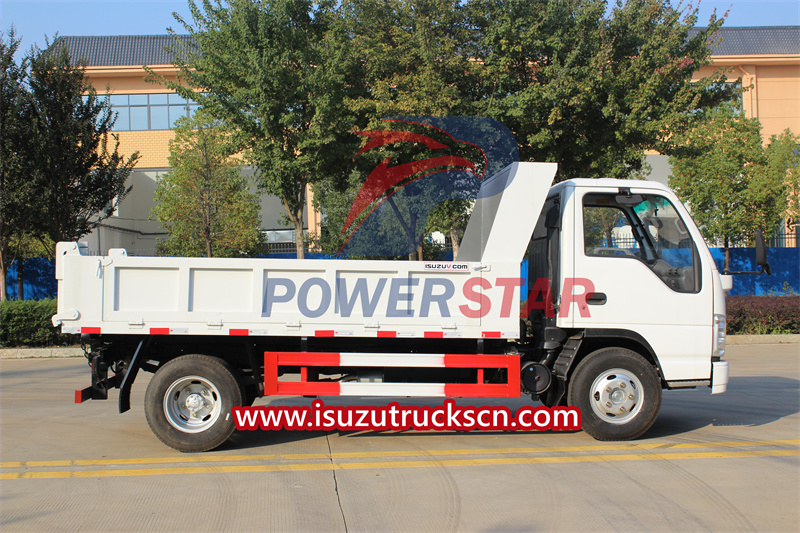

The Isuzu garbage rear dump truck has a right/left-hand drive 4x2 drive type and is equipped with a 98hp ISUZU 4KH1 engine with a displacement of 2.77 liters and a top speed of 95 km/h. The loading capacity is 3-4 tons. The body material is high-performance carbon steel. It adopts a hydraulic control system, a central lifting device, a 45-degree tilt unloading system, a lifting time of 20 seconds, a landing time of 15 seconds, and the tailgate automatically releases. The panels are removable and painted with two coats of primer and one topcoat, with colors and logos customizable upon request. The cab is single-row steel and equipped with central locking, electrically controlled windows, adjustable driver and passenger seats, stereo radio tape recorder, seat belts, horn, air conditioning, rearview mirrors and ABS.
Work capacity:
3tonsTruck model:
Isuzu 100P garbage dumpEngine power:
98hpEngine type:
Isuzu 4KH1CN5LSAxle drive:
4x2Gear box:
Isuzu MSB 5 shiftRemarks:
Dropside bodyIsuzu garbage rear dump truck is a dump truck produced by Powerstar specially used for urban sanitation work. This vehicle adopts an optimized chassis and suspension system, has high stability and handling performance, and is suitable for tasks such as garbage removal and waste transportation in narrow urban streets. The body design is compact, has excellent turning radius and maneuverability, and can easily cope with busy urban traffic conditions. In addition, this model is also equipped with a comfortable cab to provide a comfortable working environment for the crew.
|
Isuzu Dump truck basic |
Made |
POWERSTAR |
|
Series |
ISUZU |
|
|
Driving Type |
Right/Left hand drive 4x2 |
|
|
Isuzu Dump Engine |
Isuzu Dump Engine Model |
ISUZU 4KH1 |
|
Engine Type |
4-cylinder in-line with water cooling,turbo-charging and intercooling,4-stroke direct injection diesel engine |
|
|
Power |
98hp |
|
|
Displacement |
2.77L |
|
|
Max speed |
95 Km/h |
|
|
Type of fuel |
Diesel |
|
|
Emission Standard |
Euro 5 |
|
|
Isuzu Dump Transmission |
Model |
Isuzu MSB |
|
speeds |
5 speeds |
|
|
Isuzu Dump Axle |
Front Axle |
2.5T |
|
Rear Axle |
4.5T |
|
|
Isuzu Dump Fuel tank |
Capacity |
80L capacity with locking fuel cap |
|
Isuzu dump Tyre |
Radial Tyre |
700R16 |
|
Isuzu Dump Driver's Cab |
Mini Cab |
Single cabin, full steel materials, central locking function, electrical controlled window, adjustable driver's seat and co-driver's seat, stereo radio cassette recorder, safety belts, air horn, air conditioner, rear view mirrors, ABS. |
|
Isuzu Dump Dimensions |
Wheel base |
3360mm |
|
Overall dimensions |
5500*1980*2200 mm |
|
|
Dimension of the rear dump body |
2800*2300*1500 mm |
|
|
Isuzu Dump Performance |
Loading Capacity |
3-4 tons |
|
Body Material |
High performance carbon |
|
|
Plate Thickness |
Front/Side are 3mm |
|
|
Rear/Side are 4mm |
||
|
Control System |
Hydraulic |
|
|
Hydraulic Lifting |
Middle lifting device |
|
|
Discharging System |

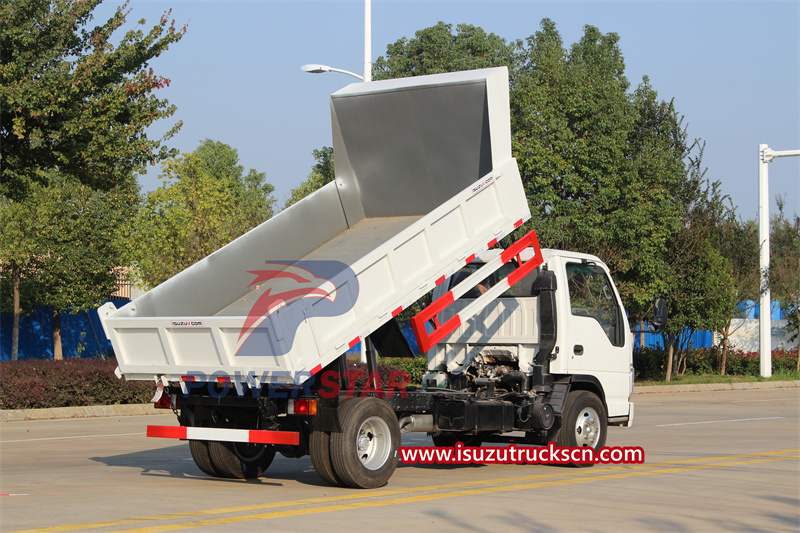

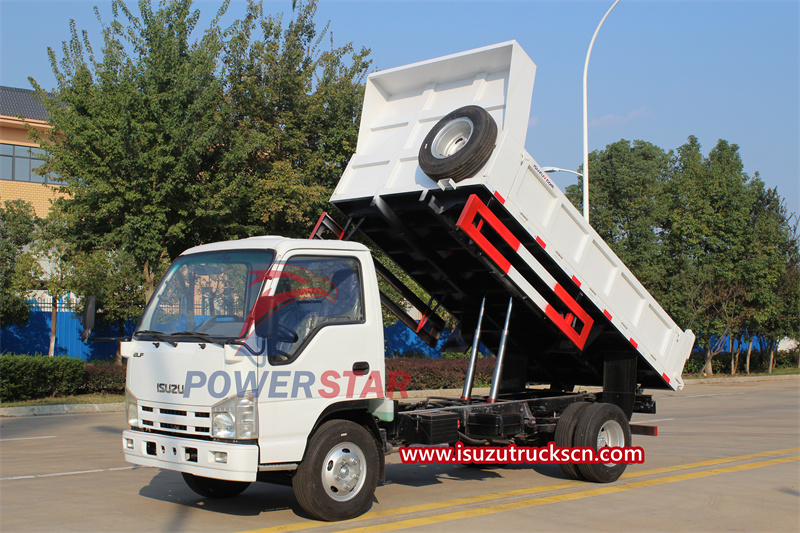

Tipping 45 degree |
|
|
Lifting Time |
20 s |
|
|
Lowering Time |
15 s |
|
|
Tailgate |
Auto release |
|
|
Drop side |
Detachable |
|
|
Painting |
Two primers,and one final paint coating |
|
|
Color & Logo |
According to wish |
|
|
Factory Standard |
Dropside body, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps... |
|
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
|
|
Optional equipment |
1, Dust bin lifting system (with any option) 2, Rear vision camera 3, Italy imported multi-way valve 4, Optional stainless steel waste water tank |
|
The difficulties in making Isuzu garbage rear dump truck mainly focus on the following aspects:
1. Power system design: Ensuring the coordinated operation of the engine, transmission system and hydraulic system to meet the truck's loading and unloading requirements requires precise engineering design and debugging.
2. Structural strength and stability: Dump trucks are subject to tremendous pressure and impact during loading and unloading, so the strength and stability of the body structure need to be ensured to prevent deformation or damage.
3. Hydraulic system design: The hydraulic system needs to be able to support the lifting and tilting operations of the truck while ensuring smooth and reliable operation, which requires precise hydraulic system design and debugging.
4. Control system and safety: To ensure that the truck's operation control system is stable and reliable, and taking into account the safety during the unloading process, it is necessary to design reasonable control logic and safety protection devices.
5. Durability and maintenance: Isuzu garbage rear dump trucks usually need to work for a long time in harsh working environments, so the durability and ease of maintenance of the vehicle need to be considered to reduce maintenance costs and extend service life.
Taken together, the difficulty in making the Isuzu garbage rear dump truck mainly lies in the coordinated design and engineering debugging of the entire vehicle system to ensure that the vehicle can perform loading and unloading operations stably and reliably under various working conditions.
