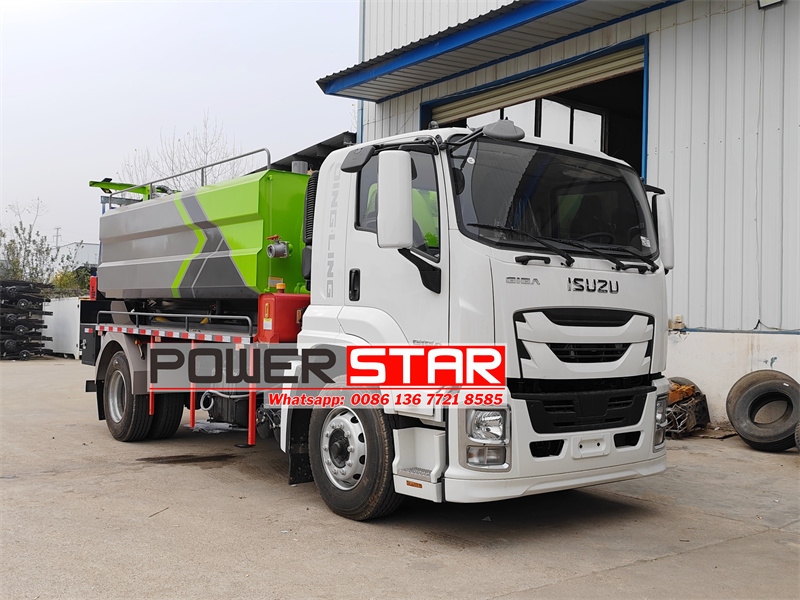

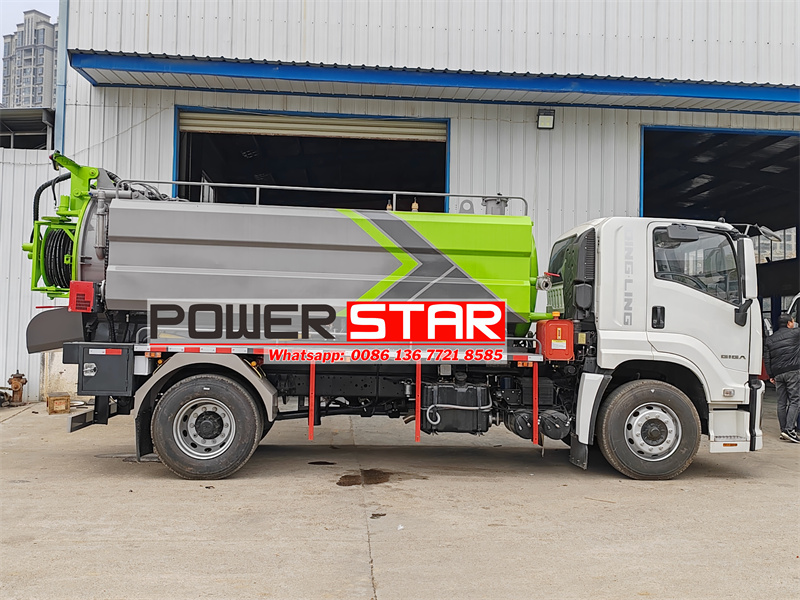

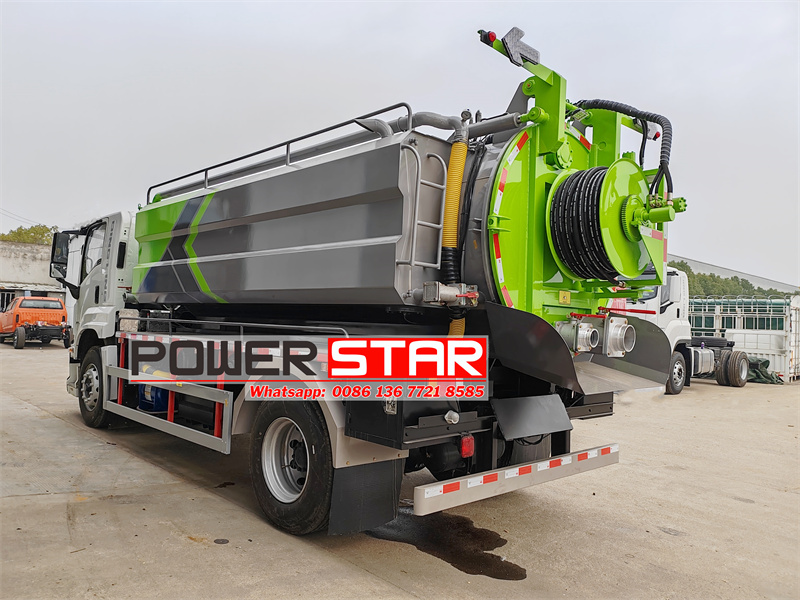

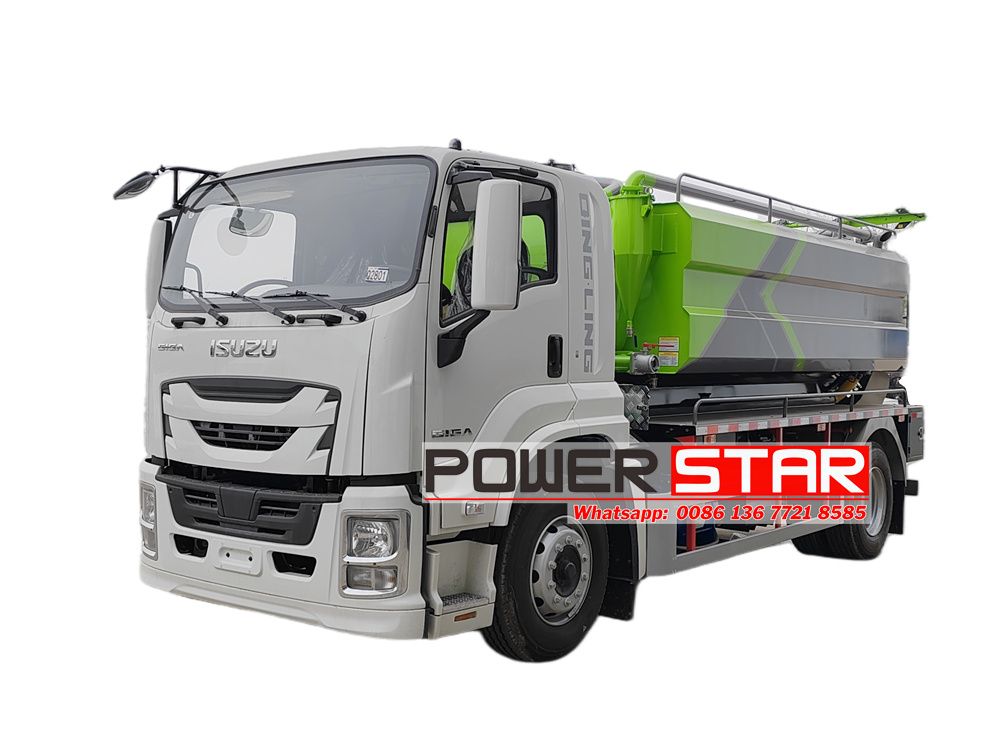

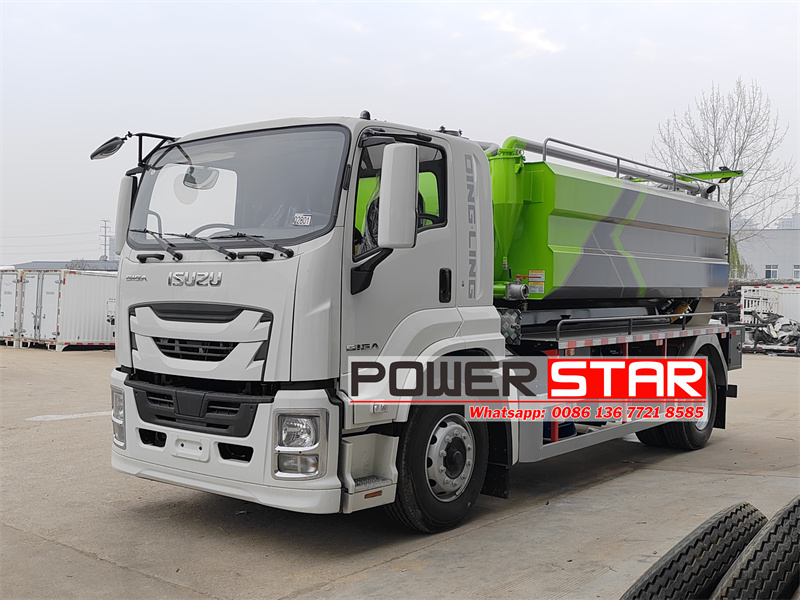

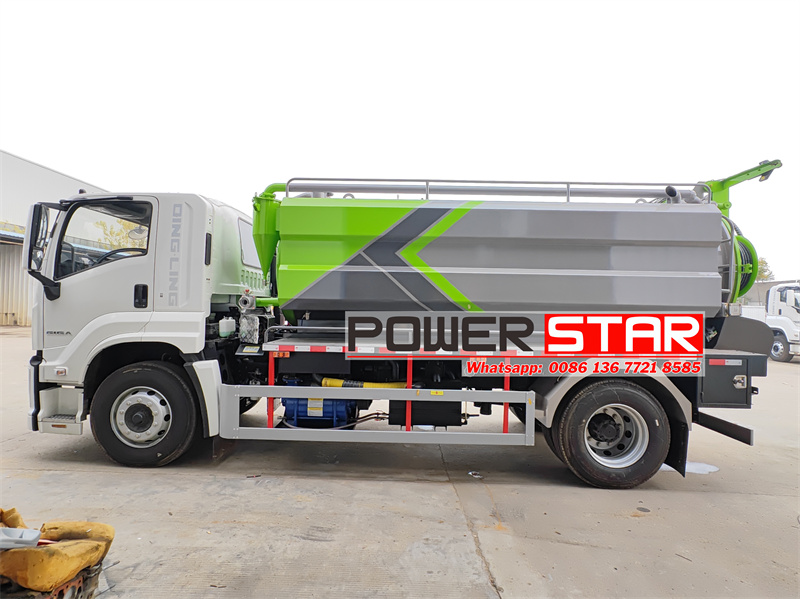

Produced by POWERSTAR Company,the Isuzu GIGA 10cbm combination jetter truck is modified on the Isuzu FTR GIGA 4X2 4500mm wheelbase chassis,with Isuzu 4HK1-TC60 205HP diesel engine,MLD 6 shift gearbox,A/C,USB,direction assistance.The truck equipped with 8cbm sewer tank and 2cbm clean water tank, SYLT / SY90-56 High-Pressure Jetting Pump，SK-15 vacuum pump,efficient and stable operation.
Work capacity:
8cbm sewer tank and 2cbm clean water tankTruck model:
PT5180GXPEngine power:
205HP (151kw)Engine type:
4HK1-TC60Axle drive:
4×2, LHDGear box:
ISUZU/MLD 6F+1R,manualRemarks:
Powerful High-Pressure Jetting Pump and vacuum pumpThe Isuzu 10 cbm combined sewer cleaning truck is designed primarily for use in urban environments and is ideally suited for a variety of tasks such as suction, transport and unloading of sewage, sludge, sand, gravel and even large blockages in various underground sewers, stormwater wells and manholes. This innovative solution combines the functions of cleaning, dredging and sewage suction.
Features
★ Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically.
★ Adopt EU vacuum pump (ltaly brand) or equivalent China top brand double vacuum pumps, super powerful,highly efficient
★ Pump can be operated by a hydraulic motor or by an auxiliary engine
★ Overfil system with music horn is equipped, preventing the vacuum pump damage from sewage water into vacuum pumpwhen the tank is full.
★ Nice shape, rational structure, durable and long service life.
|

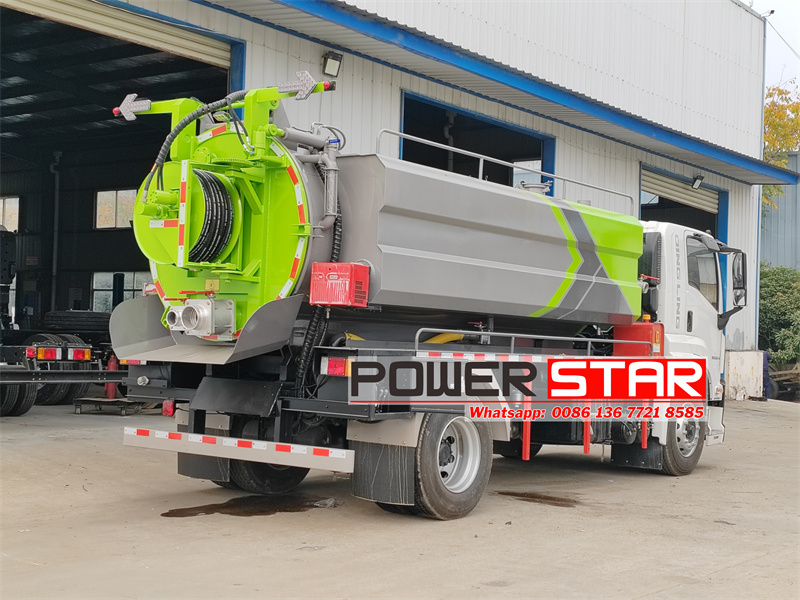

Isuzu FTR GIGA 10cbm combined sewer cleaning truck |
|
|
GENERAL |
|
|
Truck Model |
PT5180GXP |
|
Drive Type |
4×2, LHD |
|
Overall Dimension(L x W x H) |
8,500 x 2,500 x 3,350 (mm) |
|
Gross Vehicle Weight |
18,000kg |
|
Curb Weight |
7,800kg |
|
Wheelbase |
4,500mm |
|
Chassis Designed |
ISUZU FTR |
|
Cabin |
Hydraulic power steering type,2 seats and a sleeper,with A/C,USB, Direction assistance |
|
Tires |
295/80R22.5,6+1 tires |
|
ENGINE |
|
|
Make / Model |
ISUZU / 4HK1-TC60 |
|
Type |
4 cylinders in line, 4 strokes direct injection, water cooling, Intercooled Turbocharged |
|
Displacement |
5193ml |
|
Nominal Power |
205HP (151kw) @ 2600rpm |
|
Peak Torque |
647N.m@1,600rpm |
|
Emission Standard |
Euro 6 |
|
TRANSMISSION |
|
|
Make / Model |
ISUZU/MLD |
|
Type |
Diesel |
|
Operation |
Manual |
|
Number of Speeds |
6F+1R |
|
Sewer Tank and Clean Water Tank |
|
|
Tank Volume |
8cbm sewer tank and 2cbm clean water tank |
|
Tipping |
The tank is mounted with an arrangement for the rear tipping |
|
Thickness |
6mm |
|
Division of Compartment |
The tank is divided into two compartments. |
|
High-Pressure Jetting Pump |
|
|
Make/Model |
SYLT / SY90-56 |
|
Type |
Heavy-duty positive displacement single-acting triplex reciprocating pump to be driven by a split shaft from total power take-off unit. |
|
Pump Rated Power Output |
132kw |
|
Scavenging Capacity |
350l/min |
|
Vacuum Pump |
|
|
Model |
SK-15 |
|
Rotated Speed |
970 r/min |
|
Ultimate pressure |
-0.094MPa |
|
Maximum air volume |
15 m³/min |
|
Type |
Rotary blade vacuum pump |
|
Max. Exhaust Power |
30kw |
|
Hose Reel |

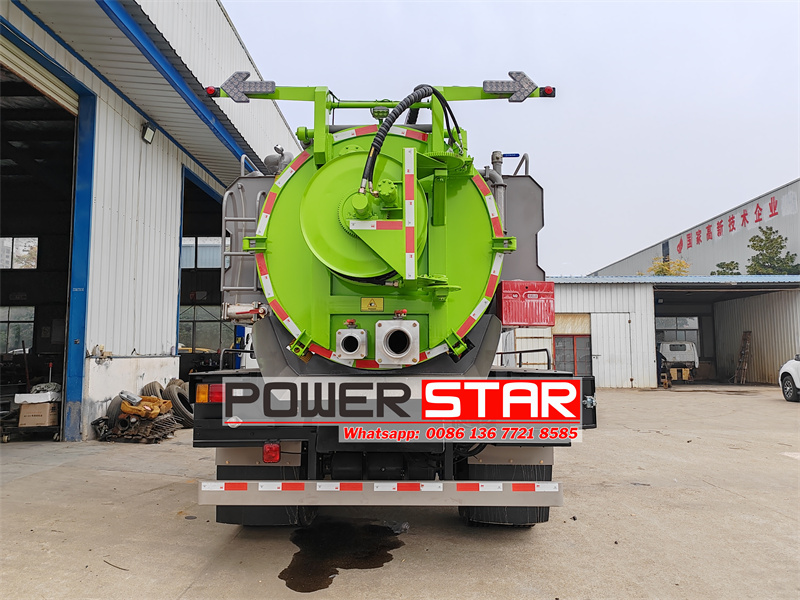

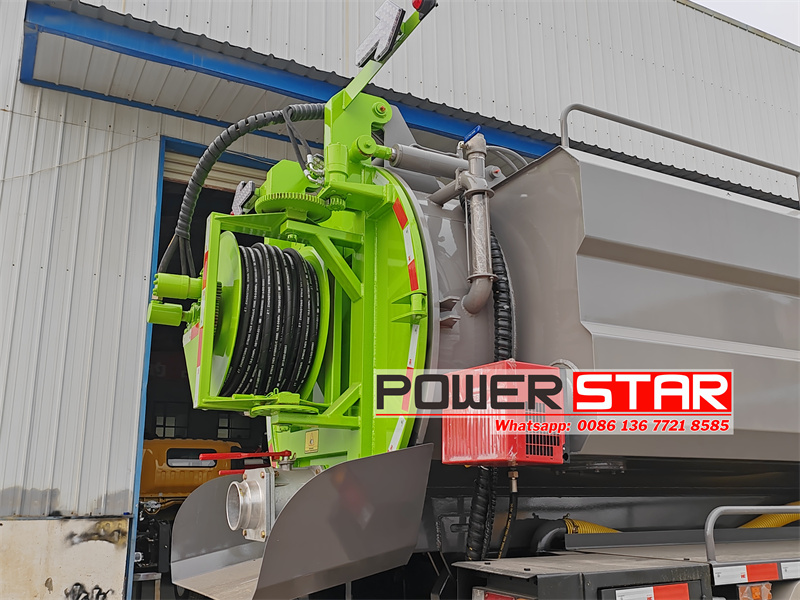

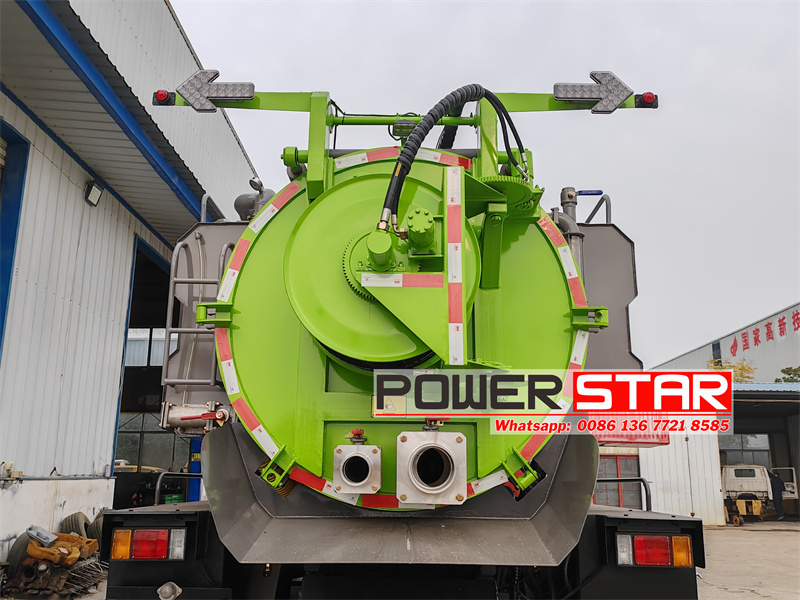

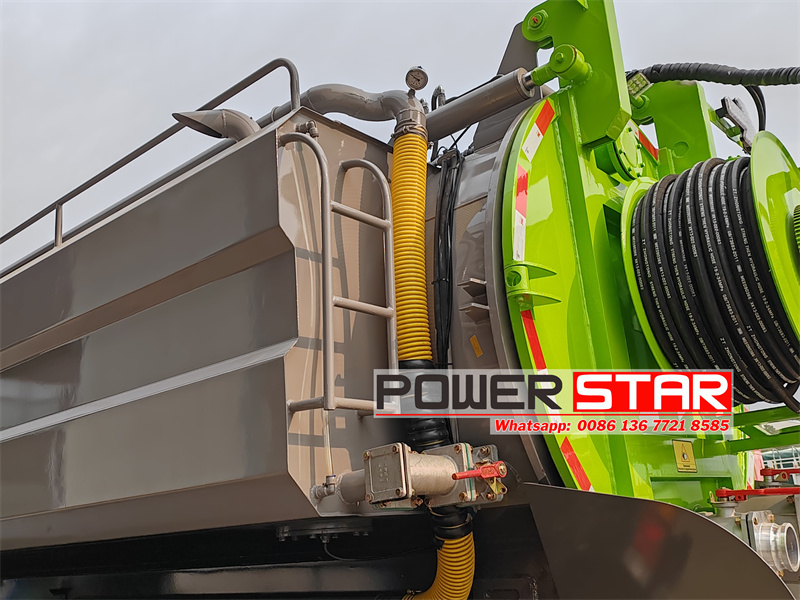

On the rear end of the Combined tank is provided the hose’s reel, which is designed to store up to 120 meters of the supplied sewer jetting hose 1″. Delivery and recovery of the jetting hose is done via a low-speed, high torque hydraulic. |
Tank Configuration:
Sewage Suction Tank: The truck features a sewage suction tank with a capacity of 8 cubic meters. This tank is designed to efficiently collect and transport sewage and other waste materials from various sources, such as sewers, drainage systems, and industrial waste outlets.
Cleaning Water Tank: Additionally, there is a cleaning water tank with a capacity of 2 cubic meters. This tank supplies the necessary water for flushing and cleaning operations, ensuring that the sewage system is thoroughly cleaned and sanitized.
Engine and Powertrain:
Engine: The heart of this cleaning truck is the 4HK1-TC60 engine, which produces a robust 205 horsepower (HP). This engine is known for its reliability, fuel efficiency, and low emissions, making it an ideal choice for municipal and industrial applications.
Transmission: The truck is paired with an MLD 6-speed transmission, which provides smooth and precise gear changes. This transmission helps to optimize fuel economy and performance, ensuring that the truck can handle various loads and driving conditions with ease.

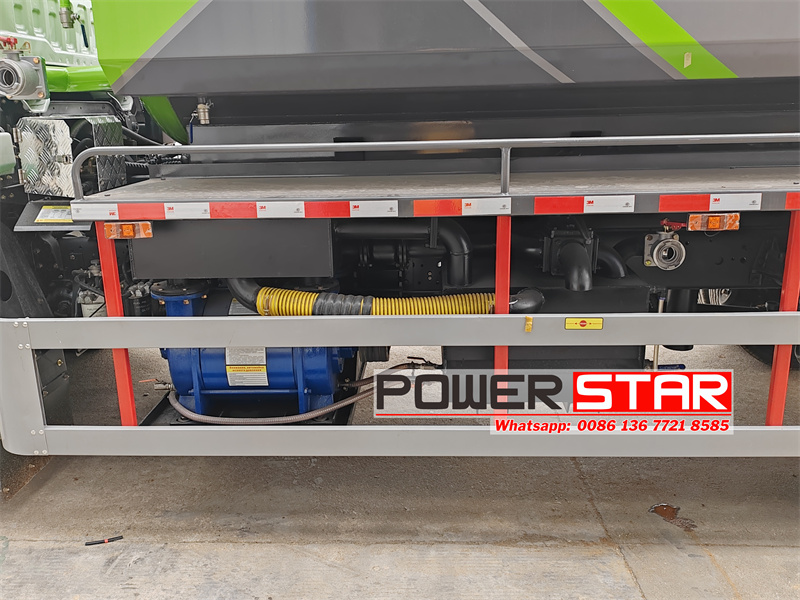

SK-15 Water Circulation Vacuum Pump and Compressor
The SK-15 water circulation vacuum pump and compressor is used to suck or compress air and other non-corrosive, water-insoluble, and solid particle-free gases to form a vacuum and pressure in a closed container. A small amount of liquid is allowed to be mixed in the sucked gas. It uses a rotating impeller to generate a vacuum by displacing the water in the pump chamber.
| Model | Air extraction capacity(m³/min) | Motor power (kW) | Vacuum pump ultimate pressure MF aG | Pump speed(r/min) | Compressor pressure (MPa) | Inlet and outlet diameter(mm) | Water consumption(L/min) | ||
| Max | Suction pressure -0.06MPaG | Vacuum pump | compressor | ||||||
| SK-15 | 15 | 13.5 | 30 | 37 | 0.094 | 970 | 0-0.1 | 80 | 50-60 |
SK-15 Water Circulation Vacuum Pump and Compressor Parameters
Function: The SK-15 pump is primarily used for suctioning sewage and other liquid waste from sewers and drainage systems. Its ability to create a strong vacuum makes it ideal for efficiently removing waste materials, even from deep or narrow pipes.
Durability: Constructed from high-quality materials, the SK-15 pump is designed to withstand the rigors of daily use and the harsh environments typically encountered in sewage cleaning operations.
Efficiency: The pump's design optimizes its performance, ensuring that it operates efficiently and reliably even under heavy loads. This contributes to the overall efficiency of the cleaning truck and helps to reduce operational costs.

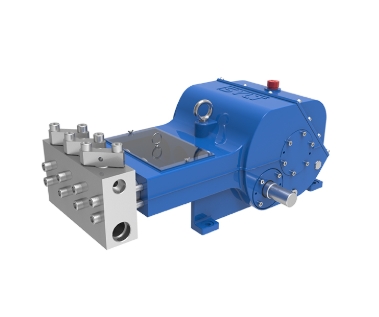

SYLT/SY90-56 High-Pressure Cleaning Pump:
The SYLT/SY90-56 High-Pressure Cleaning Pump is responsible for delivering high-pressure water to the cleaning nozzles, which are used to flush out sewage and other debris from the pipes.
Pressure and Flow Rate: The SY90-56 pump is capable of generating high pressures and flow rates, making it ideal for effectively cleaning even the most stubborn blockages and deposits within sewers and drainage systems.
Durability: Constructed from durable materials, the pump is designed to withstand the high pressures and abrasive materials typically encountered in sewage cleaning operations.
Versatility: The SYLT/SY90-56 pump can be used for a variety of cleaning tasks, including flushing out pipes, removing debris, and sanitizing surfaces. Its versatility makes it a valuable addition to the cleaning truck's arsenal of tools.
SYLT/SY90-56 High-Pressure Cleaning Pump
