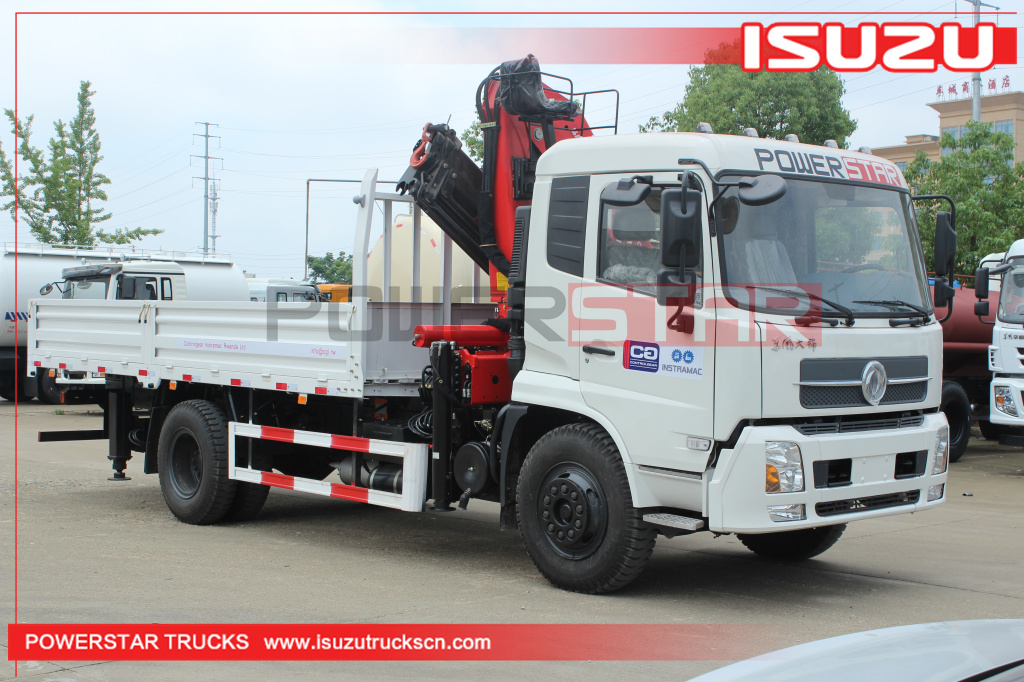

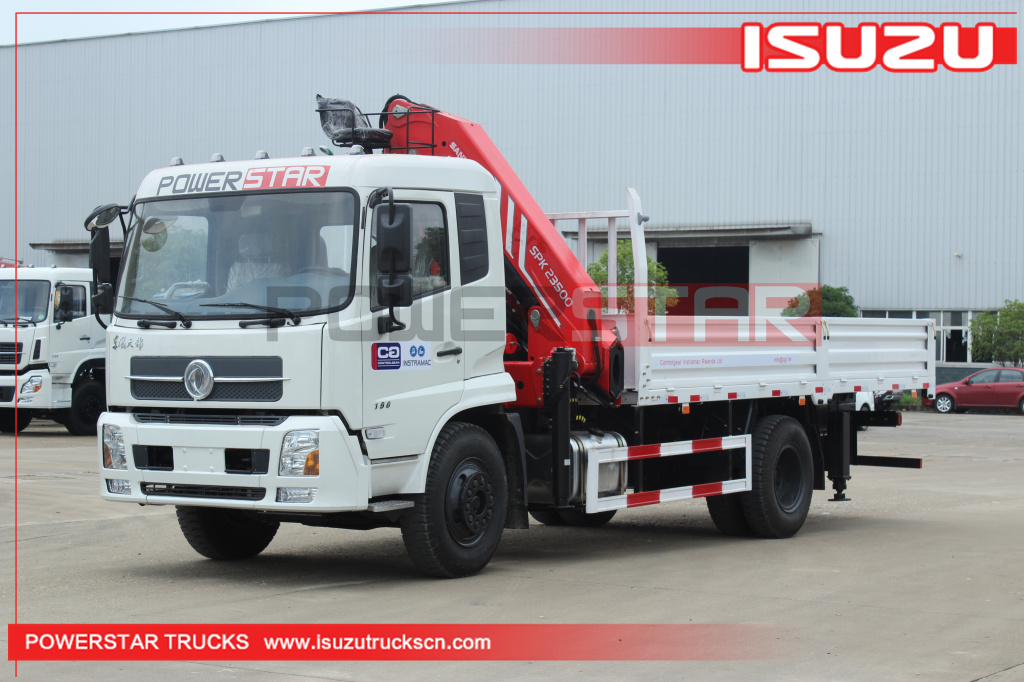

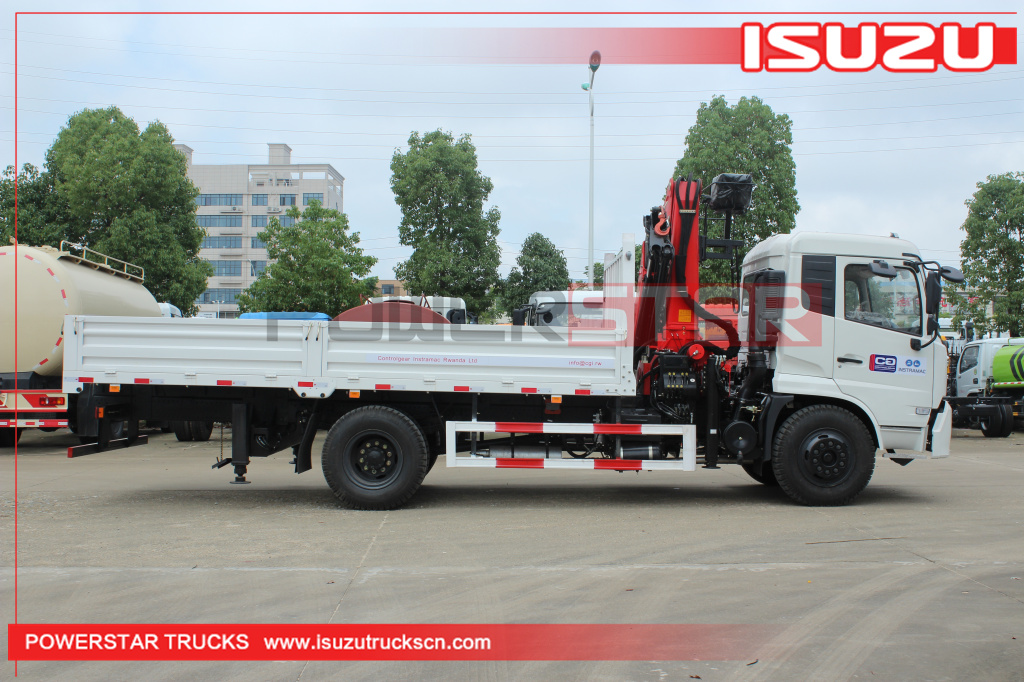

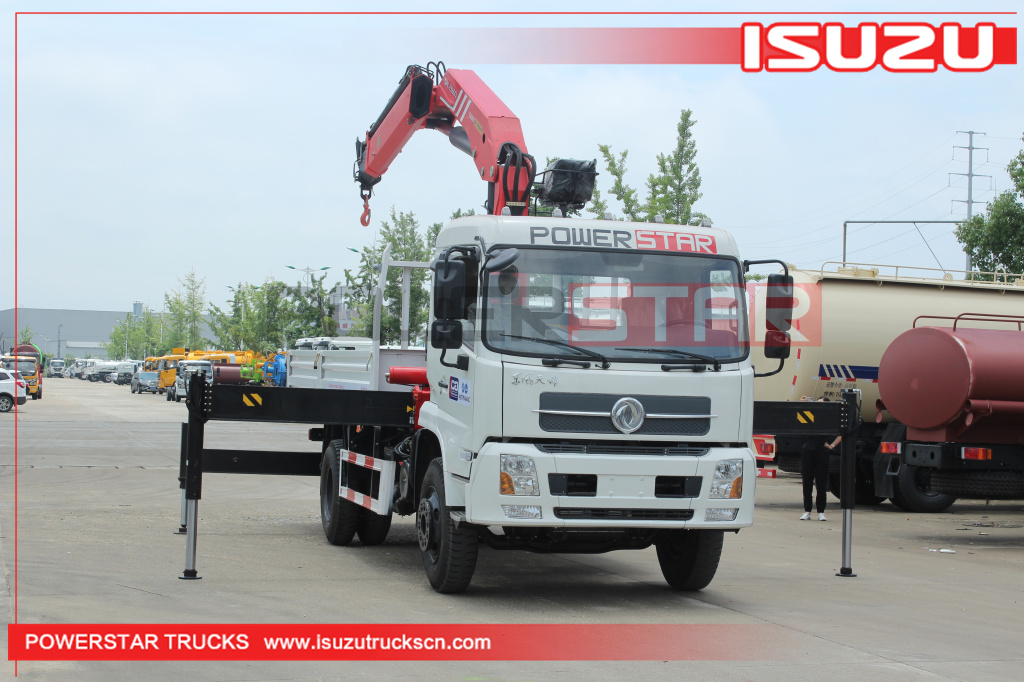

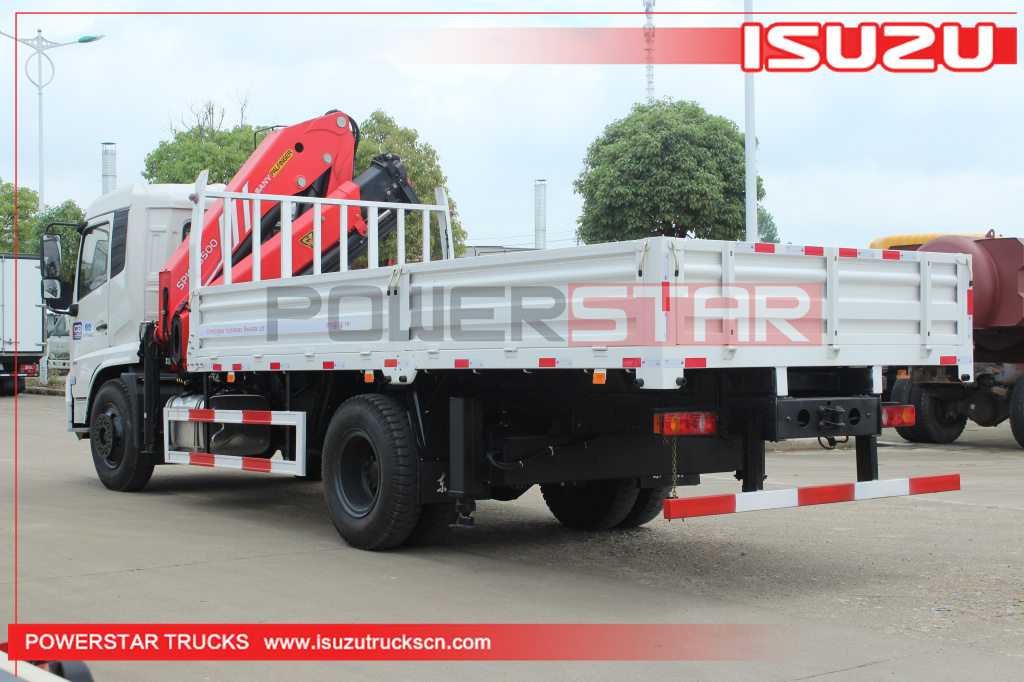

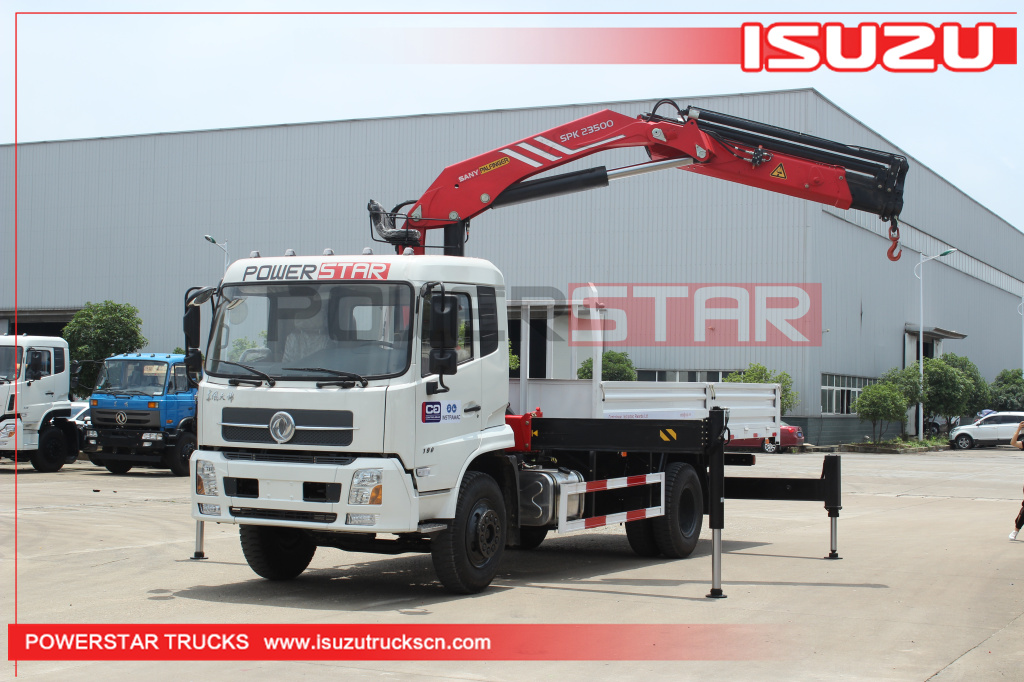

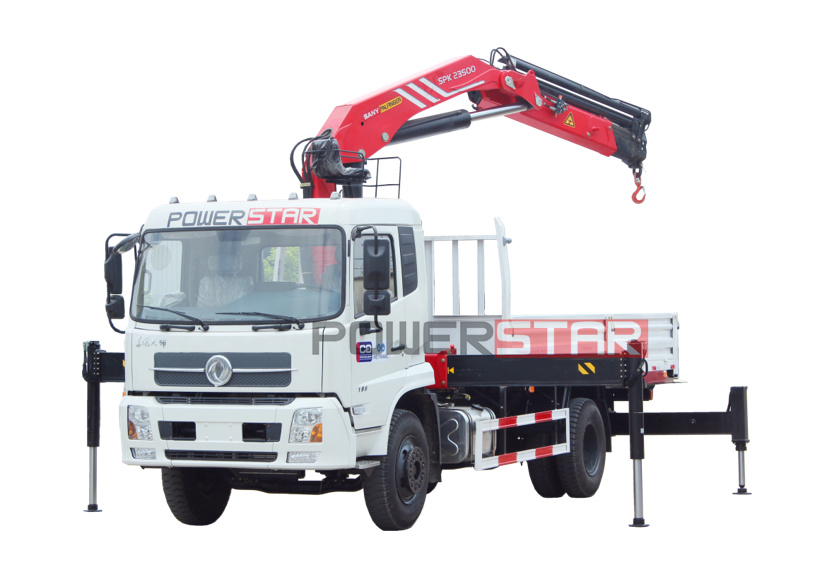

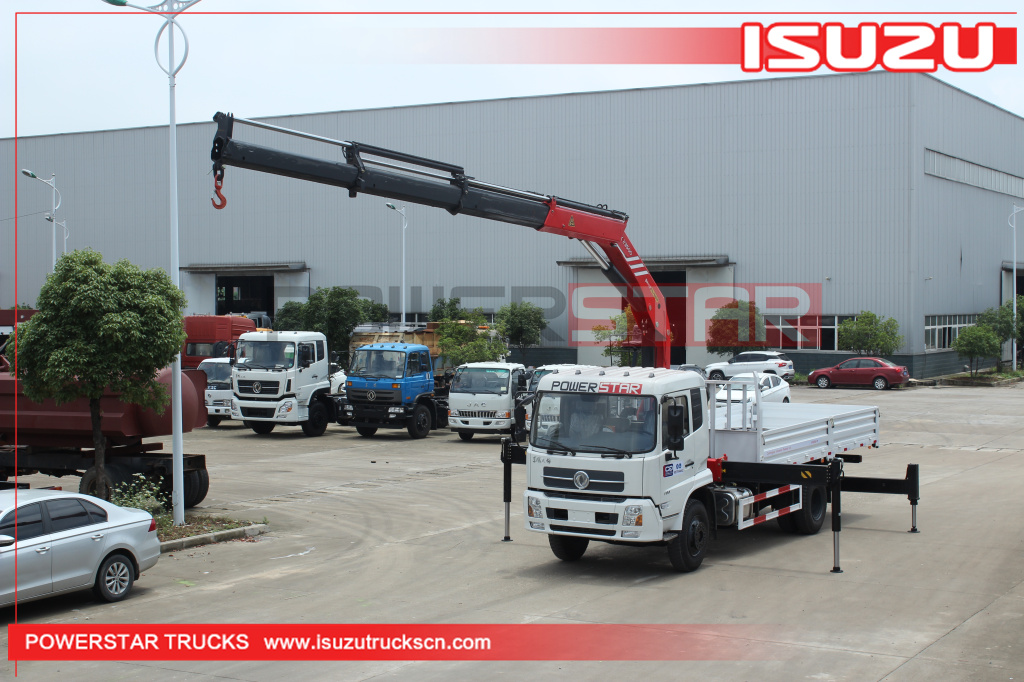

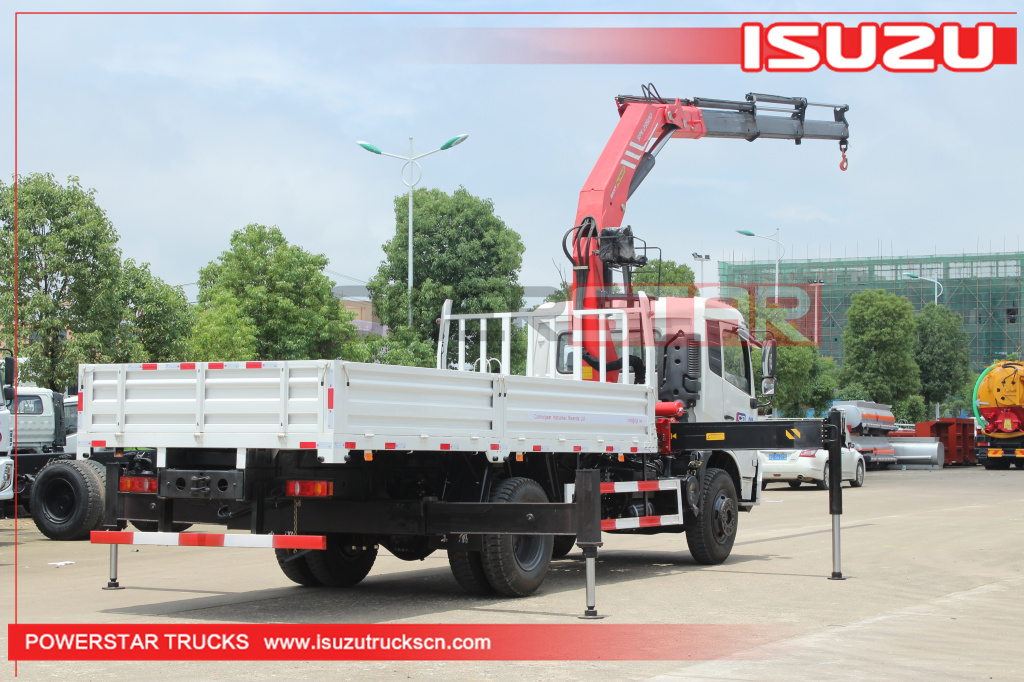

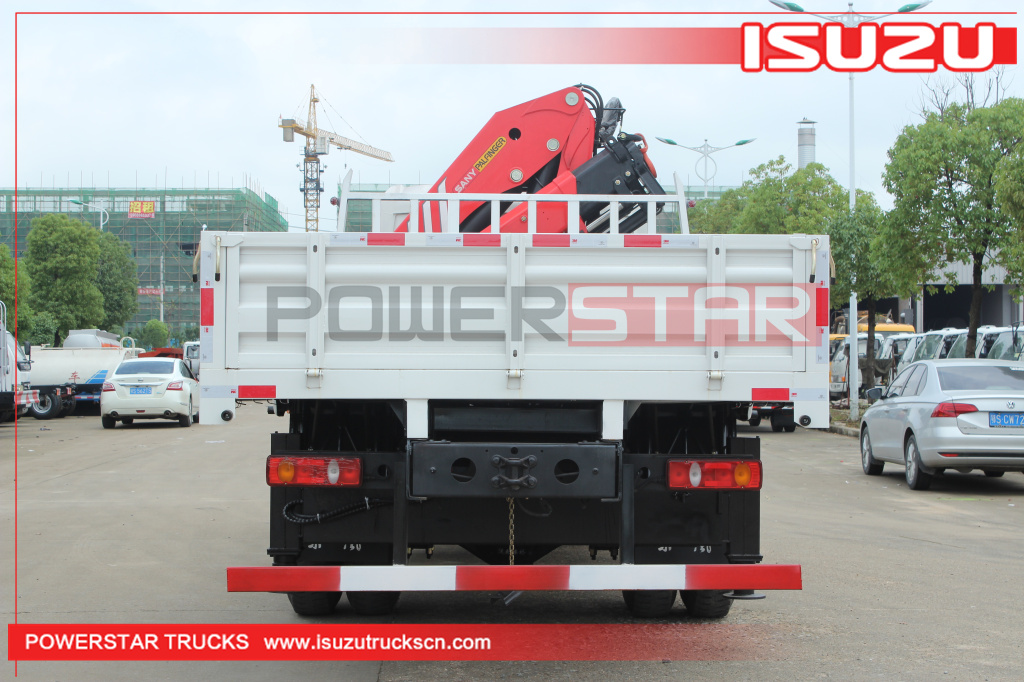

Dongfeng Truck with 10Ton SPK23500 Palfinger Knuckle boom Crane
Order(MOQ):
1 Brand new DongFeng Knuckle Folding Boom Crane Trucks with Palfinger SPK23500
Palfinger Knuckle boom crane cargo (also called Lorry tuck with palfinger crane SPK23500, Palfinger Loader truck crane, ) suitable for multiple work applications, such as electric line maintenance and construction, transmission and distribution, tree trimming and other related uses. Articulating cranes, which are also known as knuckleboom cranes, are designed to be lightweight and highly maneuverable for maximum payload while working in tight spaces.
  |
100% custom-made
|
|
2 tons to 30 tons available
|
|
Short delivery time 7~30 days
|
|
Easy operation & Easy maintenance
|
|
15 years spare parts & Technical support
|
|
PowerStar Trucks Industry Co., Limited |
|||
|
Product Name |
Palfinger SPK23500 boom crane trucks |
||
|
Vehicle Brand Series |
DONGFENG |
||
|
Vehicle Model |
PST5160TSC |
||
|
Production Time |
25 days |
||
|
Chassis parameters |
Overall dimensions |
mm |
9000*2500*2760 |
|
Gross weight |
kg |
16,000 |
|
|
Kerb weight |
8,830 |
||
|
Wheelbase |
mm |
4,500 |
|
|
Driving type |
4*2 |
||
|
Chassis model |
DF EQ1168GLJ |
||
|
Tire size |
10.00-20-16PR |
||
|
Number of Tires |
6+1 |
||
|
Passengers in cab |
3 |
||
|
Engine |
Engine model |
B190-33 |
|
|
Type of fuel |
Diesel |
||
|
Power |
190HP |
||
|
Max speed |
Km/h |
95 |
|
|
Emission standard |
EURO 3 |
||
|

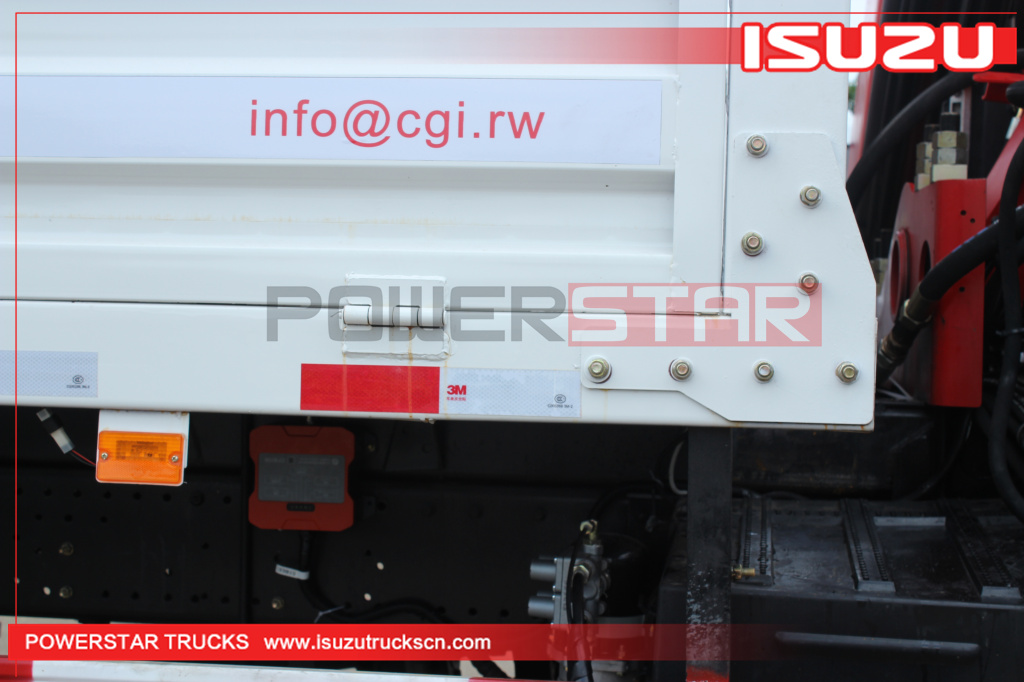

Cargo Body |
Cargo Body |
5500x2300x2200 mm |
|
|
Body Material |
High strength carbon steel |
||
|
Doors |
Side doors can be dropside |
||
|
Rear doors can be dropside |
|||
|

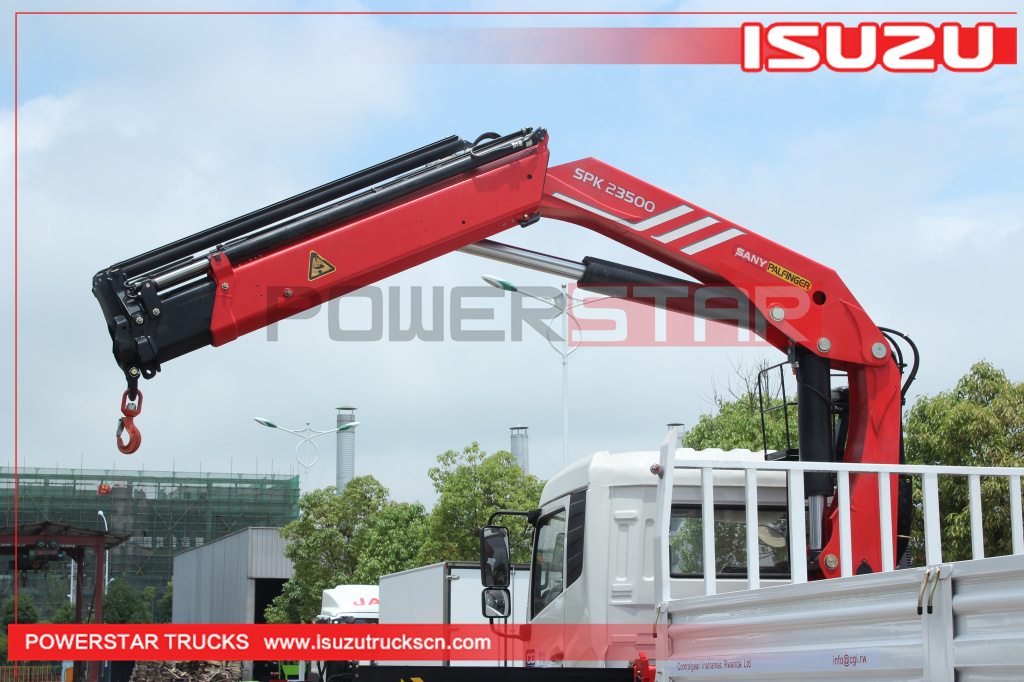

Crane |
Palfinger SPK23500 |
||
|
Color & LOGO |
According to wish |
||
|
Factory standard |
“U” shape Sub Frame, Rotating Lamp, Hand holds, Mudguards and rubber flaps... |
||
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
||
|
Optional equipment |
1, Palfinger, HIAB, XCMG, UNIC or chinese brand 2, Rear vision camera 3, Optional
stainless steel tool box |
||

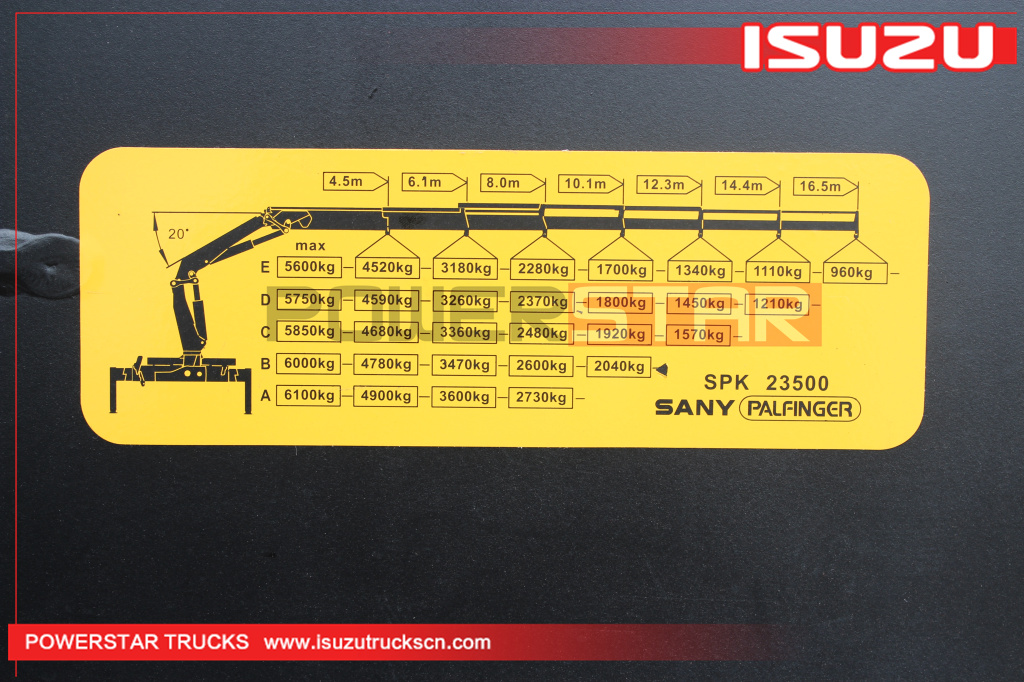

| 主要技术参数 |
|||
|
项目 |
单位 |
SPK23500 |
|
|

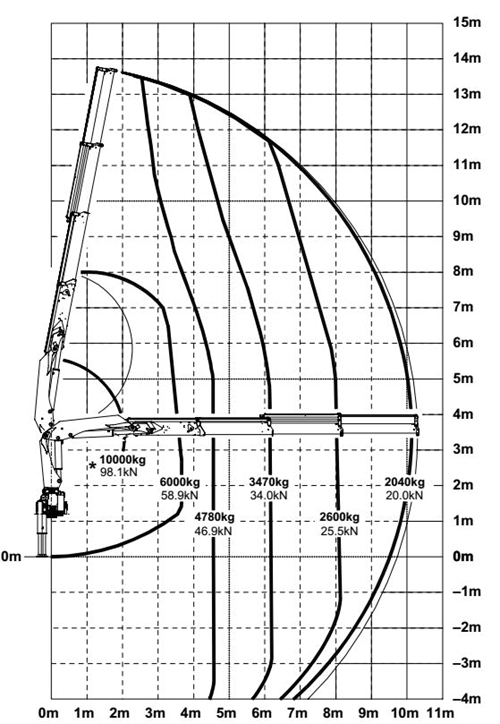

最大起重量 |
Max lifting weight |
Kg |
10000 |
|
起重力矩 |
Lifting moment |
T.m |
23 |
|
最大液压伸长 |
Max hydraulic outreach |
m |
12.4 |
|
回转角度 |
Slewing angle |
。 |
400 |
|
回转力矩 |
Slewing torque |
kNm |
27 |
|
工作压力 |
Operating pressure |
Mpa |
30 |
|
泵排量 |
Pump capacity |
L/min |
50-75 |
|
吊机力矩（动态） |
Crane Moment（dynamic） |
kNm |
298.1 |
|
扭矩（动态） |
Weight of the crane（dynamic） |
kNm |
34.4 |

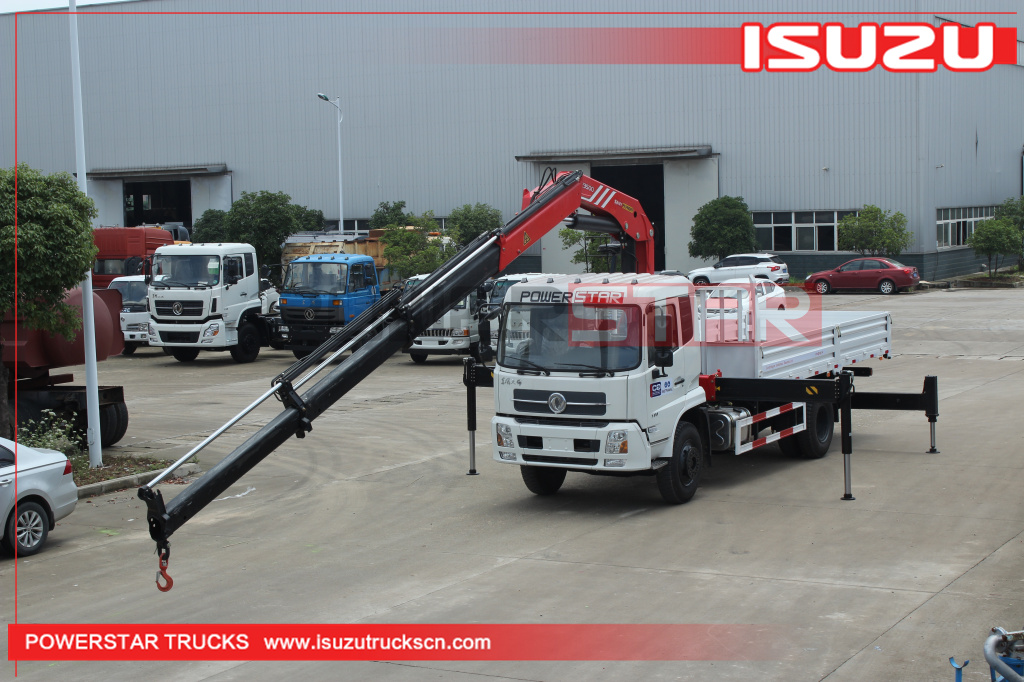

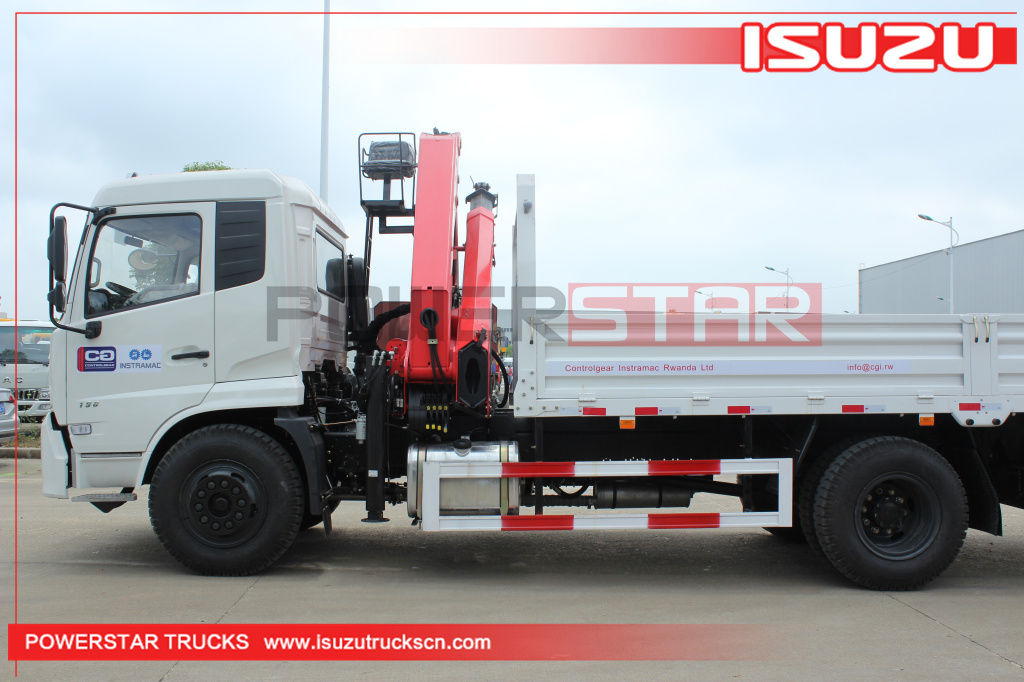

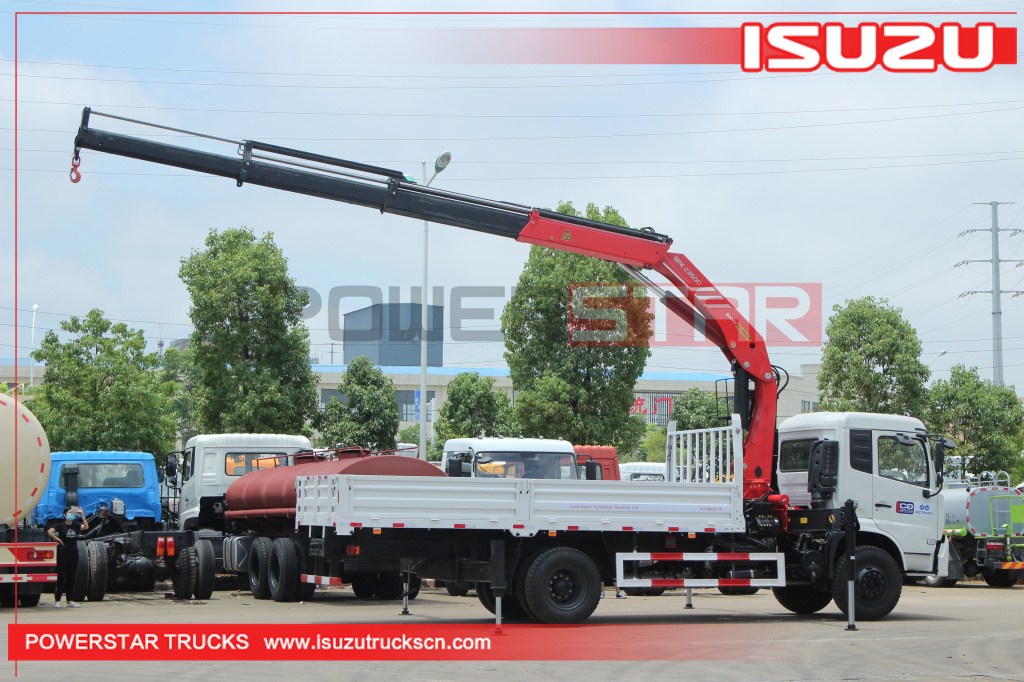

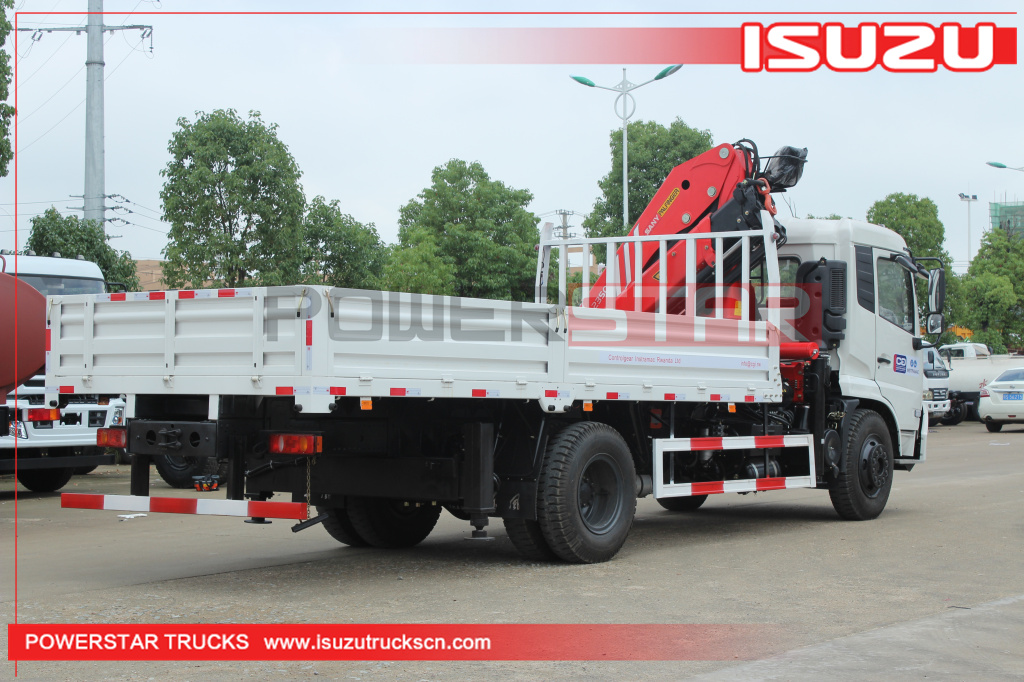

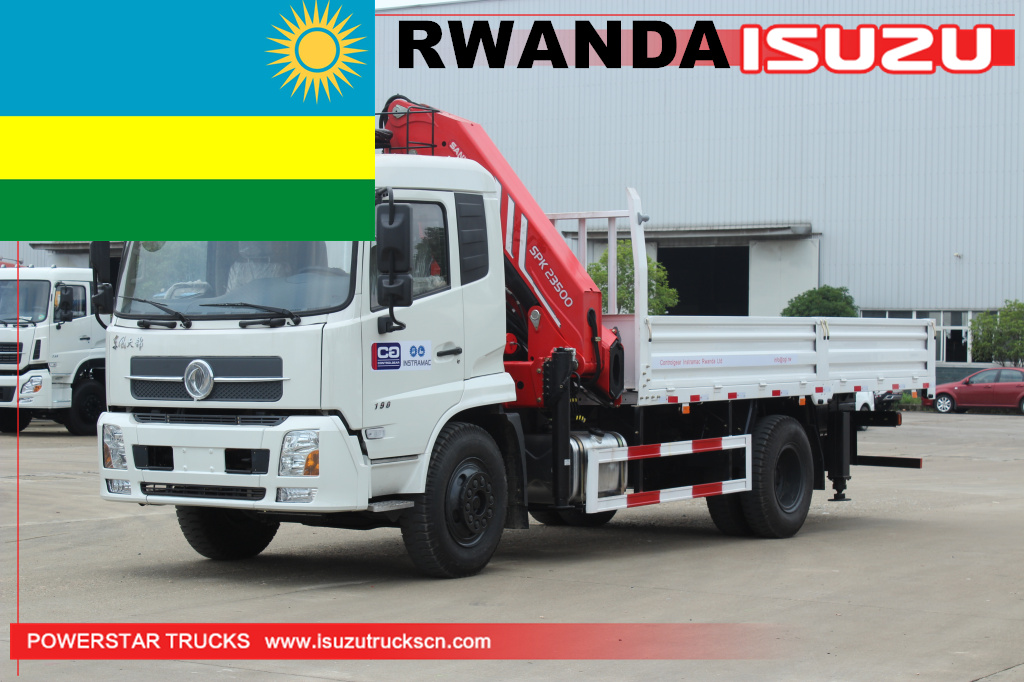

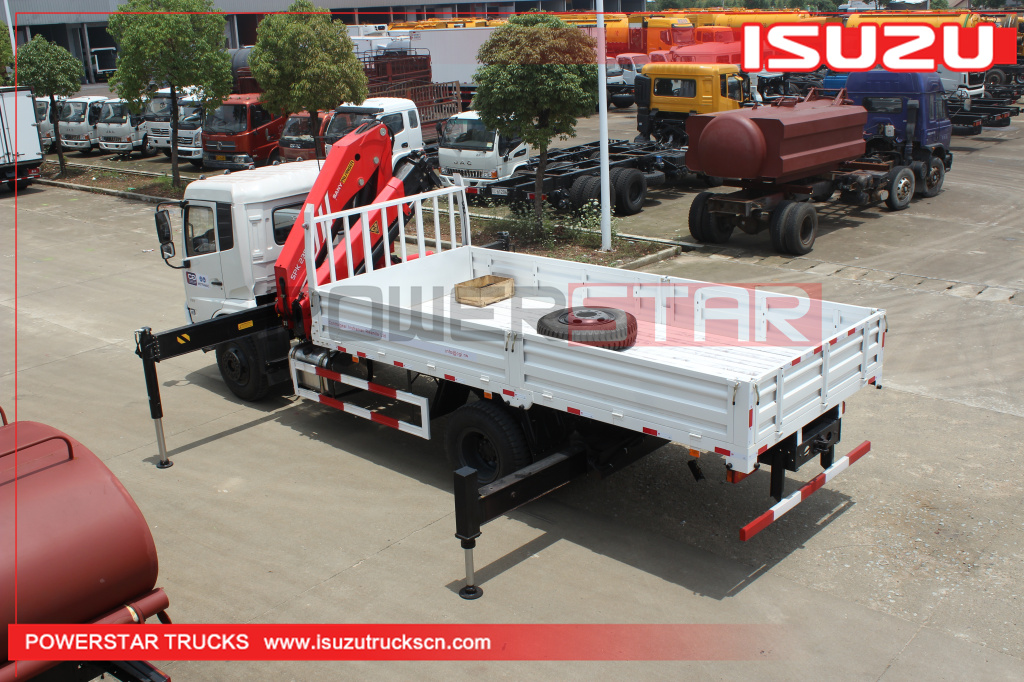

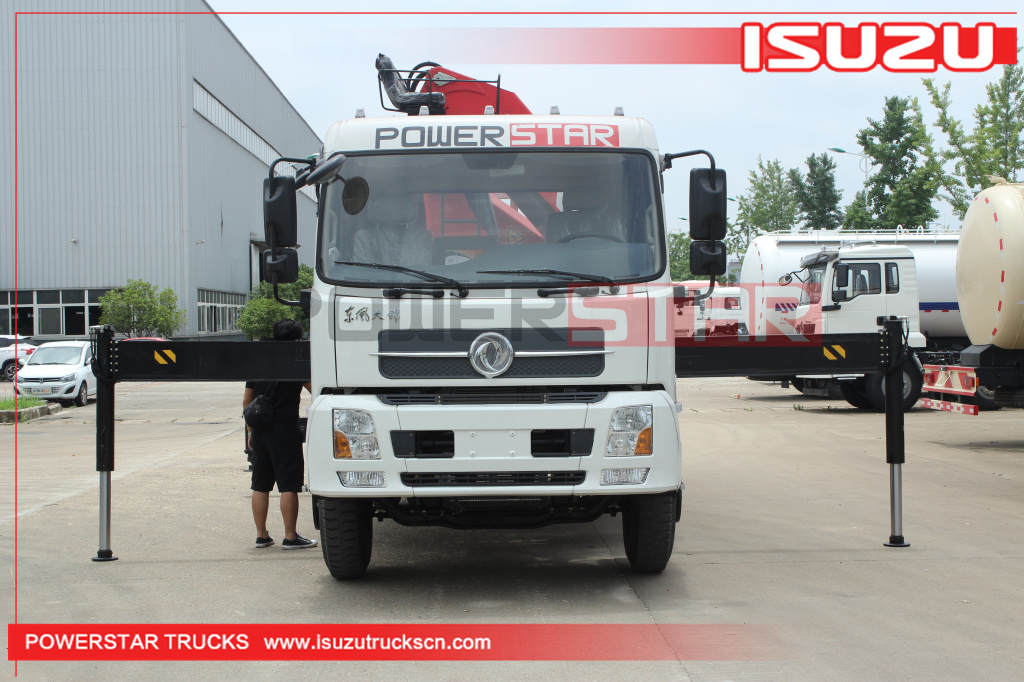

Rwanda Dongfeng Cargo Truck with 10Ton SPK23500 Palfinger Knuckle boom Crane for sale
Rwanda Dongfeng Cargo Truck with 10Ton SPK23500 Palfinger Knuckle boom Crane for sale
Rwanda Dongfeng Cargo Truck with 10Ton SPK23500 Palfinger Knuckle boom Crane for sale
Rwanda Dongfeng Cargo Truck with 10Ton SPK23500 Palfinger Knuckle boom Crane for sale
Rwanda Dongfeng Cargo Truck with 10Ton SPK23500 Palfinger Knuckle boom Crane for sale
Rwanda Dongfeng Cargo Truck with 10Ton SPK23500 Palfinger Knuckle boom Crane for sale
Rwanda Dongfeng Cargo Truck with 10Ton SPK23500 Palfinger Knuckle boom Crane for sale
Rwanda Dongfeng Cargo Truck with 10Ton SPK23500 Palfinger Knuckle boom Crane for sale
Rwanda Dongfeng Cargo Truck with 10Ton SPK23500 Palfinger Knuckle boom Crane for sale
Key words: Palfinger Foldable arm crane trucks, Dongfeng Boom Truck Crane, Cargo truck with Knuckle boom crane Palfinger SPK23500
