The Isuzu brand has long been synonymous with reliability, efficiency, and performance in the realm of commercial vehicles. When it comes to Aerial Lift and Bucket Trucks, POWERSTAR has carved a niche for itself by offering Isuzu trucks that are not only robust but also equipped with cutting-edge technology to enhance work efficiency and safety.
Work capacity:
16 mTruck model:
PT5070WSTEngine power:
120HPEngine type:
4KH1CN6LBAxle drive:
4x2，LHDGear box:
MSB 5 forward gears& 1 reverseRemarks:
16m aerial working height

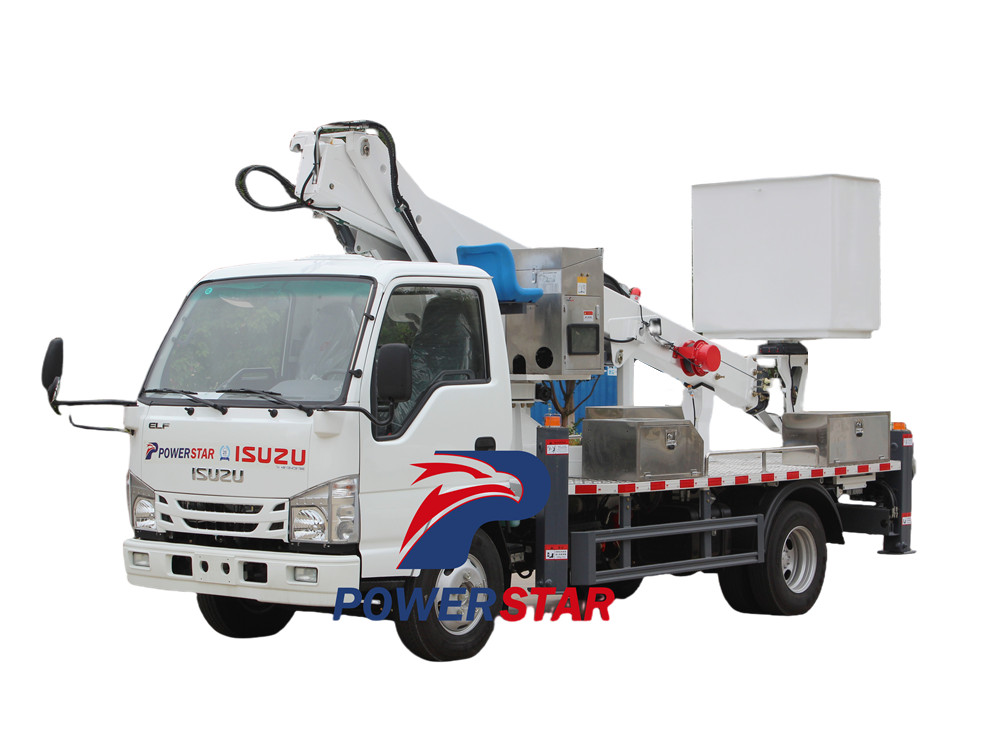

Aerial Lift and Bucket Truck Isuzu also called Isuzu 100P 16m aerial lift bucket truck,Isuzu 100P aerial platform truck, Isuzu 100P bucket truck,Isuzu 16m aerial work vehicle,Isuzu 100P light aerial lift truck,is a versatile and powerful vehicle designed for a wide range of aerial work applications. This aerial lift and bucket truck Isuzu combines the reliability and durability of the Isuzu brand with the advanced functionality of an aerial lift bucket system, making it an ideal choice for professionals working in construction, maintenance, and other industries requiring high-altitude access.
The aerial lift and bucket truck Isuzu boasts a sturdy and durable construction that can withstand the rigors of daily use in various industries such as electricity, communications, gardening, municipal administration,etc. The Isuzu chassis provides a solid foundation for the truck-mounted aerial lift, ensuring stability and safety when working at heights.
|
Aerial Lift and Bucket Truck Isuzu |
||
|
Vehicle Description |
||
|
Overall dimensions |
6050*2000*3000mm |
|
|
GVW |
6850kg |
|
|
Curb weight |
4365kg |
|
|
Chassis brand |
Isuzu |
|
|
Traction type |
4X2 |
|
|
Up-parts specification |
||
|
Arm |
Model |
Three arms telescopic |
|
Max working height |
16m |
|
|
Maximum operating range |
7m |
|
|
Maximum operating range height |
9m |
|
|
Maximum operating height operating range |
2.2m |
|
|
Elevation angle |
-12°～80° |
|
|
Working angle |
360° |
|
|
Landing leg |
Type |
H-type |
|
Longitudinal span |
2430mm |
|
|
Transverse span |
1670/2780mm |
|
|
Hanging basket |
Rated load |
≤200kg |
|
Dimension |
1080×610×1100mm |
|
|
Leveling type |
Mechanical rod |
|
|
Hydraulic system |
Hydraulic valve |
Manual |
|
Working pressure |
16Mpa |
|
|
Oil cylinder |
Equipped with lock function |
|
|
Operation type |
Both hanging basket and revolving mechanism |
|
|
Main structure |
Material |
High quality carbon steel and profiles, with slip-proof decorative steel plates |
|
Tool box |
Mould stamping door with stainless steel door lock |
|
|
Fencing |
Stainless steel tube |
|
|
Steps |
With steps on drivers’ side |
|
|
Guard railing |
High quality cold bending carbon steel profile; High strength |
|
|
Wheel casing |
Injection mold molding, beautiful, high strength |
|
|
Rotary table |
Supporting Boom |
Low alloy steel plate welding |
|
Slewing bearing |
Single row of four - point contact ball belt outer teeth |
|
|
Reduction gears |
Planetary gear type |
|
|
Motor |
Axial piston motor |
|
|
Chassis Description |
||
|
Chassis model |
Isuzu 100P |
|
|
Cab |
100P,single row, with A/C |
|
|
Wheelbase |
3360mm |
|
|
Tire specification |
7.00-16 |
|
|
Tire quantity |
6+1 units |
|
|
Engine |
Engine model |
4KH1CN6LB |
|
Emission level |
Euro 6 |
|
|
Displacement/output |
2999ml/88kw |
|
|
Horse power |
120HP |
|
|
Gear box |
Model |
MSB |
|
Number of gears |
5 forward gears& 1 reverse |
|
|
Brake system |
Full air brake |
|
|
Axle |
Front |
2.5T |
|
Rear |
4.8T |
|
|
Suspension |
Front |
Leaf springs |
|
Rear |
Leaf springs |
|
|
Fuel tanker |
Type |
Carbon steel tanker,with lockable cap |
|
Capacity |
140L |
|
The Isuzu 100P 16m aerial lift bucket truck is ideal for a wide range of applications, including construction, maintenance, landscaping, and more. It is commonly used for tasks such as installing or repairing traffic lights, street lights, and other high-altitude equipment. The truck's versatility and reliability make it an essential tool for professionals working in these industries.
POWERSTAR has embraced technology to enhance the performance and efficiency of its Isuzu 16m aerial lift and bucket truck. Features such as digital displays, GPS tracking, and telematics systems enable fleet managers to monitor vehicle performance, track maintenance schedules, and optimize route planning. This integration of technology not only improves operational efficiency but also contributes to overall safety and compliance.
Technical drawing of aerial lift and bucket truck Isuzu
The Isuzu 100P 16m aerial platform truck is a powerful and versatile vehicle designed to meet the demands of high-altitude work applications. With its robust engine, telescopic boom, and advanced safety features, this truck is an ideal choice for professionals working in construction, maintenance, and other industries requiring access to high areas. Its customization options and compliance with international standards make it an attractive option for customers looking for a reliable and high-quality aerial lift solution.
Vehicle Specifications
The 100P 16m aerial work truck has an impressive maximum working height of 16 meters, allowing operators to easily access the highest areas. The bucket bottom height is 14 meters, providing a stable and safe platform for workers to perform their tasks. The maximum working range is 7 meters, the height is 9 meters at the maximum working range, and the working amplitude is 2.2 meters at the maximum working height, ensuring flexibility and versatility in various working environments.
The truck is equipped with a three-section telescopic boom, which offers exceptional reach and maneuverability. The boom type is specifically designed for aerial work, providing stable and secure lifting capabilities. The outrigger system, consisting of H-type outriggers, is controlled independently to ensure maximum stability during operation.

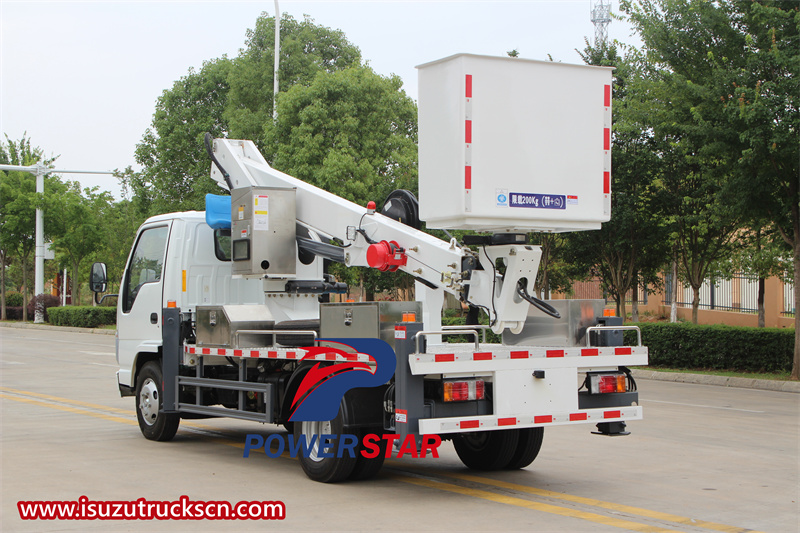

Isuzu 100P 16m aerial lift bucket truck
Engine and Transmission
The Isuzu 100P 16m aerial bucket truck is powered by a diesel engine, delivering a robust and reliable power output. The engine is vertically in-line, water-cooled, and four-stroke, with electronically controlled high-pressure common rail technology for efficient fuel combustion and reduced emissions. With a horsepower rating of 120HP, the engine provides ample power for demanding aerial work applications.
The truck is equipped with a manual transmission system, offering precise control and smooth shifting. The MSB 5-speed forward and 1-speed reverse gearbox ensure that operators can navigate various terrains and work conditions with ease.
Safety Features
Safety is a top priority in the design of the Isuzu 100P 16m light aerial lift truck. The truck is equipped with a 360-degree rotation system, allowing operators to move the bucket in any direction with ease. This feature is complemented by a safety system that prevents sudden drops in case of failure, ensuring the safety of workers at all times.
The aerial basket is a moving system with dual action commands, allowing operators to control the basket from both the ground level and the level of the basket itself. This feature enhances the safety and efficiency of the operation, as operators can quickly adjust the position of the basket as needed.
The truck is also equipped with two rotating amber lights, providing excellent visibility and alerting others of the truck's presence in the work area. Additionally, the aerial platform working truck is equipped with balance valves and emergency valves to ensure safety when people are working overhead.

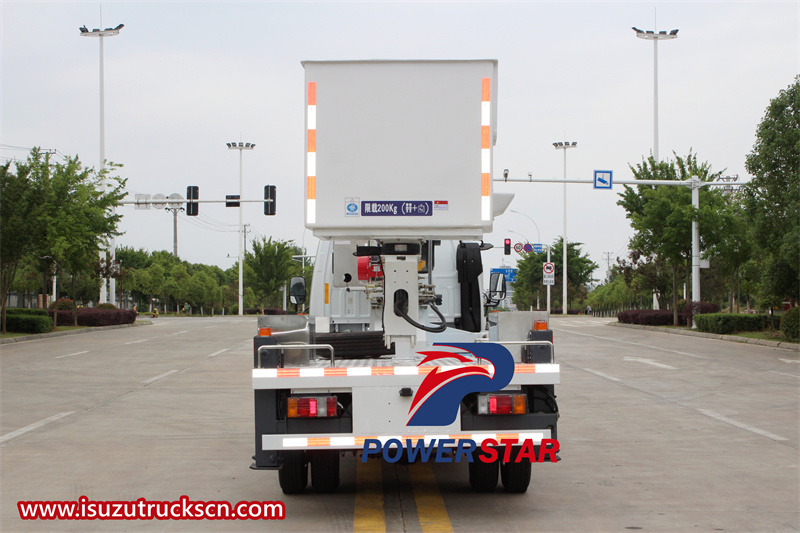

Isuzu 100P 16m aerial work truck
Built to Last
Durability is the cornerstone of Isuzu vehicles, exemplified in the Aerial Lift and Bucket Truck. Constructed from quality materials and components, these trucks are built to withstand the test of time. Low maintenance requirements and easy access to service points further underscore the vehicles' durability and longevity.
Customization and Options
The Isuzu 100P 16m Aerial Lift Bucket Truck is available with various customization options to suit specific needs and requirements. The truck can be equipped with different types of outriggers, boom lengths, and other accessories to enhance its performance and versatility.Customers can also choose from different payload capacities, fuel types, and transmission systems to suit their specific needs.

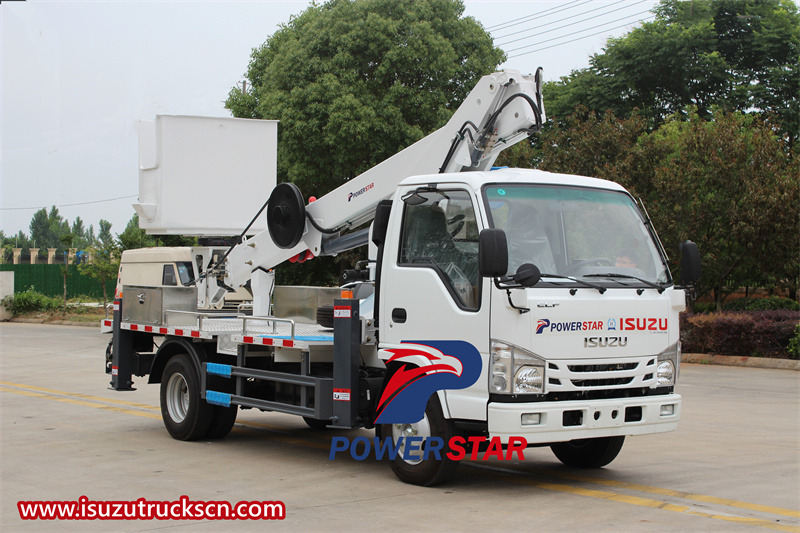

Isuzu 100P light aerial lift truck

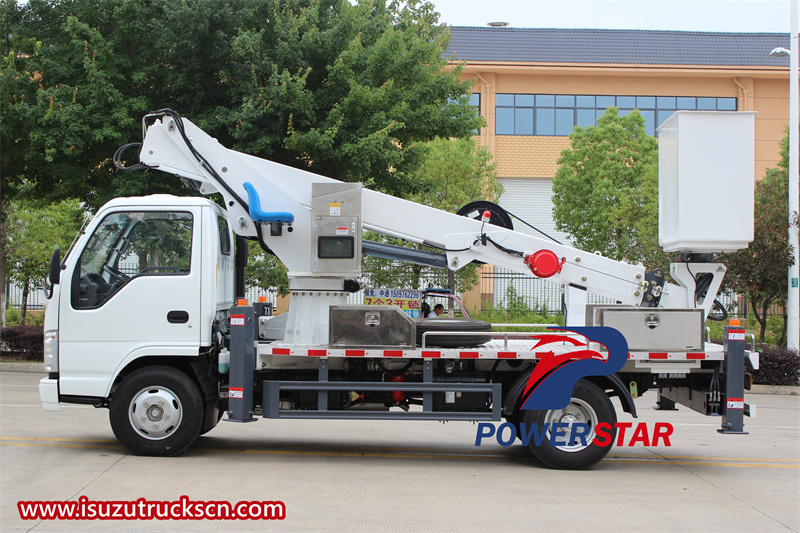

Isuzu 100P aerial man lift truck
Revolving mechanism

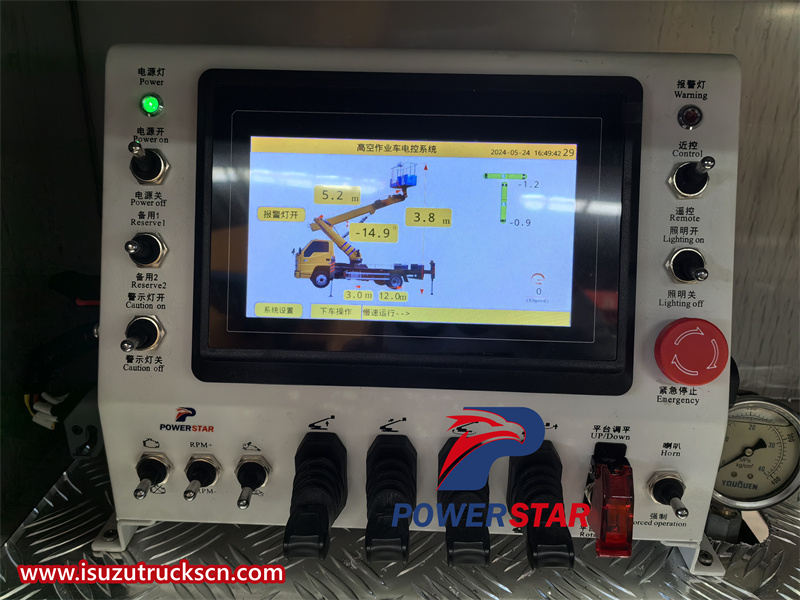

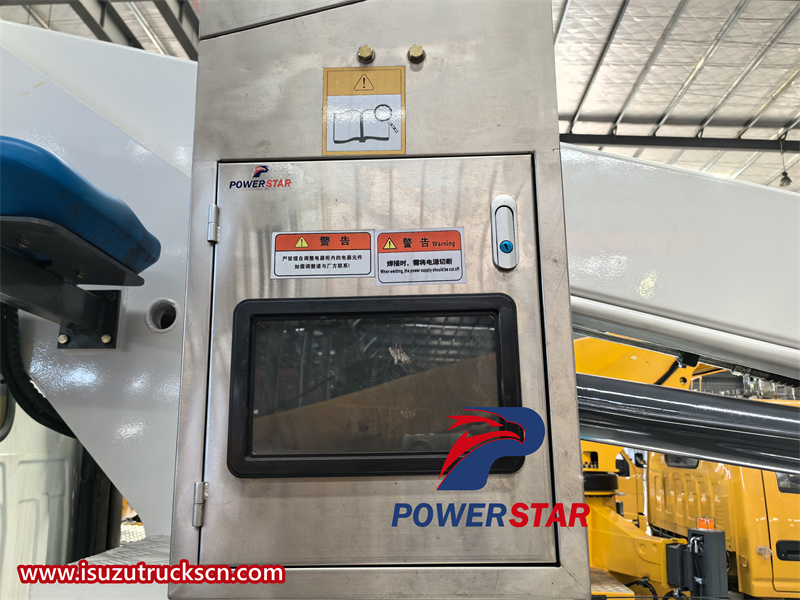

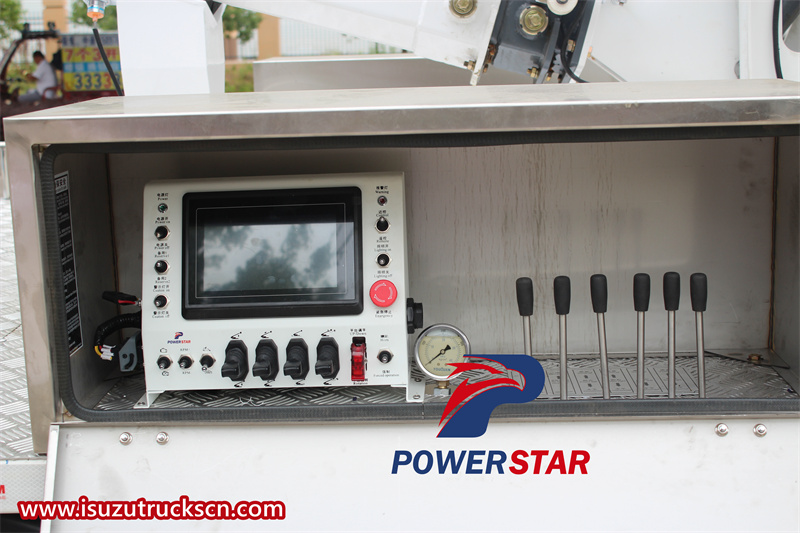

Operation box

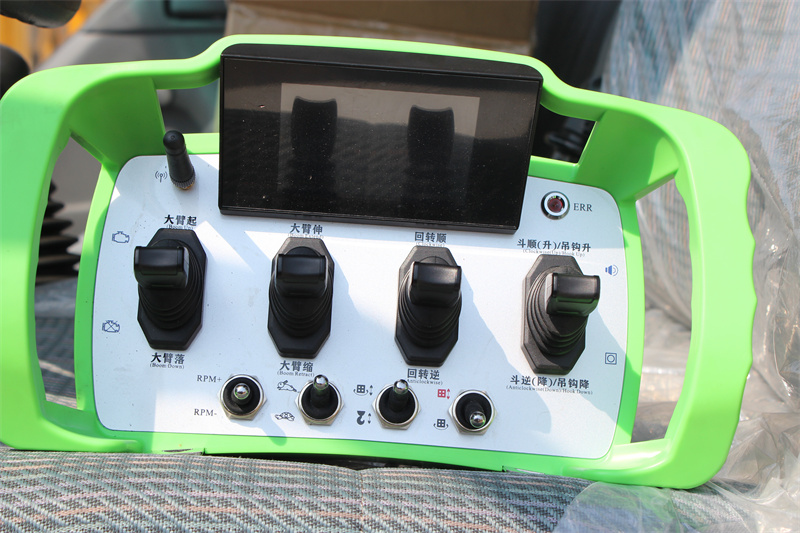

Remote control box

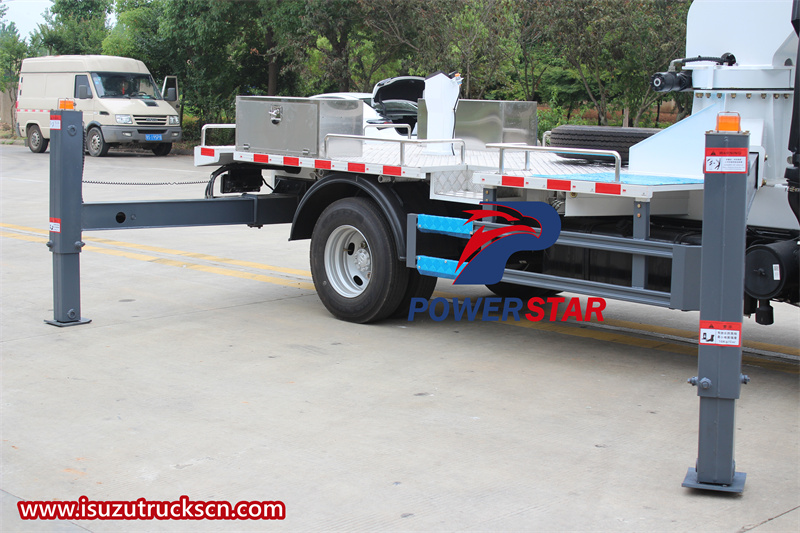

Outriggers

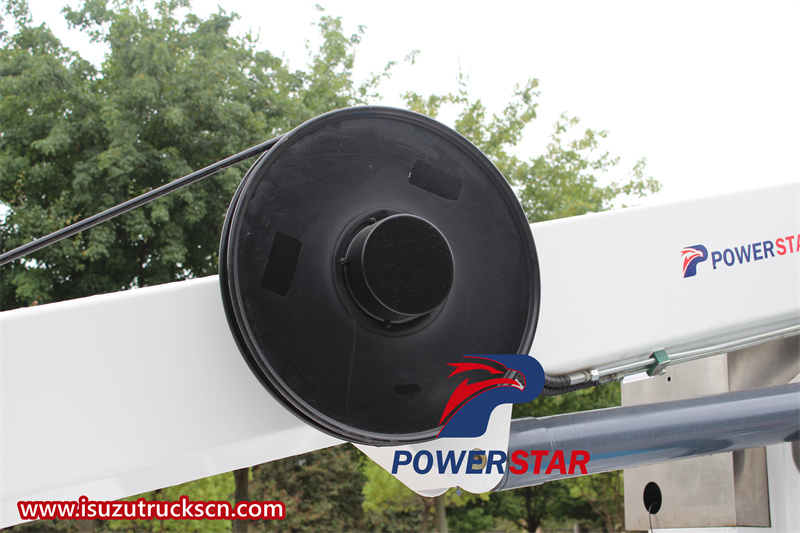

Reel

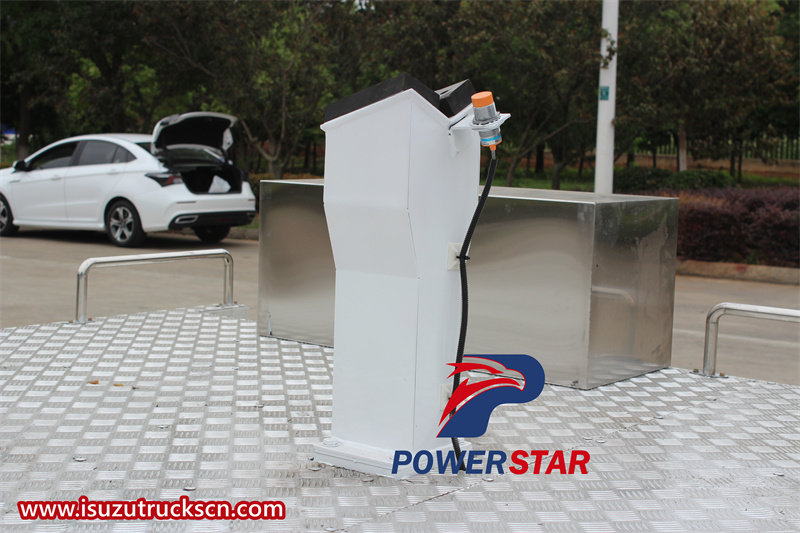

Support
POWERSTAR telescopic arm aerial platform truck is widely applied in fields needing aerial work, such as street lamp maintenance, garden project, television shooting, communication engineering, airport, decoration and advertising.
Learn More
The Isuzu 25 yards Heavy Dumper is a powerful and reliable heavy-duty truck suitable for a variety of construction and transportation projects, offering a spacious cab equipped with two seats and a bed for long driving and resting. The power comes from the 6WG1-TCG52 engine, which adopts vertical, water-cooled, six-stroke, turbocharging and intercooling technology. Equipped with power steering, the braking system adopts air brake and boost mode, the parking brake is a central drum brake, and the auxiliary brake is an air brake.In terms of dump performance, the vehicle has a load capacity of 25 tons. The unloading box is made of high-performance carbon steel, with a front/side thickness of 6 mm and a rear/side thickness of 8 mm.
Learn More

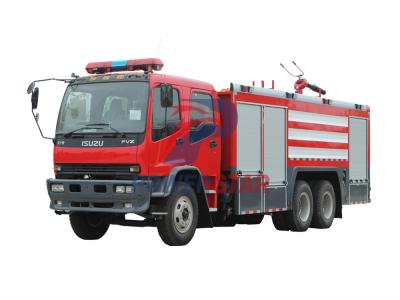

Isuzu FVZ fire rescue pumper truck is mainly used for fire fighting and rescue. It is a necessary equipment for fighting fires in petroleum, chemical industry, factories and mining enterprises, port cargo yards, etc. It has a powerful engine, high-quality fire pumps and fire cannons, and high water storage tanks and foam tanks, allowing it to complete firefighting tasks quickly, with high quality and efficiency.
Learn More
Japan ISUZU 120hp 190hp Sprinkling Truck for Cleaning The City,Vacuum Cleaning Truck, Battery RoadSweeper/Medium Vacuum Street Sweeper/DrivewaySweeper,4*2 10 Cubic Meter Compress Garbage Truck,Road Sweeping Truck Machine with Auto Garbage for Road & Street,Japan ISUZU Mini Street Sprinkler Water Truck,Popular Model Sweeper Truck of ISUZU 4kh1-Tc
Learn More

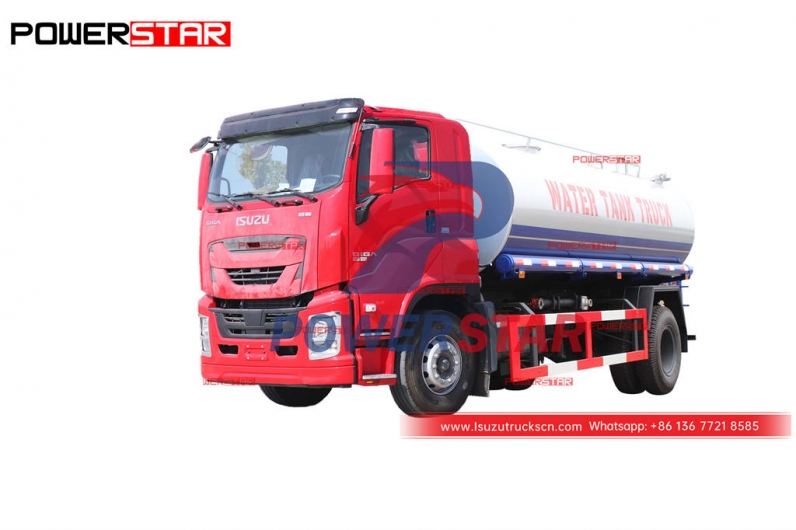

Hot-selling ISUZU GIGA Water Tanker Truck, ISUZU water spray truck, water bowser supplier.
