This Isuzu GIGA prime mover truck is a 6x4 left-hand drive model. It is equipped with an ISUZU brand diesel four-stroke direct injection engine and uses an electronically controlled high-pressure common rail system. The engine model is 6WG1-TCG60, which uses 6-cylinder in-line water-cooling, turbocharging and intercooling technology. In terms of chassis, the Isuzu GIGA prime mover truck uses a U-shaped parallel ladder frame, a reinforced sub-frame, and the material is high manganese steel. The front suspension is a semi-elliptical leaf spring suspension, and the rear suspension is also a semi-elliptical leaf spring suspension.
Work capacity:
45 tonsTruck model:
PT42056NDZEngine power:
420hpEngine type:
6WG1-TCG60Axle drive:
6x4Gear box:
ZF ECOSPLIT, 16 forwards and 2 reverseRemarks:
High powerThis Isuzu GIGA prime mover truck has a powerful power system, a stable and reliable chassis structure, and a comfortable and convenient cab configuration, making it suitable for large-scale transportation tasks. The Isuzu GIGA prime mover truck is a reliable choice for both long-distance hauling and heavy-duty towing. The Isuzu GIGA prime mover truck uses the ISUZU brand's high-performance diesel four-stroke direct injection engine and is equipped with an electronically controlled common rail fuel system to ensure more precise and efficient fuel injection. This 6WG1-TCG60 engine has excellent output performance, with a maximum power of 420 horsepower (308 kilowatts) and a maximum torque of 2060 N·m, which is enough to cope with various road conditions and heavy-load challenges.
In addition to its powerful engine, the Isuzu GIGA prime mover truck is also equipped with an advanced transmission system. The ZF ECOSOLIT manual transmission provides 16 forward gears and 2 reverse gears, allowing you to flexibly choose according to different road and load requirements. This highly efficient transmission system ensures smooth shifting and excellent acceleration. Of course, the chassis of the Isuzu GIGA prime mover truck is also excellent. It adopts a U-shaped parallel ladder frame and reinforced sub-frame, equipped with fully cold-riveted cross-shaped reinforced beams, and uses high-manganese steel materials to ensure excellent rigidity and durability. At the same time, the car is also equipped with a semi-elliptical leaf spring suspension, providing you with a comfortable and stable driving experience.
The cockpit is an important space for drivers to work. The high-roof design of Isuzu GIGA prime mover truck ensures sufficient headroom. The comfortable and spacious interior space can accommodate two people and two beds. In addition, the truck is also equipped with luxurious features such as central locking, electric glass, and air conditioning, allowing drivers to enjoy more convenience and comfort during long-distance driving.
Specific parameters：
|
Model |
Powerstar Driving type: 6*4 left hand driving |
|
|
Engine |
Brand: |
ISUZU |
|
Diesel 4-stroke direct injection diesel engine, electronic control common rail |
||
|
Engine model:6WG1-TCG60 |
||
|
6-cylinder in-line with water cooled, turbo-charging and intercooler |
||
|
Maximum output: 420 hp (308 Kw) |
||
|
Maximum torque: 2060 N.m |
||
|
Displacement: |
15.681 L |
|
|
Transmission |
ZF ECOSOLIT, 16 forwards and 2 reverse,mannual |
|
|
Front Axle |
F075,7.5 Ton Loading Capacity |
|
|

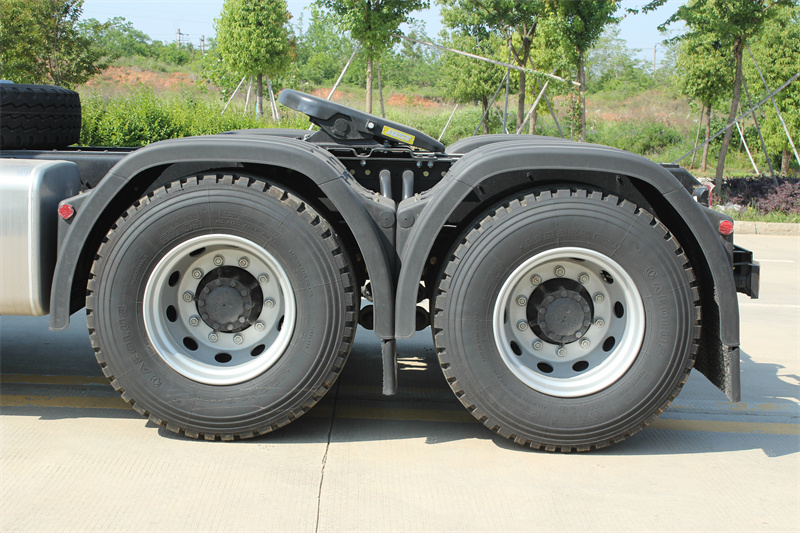

Rear Axle |
RT210,21 Tons Loading Capacity,Speed Ratio 3.07-5.571 |
|
|

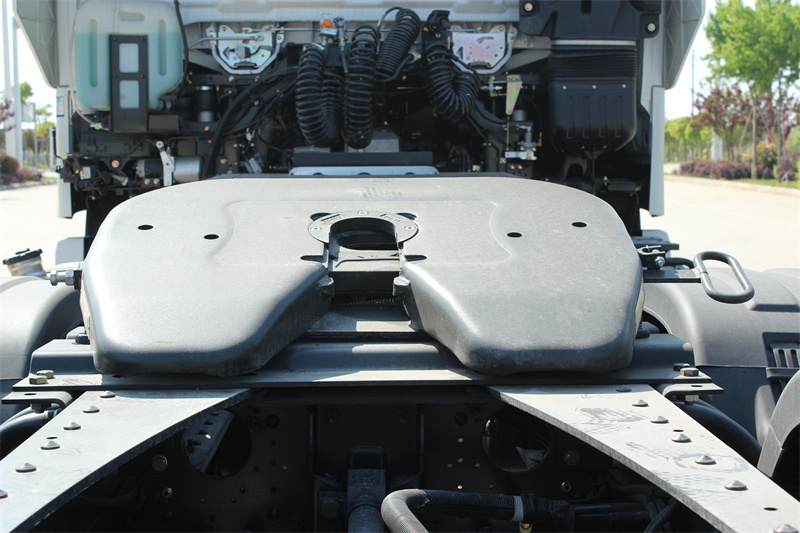

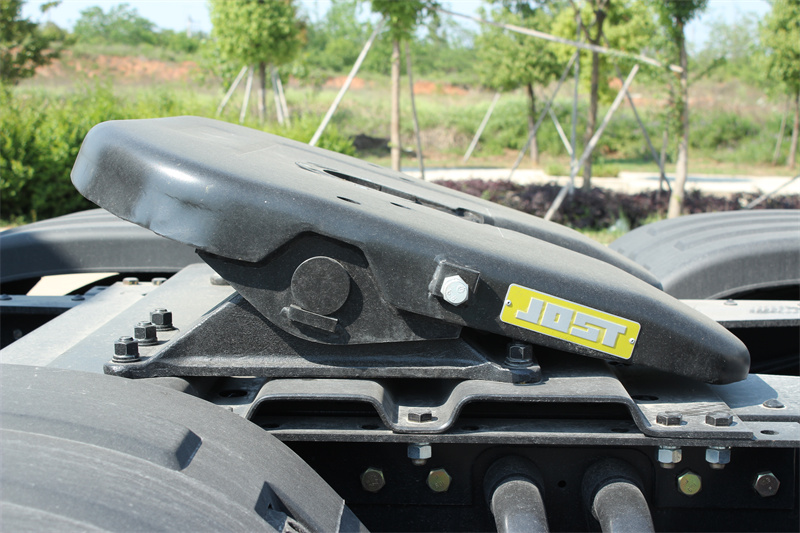

Fifth Wheel |
Standard 2 inch,3.5 inch for option |
|
|
Chassis |
Frame: U-profile parallel ladder frame, and reinforced subframe 320×90×8 all cold riveted cross members, Manganese steel |
|
|
Front suspension: semi-elliptic leaf springs |
||
|
Rear suspension: semi-elliptic leaf springs |
||
|

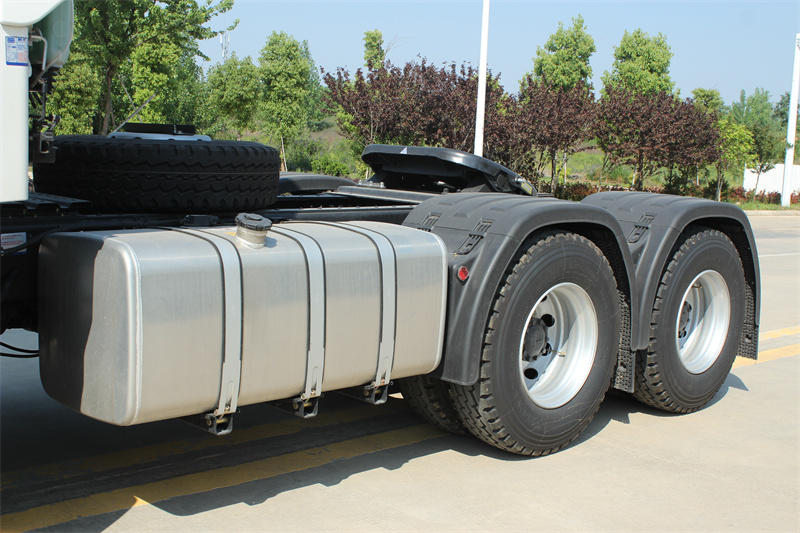

Aluminium fuel tank: |
600 L & 800L for option |
|
|
Wheels & Tyres |
Tire: |
295/80R22.5,Aluminum rim for option |
|

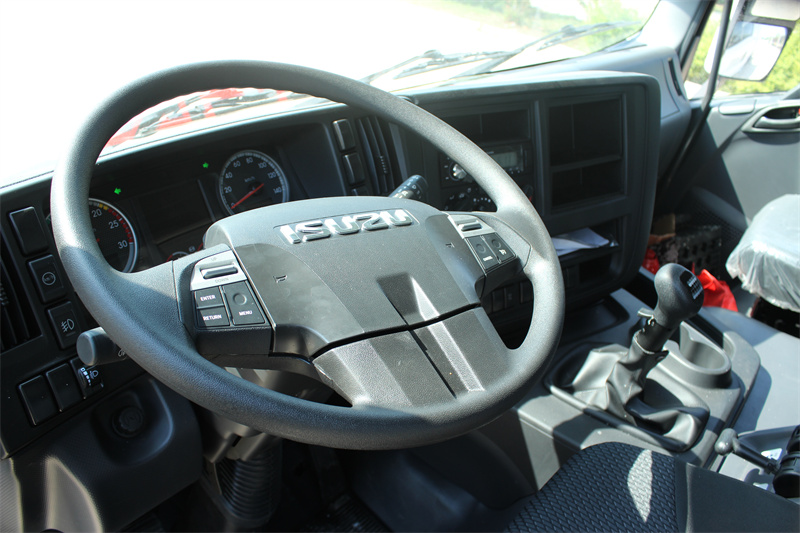

Driver's Cab |
ISUZU GIGA high roof cab, 2 seats+2 bed,central lock,electric glass,A/C,ABS; CHROME GRILLE |
|
|
Dimensions mm |
Wheel base |
3385+1370 MM |
|
Overall length |
6900 MM |
|
|
Overall width |
2500 MM |
|
|
Overall height |
3970 MM |
|
|
Weight kg |
Dead weight |
9280 KG |
|
Rated pulling Capacity |
80000 KG |
|
|
Gross vehicle weight(GVW) |
28500 KG |
|
|
Front axle loading capacity |
7500 KG |
|
|
Rear axle loading capacity |
21000 KG |
|
The performance characteristics of Isuzu GIGA prime mover truck are as follows:
1. Powerful power system: Isuzu GIGA prime mover truck is equipped with an ISUZU brand diesel four-stroke direct injection engine. This 6WG1-TCG60 engine provides a maximum power of 420 horsepower (308 kilowatts) and a maximum torque of 2060 N·m. Such power performance ensures excellent acceleration performance and high load-bearing capacity.
2. Advanced transmission system: Isuzu GIGA prime mover truck is equipped with Z F ECOSOLIT manual transmission, which has 16 forward gears and 2 reverse gears, allowing the driver to perform flexible gear changes according to different road and load requirements. Such a transmission system ensures smooth shifting and excellent acceleration performance.
3. Strong and stable chassis structure: Isuzu GIGA prime mover truck adopts a U-shaped parallel ladder frame and reinforced sub-frame, with fully cold riveted cross-shaped reinforced beams. The chassis structure made of high manganese steel has excellent rigidity and durability. sex. At the same time, the semi-elliptical leaf spring suspension system provides the driver with a stable and comfortable driving experience.
4. Comfortable and luxurious cockpit: Isuzu GIGA prime mover truck is equipped with a high-ceiling designed cockpit, providing ample space for two people to sit and two beds. Luxurious features such as central locking, electric glass and air conditioning allow drivers to enjoy more convenience and comfort during long-distance driving.
5. Excellent carrying capacity: Isuzu GIGA prime mover truck has excellent carrying capacity. The vehicle weighs 9,280kg, has a rated towing capacity of up to 80,000kg, and a total weight of 28,500kg. This makes the Isuzu GIGA prime mover truck perform well in heavy-duty towing tasks and long-distance transportation, and can cope with a variety of transportation needs.
