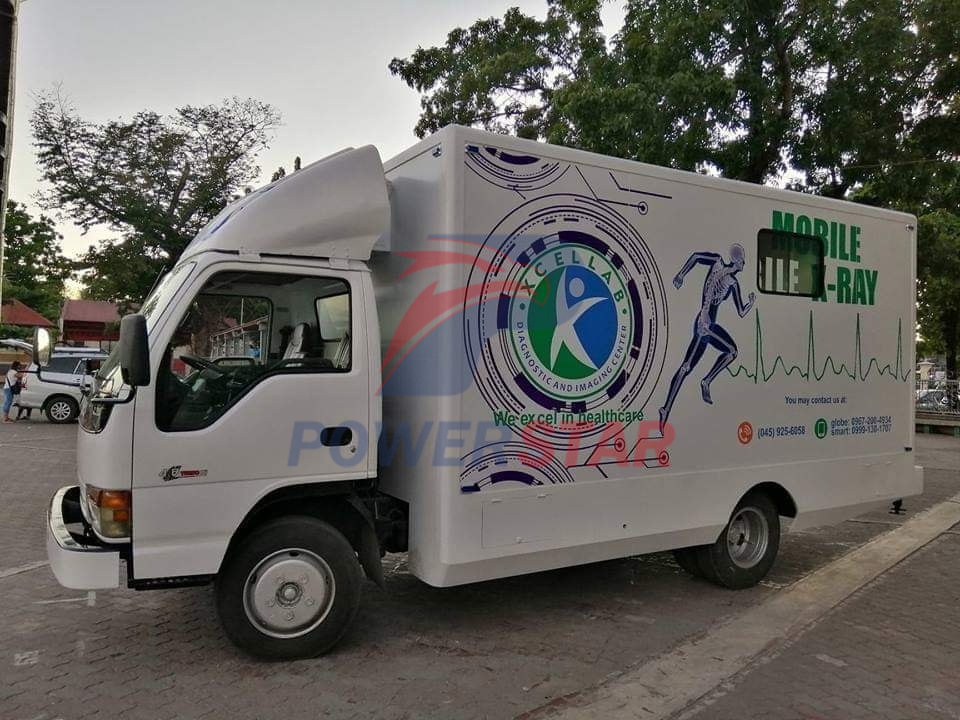

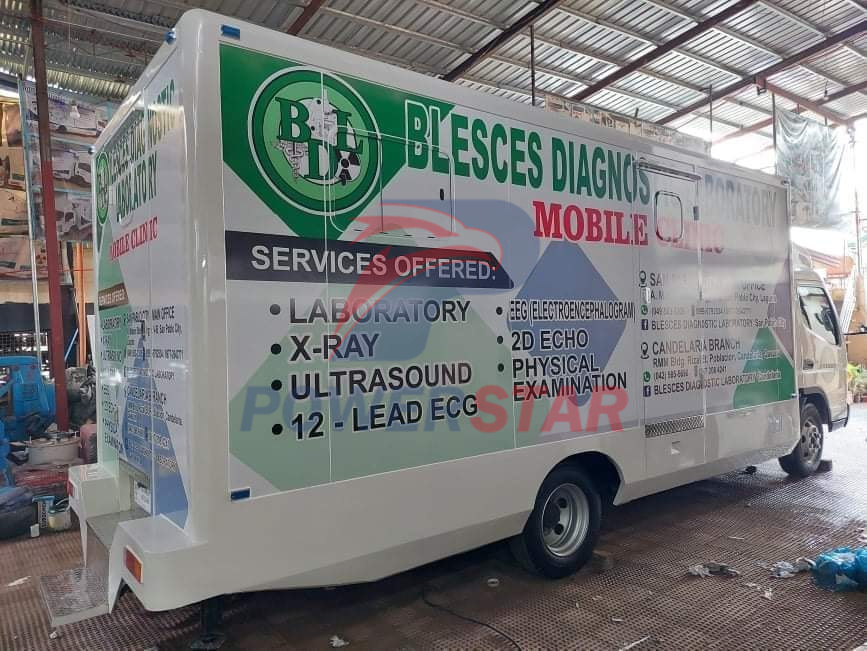

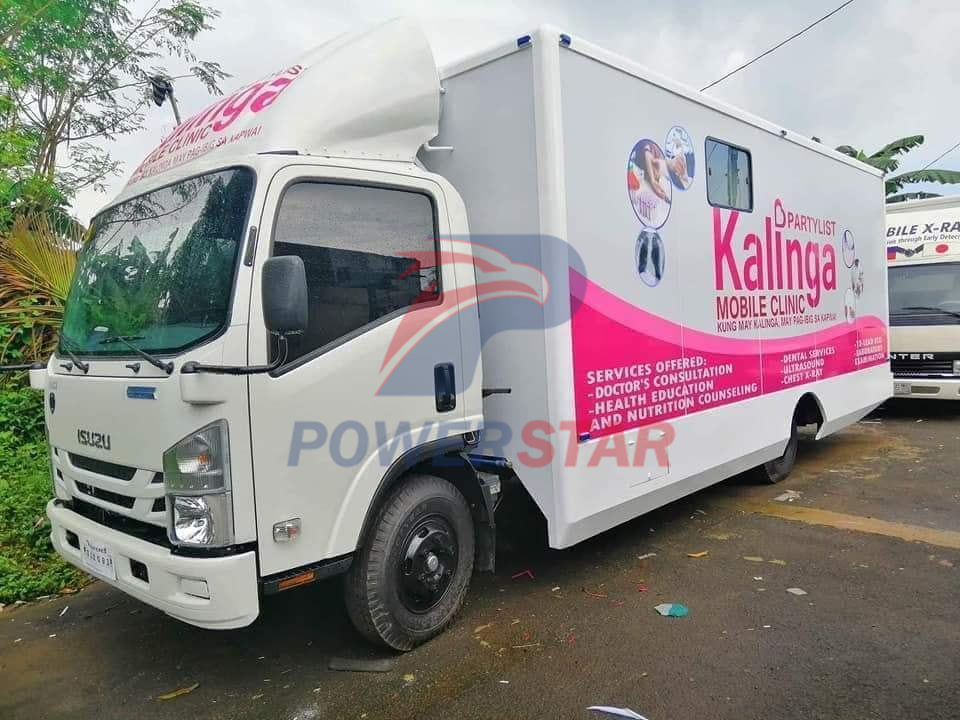

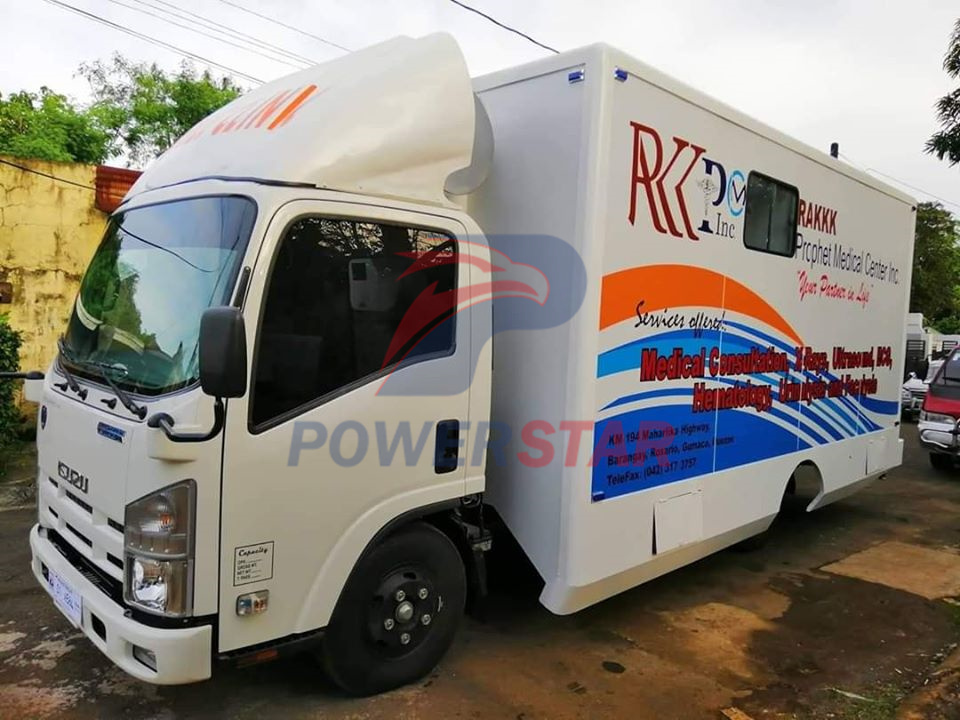

New Isuzu Mobile Clinic Hospital Laboratory with X-RAY ROOM medical facility vehicle
Order(MOQ):
1
New Isuzu Mobile Clinic Hospital Laboratory with X-RAY ROOM Medical facility vehicle
ISUZU Mobile clinic (also called ISUZU Mobile hospital, Isuzu Mobile Laboratory, Isuzu mobile X-ray room, Isuzu medical service vehilce ) is designed
for the meet the hospital's health inspection needs outside hospital, like factory, school, miltary, port and so on.
 |
100% custom-made
|
|
3 cbm to 35 cbm available
|
|
Short delivery time 7~30 days
|
|
Easy operation & Easy maintenance
|
|
15 years spare parts & Technical support
|
Specification No.
|
PST5070TMC
|
Quantity
|
Chassis
|
ISUZU KV100
|
|
Engine
|
Model: 4KH1 98HP
Type: Inline 4 cylinder, supercharged intercooled, high pressure common rail diesel generator
Displacement (ml): 2771
Fuel type: diesel
|
|
Van
|

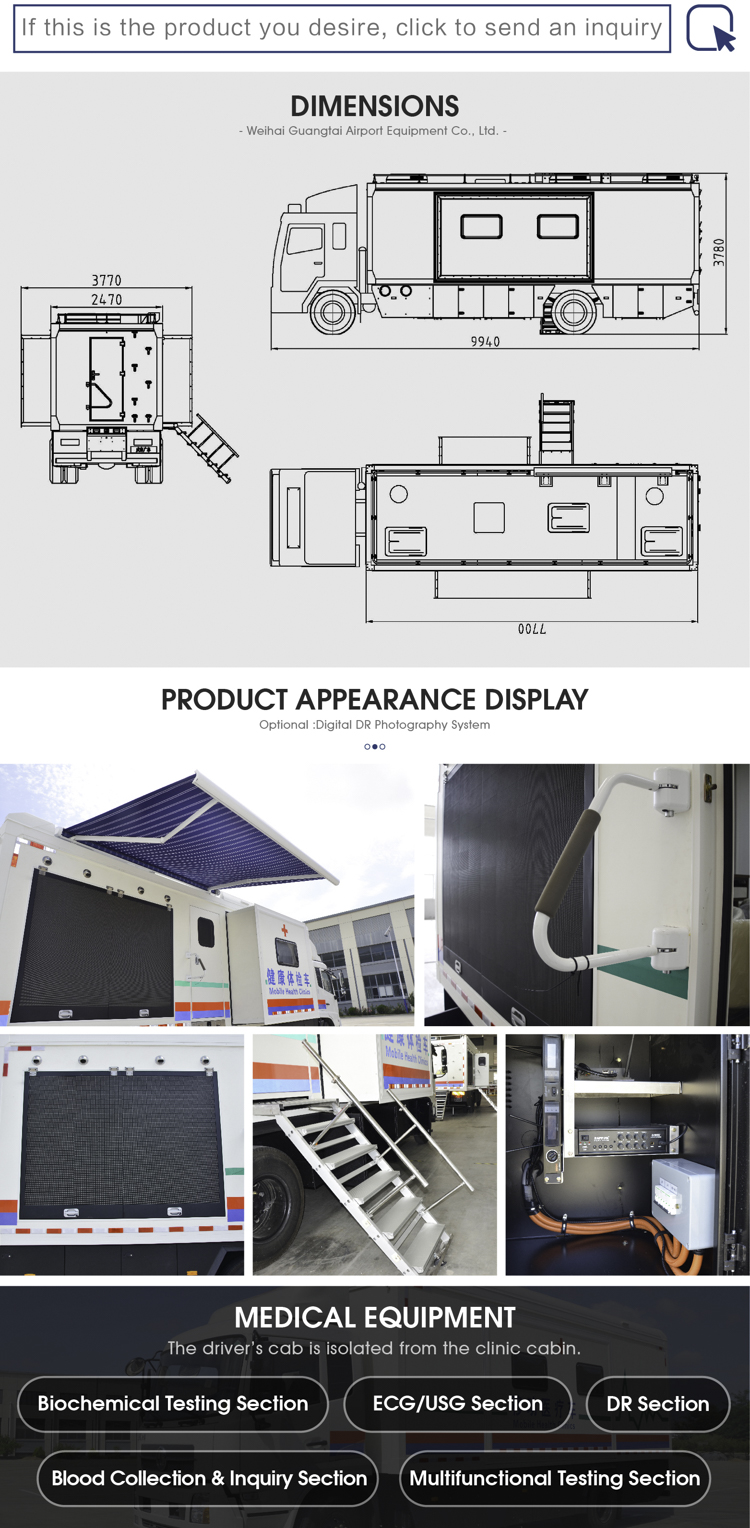

Interior dimensions (length, width, height / mm): 5610 * 2345 (3645 after expansion) * 2035
The top of the Vehicle has a thickness of 70mm and a peripheral thickness of 46mm.
|
|
Van Expansion
|
Electronically controlled automatic expansion and contraction
|
|
Supporting System
|
4-point electric support cylinder support (motor 520W)
|
1
|
Conditioner
|
KD-35cb, cooling 3.5KW, heating 2.4KW
|
3
|
Extractor Fan
|
20W, displacement: 5 cubic meters / minute
|
2
|
Generator Set
|
Output AC220V, 5.5KW
|
1
|
Generator Set Lifting System
|
Electric cylinder drive, motor DC24V, 60W
|
1
|
Awning
|
Electric (full box DS800)
|
1
|
Cable Reel
|
JT-50-3-I, pedal electric telescopic (24V DC )
|
1
|

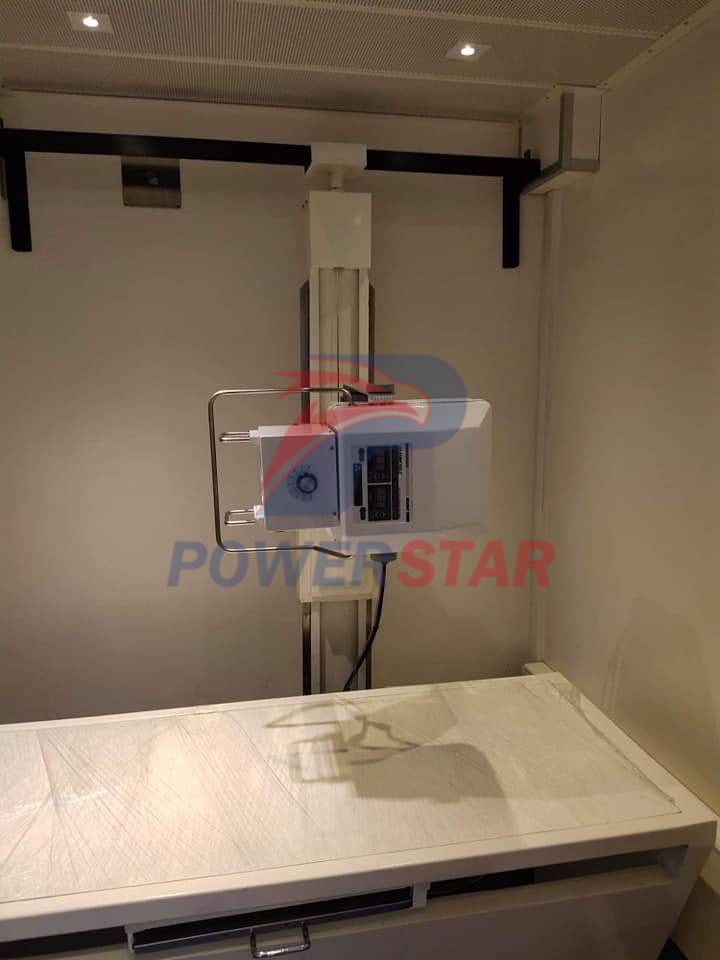

Lead room protection
|
The X-ray protection level is in accordance with the level of GBZ130-2002, and the X-ray leakage according to the conditions specified in GBZ117-2006 is ≤2.5uGy/h.
The tube has a wire harness away from the X-ray console, and the lead plate around the lead room is affixed with a lead plate ≥ 2.5 lead equivalent.
A lead glass observation window is placed in the X-ray console;
|
1
|
100L Medical incubators
|
The main parameters:
Volume: 100L
Voltage: DC12V-24V
Cooling power: 70W
Box temperature: -12 ° C ~ 10 ° C
Dimensions: 485 × 490 × 843
|
1
|
Bed
|
With a length of 2 meters and a width of 0.6 meters, the bed is equipped with lockers for medical equipment and medical supplies.
|
1
|
Chair
|
Liftable
|
|
Electric hand basin
|
Electric operation, with water purification, sewage tank 25L each, stainless steel
|
1
|
LED full color outdoor screen
|
P4 standard full color waterproof outdoor screen with power amplifier and voice system, area 1.605m*2.148m
|
1
|
Fuel heater system
|
Plumbing heater
Model: YJH-Q15A
Voltage: DC24V
Fuel type: diesel
Heating power: 15KW
Heater
Model: 120.27.106
Voltage: DC24V
Heating power: 5.2KW
Electric power: 100W
|
