Isuzu FVR GIGA 5x 18-ton chassis is a heavy-duty commercial vehicle chassis designed for applications that require high load-bearing capacity and stable performance. It is an 18-ton giant that combines powerful power, robust structure and excellent performance. It ensures excellent stability and reliability even under complex road conditions. It is a new benchmark in the field of special vehicles and leads the development trend of the industry.
Work capacity:
10～16 tonsTruck model:
PT5180GXZEngine power:
240HPEngine type:
6HK1-TCG61Axle drive:
4X2,LHDGear box:
FAST 8-speed,manualRemarks:

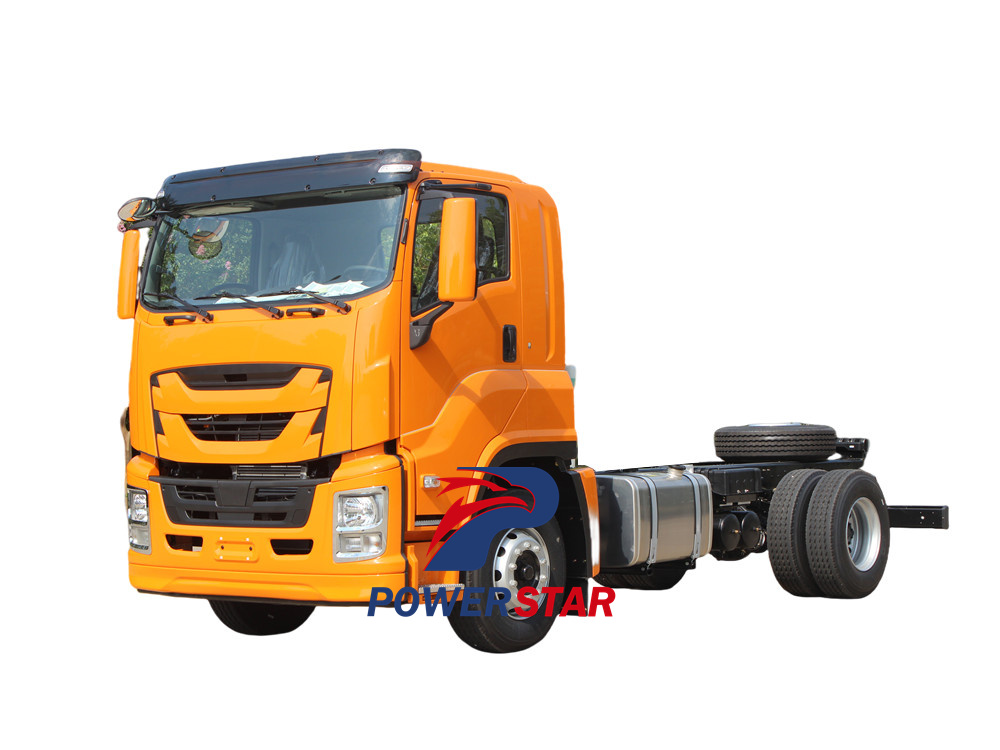

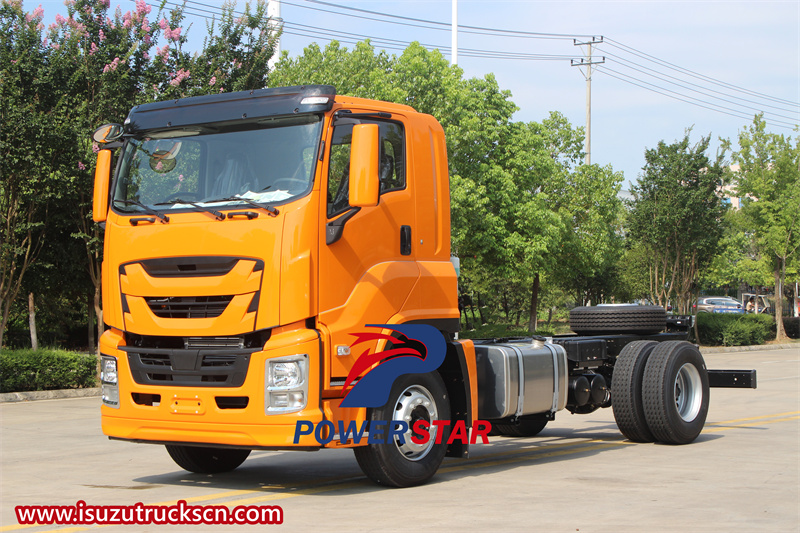

New Isuzu FVR GIGA 5X cabin chassisNew ISUZU FVR GIGA 5X cabin chassis truck 18tons also called Isuzu FVR GIGA 5X class 240HP chassis,Isuzu FVR GIGA 4x2 18tons chassis,Isuzu new FVR GIGA 5X cab chassis,Isuzu FVR medium chassis with 6HK1 engine, Isuzu FVR GIGA 5x 18-ton chassis.
The New ISUZU FVR GIGA 5X cabin chassis truck 18tons is a heavy-duty commercial vehicle chassis designed for applications that require high load capacity and stability. It uses advanced chassis technology and a sturdy construction to ensure excellent stability and reliability even in complex road conditions. The ISUZU FVR GIGA 5x 18-ton chassis has a powerful power system and optimized axle load distribution, which can easily cope with heavy-duty transportation tasks. At the same time, its flexible configuration options allow manufacturers to customize cargo boxes or vans according to customer needs to meet the transportation needs of different industries.
In the commercial truck industry, the new ISUZU FVR GIGA 5X stands like a lion, and its 18-ton load capacity makes it a model of modern transportation technology. This behemoth combines power, efficiency and reliability, showing the highest level of automotive technology. From its stylish design, sturdy construction to advanced functions, the FVR GIGA 5X is subverting the way of transportation and bringing a revolution to the transportation industry.
Features:
★ Isuzu 4x2 High technology FVR GIGA 5X chassis
★ 100,000 Km long distance Guarantee
★ Isuzu engine,super power
★ Can be modified into various special vehicles
★ Easy operation and easy maintenance
|
New ISUZU FVR GIGA 5X cabin chassis truck 18tons |
||
|
Vehicle Dimensions and Parameters |
Overall Dimension |
8800*2500*2810 (mm) |
|
Wheelbase |
4500mm |
|
|
Front/ Rear Wheel Distance |
2060/1855mm |
|
|
Front/Rear Suspension |
1370/2830mm |
|
|
Weights and Capacities |
Curb Weight |
6150 (kg) |
|
GVW |
18000kg |
|
|
Axel Loads |
6500/11500kg |
|
|
Engine |
Model |
6HK1-TCG61 |
|
Power |
240HP/175Kw |
|
|
Displacement |
7790ml |
|
|
Exhaust Gas Treatment Technology |
DPF+SCR |
|
|
|
Transmission |
FAST 8-speed,manual |
|
Cab |
Number of Seats |
2 seats and a bed |
|
Chassis
|
Drive Type |
4x2 |
|
Drive speed |
105 Km/h |
|
|
Tires |
7(Including Spare Tire) |
|
|
Tire model |
295/80R 22.5 |
|
|

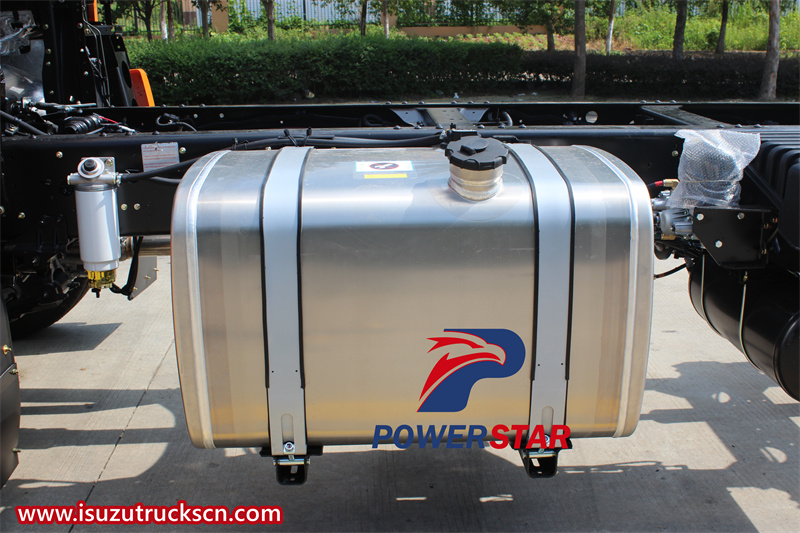

Fuel Tank |
Capacity |
200L |
|
Type |
Diesel |
|
|
Configurations |
Power Steering System |
|
|
Air Conditioner |
||
|
Retro-reflective Marking |
||
|
ABS |
||
|
Free Maintenance Battery |
||
With a powerful 18-tonne payload capacity, the new ISUZU FVR GIGA 5X cab-chassis truck is the pinnacle of innovation and performance in the commercial trucking industry. It represents the perfect blend of power, efficiency and reliability, and embodies the essence of modern transport technology. With its cutting-edge design, rugged structure and advanced features, the FVR GIGA 5X sets a new standard for heavy-duty vehicles and promises to revolutionize the way goods are transported.

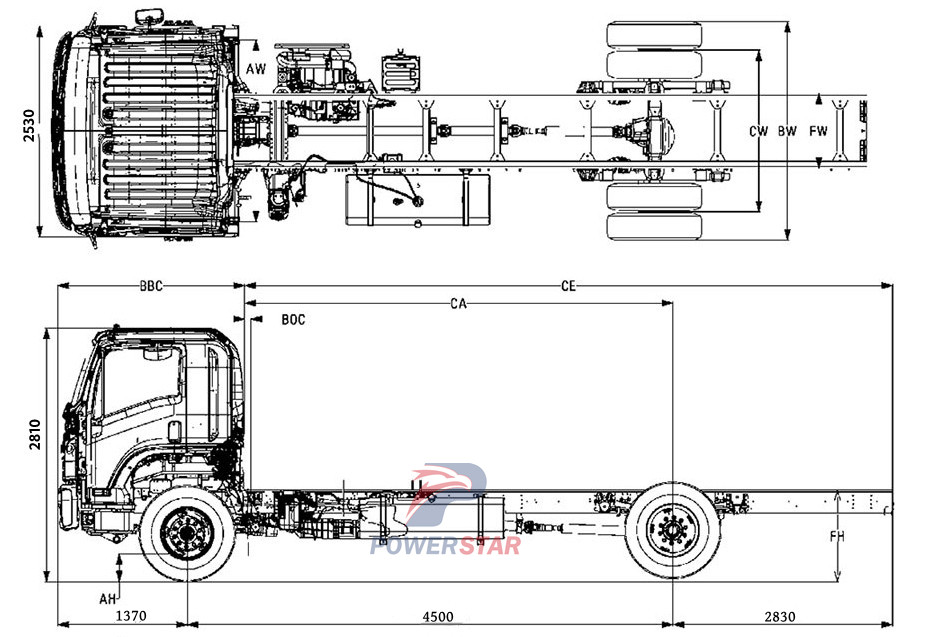

Technical drawing of New ISUZU FVR GIGA 5X cabin chassis truck 18tons
A combination of power and elegance
From the moment you see the new ISUZU FVR GIGA 5X chassis, it’s impossible not to be struck by its imposing yet sophisticated exterior. The truck’s sleek lines and aerodynamic design not only reduce drag and improve fuel efficiency, but also exude a sense of modernity and sophistication. The cab has been meticulously crafted to offer a spacious interior that combines comfort and practicality, ensuring drivers enjoy a pleasant and productive working environment.
Rugged Cab Design
The 5X-class cab design of the FVR GIGA 5X combines comfort and safety. The ergonomic interior features ample legroom and headroom, ensuring that the driver can enjoy a fatigue-free journey even on long journeys. The cab is also equipped with advanced safety features such as airbags, ABS (Anti-lock Braking System) and EBD (Electronic Brake-force Distribution) to provide additional protection for the driver and passengers.
Power and Performance
The new Isuzu FVR GIGA 5X-class chassis is equipped with a high-performance engine that delivers impressive horsepower and torque, and the transmission system is designed to be precise and durable, allowing seamless gear shifting, ensuring that the truck always operates at optimal performance. The brakes also provide reliable stopping power in emergency situations.
The engine is powerful and fuel-efficient, providing ample torque and horsepower to ensure smooth acceleration and easy handling even under heavy loads. The engine is optimized for low fuel consumption and low emissions, making it an environmentally friendly choice.
Capacity and Versatility
With an 18-ton capacity, the ISUZU FVR GIGA 5X is a versatile workhorse suitable for customizing a variety of special vehicles. From engineering vehicles, sanitation vehicles, and emergency rescue vehicles to tank trucks, vans and other special vehicles, this chassis vehicle excels in a variety of industries, providing companies with the flexibility they need to optimize their operations.
The New Isuzu FVR GIGA 5X cabin chassis truck chassis has a wide range of applications in many fields due to its strong carrying capacity, flexible configuration options and excellent performance. Whether it is traditional cargo transportation or the modification of special vehicles, this chassis can provide reliable support and guarantee. At the same time, with the continuous advancement of technology and the continuous changes in the market, its application range will continue to expand and deepen. For this New Isuzu FVR GIGA 5X cabin chassis truck chassis, its application range is wide, and it can be used to modify a variety of special vehicles, with super high application potential. The following are some common applications:

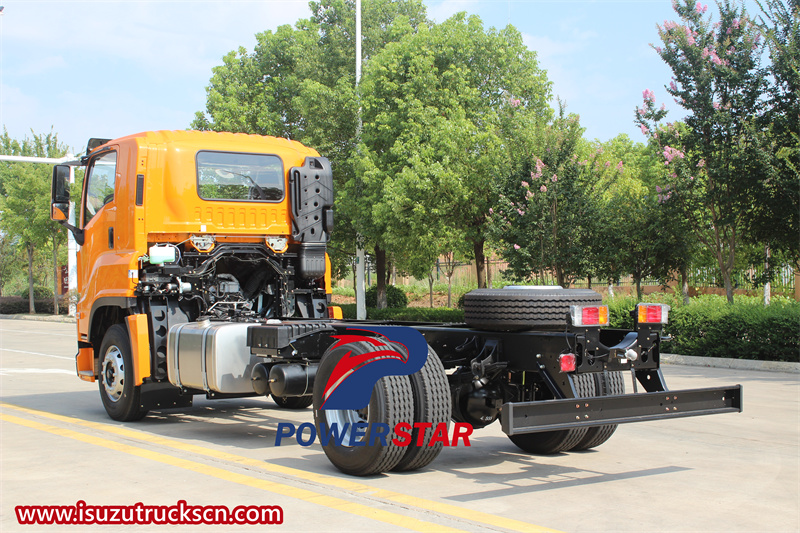

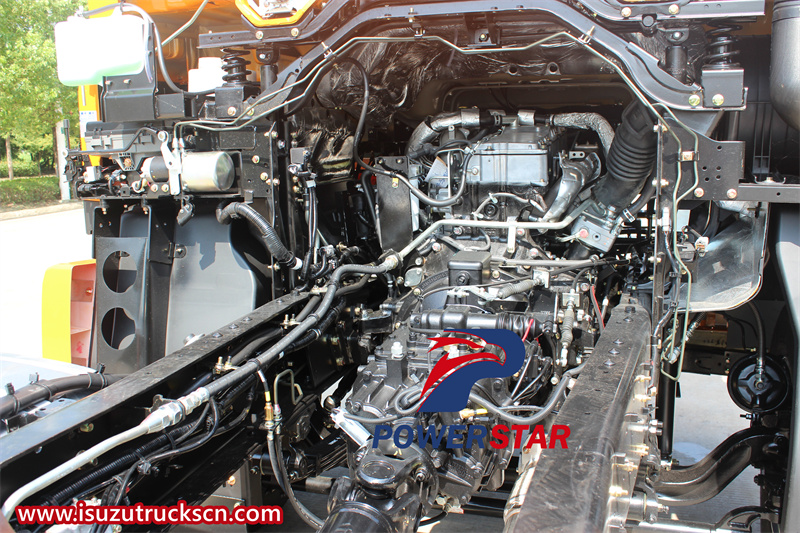

Chassis engine
Fire truck: The chassis's sturdiness and power performance make it an ideal choice for manufacturing fire trucks. Its carrying capacity can support heavy firefighting equipment and a large number of water tanks, while its stable driving performance ensures that it can quickly reach the fire scene in an emergency.
Compression garbage truck: The chassis's durability and flexibility make it an excellent basis for compression garbage trucks. By adding a compression mechanism and a garbage box, the chassis can easily achieve efficient collection and compression processing of urban garbage, improving the efficiency of sanitation work.
Sewage suction truck: This chassis also performs well in application scenarios that require the treatment of liquids such as sewage and sludge. By installing a professional sewage suction pump and storage tank, it can be converted into an efficient sewage suction truck for cleaning urban sewers, septic tanks and other places.

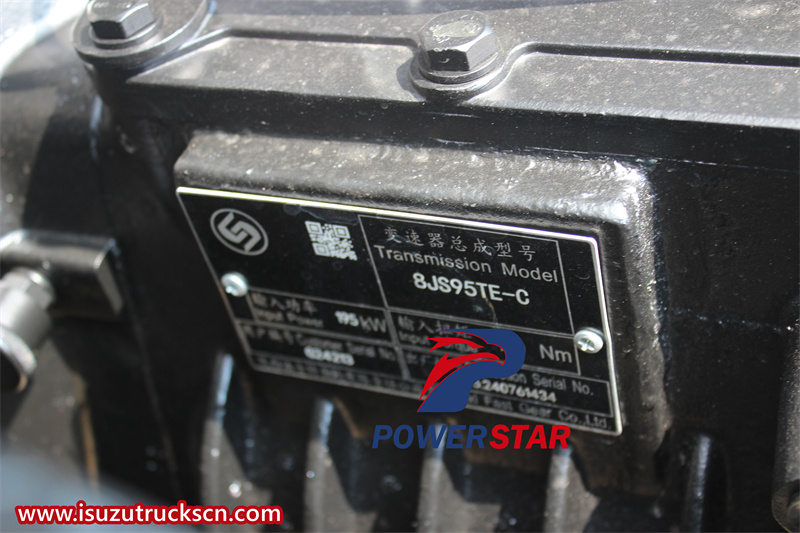

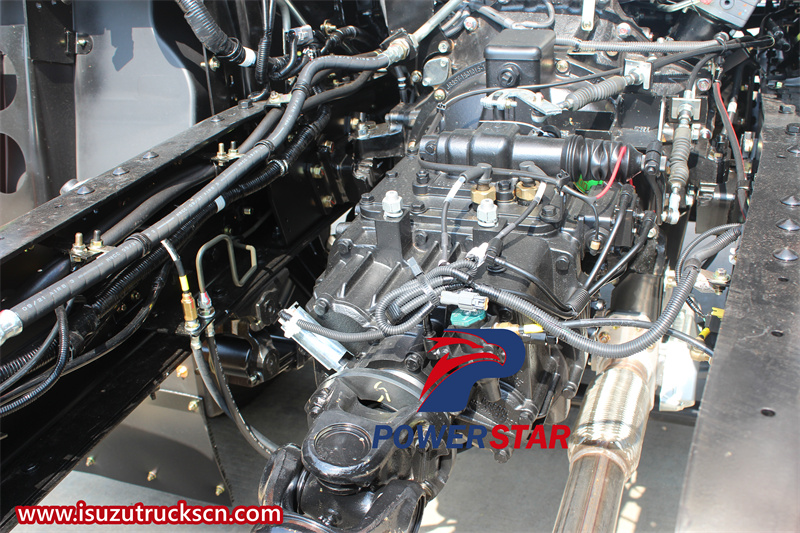

Transmission assembly
Flatbed truck：As the most basic modification method, this chassis can be easily equipped with a sidecar cargo compartment for transporting various bulk goods, building materials or industrial raw materials. Its carrying capacity and flexibility meet the transportation needs of different industries.
Dump truck: By adding a dump device (such as a hydraulic lifting mechanism), this chassis can be converted into a dump truck, which is suitable for mines, construction sites and other places where heavy objects need to be frequently loaded and unloaded. The self-unloading function improves loading and unloading efficiency and reduces labor costs.
Truck crane: Combined with the boom and lifting mechanism, this chassis can be transformed into a truck crane, which is widely used in hoisting operations, emergency rescue and other fields. Its powerful power system and stability provide reliable protection for hoisting operations.
Aerial work vehicle: In order to meet the needs of aerial work, the chassis can also be equipped with a telescopic arm or a scissor lift platform to transform into an aerial work vehicle. It is suitable for the installation, maintenance and overhaul of aerial equipment in the fields of electricity, communications, municipal administration, etc.

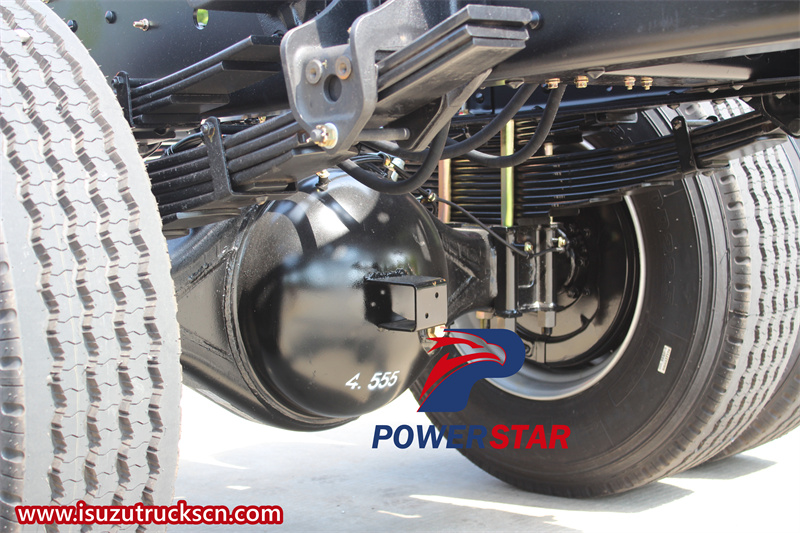

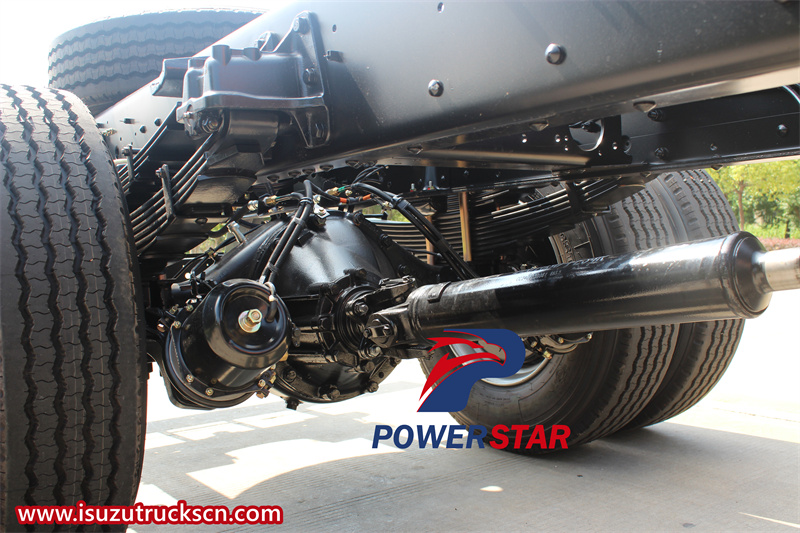

Rear axle
Van truck: This chassis is very suitable for conversion into a van for transporting goods that need protection or temperature control, such as food, medicine, precision instruments, etc. The body of the van is made of insulation or refrigeration materials to ensure the quality and safety of the goods during transportation.
Fuel truck: By installing professional oil tanks and oil delivery systems, the chassis can be converted into a tank truck for the transportation of liquids such as oil, diesel, and gasoline. Its sturdy chassis and stable driving performance ensure safety during transportation.

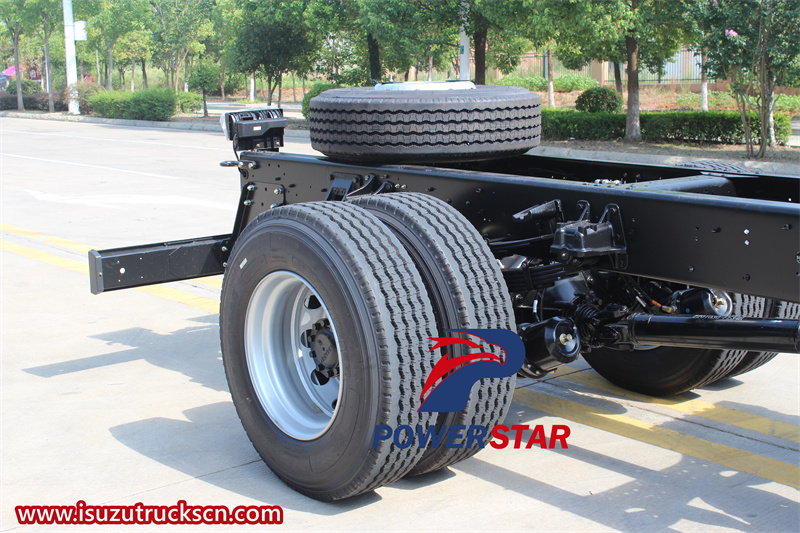

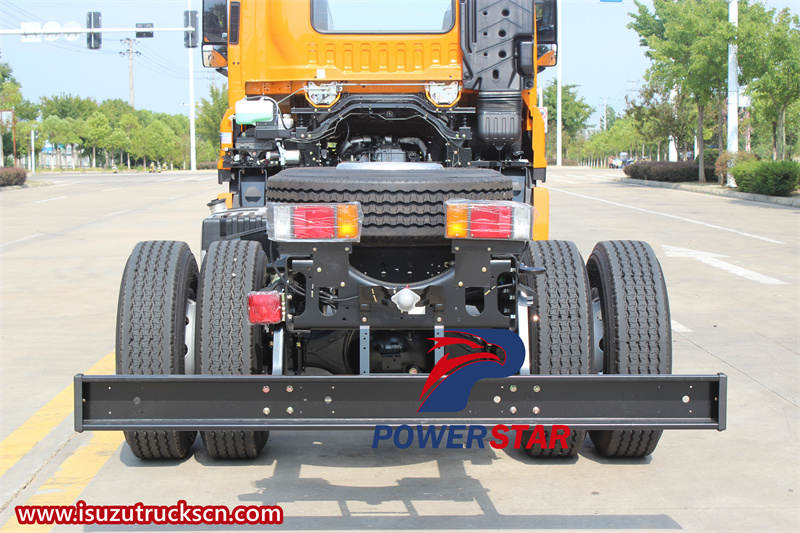

Rear axle
Water truck: Similarly, after adding a large-capacity water tank and a pumping system, the chassis can be used for water tank trucks in various scenarios such as urban water supply, fire water, and agricultural irrigation. Its flexibility and efficiency meet the needs of water resource transportation in different fields.
Logistics transport vehicle: As the basis of logistics transport vehicles, this chassis can carry cargo compartments or containers of various specifications for long-distance or short-distance cargo transportation. Its strong carrying capacity and stable performance ensure the efficiency and safety of logistics transportation.

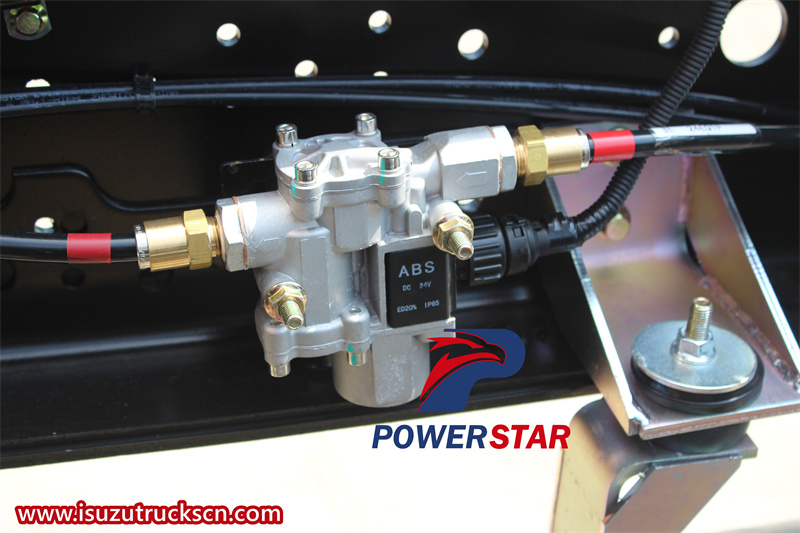

ABS
