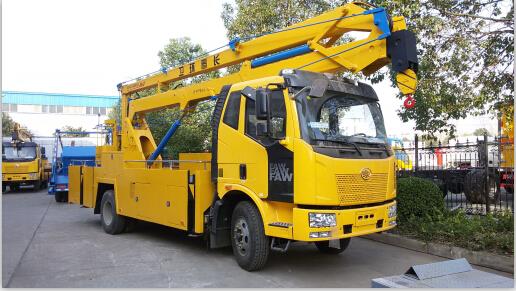

Mobile Man Lift Truck FAW(also called Aerial platform vehicle, truck mounted platform, aerial truck with basket, hydraulic man lift truck, etc.) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.
POWERSTAR Aerial platform trucks are available of 6m-8m, 8m-12m, 14m-16m, 18m, 20m-22m, 24-26m. Insulated cage is optional.
---- FAW chassis ensures perfect driving performance;
---- FAW engine, super powerful; reliable performance, no overhaul within 100,000 km;
---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);
---- Working cage can rotate 90 degree in left and right;
---- 4pcs outriggers and front support improve operation stability and safety;
---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
---- Wireless remote control system is available.
Similar Key Words: Overhead working truck, bucket lift truck, lifting platform truck, bucket boom truck,mobile man lift truck,
| High working platform Truck SINOTRUK (20M) | ||
| General | Vehicle Brand | POWERSTAR |
| Chassis Brand | FAW | |
| Overall Dimension | 9650 x 2500 x 3250 mm | |
| GVW / Kerb Weight | 16,000 kg / 12,485 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | With air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | FAW engine | |
| Power | 165~250Ps (162KW) | |
| Displacement | 4040~6060 ml | |
| Emission Standard | Euro III | |
| Chassis | Drive Type | 4X2, left hand drive or right hand drive |
| Transmission | 9-forward gears & 1 reverse | |
| Wheelbase/No. of axle | 4700 mm / 2 | |
| Tyre Specification | 9.00-20 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Cage Rated Capacity | 200 kg |
| Working Height | 18~22 m | |
| Beam | The beam is articulated & telescopic extension type, hydraulic actuated and controlled | |
| Slewing | Slewing range is continuous 235° (minimum) with a slewing speed of maximum 15° per second. | |
| Control | Control both on the ground and remote control in cage | |
| Safety Device | Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump | |
| Leveling System | Hydraulic stabilizer to level the vehicle on uneven ground | |
| Optional | Insulated cage; Wireless remote control system | |
