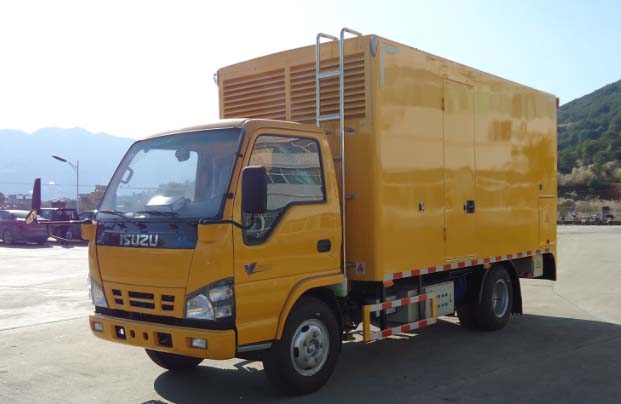

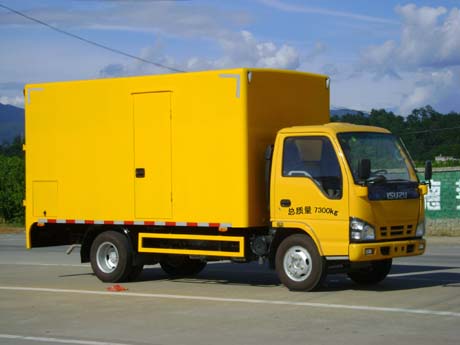

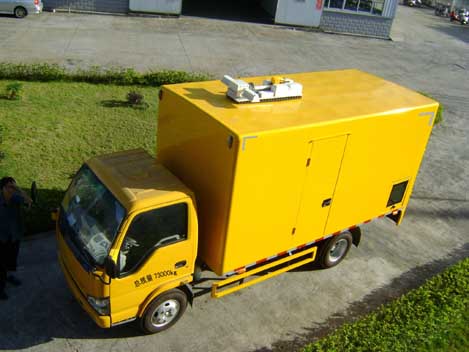

Japan mobile power supply station vehicle
Order(MOQ):
1Japan mobile power supply station vehicle
Briefings
² Good maneuverability, used for remote emergency power supply
² Equipped with Wilson generator
² Fire extinguisher and emergency stop switch equipped
² Well sealed, rainproof, snow-proof and dustproof
² Reasonable structure, excellent quality with low noise and easy to operate
Power Supply Function
|
Product |
Wilson Diesel Generator |
|
Product Model |
P100(380/220V,50HZ) |
|
Output |
100kVA 80kw |
|
Dimensions(L*W*H mm) |
2600*1100*1700 |
|
Weight(kg) |
1600 |
|
Diesel Motor Model |
Perkins 1006TG2A |
|
Generator Model |
LL3014B |
|
Cylinder |
4 (inline) |
|
Cylinder Volume( L) |
5.99 |
|
Cylinder Bore /Stroke( mm) |
100.0/127.0 |
|
Compression Rate |
16.0:1 |
|
Frequency (Hz) |
50 |
|
Rev (rpm) |
1500 |
|
Motor Shaft Power(kW) |
105 |
|
Brake Pressure (kPA) |
1404 |
|
Piston Speed (m/sec) |
6.35 |
|
Fuel Consumption( P100E l/hr) |
23.9 |
|
Smoke Discharge Heat Radiation (kW) |
68.7 |
|
Cooling Heat Radiation (kW) |
68.1 |
|
Total Heat Dissipation (kW) |
44.6 |
|
Smoke Discharge Temperature (℃) |
576 |
|
Wind Discharge (m3 /min ) |
174 |
|
Air Discharge (m3/min) |
5.9 |
|
Smoke Discharge (m3 /min ) |
17.3 |
Chassis Technical Data
|
Chassis |
ISUZU NKR77 |
|
Dimensions(L*W*H mm) |
7020×2260×3358 |
|
Wheelbase(mm) |
3815 |
|
Wheel Tread(F/R mm) |
1110/2095 |
|
Seating Capacity |
2 |
|
Curb Weight(kg) |
6800 |
|
Total Weight(kg) |
9995 |
|
Engine |
4HK1-TC |
|
Engine Type |
Diesel inline 4 cylinders |
|
Max Power(kW/rpm) |
129/3600 |
Function:
The low noise mobile power station is excellent in providing power support for matched vehicle, electric equipment used under field condition, power-off or no-power remote regions and disaster-hit areas.
Application Events:
- mining company, power company, oil field, exterior shooting of film companies, field drill
- emergency rescue
- frontier defence, rural healthcare
- field working of army / police / armed police
The low noise mobile power station consists of vehicle generator system, fixed shelter assembly, modified chassis, electrical control system, ventilating system, noise reduction system, cable management system, lifting illumination system, etc.
And the generator on the low noise power station vehicle is delicately selected from well-known generator brands like KOHLER, CUMMINS, KIPOR, etc.
You are also free to select your desired brand. This mobile power station can be used as emergency power station. If the power station trailer does peek your interest, please contact us right now for more information.
