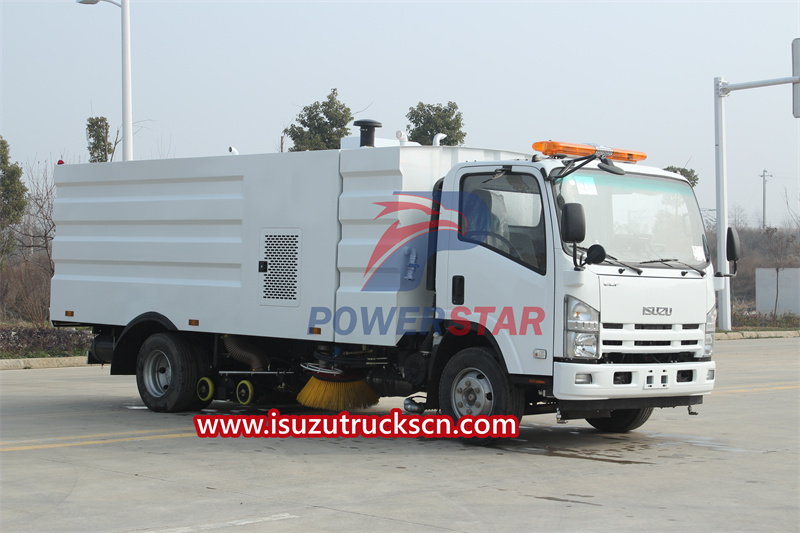

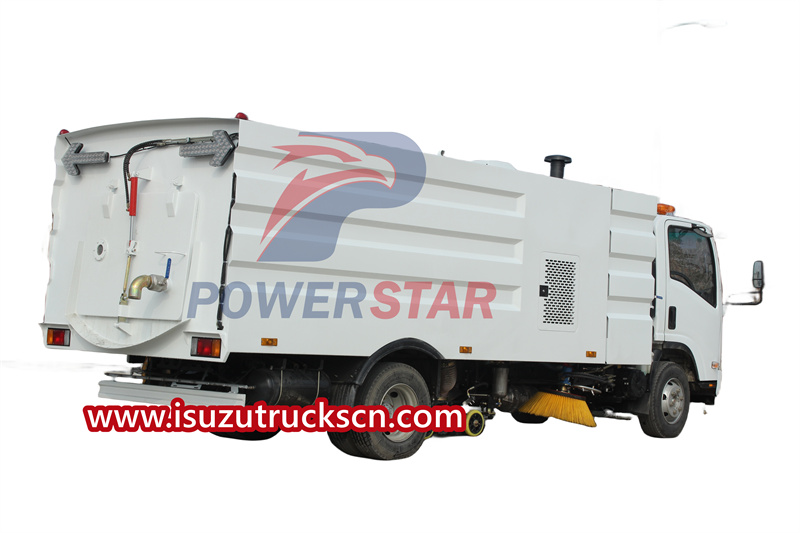

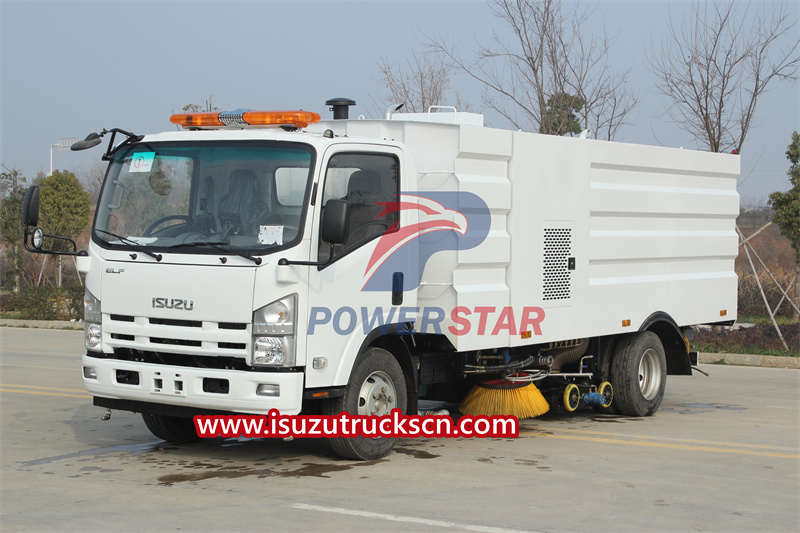

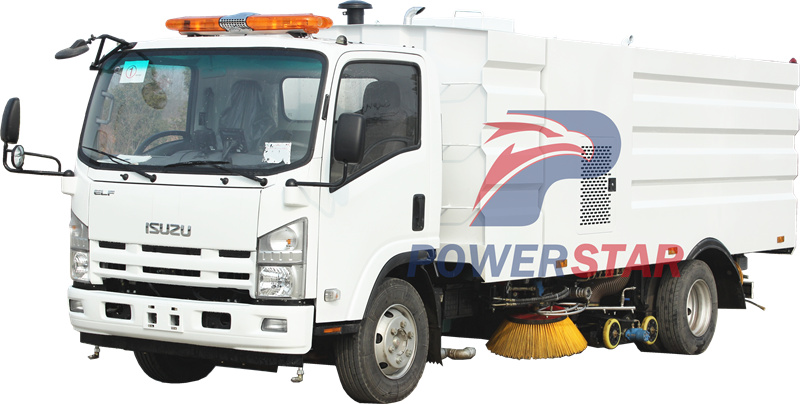

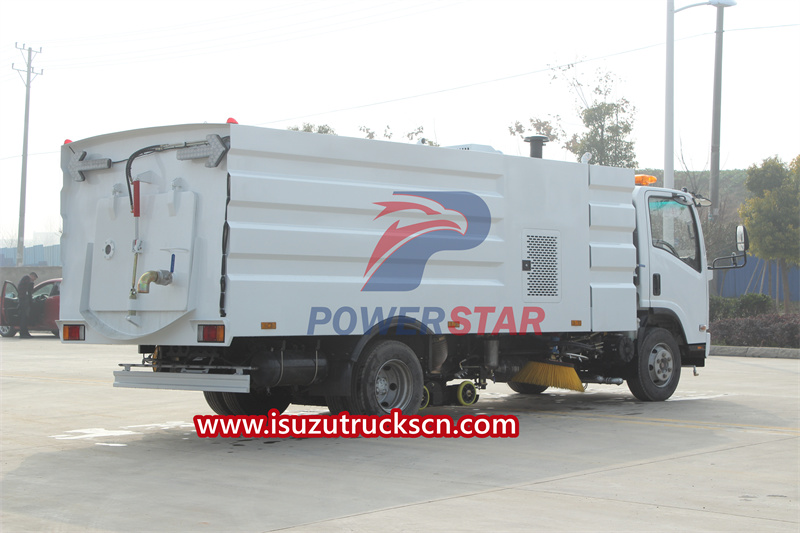

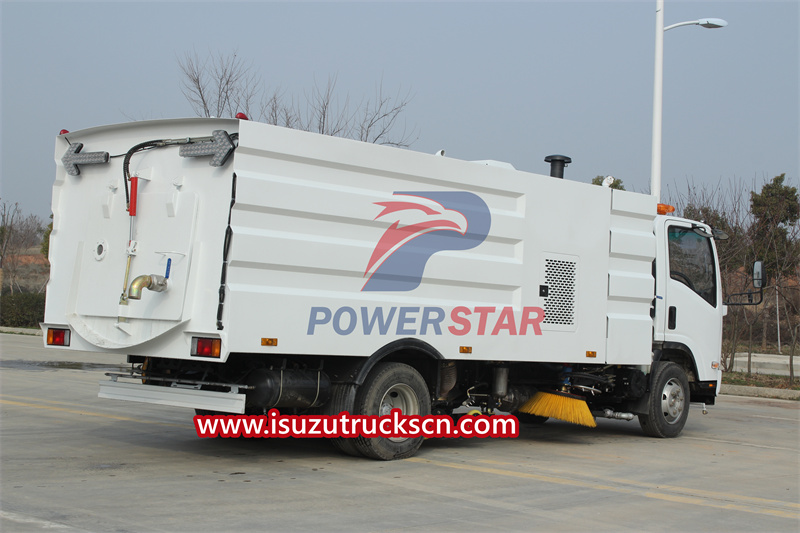

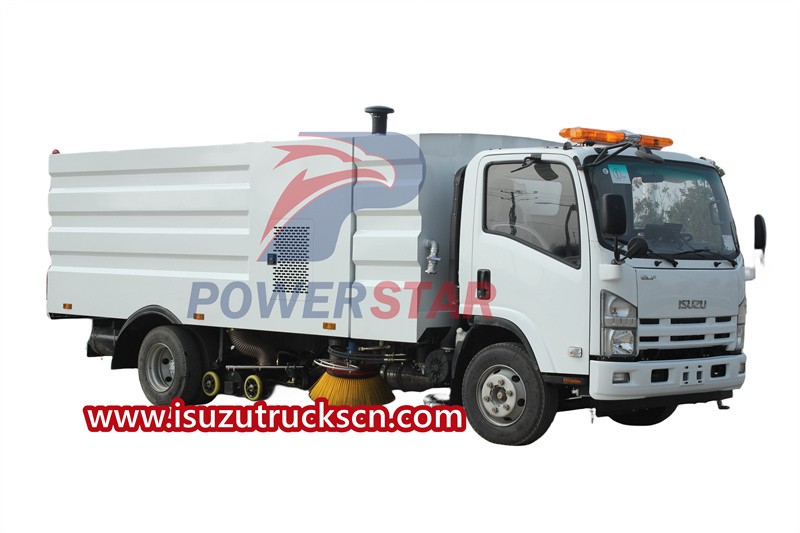

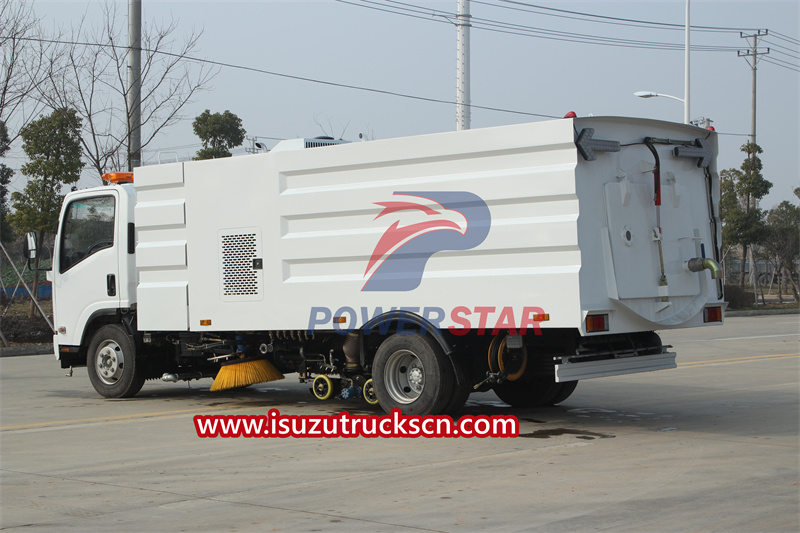

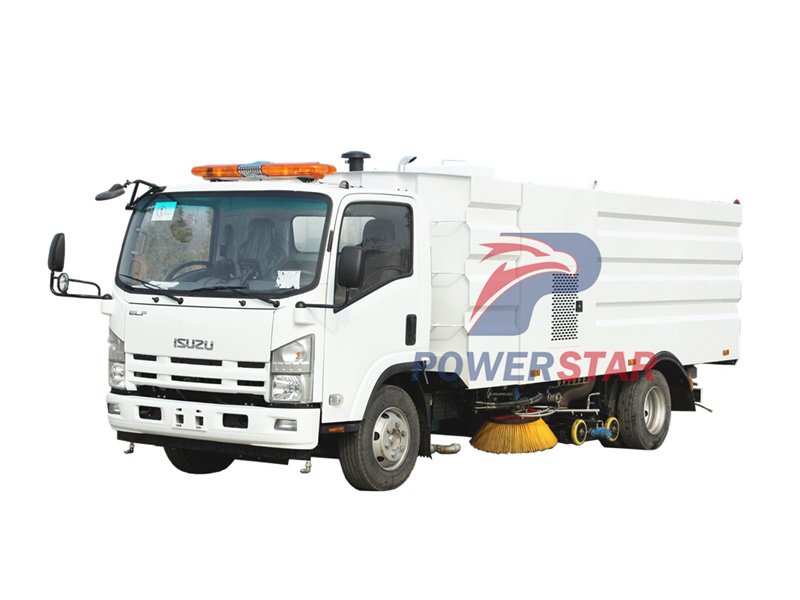

Isuzu 700P road washing sweeper truck is a specialized vehicle designed for cleaning and sweeping roads. It possesses several distinctive features that make it a highly efficient and effective choice for road cleaning tasks.
Isuzu road washing sweeper truck is equipped with a powerful water system. It has a large water tank capacity, allowing it to carry a significant amount of water for extended cleaning operations. This feature ensures the truck can cover a considerable distance without the need for frequent refills. Moreover, the water pump installed in the vehicle generates high-pressure water jets, enabling it to remove dirt, dust, debris, and other surface contaminants effectively.
Work capacity:
10 m3 dust + 2 m3 waterTruck model:
PT5150TSLEngine power:
190 HPEngine type:
ISUZU 4KH1Axle drive:
4x2Gear box:
ISUZU MSBRemarks:
dusbin box, water box optional.
Isuzu road washing sweeper truck, also known as road washer, is a specialized vehicle designed for cleaning roads and removing debris. This truck is manufactured by the renowned automobile company, Isuzu, known for its high-quality vehicles.
The Isuzu road washing sweeper truck is equipped with advanced technology and efficient cleaning mechanisms to ensure effective road cleaning. The truck is built with a robust chassis that can withstand heavy loads and provide stability during operation. It is powered by a reliable engine that enables smooth and powerful performance.
The road washing sweeper truck is equipped with water tanks and high-pressure water jets that effectively spray water onto the road surface. This helps in removing dust, dirt, and other debris, resulting in a clean and well-maintained road. The water tanks have a large capacity, ensuring a prolonged cleaning operation without the need for frequent refilling.

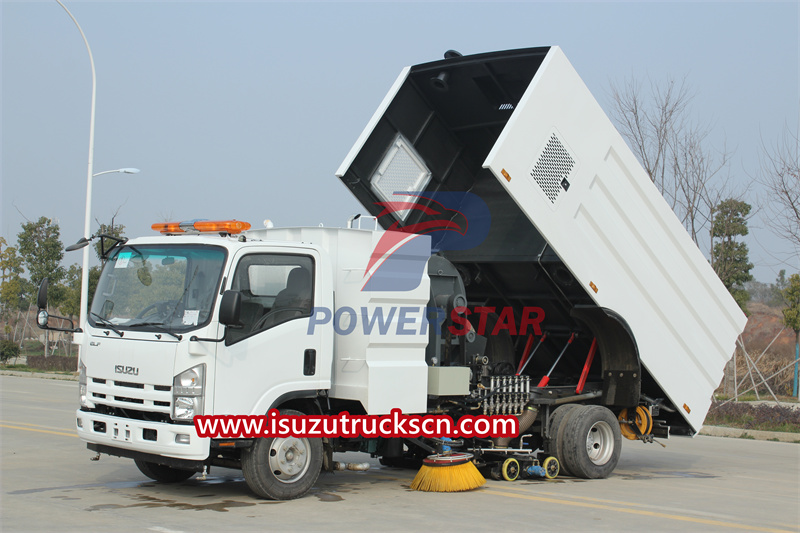

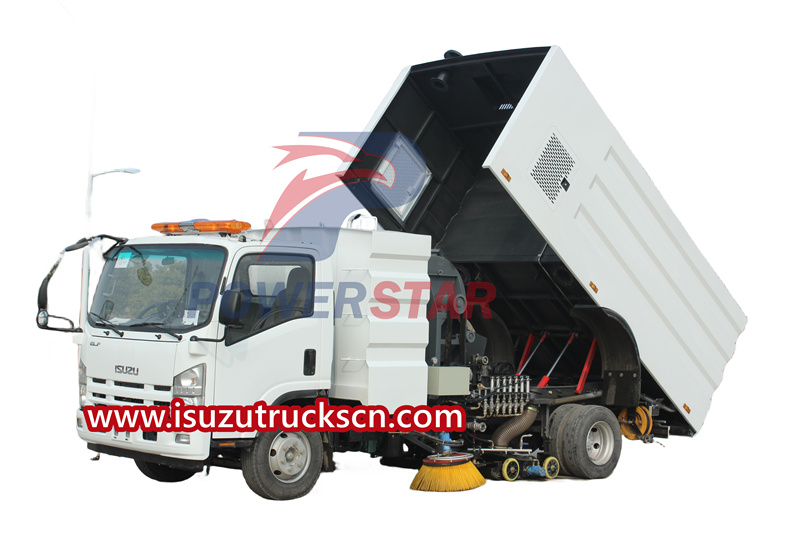

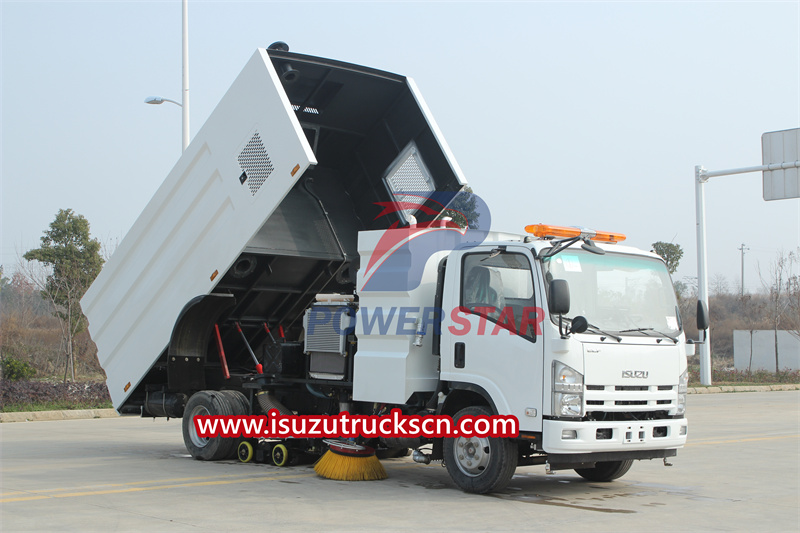

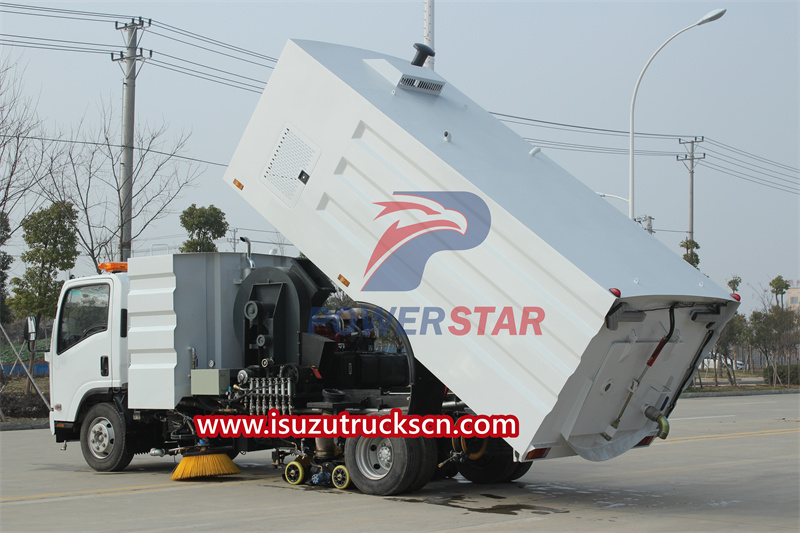

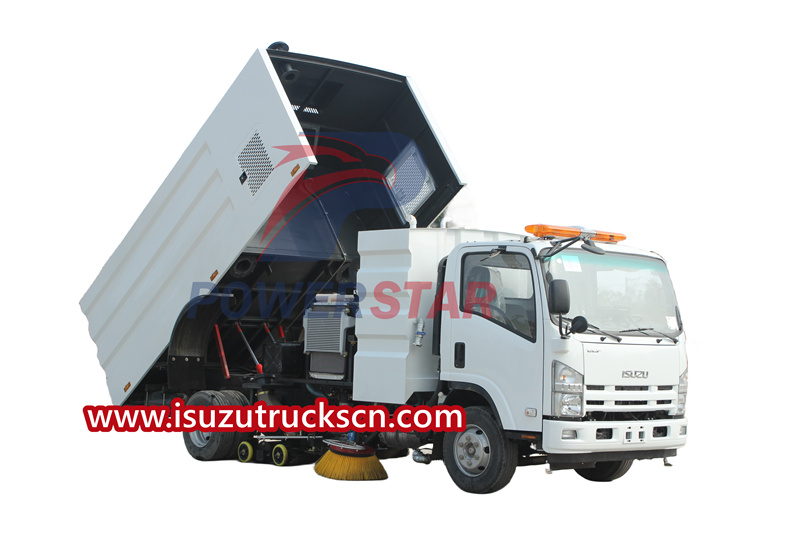

The sweeper truck is also equipped with strong suction mechanisms and brushes that effectively collect debris from the road surface. The brushes have adjustable settings, allowing for customized cleaning according to the road conditions. The collected debris is stored in a large-capacity storage compartment within the truck, ensuring efficient and convenient disposal.

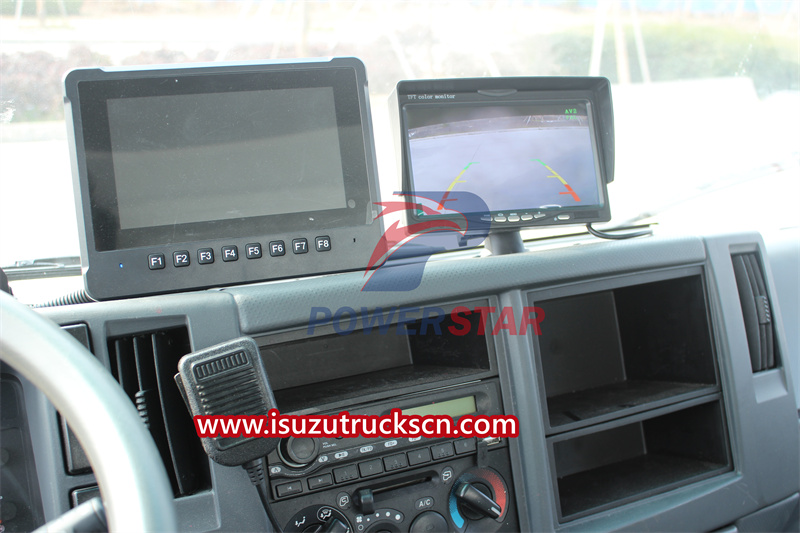

Isuzu road washing sweeper truck is designed with safety features, including a powerful braking system and low center of gravity, ensuring stability and control during operation. It is also equipped with a comprehensive control panel that provides easy access to all the cleaning functions.
|
Chassis |
|||||
| Drive Model | 4X2, Left hand drive | ||||
| Vehicle Main Dimensions | Dimensions(L x W x H)(mm) | 7350×2210×2650 | |||
| Wheel base (mm) | 4475 | ||||
| Approach/Departure angle(°) | 24/13 | ||||
| Weight in KGS | Curb Weight (kg) | 5500 | |||
| Front/Rear axle loading(kg) | 4000/7000 | ||||
| Max. driving speed(km/h) | 110 | ||||
| Engine | Brand | Isuzu 700P | |||
| Horse Power | 190HP | ||||
| Emission standard | Euro 4 | ||||
| Gearbox | 6 forwards & 1 reverse | ||||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||||
| Brakes | Air brake | ||||
| Tire | 8.25R20, 6 + 1(spare tire) | ||||
| Upper & Equipment | |||||
| Tank | Garbage tank | Tank material | Stainless steel 304 | ||
| Tank volume(cbm) | 8 cbm | ||||
| Water tank | Tank material | Stainless steel 304 | |||
| Tank volume(cbm) | 2 cbm | ||||
| Operation detail | Max. Operation ability(m2/h) | 40000 | |||
| Max. Sucking dimension(mm) | 50 | ||||

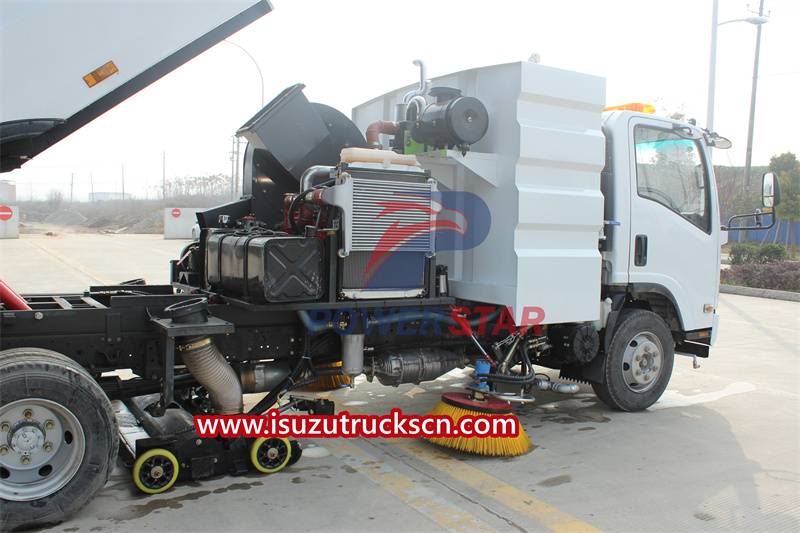

| Auxiliary engine | Model | ISUZU Brand | |||
| Quantity(No.) | 1 | ||||
| Power(kw/HP) | 68 /92 | ||||
| Blower | Quantity(No.) | 1 | |||
| Brand | China famous brand | ||||
| Power(kw) | 18 | ||||
| Speed(r/min) | 2900 | ||||
| Vacuum cleaner | Main Vacuum cleaner | Quantity(No.) | 1 | ||
| Width(mm) | 1800 | ||||
| Side Vacuum cleaner | Quantity(No.) | 2 | |||
| Width(mm) | 600 | ||||
| Max. Working width(mm) | 3000 | ||||
| Sucking Nozzle wheel | Quantity(No.) | 4 | |||
| Height | Adjustable | ||||
| Remarks |
|
||||
An innovative road washing and sweeping model developed by Powerstar trucks. Using our original V-shaped nozzle cleaning technology, it integrates the functions of the road sweeper and high-pressure cleaning truck. It can not only perform road sweeping operations or washing operations independently but also perform road scrubbing operations simultaneously. This truck has outstanding features such as no raised dust during operation, no dust left after the operation, long operation time, and stable operating performance. It is especially suitable for the cleaning and washing operations of urban arterial roads.
Isuzu road washing sweeper truck works on a four-point principle:
1. Water Spraying: The truck is equipped with a water tank that supplies water to the spraying system. When the truck is in operation, water is sprayed onto the road surface through nozzles located underneath the vehicle. This helps to wet the road and loosen any dirt or debris that is stuck to it.

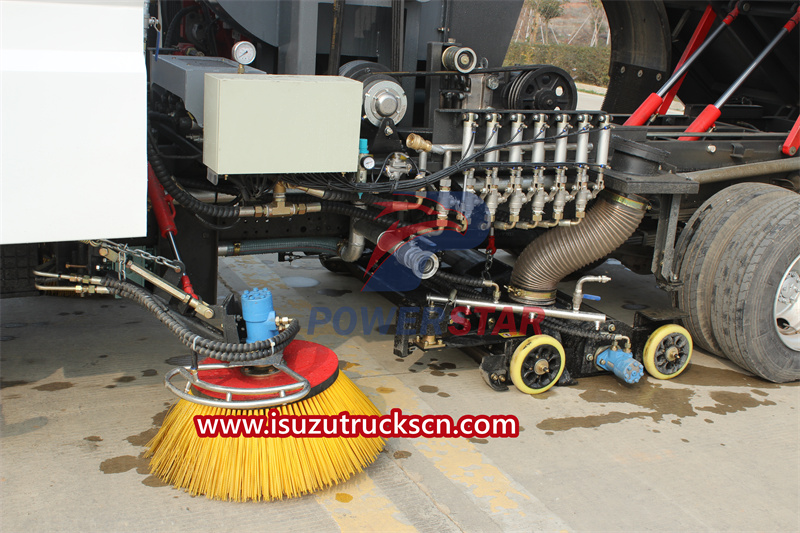

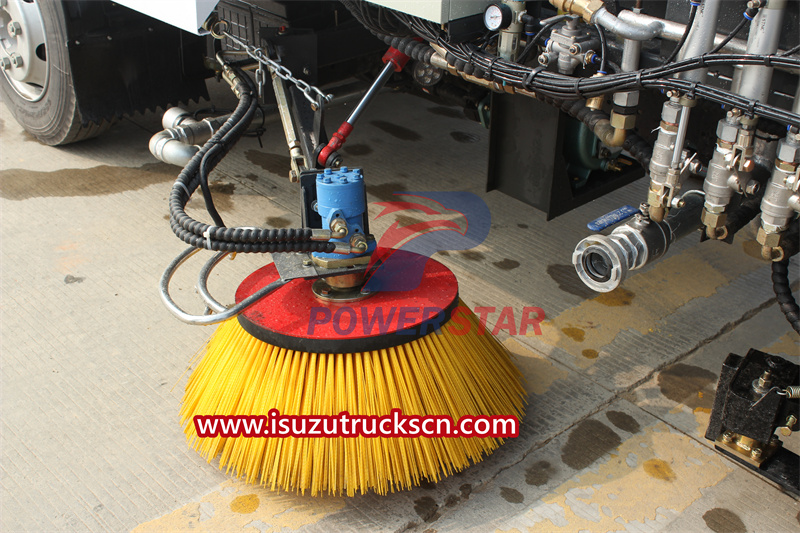

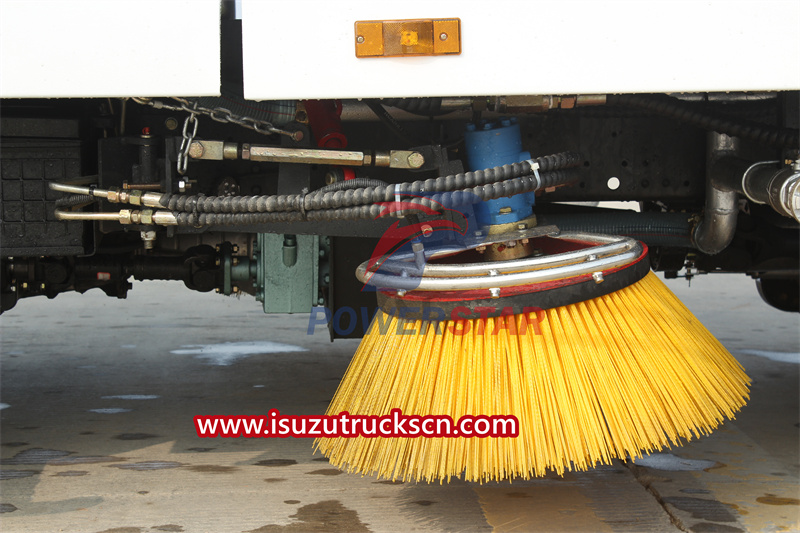

2. Mechanical Sweeping: The truck is also equipped with mechanical sweeping brushes that rotate at a high speed. As the truck moves forward, these brushes come in contact with the road surface and effectively sweep away the loosened dirt and debris. The brushes rotate in opposite directions to ensure thorough cleaning of the road surface.
3. Vacuum Suction: In addition to the mechanical sweeping brushes, the truck also has a vacuum suction system. This system creates a strong suction force that collects the swept debris and deposits it into a collection container located on the truck. The vacuum suction system ensures that even smaller particles are effectively removed from the road surface.
4. Filtration and Dust Suppression: To prevent the release of dust and particles back into the air, the Isuzu road washing sweeper truck is equipped with a filtration system. This system filters the air that is sucked in during the sweeping process, trapping the dust and particles inside. This helps to maintain a clean and dust-free working environment and prevents pollution.
Overall, the Isuzu road washing sweeper truck works by wetting the road surface, mechanically sweeping away the loosened dirt and debris, collecting the swept debris through a vacuum suction system, and filtering the air to suppress dust and prevent pollution. This ensures that the roads are thoroughly cleaned and maintained in a dust-free condition.
