Work capacity:
5000+1000 LitersTruck model:
PT5080TSLN6Engine power:
120 hpEngine type:
4KH1CN6LBAxle drive:
4x2Gear box:
MSB 5-shift manualRemarks:
Isuzu technology 77HP auxiliary diesel engine, Stainless steel dust tank and water tank

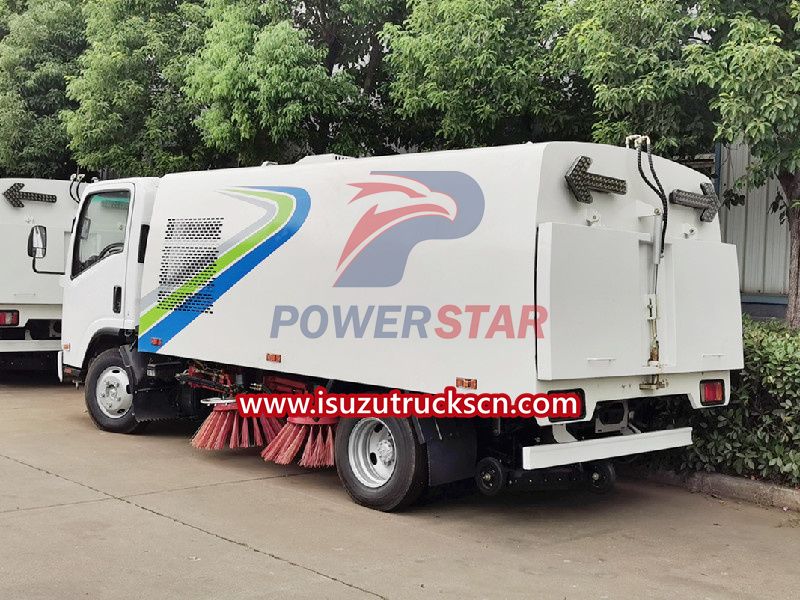

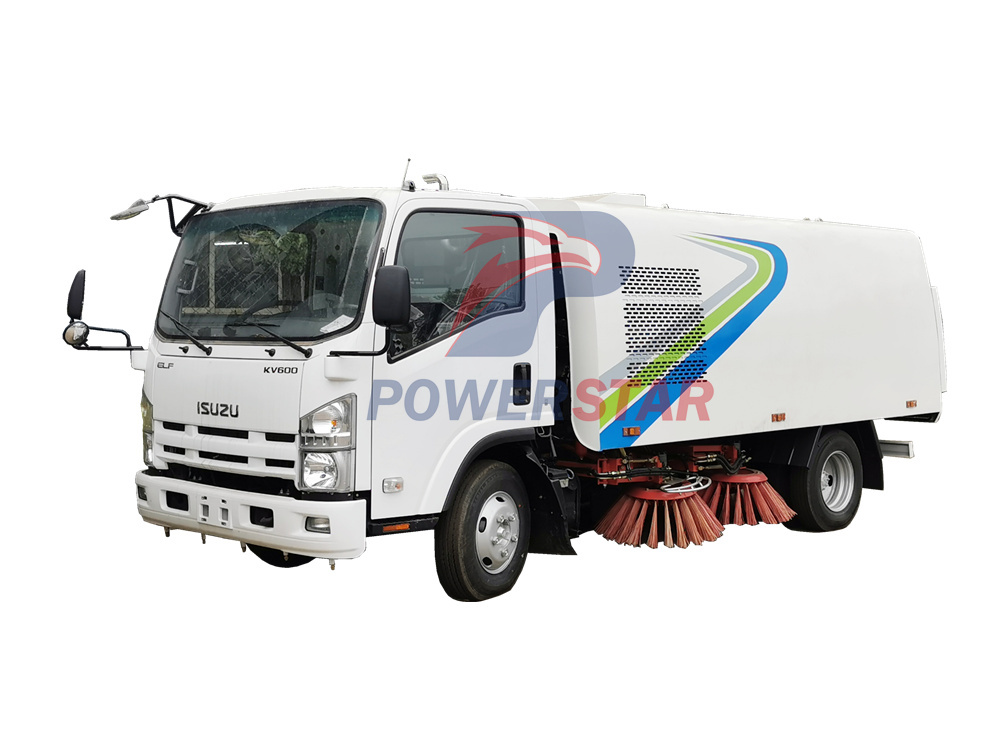

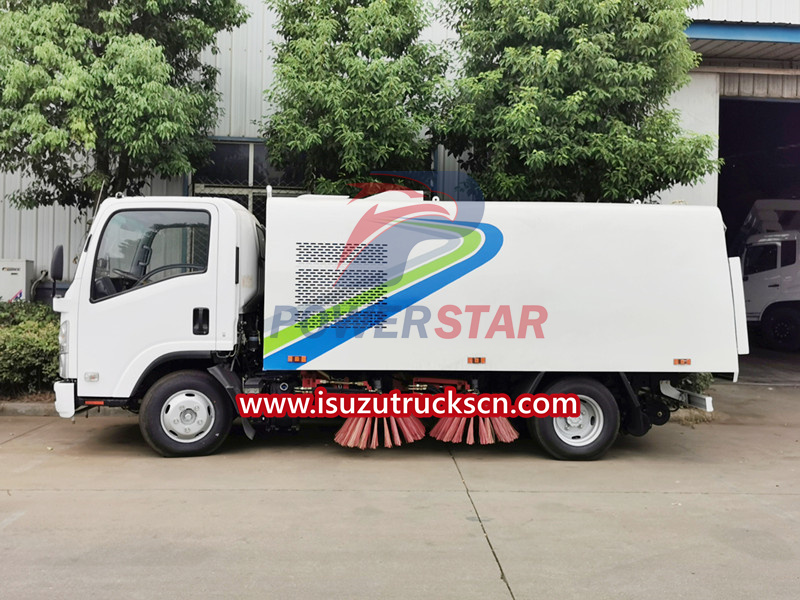

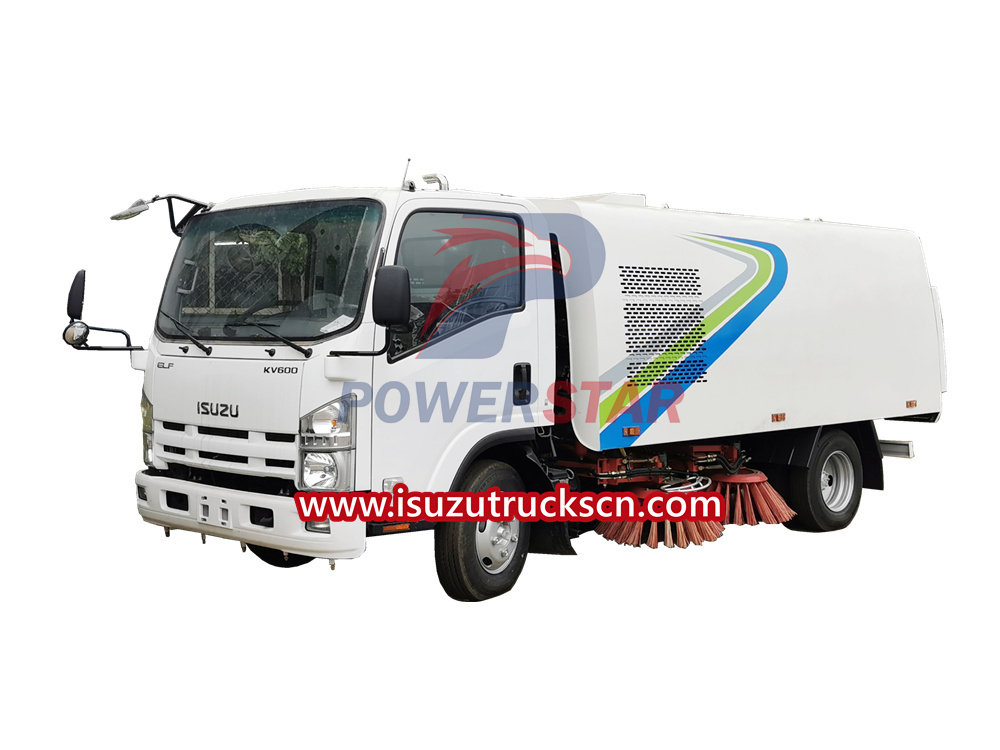

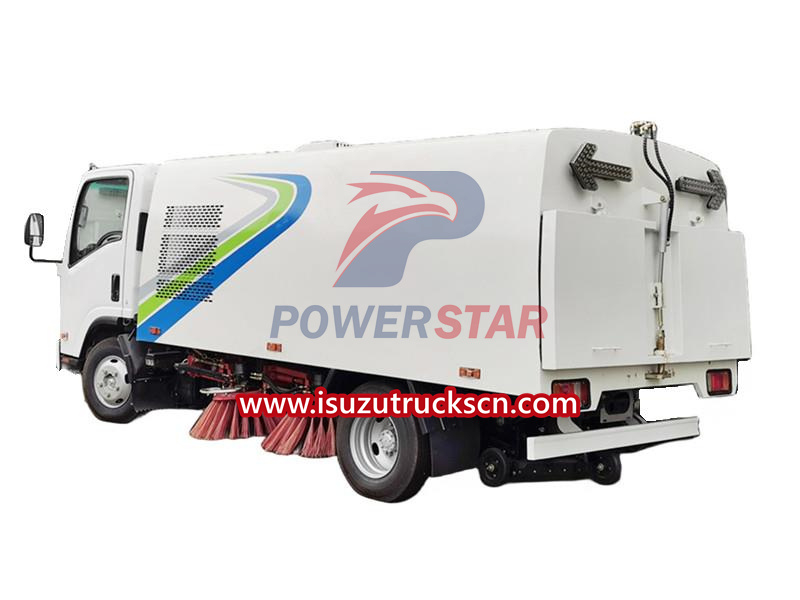

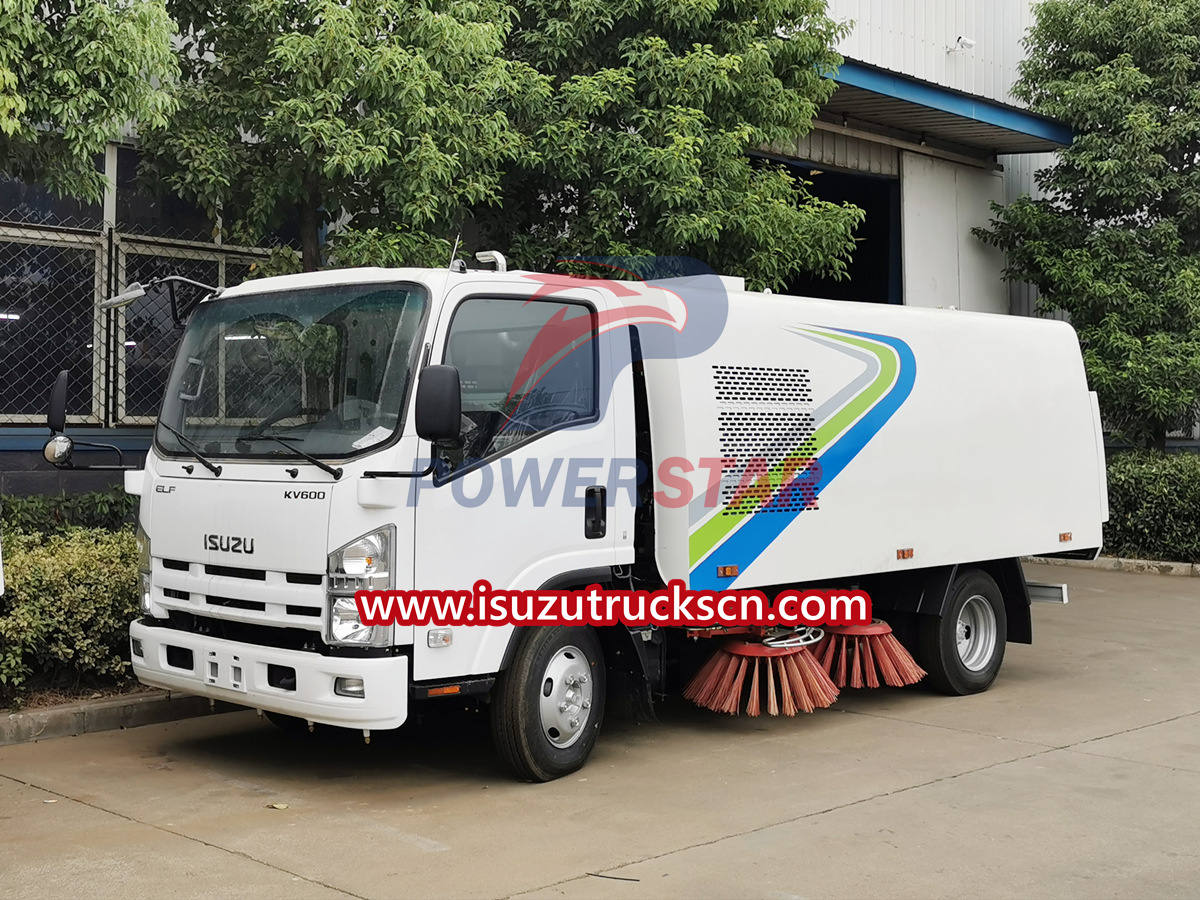

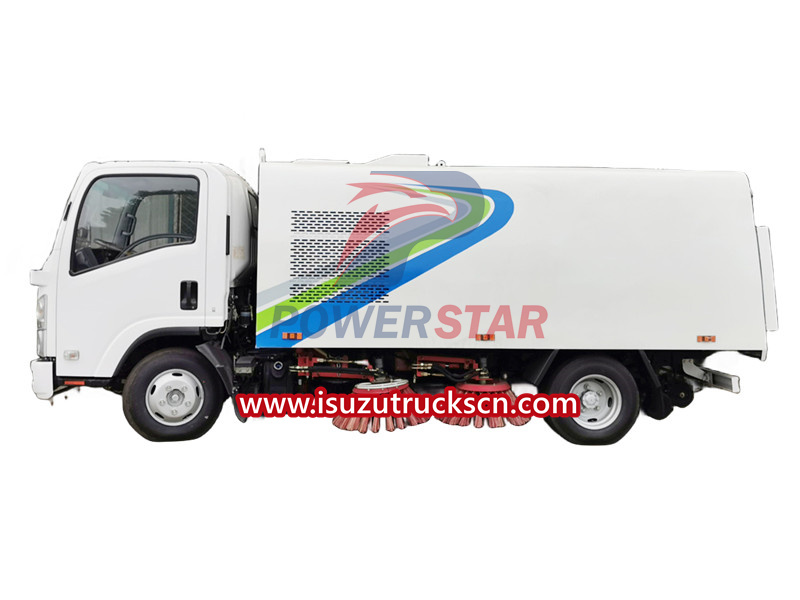

ISUZU road sweeper is a truck specially designed for sweeping and cleaning roads, streets and public areas. It is designed and produced by POWERSTAR TRUCKS INDUSTRY CO., LIMITED and has efficient cleaning functions and stable performance. ISUZU road sweeper truck is mainly composed of chassis, cleaning device and storage device. The chassis usually adopts original Japanese ISUZU truck chassis QL1080BUHAY, which has excellent controllability and reliability. Sweeping devices include auxiliary diesel engine, brooms, vacuum cleaners and water washing systems, which can thoroughly clean dust, garbage, paint and other debris on the road surface. Storage units are used to store trash and waste collected during cleaning.
Features for ISUZU NPR 6 cubic meters road sweeper cleaner truck as below:
1,Highly wear-resistant automatic clutch drives the special fan to control the starting and stopping of the auxiliary ISUZU technology engine.
2,The
imported hydraulic components were integrated folded and conveniently

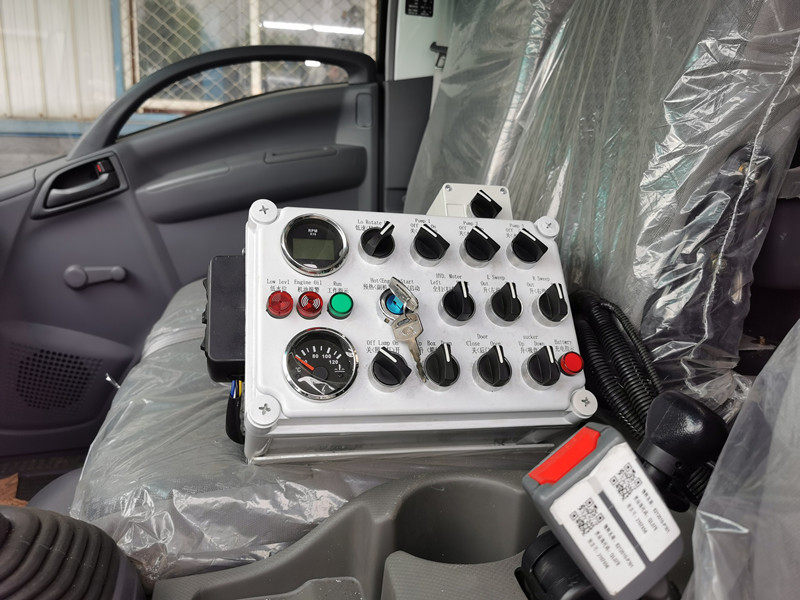

controlled by the electrical and hydraulic system in the cab.
3,Stainless steel water tank 1000liters and dust tank 5000liters are combined and no remained water in the water tank when working .
4,The sweeping device are hydraulic controlled and can avoid inter collision. Automatically.
5,The
post-position floating type suction nozzle have self-adjustment
function to adapt to the bad road condition .And it is easy to debug
and maintenance.
6,The adjustable mist spray device can eliminate the second pollution as well as saving water.
7,Streamline appearance ,low oil consumption,low noise.
Products Parameters
New vacuum sweeper truck Factory ISUZU NPR 4X2 6cbm vacuum road sweeper truck for sale. High-pressure cleaning vehicles, also known as plumbing trucks, rush open the blocked pipelines by the powerful pressure generated by the high-pressure water flow. The main components are tanks, high pressure pumps, hydraulic systems and so on. The high-pressure cleaning Isuzu road sweeping truck is mainly used for cleaning urban sewers, pipeline sediments, dredging of dead corner mud trenches, and also for cleaning industrial drain pipes, walls, etc., cleaning roads and square floors. High-pressure cleaning vehicles can also be equipped with sprinklers, green sprinklers, front and rear sprinklers, side sprays, green sprinklers, sprays, dust, high-pressure flushing, etc., which can be used for fire fighting in case of emergency.
|
New road sweeper truck Factory ISUZU NPR 4X2 LHD/RHD 6cbm street cleaner sweeper truck specifications |
|||
|
Vehicle parameters |
|||
|
Vehicle Model |
PT5080TSLN6 |
Vehicle Brand |
POWERSTAR |
|
Overall dimensions |
6465X2250X2650mm |
Curb weight |
4200kg |
|
Dust tank volume |
5000L |
Water tank volume |
1000L |
|
Chassis parameters |
|||
|
Chassis model |
QL1080BUHAY |
Chassis brand |
ISUZU |
|
Overall dimensions |
6645x1880x2160mm |
Wheel base |
3365mm |
|
Front/rear wheel track |
1504/1425mm |
Front/rear suspension |
1015/1815mm |
|
Approach/departure angle |
24/14° |
Maximum speed |
105km/h |
|
Chassis Manufacturer |
ISUZU |
||
|
Cab |
Configuration |
NPR / NQR, single row cab, allowable 2 passengers, car interior, air conditioner, USB radio interface, with oil brake vacuum booster pump |
|
|
Color |
White,other color is optional |
||
|
Engine |
Model |
4KH1CN6LB |
|
|
Emission |
Euro 6 |
||
|
Type |
4 cylinders, in-line, 4-stroke,water-cooled,turbo inter-cooling,4-valve ,diesel engine |
||
|
Rated power |
120hp, rated power speed 2900rpm |
||
|
Displacement |
2999ml |
||
|
Manufacturer |
Isuzu Engine |
||
|
Tire |
Size |
7.00R16 tires |
|
|
Number |
6+1 nos |
||
|
Front axle |
2.5 tons |
||
|
Rear axle |
4.8 tons |
||
|
Drive form |
4X2 |
||
|
Suspension |
Multi leaf springs |
||
|
Rated voltage |
12V, DC |
||
|
Transmissions |
Isuzu MSB 5 speed transmission, 5 speed forward 1 reverse. |
||
|
Steering device |
Power assisted steering |
||
|
Steering wheel |
Left hand drive |
||
|
If there is a slight change in the chassis parameters above,please take the actual product as the standard |
|||
|
Road sweeper structure parameters |
|||
|
Dust tank volume |
5000L |
Water tank volume |
1000L |
|
Sweep width |
3000m |
Cleaning speed |
3-20km/h |
|
Cleaning ability |
9000-60000 m2/h |
Cleaning efficiency |
0.98 |
|
Maximum suction particle |
120mm |
Min. clearance of suction nozzle |
200mm |
|
Unloading angle |
45° |
Unloading height |
970mm |
|
Standard configuration |

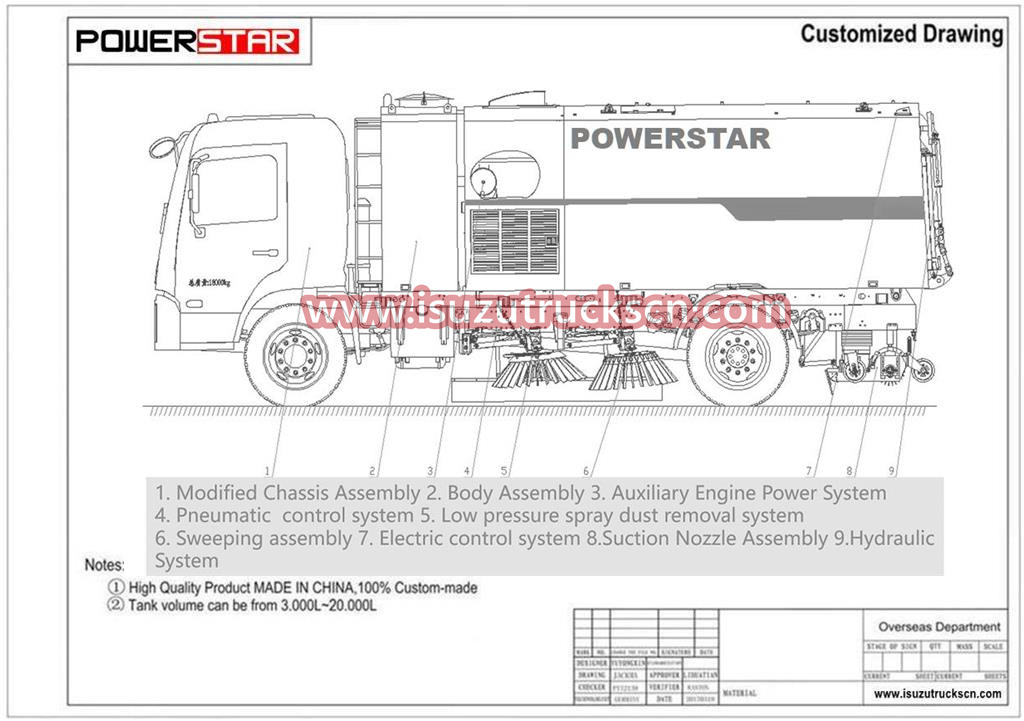

Chassis, sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,5T fan, Isuzu technology auxiliary engine with 77HP, electromagnetic control valve, suction cup, sprinkler system, hydraulic system and electrical system. |
||
|
Selective configuration |
surveillance system, rolling brush. |
||
1. Original Italy brand hydraulic cylinder and complete hydraulic system: Hydraulic pipeline German standard technology seal structure, good vibration resistance, no leakage seal
2. Maintenance-free centrifugal fan: High power wear-resistant maintenance-free centrifugal fan, low noise, high efficiency, large air volume, long service life
3. ISUZU 77hp/CUMMINS 140hp, 170hp, 190hp: Auxiliary engine with air filter element, oil filter element, effectively prevent dust into the auxiliary engine, resulting in cylinder pulling
4. Automatic clutch with continuously variable speed: The clutch has the advantages of high and low wear resistance, long service life, low noise, low fuel consumption and cost saving
5. Import solenoid valve set: The key electronic control component uses Schneider electric switch, high reliability, long service life
6. Tail LED arrow light: Achieve warning effect, prevent rear vehicles, prevent rear-end collision

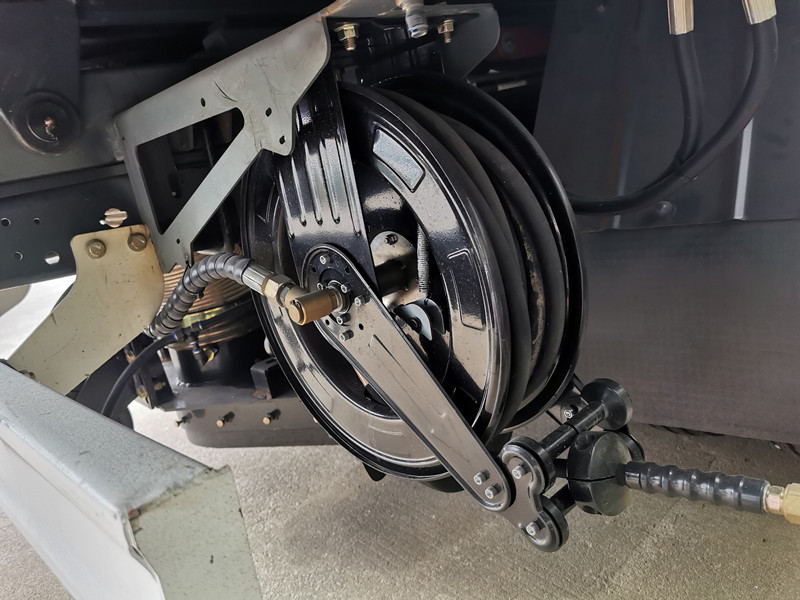

7. Hand pump emergency system: When the auxiliary engine fails to start, the manual emergency pump system is used to facilitate the recovery of various operating parts and vehicle maintenance
8. Clean water tank: Storage clean water, volume 1000liters with stainless steel material

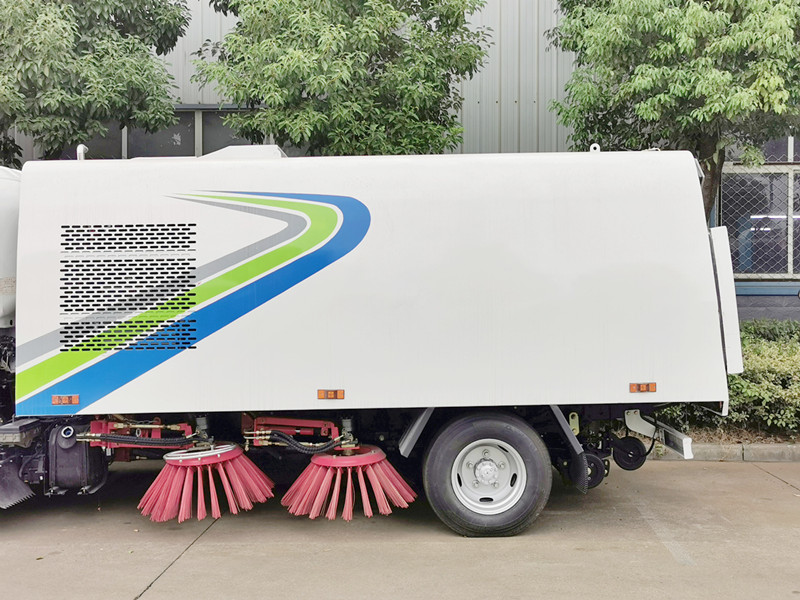

9. Four sweeper plate: Four sweeper plate in the middle, parallel installed at two sides, and each plate with 22 pcs brushes, totally 88 pcs brushes.
10. Dust tank: Storage and recycling waste, volume 5000liters with stainless steel material
11. Truck rear mist spray function: Dust removal action to prevent the ground from secondary dust

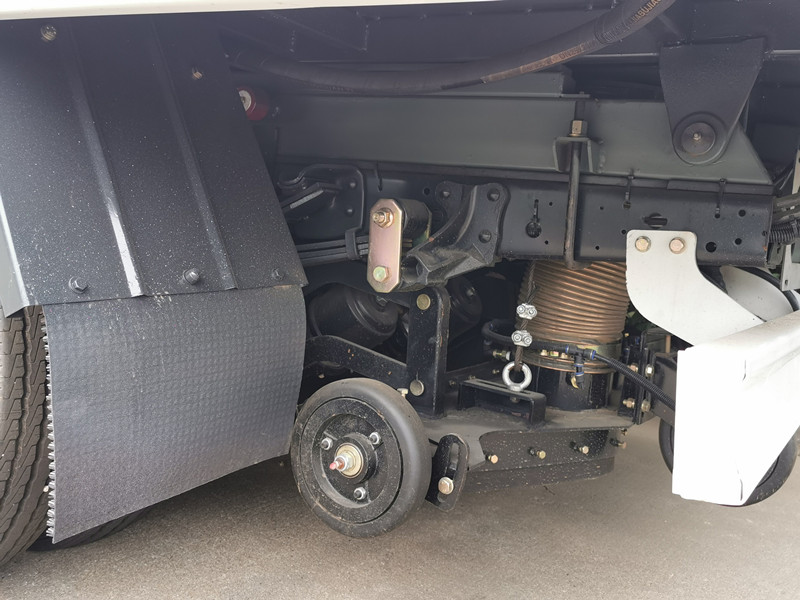

12. Self-cleaning tray: Clean road surface, truck self clean
