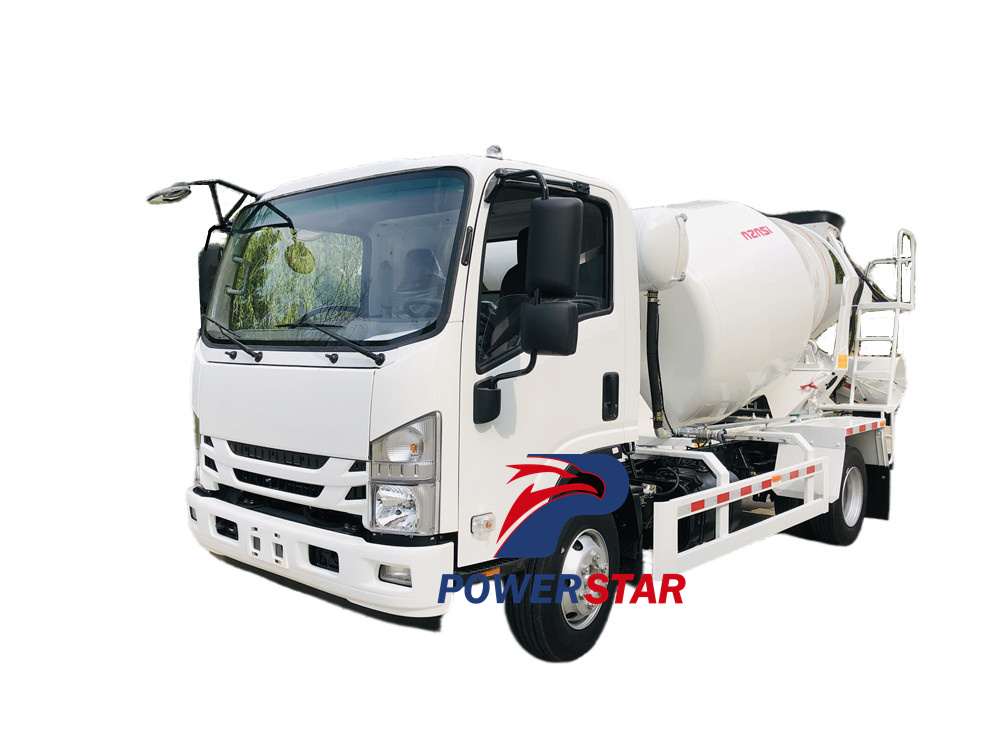

Isuzu Ready Mix Concrete Mixer Trucks stand at the forefront of modern construction equipment, embodying a harmonious fusion of robust engineering, cutting-edge technology, and unparalleled efficiency. These formidable vehicles serve as indispensable allies to the construction industry, facilitating the seamless blending and transportation of concrete to construction sites with precision and reliability.
Work capacity:
4cbmTruck model:
PT5110GZREngine power:
190HPEngine type:
4HK1-TCG61Axle drive:
4x2，LHDGear box:
MLD 6-speed,manualRemarks:
Isuzu 700P 4cbm concrete mixer truckIsuzu Ready Mix Concrete Mixer Truck also called Isuzu 700P transit mixer truck,Isuzu 700P 4cbm concrete mixer truck,4cbm NPR Isuzu concrete truck mixer,Isuzu 700P single row 4x2 concrete transit mixer truck,4 Cubic meter self loading ready mix truck.
The Isuzu Ready Mix Concrete Mixer Truck stands as a testament to the convergence of engineering prowess, durability, and efficiency in the construction industry. This formidable machine, crafted by POWERSTAR, a renowned name in automotive engineering, is designed to streamline the process of transporting and mixing concrete on-site, significantly enhancing productivity and reducing downtime in construction projects. With its robust construction, intuitive operation, and adaptability to various work environments, the Isuzu Ready Mix Concrete Mixer Truck is a vital tool for contractors, builders, and infrastructure developers alike.
Features:
★ ISUZU 700P chassis, perfect performance
★ 4HK1 engine, super powerful; reliable performance, no overhaul within 100,000 km
★ Mixer drum capacity from 3cbm to 20cbm
★ Easy operation and easy maintenance
|
Isuzu Ready Mix Concrete Mixer Truck |
|
|
Vehicle model |
PT5110GZR |
|
Overall dimension |
6800x2500x2965mm |
|
GVW |
10550kg |
|
Curb weight |
4500kg |
|
Chassis parameter |
|
|
Chassis Brand |
Isuzu |
|
Wheelbase |
3815mm |
|
Driving type |
4x2,Left hand drive(LHD) |
|
Engine parameter |
|
|
Engine model |
4HK1-TCG61 |
|
Rated power (HP) |
190HP/139Kw |
|
Rated speed |
2600rpm |
|
Max·torque |
510N·M |
|
Displacement |
5193ml |
|
Emission standard |
Euro VI |
|
Fuel type |
Diesel |
|
Transmission(Gear box) |
MLD 6-speed,manual |
|
Front axle loading |
4000kg |
|
Rear axle loading |
7000kg |
|
Tyre |
235/75R17.5 (6+1) |
|
Cab type |
Isuzu 700P single row,2 seats,with air-conditioner |
|
Mixing Drum parameter |
|
|
Mixing drum material |
High quality wear-resistance steel |
|
Model:Q345 |
|
|
Drum body thickness: 5mm, End cover thickness:6mm |
|
|
Agitating capacity |
4M3 |
|
Charging rate |
≥3 m3/min |
|
Top feed hopper dimension |
≥650 mm |
|
Discharging rate |
≥1.2 m3/min |
|
Residual rate |
≤0.5% |
|
Water supply |
Baric water supply system |
|
Water tank capacity |
400L |
|
Mixer drum rotation speed(rpm) 0~12 |
Mixer drum rotation speed(rpm) 0~12 |
|

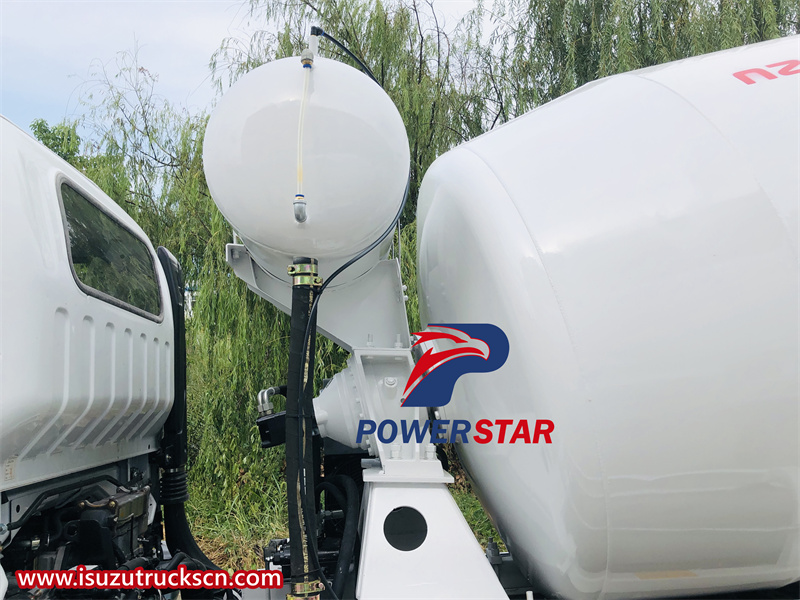

Air pressure water supply |
Air pressure water supply |
|
Operating system Model:linkage operation |
Operating system Model:linkage operation |
|
Accessory |
Tool box |
The Isuzu Ready Mix Concrete Mixer Truck is a highly specialized and versatile machine that has revolutionized the way concrete is transported and mixed on construction sites. It combines superior engineering, mixing capacity, versatility, making it a valuable asset to any contractor or builder. Whether you are pouring the foundations for a skyscraper or building roads and bridges, the Isuzu concrete mixer truck is the perfect partner for your construction needs.

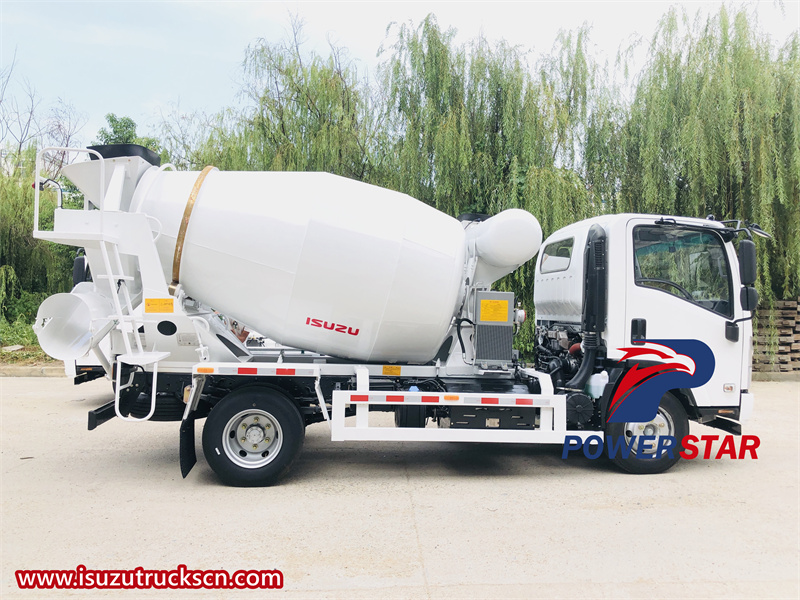

Isuzu Ready Mix Concrete Mixer Truck
Engineering Excellence
At the heart of the Isuzu 700P transit mixer truck lies its meticulously engineered chassis and drivetrain. The truck is powered by an Isuzu diesel engine, renowned for its fuel efficiency, reliability, and low emissions. This engine, coupled with a robust transmission system, ensures smooth and powerful acceleration, even when hauling heavy loads of concrete. The chassis is designed to withstand the rigors of construction sites, with reinforced suspension and sturdy frame components that minimize wear and tear, ensuring long service life.
Mixing Capability
The star attraction of the Isuzu 700P transit mixer truck is its advanced mixing drum. This drum, typically made of wear-resistant steel, is designed to rotate in both directions, allowing for efficient mixing and discharging of concrete. The mixing blades inside the drum are strategically positioned to ensure even distribution of aggregate, cement, and water, resulting in a uniform mixture that meets stringent quality standards. The drum's capacity, ranging from several cubic meters to over a dozen, depends on the model, allowing contractors to choose the right truck for their specific needs.
Isuzu 700P transit mixer truck
Hydraulic System and Controls
The hydraulic system of the Isuzu 700P 4cbm concrete mixer truck plays a crucial role in facilitating the mixing and discharge of concrete. High-quality hydraulic components ensure smooth and reliable operation, while advanced controls enable the operator to adjust the mixing speed, drum rotation, and discharge rate with precision, allowing for customized concrete mixes to meet specific project requirements.
Capacity and Performance
With varying capacities ranging from a few cubic meters to tens of cubic meters, the Isuzu 700P 4cbm concrete mixer truck caters to a wide range of construction projects, from small-scale residential developments to large-scale infrastructure undertakings. The truck's performance is exemplary, offering high productivity, efficiency, and reliability, thereby optimizing construction timelines and enhancing project outcomes.

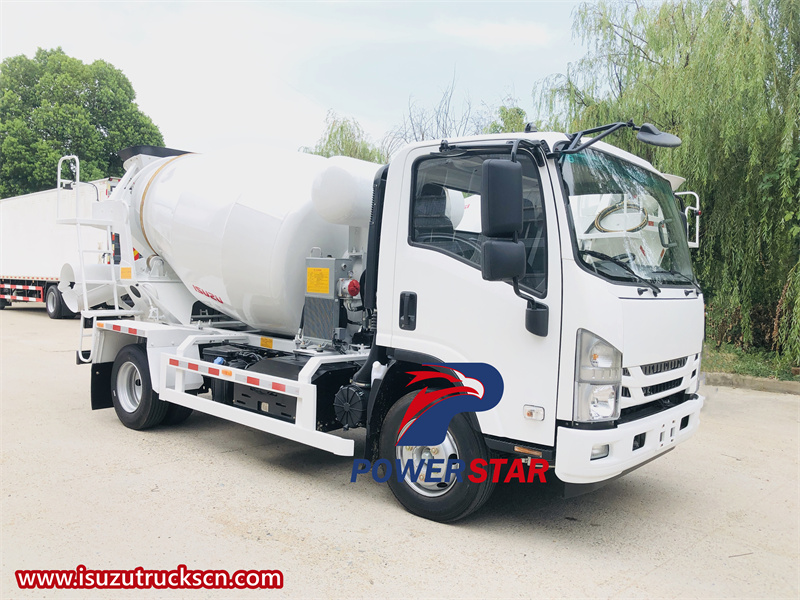

4cbm NPR Isuzu concrete truck mixer

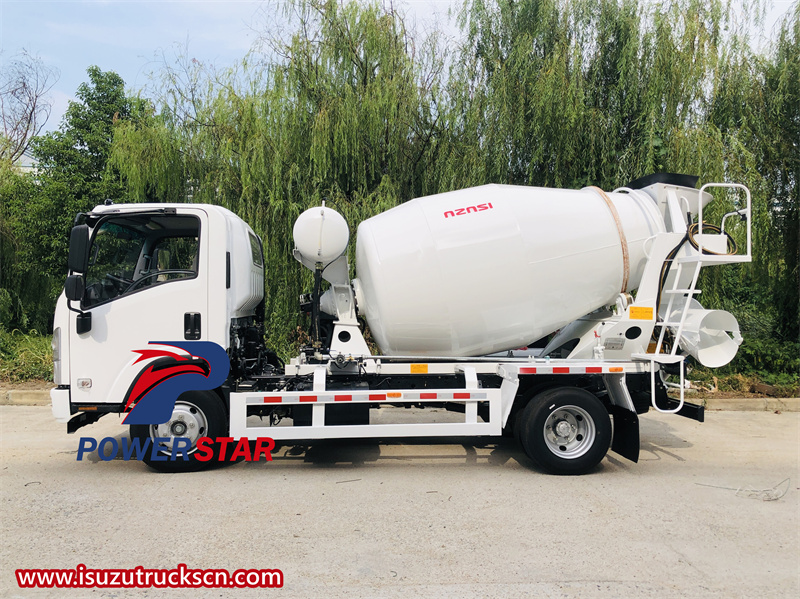

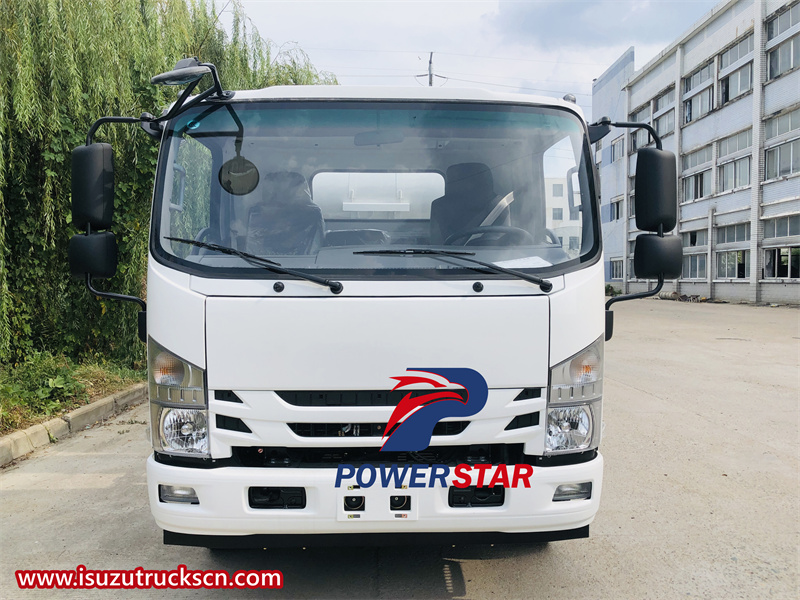

Front view

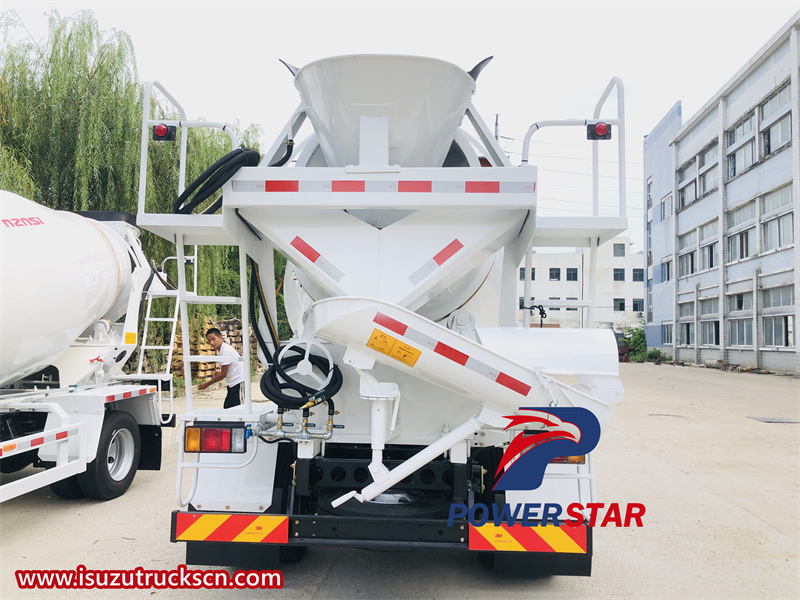

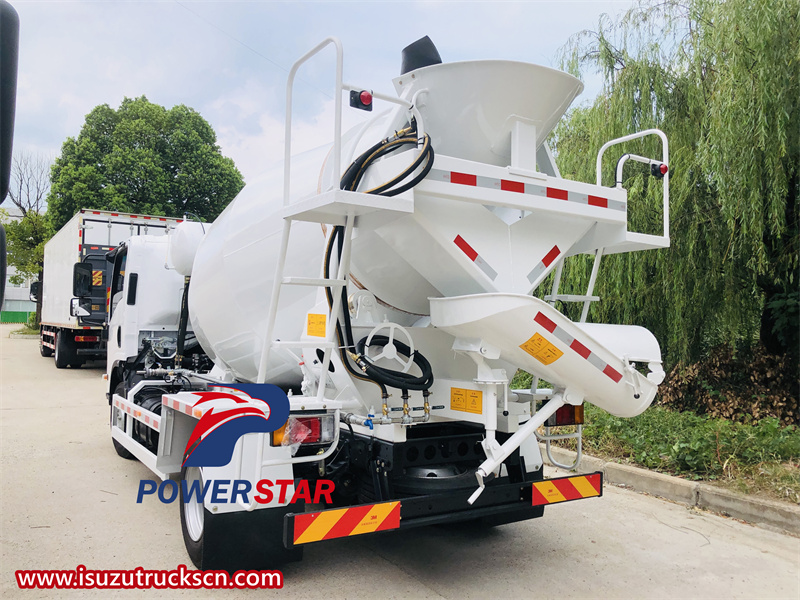

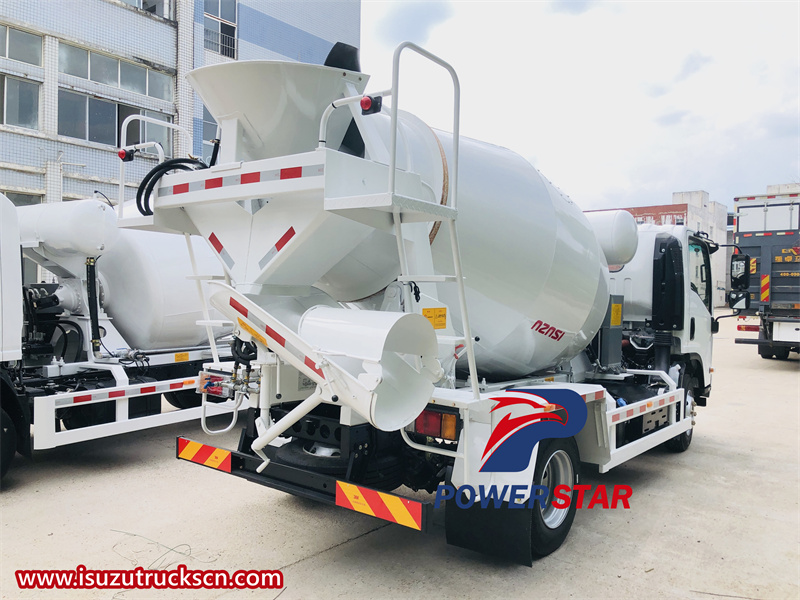

Rear view

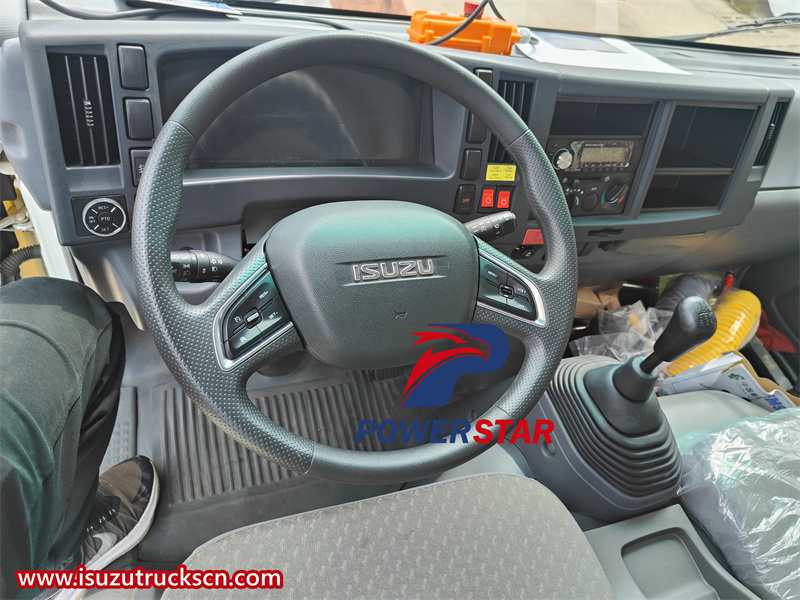

Steering wheel

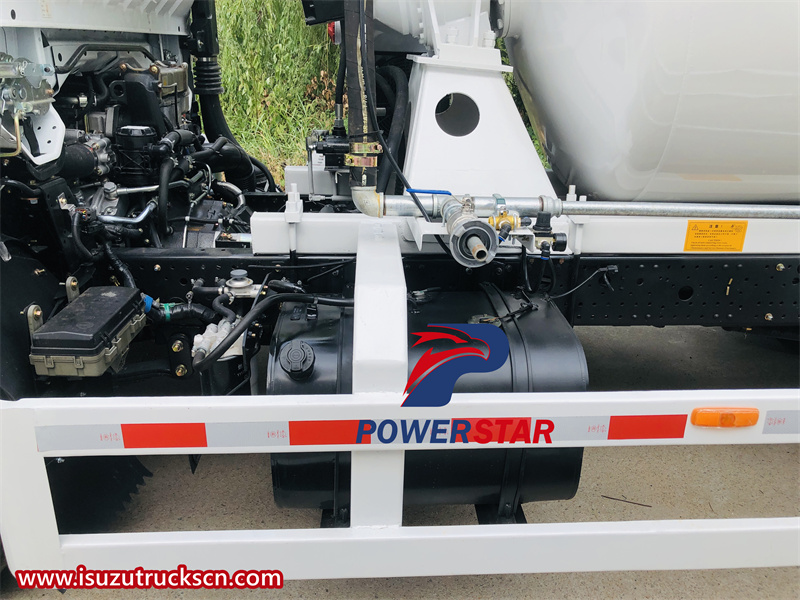

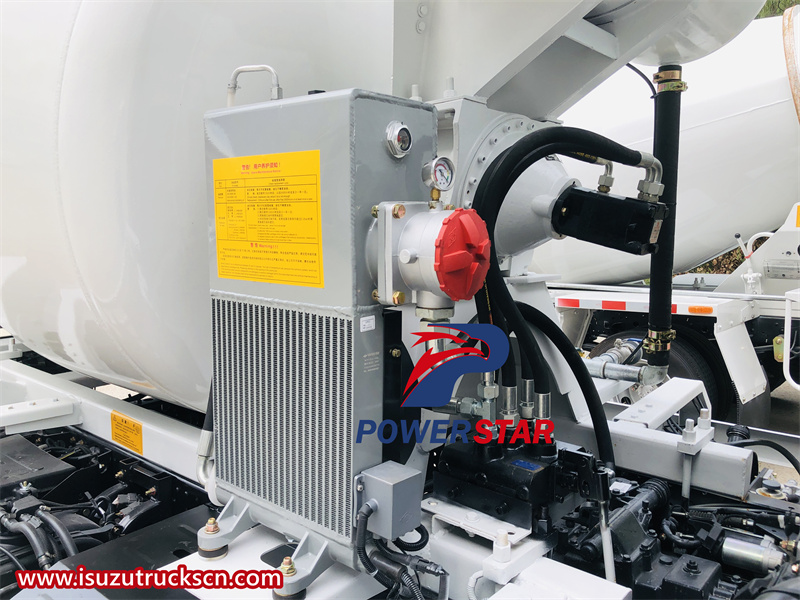

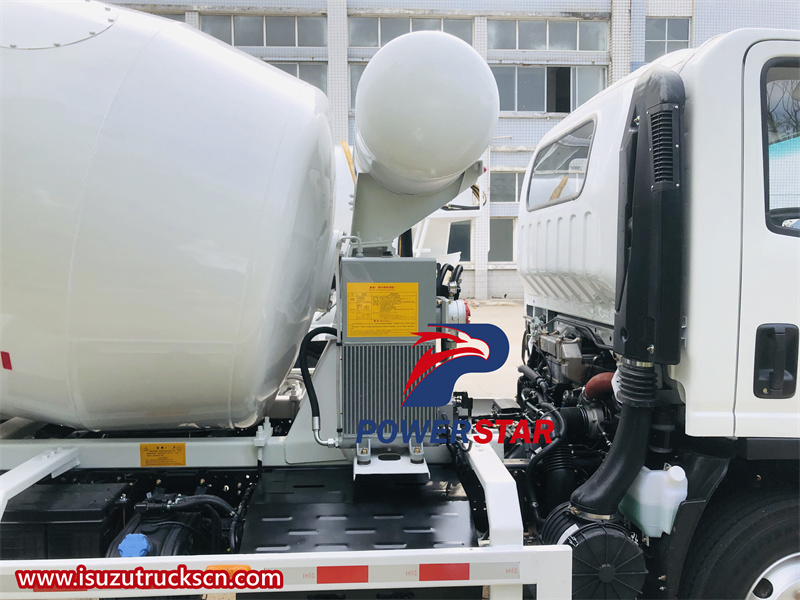

KT-YS oil circuit radiator
on Google API big data integrates all website data (listing, weight, ranking, traffic, inquiry), so that each website has its own keyword database and weekly keyword monitoring systemWebsite data operation system developed based on Google API big data integrates all website data (listing, weight, ranking, traffic, inquiry), so that each website has its own keyword database and weekly keyword monitoring systemWebsite data operation system developed based on Google API big data integrates all website data (listing, weight, ranking, traffic, inquiry), so that each website has its own keyword database and weekly keyword monitoring system

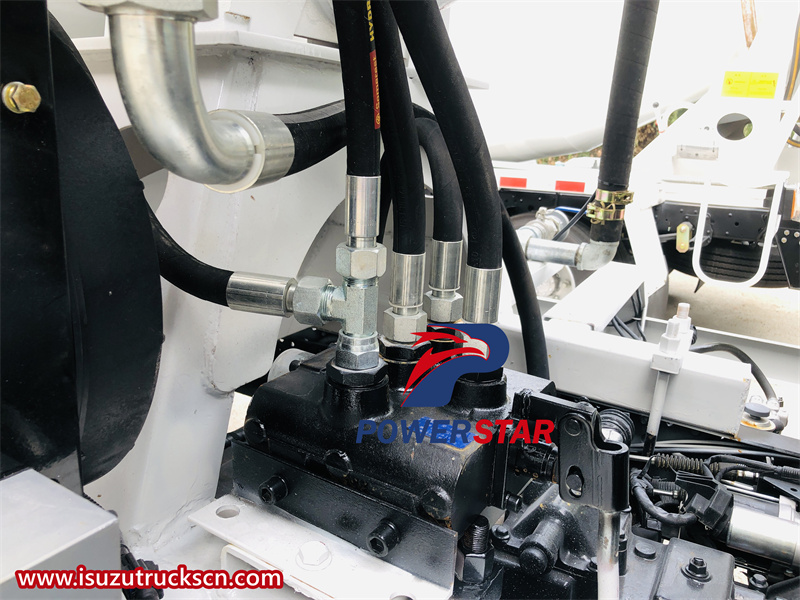

Multi-way valve

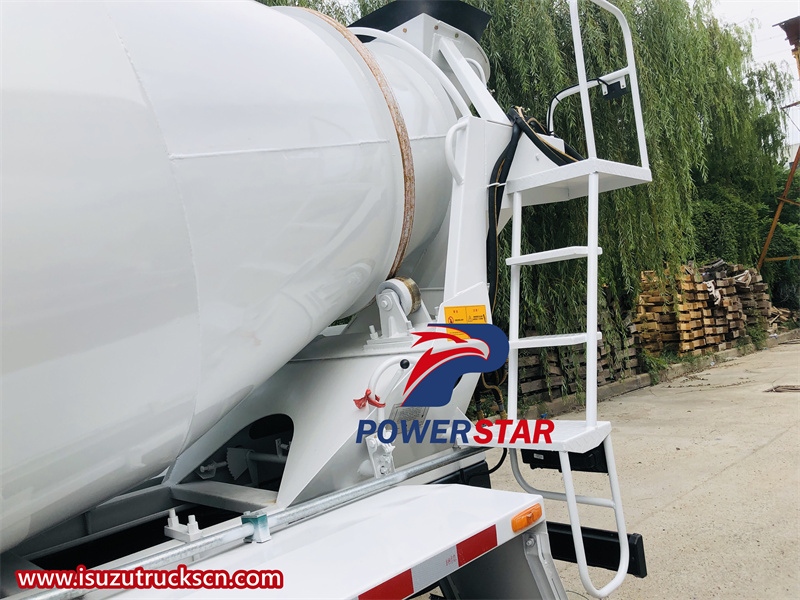

Ladder

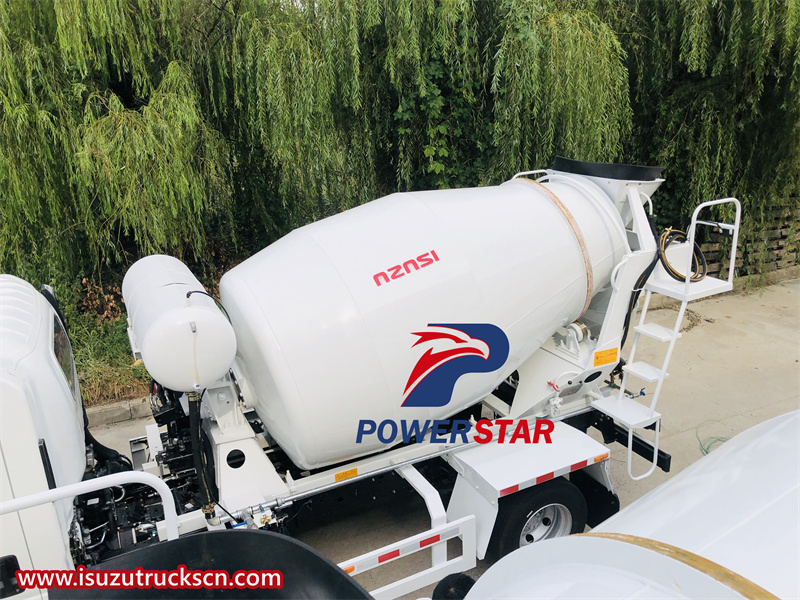

Mixing tank
