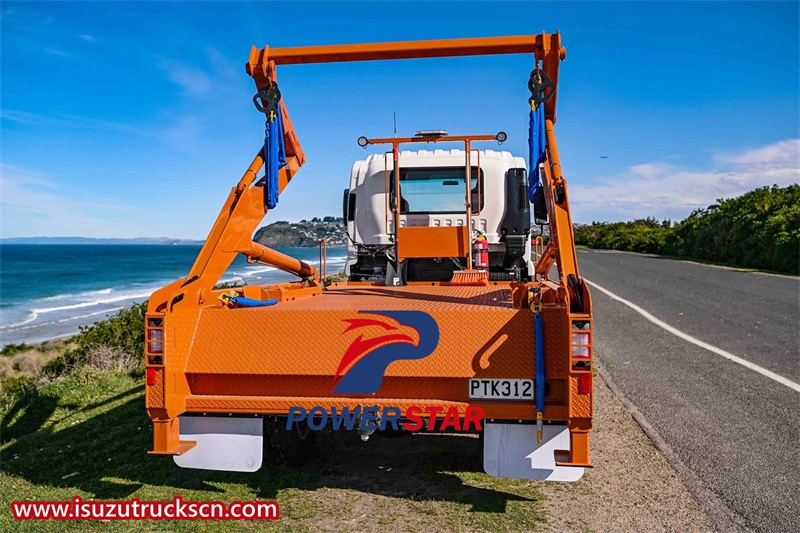

Isuzu NPR 8 cbm skip refuse loader is a kind of sanitation vehicles garbage collection,with a hydraulic swing arm mechanism to lift and put down the skip bin lifter,bin lifter carrier skip loading garbage trucks can transfer lift garbage,and the Isuzu skip refuse loader can work with 8cbm bin which is high efficiency.
Work capacity:
8cbmTruck model:
PT5080GSWEngine power:
190HPEngine type:
4HK1-TCG61Axle drive:
4x2, RHDGear box:
Isuzu MLD 6-speed，manualRemarks:
Isuzu NPR chassis
Isuzu NPR 8 cbm skip refuse loader is also called Isuzu NPR swing arm garbage truck,Isuzu skip lift garbage truck,Isuzu skip collection truck, Isuzu skip loader garbage truck,Isuzu skip bin container truck.Isuzu NPR 8 cbm skip refuse loader is a garbage truck with a detachable body container. Which could enable one truck with several garbage containers for recycle use. It could be equipped with a cover to prevent dropping any rubbish.
The vehicle is suitable for city, street, school garbage collection and treatment, the vehicle is characterized by the garbage bin and the car body can be separated, can realize a vehicle and multiple garbage hopper joint operation, the whole vehicle with self-dumping function, hydraulic operation, circular transportation, fully improve the transportation capacity of the ehicle, especially suitable for short-distance transportation, such as sanitation part of the urban garbage cleaning, transportation, etc. It is suitable for the collection and transfer of towns, with simple structure and flexible operation Transhipment.
Advantage:
Isuzu NPR 8 cbm skip refuse loader adopts reinforced hook arm sub-beam frame, double thick hydraulic cylinder hook and pull, the rear is equipped with hydraulic outriggers to prevent the cab from tilting when the hook is lifted, manual electric control dual control system, designed exhaust gas heating device. Hydraulically complete the operations such as upper box + lower box + locking + self-unloading, and realize the cyclic transfer of multiple boxes in one truck.
|
Manufacture |
PowerStar Trucks industry Co.,Limited |
|
|
Product Name |
Isuzu NPR 8 cbm skip refuse loader |
|
|
Vehicle Brand Series |
Isuzu NPR |
|
|
Vehicle Model |
PT5080GSW |
|
|
Chassis parameter |
Chassis brand |
ISUZU NPR |
|
Overall dimensions (L x W x H)mm |
7200x2200x2800 |
|
|
Wheel base (mm) |
4175 |
|
|
Driving type |
4x2, RHD |
|
|
Approach/Departure angle |
18/19 |
|
|
Tire size |
235/75R17.5 |
|
|
Weight in KGS |
GVW |
11000 |
|
Kerb weight |
5400 |
|
|
payload |
5320 |
|
|
Front axles loading capacity |
4000 |
|
|
Rear axles loading capacity |
7000 |
|
|
Engine |
Max. driving speed(km/h) |
110 |
|
Brand |
ISUZU |
|
|
Model |
4HK1-TCG61 |
|
|
Type |
4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
|
Horse Power(HP) |
190HP |
|
|
Emission standard |
Euro5/6 |
|
|
Garbage container |
Material |
Q235 carbon steel |
|
Container capacity |
8cbm |
|
|
Operation control system |
Electrically hydraulic control |
|
|
Swing arm operating system |
Power take-off, balance valve, oil pipe, fuel tank, oil pump, manual mutil-way reversing valve, balance valve, one-way hydraulic lock, etc. |
|
|
Usage environment |
Short distance transportation, sanitation department cleaning, transportation, etc. |
|
|
Swing arm maximum pivot angle |
145 |
|
|
Hoisting time |
30S |
|
|
Unloading time |
50S |
|
The Isuzu NPR 8 cbm Skip Refuse Loader is an efficient waste loader designed to increase waste collection and disposal efficiency. The following are the main features of this vehicle:
● Hydraulic System: Consists of oil tank, oil pump, multi-way directional valve, hydraulic cylinder, balance valve, hydraulic lock, oil filter and pipeline, ect.
● Power: Obtains power from engine and transmits it to the oil pump through the transmission shaft to drive the oil pump to rotate.

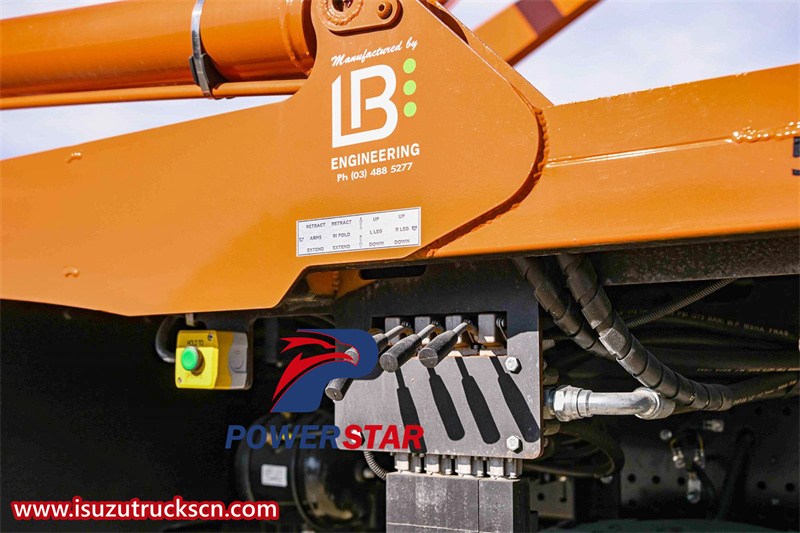

● Loading and Unloading: Operation of the multi-way directional valve can control the expansion movement of the swing arm hydraulic cylinder and the supporting leg hydraulic cylinder respectively to complete the loading and unloading of the crane.
● Safety: Equipped with balance valve and hydraulic lock. The balancing valve can ensure the smooth and safe movement of the swinging arm and prevent the hopper from stalling. Hydraulic lock can prevent the leg hydraulic cylinder in the work of soft leg phenomenon and prevent the leg accidentally out in the driving.
● Swing Arm Mechanism: Box structure made of welded steel plates. The swing arm hydraulic cylinder can be driven to rotate back and forth around the swing axis by operating the multi-way directional valve with the Max. swing angle of 145°.
● Hopper: It is a metal welding piece, available in open and sealed. When the bulk cargo is loaded into the hopper, the hopper can be hoisted onto truck by hanging chain and swing arm operation. When discharging, the swing arm is used to lift the hopper. After landing, the lifting chain at one end can be used to discharge the hopper. Max. tilting angle of the hopper is 86°.

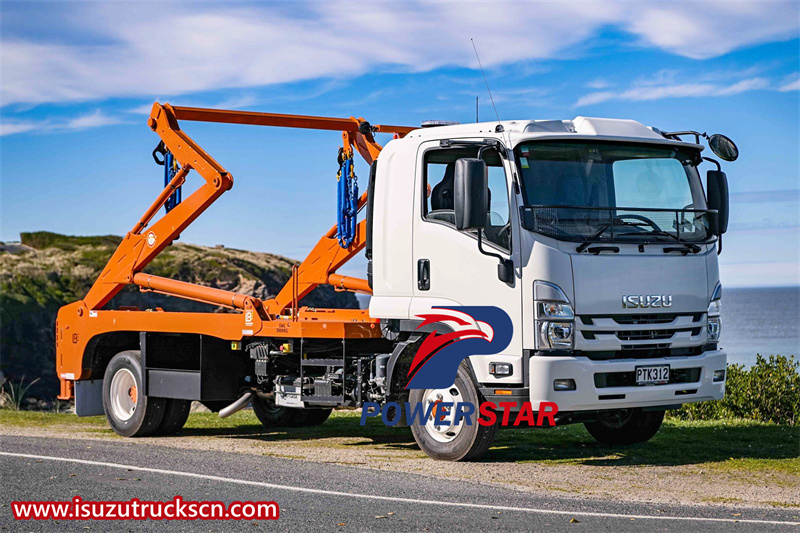

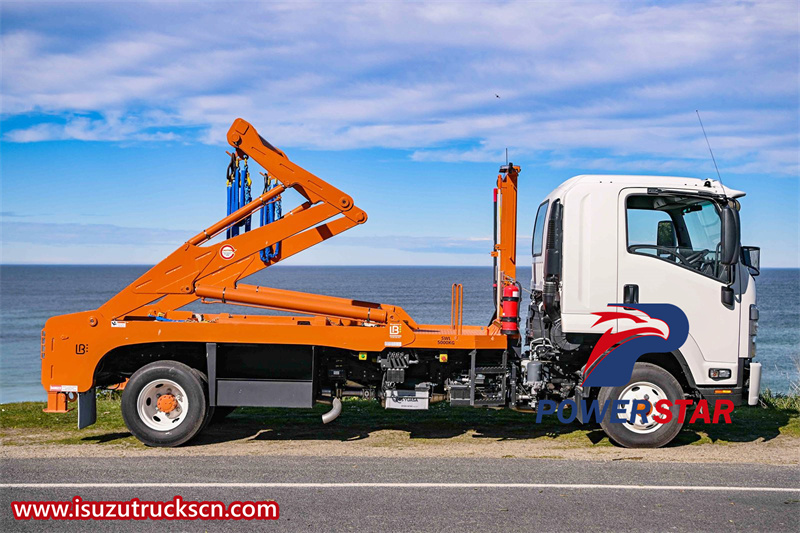

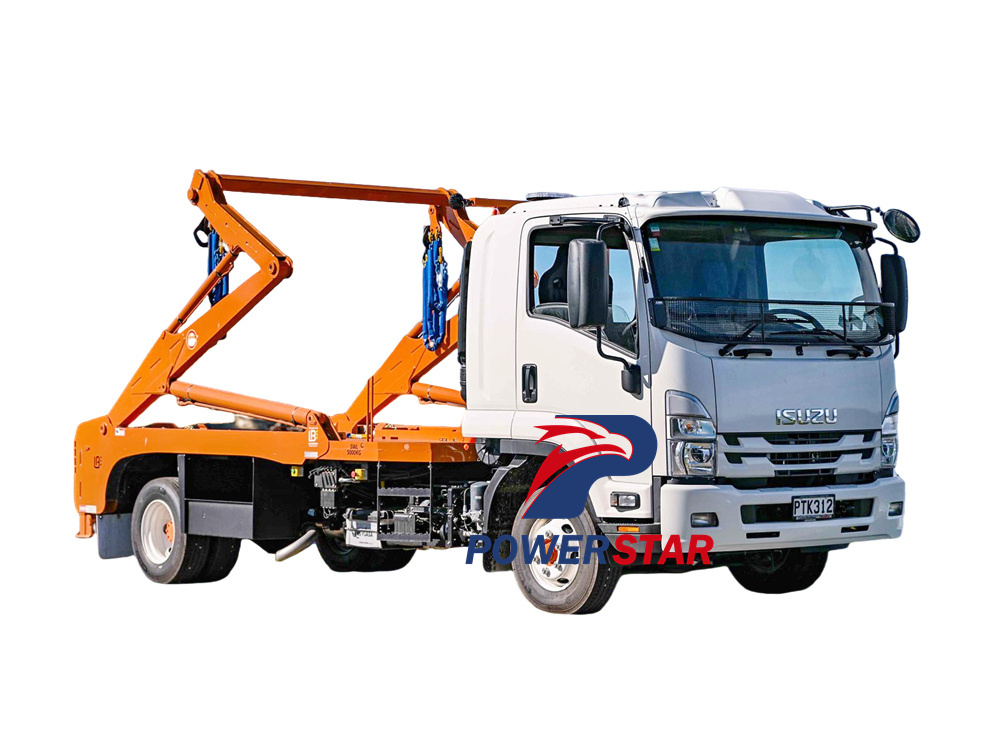

Isuzu NPR 8cbm skip refuse loader

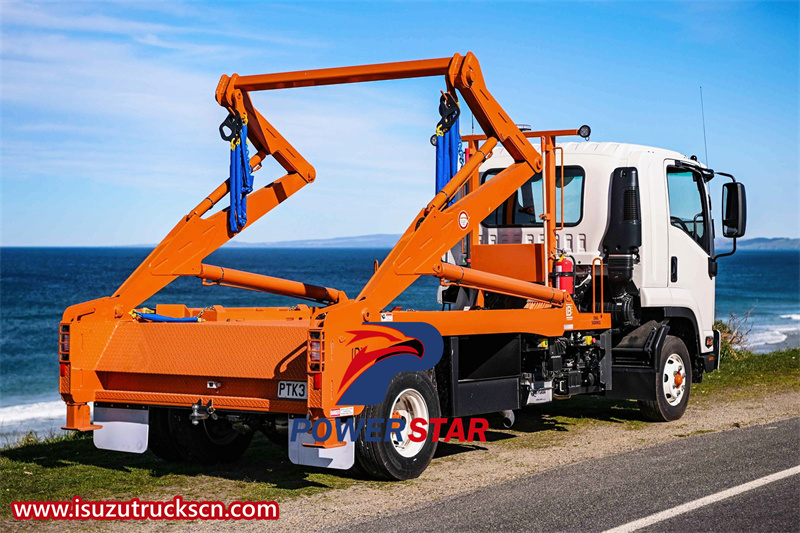

Isuzu NPR 8cbm swing arm garbage truck
