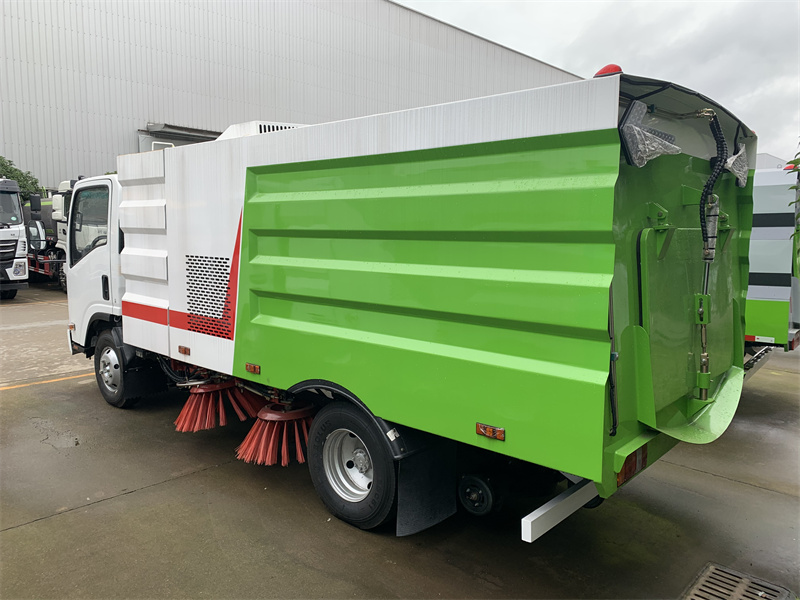

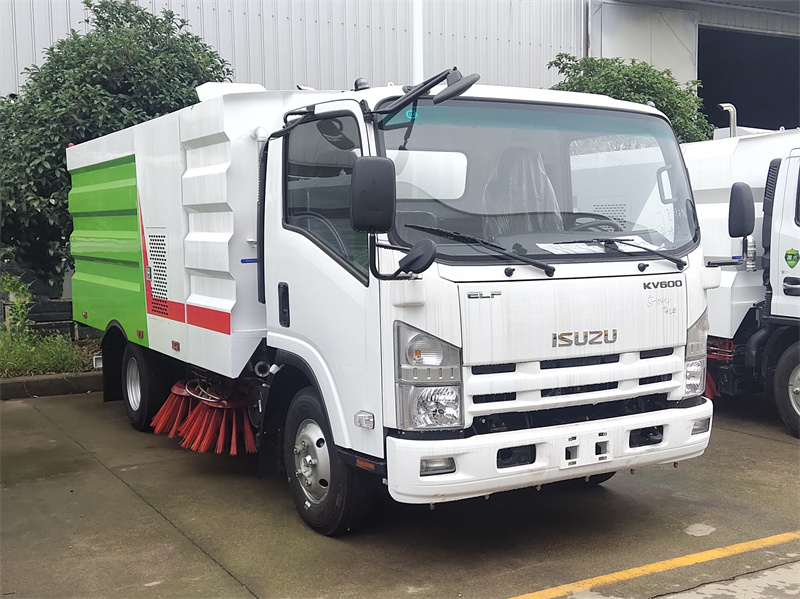

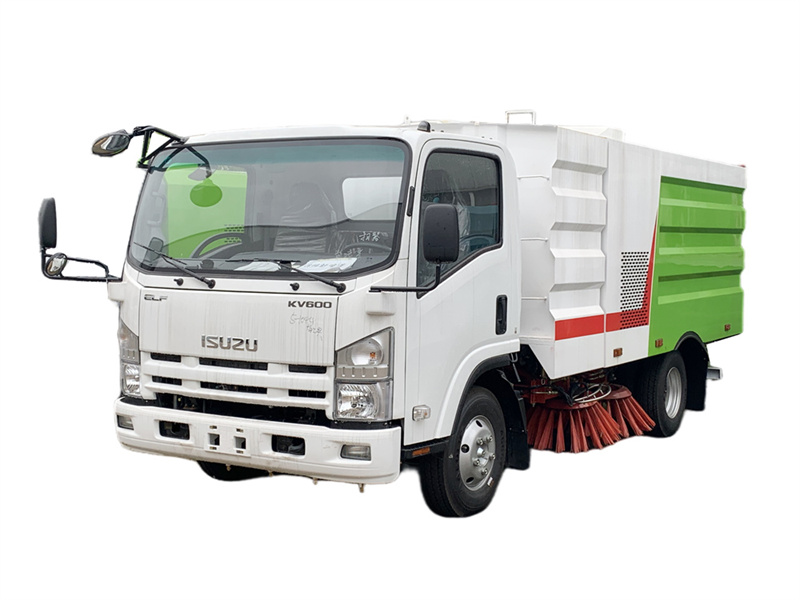

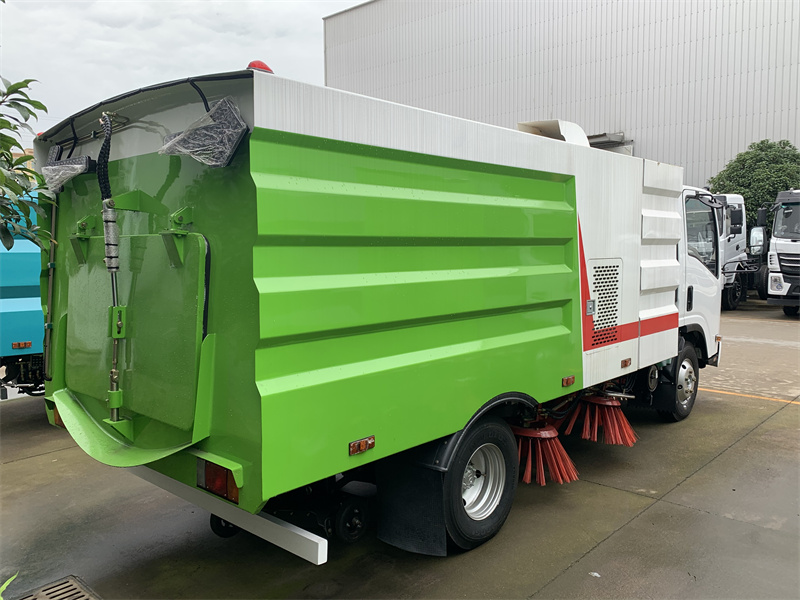

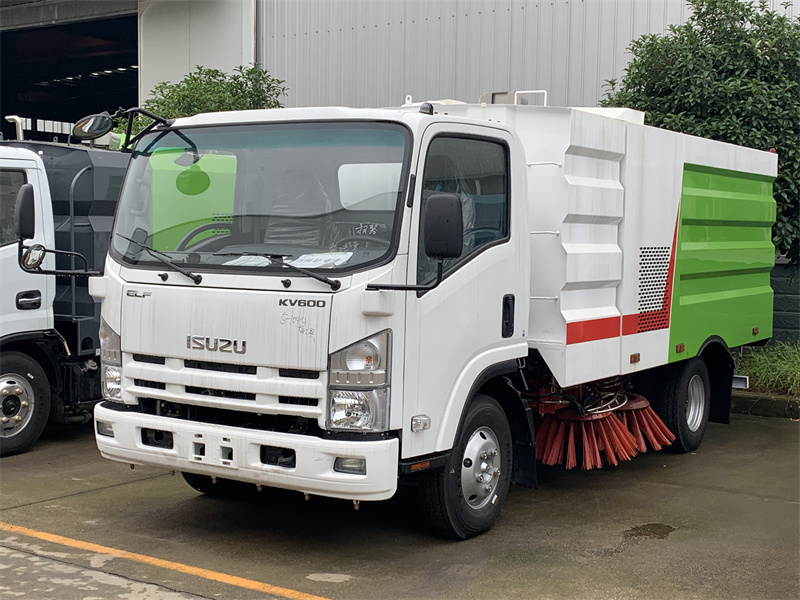

The Isuzu NKR vacuum sweeper truck is a versatile and efficient cleaning vehicle designed for thorough and effective street and road cleaning. With a maximum length of approximately 6 meters, this truck is compact yet powerful, ensuring maneuverability in urban areas while still delivering excellent sweeping performance.
Equipped with a high-capacity vacuum system, the NKR vacuum sweeper truck efficiently collects various types of debris, including dirt, leaves, and trash. The powerful suction ensures thorough cleaning, leaving streets and roads spotless. The collected waste is stored in a large-capacity container within the truck, minimizing the need for frequent emptying.
Work capacity:
4 m3 water+1.5 m3 waterTruck model:
PT5060XCEngine power:
130 HpEngine type:
4KH1CN5HSAxle drive:
4×2Gear box:
MSB 6 shiftRemarks:
stainless steel water tank and dust tank, front spray, rear spray avaiable
The Isuzu NKR vacuum sweeper truck is a compact and efficient vehicle designed specifically for street cleaning and waste removal. It features a powerful vacuum system that effectively collects and transports various types of debris, such as leaves, dirt, and small trash.
With its robust build and reliable Isuzu engine, this truck offers exceptional performance and durability. The NKR vacuum sweeper truck is equipped with a specially designed sweep system that efficiently cleans large areas swiftly. The sweeping brushes rotate at high speeds, effectively capturing dirt and debris into the vacuum storage compartment, ensuring a thorough cleaning. This truck is also equipped with a sophisticated filtration system that prevents dust and other small particles from being released back into the environment. The collected waste is securely stored in a large capacity storage tank, which can be easily emptied at designated waste disposal sites.
Isuzu NKR vacuum sweeper truck is equipped with advanced features and technology that make it a highly efficient and easy-to-operate vehicle for cleaning streets and roads. With a low cabin design and a compact body, the truck provides excellent maneuverability and ensures easy access to narrow and crowded areas.
The operation of the Isuzu NKR vacuum sweeper truck starts with the driver entering the cabin and starting the engine. The cabin is spacious and designed for comfort, with ergonomic controls and a clear view of the road. The driver can adjust the seat and steering wheel according to their preference, ensuring a comfortable working environment.
Once the engine is started, the driver can engage the sweeper functions. The truck is equipped with powerful vacuum cleaners and brushes that effectively collect dirt, debris, and leaves from the road. The driver can control the sweeper functions through a user-friendly control panel located on the dashboard.

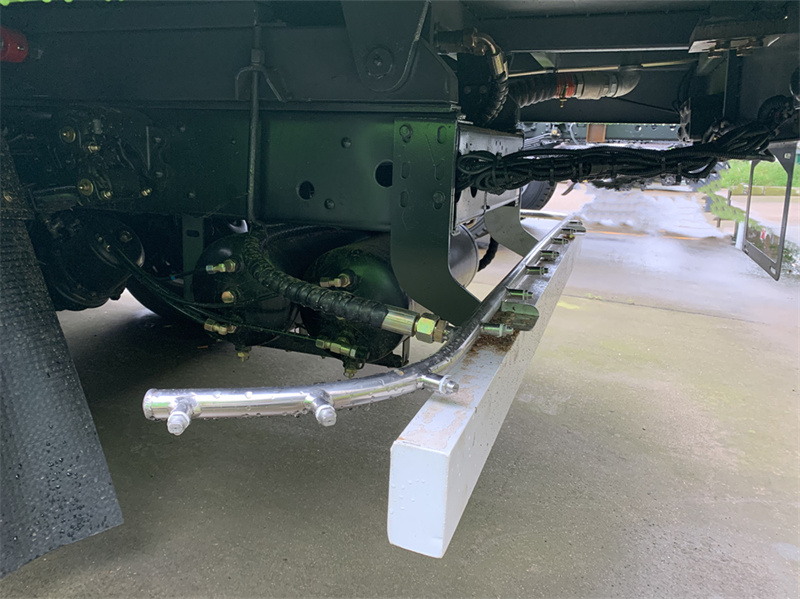

The Isuzu NKR vacuum sweeper truck also features a water tank and spray
Product parameters
| TECHNICAL SPECIFICATION | ||||||
| Main specification | Chassis brand | ISUZU | ||||
| Chassis model | QL1070A5KAY | |||||
| Overall dimension(L*W*H) | 7160X2200X2800mm | |||||
| Dust tank | 4m3 | |||||
| Water tank | 1.5m3 | |||||
| Gross weight | 7,300 kg | |||||
| Chassis | Drive modle | 4X2 left hand drive | ||||
| Front axle | 2.5ton loading capacity | |||||
| Rear axle | 4.8ton loading capacity | |||||
| Wheel Base | 3360 mm or 3815mm | |||||
| Front/rear suspension | 1032/2138mm | |||||
| Approach/departure angle | 19/12(°) | |||||
| Tyre size & number | 7.00R16, with one spare tyre | |||||
| Max speed | 90 km/h | |||||
| Engine | Model | 4KH1CN5HS | ||||
| Engine Type | Diesel,Vertical in-line, water-cooled, four stroke, electronically controlled high pressure common rail | |||||
| Horse power | 96kw/130hp | |||||
| Displacement | 3856cc | |||||
| Fuel consumption | 10 L/100km | |||||
| Emission | Euro 5 | |||||
| Sweeper tank | Dust tank | 4m3 | ||||
| Water tank | 1.5m3 | |||||
| Water Tank material | stainless steel | |||||
| Tank thickness | 4-5mm | |||||
| Sweeping brush | 4 set | |||||
| Max cleaning width | 2800mm-3200mm | |||||
| Max cleaning capacity | 60000 m2/H | |||||
| Cleaning degree | ≥95% | |||||
| Max cleaning speed | 3-25 km/h | |||||
| Max diameter of the suction | 120mm | |||||
| Auxiliary engine | JX493 | |||||
| Auxiliary engine horsepower | 57KW/77.5HP | |||||
| Max discharge angle of the dust tank | 45 degree | |||||
| Operation | electronic automatic operation , | |||||
Isuzu NKR vacuum sweeper truck is a specialized vehicle used for cleaning and sweeping streets and roads. It is designed with a specific structure and various features to efficiently remove dust, debris, and other waste materials from the ground surface. Here are five key points about the structure and purpose of the Isuzu NKR vacuum sweeper truck:
1. Chassis: The Isuzu NKR vacuum sweeper truck is built on a sturdy and reliable chassis. Isuzu NKR series is known for its robustness and durability, making it suitable for heavy-duty applications. The chassis provides a strong foundation for the sweeper truck to operate smoothly on various terrains.

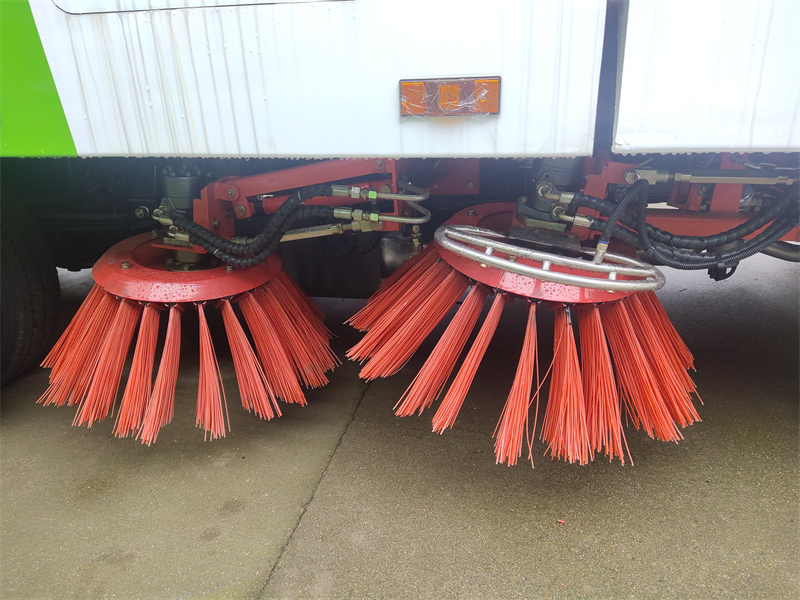

2. Sweeping mechanism: The sweeper mechanism is the key component of the Isuzu NKR vacuum sweeper truck. It consists of brushes that rotate and sweep debris from the road surface into a collection hopper. The brushes are adjustable to ensure effective sweeping and can be quickly replaced if necessary.
3. Vacuum system: The vacuum system is responsible for sucking up and collecting fine dust and small debris that cannot be swept by the brushes. It creates a strong suction force that draws in the waste material and deposits it into the hopper. The vacuum system is powered by a high-performance engine to ensure efficient operation.
4. Hopper: The Isuzu NKR vacuum sweeper truck is equipped with a large-capacity hopper for collecting and storing the swept and vacuumed waste. The hopper is designed to be easily emptied, allowing for quick disposal of the collected debris. The hopper capacity varies depending on the specific model of the sweeper truck.
5. Versatile applications: The Isuzu NKR vacuum sweeper truck is commonly used by municipalities, street maintenance departments, and cleaning services for various applications. It can effectively clean streets, roads, parking lots, and other outdoor surfaces. The truck's compact size and maneuverability allow it to access narrow areas and clean corners with ease.
In conclusion, the Isuzu NKR vacuum sweeper truck is a specialized vehicle used for efficient street and road cleaning. Its structure includes a robust chassis, sweeping mechanism, vacuum system, and large-capacity hopper. The truck's versatile applications make it an essential tool for maintaining cleanliness and hygiene in urban areas.
