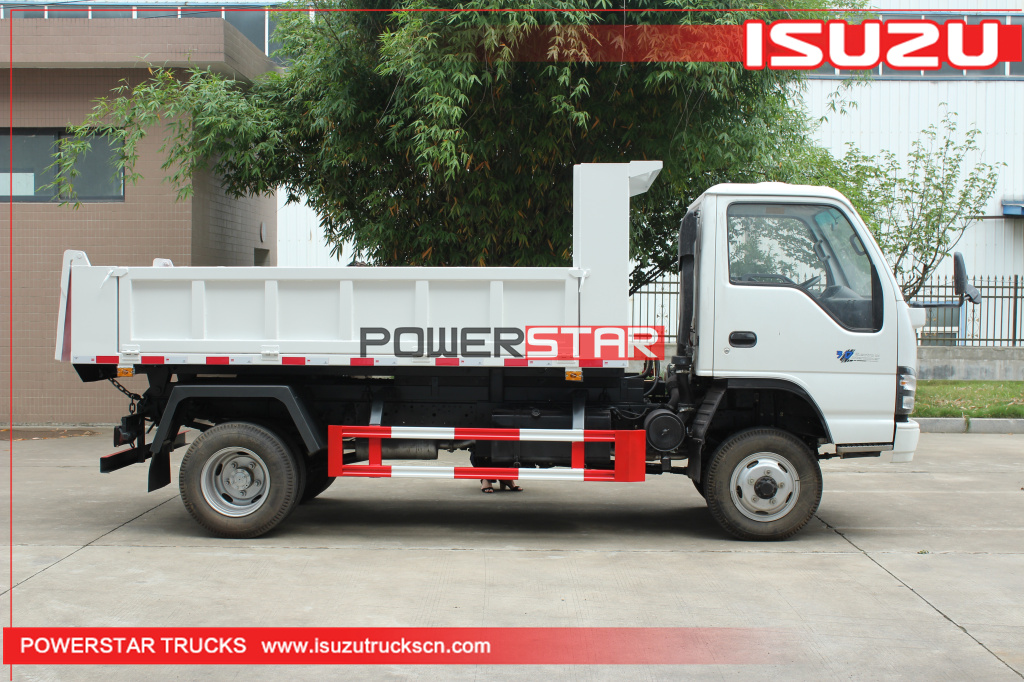

1ISUZU NKR/600P off-road Tipper 4x4 all wheel drive dump truck
ISUZU NKR/600P off-road Tipper 4x4 all wheel drive dump truck
ISUZU NKR/600P off-road Tipper 4x4 all wheel drive dump truck
Isuzu Mine Dumper 4x4 Mini Mining Dump Tipper Truck
Isuzu Mine Dumper 4x4 Mini Mining Dump Tipper Truck
Isuzu Mine Dumper 4x4 Mini Mining Dump Tipper Truck

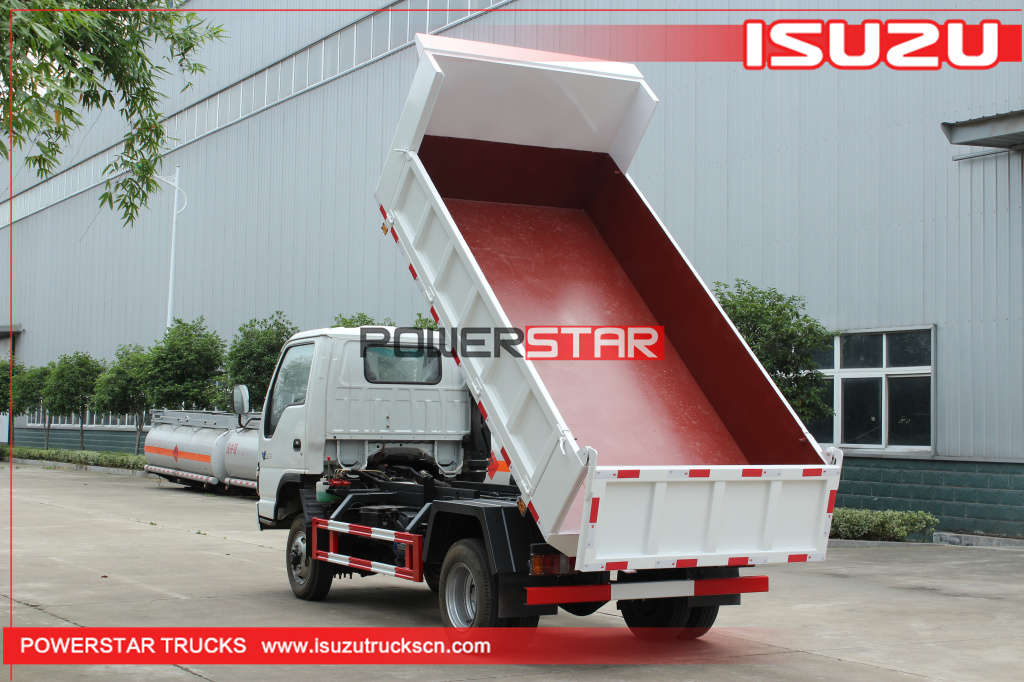

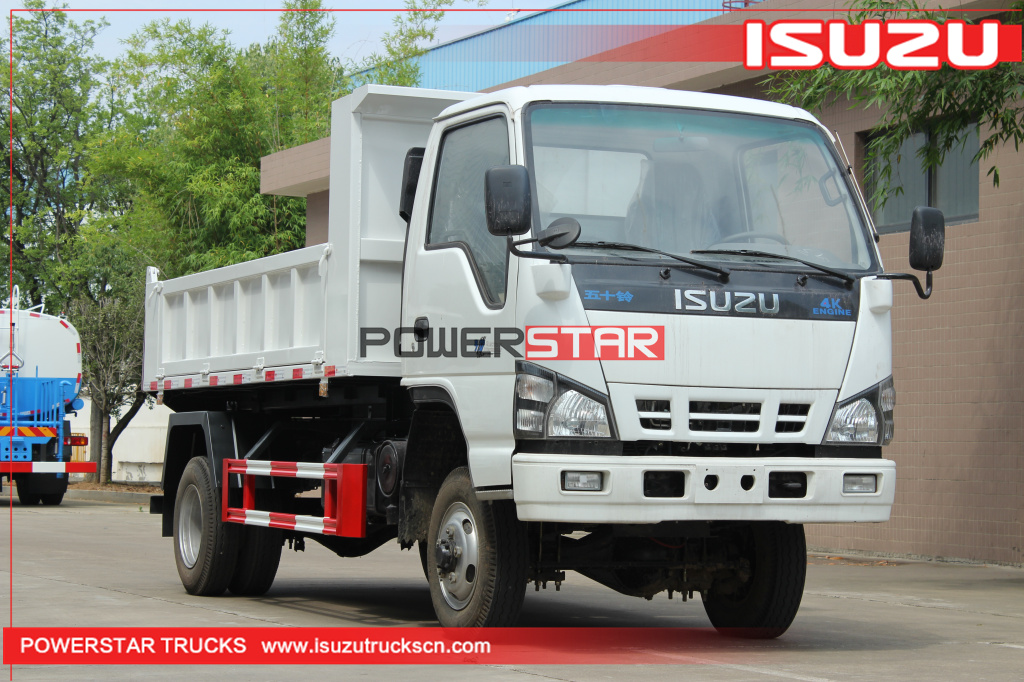

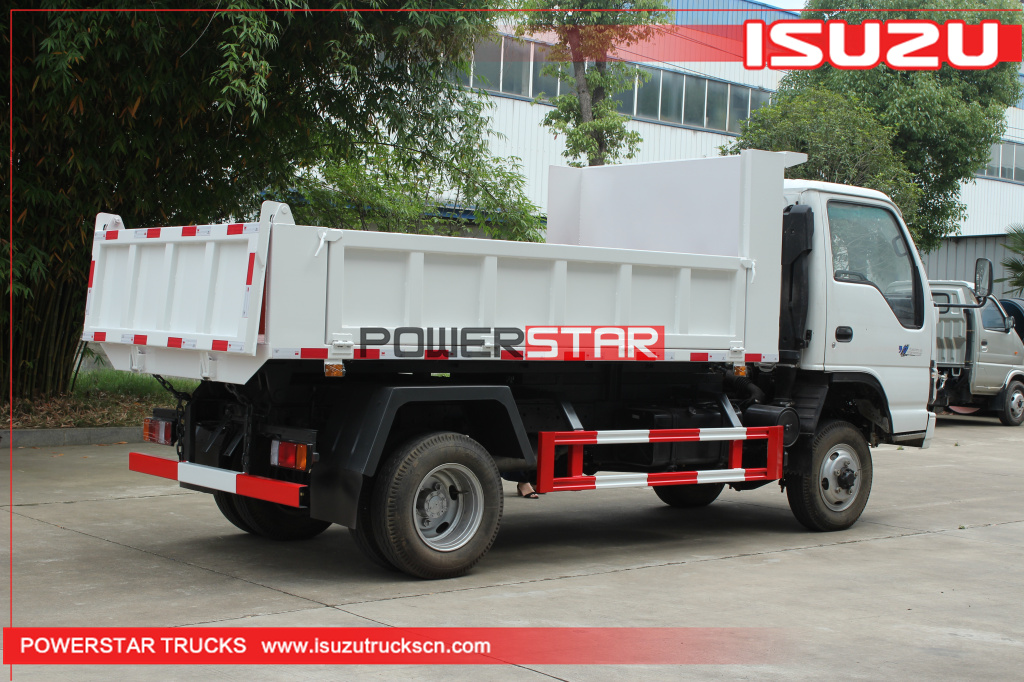

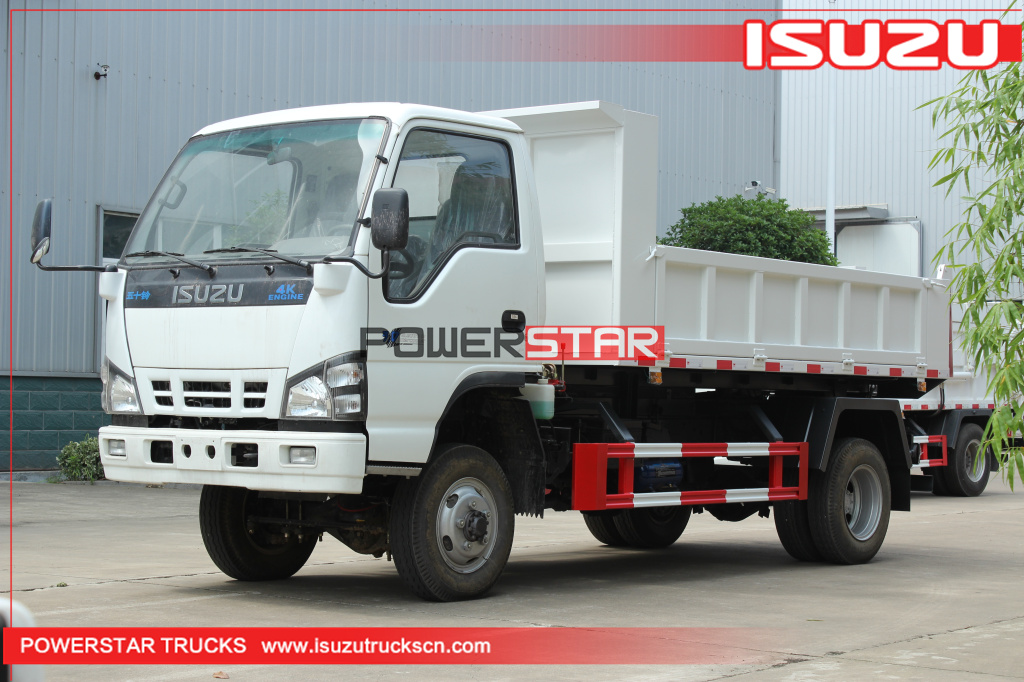

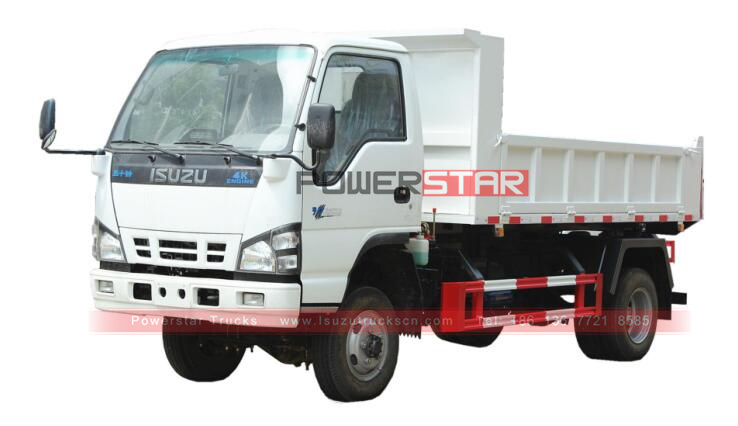

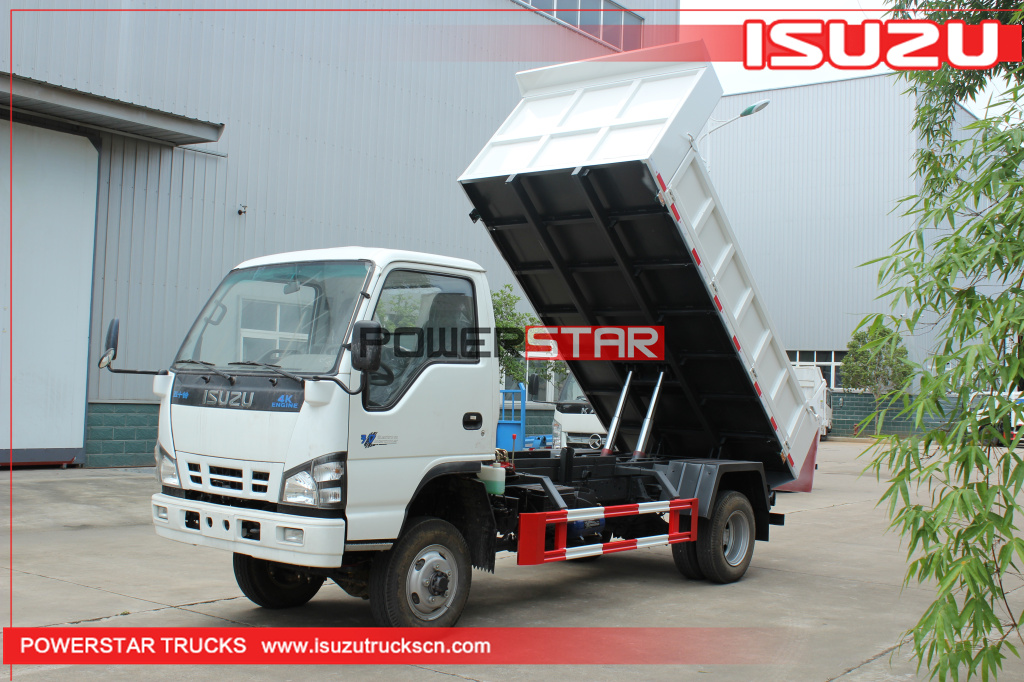

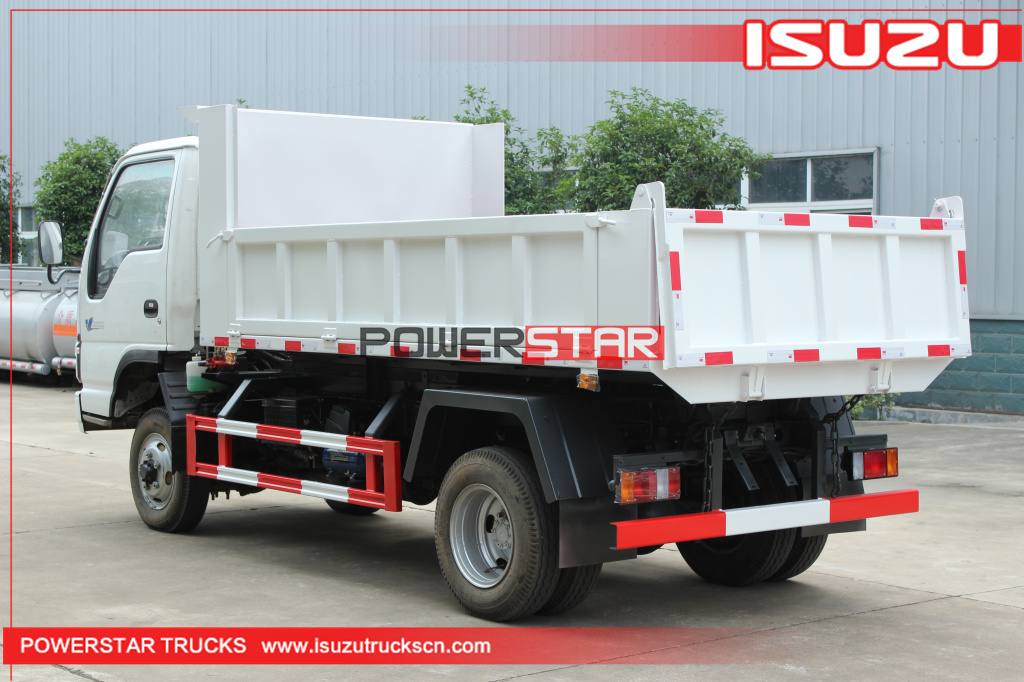

ISUZU NKR/600P off-road Tipper 4x4 all wheel drive dump truck
ISUZU NPR/600P Off-road tipper trucks(also called Isuzu 4x4 all wheel drive tipper, 4WD mini dumper truck, 4x4 sand tipper truck) is designed for both overseas and domestic high end heavy truck markets. In order to prevail over its rivals in the global competition, key components of the tipper truck are designed in close collaboration with top suppliers in the world.
 |
100% custom-made
|
|
3 cbm to 22 cbm available
|
|
Short delivery time 7~30 days
|
|
Easy operation & Easy maintenance
|
|
15 years spare parts & Technical support
|
|
PowerStar Trucks Industry Co., Limited |
|||
|
Product Name |
ISUZU NKR/600P 4WD Mini Dump Truck |
||
|
Vehicle Brand Series |
ISUZU |
||
|
Vehicle Model |
PST5070ZX |
||
|
Production Time |
25 days |
||
|
Chassis parameters |
Overall dimensions |
mm |
5500*2000*2400 |
|
Gross weight |
kg |
7,300 |
|
|
Kerb weight |
3,160 |
||
|
Wheelbase |
mm |
3,360 |
|
|
Driving type |
4*2 |
||
|
Chassis model |
ISUZU NKR Light-duty |
||
|
Tire size |
7.00-16 |
||
|
Number of Tires |
6+1 |
||
|
Passengers in cab |
2 |
||
|
Engine |
Engine model |
4KH1CN |
|
|
Type of fuel |
Diesel |
||
|
Power |
120HP |
||
|
Max speed |
Km/h |
95 |
|
|
Emission standard |
EURO 4,5,6 |
||
|
Compactor performance |
Dump body size |
3300x2100x550 |
|
|
Loading capacity |
3 Tons |
||
|
Body materila |
High performance carbon s |
||
|
Plate thickness |
Front/Side are 3mm |
||
|
Rear/bottom are 4mm |
|||
|

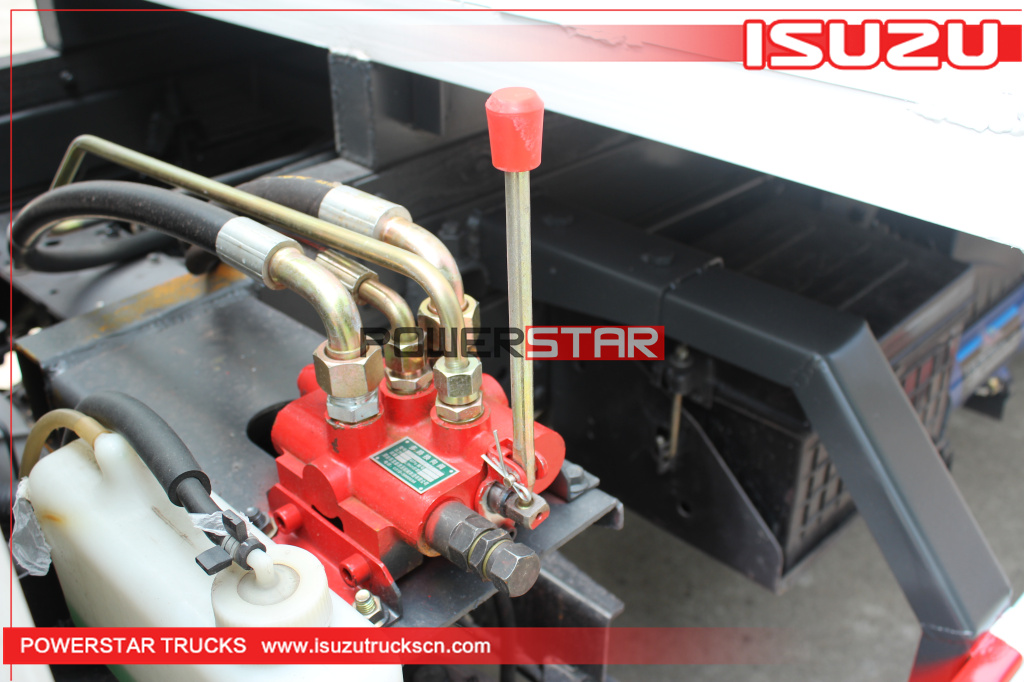

Control system |
Hydraulic |
||
|

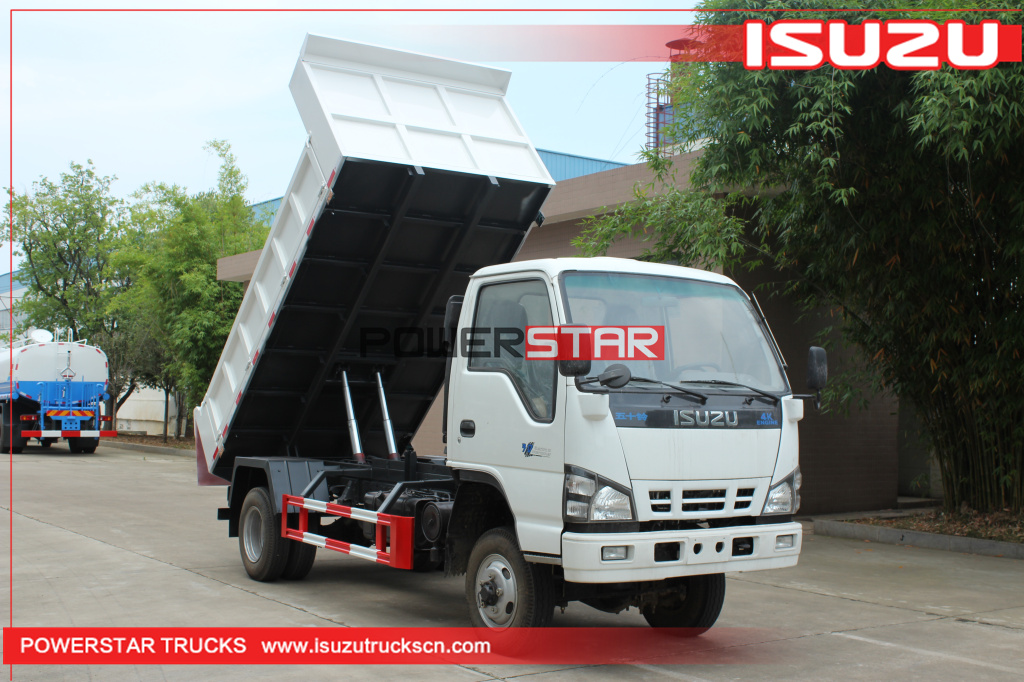

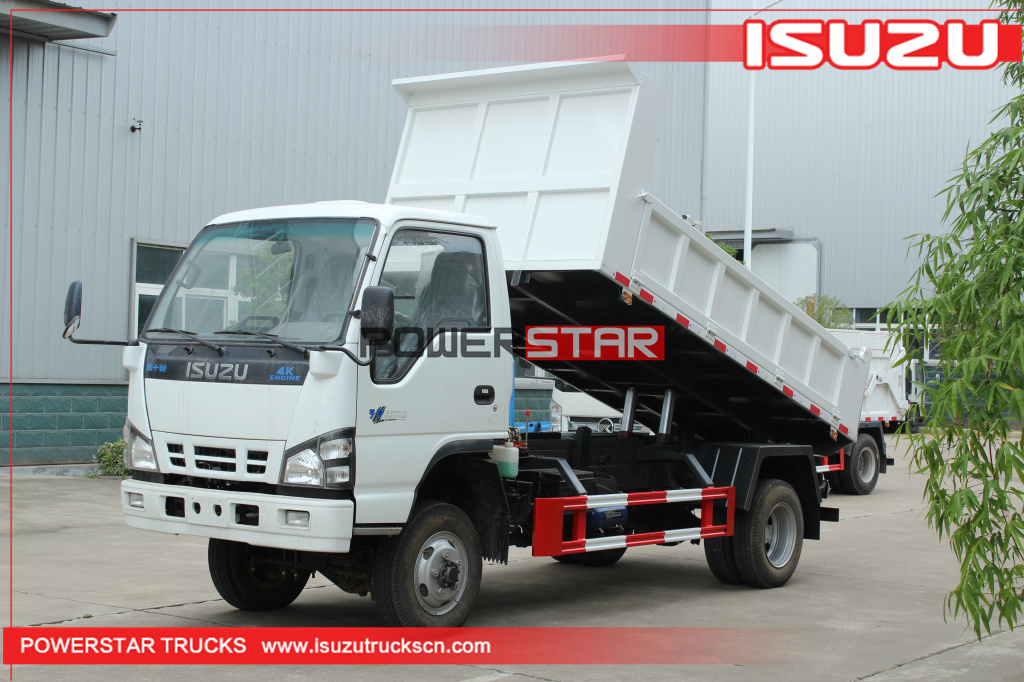

Hydraulic Lifting |
Middle lifting device |
||
|
Discharging system |

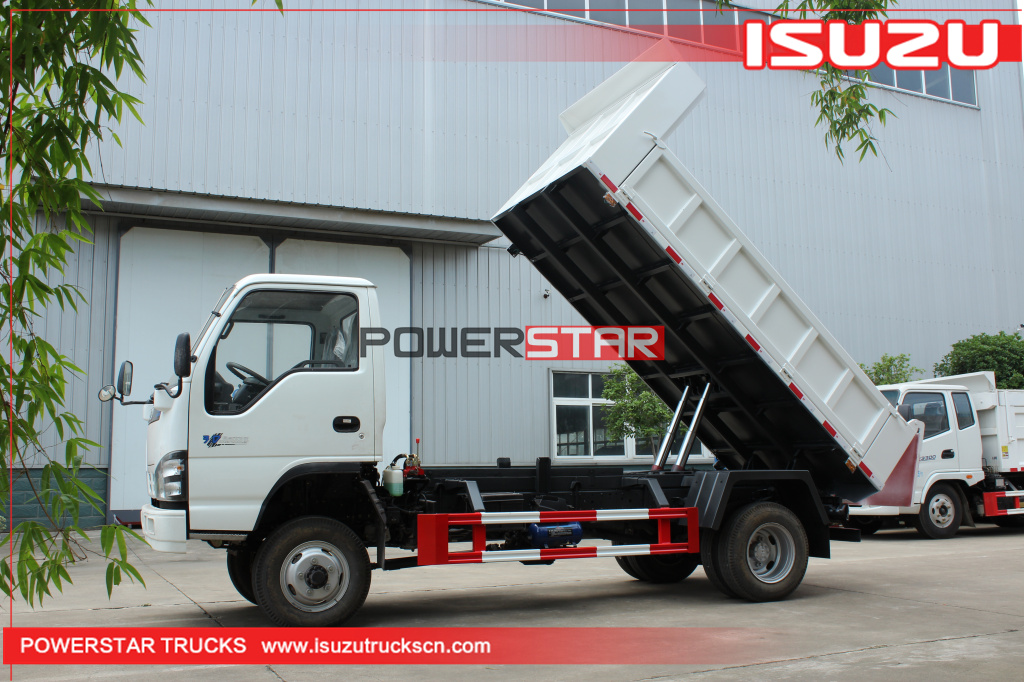

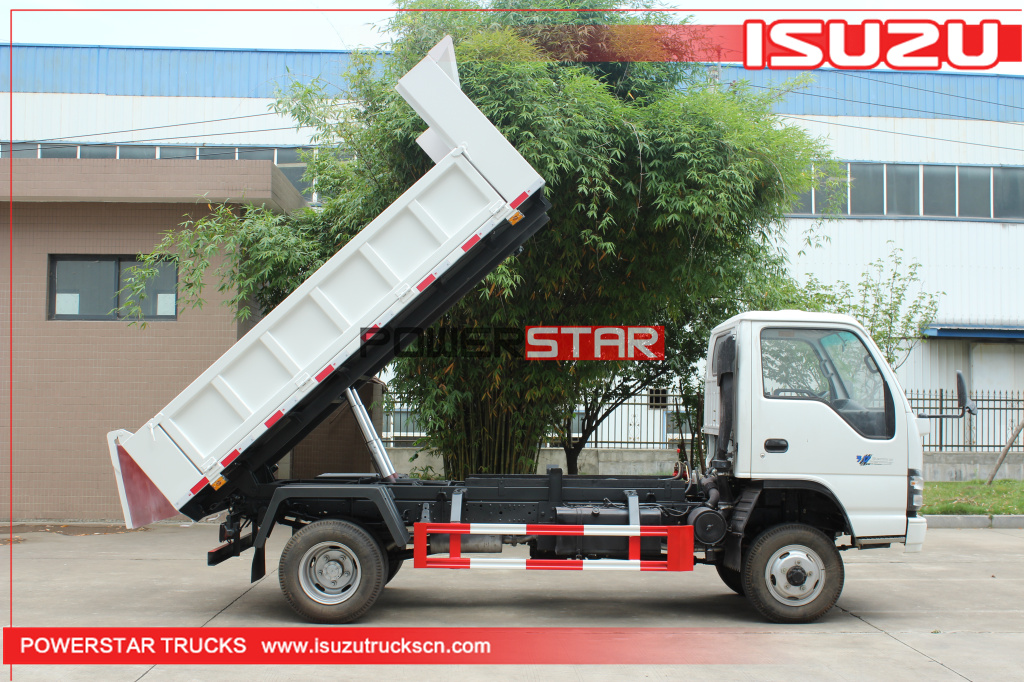

Tipping 45 degree |
||
|
Lifting time |
20 sec |
||
|
Lowering time |
15 sec |
||
|

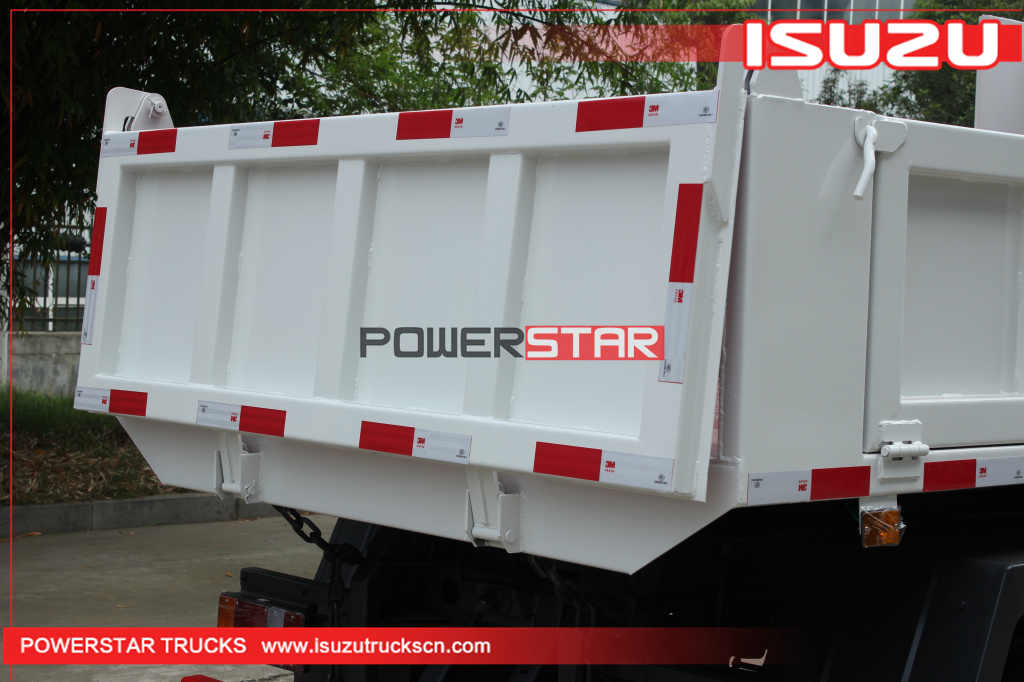

Tailgate |
Auto release |
||
|
Drop side |
Detachable |
||
|
Painting |
Two primers, and one final paint coating |
||
|
Color & LOGO |
According to wish |
||
|
Factory standard |
“U” shape Sub Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps... |
||
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
||
|
Optional equipment |
1, Dust bin lifting system (with any option) 2, Rear vision camera 3, Italy imported multi-way valve 4, Optional stainless steel waste water tank |
||
---- SGS, BV, CONTECNA, CE Qualified.
---- Local engineer training support.
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
||

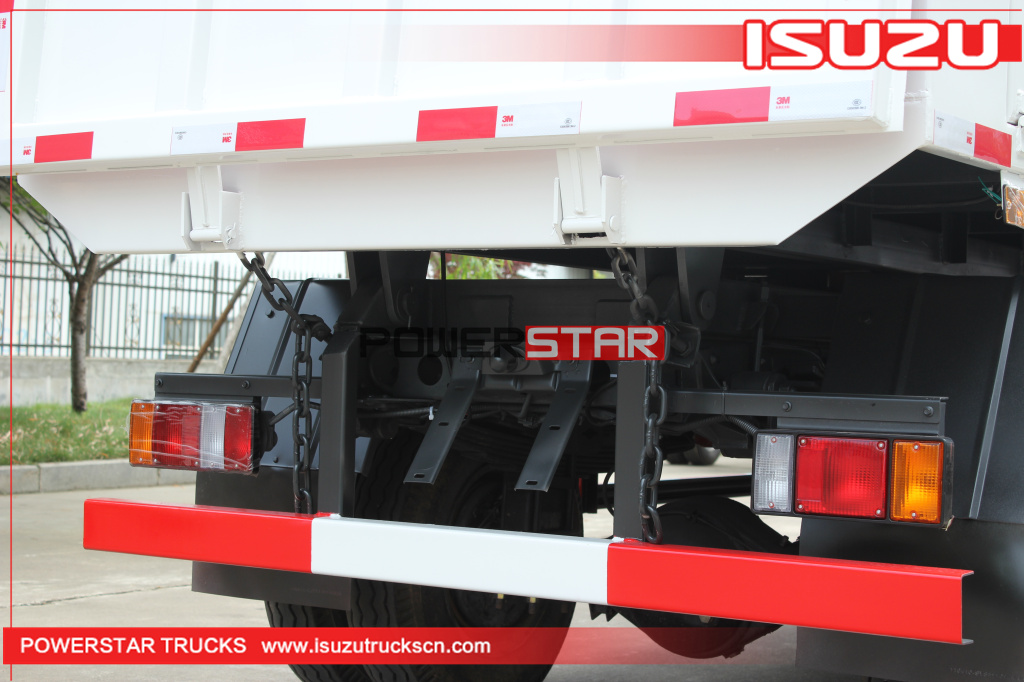

| Special U-shape body | Rear door safety hook | Rear door top lug hooks | ||
 |
 |
 |
||
| Reinforced dumper body | T-type hydraulic cylinder | Mining body | ||
| |
---- 12 months FREE parts.
---- Factory genuine parts supply.
---- 7 days to worldwide by DHL.
| Operation Manual | Chassis parts | Maintenance Tools |
---- 15 years experiences Design & Export.
---- 100% customer made trucks.
---- Fast delivery assurance.
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely
---- Quickly ship to worldwide.
---- Color and LOGO can be wished.

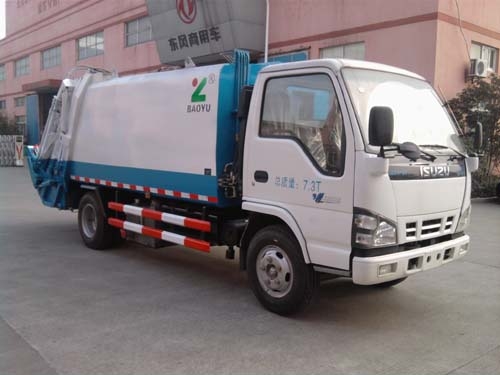

6 wheeler Refuse Disposal Truck 4*2 Waste Disposal Truck exported south african Garbage Compactor Truck Isuzu.Euro IV garbage compactor truck,waste compactor truck Isuzu,3ton 5ton Isuzu Compressed waste Garbage Compactor Truck For Sale
Learn More
Brand New Isuzu FVR diesel engine aircraft food catering truck is used to transport food to the aircraft, and is suitable for use on Boeing B727, B737, B747, B757, L-1011 TriStar, McDonnell MD90, MD-11, DC10, Airbus A300, A340, A380 (one door), CONCORDE, TU-154M, TL-96-300 and other aircraft models. The Isuzu food catering truck is mainly composed of a chassis, lifter, thermal door, carriage, supporting feet, workbench, hydraulic system, electrical system, and refrigeration unit.
Learn More
The Isuzu NKR rear loader is an advanced garbage disposal equipment that integrates high efficiency, environmental protection and intelligence. It is made on the basis of the Isuzu 600P all-wheel drive chassis. It has strong off-road capabilities and load capacity, and can adapt to various complex road conditions and harsh environments. At the same time, the vehicle is equipped with an advanced compression system and intelligent control system, which can realize rapid compression and efficient transfer of garbage, greatly improving the efficiency and quality of garbage treatment. In addition, the vehicle has excellent sealing performance, which can effectively prevent garbage leakage and odor emission, ensuring the cleanliness and environmental protection of the garbage disposal process.
Learn More

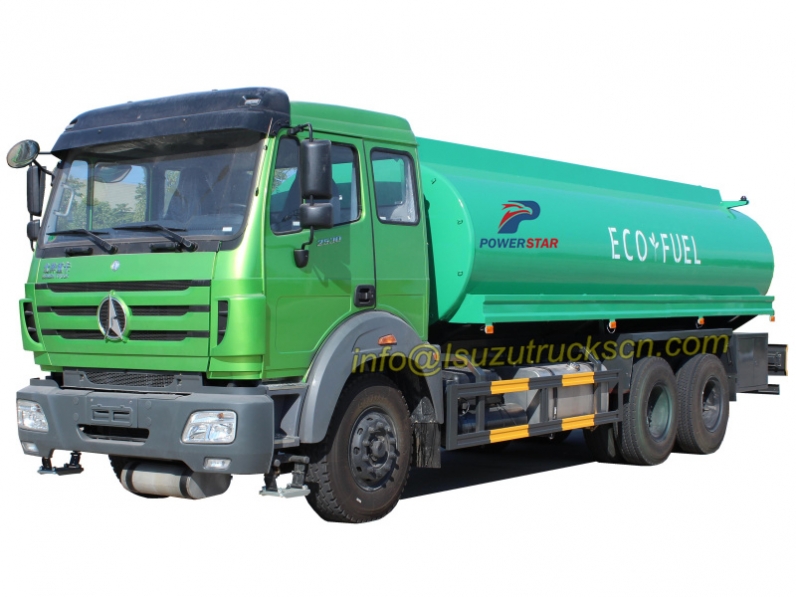

hot sale beiben 20cbm fuel tank truck, beiben tank truck for fuel delivery, well-know brand beiben 25000L oil tanker trucks, oil transportation tank truck, high quality beiben fuel tank trucks
Learn More

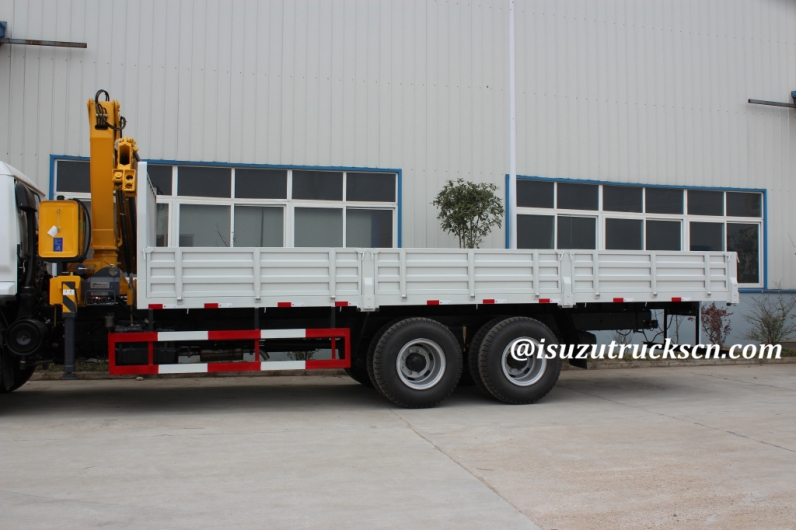

Telescoping boom crane, Lorry mounted crane, Cargo crane truck, Truck loader crane, Hydraulic truck crane
Learn More

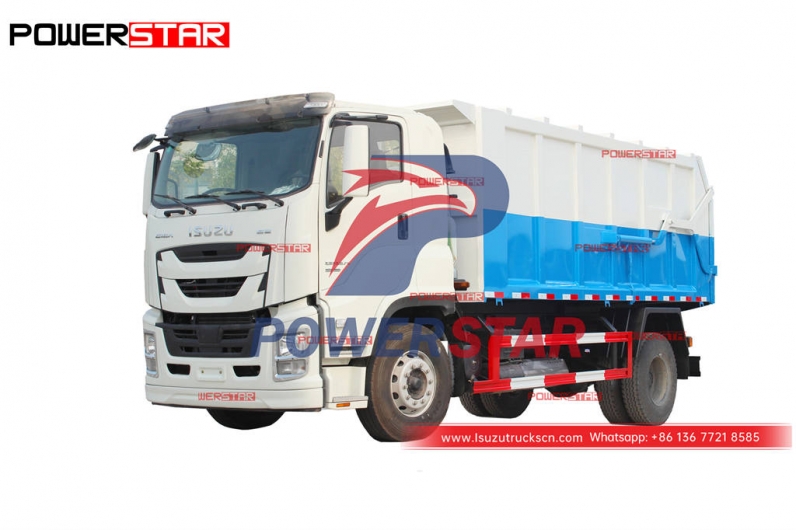

Good price ISUZU GIGA 16CBM refuse collection truck, best-seller ISUZU GIGA docking-type waste trucks, ISUZU trash collection truck manufacturer.
