Isuzu high performance streest sweeping trucks
Order(MOQ):
1Isuzu high performance streest sweeping trucks

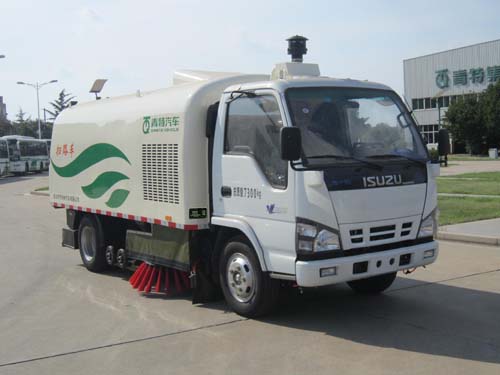

ISUZU 3.5m3 dust tank 0.8m3 water tank street sweeper
| Main technical parameters | Name | road sweeper | Outline size(mm) | 5970x2000x2380 |
| Model | PT5065TSL | Gross weight(kg) | 7495 | |
| Engine model | 4KH1 |
Loading weight(kg) | 1920 | |
| Emission/ ( ml/Kw) | 2999ml/88kw, 120Hp | Curb weight(kg) | 5380 | |
| Engine type | Diesel, 4 Cylinders, Direct line, Turbocharge and water cooling | |||
| Fuel type | diesel | Wheelbase(mm) | 3360 | |
| Max speed(km/h) | 90 | Tire model / number | 7.00-16 / 6 Units |
|
| Operation control system | Electrically hydraulic | Transmission |
5 speed | |
| Traction system | 4x2 | Electric System | 24v | |
| Approaching angle(°) | 20 | Front / rear track(mm) | 1586/1538 | |
| Departure angle(°) | 15 | Front/rear hang(mm) | 1115/1480 | |
| Upstructure configuration | Dust tank | 3500 L | Waste water tank | 800 L |
| Material | carbon steel, stainless steel, side thickness 3mm, bottom thickness 4mm | |||
| Max. cleaning width | 3000mm | Max.cleaning Capacity | 60000 m2/h | |
| Cleaning degree | 90% | Max. cleaning speed | 20 km/h | |
| Max. tipping angle | 45° | Max. dumping height | 800mm | |
| Max.Sunciton 0bject | <=100mm (2g/cm3) | Auxiliary engine | 493Q1 | |
88KW Isuzu 4KH1-TCG40 vacuum sweeper Truck mounted street sweeper,Isuzu Road Sweeper Cleaner, Isuzu brnad Street Cleaning Vehicle
