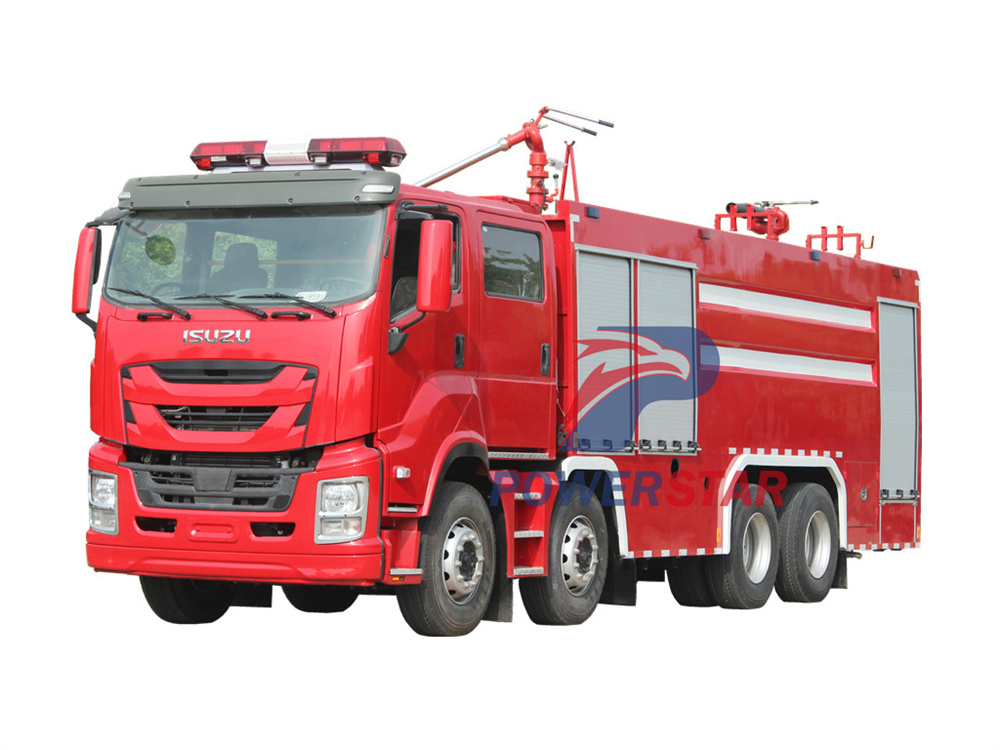

The Isuzu GIGA 8x4 dry powder water foam fire truck is designed for maximum efficiency and versatility in a variety of firefighting and rescue scenarios. With its robust 8x4 drive configuration, this truck can handle the toughest terrains and conditions, ensuring that it arrives on the scene quickly and ready to tackle any challenge.
Work capacity:
21CBMTruck model:
PT5420GXWEngine power:
460HPEngine type:
6WG1-TCG61Axle drive:
8X4,LHDGear box:
FAST 12-speed,manualRemarks:
16cbm water tank,3cbm foam tank and 2cbm dry powder tankThe Isuzu heavy rescue dry powder fire truck is equipped with a water foam system to enhance its firefighting capabilities, providing a powerful mixture of water and foam to quickly and effectively extinguish fires. This two-agent approach ensures versatility in dealing with different types of fires, from liquids to combustible solids.
The fire truck is equipped with a range of advanced firefighting equipment, enhancing its combat capabilities. Including fire extinguishers, water collectors, water filters, water distributors, fire hoses, water guns, foam guns, fire axes, shovels, picks, wrenches, ladders and cutting tools. These tools are stored in organized compartments within the truck body, ensuring that firefighters can quickly access them when needed.
Key Features
★ ISUZU GIGA chassis, perfect performance
★ lSUZU engine, super powerful, no overhaul within 100.000 km
★ Water tank and Foam tank capacity can be optional.Tank material can be Carbon steel, Stainless steel or Aluminum alloy
★ Easy operation and easy maintenance
★ Various types of fire equipment are available
★ Extended model: water fre truck, Foam fre truck, Dry powder fire truck...
|
ISUZU GIGA Water foam dry Powder Combined Fire Truck |
||||
|
General |
Vehicle Brand |
POWERSTAR |
||
|
Chassis Brand |
ISUZU |
|||
|
Overall Dimension |
11995*2550*3800mm |
|||
|
GWW/ Kerb Weight |
42,000kg/18,820kg |
|||
|
Cab |
Cab Capacity |
2+4 persons allowed |
||
|
Air Conditioner |
air conditioner |
|||
|
Engine |
Fuel Type |
Diesel |
||
|
Engine Brand |
ISUZU engine, 6WG1-TCG61 |
|||
|
Power |
460Ps(338KW) |
|||
|
Displacement |
15681ml |
|||
|
Emission Standard |
EuroVI |
|||
|
Chassis |
Drive Type |
8X4,left hand drive |
||
|
Transmission |
FAST 12-speed |
|||
|
Wheelbase/No.ofaxle |
1850+4575+1370mm / 4 |
|||
|
Tyre Specification |
315/80R22.5 |
|||
|
Tyre Number |
12 tires and 1 spare tire |
|||
|
Max Speed |
90km/h |
|||
|
Paint |
Metallic paint |
|||
|
Superstructure |
Water Tank Capacity |
16,000Litres |
||
|
Foam Tank Capacity |
3,000litres |
|||
|
Dry Powder Tank Capacity |
2,000Litres |
|||
|
Tank Material |
Water tank :Carbon steel Foam tank: stainless steel Dry powder tank :carbon steel |
|||
|
Nitrogen Gas Bottle |
70Litresx6pcs |
|||
|
Fire Pump |
Model |
CB10/100 |
||
|
Flow speed |
100L/s |
|||
|
Pressure |
1.0MPa |
|||
|
Water Foam Fire Monitor |
Model |
PL48 |
||
|
Flow speed |
48L/s |
|||
|
Shot |
Water |
≥55m |
||
|
foam |
≥50m |
|||
|
Dry Powder Fire Monitor |
Model |
PF40 |
||
|
Flow speed |
40L/s |
|||
|
Pressure |
1.7MPa |
|||
|
Effective injection rate |
35～40Kg/s |
|||
|
Shot |
Dry Powder |
≥35m |
||
|
Dry Powder Fire Gun |
Model |
FR20 |
||
|
Effective range |
≥20m |
|||
|
Suction Head |
7m |
|||
|
Hose |
High quality,wire strengthened hose,with cooper wire,anti-static |
|||
|
All standard accessories: Typical modern fire apparatus carries equipment for a wide range of firefighting and rescue tasks .These include fire horse,shovel, axes and cutting equipment ,... |
||||
|
Optional |
Ladders... |
|||

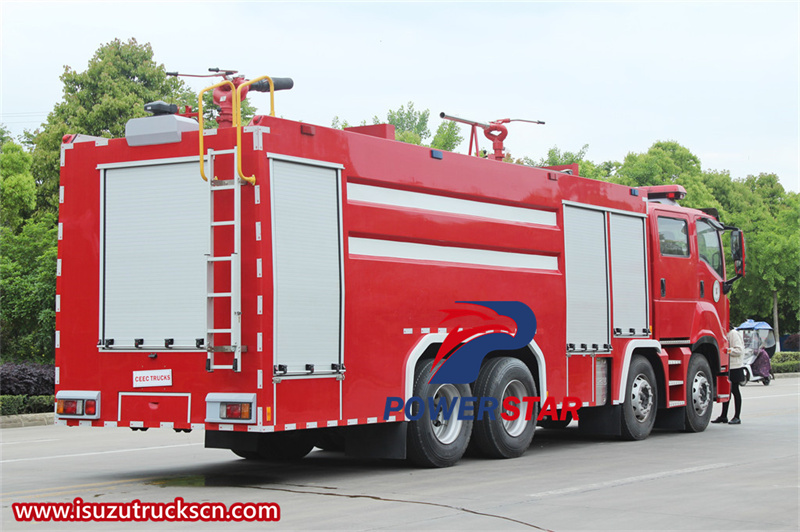

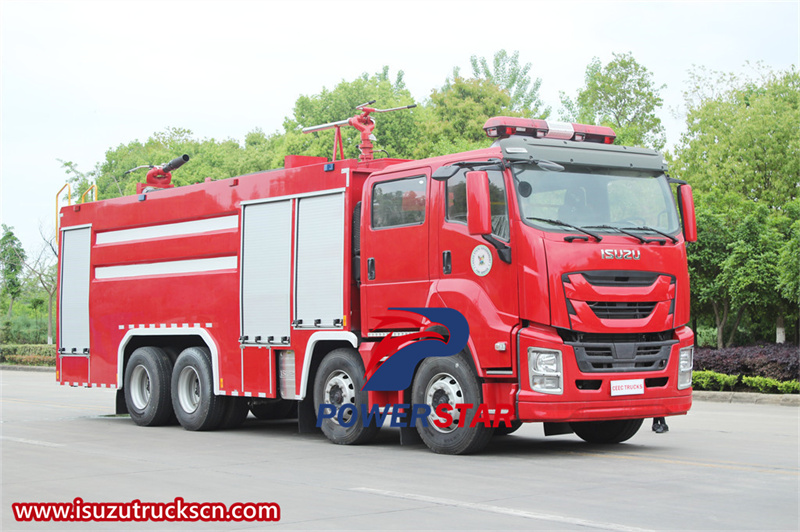

Isuzu heavy rescue dry powder fire truck

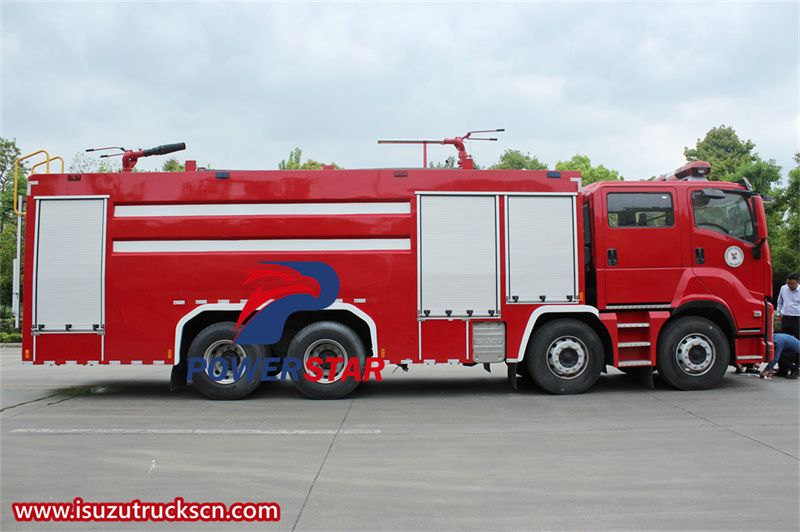

Isuzu Giga police dry powder fire truck
★ 16 cbm water tank, 2 cbm meter dry powder tank and 3 cbm foam tank
The Isuzu GIGA 8x4 dry powder water foam fire truck is equipped with three main fire fighting tanks: a 16 cubic meter water tank, a 2 cubic meter dry powder tank, and a 3 cubic meter foam tank.
The 16 cubic meter water tank is the largest of the three tanks and is the main source of water used to wet the area around the fire and control its spread. The tank is able to hold a large amount of water, ensuring that firefighters have a continuous water supply for hours.
The 2 cubic meter dry powder tank holds a large amount of fire extinguishing powder, which is distributed through the dry powder nitrogen system. The system uses six steel nitrogen cylinders to generate the pressure required to quickly and effectively deploy dry powder. The powder is designed to extinguish the fire by creating a barrier between the fuel and oxygen to extinguish the fire.

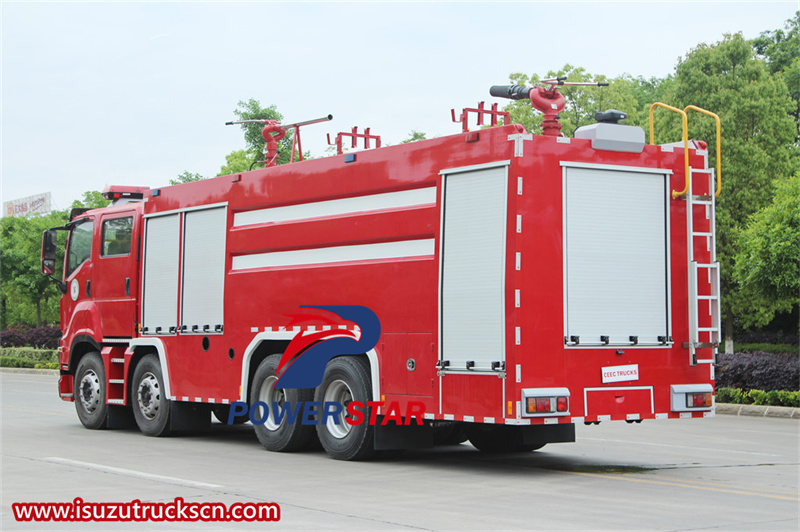

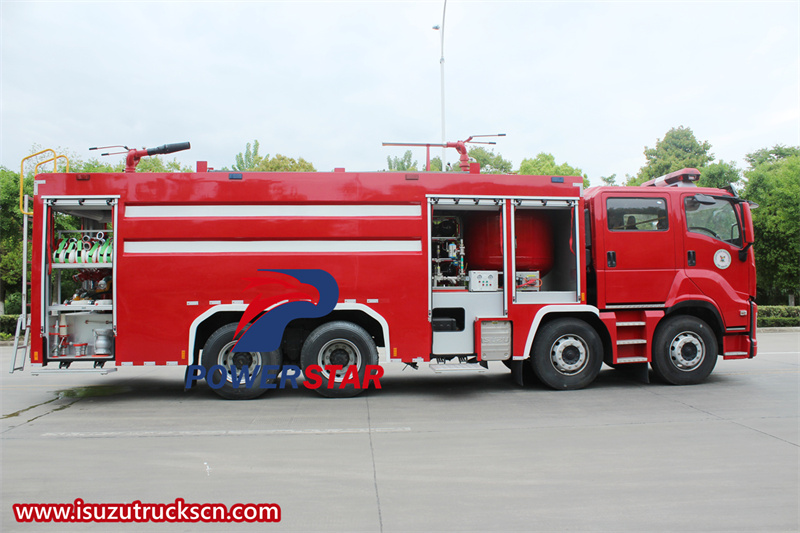

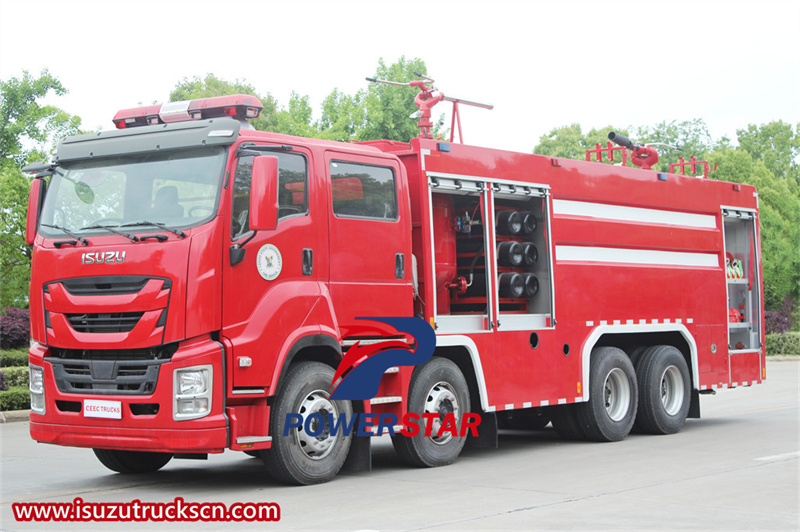

Isuzu GIGA 8x4 21cbm dry powder firefighting truck

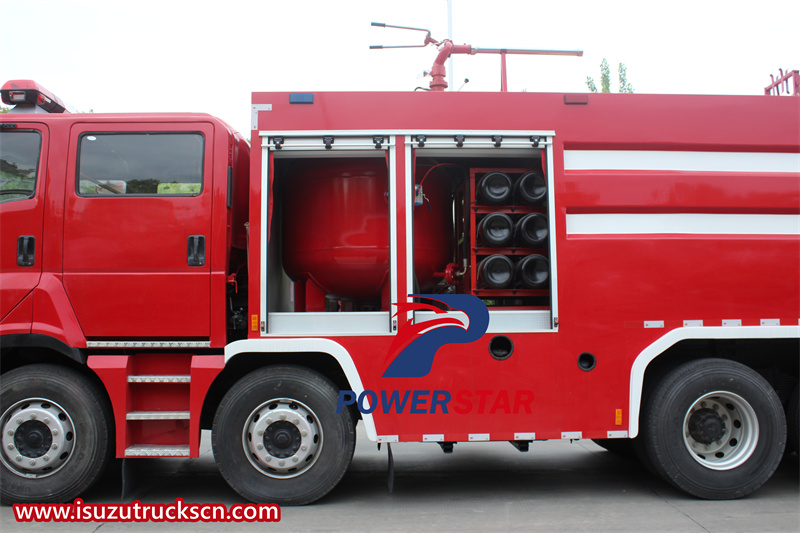

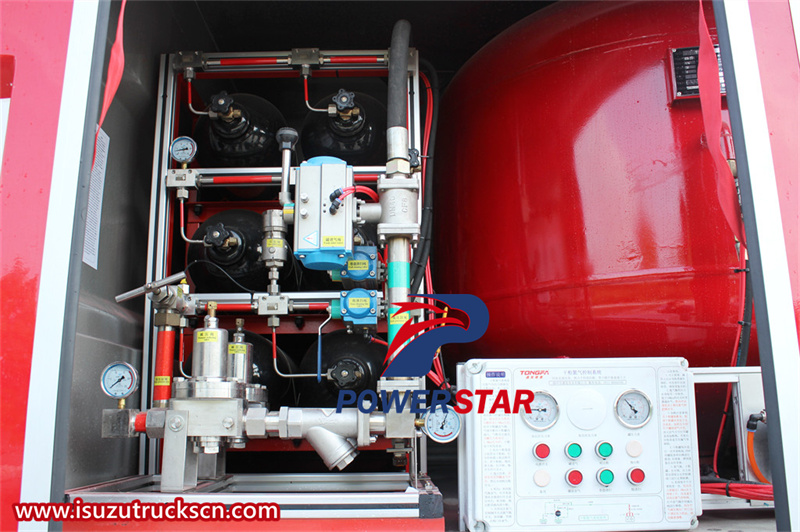

The nitrogen system is equipped with six steel cylinders and is a key component of the dry powder delivery system. These cylinders store compressed nitrogen, which when released can generate the pressure required to spray the dry powder out of the tank and extinguish the fire. Designed to be fast and reliable, the system ensures firefighters can quickly and effectively deploy dry powder when needed.
The 3 cubic metre foam tank is capable of producing foam for use on fires that require a mixture of water and air to extinguish the flames. Foam is particularly effective on liquid fires, such as those involving petrol or oil, as it forms a protective layer that prevents the fuel from coming into contact with oxygen.
★ CB10/100 Fire Pump, PL48 Water/Foam Dual-Purpose Fire Monitor and PF40 Dry Powder Fire Monitor
The Isuzu GIGA 8x4 Dry Powder Water/Foam Fire Truck is equipped with a powerful CB10/100 fire pump, which is the core of the vehicle's firefighting capabilities. The pump is designed to deliver large volumes of water or foam at high pressure, ensuring firefighters have the resources they need to effectively fight fires.

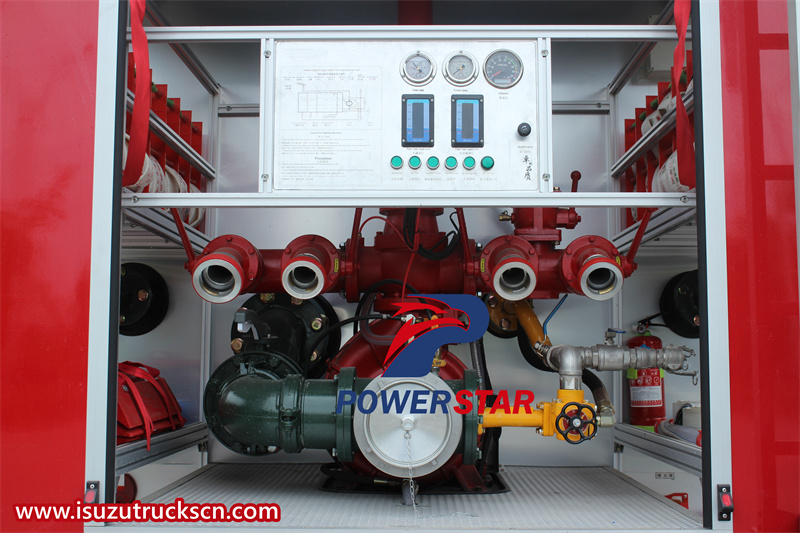

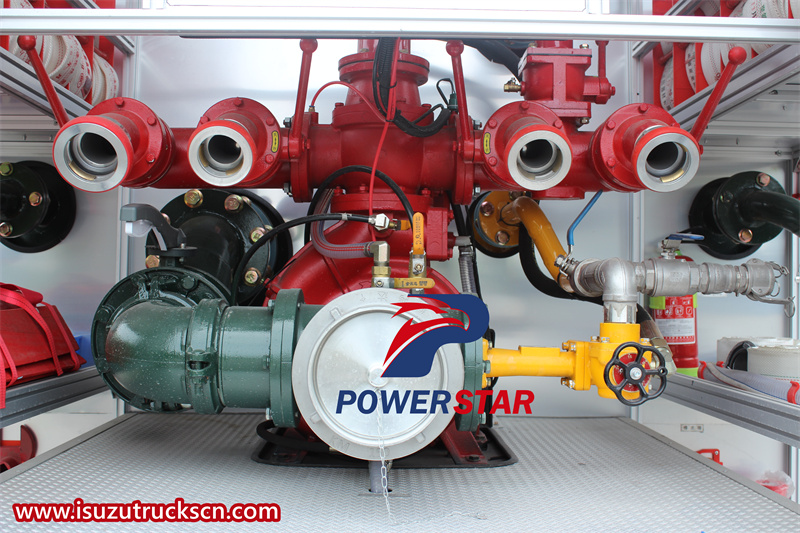

CB10/100 fire pump
In addition to the powerful fire pump, the Isuzu GIGA 8x4 fire truck is also equipped with two fire monitors: the PL48 Water/Foam Dual-Purpose Fire Monitor and the PF40 Dry Powder Fire Monitor.
The PL48 Water/Foam Dual-Purpose Fire Monitor is designed to deliver a precise and powerful stream of water or foam to the fire. The monitor can be adjusted to spray water or foam in a variety of patterns, allowing firefighters to tailor their response to the specific needs of the fire. The PL48 cannon is particularly effective for larger fires that require large volumes of water or foam to be delivered quickly and efficiently.
The PF40 dry powder cannon is specifically designed to deliver a stream of dry powder to a fire. The cannon uses pressure generated by a nitrogen system to push dry powder out of the canister and into the fire. The PF40 cannon is particularly effective for fires that require a fast and powerful application of dry powder, such as those involving flammable liquids or gases. The cannon is also equipped with a powder metering system that enables firefighters to control the amount of dry powder dispensed, ensuring the right amount of powder is applied to the fire.

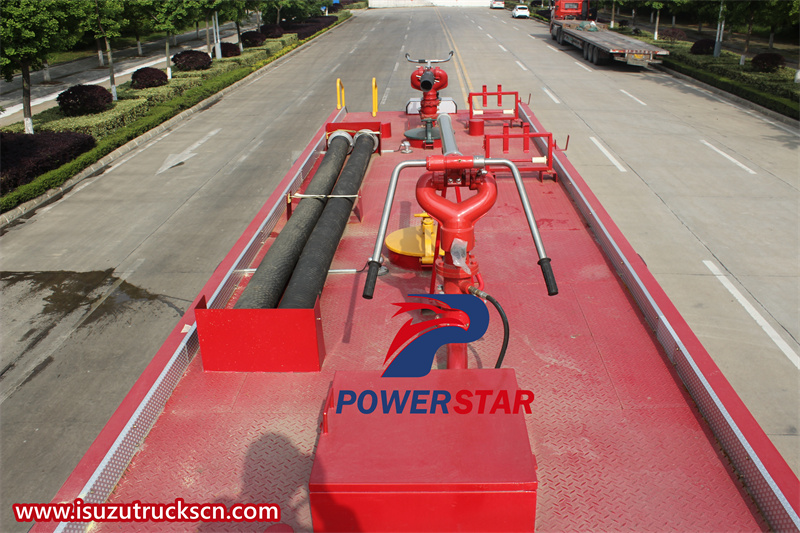

PL48 water foam fire and PF40 dry powder fire monitor

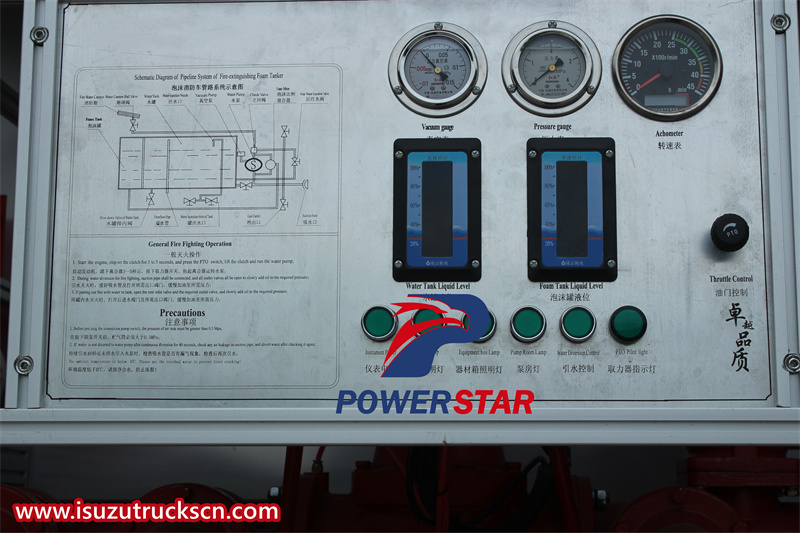

Control panel
★ Firefighting Equipment Suite
The Isuzu GIGA 8x4 Dry Powder Water Foam Fire Truck is equipped with a comprehensive array of firefighting tools and gear designed to support firefighters in effectively combating fires and conducting rescue operations. Here is an overview of the diverse firefighting equipment onboard this advanced vehicle:
Extinguisher: The fire truck is equipped with a dry powder fire extinguisher, which is suitable for extinguishing fires such as oil and electrical equipment.
Water collector: It is designed to quickly collect water from various water sources (such as fire hydrants, rivers, ponds, etc.) and transport it to the water tank of the fire truck. It usually has a large water suction port and strong suction to cope with the water intake needs in different environments and conditions.
Water distributor: At the fire extinguishing scene, the water distributor is used to divide the fire hose or foam pipeline into multiple lines so that water or foam can be supplied to multiple fire points at the same time. This helps to improve the efficiency of firefighting and shorten the time of firefighting.
Water filter: It is used to filter impurities and contaminants in the water to ensure that the water quality delivered to the fire truck or fire extinguishing device is clean and free of impurities. This is especially important when taking water from a wild water source to prevent blockage and damage to firefighting equipment.

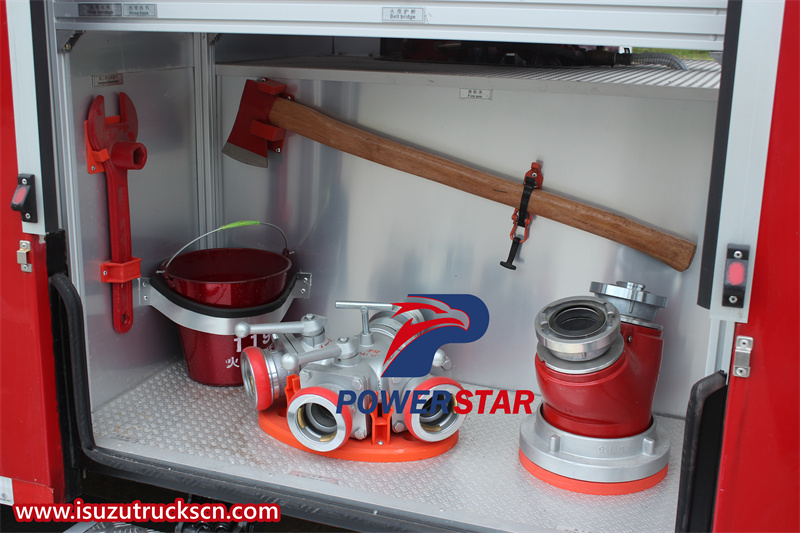

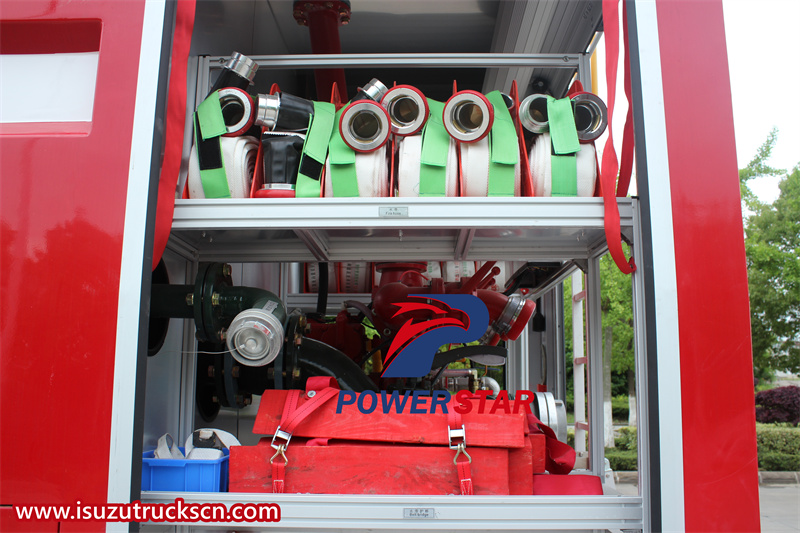

Water distributor Water filter Fire wrench Fire axe
Water guns and foam guns: Water guns and foam guns are the main tools used by firefighters in firefighting operations. These spraying devices can aim water or foam directly at the source of the fire and quickly reduce the fire. Their design is flexible and efficient, allowing firefighters to use them flexibly in different situations.
Fire hoses: Usually woven from high-strength synthetic fibers, they are pressure-resistant, wear-resistant, and corrosion-resistant. Fire hoses are indispensable equipment for firefighting work, providing firefighters with the ability to transport water over long distances. These sturdy and durable hoses can be connected to fire hoses or other water outlets to flexibly supply water and help extinguish the source of the fire.
Fire axes: Mainly used to break down obstacles (such as doors, windows, walls, etc.) so that firefighters can enter the fire scene for rescue or firefighting. Its blade is sharp and the handle is sturdy and durable.

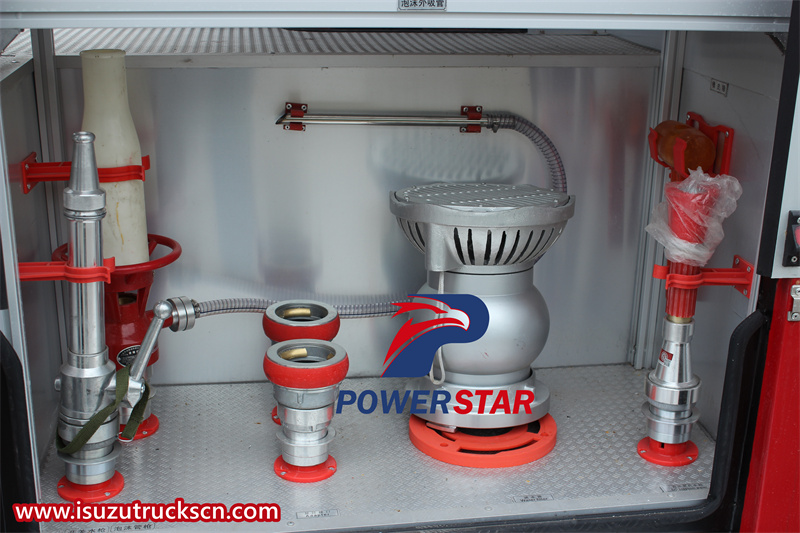

Water collector,water gun,foam gun
Fire shovels and fire picks: Used for digging, shoveling, and other operations, such as opening up firefighting channels and removing burning materials. These tools usually have long handles and sharp blades, which are convenient for use in complex environments.
Fire wrench: a special tool used to tighten or loosen hose connectors and other parts to ensure a firm and reliable connection.
Firefighter protective clothing: made of special materials such as flame retardant, heat insulation, and waterproof, it can protect firefighters from flames, high temperatures, chemicals, etc. These protective clothing usually have a multi-layer structure, including an outer flame retardant layer, a middle insulation layer, and an inner comfort layer.
Fire horse
Fire wrench, fire axe, pickaxe, shovel，fire extinguisher
