The Isuzu GIGA 20cbm compactor garbage truck produced by POWERSTAR company is an efficient and environmentally friendly garbage disposal equipment, which is widely used in the field of urban garbage collection and transportation. This waste compactor truck has a loading capacity of 20 cubic meters and can collect a large amount of garbage at one time, effectively improving garbage collection efficiency.
Work capacity:
20CBMTruck model:
PT5200ZYSQEngine power:
380HPEngine type:
6UZ1-TCG61Axle drive:
6x4Gear box:
FAST 12-speed levers with 2 reverseRemarks:
Best price Isuzu 6X4 GIGA 20cbm rear loader comapctor，Can be customized according to your requirements| Products Description |
Isuzu GIGA truck mouted garbage compactor also called Isuzu garbage compactor truck, Isuzu rear loader compactor, Isuzu recycling rear loader，Isuzu waste compactor truck, Isuzu trash compactor, Isuzu trash crusher truck,Isuzu refuse compactor truck, Isuzu compactor garbage truck, Isuzu rubbish truck, Isuzu waste collection vehicle. The Isuzu GIGA truck mouted garbage compactor is designed for daily rubbish transport in such living areas as all kinds of cities, large station, port and wharf, airport, and densely-populated areas like industrial and mineral enterprises and military units.
The garbage compression truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.The vehicle tail-gas discharge reaches EUROPEAN standard. which is safe and environmental-protective.
I. Description of ISUZU GIGA Truck Mouted Garbage Compactor
Key Features:
---- ISUZU chassis, perfect performance
---- ISUZU GIGA engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Compression body capacity from 3 to 30 Cublic Meter.
---- Easy operation and easy maintenance.
---- Various types of refuse container lifter are available.
| Technical Parameter |
II. Specification of ISUZU 6X4 GIGA Truck Mouted Garbage Compactor
|
ISUZU 6X4 GIGA Truck Mouted Garbage Compactor (20 cbm) |
||
|
General |
Vehicle Brand |
POWERSTAR |
|
Vehicle Model |
PT5200ZYSQ |
|
|
Chassis Brand |
ISUZU |
|
|
Overall Dimension |
11000 * 2600 * 3800 mm |
|
|
GVW / Kerb Weight |
25,000kg / 12500kg |
|
|
Cab |
Cab Capacity |
2 persons and a sleeper bed, with safty belts |
|
Air Conditioner |
Heating/cooling air conditioner |
|
|
Engine |
Fuel Type |
Diesel |
|
Engine Brand |
ISUZU |
|
|
Engine Model |
6UZ1-TCG61 |
|
|
Power |
380HP |
|
|
Displacement |
9839 ml |
|
|
Emission Standard |
Euro 6 |
|
|
Chassis |
Drive Type |
6X4 (left hand drive) |
|
Transmission |
FAST 12-speed levers with 2 reverse |
|
|
Wheelbase/No. of axle |
4600+1370mm / 3 |
|
|
Tire Specification |
315/80R22.5 |
|
|
Tire Number |
10 tires and 1 spare tire |
|
|
Drive Speed |
≥100 km/h |
|
|
Paint |
Metallic paint |
|
|
Superstructure |
Body capacity |
20 cbm |
|
Fill Hopper capacity |
2.4 cbm |
|
|
Sewage tank |
200 liters |
|
|
Filling work cycly time |
20~25 s |
|
|
Discharge model |
Horizontal Ejection |
|
|
Control system |
Electrically Hydraulic control |
|
|
Control panel |
English or Your language |
|
|
All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button, |
||
|
Optional |
** Back alarm and Camera can be equipped. |
|
1. We supply various series of Isuzu special vehicles, such as: 100P, 600P, 700P, KV100/600/800, M100/600, FTR, FVR, FVZ, NPR, ELF, VC66 levels, etc. all available.
2. The drive type could be 4x2 , 4x4 , 6x2 , 6x4 , 6x6 , 8x4 ,8x6
3. We can provide LHD (left hand drive) or RHD (right hand drive) vehicles.
4. we can do the designs according to the your requirement .
5. we can offer you the high quality & reasionalble price
6. We accept 100% inspection, welcome to our factory at any time.
7. promptly delivery. any order is welcome.
III. Details of ISUZU GIGA Truck Mouted Garbage Compactor

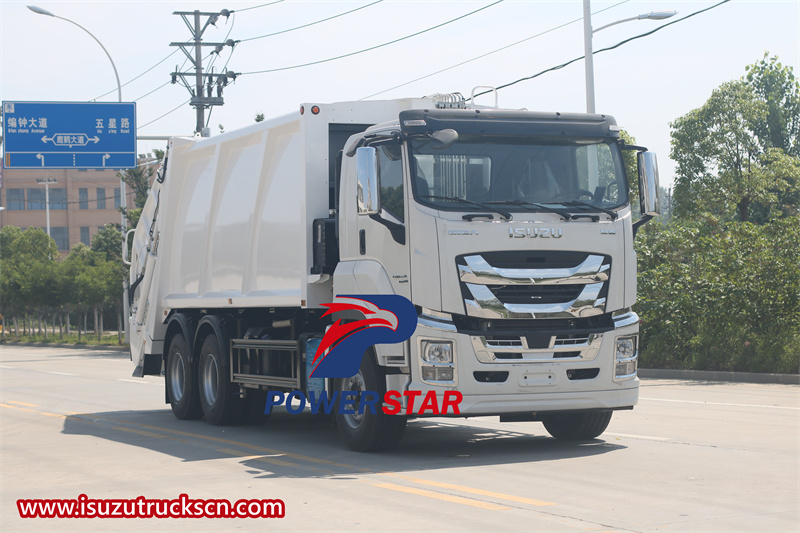

● ISUZU GIGA truck mounted garbage compactor photos for reference
ISUZU GIGA truck mounted garbage compactor is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing repollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection.

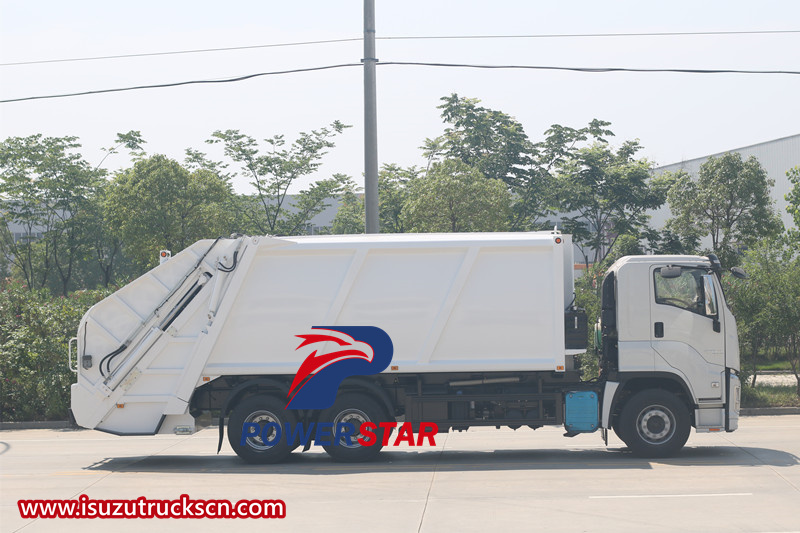

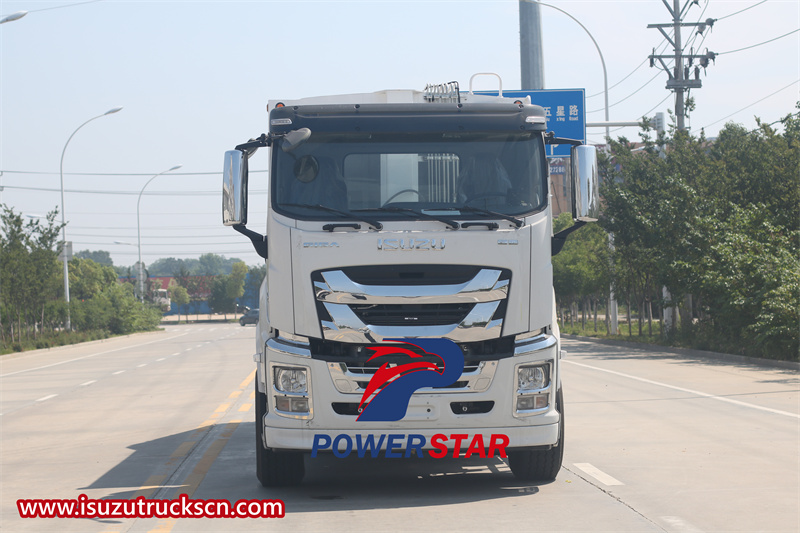

Vehicle appearance:
The body of the Isuzu garbage compression truck adopts an arc-shaped box (with side beams), which is made of special steel plates. The bottom plate of the box is 5mm, the side plates are 4mm, the integral side plates, the large R-angle molding, the top surface is an arc surface, and the integral box It has beautiful appearance, light weight, good force bearing and not easy to deform.

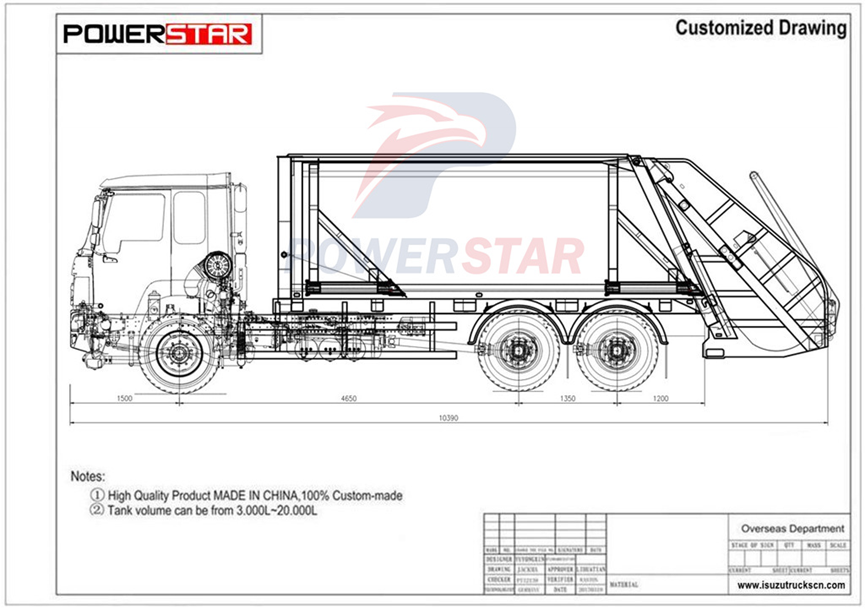

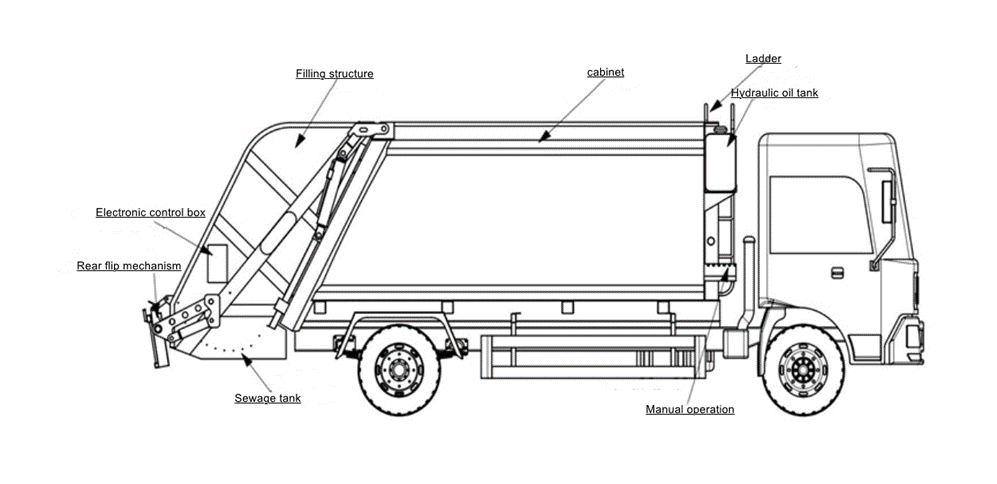

Technical drawing:

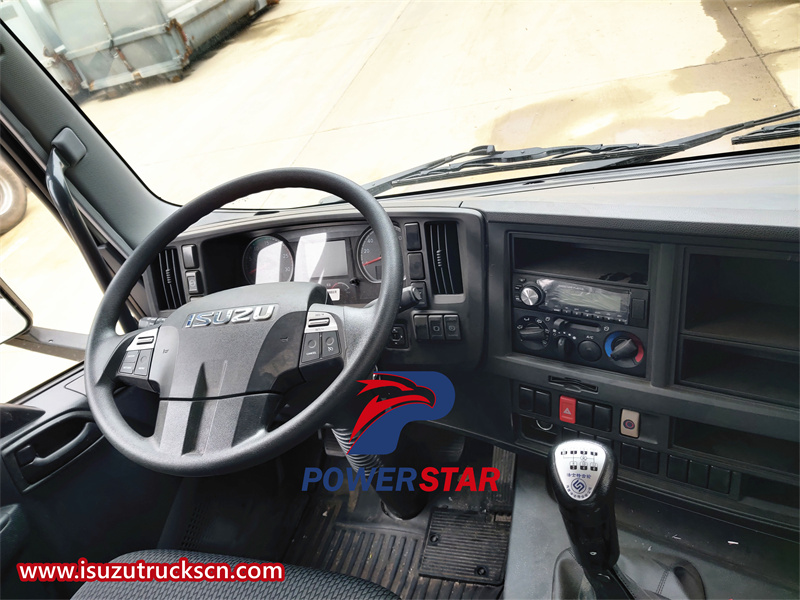

vehicle chassis:
ISUZU GIGA 6×4 garbage compactor is installed on the ISUZU GIGA chassis, using ISUZU Euro6 380 horsepower engine, wheelbase 4600+1370mm/3, oil brake, direction assist, intercooling and supercharging, 315/80R22.5 nylon Tires or wire tires, with air conditioning. Loading capacity is 20 cubic meters.
Vehicle superstructure:

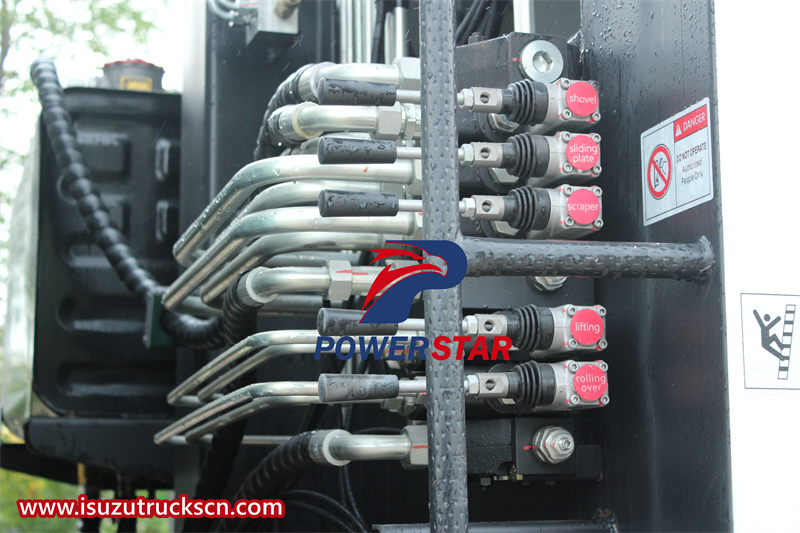

1. Hydraulic transmission system
A. The hydraulic cylinder uses a well-known domestic brand - Xiamen Yinhua/Yantai Future Brand, a domestic mainstream sanitation truck cylinder supplier. All seals of the cylinder use the HALLITE brand imported from the UK to ensure the service life of the cylinder.

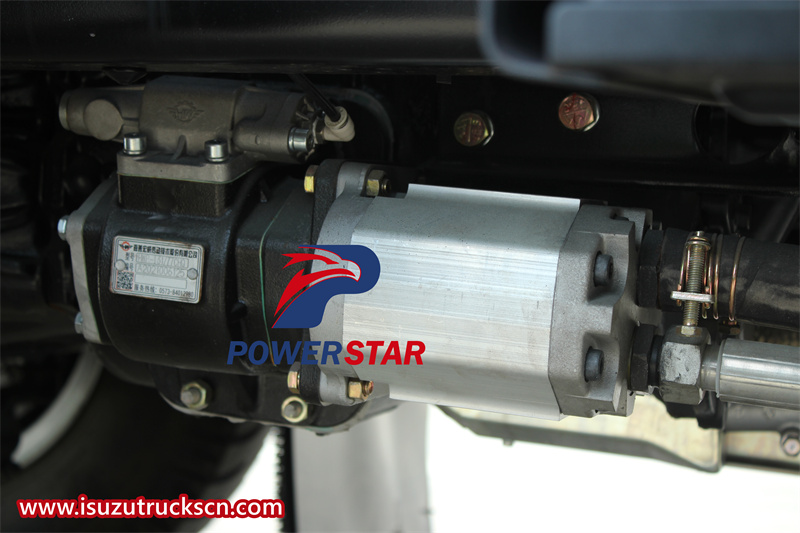

B. The hydraulic oil pump adopts the aluminum alloy gear pump produced by Hefei Changyuan/Hefei Wanye, which has stable performance and high reliability.
C. The multi-way reversing valve adopts Yangzhou Zhongmei, Hunan Honghui, Shanghai Qiangtian, Italian HC and other brands, which are the mainstream supporting manufacturers of domestic sanitation vehicles.
D. Hydraulic pipelines adopt well-known domestic brands. The steel pipes are from Xuzhou Global Tong and the hoses are from Guangzhou Tianhe.

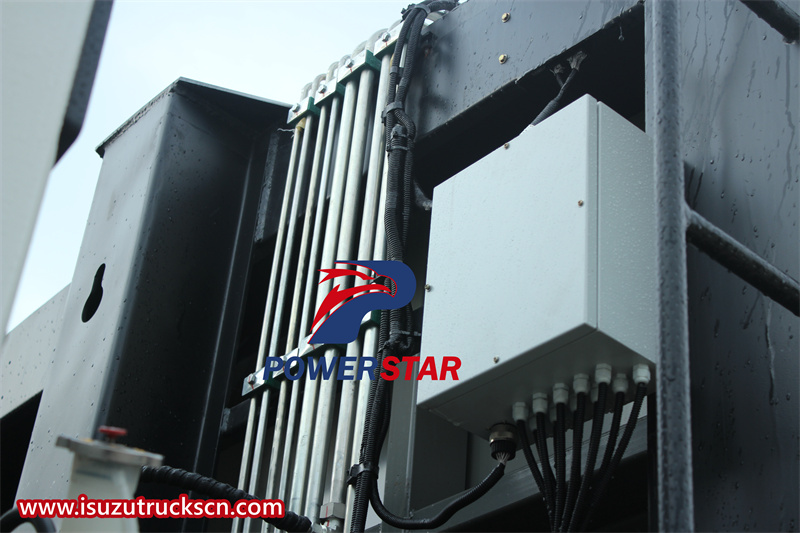

2. Electrical control system

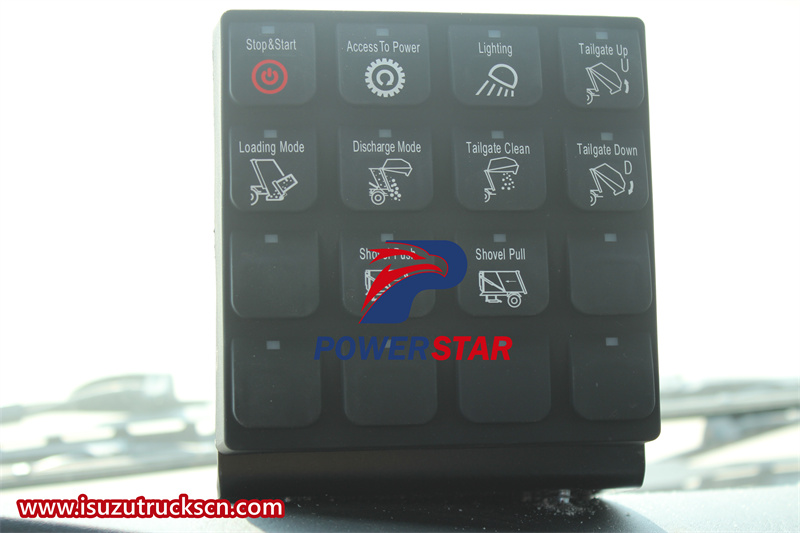

The system is built using modular design ideas and is mainly composed of five parts: a control box assembly, a front operation CAN bus keyboard, a rear operation button box group, a proximity switch sensor, and a car body wiring harness. Each component is connected by aviation plug-ins and is automotive-grade waterproof. Connectors such as plug-ins are docked with each other. High integration, simple system, easy installation, simple wiring, simplified system, high protection level, water resistance, corrosion resistance, IP67 protection level, 9-36VDC wide operating voltage range, single button life of more than 1 million times, has been used in engineering machinery, Sanitation machinery is widely used in the industry, with high reliability, stable performance, backlight function, convenient for night operations, and elegant appearance.
The upper body wiring harness adopts an integrated design, with high reliability and easy installation and wiring. It is produced by a professional manufacturer of wiring harnesses for automobiles and engineering machinery. It is a professional conduction detection platform for garbage compression trucks. The accuracy rate is 100%. It meets the QCIT29106-2014 automotive wiring harness standard. Each connector The functions are clearly marked, error-proofing, easy to install and efficient.
3. Working equipment
Different users can choose different bucket turning mechanisms according to different garbage collection methods: standard garbage dumpster ZBT59003-88 (300L), plastic trash can (240L), plastic trash can (660L), car-mounted trash bin Garbage bucket (800L), sealed and covered garbage bucket (1400L), swing garbage bucket (3000L).

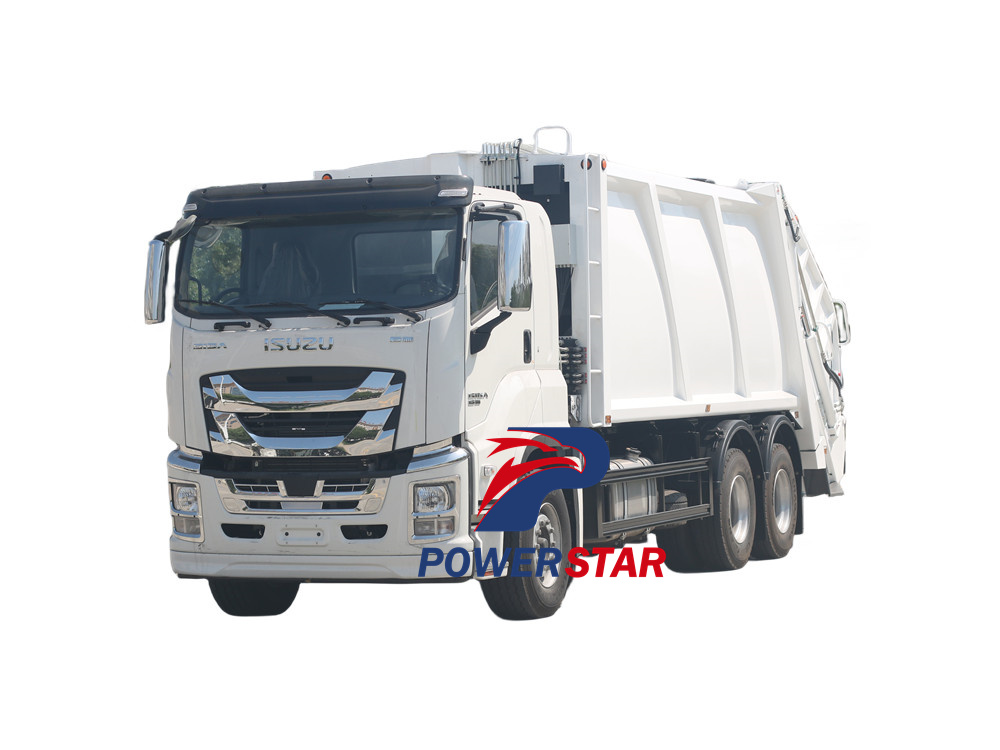

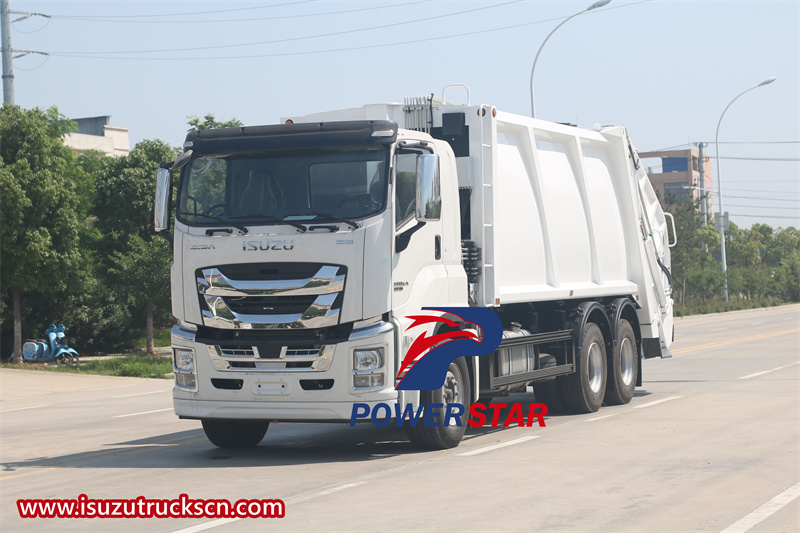

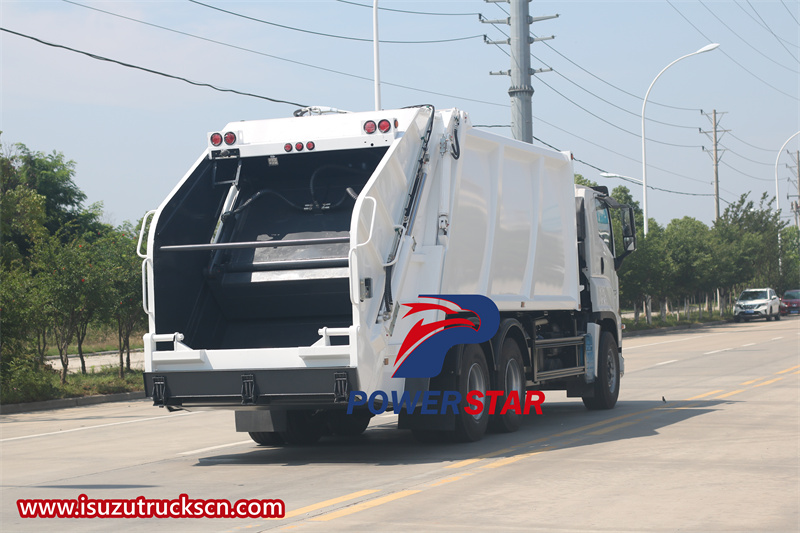

Isuzu GIGA 6x4 truck mounted garbage compactor
Isuzu GIGA 20cbm rear loader compactor for sale
| Our Advantage |
● ISUZU GIGA truck mounted garbage compactor advantage
• The vehicle has good air tightness, no secondary pollution from sewage leakage when dumping garbage, and beautiful appearance.
• The hydraulic oil circuit for lifting the filler is equipped with a safety circuit to prevent the oil pipe from bursting and the filler suddenly falling, causing a serious accident;
• The hydraulic valve is installed inside the box and is not exposed;
• With automatic engine throttle control function;
• Compression ratio is not less than 1:3.4;
• Adopts centralized control of electricity, gas and liquid; has automatic and manual operation modes;
• Key components and electrical components (with PLC programmable controller) are imported from Germany.

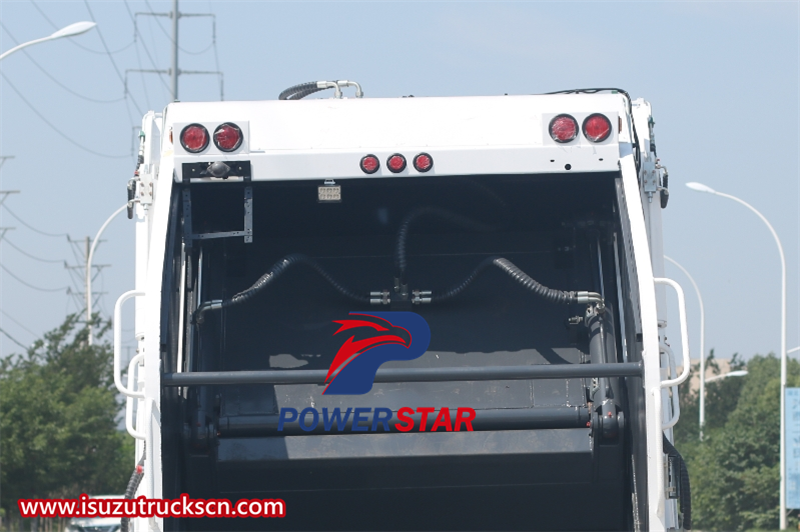

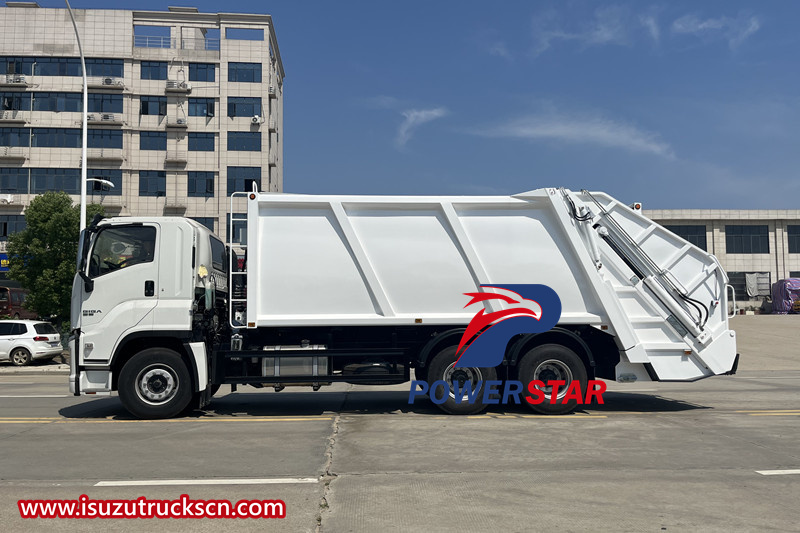

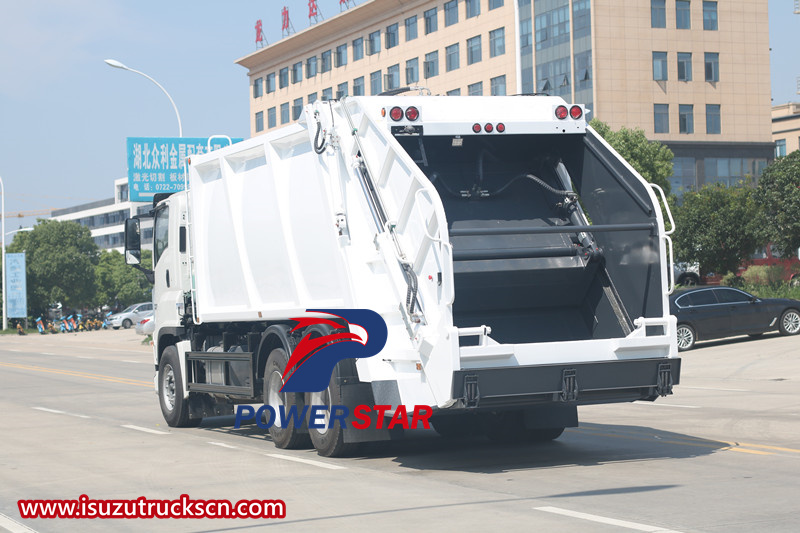

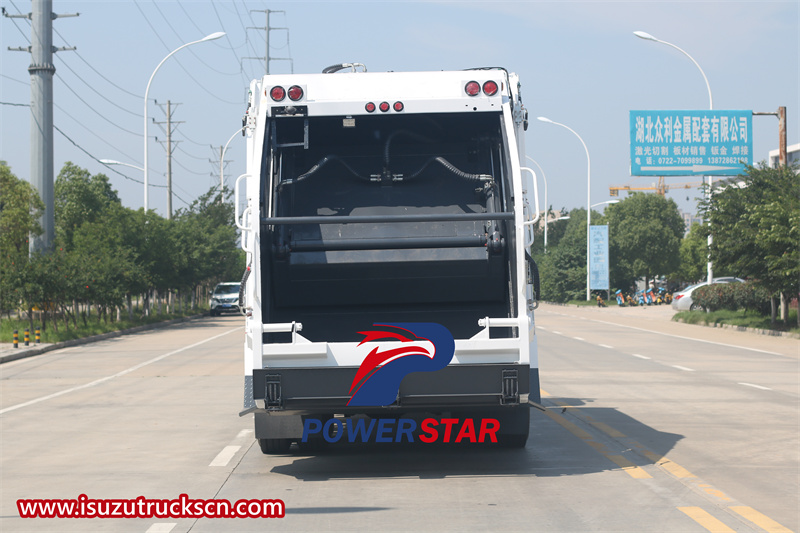

● ISUZU GIGA truck mounted garbage compactor details

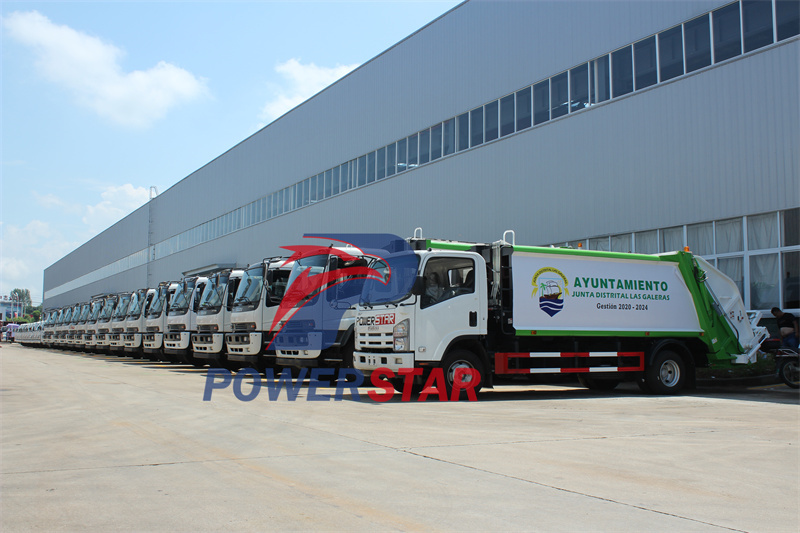

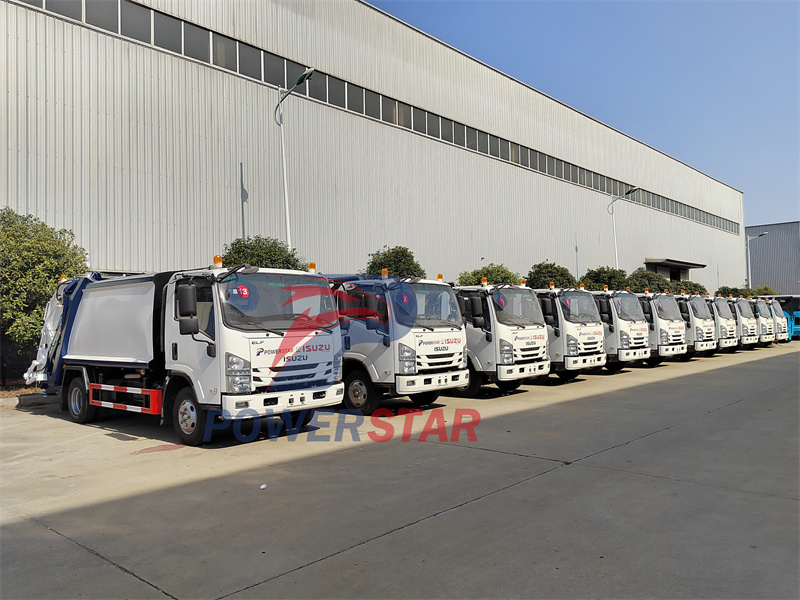

● ISUZU GIGA truck mounted garbage compactor departure in batches
