Isuzu VC61 6UZ1 engine foam pumper fire truck which produced by POWERSTAR,is a truck use for fire fighting.The truck is modified on the Isuzu VC61 GIGA 6x4 chassis,with 4600+1370mm wheelbase,6UZ1-TCG60 350HP diesel engine,FAST 12 speed gearbox,the cabin is double row,with A/C,USB,electronic windows,direction assistance.The truck equipped with 10cbm water tank and 2cbm foam tank,has a pump room(CB10/60 fire pump,fire equipment),a tool room,witch can assist firefighting operations.
Work capacity:
12CBMTruck model:
PT5250GZXEngine power:
350HPEngine type:
6UZ1-TCG60Axle drive:
6X4,left hand driveGear box:
FAST gearbox, manual, 12 gears forwards with 2 reverseRemarks:
10cbm water tank，2cbm foam tankProduct Description
Isuzu GIGA Fire Fighting Vehicles Stock is equipped with a 6UZ1-TCG60 350 horsepower engine, which is powerful and equipped with a FAST 12-speed gearbox, which shifts smoothly. The vehicle is equipped with a 10cbm water tank and a 2cbm foam tank, and is equipped with a fire pump, a fire water cannon and firefighting equipment to work together to complete firefighting operations quickly and efficiently.
With its powerful power and excellent performance, the Isuzu VC61 6x4 foam water tank fire truck has become an ideal choice for fire departments to cope with various fire challenges. The vehicle adopts a 6x4 drive form, providing excellent road adaptability and off-road capabilities, ensuring that it can quickly arrive at the scene in complex and changing rescue environments.
Key Features
★ ISUZU GIGA chassis, perfect performance
★ lSUZU engine, super powerful, no overhaul within 100.000 km
★ Water tank and Foam tank capacity can be optional.Tank material can be Carbon steel, Stainless steel or Aluminum alloy
★ Easy operation and easy maintenance
★ Various types of fire equipment are available
★ Extended model: water fre truck, Foam fre truck, Dry powder fire truck...
Specifications of Isuzu GIGA 6X4 foam water truck
|
Isuzu VC61 6x4 foam water fire truck |
|||
|
Main specification |
Truck brand |
POWERSTAR |
|
|
Overall dimension(L*W*H) |
10000*2540*3640mm |
||
|
Cabin |
Isuzu VC61 cab, 2+4 seats, with air conditioner , electronic windows, USB |
||
|
GVW/Curb weight |
25000/9200kg |
||
|
Chassis |
Chassis model |
Isuzu VC61/GIGA |
|
|
Drive model |
6X4,left hand drive |
||
|
Front/rear axle loading |
7,000/18000kg |
||
|
Wheel Base |
4600+1370mm |
||
|
Front and rear overhang |
1370/2660mm |
||
|
Tyre size & number |
315/80R22.5,10+1wheel |
||
|
Transmission |
FAST gearbox, manual, 12 gears forwards with 2 reverse |
||
|
Color |
Red and white including tanker, standard. |
||
|
Max speed |
95km/h |
||
|
Engine |
Engine model |
6UZ1-TCG60 |
|
|
Horse power |
350HP/256Kw |
||
|
Displacement |
9839ml |
||
|
Rotating speed |
1800rpm |
||
|
Emission |
EURO 6 |
||
|
WATER TANK AND FOAM TANK SPECIFICATION |
|||
|
Tank |
Capacity |
10,000L water tank and 2000L foam tank |
|
|
Material |
Water tank carbon steel,foam tank stainless steel |
||
|
Fire pump |
Model |
CB10/60 |
|
|
Pressure |
1MPa |
||
|
Max working pressure |
1.232MPa |
||
|
Flux |
60L/s |
||
|
Max suction height |
7m |
||
|
Rated speed |
3286±50r/min |
||
|
Speed Ratio |
1:1.44 |
||
|
Fire monitor |
Model |
PL8/48 |
|
|
Flow |
48L/s |
||
|
Rated working pressure |
0.8MPa |
||
|
Max working pressure |
1.0MPa |
||
|
Range |
Water |
≥70m |
|
|
Foam |
≥60 |
||
|
Standard configuration |
Have alarm rotating light and which is mounted on top of the cabin , have ladder , have manhole |
||
Body and chassis design
The body size of the Isuzu VC61 6x4 foam pump fire truck is 9850*2540*3550mm, and the wheelbase is 4600+1370mm, which ensures that the vehicle has good passability and stability. The body is made of high-strength steel, with excellent impact resistance and deformation resistance, providing a safe working environment for firefighters.
The chassis part adopts a 6x4 configuration, with excellent stability and traction, which is essential for crossing various terrains and reaching emergency areas. Its sturdy chassis combined with a powerful transmission system can run smoothly even in harsh conditions, ensuring that firefighters can quickly reach the fire scene and start control work immediately. At the same time, it is matched with a FAST12-speed gearbox with 12 forward gears and 2 reverse gears, providing a smooth shifting feel and excellent transmission efficiency. At the same time, the vehicle is also equipped with an ABS anti-lock braking system, which further improves driving safety.
Engine performance
The core power of the vehicle comes from a 6UZ1-TCG60 engine, a diesel engine carefully built by Qingling Engine Company. The engine adopts an inline six-cylinder design with a displacement of 9.839 liters, which meets the National VI emission standards. It not only provides a maximum output power of 350 horsepower (256 kilowatts), but also has super torque, ensuring the stable performance of the vehicle under heavy load and high speed.
The 6UZ1-TCG60 engine adopts an inline 6-cylinder 4-stroke, supercharged intercooling and EGR cooling technology, which effectively improves fuel economy and emission performance. At the same time, its advanced technologies such as water cooling, common rail injection and variable section supercharger enable the engine to achieve low noise and low emissions while maintaining efficient operation.

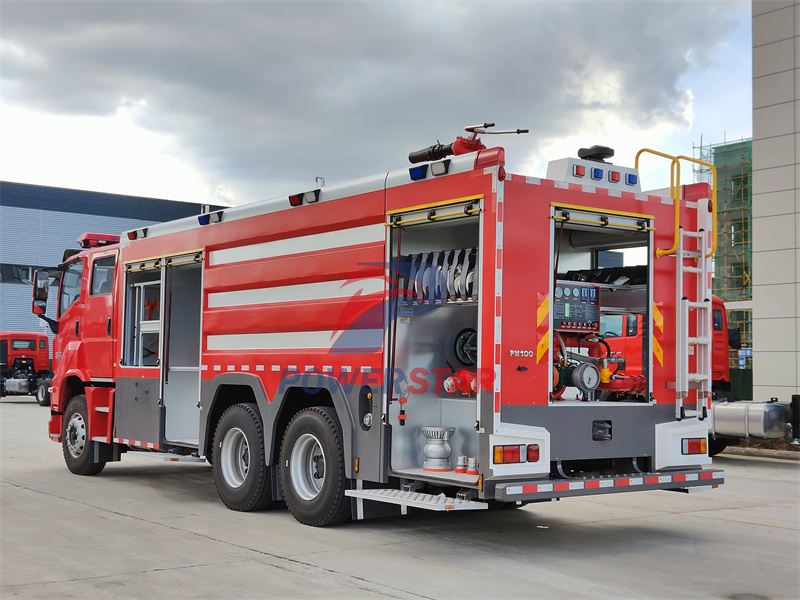

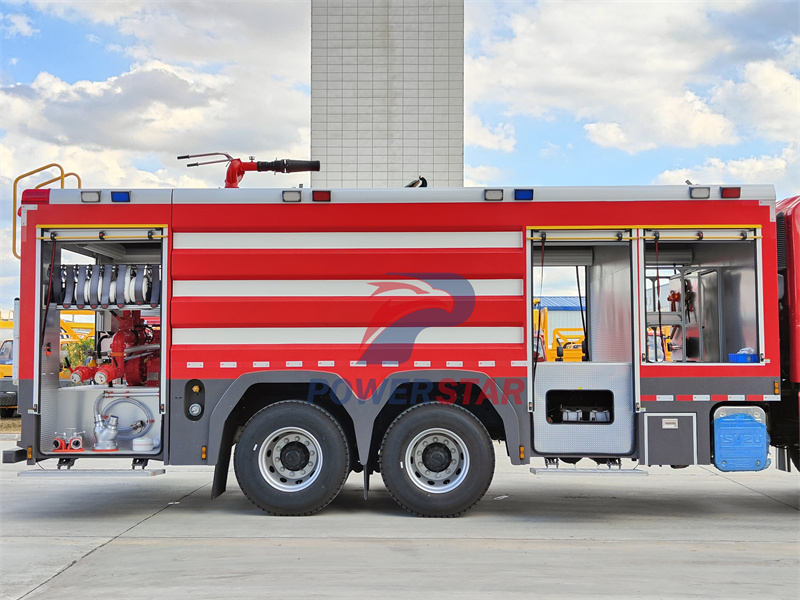

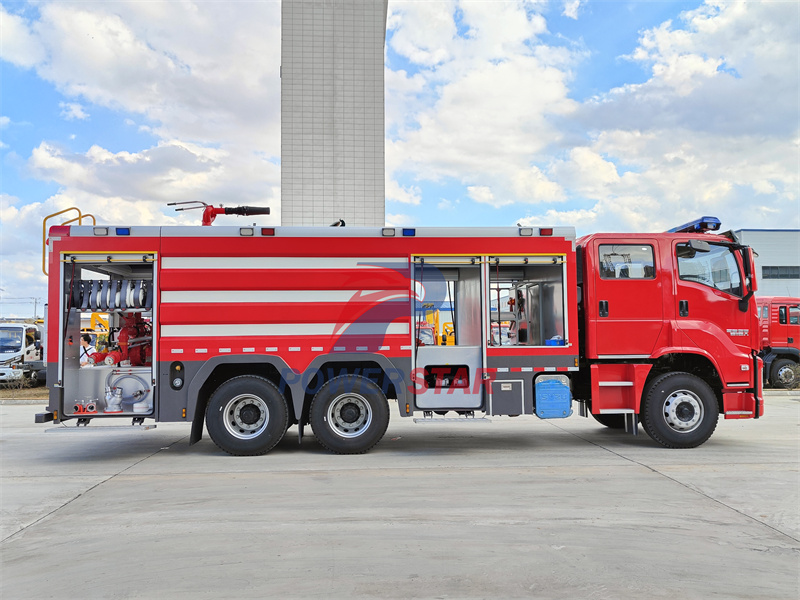

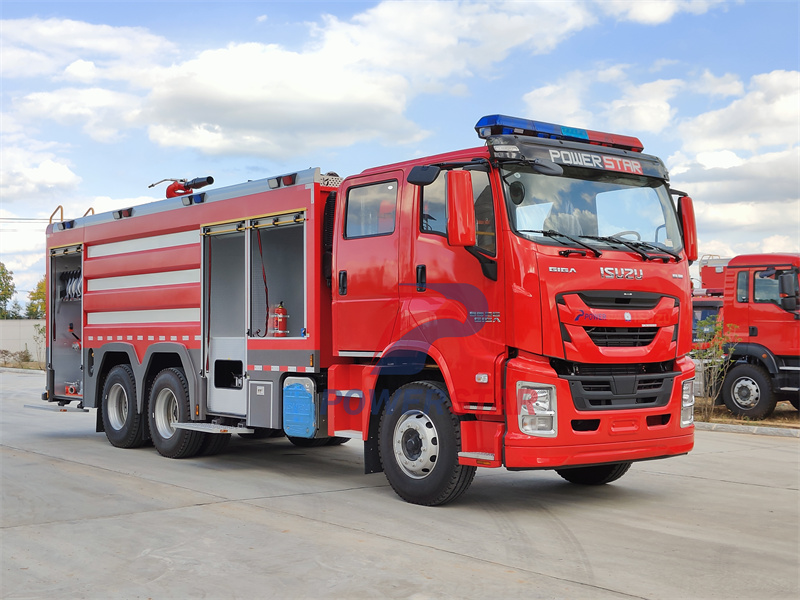

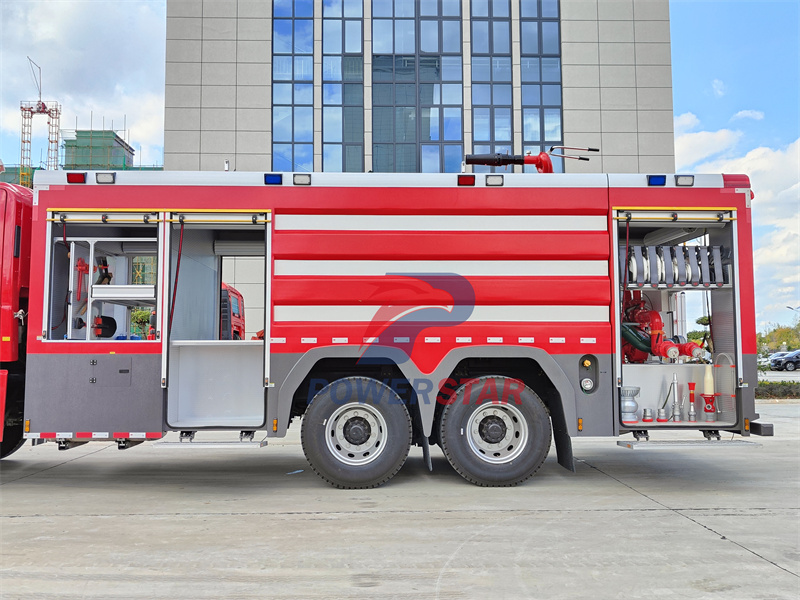

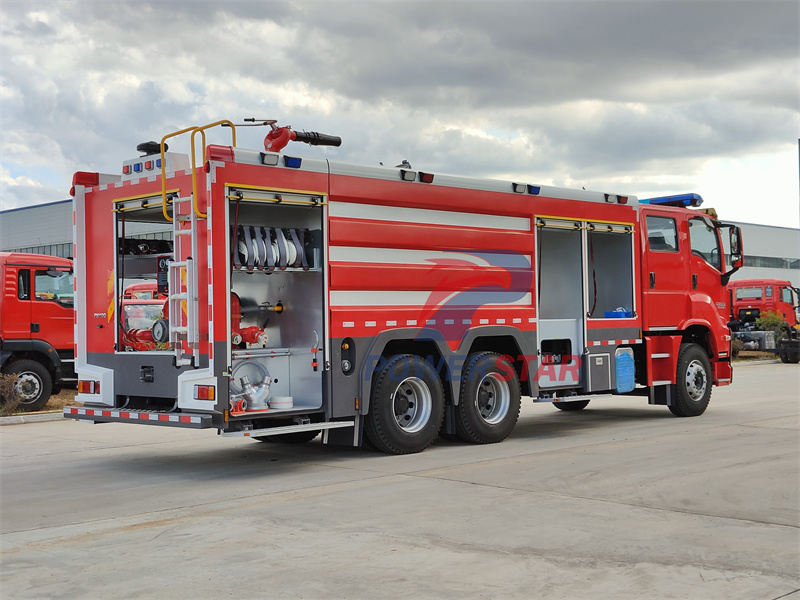

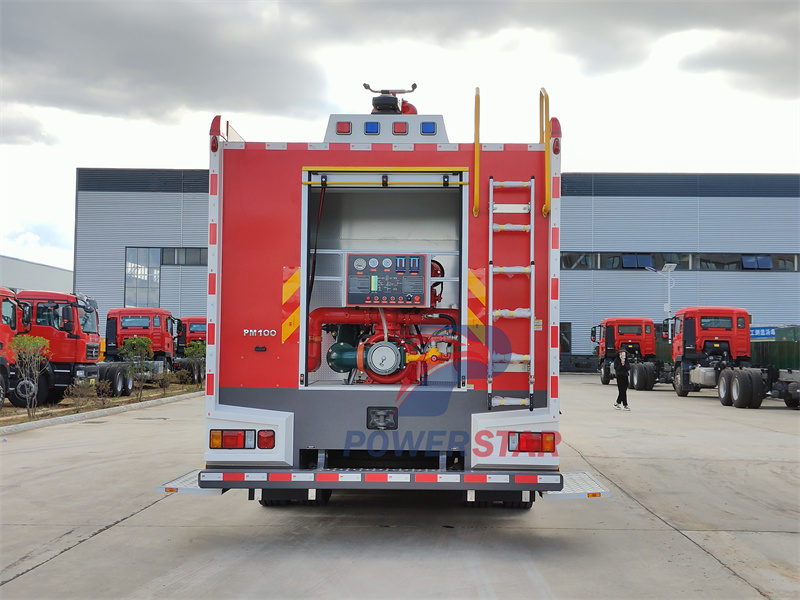

Truck photos

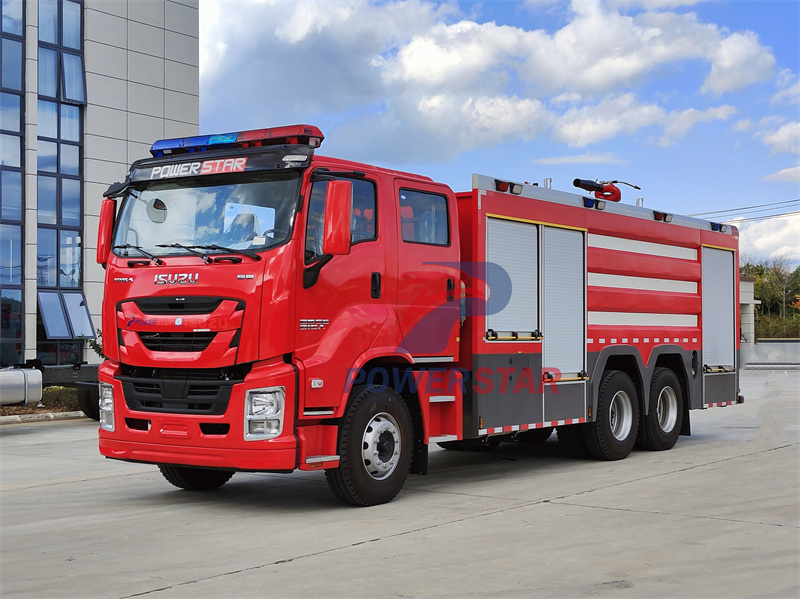

Isuzu GIGA Fire Fighting Vehicles Stock

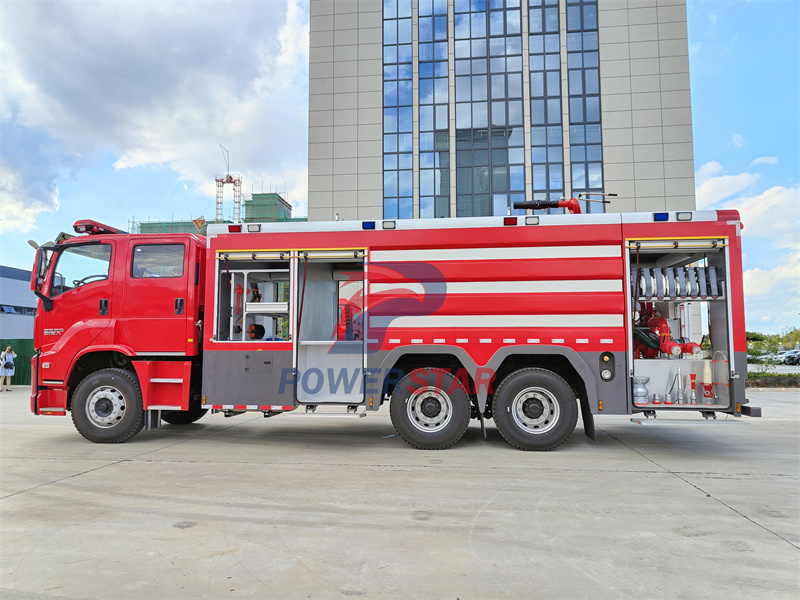

Isuzu VC61 6UZ1 engine foam pumper fire truck
Water tank and foam tank configuration
As a professional foam pump fire truck, the Isuzu VC61 6x4 is equipped with a 10-cubic-meter water tank and a 2-cubic-meter foam tank, which provides sufficient fire extinguishing media for firefighting operations. Both the water tank and the foam tank are made of high-quality materials with good corrosion resistance and durability, ensuring stable performance during long-term use.
The vehicle is also equipped with an efficient foam pump system that can spray water and foam in proportion to form a powerful fire-extinguishing foam to effectively extinguish various types of fires. This system not only improves firefighting efficiency, but also reduces the labor intensity of firefighters.
The large-capacity water tank provides an ample water source for effective firefighting, while the foam tank enhances firefighting capabilities, especially when dealing with flammable liquid fires or when water alone may not be enough. This dual-tank system provides firefighters with the resources they need to successfully respond to various fire emergencies.

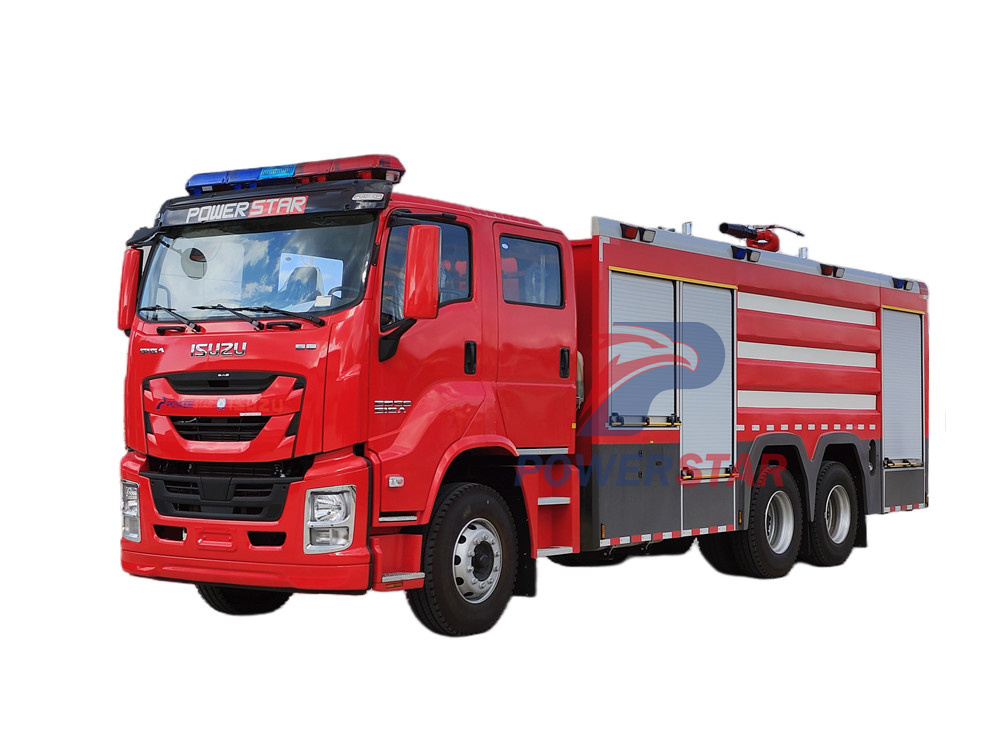

Isuzu giga chassis Industrial Foam Tender Fire Truck

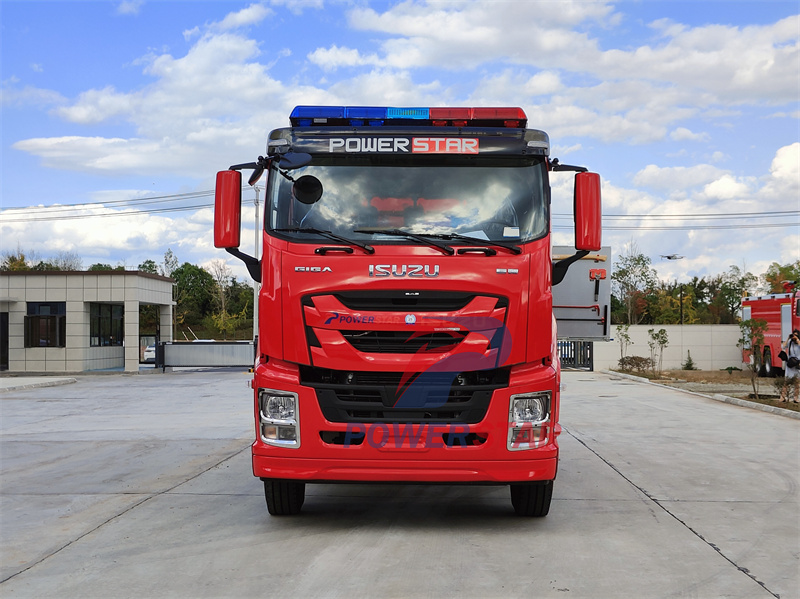

Isuzu GIGA 6x4 foam water fire truck
Isuzu GIGA 12cbm rescue fire engine

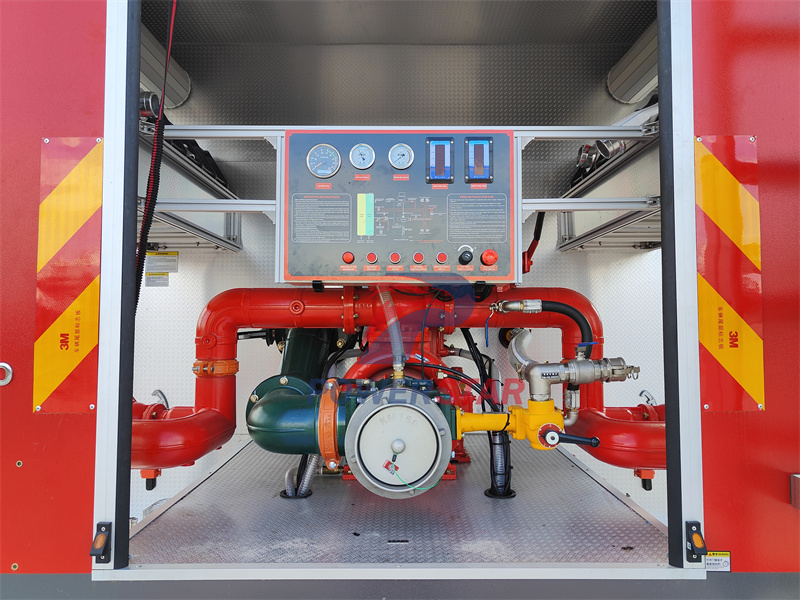

CB10/60 fire pump and PL8/48 fire monitor
★ CB10/60 fire pump
CB10/60 fire pump is a high-performance pump equipment designed for fire trucks, with the following features and working principles:
● Features:
The fully sealed, leak-free design ensures that the pump body will not leak when running at high pressure and high speed, improving the reliability and safety of the equipment.
It has strong corrosion resistance and can cope with various corrosive liquids, extending the service life of the equipment.
With large flow and high head, it can quickly deliver a large amount of water to the fire scene to meet the needs of fire extinguishing.
CB10/60 fire pump
★ PL8/48 Fire Cannon
PL8/48 fire cannon is an important spraying equipment on Isuzu VC61 6x4 foam pump fire truck. It has the characteristics of long-range, high efficiency and flexibility. Its detailed introduction is as follows:
● Features:
Long range, can cover a larger fire area, and improve fire extinguishing efficiency.
Large flow, can quickly spray a large amount of fire extinguishing medium, and quickly reduce the temperature of the fire source.
Flexible control, firefighters can adjust the spray angle and range of the fire cannon according to the situation at the fire scene.

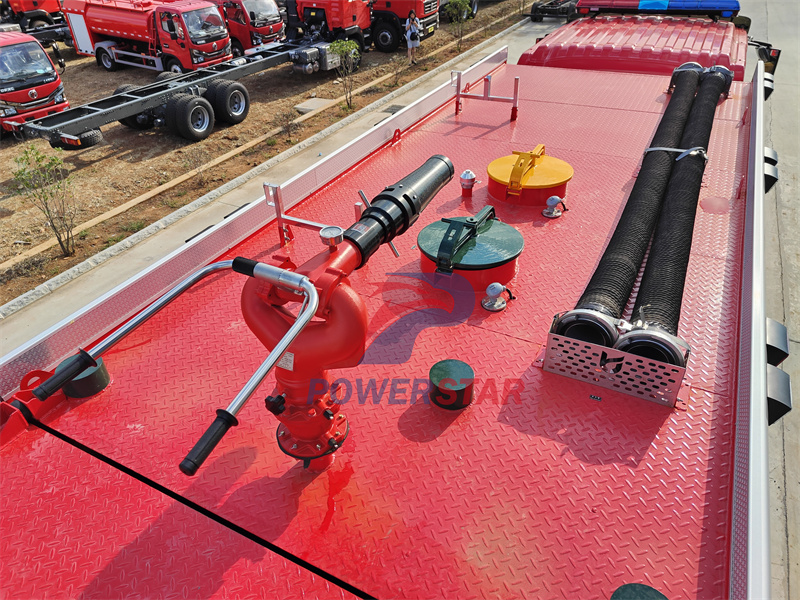

PL8/48 Fire Cannon
During the fire extinguishing process, the CB10/60 fire pump and the PL8/48 fire cannon usually work together. The fire pump is responsible for pressurizing the fire extinguishing medium and delivering it to the fire cannon, while the fire cannon is responsible for spraying the fire extinguishing medium onto the fire source in an efficient and accurate manner. This collaborative working method enables the Isuzu VC61 6x4 foam pump fire truck to quickly and effectively extinguish various types of fires, providing strong protection for people's lives and property safety.
|
Specifications |
Working Condition |
Flow |
Exit Pressure |
Rated Speed |
Shaft Power |
Suction Depth |
|
CB10/60 |
1 |
60 |
1.0 |
3280±50 |
102 |
3 |
|
2 |
42 |
1.3 |
3519±50 |
106 |
3 |
|
|
3 |
30 |
1.0 |
3120±50 |
73 |
7 |
|
Model |
Flow （L/s） |
Range（m） |
Rated working pressure（Mpa） |
Pitch rotation （°） |
Horizontal rotation （°） |
Length × Width × Height （mm） |
Weight （Kg） |
|
|
Water |
Foam |
|||||||
|
PL8/48 |
48 |
≥70 |
≥60 |
0.8 |
-45～+70 |
0～360 |
1440*425*600 |
27 |
Specifications of CB10/60 fire pump and PL8/48 fire monitor
Firefighting equipment
As a fully equipped professional firefighting vehicle, the Isuzu VC61 6x4 foam pump fire truck has complete and powerful firefighting equipment, ensuring efficient operation in various complex and changeable fire scenes. The vehicle is equipped with a series of professional equipment such as water collector, water filter, and water distributor, as well as key firefighting tools such as water guns, foam gun, and fire hoses. It is also equipped with a variety of auxiliary tools such as fire bridge guard, fire wrenche, fire shovel, axe, hammer, and butt, forming a complete firefighting operation system.
The water collector can quickly collect water sources and provide sufficient water for the fire pump; the water filter is responsible for filtering impurities to ensure clean water quality and prevent clogging of firefighting equipment. The water distributor can reasonably distribute the water flow to each fire cannon or water gun according to the fire extinguishing needs, thereby improving the fire extinguishing efficiency.
Water guns and foam guns are the main fire extinguishing tools on fire trucks. They are used to spray high-pressure water flow and foam fire extinguishing agents respectively, which can quickly reduce the temperature of the fire source, isolate oxygen, and extinguish the fire. As a link between the fire pump and the spraying tool, the fire hose is resistant to high pressure and wear, ensuring the unimpeded flow of water.
In addition, the fire protection bridge can build a temporary passage on complex terrain, which is convenient for fire trucks and personnel to quickly approach the fire source. Auxiliary tools such as fire wrenches, fire shovels, axes, hammers, and butts are used to break obstacles, clean up the fire scene, and provide necessary support for fire fighting.
Truck details

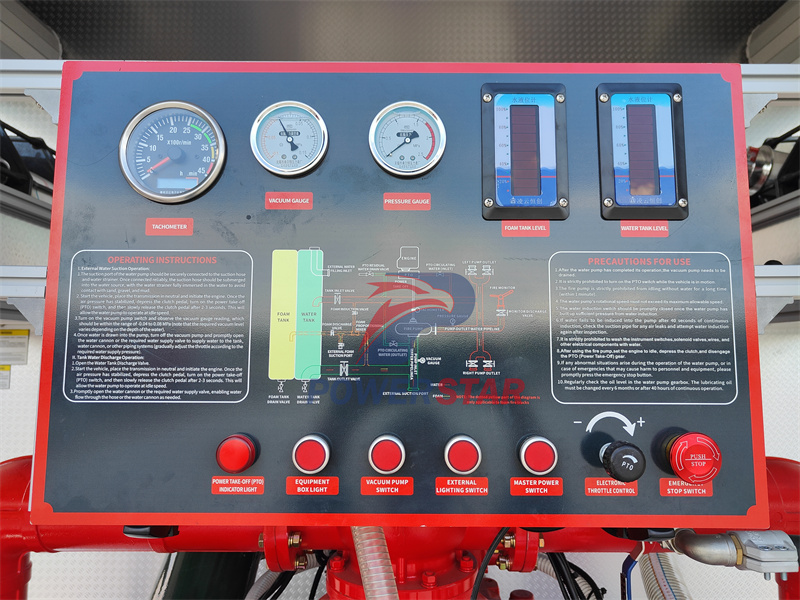

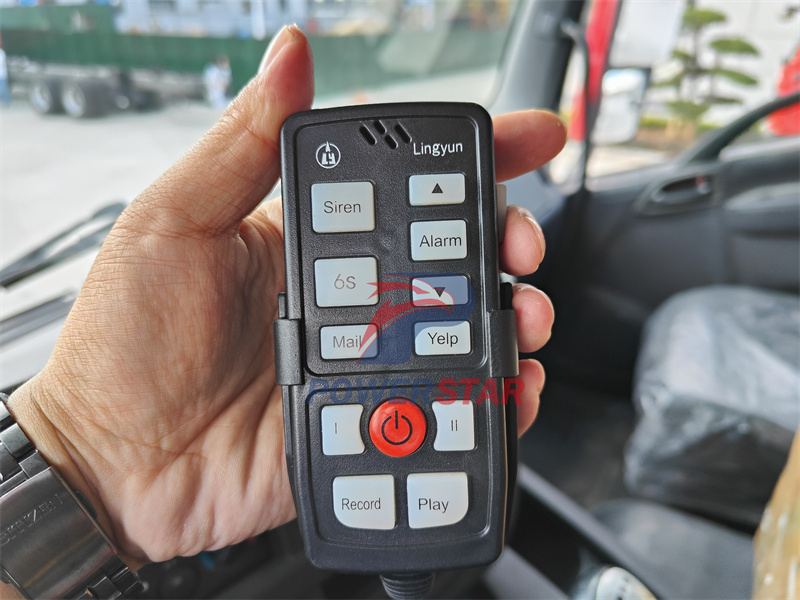

Remote control

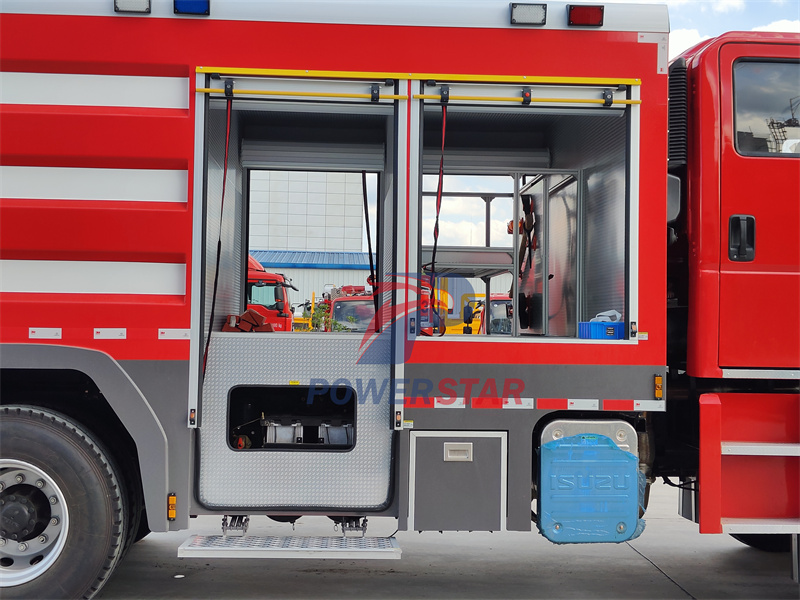

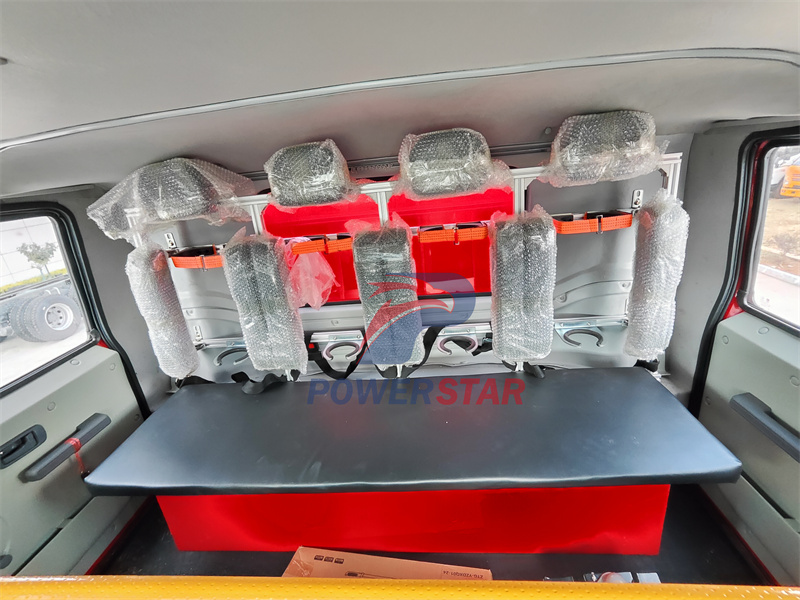

Rear row

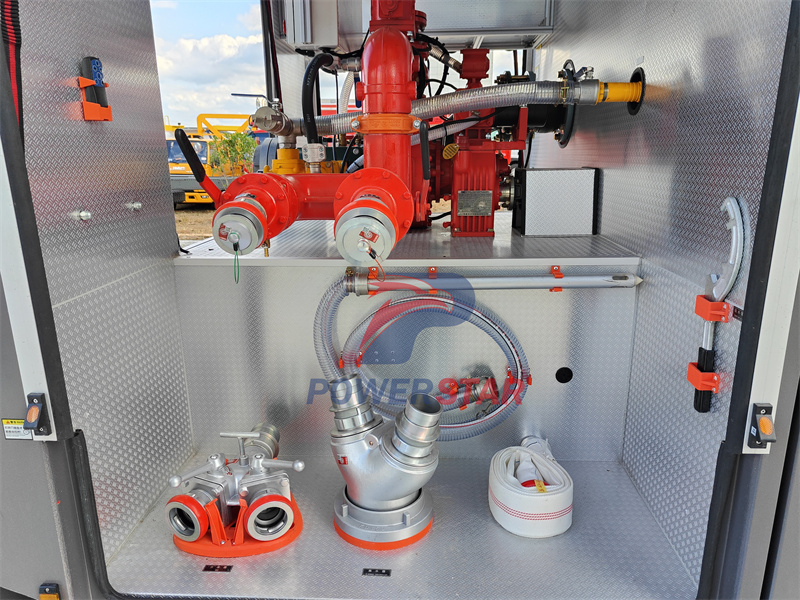

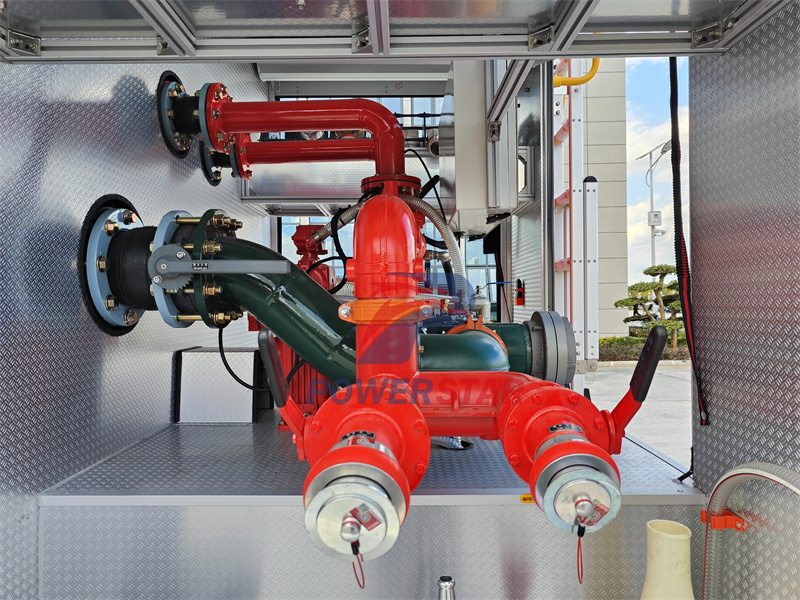

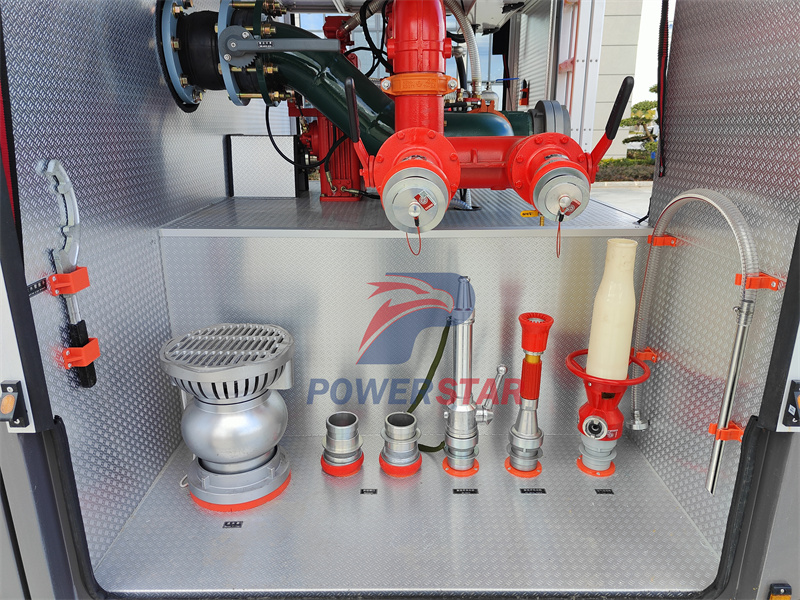

water collector,water gun,foam gun
water filter, and water distributor

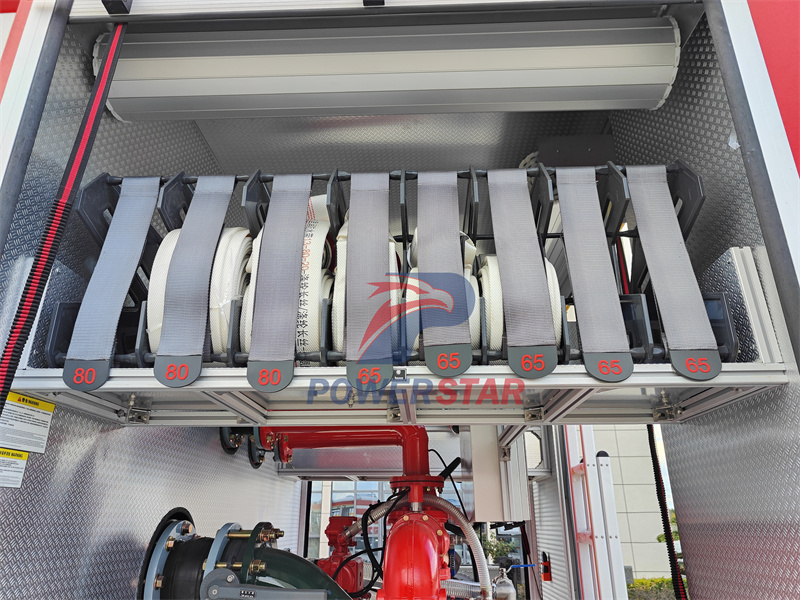

Fire hose

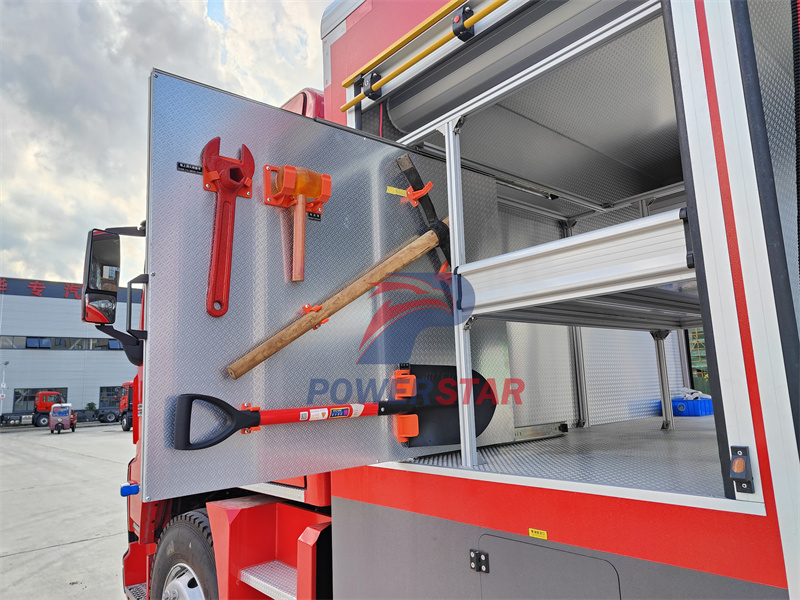

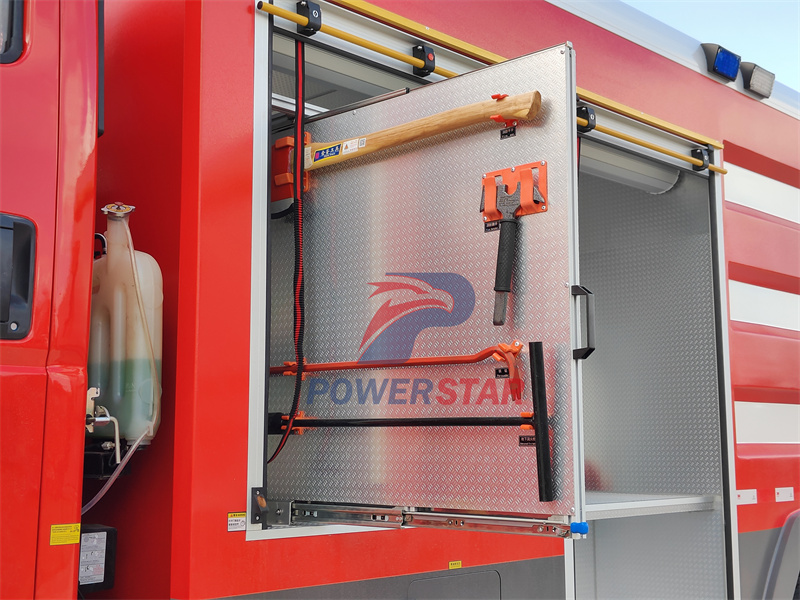

Fire shovel, pickaxe, wrench, hammer
Fire axe, wrench, collar
