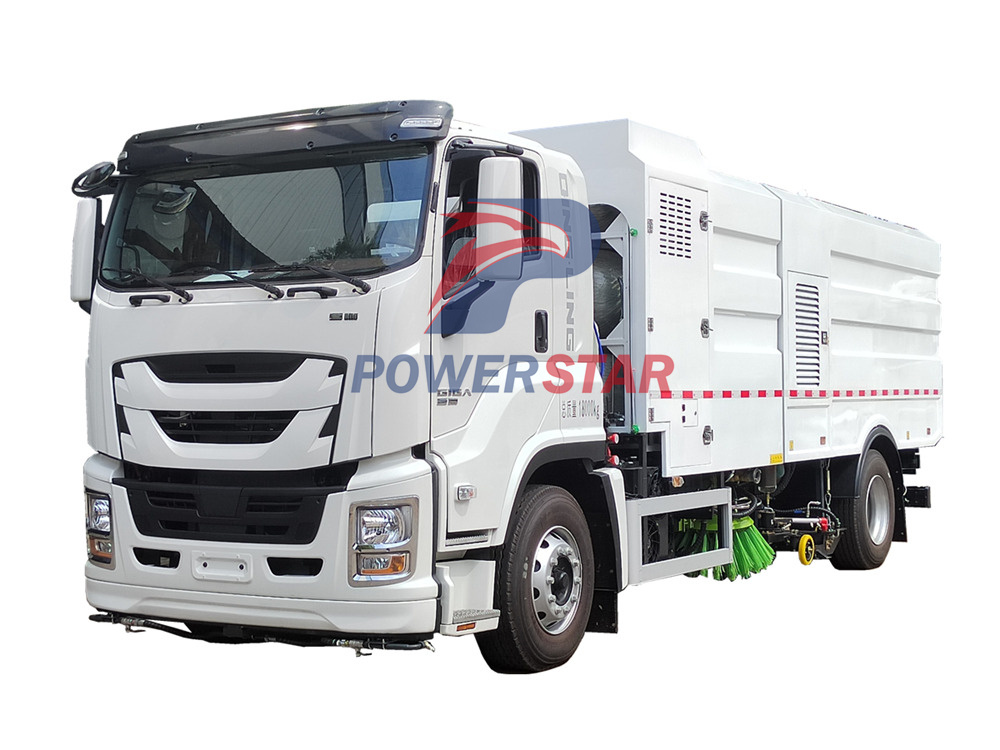

The Dubai Isuzu Giga EV Electric Road Sweepers with battery are a game-changer in road cleaning and maintenance, combining eco-friendly electric technology, efficient cleaning capabilities, and advanced features. With a commitment to after-sales support, these sweepers offer the ideal solution for maintaining spotless roads in Dubai while ensuring a greener future.
Work capacity:
16,000LTruck model:
PT5180GXSEVEngine power:
314.14KVHEngine type:
EV batteryAxle drive:
4x2Gear box:
AutomaticRemarks:
Pure electricDubai Isuzu Giga EV Electric Road Sweepers brings a revolution in road cleaning and maintenance. This Giga Isuzu EV sweeper truck adopt pure electric Isuzu giga truck chassis, These advanced electric sweepers are specifically designed for the demanding urban environments of Dubai. With their eco-friendly electric technology, efficient cleaning capabilities, and cutting-edge features, they are the ideal solution to ensure clean, spotless roads in the city.
2. Features: The Dubai Isuzu Giga EV Electric Road Sweepers come with an array of impressive features:
- Electric Technology: Powered by advanced electric technology, these sweepers produce zero emissions, making them environmentally friendly and helping to reduce the city's carbon footprint.
- Efficient Cleaning: Equipped with high-performance brushes and suction systems, these sweepers effectively remove dust, debris, litter, and leaves from roads and sidewalks, leaving them clean and presentable.
- Ergonomic Design: The sweepers are ergonomically designed for comfortable and hassle-free operation. The cabin is spacious, providing a comfortable working environment for the operator.
- Noise Reduction: With electric motors, these sweepers operate quietly, reducing noise pollution in urban areas and improving the overall quality of life for residents.
3. Advantages: The Dubai Isuzu Giga EV Electric Road Sweepers offer several advantages:
- Environmentally Friendly: The electric technology significantly reduces carbon emissions, contributing to a cleaner and greener city.
- Cost Savings: With the elimination of fuel costs and reduced maintenance requirements compared to traditional sweepers, these electric road sweepers offer significant cost savings over their lifetime.
- Greater Efficiency: The high-performance cleaning mechanisms ensure thorough cleaning in less time, increasing productivity and efficiency.
- Improved Air Quality: By removing dust and debris from the roads, these sweepers help improve air quality, promoting better public health.
|
ISUZU Giga Electric EV Sweeper Truck Main Specification |
||
|
Vehicle Brand |
Powerstar |
|
|
Chassis Brand |
ISUZU EV |
|
|
Overall dimensions (L x W x H) |
9260x2500x2960 mm |
|
|
Drive Type |
4x2 Left hand drive, 6 wheels |
|
|
Wheelbase |
4500 |
|
|
Cabin |
ISUZU 3D cab, with A/C and 2 seats, Forward control, all steel welded construction. Manual tilt, Mechanical suspension |
|
|
Weight |
GVW |
21,000 |
|
Kerb weight |
7760 |
|
|
Engine |
Model |
Battery |
|
Horsepower |
314.14 kwh |
|
|
Engine type |
Electric |
|
|
Emission standard |
Zero |
|
|
Transmission |
Auto |
Automatic |
|
Tyre |
295/80R22.5 |
6+1 spare tyre |
|
Upper Structure Parameter |
||
|
Volume of water tank |
7000L |
|
|
Volume of Dustbin |
9000L |
|
|
Material of the water tank and garbage tank |
Stainless steel |
|
|
Hydraulic valve |
Taiwan famous brand |
|
|
Hydraulic motor |
Domestic famous brand |
|
|
Switch |
Schneider control switch |
|
|
Auxiliary Motor |
Brand |
Dongfeng Cummins |
|
Horsepower |
77 HP |
|
|
High pressure washing Technical |
washing width (mm) |
2500 mm |
|
Washing speed |
3-20km/h |
|
|
Washing water pressure |
10Mpa |
|
|
Water pump flow rate |
154L/min |
|
|
Sweeping Technical |
Max sweeping width (mm) |
3.5m |
|
Max. sweeping capacity |
60000m3/h |
|
|
Sweeping speed |
3-20km/h |
|
|
Cleaning efficiency |
≥98% |
|
|
Max. particle inhalation |
110mm |
|
|
Disc plate brush extension size |
≥400mm |
|
|
Garbage tank door max. discharge angle |
≥50° |
|
|

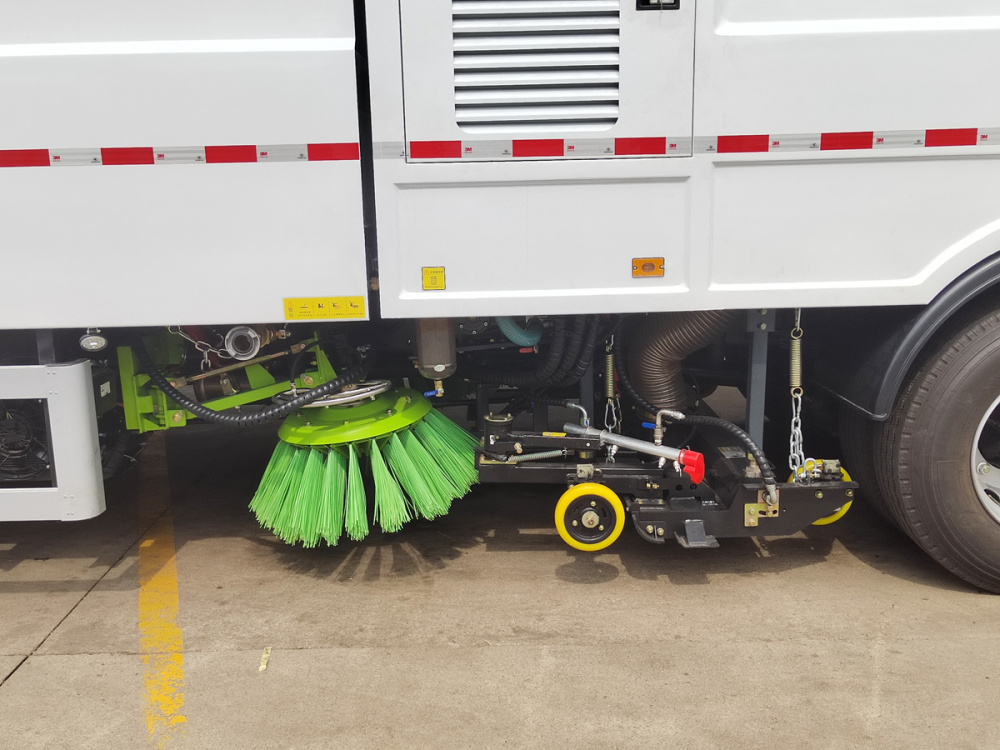

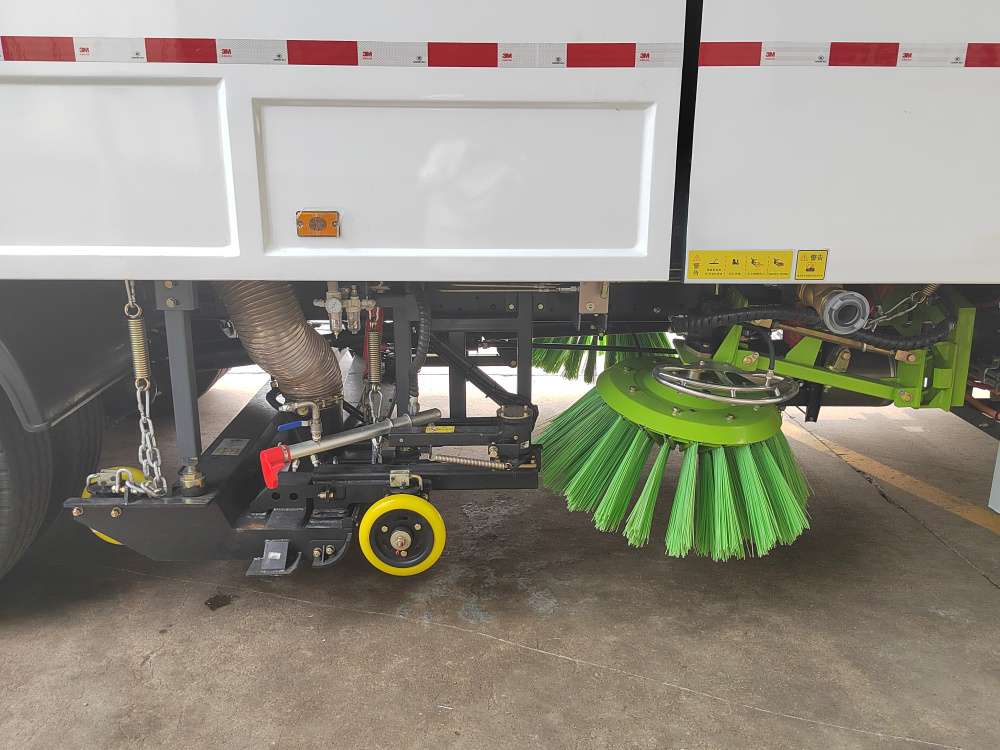

Sweeping system |
Type |
Total 2 pcs brushes and 1 sucking disc mounted in the medium, it is driven by the hydraulic motor, speed is adjustable, can be independently controlled, has automatic avoidance function |
|
Sweeping brush diameter |
Φ850mm |
|
|
Sweeping disk speed |
110r/min high-speed, 80r/min medium speed, 50r/min low-speed |
|
|
Sweeping disk dip angle adjust |
forward 4 ° ~ 6 ° extroversion 4 ° ~ 7 ° |
|
|
Sucking disc |
Type |
Double suction hole, hydraulic control, spring suspension |
|
Suction hole diameter |
180mm |
|
|
Suction disc width |
2400mm |
|
|
Hydraulic system |
Type |
Open type, electrical control |
|
Main components |
Gear pump, hydraulic motor, hydraulic cylinder, solenoid valve |
|
|
Pressure |
16Mpa |
|
|
Hydraulic oil volume |
60L |
|
|
Oil temperature |
60°C |
|
|
Water spraying system |
Components |
Pump, nozzle, water filter, etc. |
|
High pressure water system |
Type |
High pressure plunger pump |
|
Model |
||
|
System Pressure |
10Mpa |
|
|
Rotation speed |
1150r/min |
|
|
Water valve type |
hydraulic high pressure ball valve |
|
|
Water valve pressure |
7MPa |
|
|
Nozzle type |
High pressure washing type |
|
|
Water filter |
Strainer mesh |
|
|

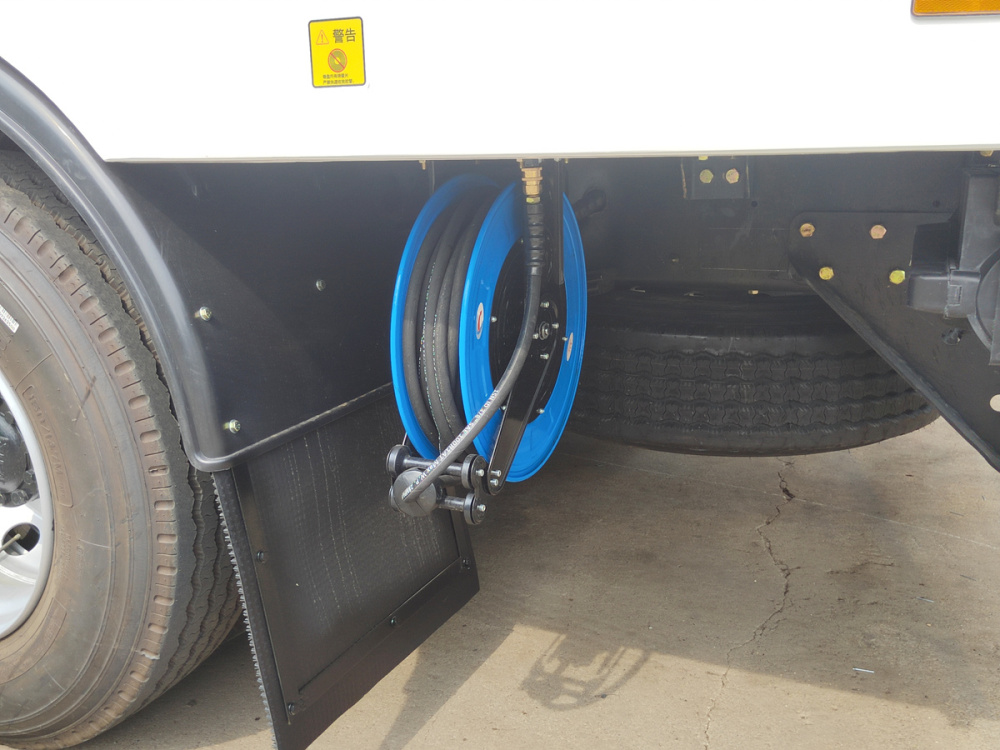

Winch |
20m |
|
|
Low pressure water system |
Model |
Hangzhou Weilong 60/90 |
|
Flow rate |
60m3/h |
|
|
Water delivery distance |
90m |
|
|
Washing width |
24m |
|
|
Side spray rod |
type |
V-type spray bar, with automatic avoidance function |
|
Electrical system |
Type |
DC24V, PLC control |
|
Volts |
24V |
|
|
Battery |
2x12V |
|
|
Tools |
||
|
Fire hose |
2 pcs |
|
|
Fire wrench |
1 pcs |
|
|
Water filter wrench |
1 pcs |
|
|
High pressure spray gun |
1 pcs |
|
|
Manual hydraulic pump rocker |
1 pcs |
|
|
Spare parts |
||
|
Sweep brush |
88 pcs |
|
|
Fan seal |
1 pcs |
|
|
Rear door seal |
1 pcs |
|
|
Suction tube seal |
2 pcs |
|
|
Import Parts List |
||
|
High pressure water pump |
Germany PINFL PT40 |
|
|
Automatic unloading valve |
Germany PINFL VB200/150 |
|
|
Relief valve |
Germany PINFL VS200-180 |
|
|
Electric control box controller |
Germany STW |
|
|
Rotary switch |
Japan |
|
|
Sewage tank sensor |
USA |
|
|
Hydraulic valves |
Taiwan SWH-G02-C4-D2H |
|
4. Application: The Dubai Isuzu Giga EV Electric Road Sweepers serve various applications:
- Municipalities: Local governments can use these sweepers to maintain and clean roads, ensuring a clean and aesthetically pleasing urban environment.
- Commercial Areas: Shopping centers, business districts, and industrial zones can benefit from these sweepers to maintain clean and tidy premises.
- Construction Sites: These sweepers effectively remove construction debris, ensuring safety and cleanliness on construction sites.
5. After-sales Service: We are committed to providing exceptional after-sales service:
- Maintenance and Repairs: Our skilled technicians offer comprehensive maintenance and repair services, ensuring the sweepers' optimal performance and minimizing any operational downtime.
- Genuine Spare Parts: We provide genuine spare parts compatible with the Dubai Isuzu Giga EV Electric Road Sweepers, ensuring quality and prolonging the sweepers' lifespan.
- Technical Support: Our dedicated support team is readily available to assist customers with technical inquiries, troubleshooting, and guidance.
6. FAQ: We have prepared a comprehensive list of frequently asked questions, addressing topics such as vehicle specifications, charging infrastructure, warranty coverage, recommended maintenance schedules, and safety guidelines.
ISUZU GIGA chassis ELECTRIC STREET SWEEPERS
It's not only about protecting our environment and building a cleaner future. We built the first 100% electric street sweeper Isuzu Giga in the world to tackle the toughest street sweeping conditions.
From street cleaning the busy cities of China, and Dubai to the coastal towns of California and New England, our purpose-built Isuzu Giga electric sweepers use a state-of-the-art, high-performance sweeping system producing zero emissions.
Reducing our carbon footprint, one Electric Giga street sweeper truck at a time.
