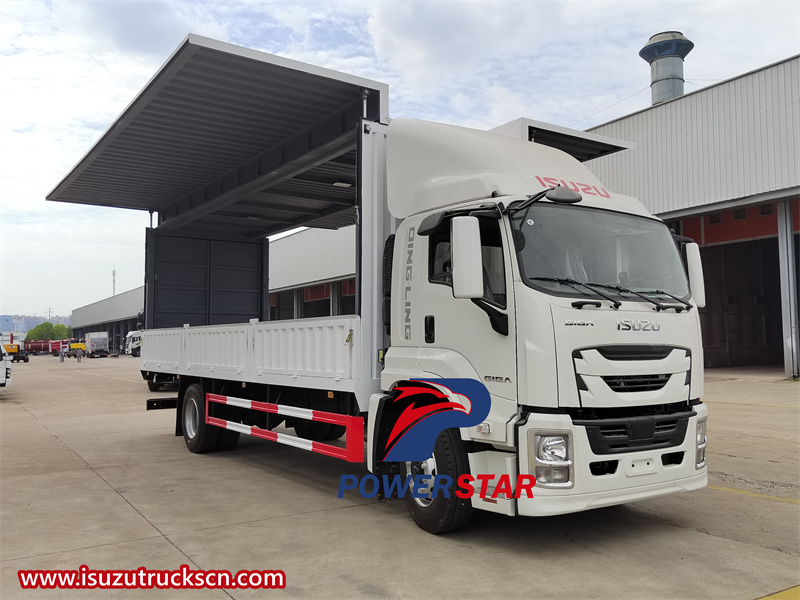

The Isuzu 4x2 205hp Giga 6 wheeler Wing Van Truck is a versatile and reliable commercial vehicle designed to meet the demands of various logistics and transportation needs. With its robust construction, efficient engine, and a range of advanced features, this truck offers an impressive combination of performance, durability, and comfort.
Work capacity:
10 tonsTruck model:
PT5180GXWEngine power:
205HPEngine type:
4HK1- TC60Axle drive:
4x2，LHDGear box:
MLD-6Q six speedRemarks:
Large capaciy Isuzu GIGA wing van truckIsuzu Giga 6 wheeler Wing Van Truck, also known as wing-opening van, is an improvement on ordinary vans. It is a special vehicle that can open the wings on both sides of the car body through power springs, manual devices or hydraulic devices. The top, front panel and rear door structure of the car are the same as those of iron corrugated vans, and the side is composed of flip panels, upper side panels and lower side panels.
Key Features
★ Equipped with an efficient and reliable Isuzu engine, providing stable and sufficient power.
★ Has fast loading and unloading speed, high efficiency, and can be loaded and unloaded from the side, meeting various transportation needs.
★ Electric hydraulic integrated lifting, both wings can lift up to 90 degrees
★ Dustproof, anti-theft, and rainproof, suitable for fast mechanical loading and unloading
★ Container sizes can be customized according to requirements
|
Isuzu Giga 6 wheeler Wing Van Truck |
||
|
|
Truck model |
PT5180GXW |
|
Dimensions and parameters |
Overall Dimensions (L x W x H) |
10000 x 2550 x 4000 mm |
|
Box Dimensions |
7600 x 2470 x 2700 mm |
|
|
Wheelbase: |
5800 mm |
|
|
Front wheel distance: |
1920 mm |
|
|
Rear wheel distance |
1844 mm |
|
|
Front/Rear Suspension |
1335/2865 mm |
|
|
Approach/departure angle |
15/10(°) |
|
|
Weights and capacities |
Weight curb: |
7855 kg |
|
Total weight: |
18000 kg |
|
|
Rated load capacity: |
9950 kg |
|
|
Axle loads: |
6500/11500 kg |
|
|
Engine |
Engine type: |
4HK1- TC60 |
|
Maximum output: |
151 kW |
|
|
displacement: |
5193 ml |
|
|
Horse power: |
205HP |
|
|
Emission standard: |
Euro 6 |
|
|
Full capacity: |
200 L |
|
|
Exhaust gas treatment technology: |
SCR |
|
|
Cab |
Number of seats: |
3 |
|
Cabin type |
Standard roof with one bed |
|
|
Structure |
Driving type: |
4x2 |
|
Tire model: |
295/80R22.5 |
|
|
Tires: |
6+1 (including spare tire) |
|
|
Max speed: |
105km/h |
|
|
Fuel consumption |
26.0(L/100Km) |
|
|
Gear box |
MLD-6Q six speed |
|
|
Formations |
1 |
Power steering system |
|
2 |
conditioning |
|
|
3 |
No need for tires |
|
|
4 |
Aluminum alloy gas tank |
|
|
5 |
Free maintenance battery |
|
|
6 |
Powerful authority |
|
|
7 |
Central lock |
|
|
8 |
Driving data recorder |
|
|
9 |
The abundance expanded |
|
|
10 |
Chrome front kit |
|
|
11 |
Air suspension cabin |
|
|
12 |
Air suspension seat |
|
|
13 |
main power switch |
|
The Isuzu GIGA wing-opening van transporter introduced this time is equipped with an Isuzu 205 horsepower engine and an Isuzu MLD 6-speed gearbox. It is suitable for inter-city standard-load high-speed transportation. The biggest feature of the vehicle is its convenient loading and unloading. The cargo box size is 7600*2470*2700mm. When both wings are fully opened, the internal space is very open and can be loaded and unloaded by forklifts, saving manpower and improving efficiency. It is also more convenient to load and unload large items, and can be loaded and unloaded directly from the side door.

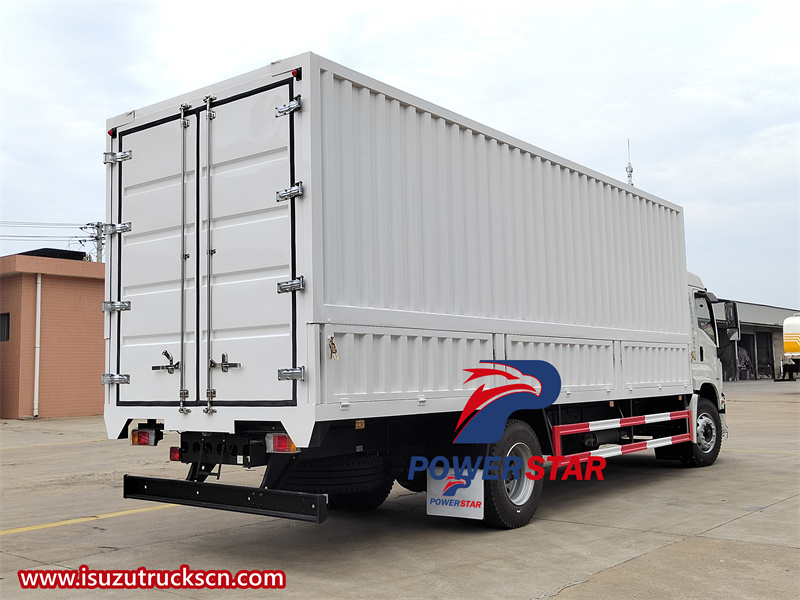

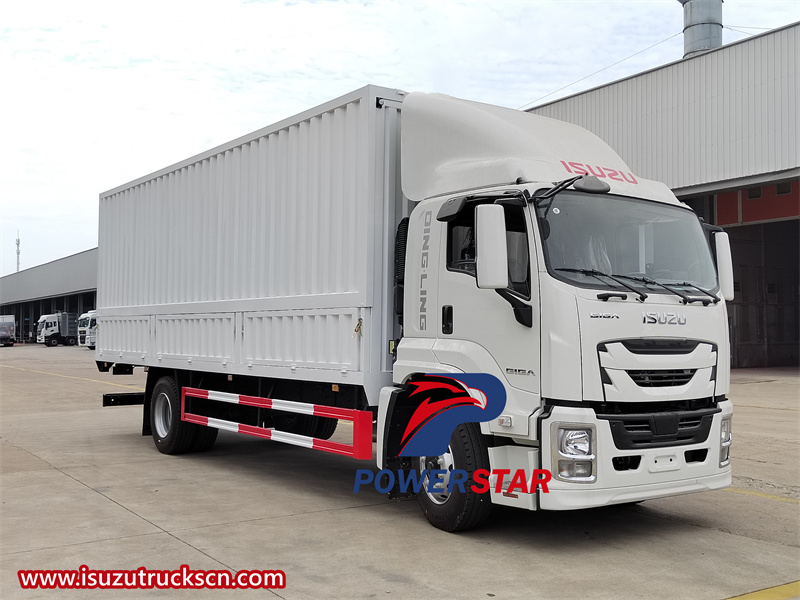

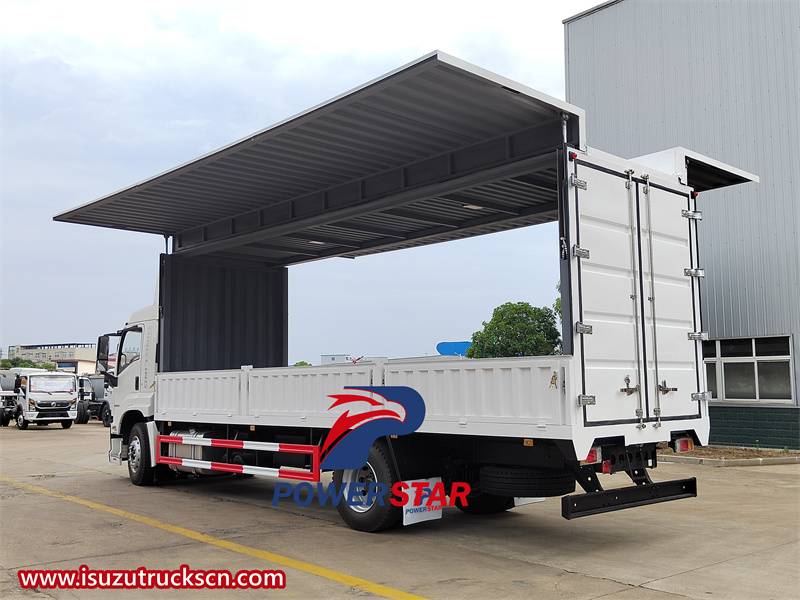

Isuzu Giga 6 wheeler Wing Van Truck

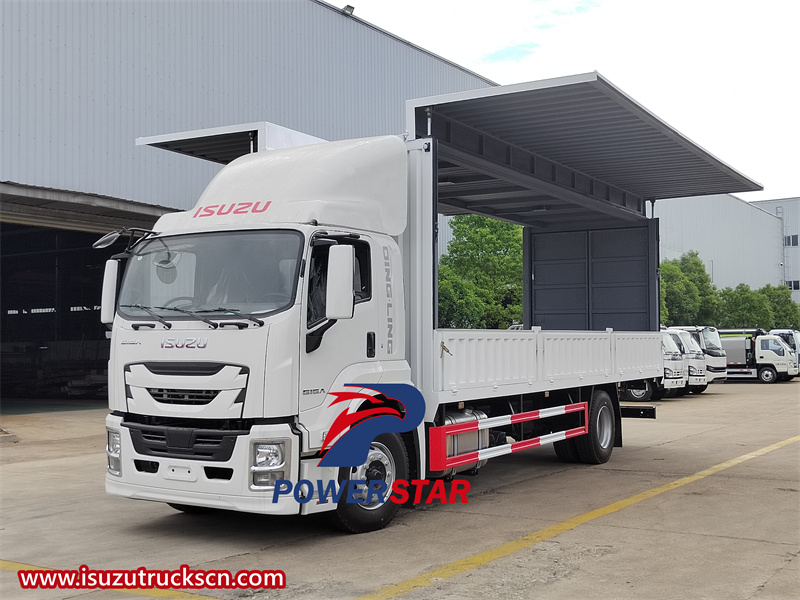

Isuzu 4x2 205HP GIGA 6-wheeler wing van truck

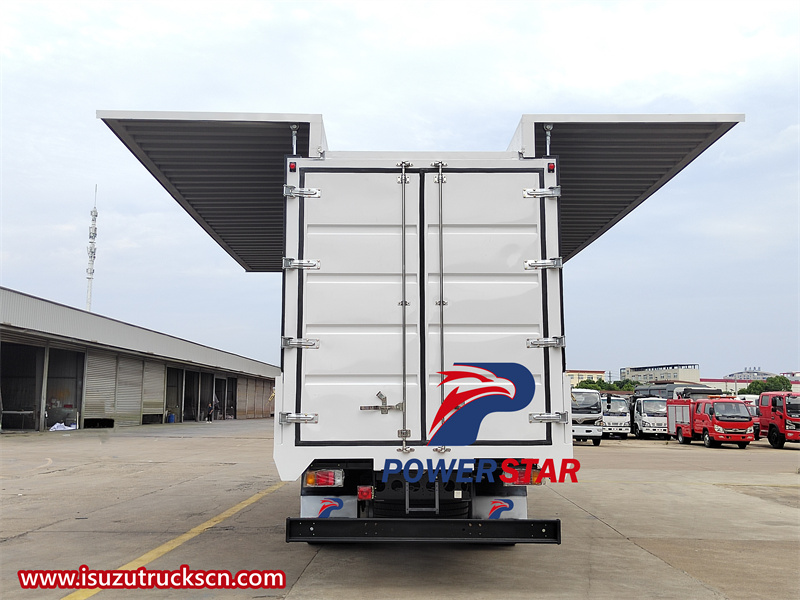

A compartment control switch is installed on the front compartment panel of the wing-span compartment, which can realize the expansion of both wings or the expansion of a single wing. If it is under normal loading and unloading conditions, a single wing can be expanded. If loading and unloading are required at the same time or if loading and unloading are required quickly, the wings can be expanded to achieve the maximum loading and unloading efficiency and ensure timeliness.

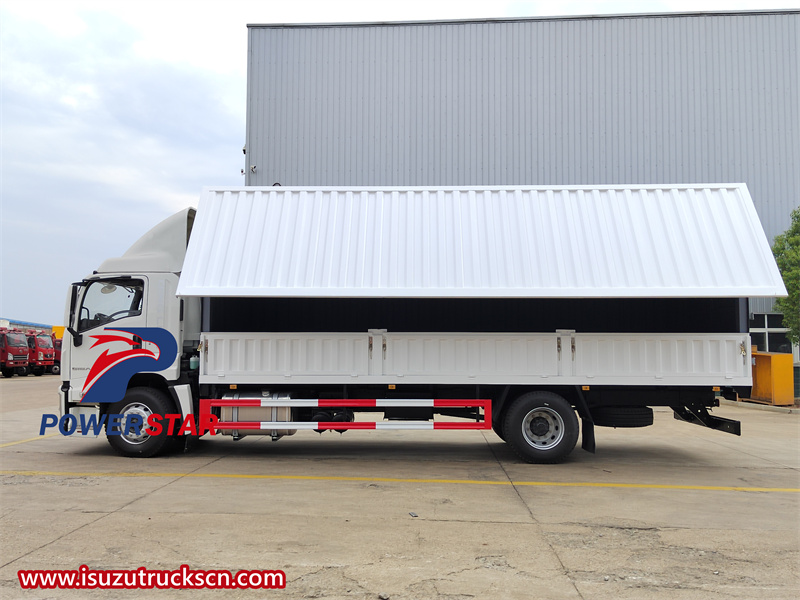

Isuzu GIGA wing van diesel truck

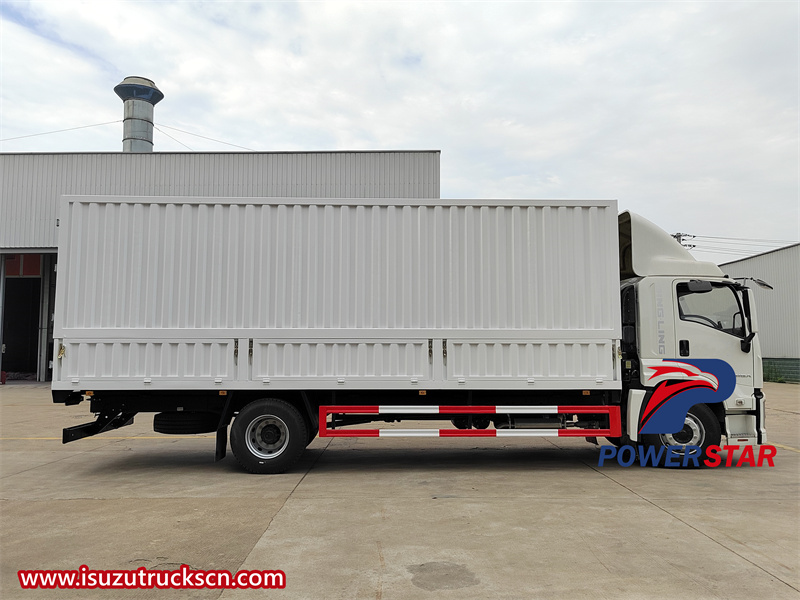

The outer material of the wing-span compartment is an insulation board. In order to make the compartment stronger while avoiding increasing the deadweight of the compartment as much as possible, the manufacturer uses steel plates to reinforce the interior of the compartment in a "tic-tac-toe" welding method.

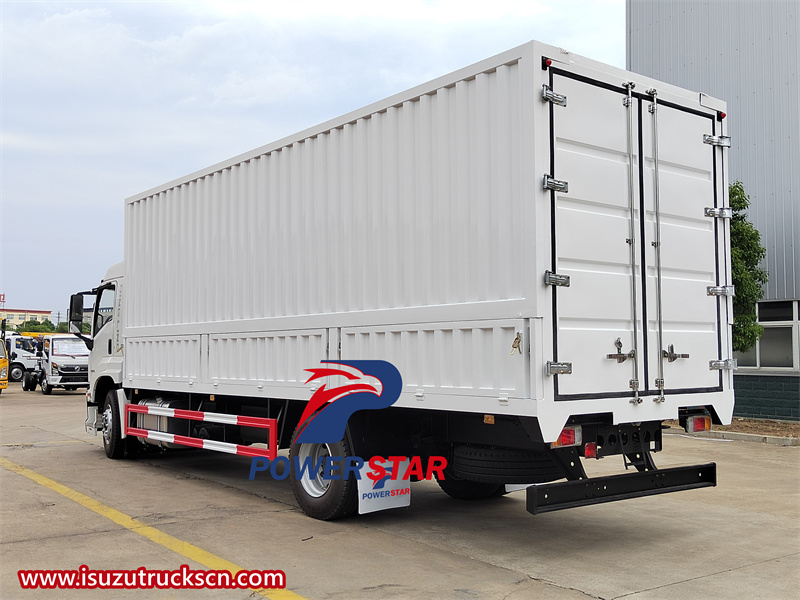

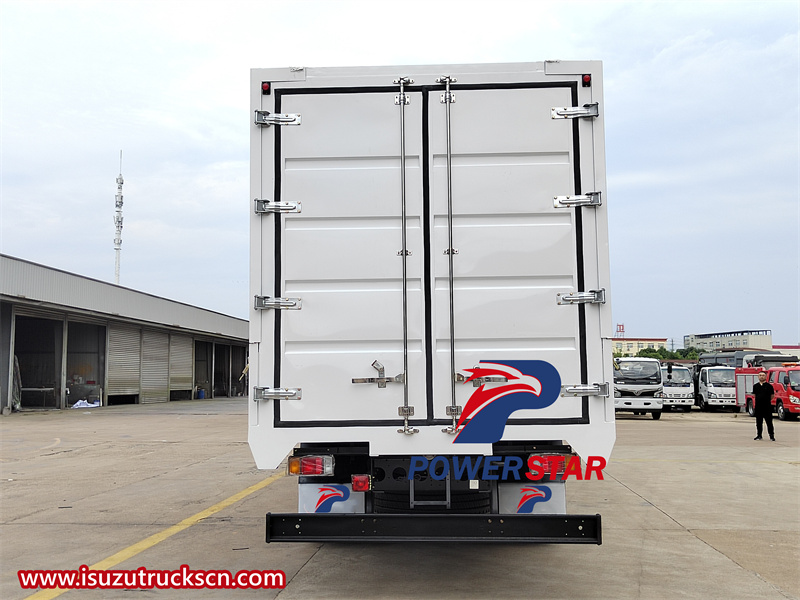

Although the compartment is a wing-span compartment, the basic rear door design is still retained. If the vehicle encounters special circumstances or fails, if the wing-span compartment door cannot be opened, you can choose to use the rear door for loading and unloading to avoid delays in loading and unloading time, in case of emergency.

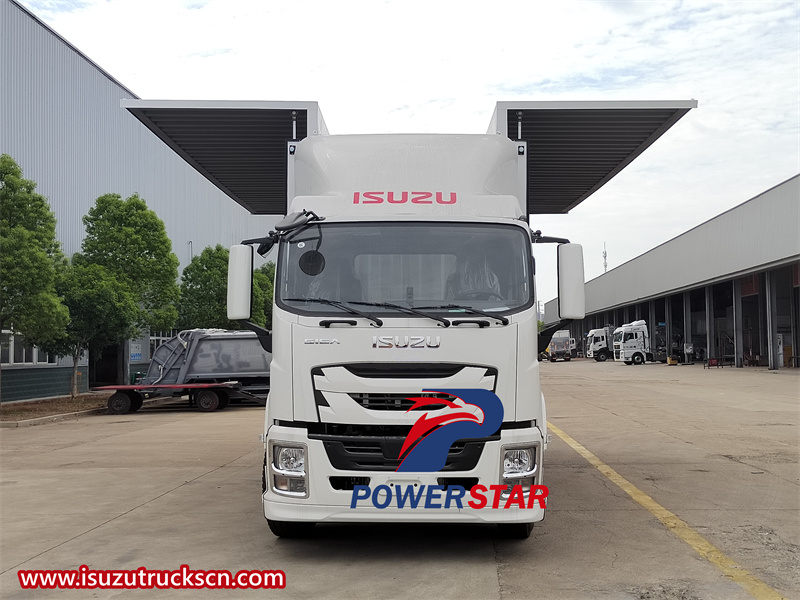

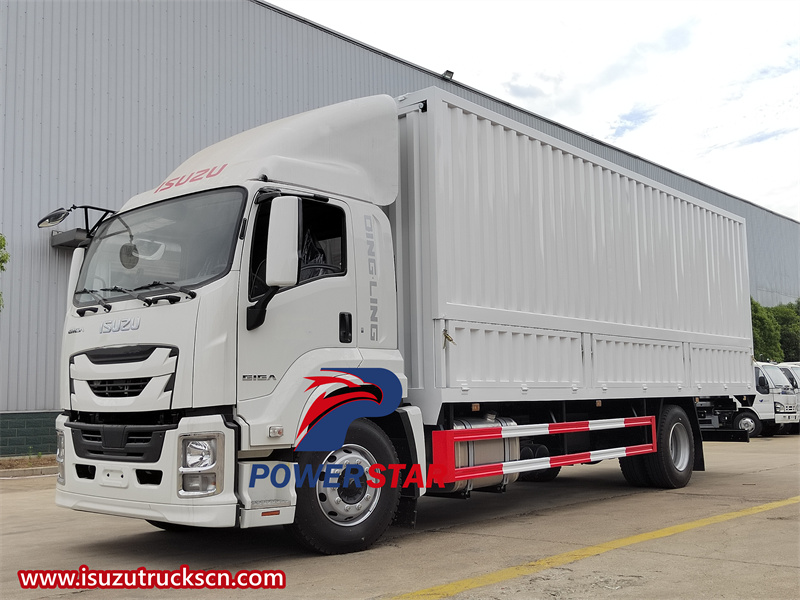

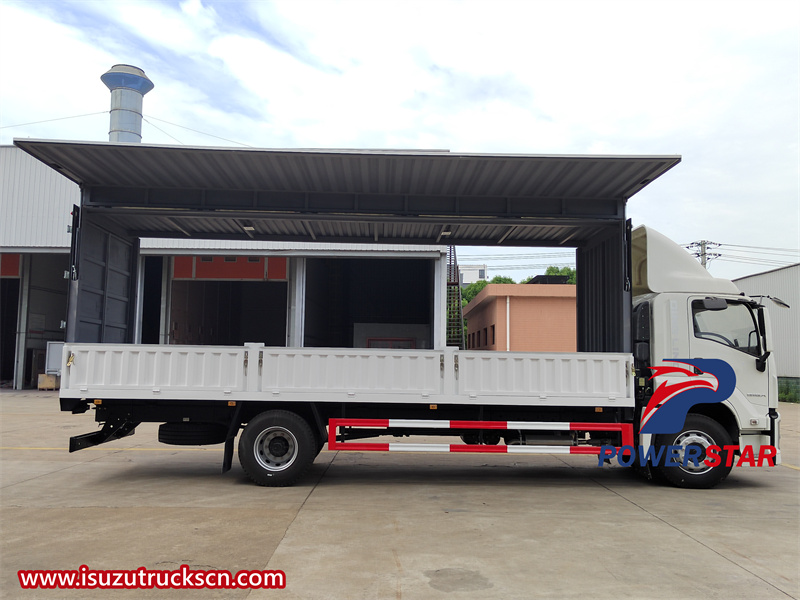

Isuzu GIGA 4x2 wing van cargo truck
Advantages
★ 1. The two sides of the wing-span compartment can be fully unfolded, which makes loading and unloading of goods more convenient and can improve loading and unloading efficiency.

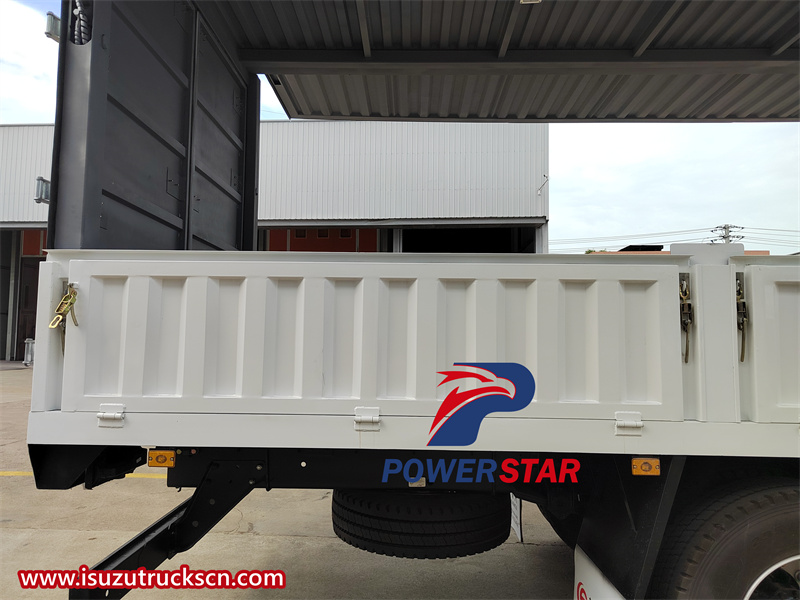

★ 2. Compartment side protection material: steel plate Q235, rear protection material: steel plate SAPH440, plate thickness 4.0mm. Four hydraulic cylinders, one-button lifting 90 degrees, rear double doors, and double-layer waterproof rain cloth on the top.
★ 3. This car has good sealing, dustproof, anti-theft, and rainproof, suitable for rapid mechanical loading and unloading, and is mainly used by heavy equipment, clothing and other companies.

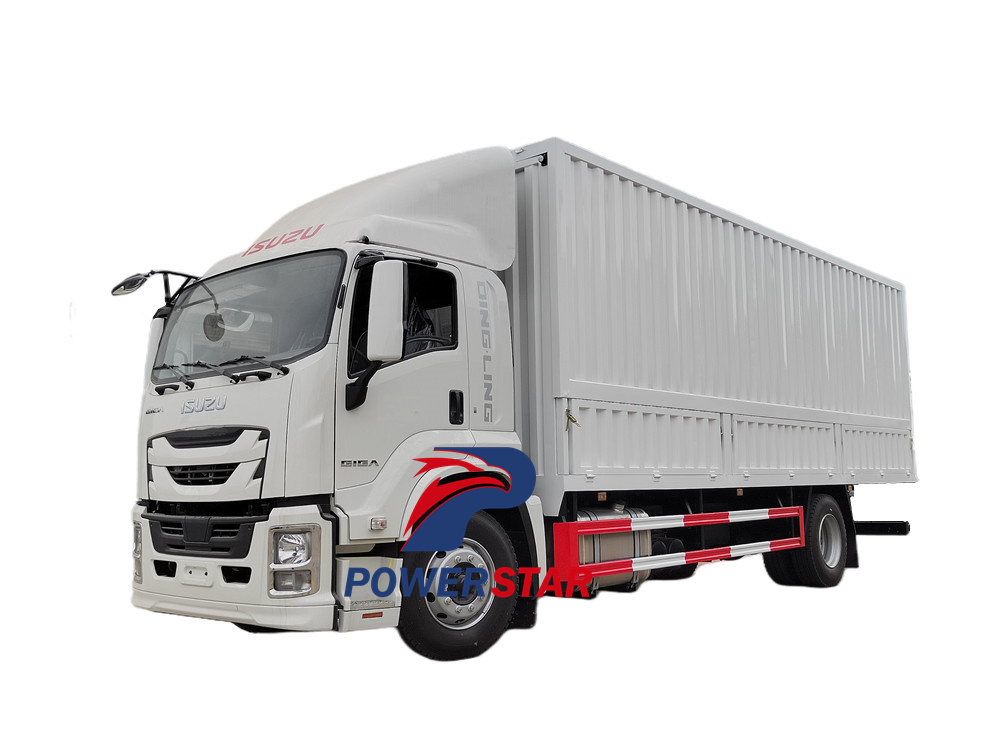

Isuzu Giga 6 wheeler wing van truck
★ 4. The electric-hydraulic integrated lifting device is controlled by a power unit control button, and the two wings can be lifted 90 degrees.
★ 5. The body material has good thermal insulation performance, good impact toughness, corrosion resistance, rainproof, impermeability, wind and sand resistance, and is clean inside and outside, which can greatly improve the need to adapt to various field environments.

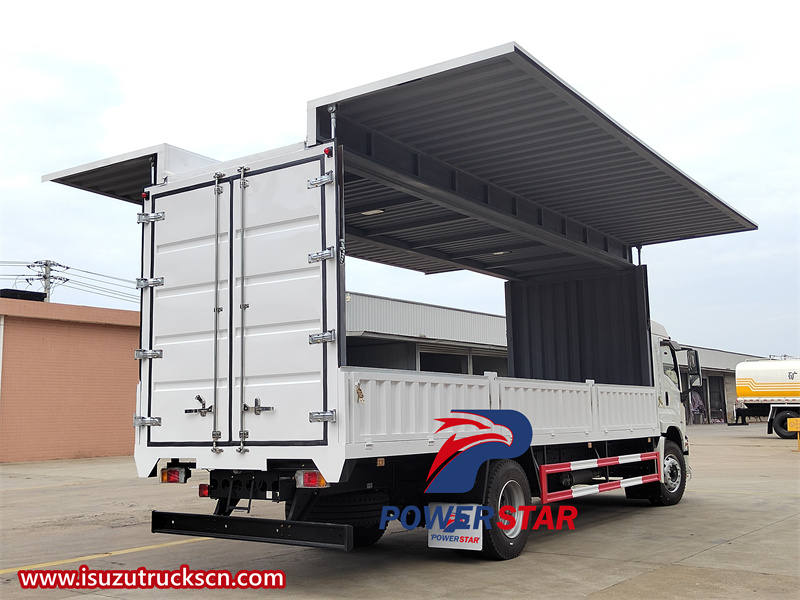

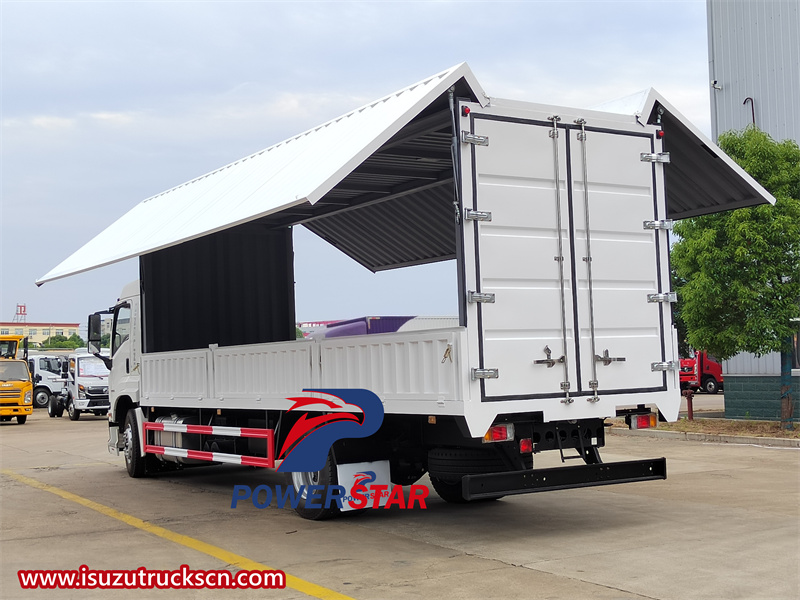

Isuzu GIGA wing-opening van

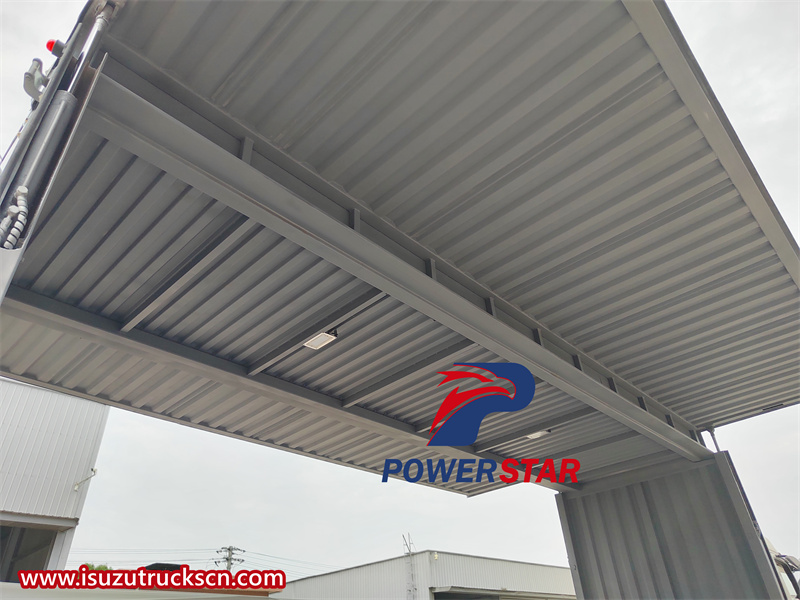

Wingspan roof

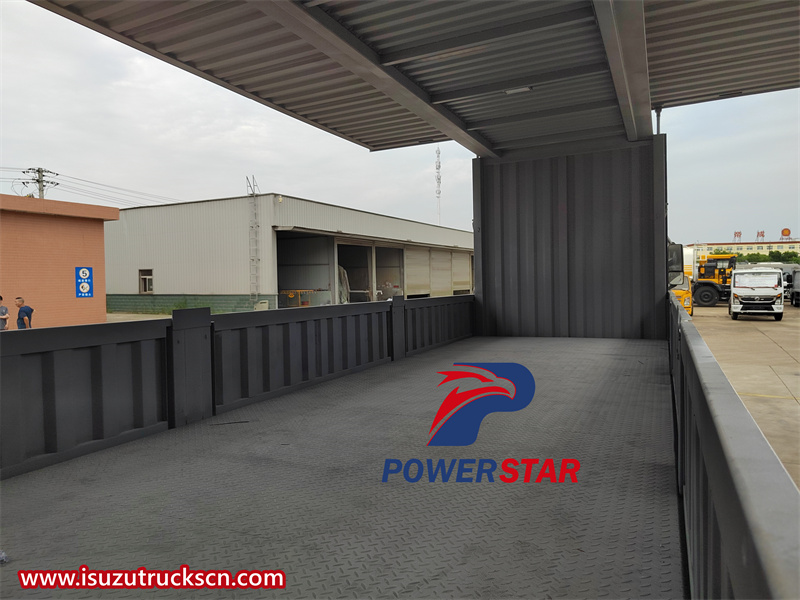

Cargo box
