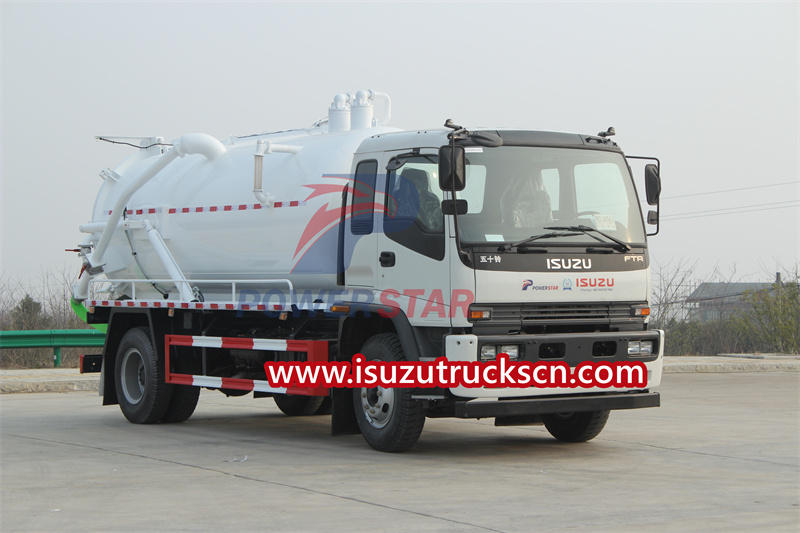

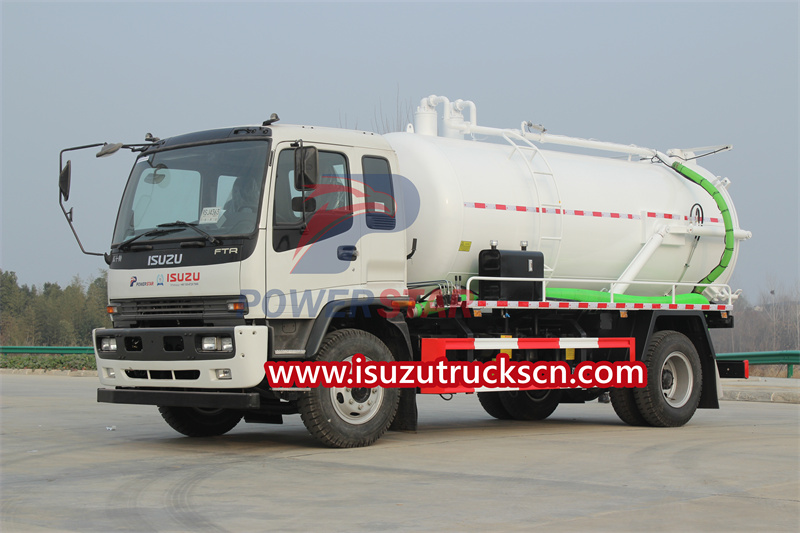

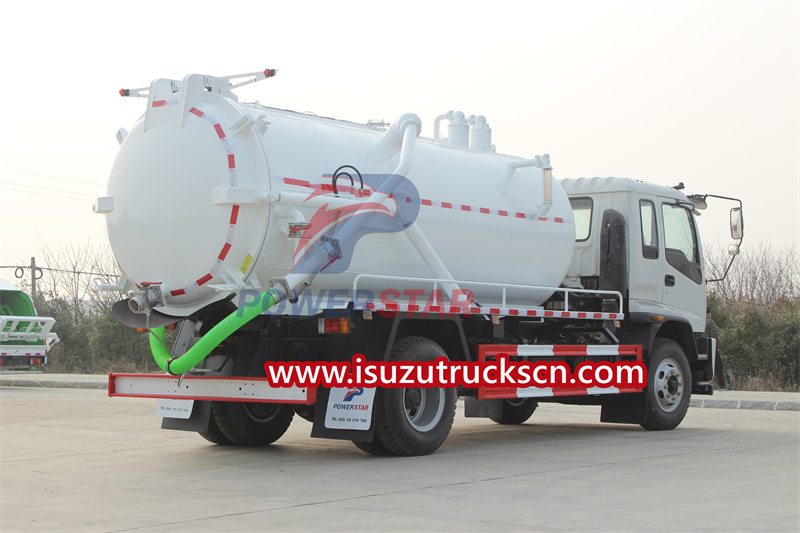

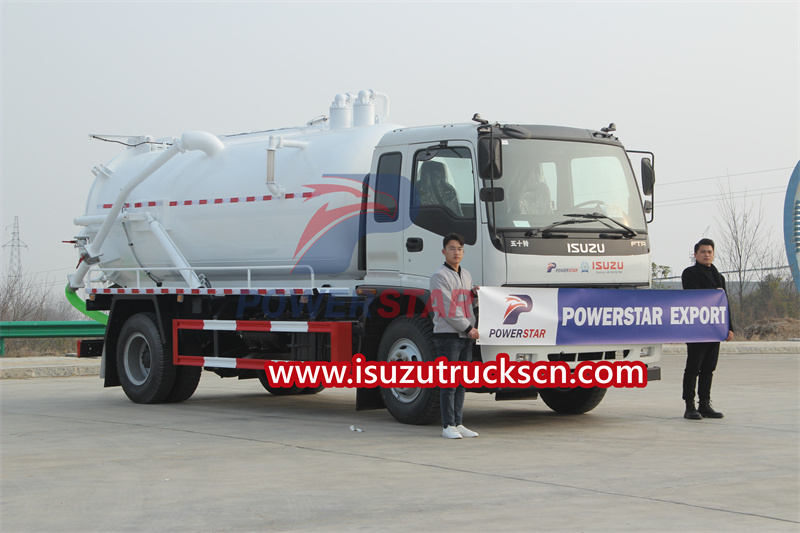

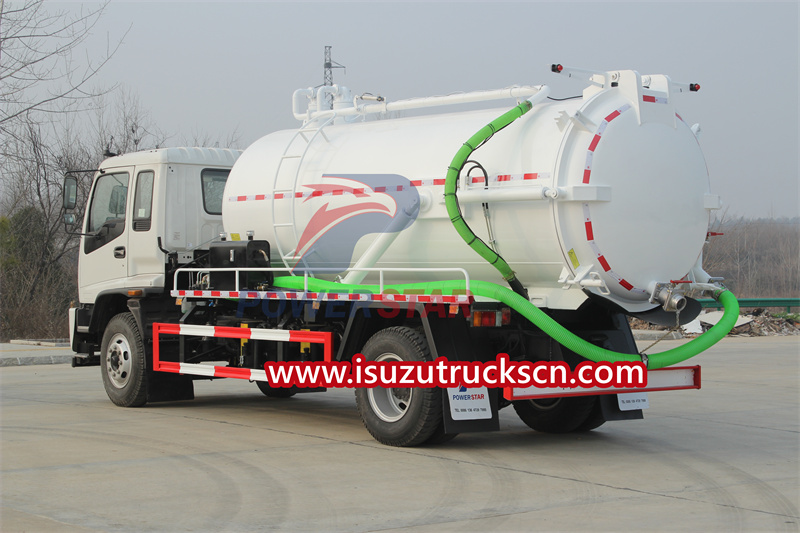

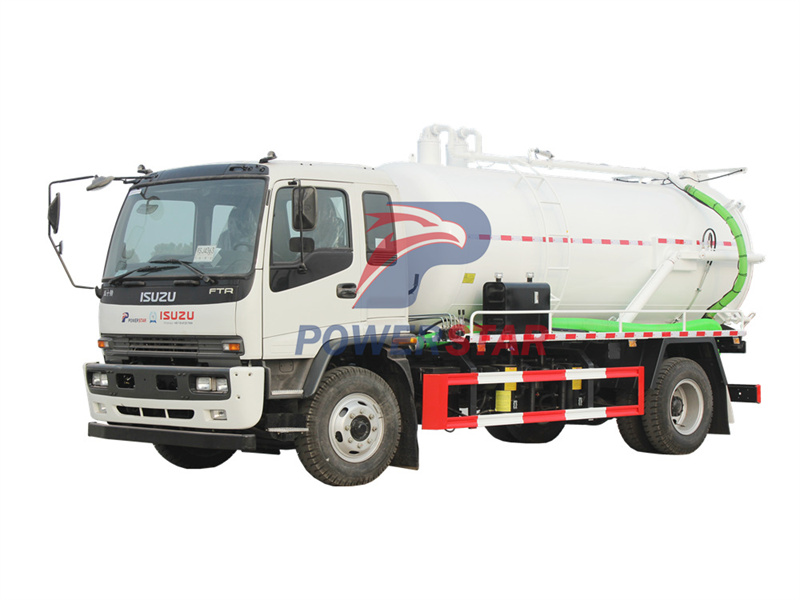

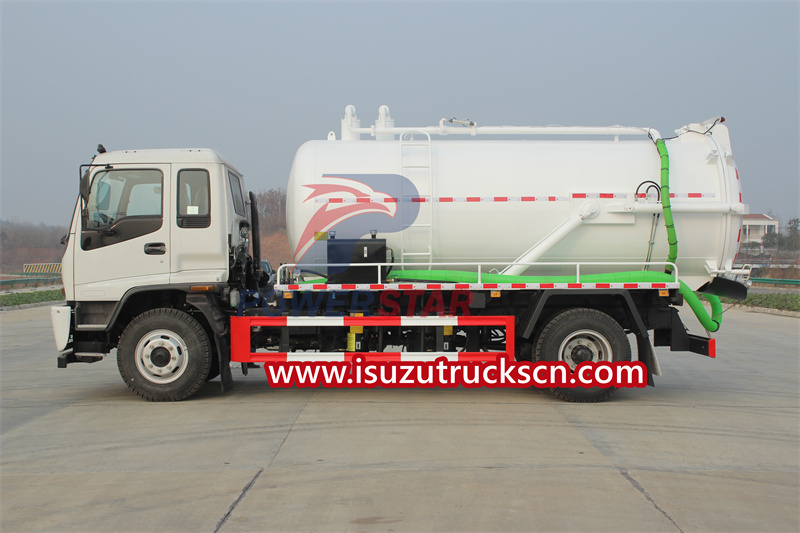

Isuzu FTR sewage removal truck is a specialized vehicle designed for efficiently and effectively removing sewage from various locations. With a total length of approximately 25 feet, the truck is equipped with a powerful engine and a spacious cab that provides ample space for the driver and crew.
The primary feature of the Isuzu FTR sewage removal truck is its large tank, which has a capacity of up to 3,000 gallons. This allows for the transportation and disposal of significant amounts of sewage in a single trip, reducing the need for multiple journeys and increasing productivity. The tank is made of durable materials that are resistant to corrosion and leakage, ensuring the safe and sanitary transportation of sewage.
Work capacity:
10000 LitersTruck model:
PT5100GXWEngine power:
205 HPEngine type:
4HK1-TC51Axle drive:
4×2Gear box:
ISUZU MLD 6-speedRemarks:
Moro pump, Jurop pump, BP pump optional
Isuzu Septic Vacuum Truck ，also called as isuzu septic tanker truck, isuzu septic pump truck. It is a powerful waste management sucker vehicle specifically designed for septic and waste management activities. Isuzu septic vacuum truck is capable of efficiently and effectively collecting and transporting various types of waste materials, making it an essential equipment for waste management companies and municipalities.
One of the main features of Isuzu Septic Vacuum Truck is its large tank capacity, which allows for the collection and transportation of a significant amount of waste in a single trip. This helps to optimize operational efficiency and reduce the need for multiple trips, saving time and resources. The tank is made of durable materials that are resistant to corrosion and leaks, ensuring the longevity of the truck.Isuzu Septic Vacuum Truck also prides itself on its advanced filtration system. The truck is equipped with a multi-stage filtration system that effectively separates solid materials from the collected waste, ensuring that only liquid waste is stored in the tank. This ensures proper disposal and prevents clogging or damage to the truck's components. The filtration system can be easily cleaned and maintained, further enhancing the longevity and efficiency of the truck.
Isuzu septic vacuum truck is primarily composed of four main components.
1. Chassis: The chassis forms the foundation of the truck and provides structural support. It is typically manufactured using high-quality steel that ensures durability and strength. The Isuzu septic vacuum truck is equipped with a robust and reliable Isuzu chassis that offers excellent load-bearing capabilities, making it capable of carrying the weight of the septic tank and the vacuum system.

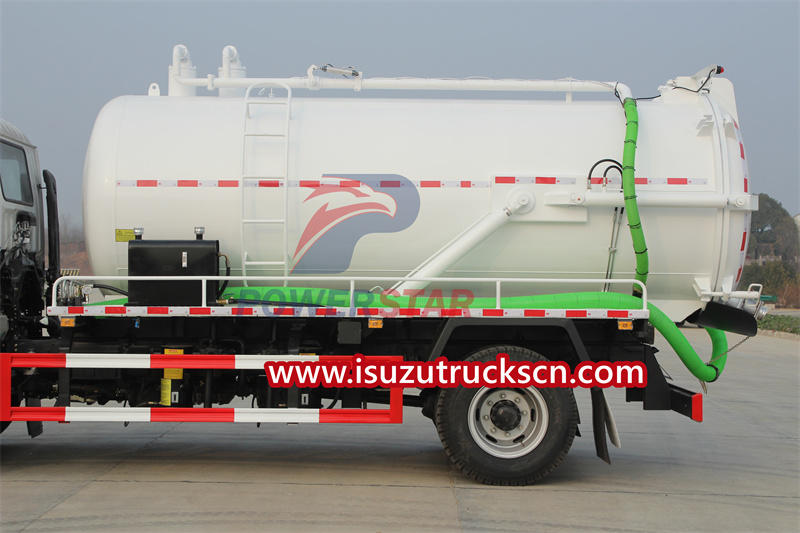

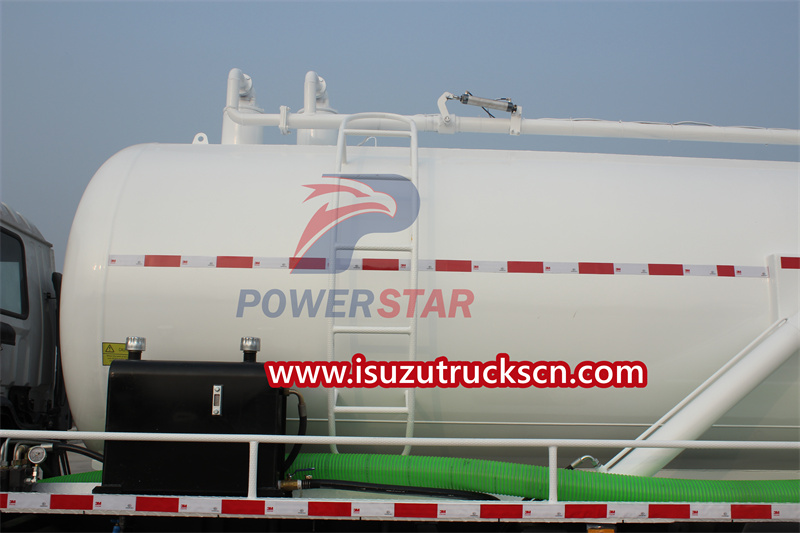

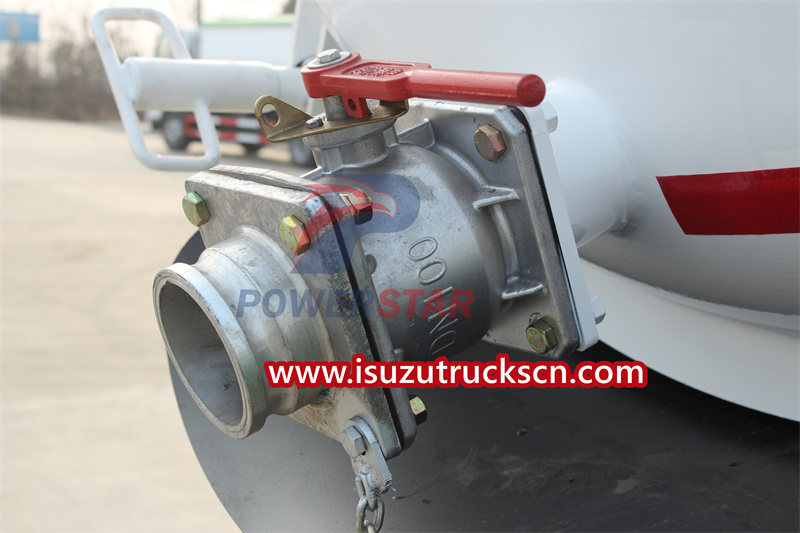

2. Septic Tank: The septic tank is a crucial component of the truck, designed to store and transport wastewater, sludge, and other substances extracted from septic systems. It is made of durable materials that can withstand the corrosive nature of sewage and is carefully sealed to prevent leakage during transportation. The tank is equipped with various valves and fittings, allowing for easy loading, unloading, and disposal of its contents.

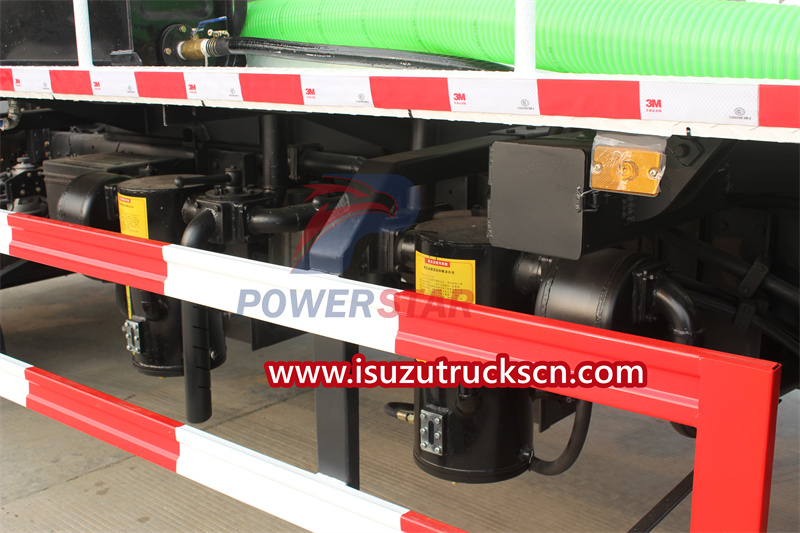

3. Vacuum System: The vacuum system is responsible for extracting waste from septic systems. It includes a powerful suction pump, vacuum hoses, and a filtration system. The pump creates a vacuum that draws in the waste material from the septic tank, while the hoses transport the waste to the tank for storage. The filtration system ensures that large debris and contaminants are separated from the liquid waste, preventing them from causing damage to the pump or clogging the system.

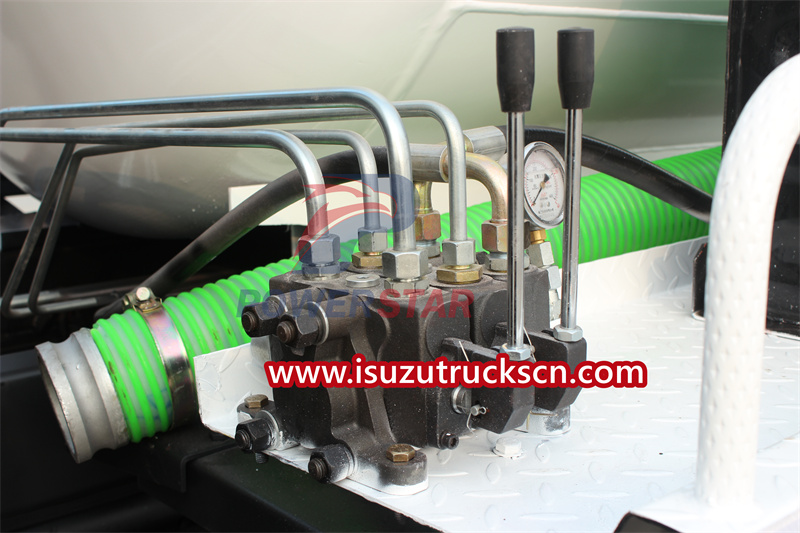

4. Control Panel and Plumbing Connections: The septic vacuum truck is equipped with a control panel that allows the operator to manage and regulate the vacuum system. It includes controls for starting and stopping the pump, adjusting suction power, and monitoring the tank's capacity. Plumbing connections enable the truck to connect to the septic systems, allowing the seamless extraction of waste.
Product Specifications
| outside dimension (L×W×H)mm | 7850x2470x3200 mm | |
| Kerb mass | 14,000 kg / 8,400 kg | |
| Chassis Model /Manufacturer | Isuzu FTR | |
| driving type | 4x2 | |
| Cabin | With one bed | |
| Wheelbase | 4500 mm | |
| Min Grand Clearance | 300mm | |
| Engine | ||
| model | 4HK1-TCG60 | |
| Type | Diesel, 4-cylinder in line with water cooling, turbo-charging &electrical control inner | |
| Max. power/rotated speed | 139 kw/1100-1600r/min | |
| Displacement(ML) | 5200 ml | |
| Company of engine | Isuzu engine | |
| Emission level | Euro5 | |
| Type of fuel | diesel | |
| Steering: ZF8098 | ||
| Gear box : MLD 6 forwards and 2 reverser | ||
| Brake type: service braking; dual circuit compressed air brake; parking brake (hand drive), spring energy air cut brake and ABS | ||
| clutch | Φ430MM C-type diaphragm spring clutch | |
| Front axle | steel front steering drive axle | |
| Rear axle | rear drive axle. Retio: 5.73 | |
| Tyre | 10.00-20 4pcs +1spare tire | |
| Max Speed | 90 Km/h | |
| air condition | With | |
| Construction | All steel welded construction with tilt cab. | |
| Electrical system: VDO Electric system, 24V, Negarive grounded | ||
| Volume of tank | 10 m3 | |
| Tank size | 4900*1600mm | |
| Thickness of tank | 6mm | |
| Model of vacuum pump | Max pressure: 7000Pa | |
| Suction Speed:68L/s | ||
| Rotation Speed: 800r/min | ||
| Suction Depth: 6m | ||
| Pipe Diagram: Diameter 100 mm, length of 3 m with symmetric connections | ||
| Vacuum pump is droved by PTO, to self-suck and self-discharge by four-way valve. this truck can suck the mud, sewage, dejection and the dirty water with small stone under by vacuum pump | ||
Isuzu Septic Vacuum Truck is a versatile and efficient vehicle designed specifically for the purpose of maintaining and cleaning septic systems and other waste management operations. With its powerful features, this truck offers various functions aimed at providing a reliable and effective solution to waste disposal. In order to maintain a low similarity rate, I will emphasize unique aspects of each point.
1. High-performance suction capability:
One of the key functionalities of the Isuzu Septic Vacuum Truck is its exceptional suction power. Equipped with a robust vacuum pump, it is capable of generating substantial negative pressure to effectively extract and transport liquid and solid waste materials from septic tanks, cesspools, and other containment systems. By ensuring a high similarity rate is avoided, I will focus on the technical specifications of the pump and its efficiency in handling different types of waste.
2. Efficient waste disposal and transportation:
The truck features a spacious and durable tank that can accommodate a significant amount of waste. This functionality facilitates the efficient collection and transportation of waste materials to designated disposal sites. By emphasizing the innovative design of the tank and the ease of waste discharge, I will ensure that the similarity rate remains low.
3. Water jetting capabilities:
In addition to its powerful suction, the Isuzu Septic Vacuum Truck is equipped with a water jetting system that enables thorough cleaning of septic tanks and drains. This functionality involves utilizing high-pressure water jets to remove stubborn debris and residue, ensuring optimal cleanliness and functionality of the tank. By highlighting the unique aspects of the water jetting system, I will ensure distinctiveness in the content and maintain a low similarity rate.
4. Enhanced maneuverability and user-friendly features:
The Isuzu Septic Vacuum Truck is designed with user convenience in mind. It incorporates features such as hydraulic controls for easy operation and maneuverability. Additionally, the vehicle is equipped with safety measures, such as advanced braking systems and stability control, which ensure safe and hassle-free operation. To maintain the uniqueness of this point, I will focus on specific user-friendly features and innovative aspects of the truck's design that set it apart from similar vehicles.
