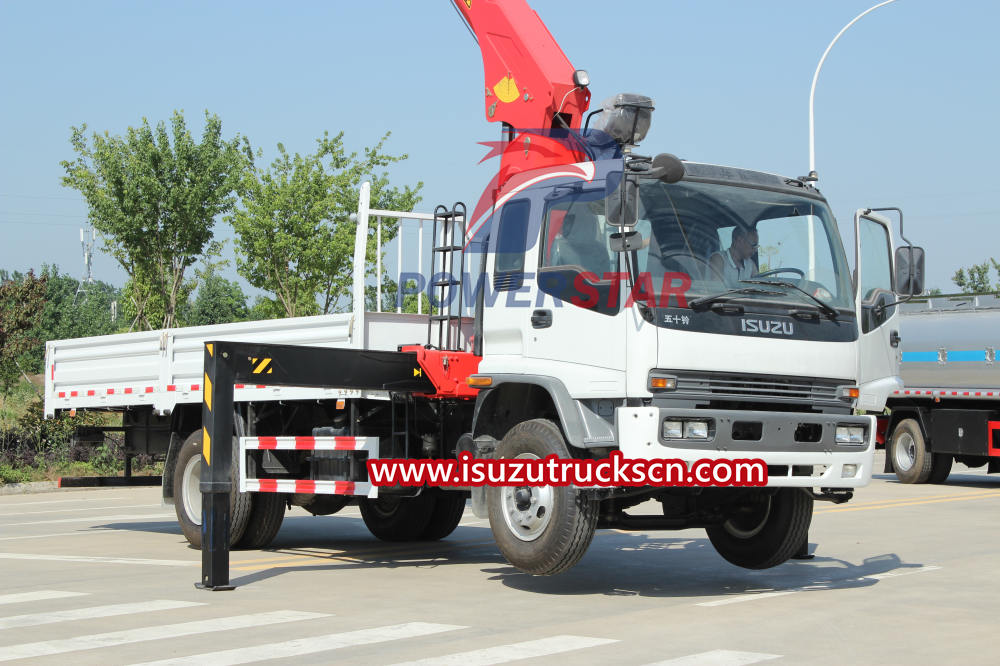

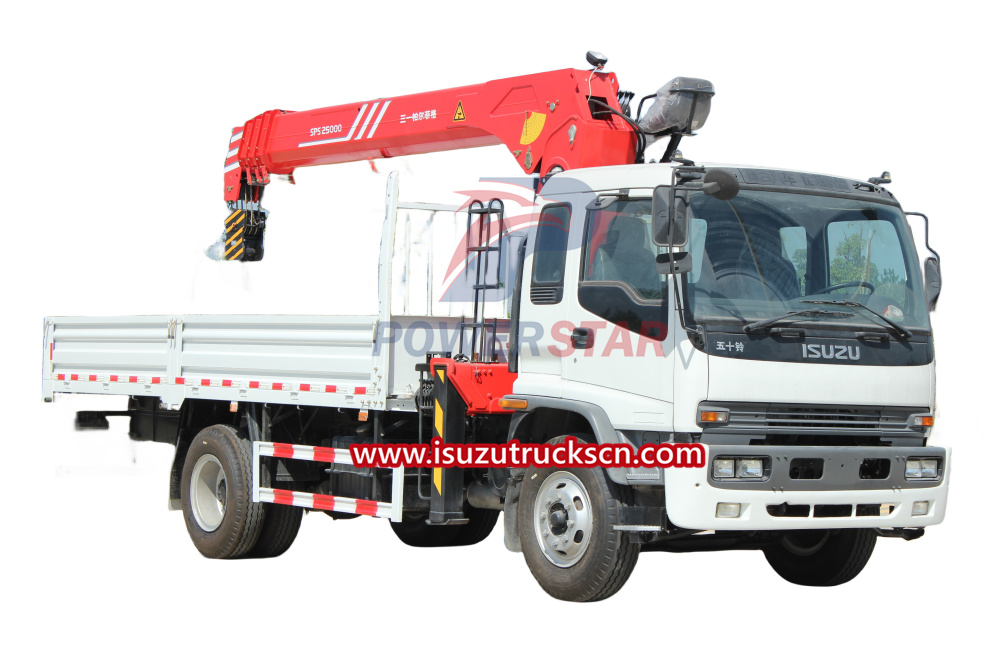

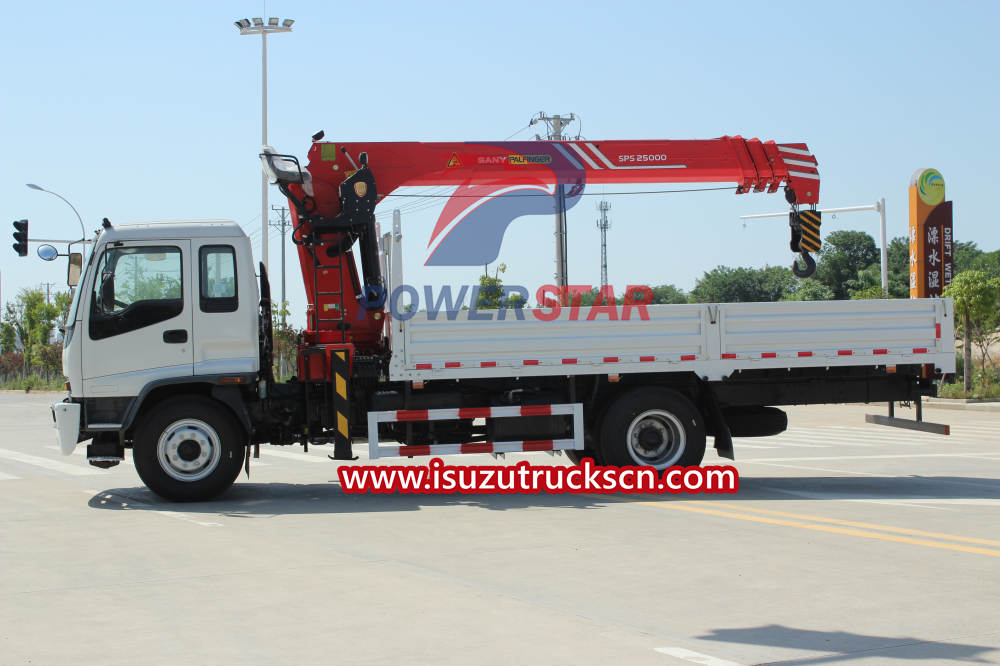

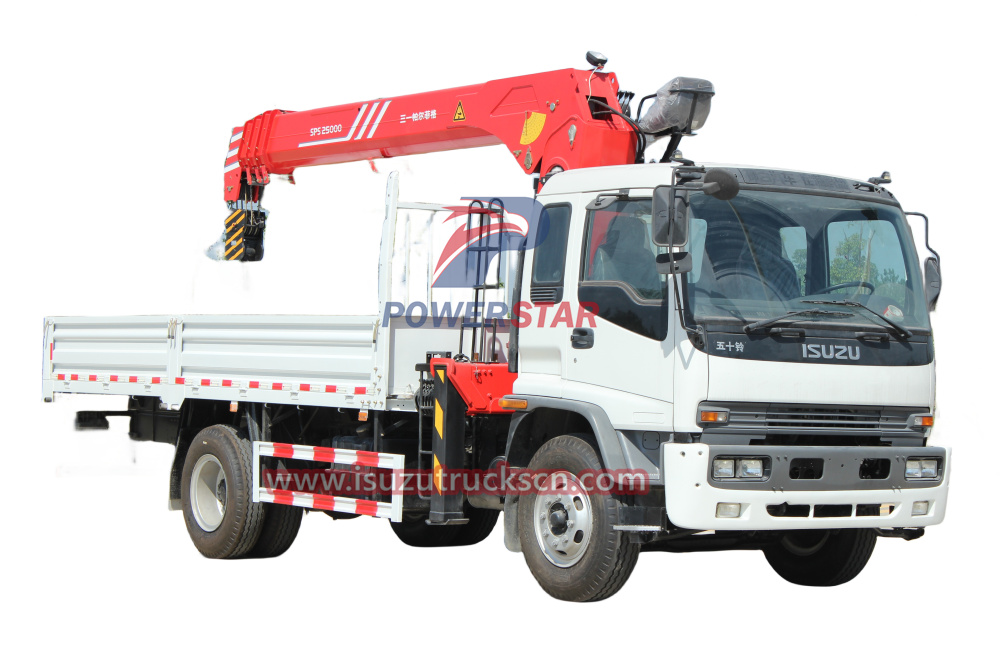

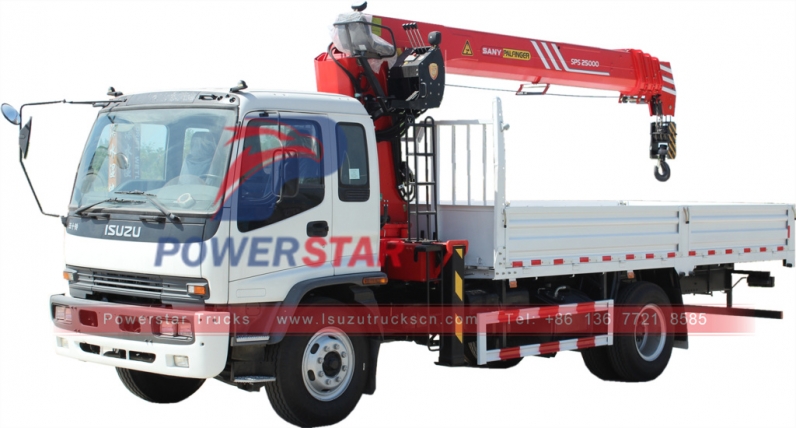

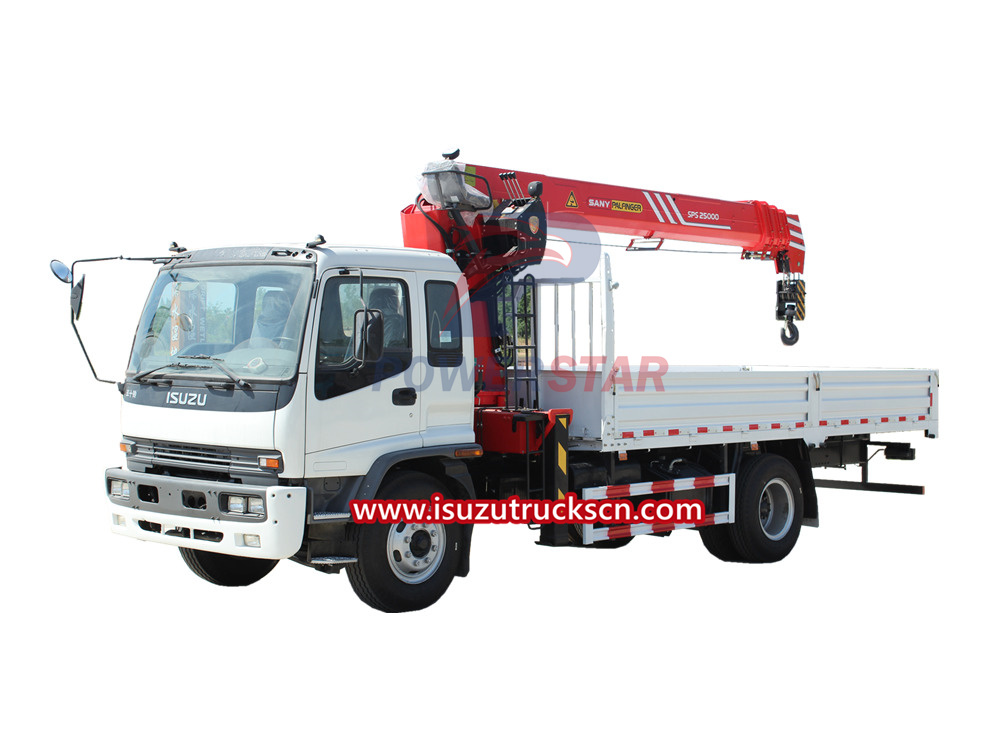

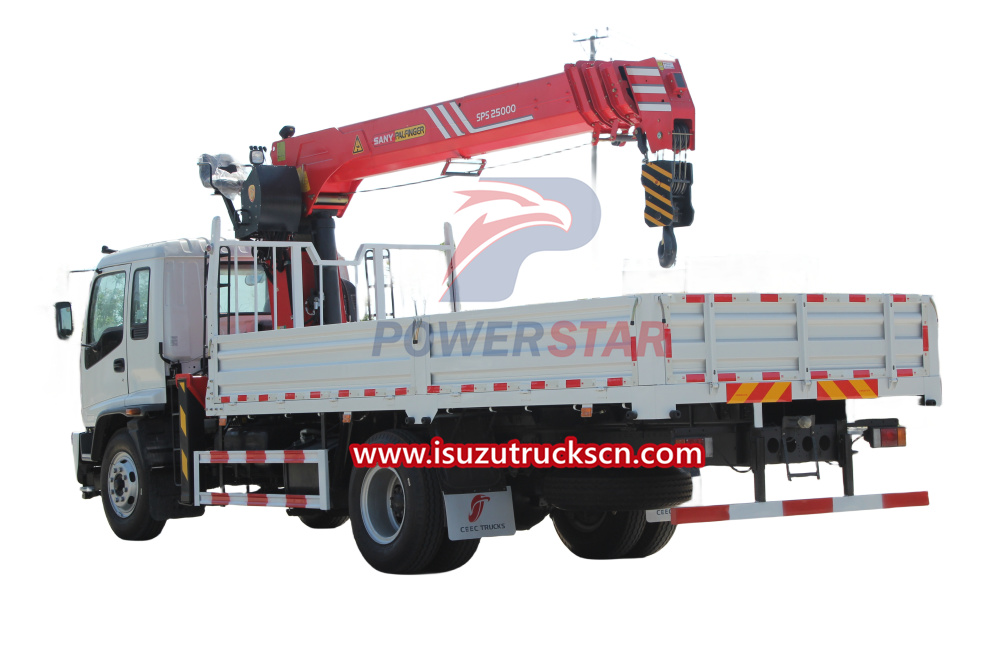

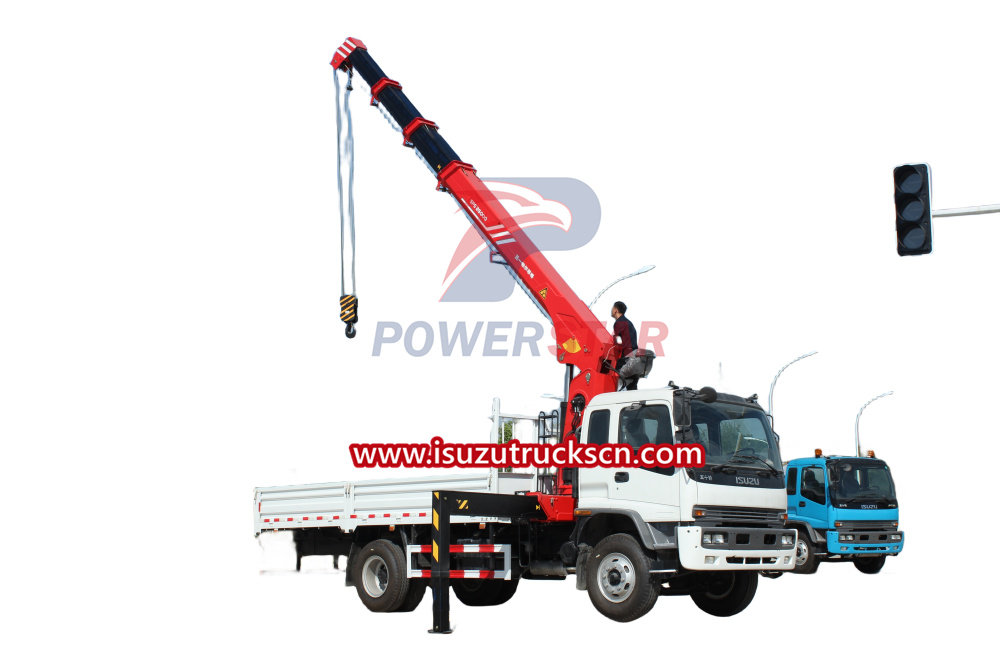

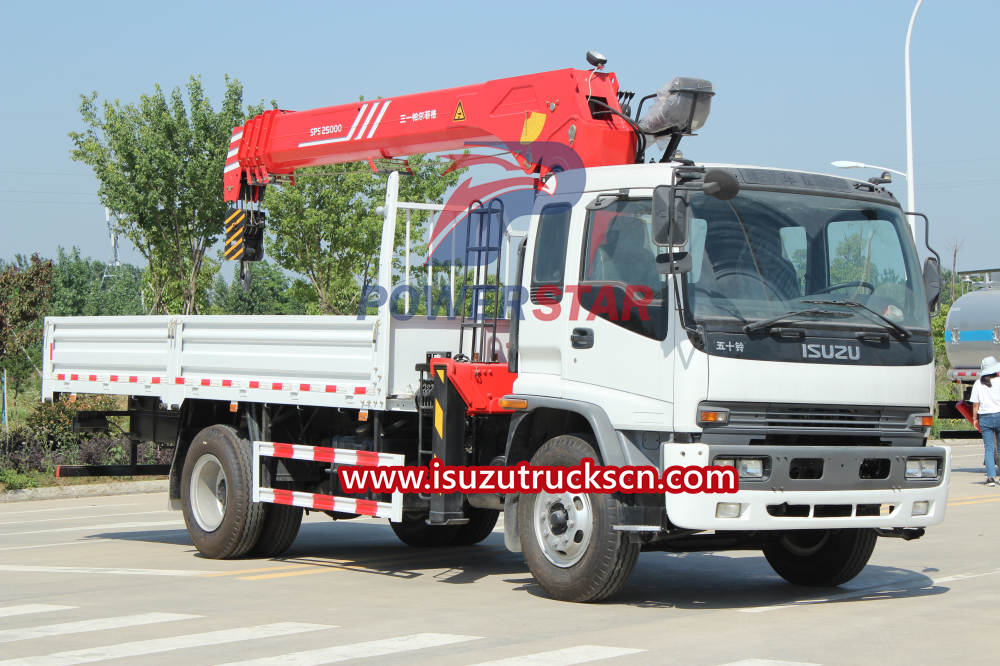

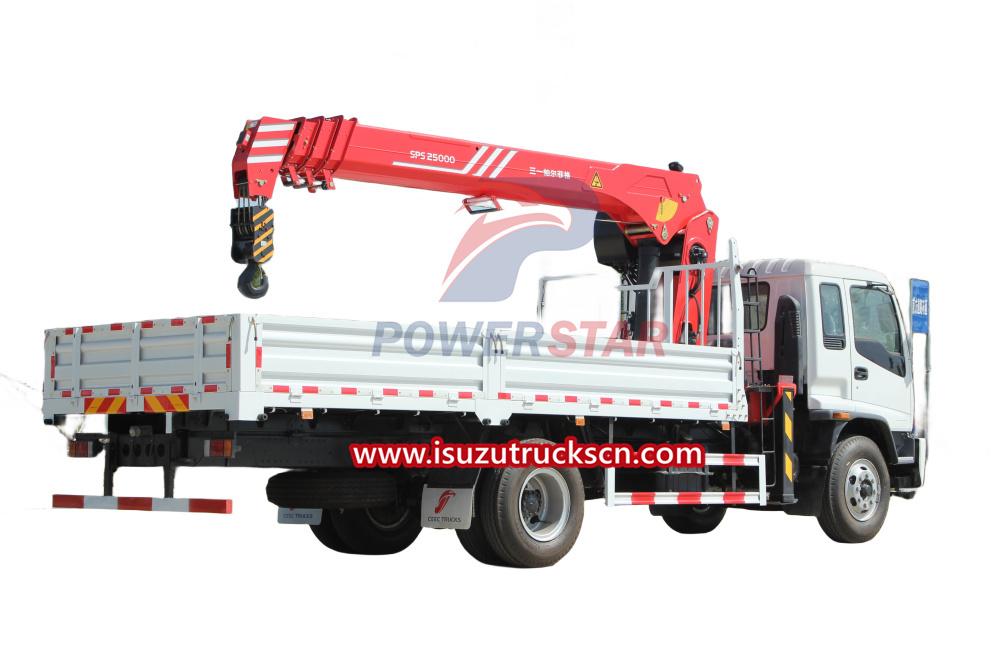

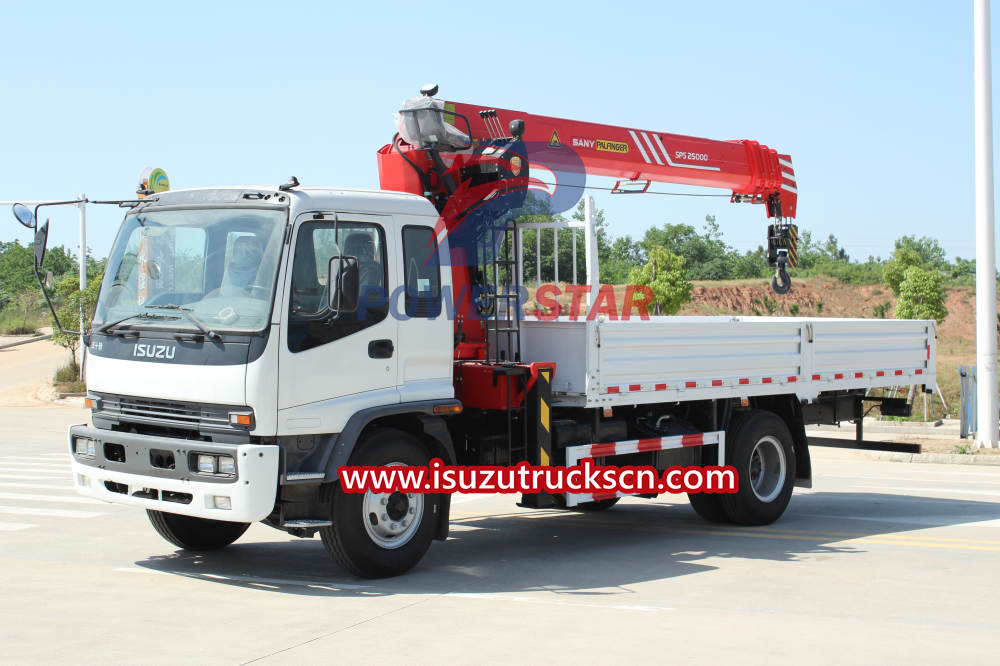

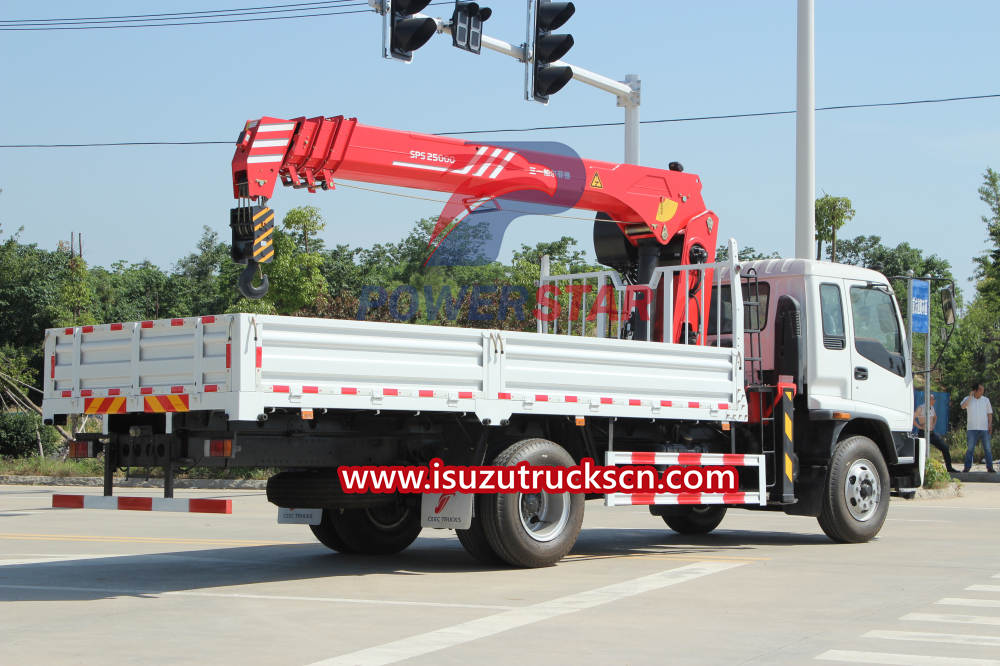

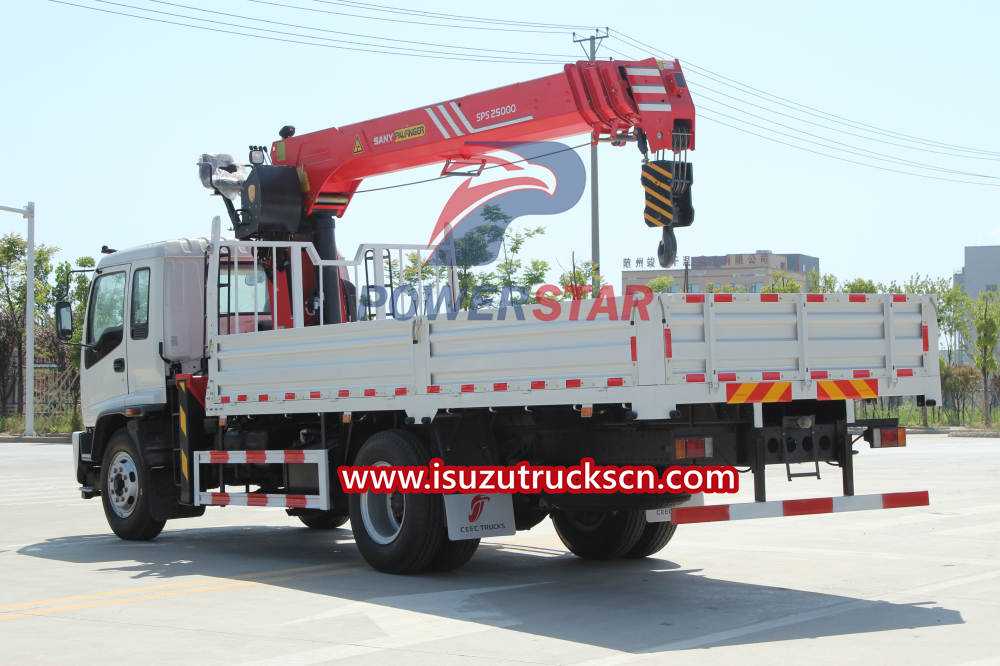

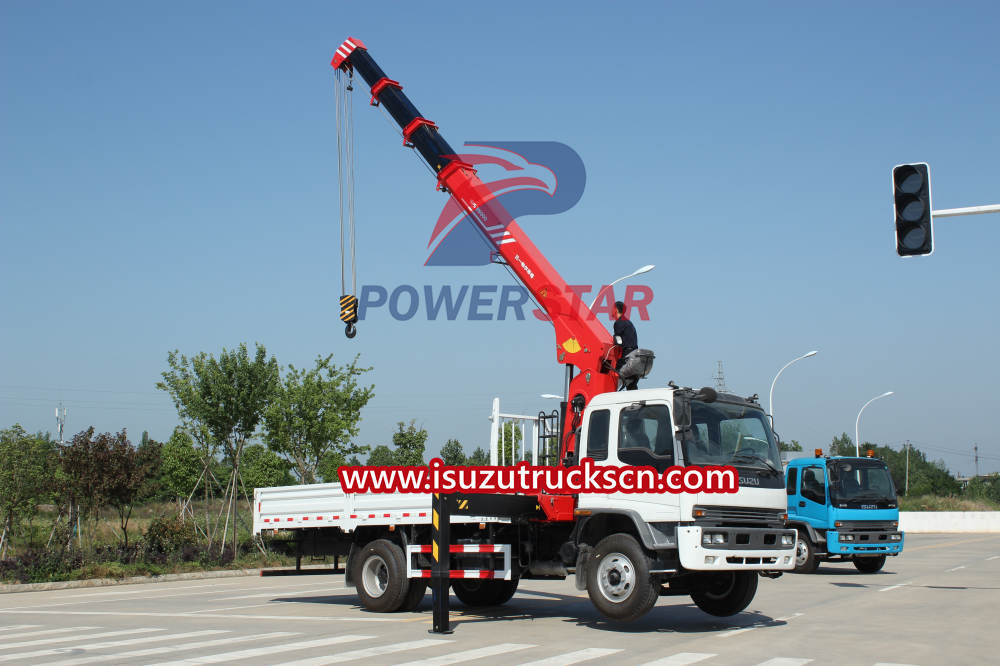

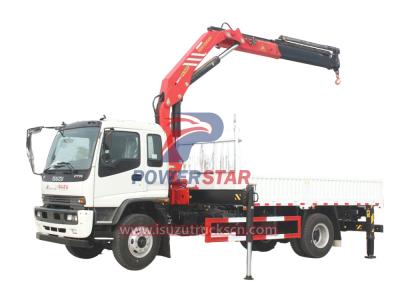

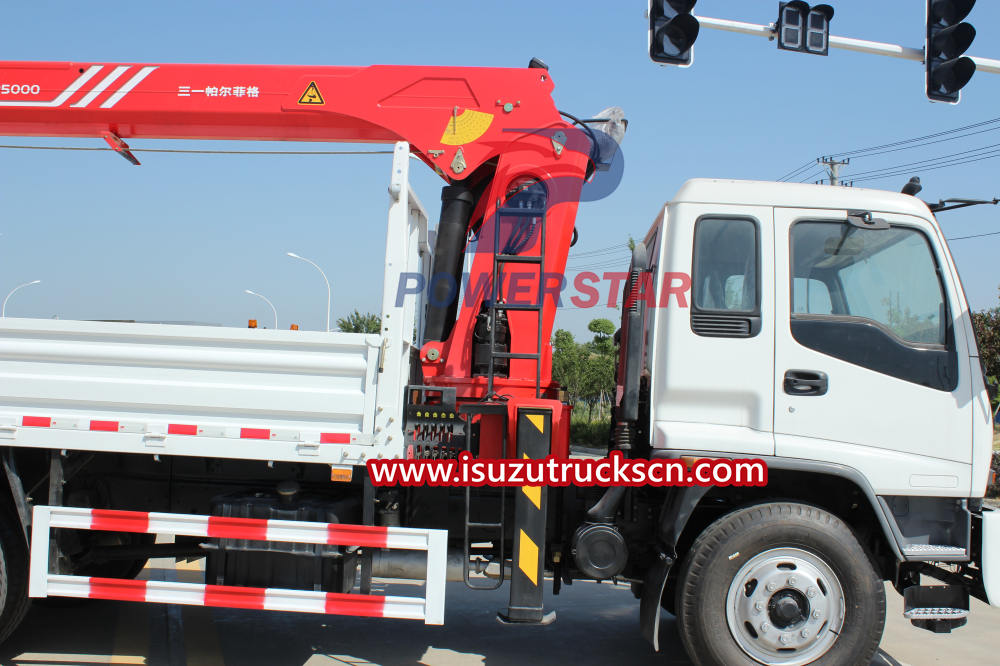

Isuzu FTR chassis Truck Loader Crane Palfinger
The Myanmar 10tons Isuzu FTR Chassis dropside cargo Truck Loader Crane with the Palfinger SPS25000 boom crane is specifically designed for the petroleum industry. It is suitable for various tasks, including equipment loading and unloading, maintenance operations, and transporting heavy materials within petrochemical facilities, drilling sites, and refineries.
Work capacity:
10 TonsTruck model:
PT5180JSQEngine power:
205 HPEngine type:
Isuzu 4HK1-TC60Axle drive:
4x2Gear box:
Isuzu MLD 6SRemarks:
Wireless remote control, Palfigner boom craneThe Isuzu FTR Chassis Truck Loader Crane equipped with the Palfinger SPS25000 is a cutting-edge and versatile solution introduced by the Myanmar Oil Company. This innovative combination offers exceptional performance and efficiency in the handling and transportation of heavy loads within the petroleum industry.
2. Features:
- Powerful Truck Chassis: The Isuzu FTR Chassis provides unmatched power and durability, ensuring smooth and reliable operations. With its robust design and advanced engine, it can handle the demanding tasks required in the petroleum industry.
- Flexible Boom Configurations: The loader crane ISuzu Giga offers multiple boom configurations, enabling it to adapt to various job site requirements. Whether it's extending horizontally or vertically, the crane ensures optimal reach and maneuverability for efficient loading and unloading.

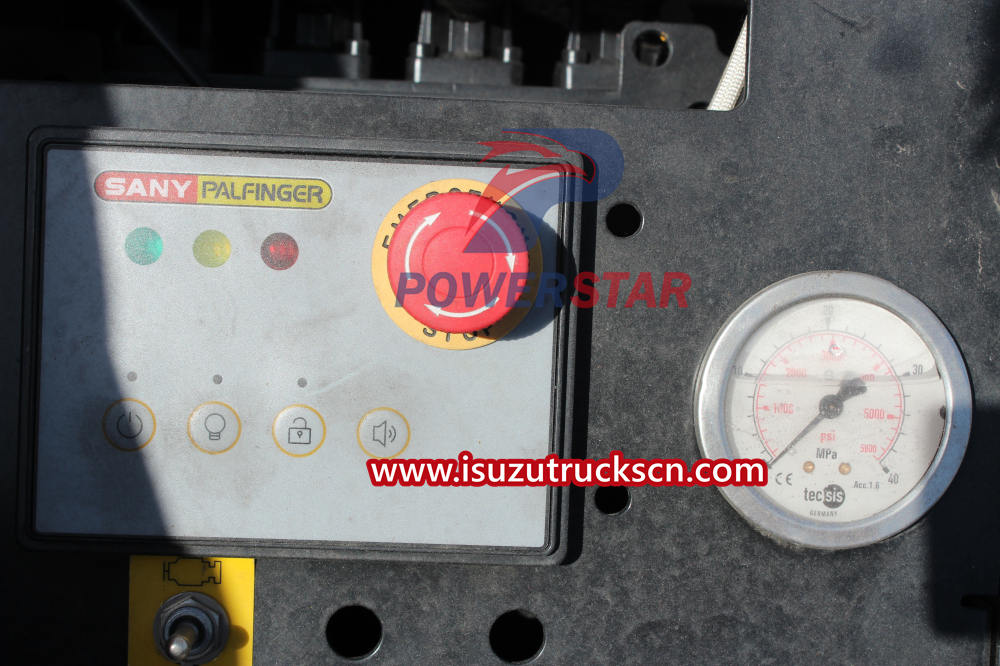

- Advanced Safety Features: Safety is a priority, and the Isuzu FTR Chassis Truck Loader Crane is equipped with state-of-the-art safety features. These features include stability control, overload protection, and emergency stop buttons, ensuring the well-being of operators and bystanders.
 |
 |
 |
 |
3. Advantages:
- Enhanced Efficiency: The Isuzu FTR Chassis Truck Loader Crane with the Palfinger SPS25000 reduces operational time and effort by combining loading and transportation functions into a single machine. This boosts productivity and reduces costs associated with separate equipment and labor requirements.
- Versatile Application: The versatile design of this truck loader crane makes it suitable for various applications within the petroleum industry. It can handle tasks such as heavy equipment maintenance, material handling, and rigging operations with ease and precision.
- Cost-effective Solution: By combining the Isuzu FTR Chassis and the Palfinger SPS25000, the Myanmar Oil Company offers a cost-effective solution that maximizes efficiency and reduces the need for additional equipment. This results in reduced operating expenses and improved return on investment.
- Comprehensive After-sales Service: The Myanmar Oil Company provides comprehensive after-sales service, including regular maintenance, servicing, and technical support. Highly skilled technicians are available to ensure that the Isuzu FTR Chassis Truck Loader Crane operates at its peak performance and minimizes downtime.
4. Application:
The Isuzu FTR Chassis Truck Loader Crane with the Palfinger SPS25000 is specifically designed for the petroleum industry. It is suitable for various tasks, including equipment loading and unloading, maintenance operations, and transporting heavy materials within petrochemical facilities, drilling sites, and refineries.
| Isuzu Giga Chassis parameters | ||||
| Chassis model | GIGA Isuzu | Chassis brand | ISUZU | |
| Overall dimensions | 9390x2370x2760mm | Wheel base | 5800mm | |
| Front/rear wheel track | 1880/1800mm | Front/rear suspension | 1430/2760mm | |
| Approach/departure angle | 20/13° | Maximum speed | 90km/h | |
| Chassis Manufacturer | ISUZU MOTOR | |||
| Cab | Configuration | GIGA one and a half row cab ,forward control type, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension, adjustable driver seat, air conditioner, manual window, manual lock | ||
| Color | white,other color is optional | |||
| Engine | Model | ISUZU 4HK1-TC60 | ||
| Emission | Euro 3 | |||
| Type | 4 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine | |||
| Rated power | 205hp,rated power speed 2500rpm | |||
| Displacement | 5900ml | |||
| Max.torque | 560N·m | |||
| Bore x stroke | 102x120mm | |||
| Manufacturer | ISUZU | |||
| Tire | Size | 9.00-20 nylon tire | ||
| Number | 6+1 nos | |||
| Clutch | push type diaphragm spring clutch,Φ395mm | |||
| Fuel tank | 160L, Steel fuel tank | |||
| Front axle | 4.5T | |||
| Rear axle | 9.0T main reduction ratio 5.286 | |||
| Drive form | 4X2 | |||
| Rated voltage | 24V,DC | |||
| Transmissions | Gearbox ISUZU MLD 6S, 6 speed forward 1 reverse. | |||
| Steering device | Power assisted steering | |||
| Steering wheel | Left hand drive | |||
| GIGA Isuzu Truck mounted crane structure parameters | ||||
| Van dimensions | 5550X2294X600mm | Maximum loading of crane | 5 tons | |

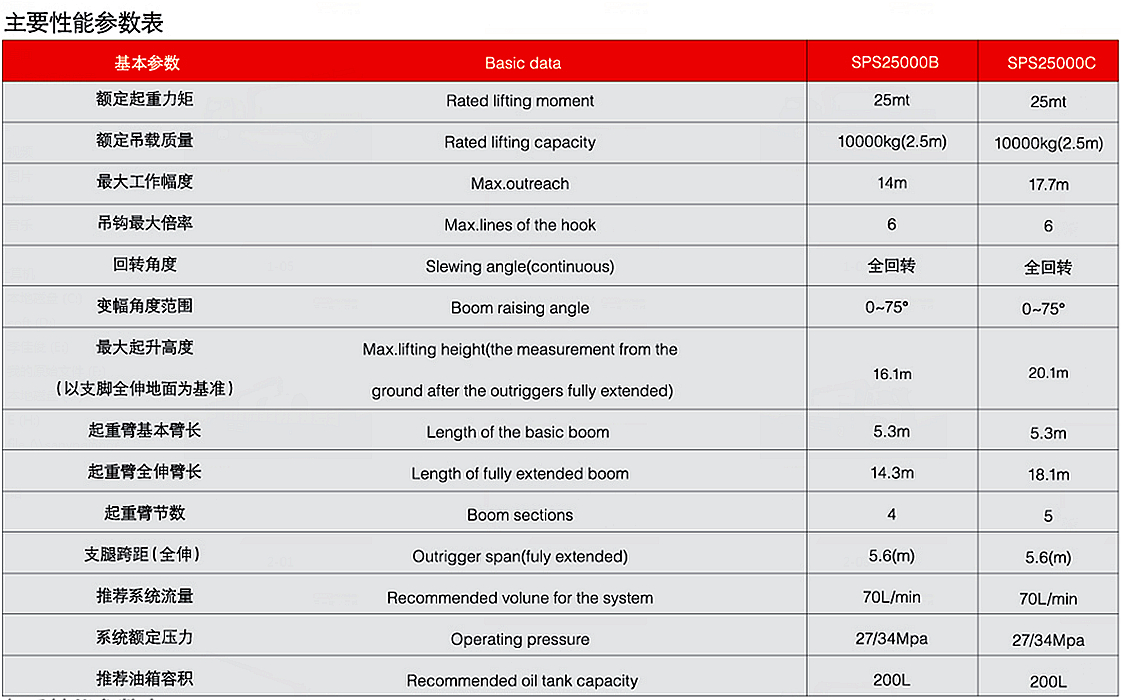

| Palfinger boom crane | ||||

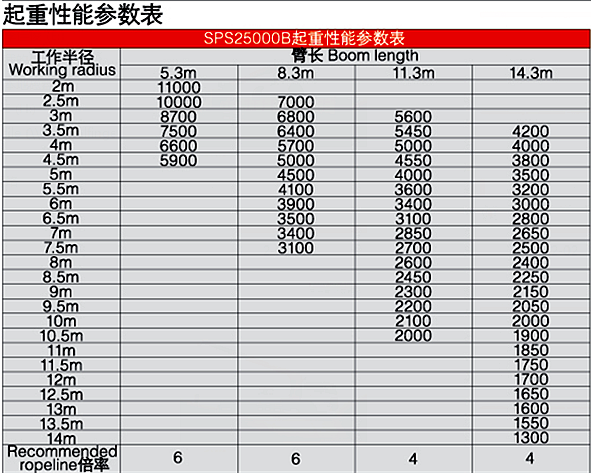

| Crane model | SPS25000 | Maximum lifting height | 20.1m | |
| Maximum working radius | 17.7m | Maximum loading | 10 tons | |
| Crane type | Stiff boom | Telescopic arms number | 5 | |
| Hydraulic, turning angle 360° | Color and Logo | Optional | ||

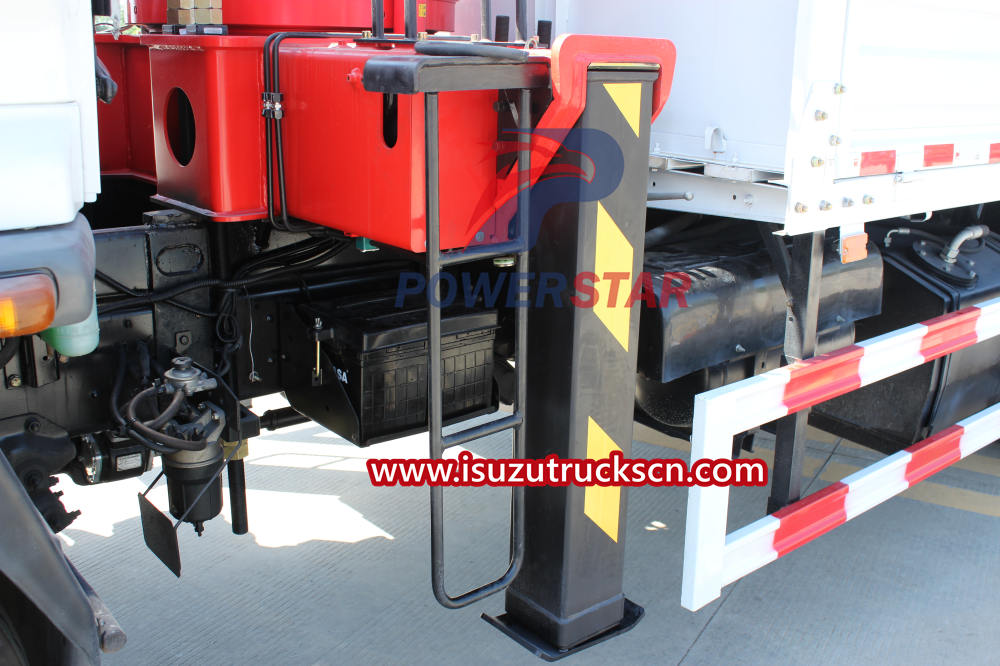

| Standard configuration | Chassis,sub frame,van body,Palfinger SPS25000 Knuckle boom truck crane equipped between the cabin and van body,mechanical leg. | |||
| Selective configuration | 2-20 tons Palfinger straight arm truck crane,1-30 tons Palfinger Knuckle boom truck crane,other brand truck crane,crane equipped at the rear of van body,lifting hydraulic cylinder for unloading,hydraulic legs,aerial working seat. | |||
5. After-sales Service:
Customers can expect a comprehensive after-sales service in their partnership with the Myanmar Oil Company. This includes regular maintenance, prompt servicing, and technical support to optimize performance and ensure the longevity of the truck loader crane. Spare parts availability and responsive assistance are also provided to minimize any potential downtime.
6. FAQ:
- Can the Isuzu FTR Chassis Truck Loader Crane handle hazardous environments?
Yes, the Isuzu FTR Chassis Truck Loader Crane is designed to operate safely in various environments, including hazardous and volatile conditions within the petroleum industry.
- What is the maximum lifting capacity of the Palfinger SPS25000 Loader Crane?
The Palfinger SPS25000 Loader Crane has a maximum lifting capacity of X tons, offering the ability to handle heavy loads efficiently.
- Are there different boom lengths available for the loader crane?
Yes, the Palfinger SPS25000 Loader Crane can be equipped with different boom lengths to cater to specific lifting requirements. This ensures optimal reach and versatility in various job site scenarios.
- Is operator training provided for operating the loader crane?
Yes, operator training is available to ensure safe and efficient operation of the Isuzu FTR Chassis Truck Loader Crane. This includes guidance on proper handling, safety protocols, and maintenance procedures.
7. Upper Body Customization:
The Myanmar Oil Company offers customization options for the upper body of the Isuzu FTR Chassis Truck Loader Crane. Additional features, such as storage compartments, hydraulic systems, or equipment mounts, can be incorporated to further enhance its functionality and convenience.
 |
 |
 |
 |
 |
 |
8. Truck Chassis Choice:
The Myanmar Oil Company provides a range of truck chassis choices to meet specific customer requirements. Different options in engine power, payload capacity, and additional features allow customers to select the most suitable chassis base for their operations within the petroleum industry.
ISUZU VC46 VC61 GIGA Transport Delivery Truck Heavy duty Cargo Truck Light Truck Van Truck Dump Truck New Truck
Learn More

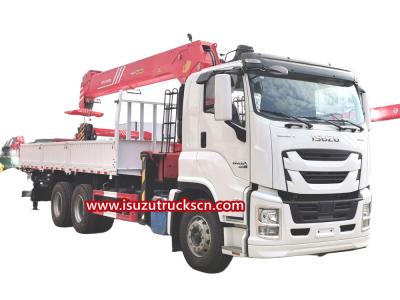

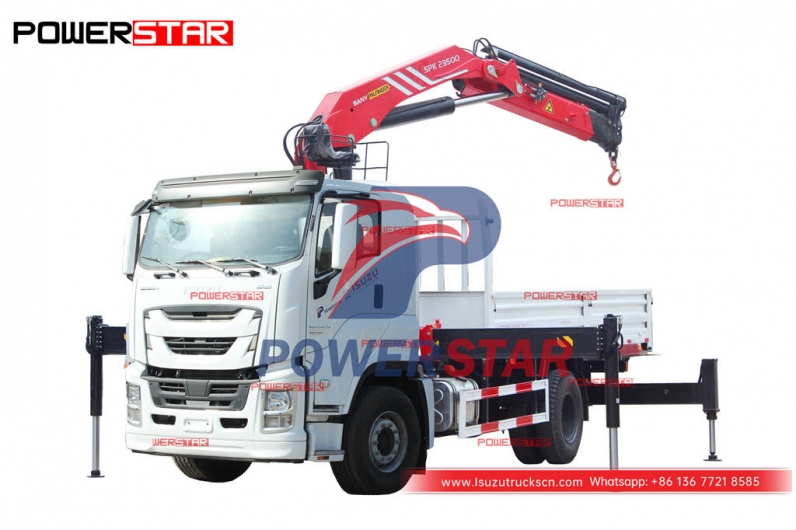

Original ISUZU GIGA Truck Mounted Crane Palfinger SPK23500, Palfinger Knuckle Boom Crane Truck ISUZU
Learn More

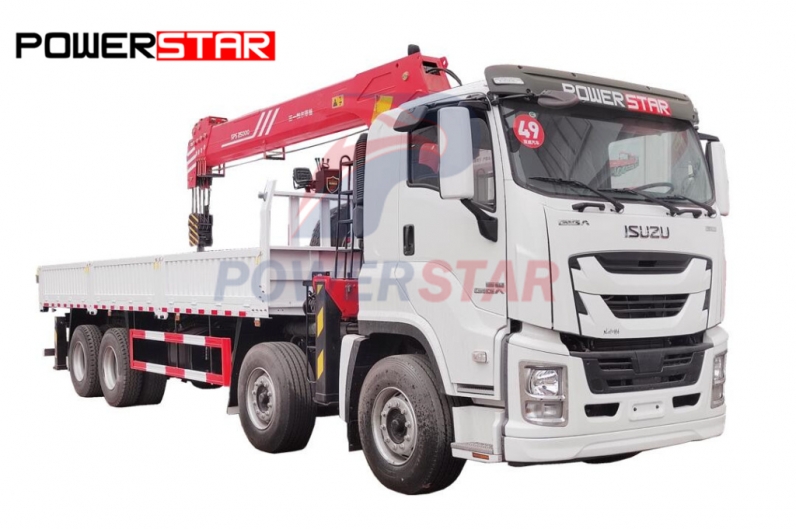

ISUZU 8X4 12 wheels GIGA Telescopic boom truck crane GIGA Truck with hydraulic mobile crane
