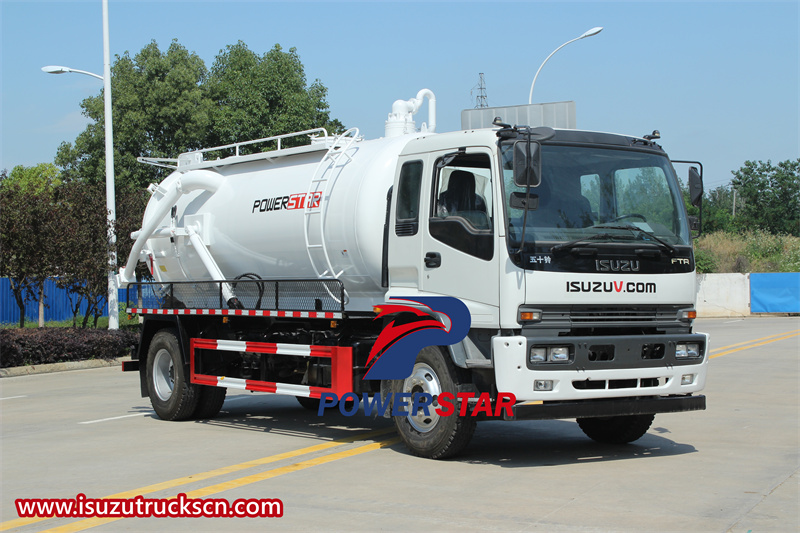

Isuzu FTR 10CBM sewage disposal truck adopts the Isuzu FTR chassis and is equipped with an original Isuzu single-row cab. It can seat 3 people. The tank volume is 10 cubic meters. It is made of 6mm thick high-quality carbon steel. It is equipped with a 4HK1-TC60 engine and has National VI emissions of 205 Horsepower, strong power. MLD 6-shift manual gearbox. Equipped with Hangzhou Weilong vacuum sewage pump and domestic high-quality hydraulic cylinder, 295/80R22.5 tires, wheelbase 4500mm, the car has advanced design, reasonable structure, complete configuration and operation Easy to maintain.
Work capacity:
10cbmTruck model:
PT5180GXWEngine power:
205HPEngine type:
4HK1-TC60Axle drive:
4x2. left hand driveGear box:
MLD 6-shift manual gearboxRemarks:
China famous vacuum pump, Italy Jurop or Moro pump for option
Isuzu FTR 10CBM sewage disposal truck also called Isuzu vacuum sewage suction truck, sewage vacuum pump truck,Isuzu vacuum tanker truck, Isuzu sewage disposal trucks, Isuzu sewer tanker truck, Isuzu septic suction truck, Isuzu vacuum cleaner truck ,Isuzu vacuum suction truck,Isuzu sewage vacuum truck ,Isuzu waste vacuum truck ,Isuzu sewer truck ,Isuzu cesspit emptier ,etc.
The Isuzu FTR 10CBM sewage disposal truck is particularly suitable for the suction, transportation and discharge of sewage sediments in sewers, especially large objects such as sewer mud, silt, stones, bricks, etc., which greatly improves work efficiency.
POWERSTAR sewage disposal truck which use WEILONG or Italy BP vacuum pump, for 10CBM or more recommend Double Pump for efficiently working.
Key Features:
---- ISUZU chassis, perfect performance
---- ISUZU technology engine option, super powerful, no overhaul within 100,000 km.
---- Vacuum Tanker body capacity from 3 to 20 Cublic Meter.
---- Easy operation and easy maintenance.
---- Various types of refuse container lifter are available.
|
Vehicle Parameter |
||
|
Vehicle |
ISUZU FTR 10cbm sewage disposal truck |
|
|
Overall dimension (mm) |
8900x2470x3550 |
|
|
Sewage tank (m3) |
10 |
|
|
Gross vehicle weight (kg) |
18000 |
|
|
Curb weight (kg) |
8580 |
|
|
Wheel base (mm) |
4500 |
|
|
Max speed (km/h) |
95 |
|
|
Chassis Parameter |
||
|
Cabin |
Flat top cabin,a sleeper,power steering, air conditioner, 3 passengers,left hand drive |
|
|
Drive form |
4×2，left hand drive |
|
|
Engine |
Brand |
Isuzu |
|
Model |
4HK1-TC60, 205hp |
|
|
Type |
diesel, turbocharged, 6 cylinder. |
|
|
Displacement |
5193ml |
|
|
Emission standard |
Euro 6 |
|
|
Transmission |
6 forward,1 reverse, manual operated |
|
|
Tire model |
295/80R22.5 |
|
|
No.of tires |
6pcs, with 1pc spare tire |
|
|
Superstructure Parameter |
||
|
Characteristic |

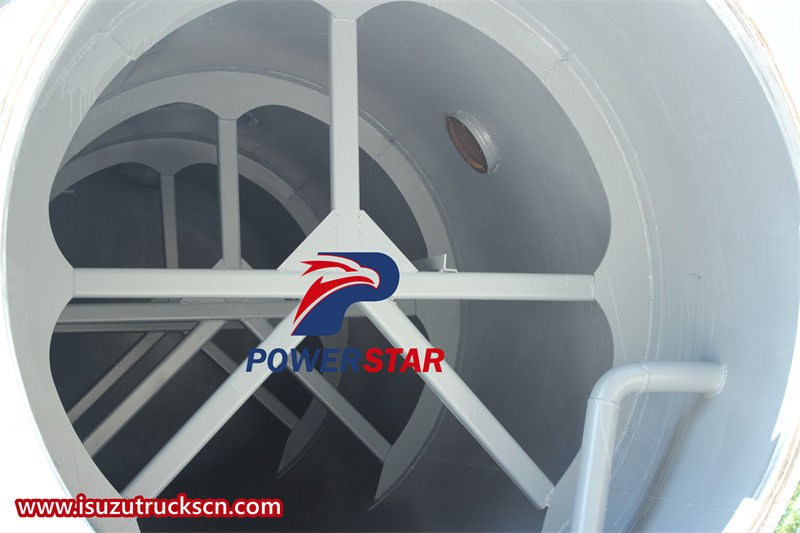

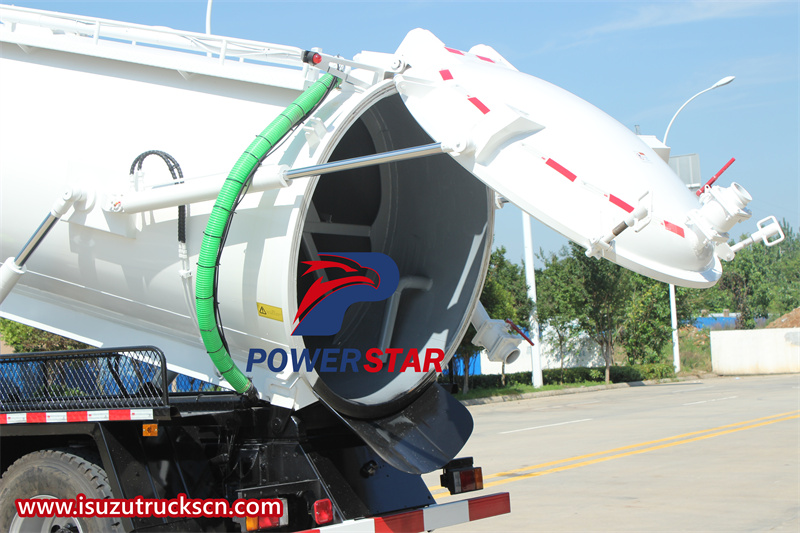

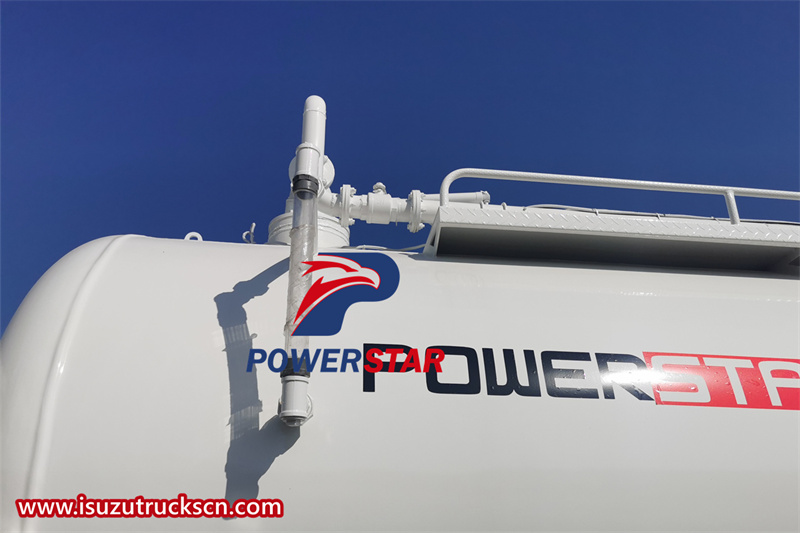

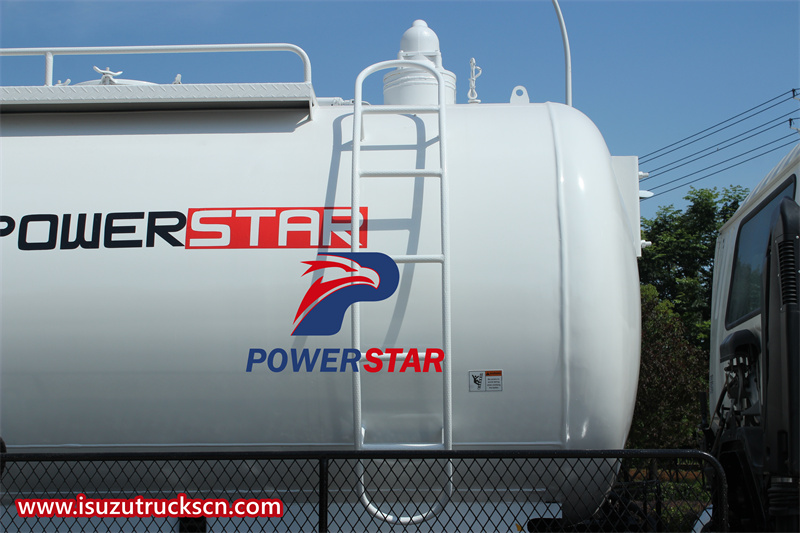

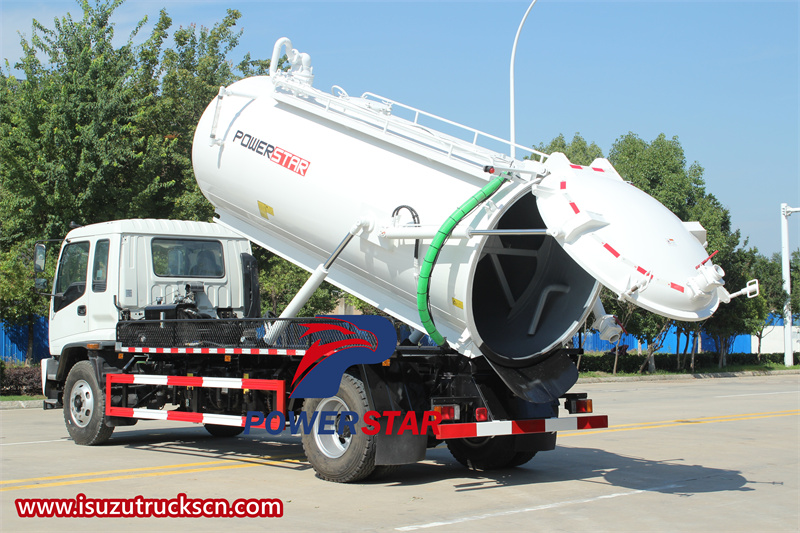

1. Sewage tank volume 10000 liter. 2. Sewage tank material is carbon steel,thickness 6mm. 3. Sewage suction pipe 1pcs, length 7m. 4. Hydraulic lifting sewage tank,rear cover can open. 5. Equipped with PTO. 6. Equipped with vacuum pump. 7. Equipped with oil water separator, overflow valve,looking sewage window, self flow exit,hand washing device. |
|
|
Performance |
(1) Vertical suction ≥ 7m. (2) Pumping speed : 45L/s. (3) Intake and exhaust diameter: 50mm. (4) Full tank pumping time ≤ 5min. (5) Sewage tank emptying time ≤ 4min. |
|
The Isuzu FTR 10CBM sewage disposal truck is manufactured based on the Isuzu FTR chassis and has a tank volume of 10 cubic meters. It is widely used in urban sanitation, sewage treatment, road cleaning, construction sites and other fields. It can effectively clean up silt in sewers, drainage ditches, septic tanks and other places, reduce environmental pollution and improve urban sanitation levels. With strong sewage suction capacity and high operating efficiency, it is an ideal choice for urban sanitation, sewage treatment, road cleaning and other fields. At the same time, the vehicle can also be used for emergency response and rescue work after natural disasters, contributing to the safety and stability of the city.

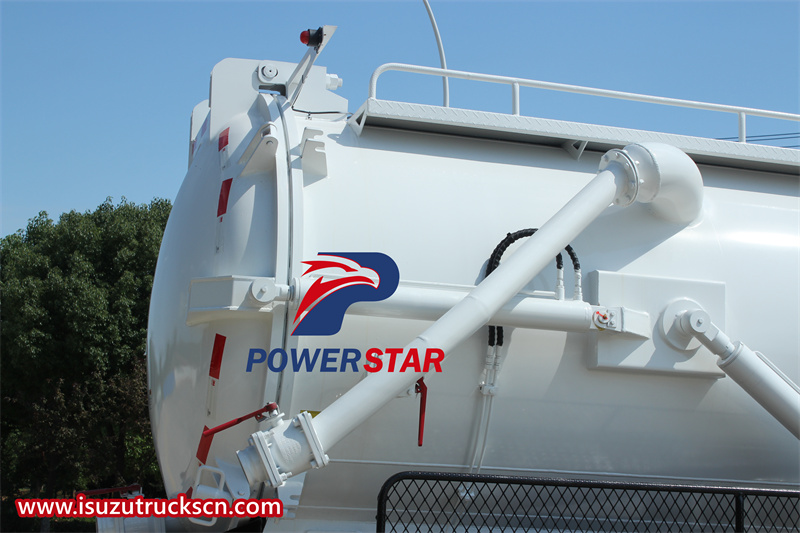

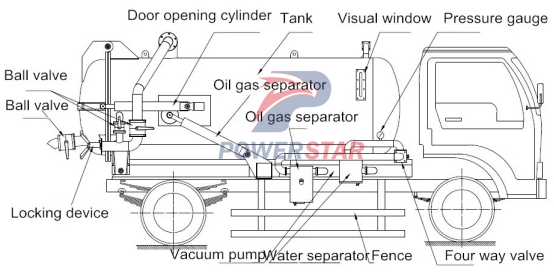

Structure of Isuzu FTR 10CBM sewage disposal truck

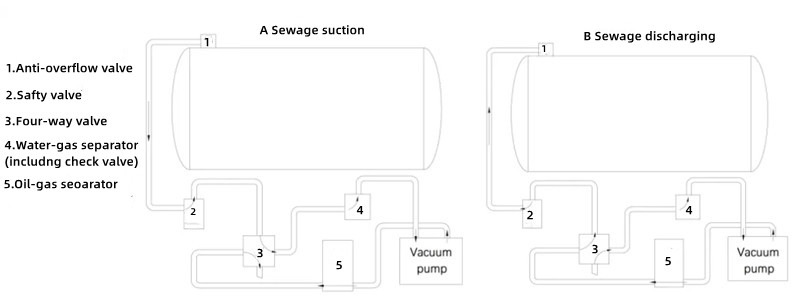

A. Sewage suction: The vacuum pump pump-out the air inside the tank to atmosphere, when reach less pressure than atmosphere, the sewage will be sucked into the tank by suction pipe.
B. Sewage discharging: The vacuum pump pump-in the air from atmosphere into the tank, when reach more pressure than atmosphere, the sewage will be discarhged via outlet port at rear.
Technical drawing of Isuzu FTR 10CBM sewage disposal truck
Due to its design and configuration, the Isuzu FTR 10CBM sewage disposal truck is ideally suited to operate in a variety of environments, especially those where large amounts of liquid and solid waste need to be handled. Here are some environments it's particularly suitable for:
1. Urban sewer cleaning: This sewage disposal truck is particularly suitable for cleaning urban sewers. It can effectively suck and transport sediments in the sewer, such as mud, silt, stones, bricks and other larger objects, ensuring the smooth flow of the sewer.
2. Factory sewage treatment: Factories often produce sewage containing various chemical substances or solid impurities, which need to be treated effectively. This sewage suction truck can help factories collect and treat sewage and reduce environmental pollution.
3. Construction sites: On construction sites, there is often a large amount of mud, sand and construction waste that needs to be cleaned up. The large capacity and powerful suction power of the 10CBM sewage disposal truck make it ideal for construction site cleanup.
4. Cleaning of public areas: In public areas, such as parks, squares and roads, there may be a large amount of garbage and sewage that need to be cleaned. This sewage suction truck can handle this waste quickly and effectively, keeping public areas clean and hygienic.
5. Emergency response: In natural disasters or emergencies, such as floods, heavy rains, etc., a large amount of sewage and waste may be generated. This sewage suction truck can respond quickly for emergency cleanup and rescue operations.
Overall, the 10CBM sewage disposal truck is suitable for operating in various environments that require the handling of large amounts of liquid and solid waste due to its powerful functions and wide applicability. Whether it is an urban environment, an industrial environment or a rescue environment after a natural disaster, it can perform efficiently and stably.

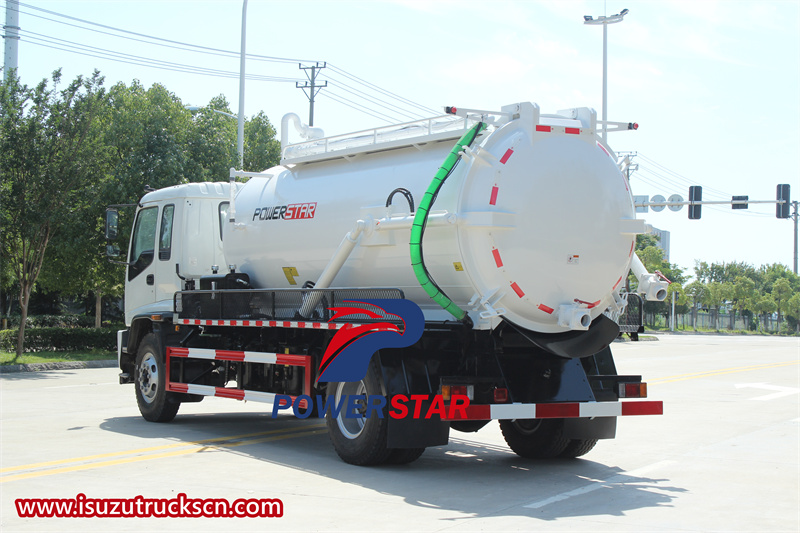

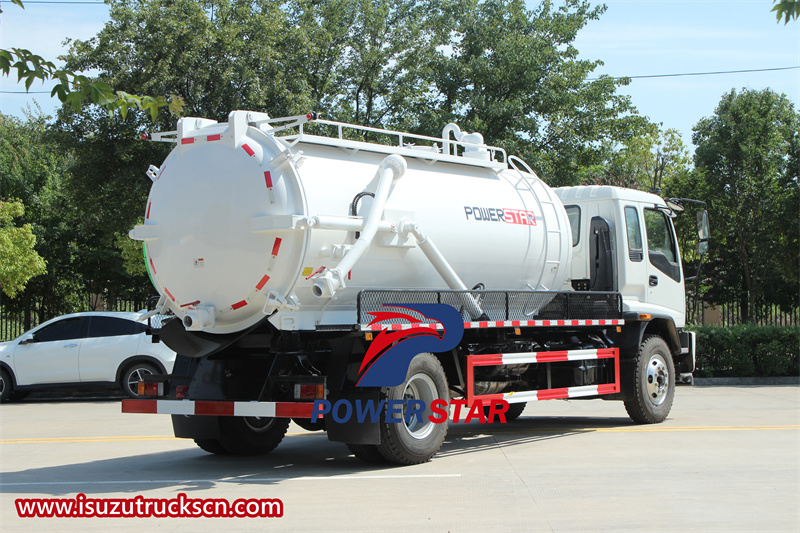

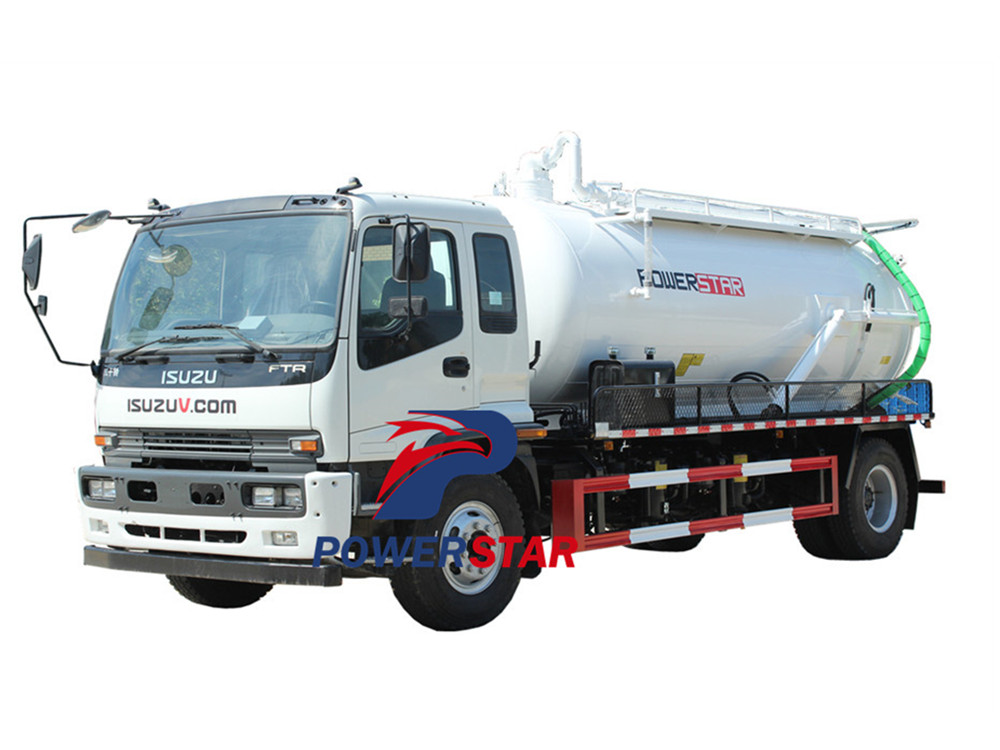

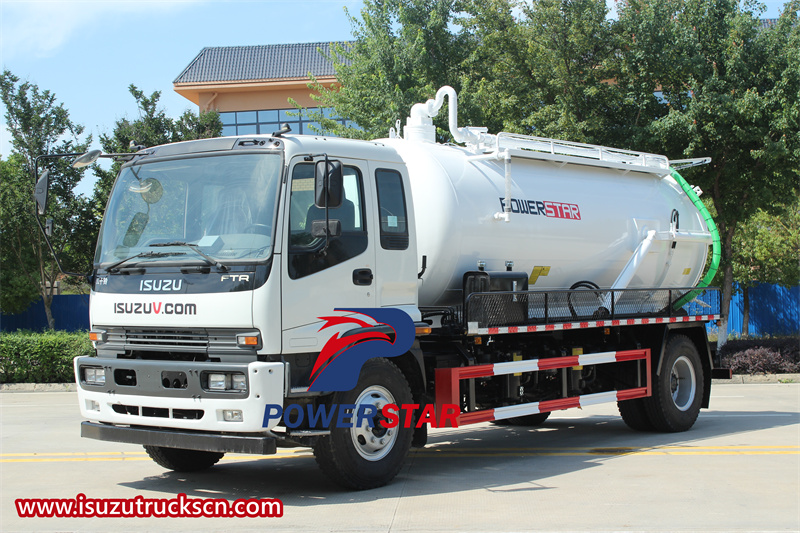

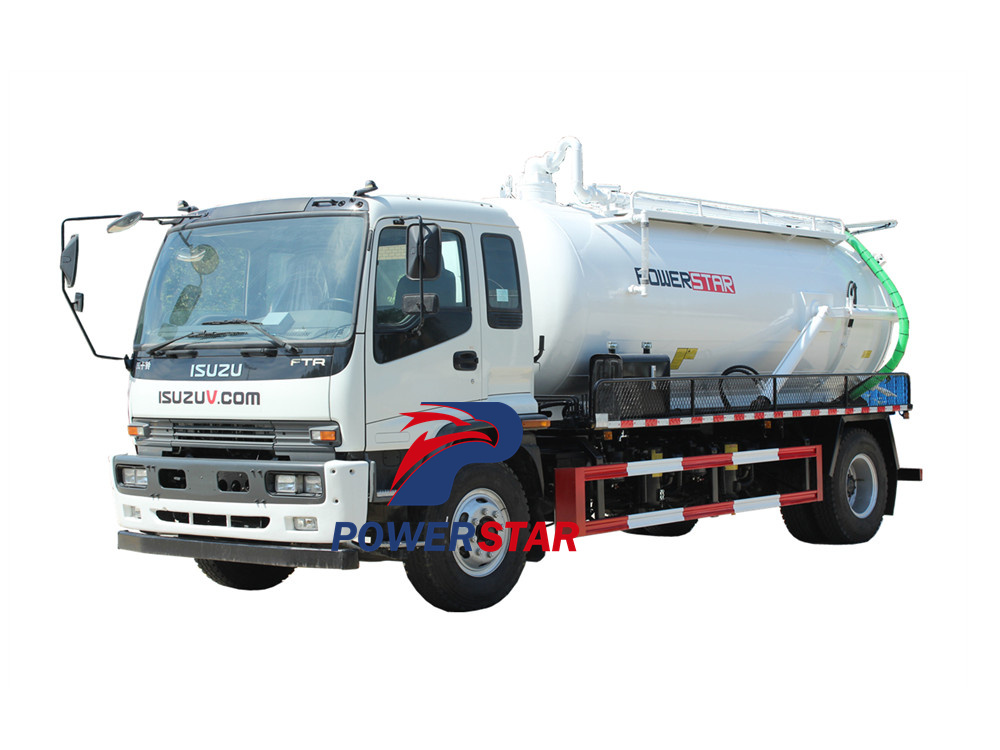

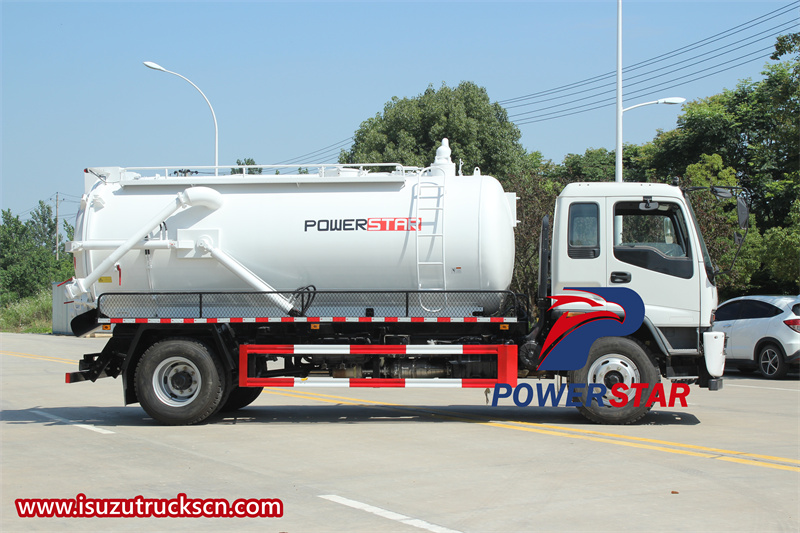

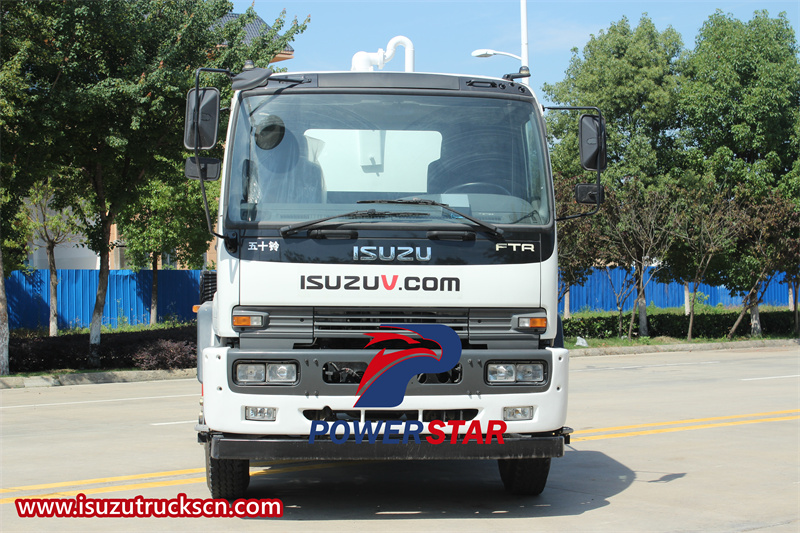

Isuzu FTR 10CBM sewage disposal truck
Isuzu 4x2 10cbm sewage suction truck
